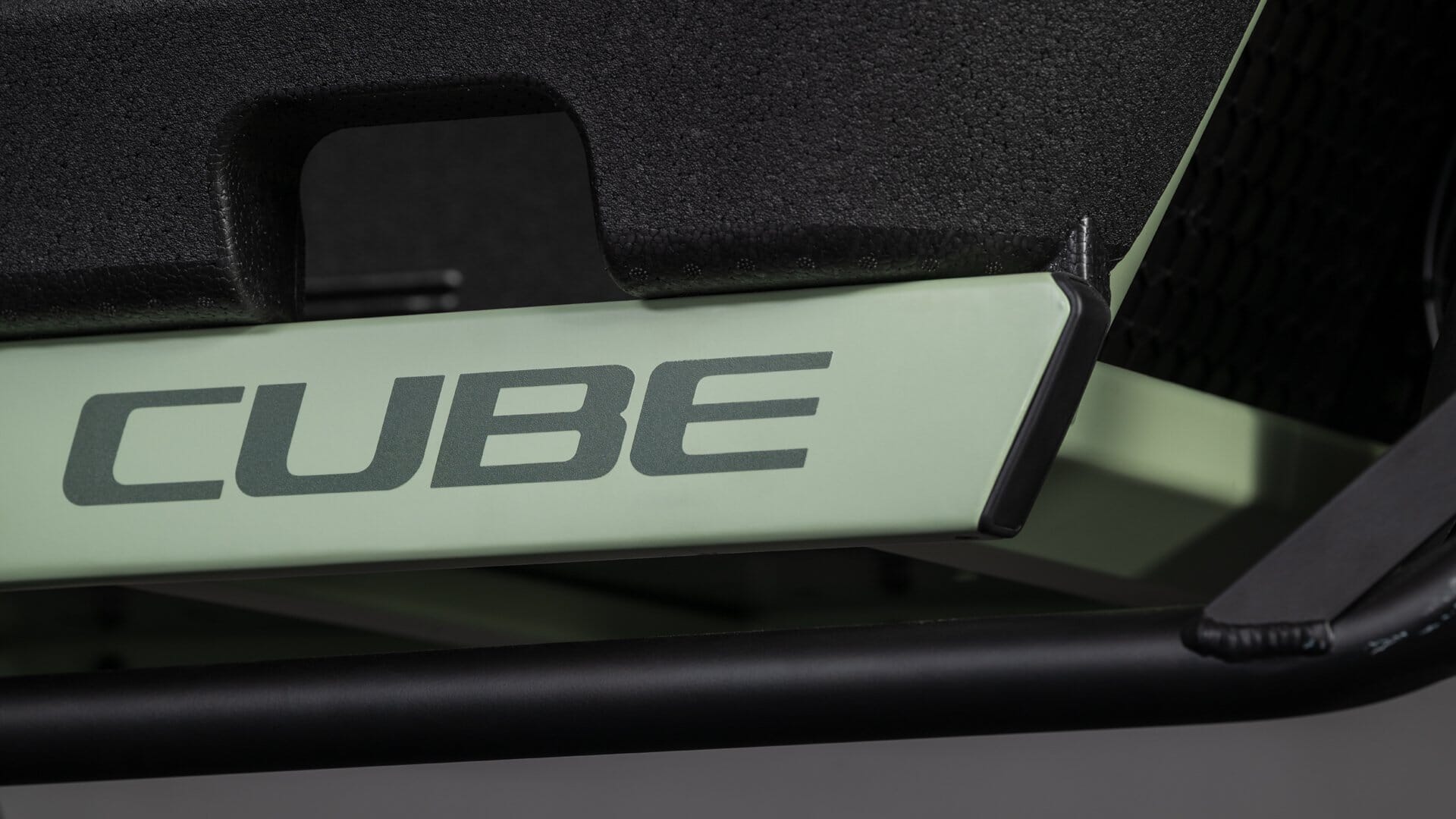

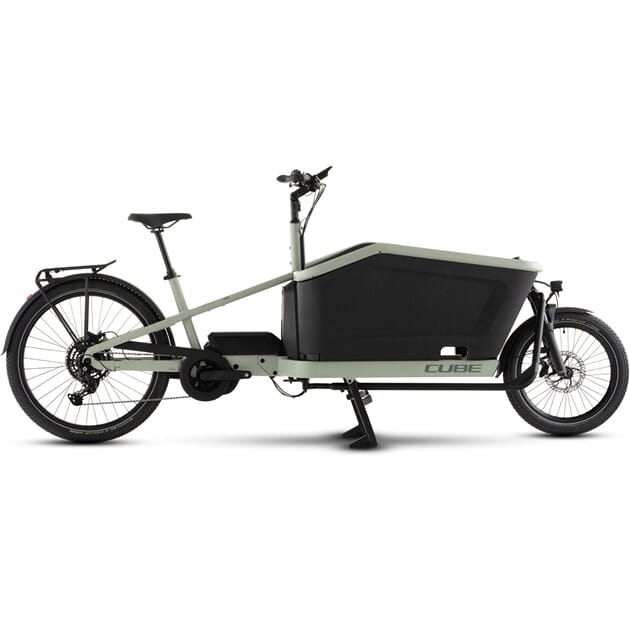

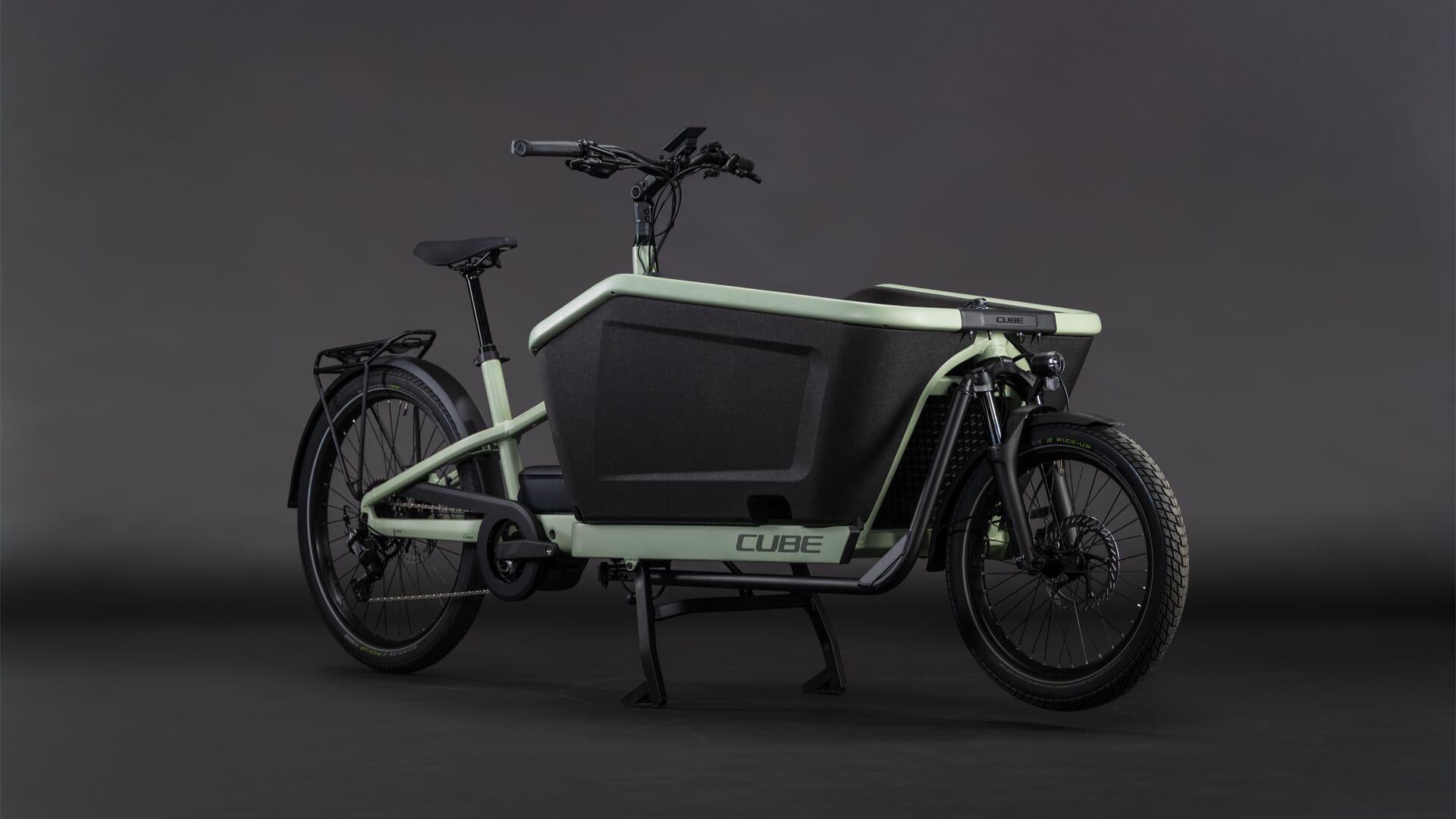

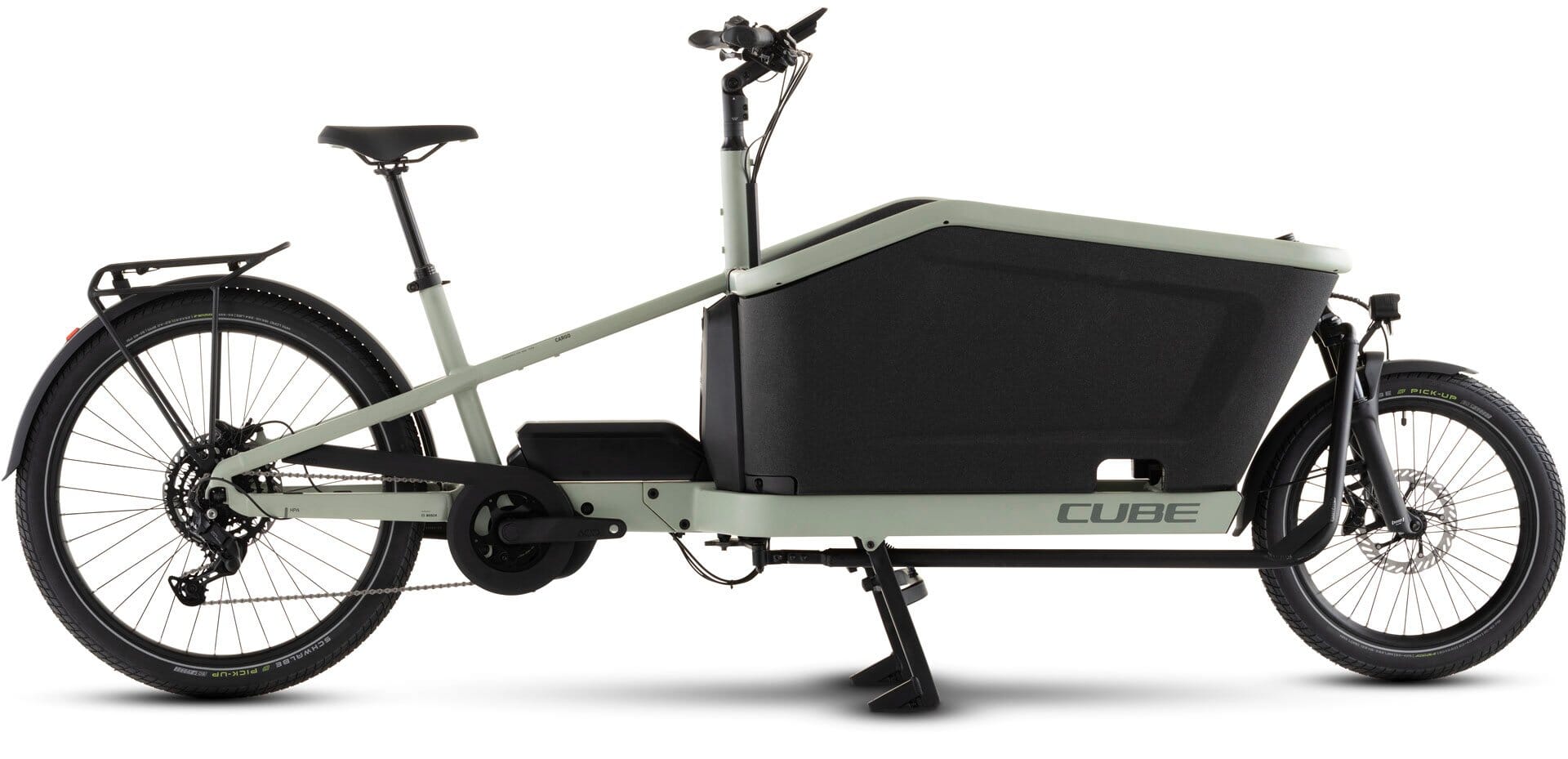

The Cargo Hybrid is a thoroughbred workhorse, with the ability to handle a total system weight of 200kg. The durable aluminium frame features an integrated motor mount to house the Bosch Cargo Line drive which, in tandem with the included 800Wh battery, offers up to 100Nm of torque – and there's the option to add a 250 Wh PowerMore range extender, for even more miles between charges. We've thought about the fine details, too. The rugged EPP foam cargo box is fitted with a rubber mat for reduced noise and easier cleaning, there's an additional small storage compartment for all your day-to-day essentials, and an integrated locking system – which works with an optional chain lock – allows you to lock both the bike and this compartment. A kickstand with elongated feet makes it easy to park, whilst the integrated chain guard helps keep your clothes clean. And, with an improved steering system featuring a reduced turning radius, it's easy and intuitive to ride.
Frame Material
Aluminium Superlite
Battery
800Wh
Wheels
20" / 26"
Highlights
Ushering in a new era of simple, clean and adaptable urban transport, the Cargo Hybrid 800 combines Bosch power and Shimano gearing with CUBE design smarts to offer traffic-beating flexibility and – with its clever cargo box – genuine load-carrying ability. Versatile urban travel for the 21st century.

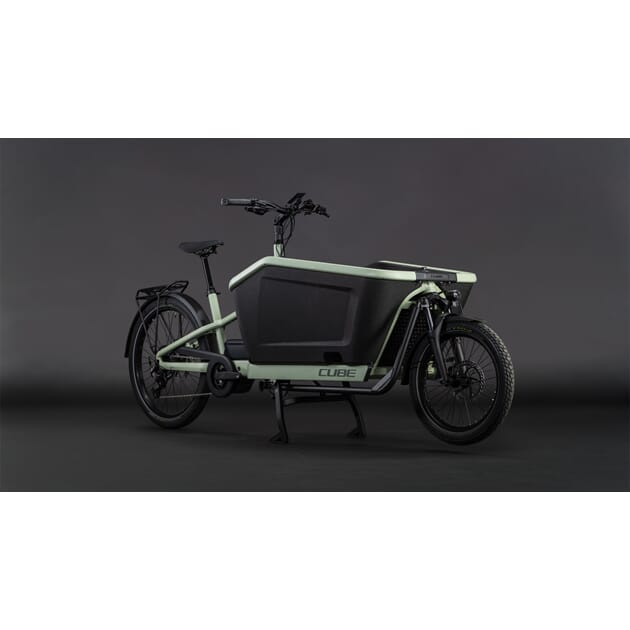

The Cargo Hybrid 800 will change the way you think about two-wheeled transport. With a maximum system weight of 200kg, rear carrier and its versatile EPP foam cargo box, it's capable of carrying more than you think – and optional accessories like child seats with safety harnesses extend its versatility even further. It's easy to ride, too. Bosch's powerful Cargo Line motor and an 800Wh battery offer up to 100Nm of pedal assistance, while easy-to-use and wide-ranging Shimano Cues 9-speed gears put the right ratio at your fingertips. Bright LED lights front and rear ensure you can see and be seen, mudguards and grippy tyres make light work of wet streets, there's a super-stable kickstand for easy parking, and powerful Shimano hydraulic disc brakes ensure you're always in control, whatever the weather. Wherever you're going and whatever you need to take with you, it's got you covered.
Frame
frame

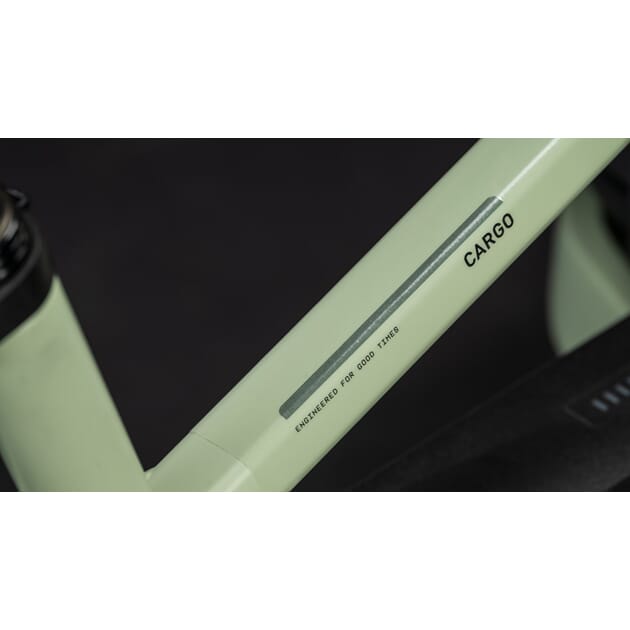

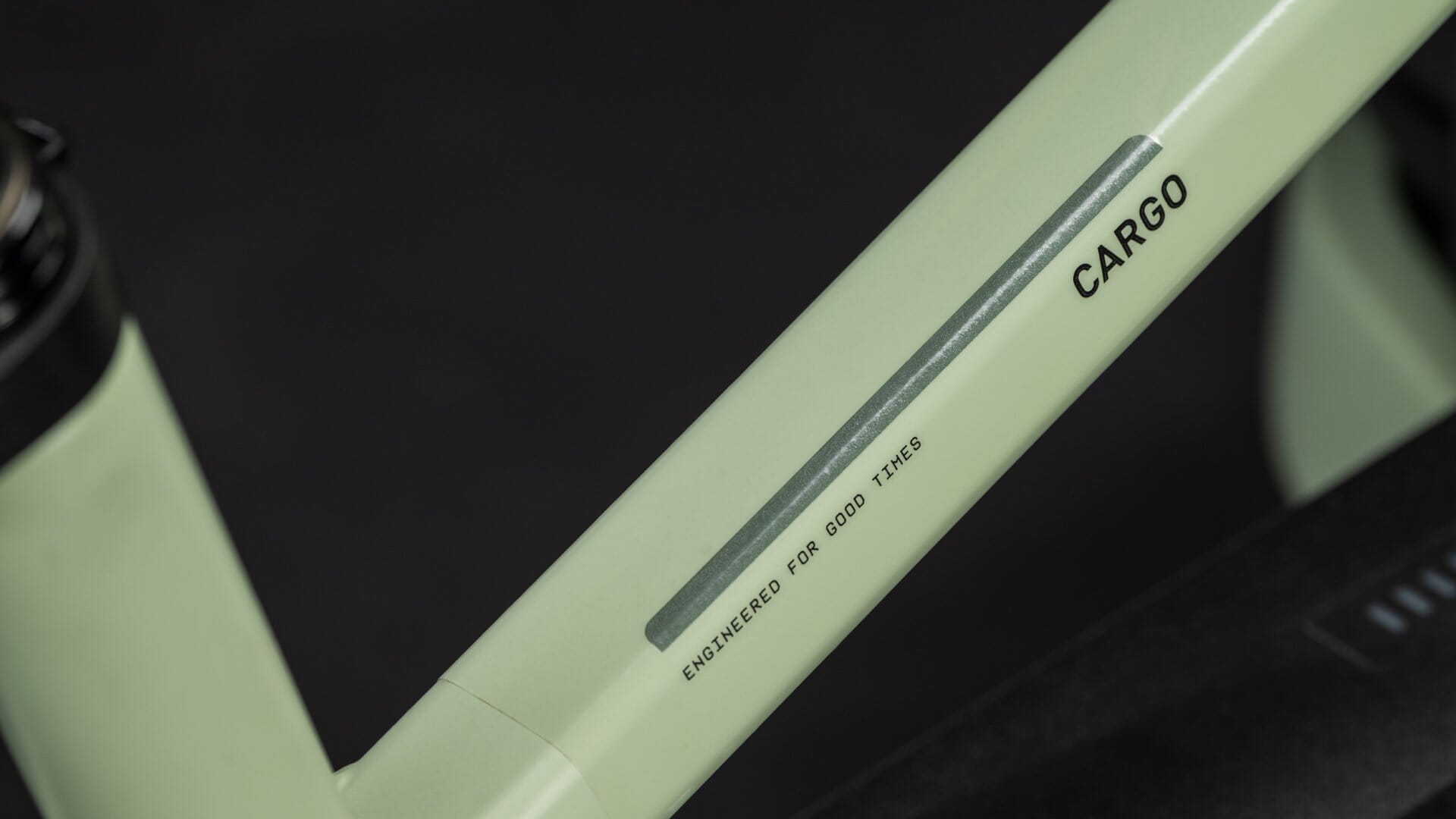

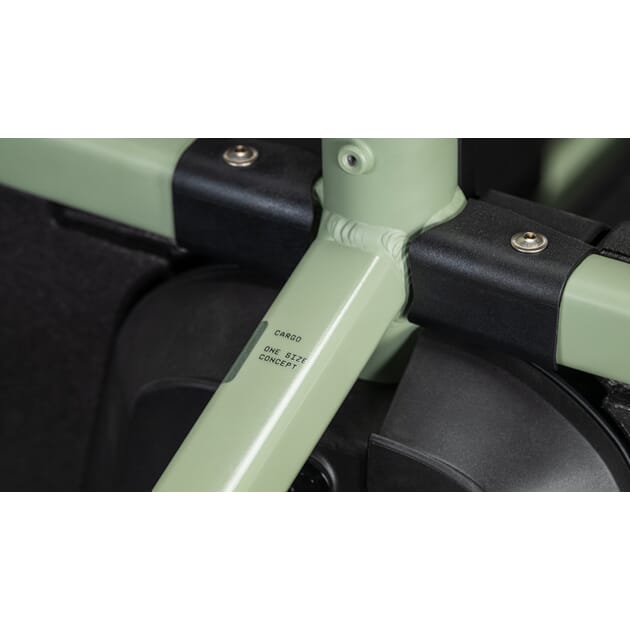

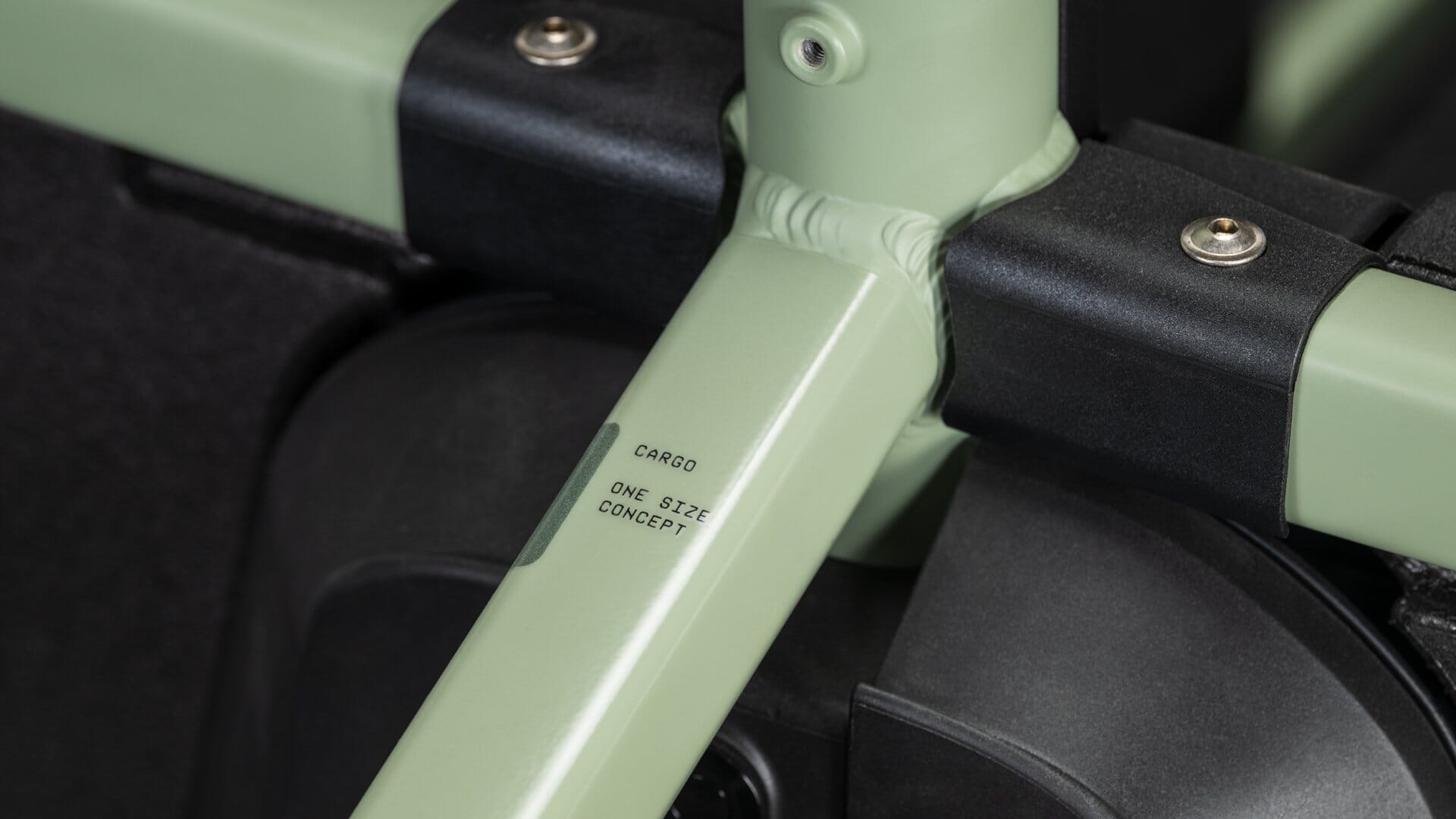

Aluminium Casting, Comfort Ride Geometry, Premium Durability and Safety, Integrated Chainlock Interface
size
One Size
Suspension
Suspension fork
SR Suntour Mobie34 Cargo, Tapered, 15x110mm
E-bike system
drive unit
Bosch Drive Unit Cargo Line max. 100Nm (BDU38)
Remote
Bosch LED Remote
battery
Bosch PowerPack 800
display
Bosch Kiox 500
charger
Bosch 4A
Drivetrain & brakes
brake system
Shimano BR-MT520, Hydr. Disc Brake (180/203)
rear derailleur
Shimano Cues RD-U4000-GS, 9-Speed
shifters
Shimano Cues SL-U4010- Rapidfire-Plus

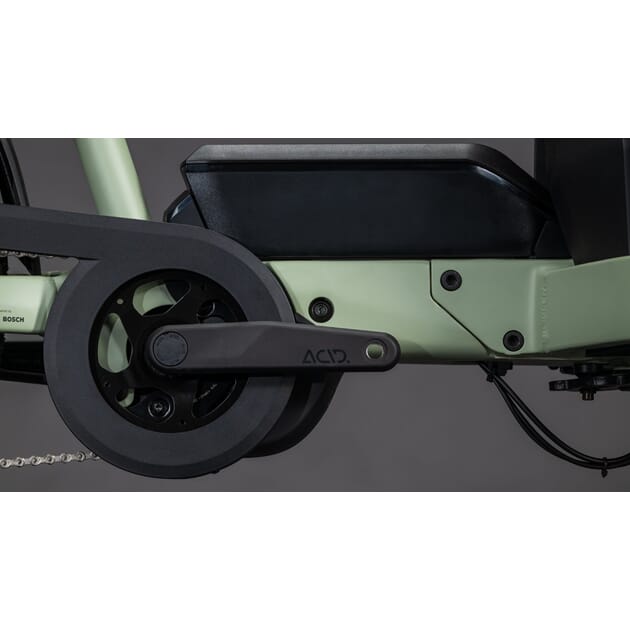

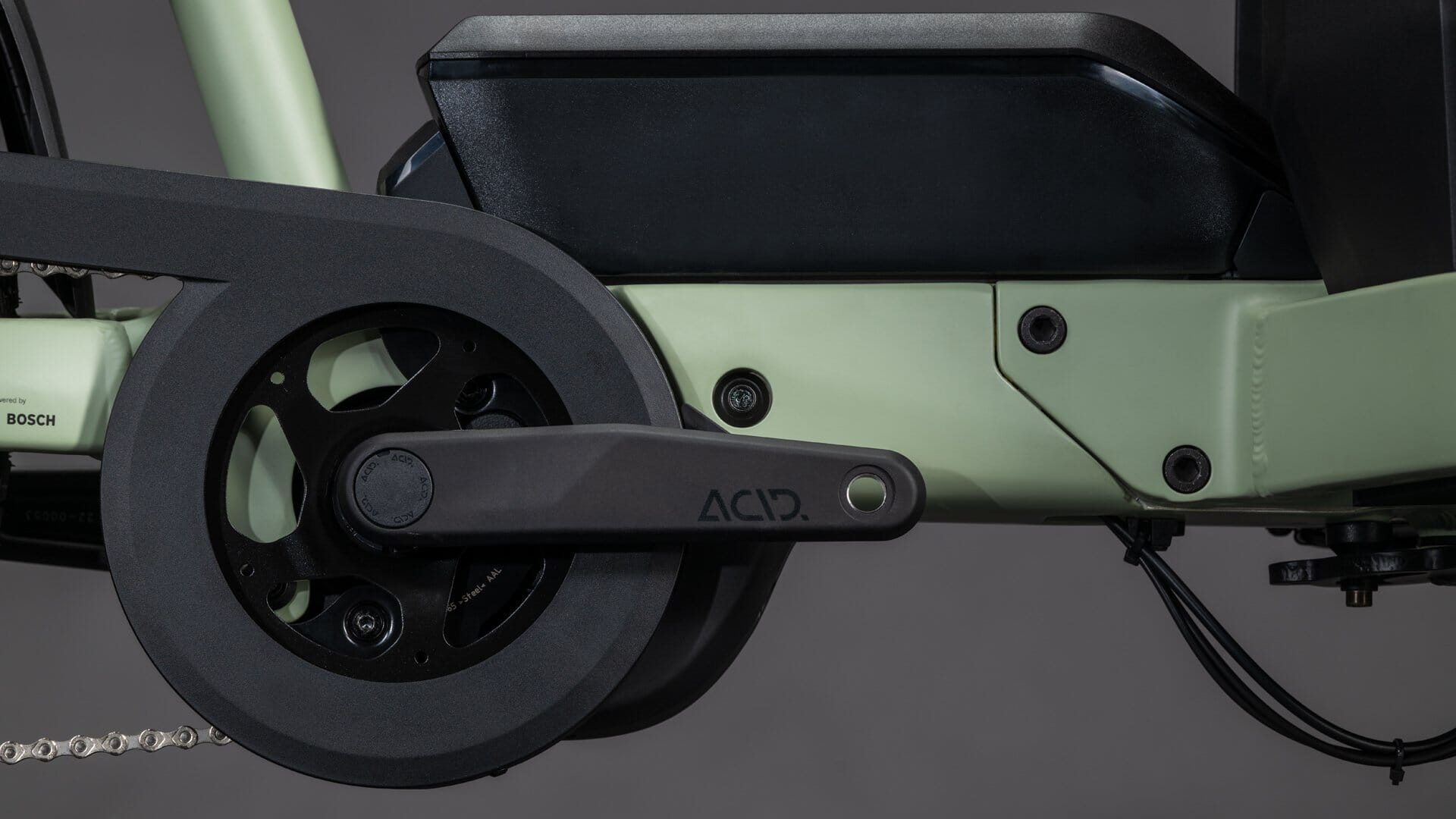

crankset
ACID Trekking Hybrid, 40T
cassette
Shimano Cues CS-LG300, 11-46T
chain
KMC eGlide
Cockpit
headset
VP sealed bearings and Cane Creek Viscoset
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
handlebar
CUBE Comfort Trail Bar, 680mm
grips
ACID Travel Comfort
Wheels
rims
ACID EX35, 36H, Disc, Tubeless Ready
front hub
ACID SLX, 15mm, Boost, Centerlock
rear hub
Shimaneo Deore FH-M5100, QR, Centerlock
front tyre
Schwalbe Pick-Up, Performance, Super Defense, 65-406
rear tyre
Schwalbe Pick-Up, Performance, Super Defense, 65-559
Finishing kit
saddle
ACID Shen Pro
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 34.9mm
pedals
ACID PP Trekking

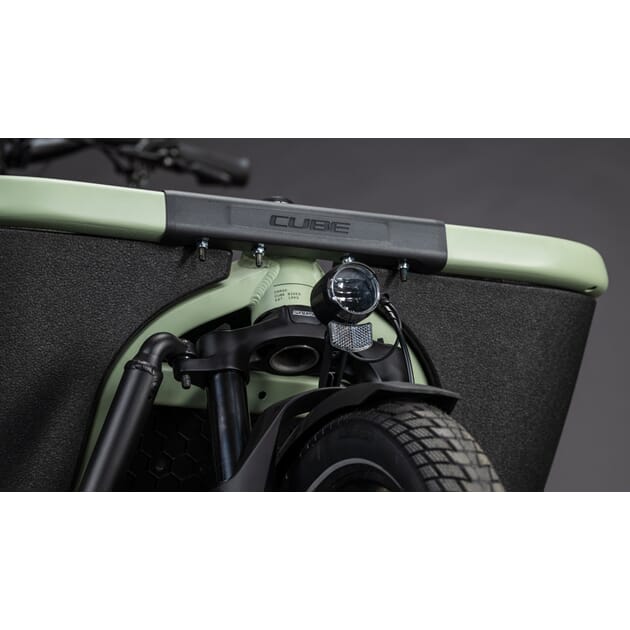

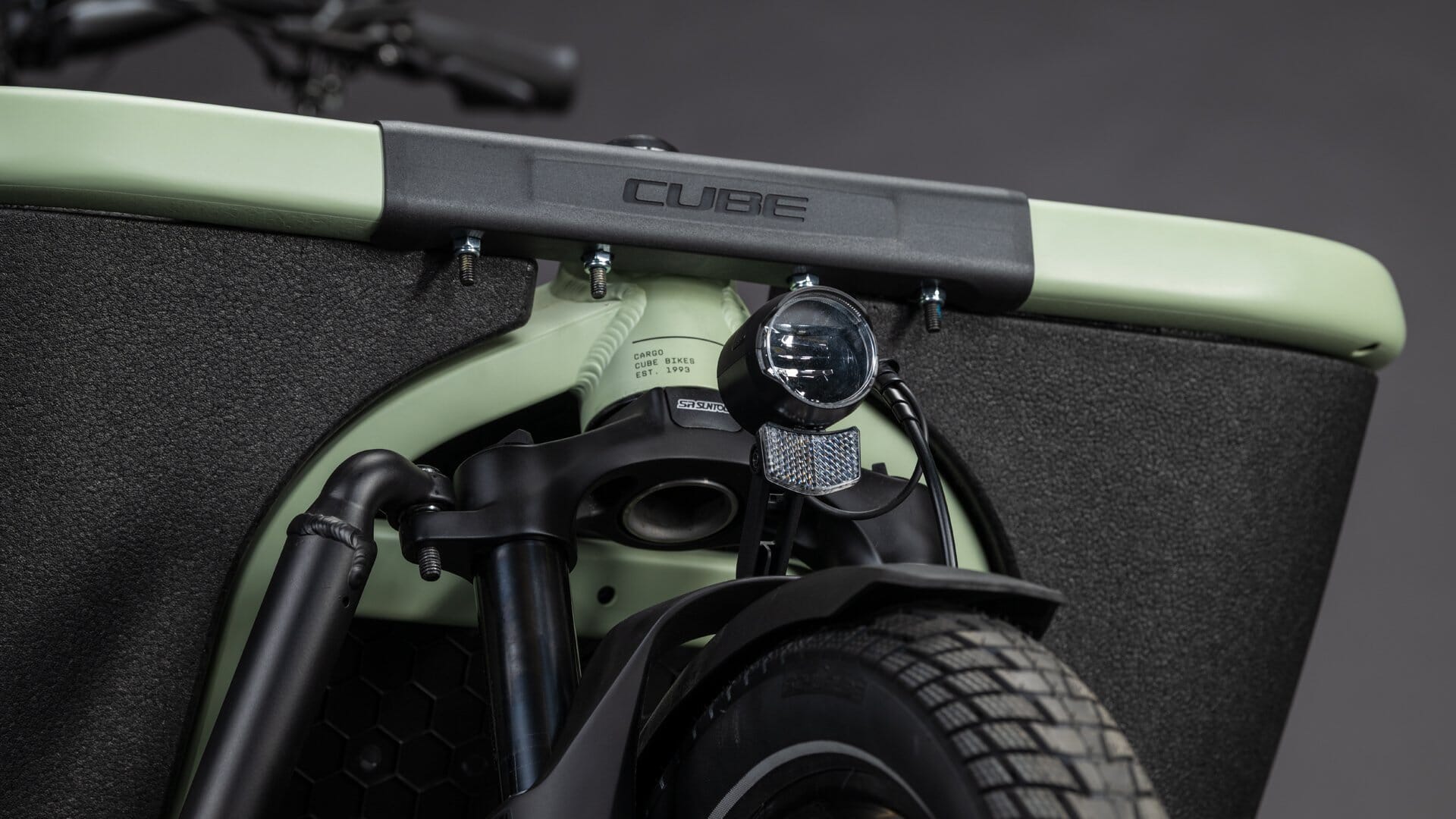

front light
ACID Front Light PRO-E 60 X-Connect, 12V, DC
rear light
ACID Mudguard Rear Light PRO-E, 12V, DC
bell
Reich Cycle Bells Ringsound

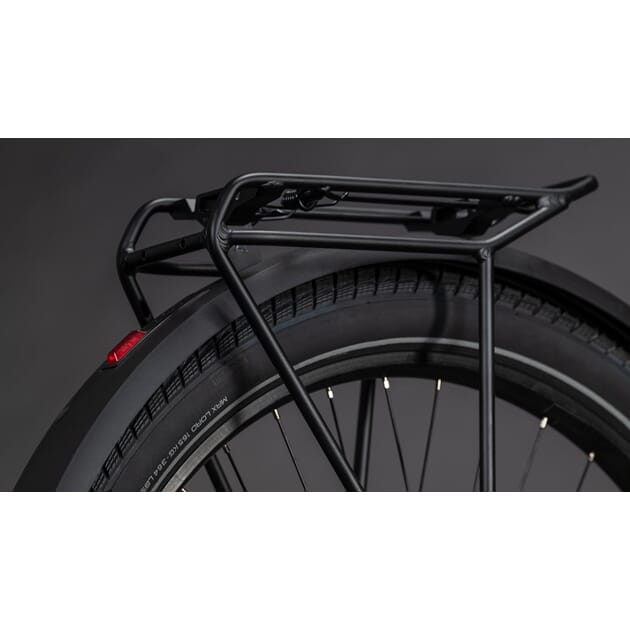

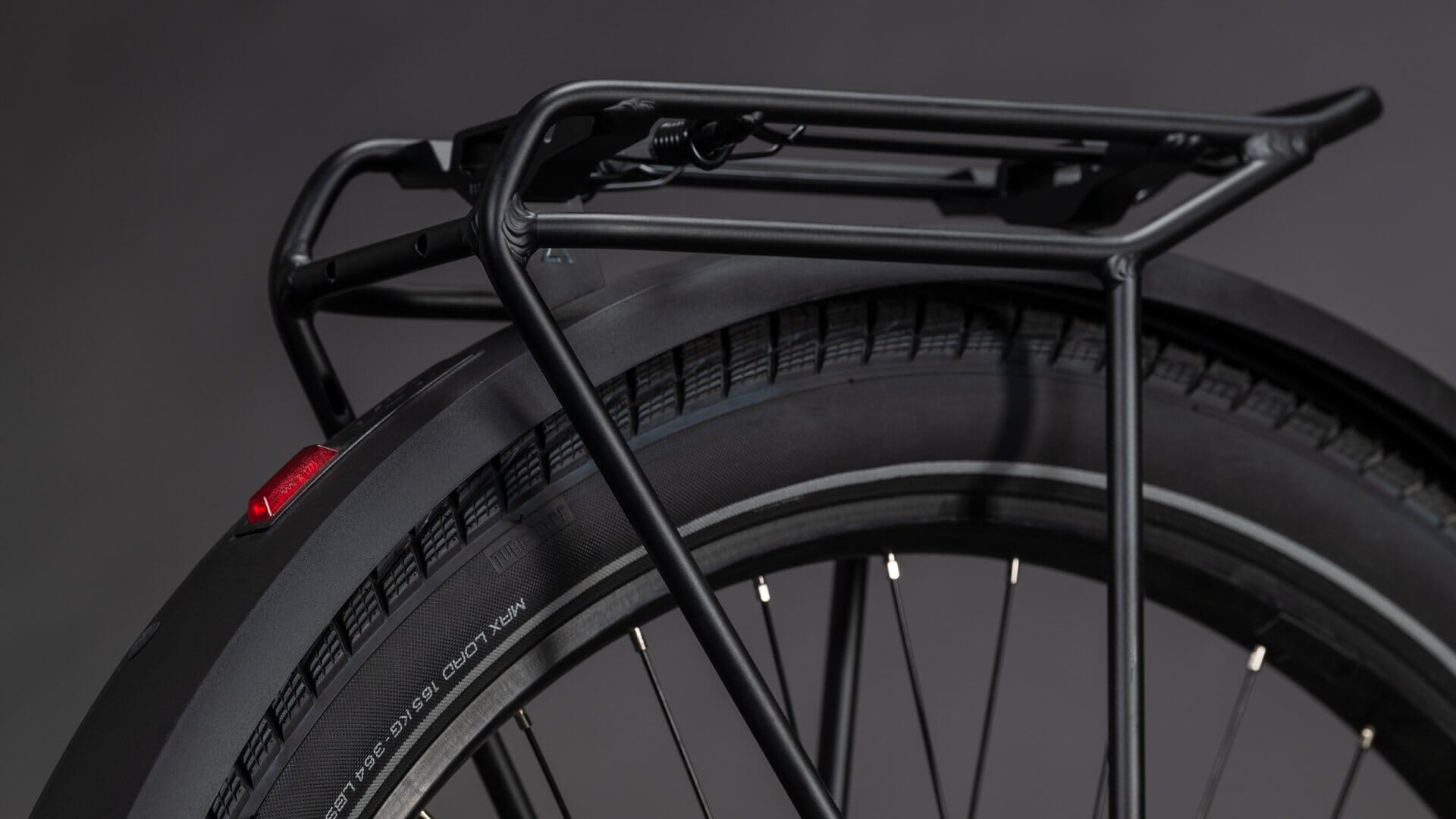

carrier
ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
Product information
colour
pea´n´reflex
weight
47,0 kg
Art. No
124401
SRP*
54990 NOK
