FEELS LIKE
RIDING.
BUT MORE.

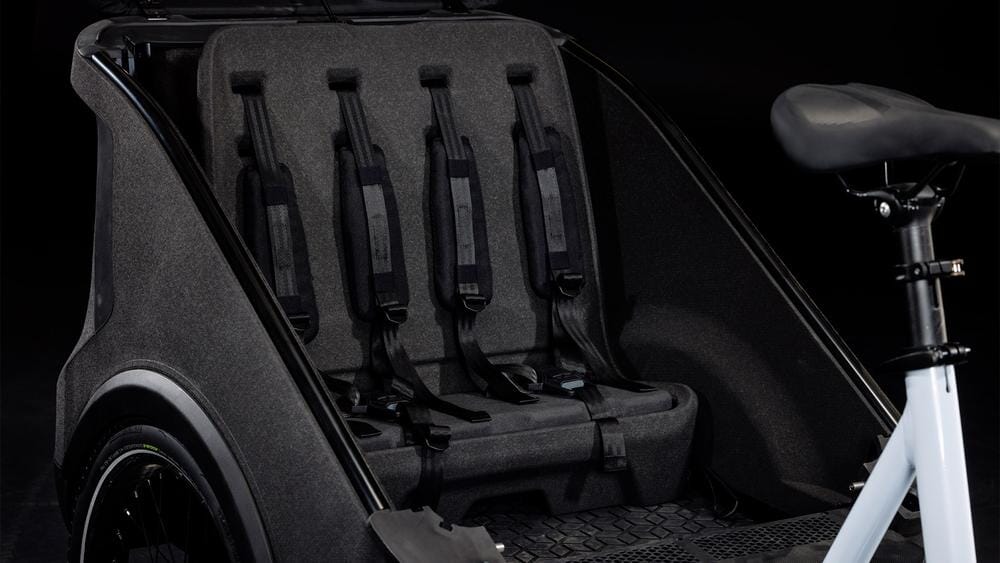

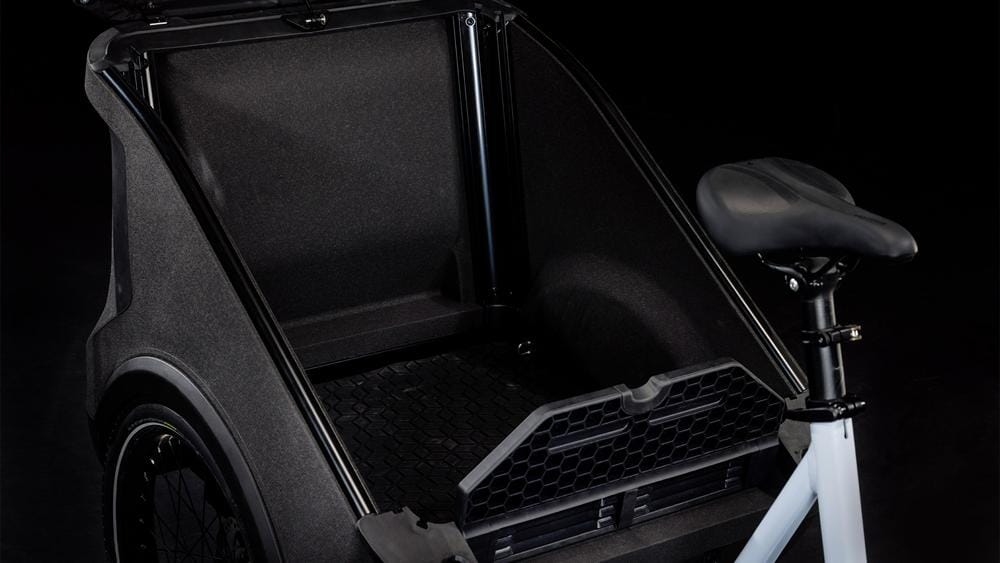

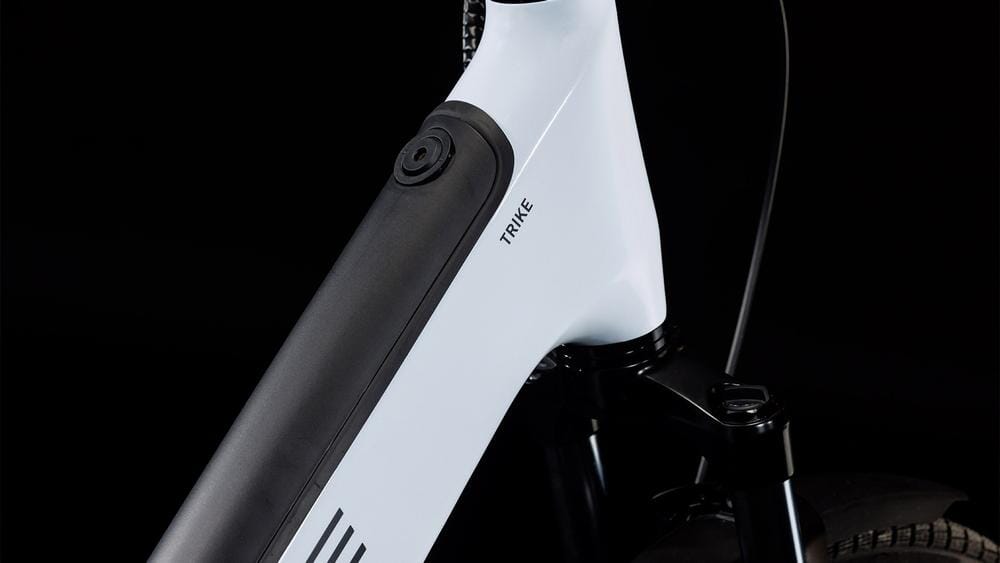

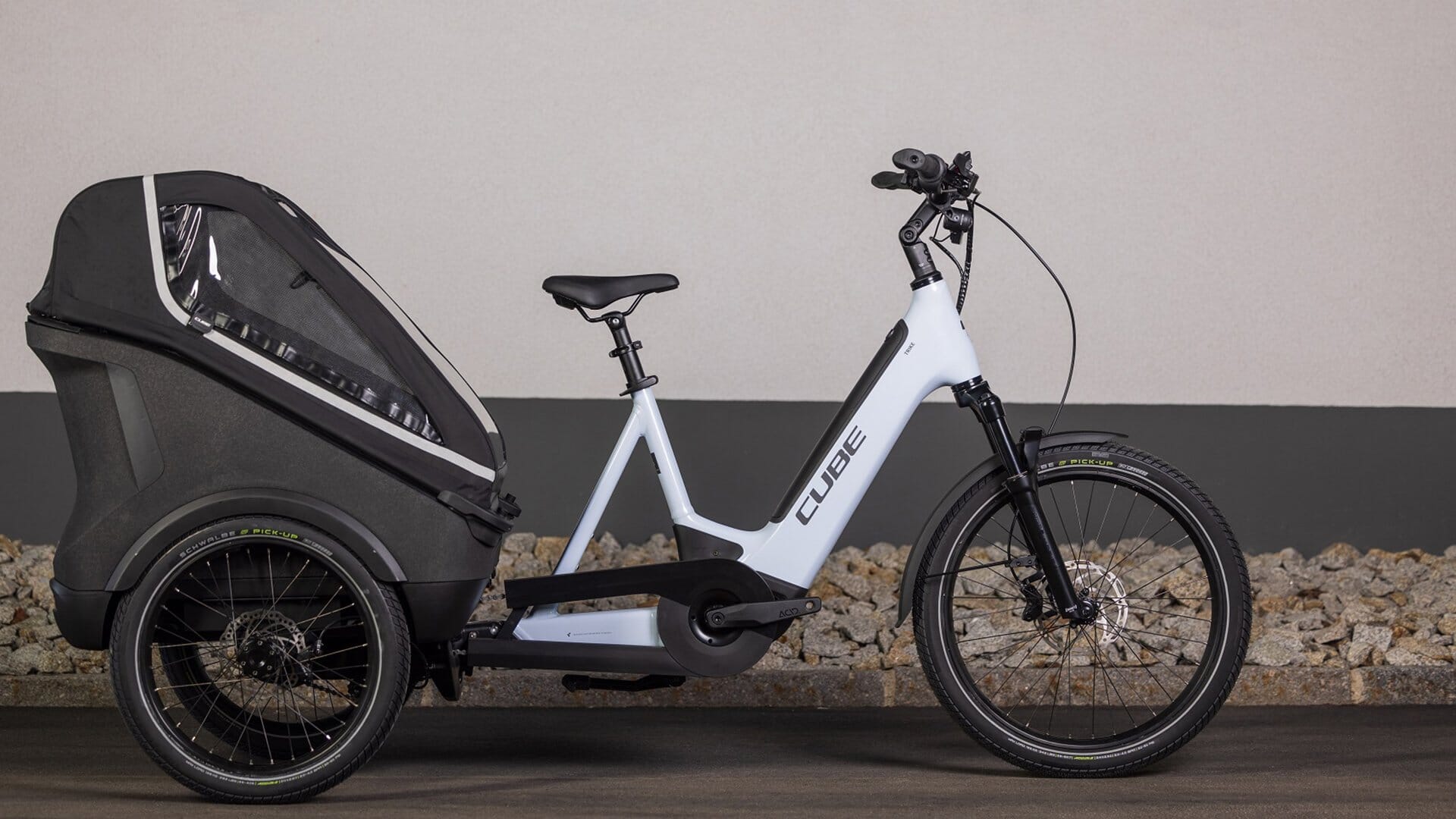

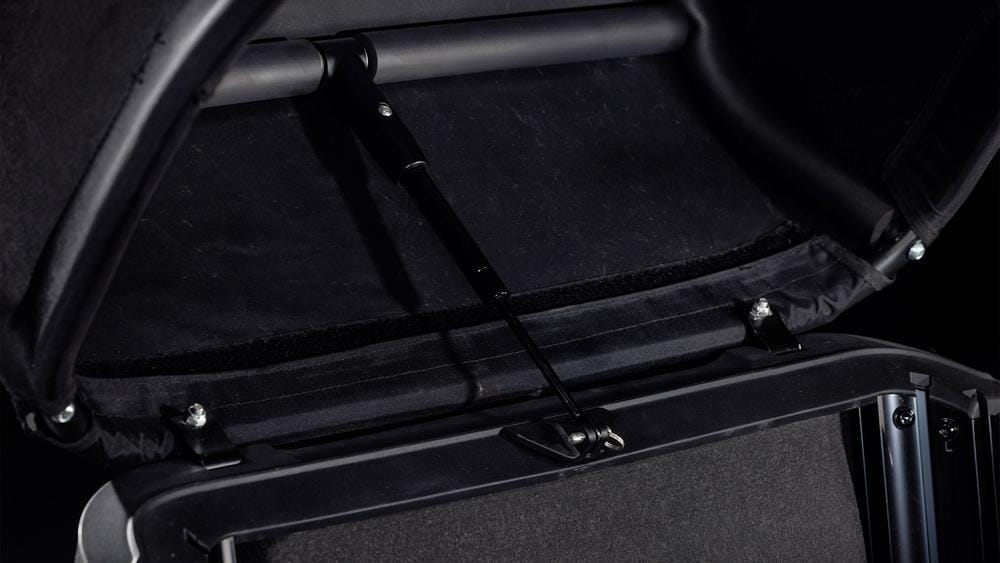

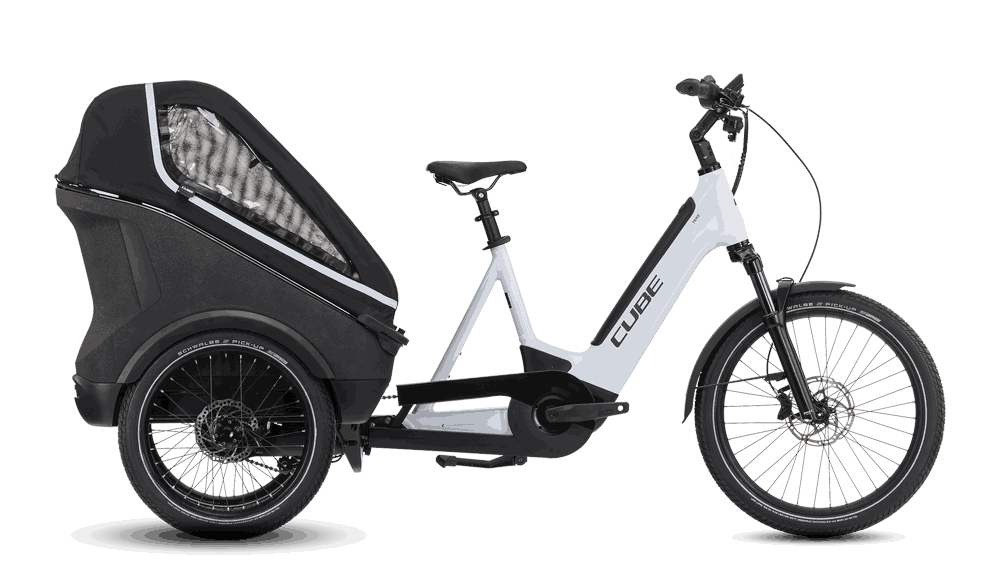

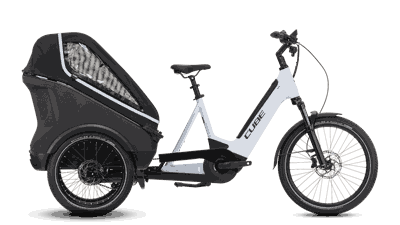

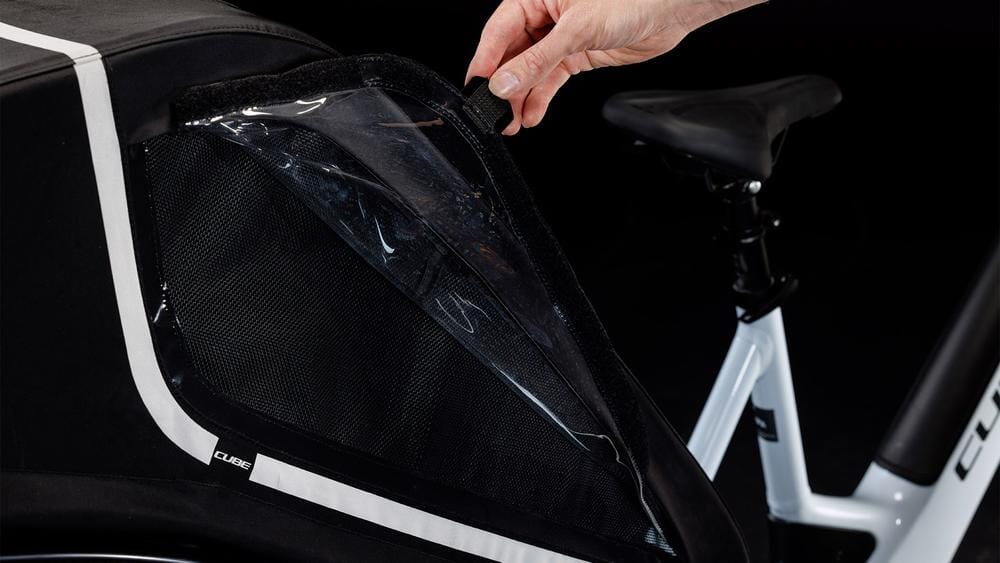

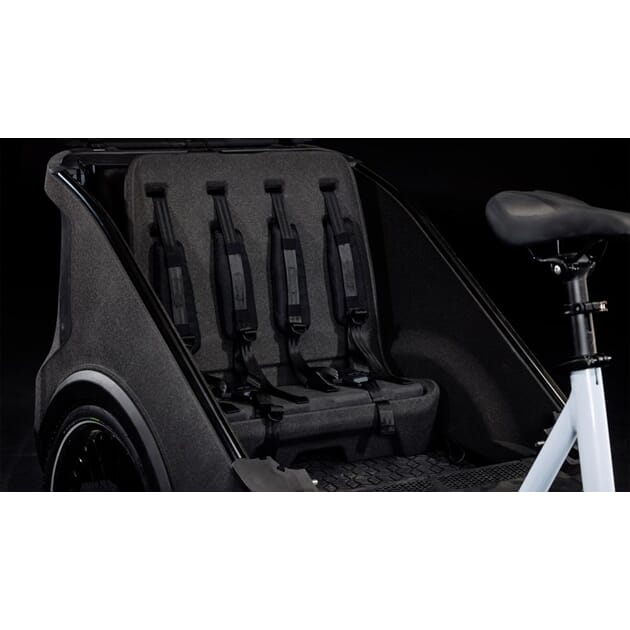

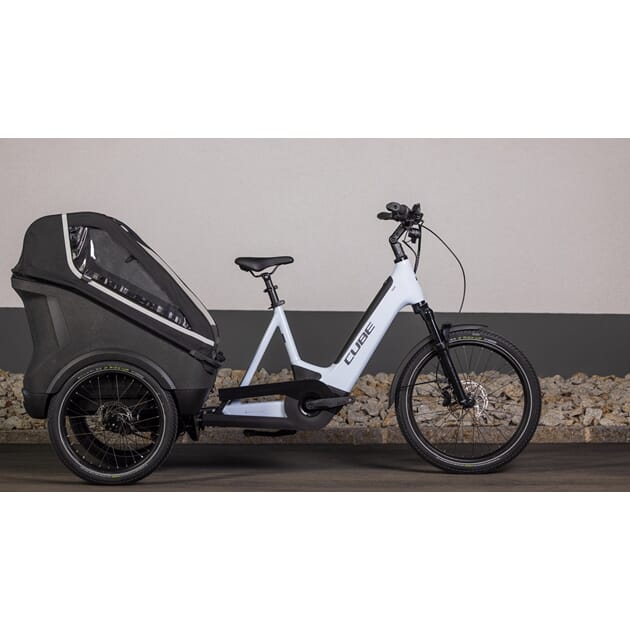

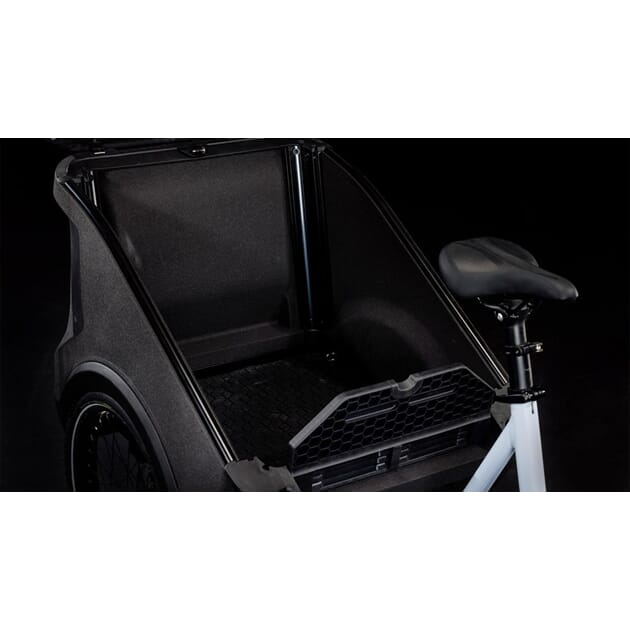

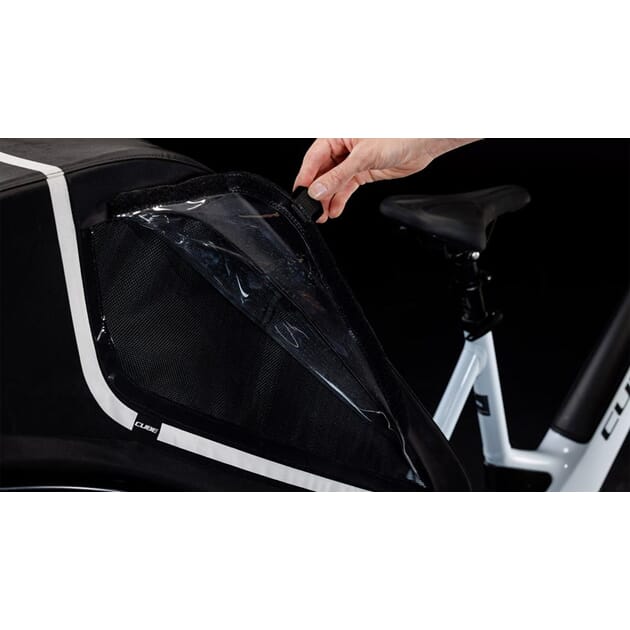

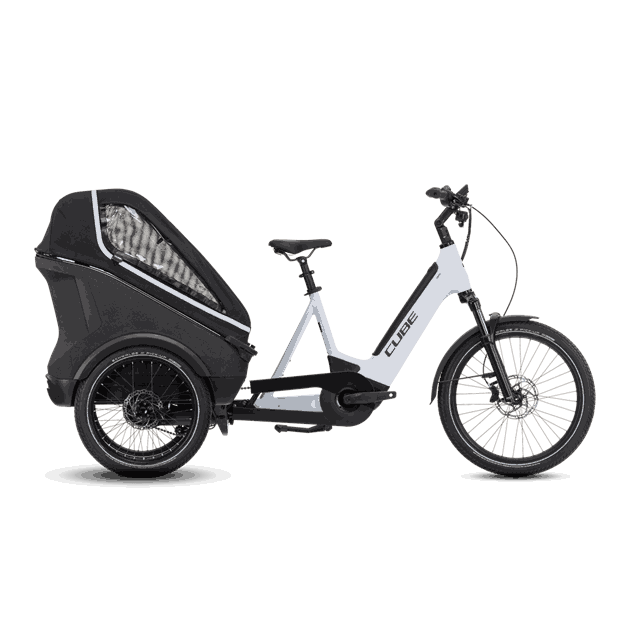

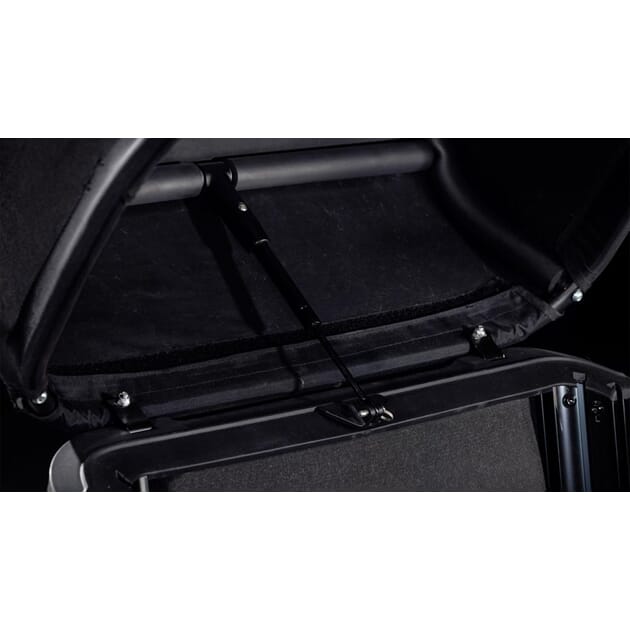

A CUBE design concept powered by Bosch, the Trike Family Hybrid 1500 will redefine your expectations of pedal-powered transport by combining bicycle-like handling with the stabilty and safety of three wheels. Fourth generation Bosch CX Line drive is powered by twin 750Wh batteries, for a total of 1500Wh – meaning extended range. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the lightweight and tough box is designed with a high back and sides to help protect your children. A built-in rain cover lifts on its own gas strut, and the versatile seating and safety harnesses can be quickly and easily stowed away if you want to carry a cargo load instead. There's even a storage compartment in the main frame, and the option to fit a front rack. Now... do you really need to take the car?
The future is here, it's actually pretty neat, and we're not just talking about the unique tilt mechanism. With its twin battery providing 1500Wh of juice to the Bosch drive system, this easy-to-ride people (and cargo) carrier means you can leave the car at home and still arrive at your destination fresh and relaxed.
Humans need to move, but it's becoming clearer that cars can be a problem rather than a solution. The Trike Family Hybrid 1500 offers a refreshing, practical and easy-to-ride alternative. An innovative design in its own right, it harnesses the power of Bosch's fourth-generation CX Line drive system with two 750Wh batteries for a total of 1500Wh. There's a Suntour Mobie34 suspension fork for a comfortable ride, even on rough city streets. We fitted powerful disc brakes – and a parking brake – to keep you safe in all weathers, and the stepless hub gear makes light work of any journey. The clever one-size-fits-most design uses a telescopic seatpost and an adjustable handlebar. At the rear, the versatile cargo box with built-in (but removeable) seats, safety harnesses and rain cover makes it a cinch to take along your kids, the shopping, the recycling... whatever you need. And the unique tilt mechanism, combined with the stability of three wheels, means it's as easy to manoeuvre as any normal hybrid bike. Who needs a car?
FRAME
· FRAME

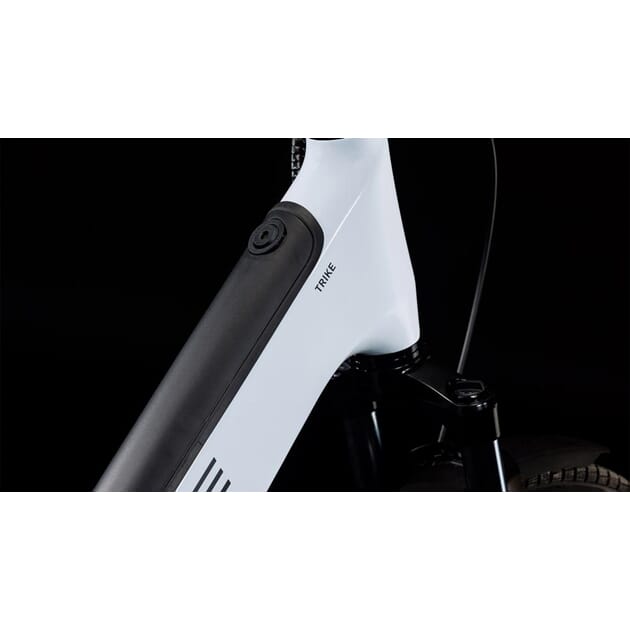

Aluminium Gravity Casting, Comfort Ride Geometry, Tilting Technology, Downtube Storage
· SIZE
One Size
SUSPENSION
· SUSPENSION FORK
SR Suntour MOBIE 34 CARGO 24", 100mm
E-BIKE SYSTEM
· DRIVE UNIT
Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt), Smart System
· REMOTE
Bosch LED Remote
· BATTERY
Bosch PowerTube 750 Axial + Bosch PowerTube 750 Axial

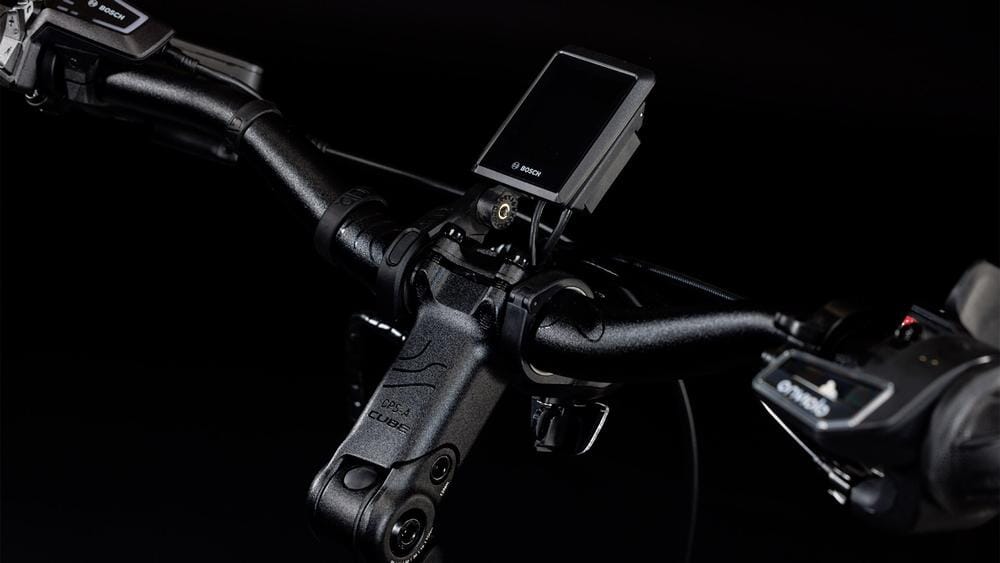

· DISPLAY
Bosch Kiox 300
· CHARGER
Bosch 4A
DRIVETRAIN & BRAKES
· BRAKE SYSTEM
Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)

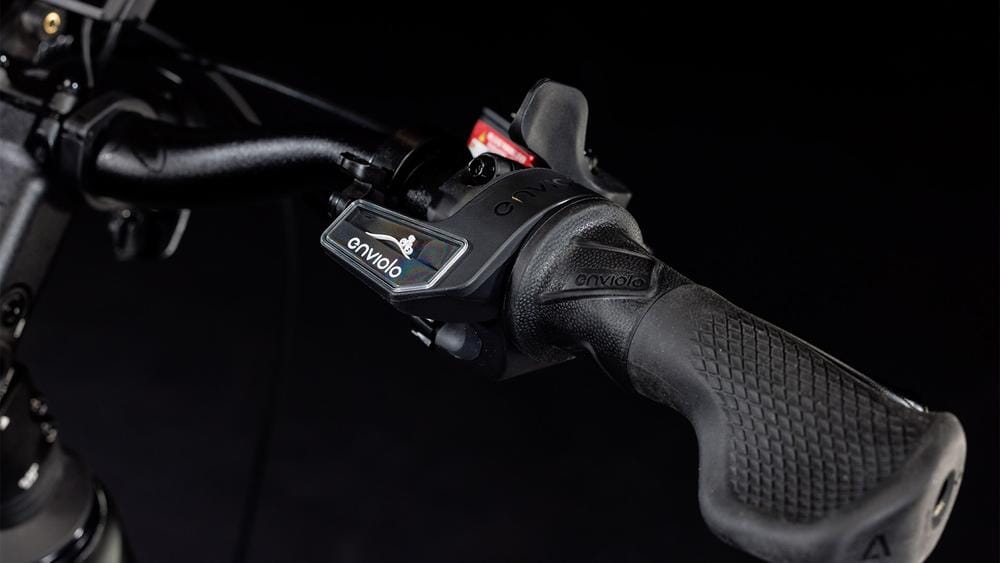

· SHIFTERS

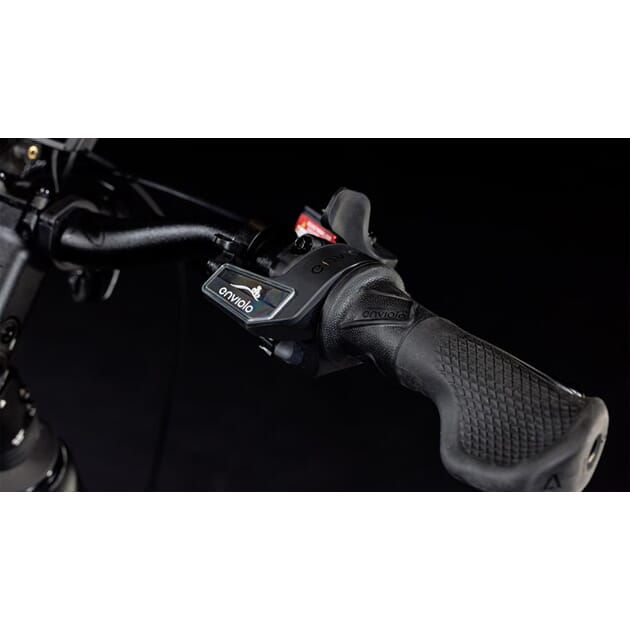

Enviolo Cargo manual
· CRANKSET
ACID E-Crank, 170mm, 42T
· CASSETTE
KMC 3mm, 18T
· CHAIN
KMC e101 EPT

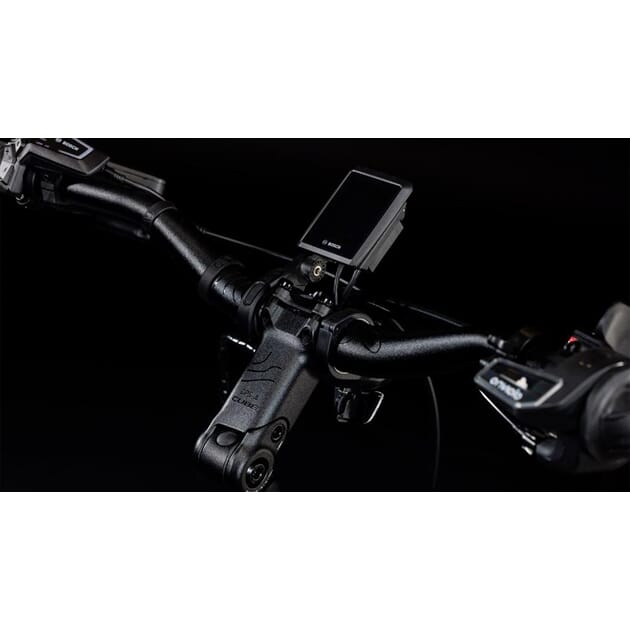

COCKPIT
· HEADSET
ACROS Carrier Mount Headset
· STEM
Cube Comfort Stem Pro, 31.8mm, Adjustable
· HANDLEBAR
CUBE Comfort Trail Bar, 700mm
· GRIPS
ACID Travel Comfort Gripshift
WHEELS
· RIMS
CUBE EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready
· FRONT HUB
Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost
· REAR HUB
Cube Trike Hub, Straightpull
· FRONT TYRE
Schwalbe Pick-Up, Super Defense, 65-507
· REAR TYRE
Schwalbe Pick-Up, Super Defense, 65-406
FINISHING KIT
· SADDLE
Natural Fit Sequence Comfort
· SEAT POST
Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
· PEDALS
CUBE PP MTB
· FRONT LIGHT
ACID Front Light PRO-E 110, 5-16V, DC

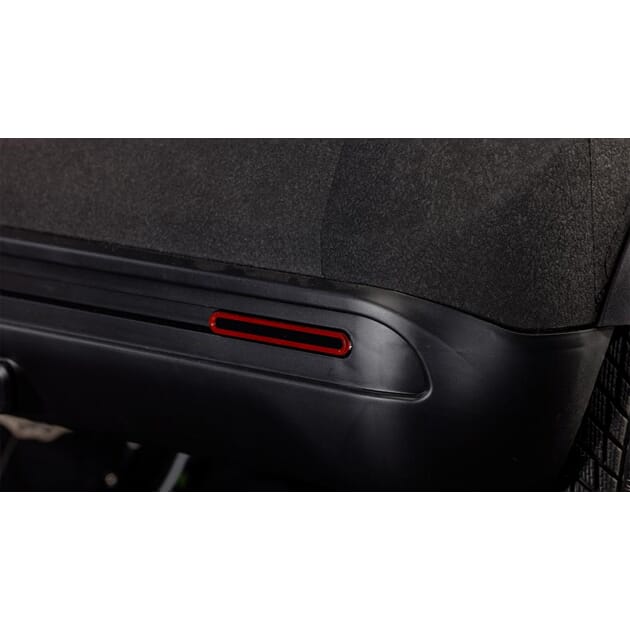

· REAR LIGHT
Supernova T-M99
· KICKSTAND
Ursus XXS
· MUDGUARDS
ACID 75
· BELL
Ring Bell
· EXTRAS
Bosch ConnectModule
PRODUCT INFORMATION
· COLOUR
flashwhite´n´reflex
· WEIGHT
75 kg
