RAMME
STØRRELSE
62cm

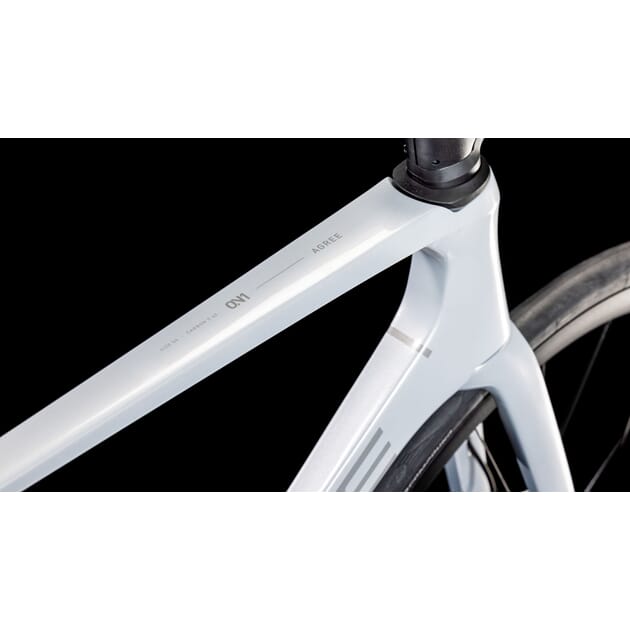

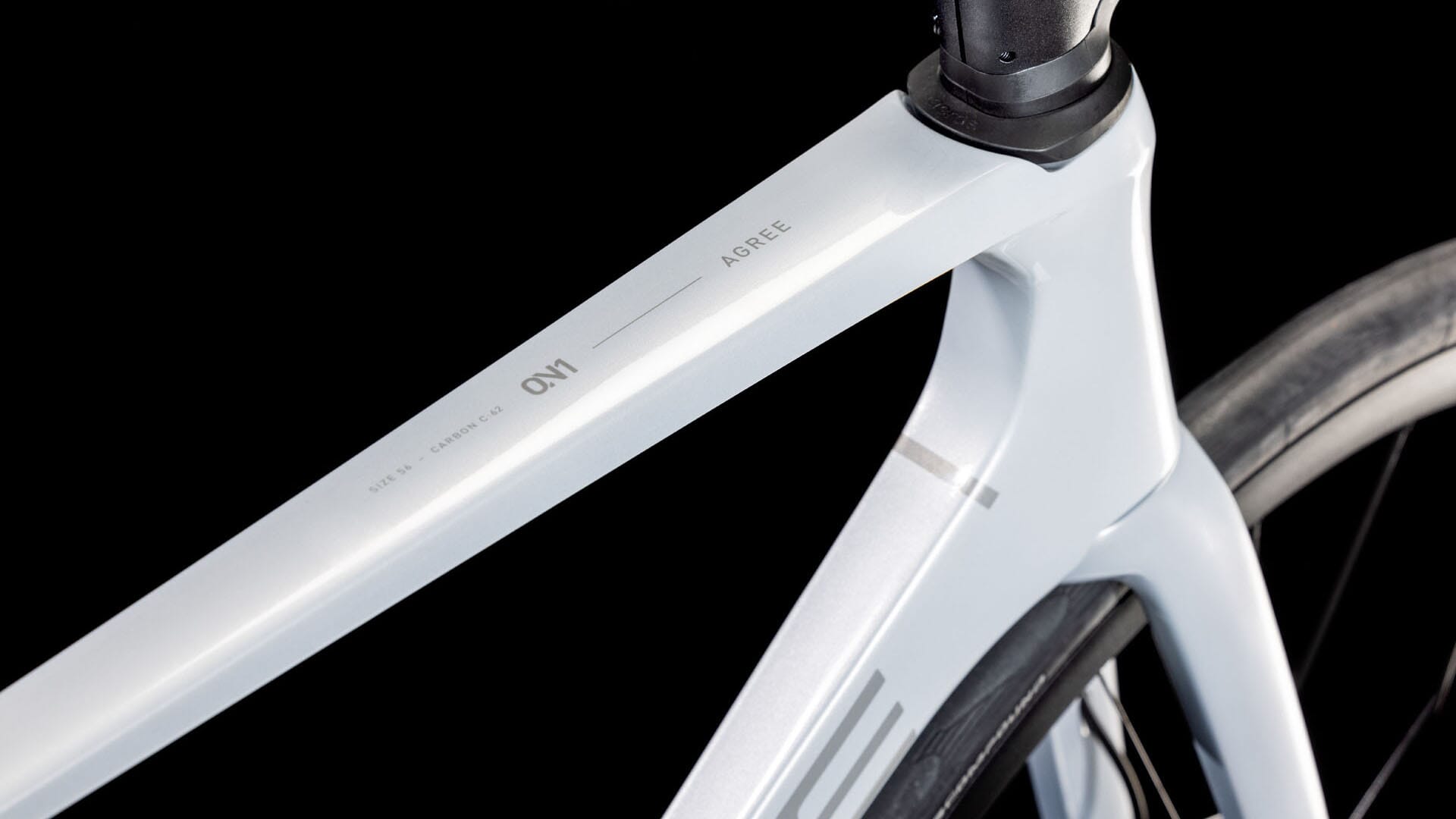

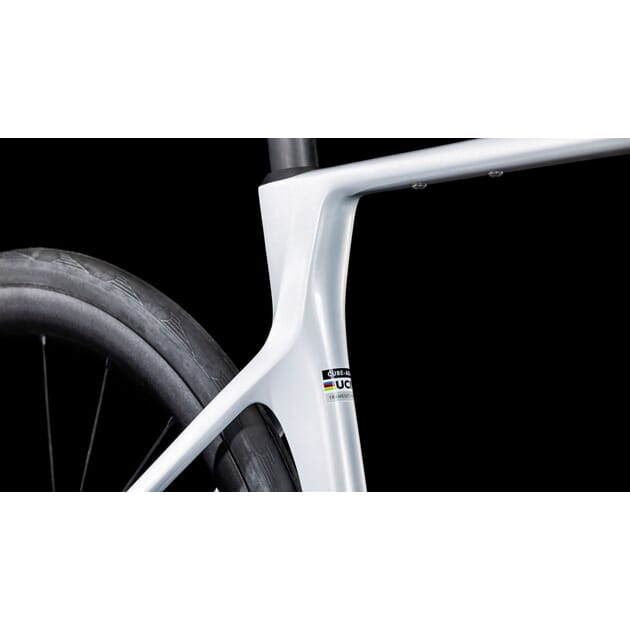

RAMME

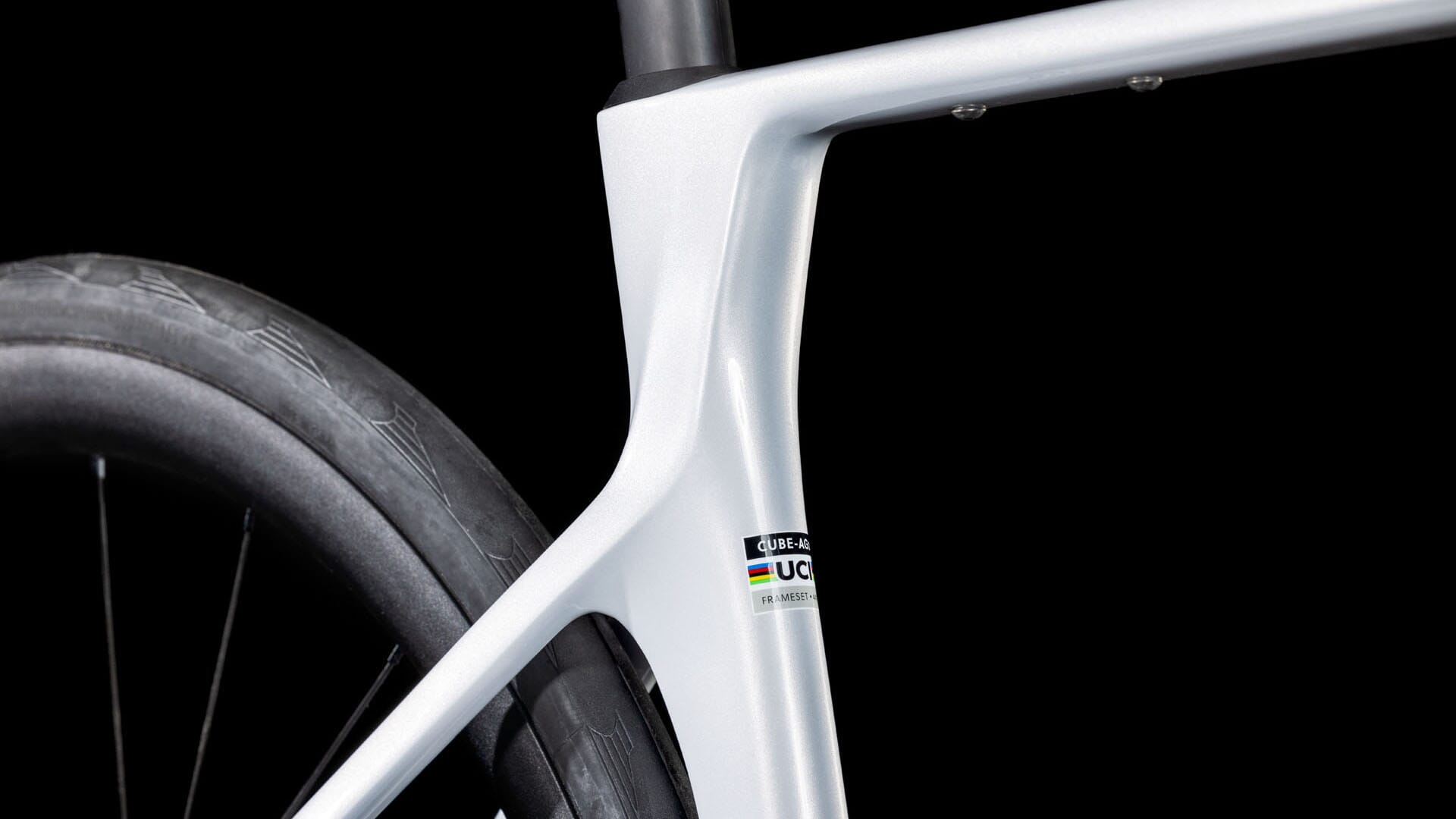

C:62® Advanced Twin Mold Technology, Full Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Storage Box Option, AXH, 12x142mm
DRIVVERK & BREMSER
BAKGIR
Shimano 105 Di2 RD-R7150-DGS, 12-delt, elektronisk girsystem
FRAMGIR
Shimano 105 Di2 FD-R7150F
GIR-/BREMSEHENDLER
Shimano 105 Di2 ST-R7170
BREMSER
Shimano 105 BR-R7170, hydrauliske skivebremser, Flat Mount (160/160)
KRANK
Shimano 105 FC-R7100, Hollowtech II, 50x34T
KASSETT
Shimano CS-R7101, 11-34T
KJEDE
Shimano CN-M7100
KRANKLAGER
Shimano SM-BB71-41B, 86mm Pressfit

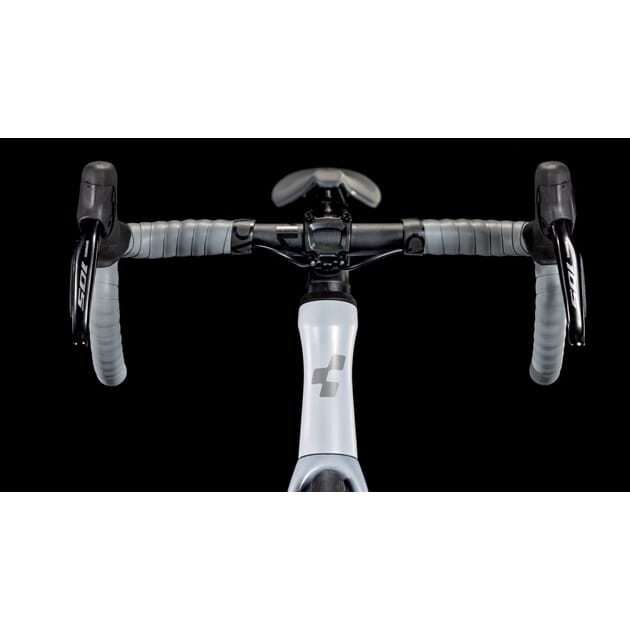

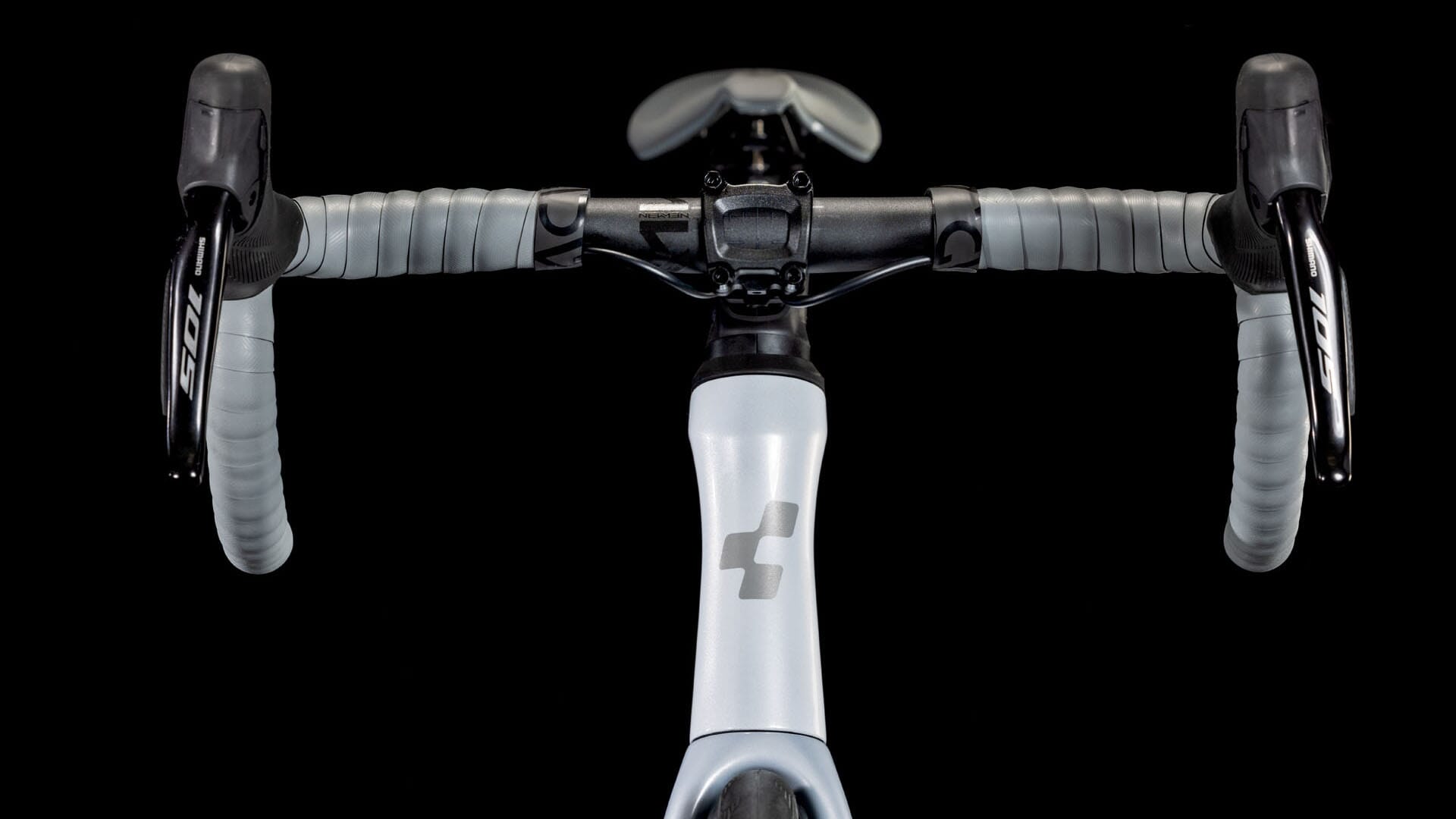

COCKPIT
STYRELAGER
ACROS, Top Integrated 1 1/2" med Integrated Cable Routing, Bottom Integrated 1 1/4"
STYRE
Newmen Evolution Wing Bar
STYRETAPE
ACID Bartape RC 3.0
STEM
CUBE Aero Stem med Cable Routing
HJUL
HJULSETT
Newmen Evolution SL R.35, 21/21 eiker, 12x100mm/12x142mm, Tubeless Ready
DEKK
Conti Grand Prix, Kevlar, 28-622
UTSTYR
SETE
ACID Nuance Pro
SETEPINNE
Agree C:62 Aero, Comfort Flex

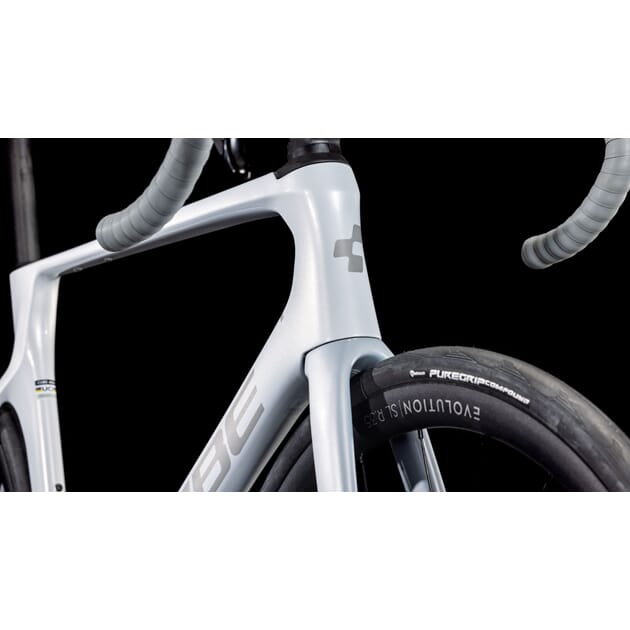

GAFFEL
STIV GAFFEL

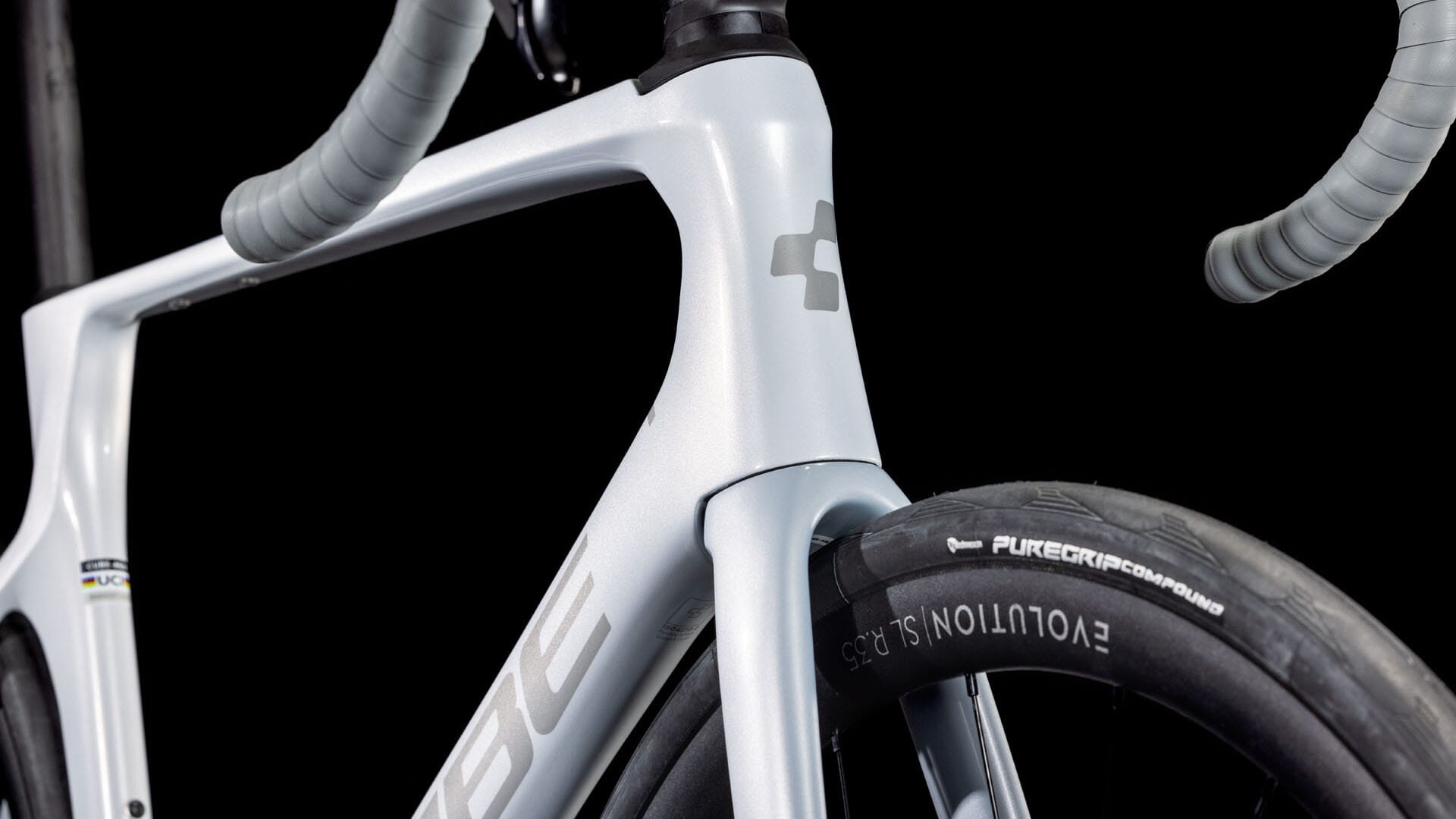

CUBE CSL Evo Aero C:62® Technology, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm
PRODUKTINFORMASJON
FARGE
foggrey´n´grey
VEKT
8,9 kg
Geometries
| |
62 cm |
| Seat tube |
560 |
| Top Tube Horizontal |
600 |
| Seat angle |
72.5 |
| Head tube angle |
72.5 |
| Chainstays |
412 |
| Head tube |
218 |
| Wheelbase |
1037 |
| BB-Height to Hub |
69 |
| Protrusion height - 80mm |
849 |
| Reach |
402 |
| Stack |
628 |
| Length seat post |
400 |
| Angle stem |
-6 |
| Crank length |
175 |
| Diameter tire maximum |
693 |
| Width tire maximum |
30 |
| Stem length |
120 |
| Handlebar width |
440 |
