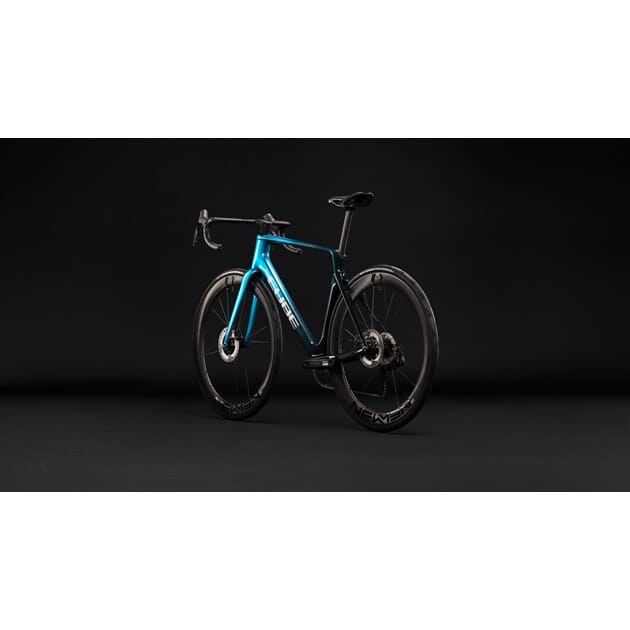

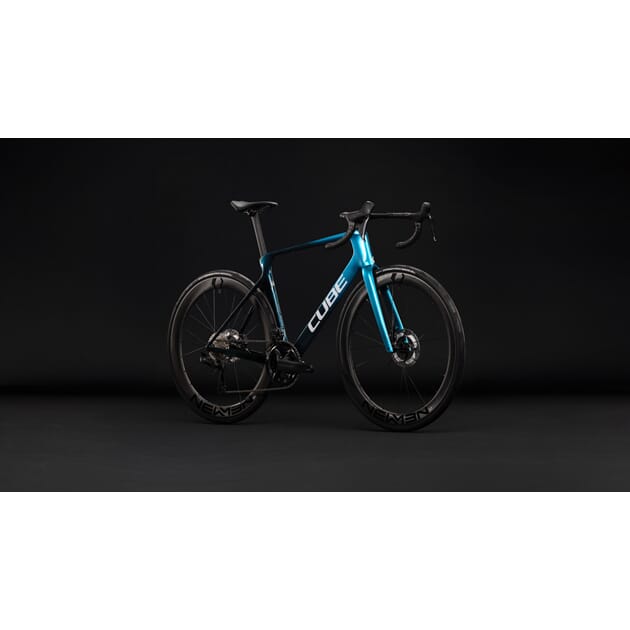

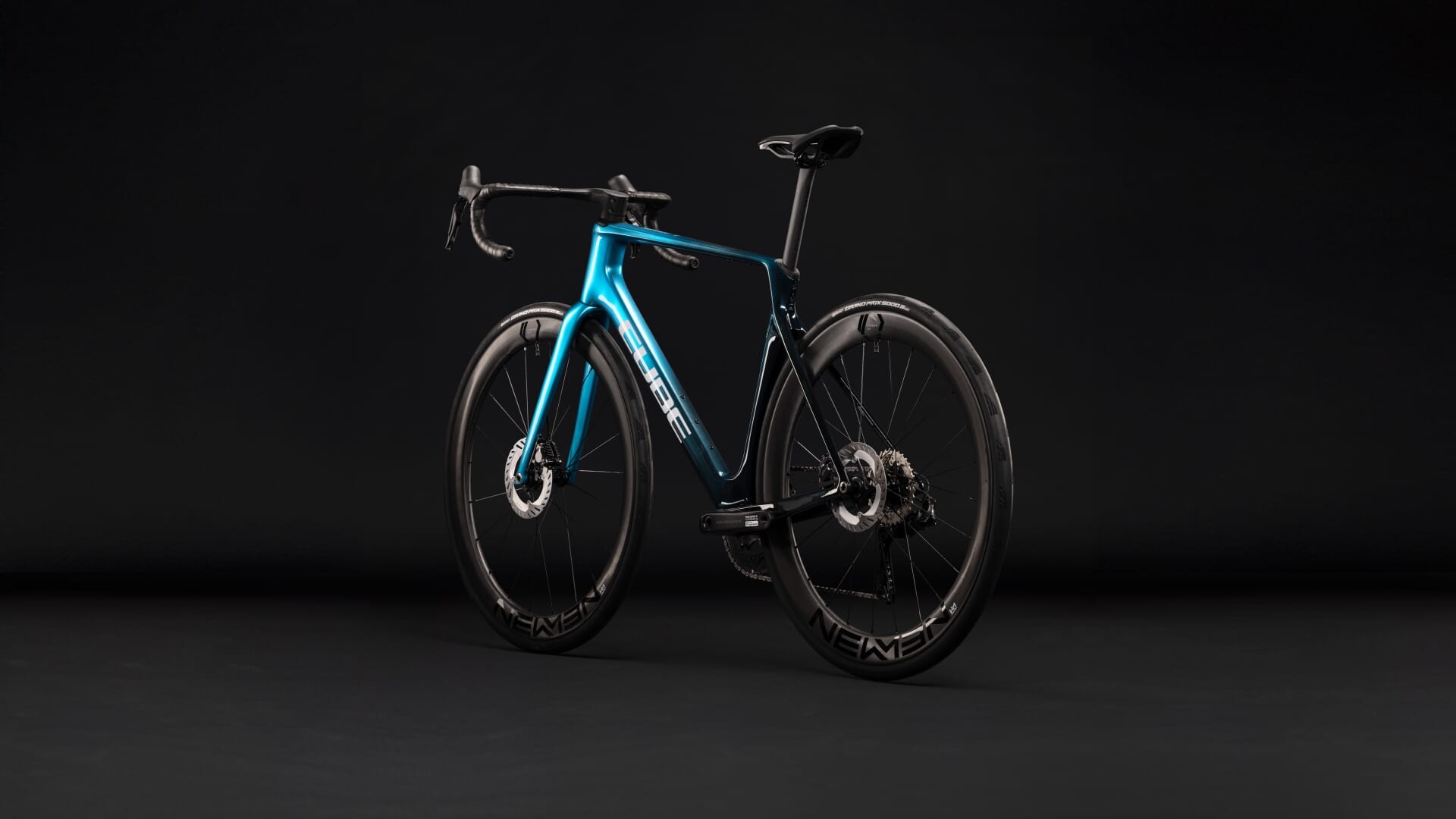

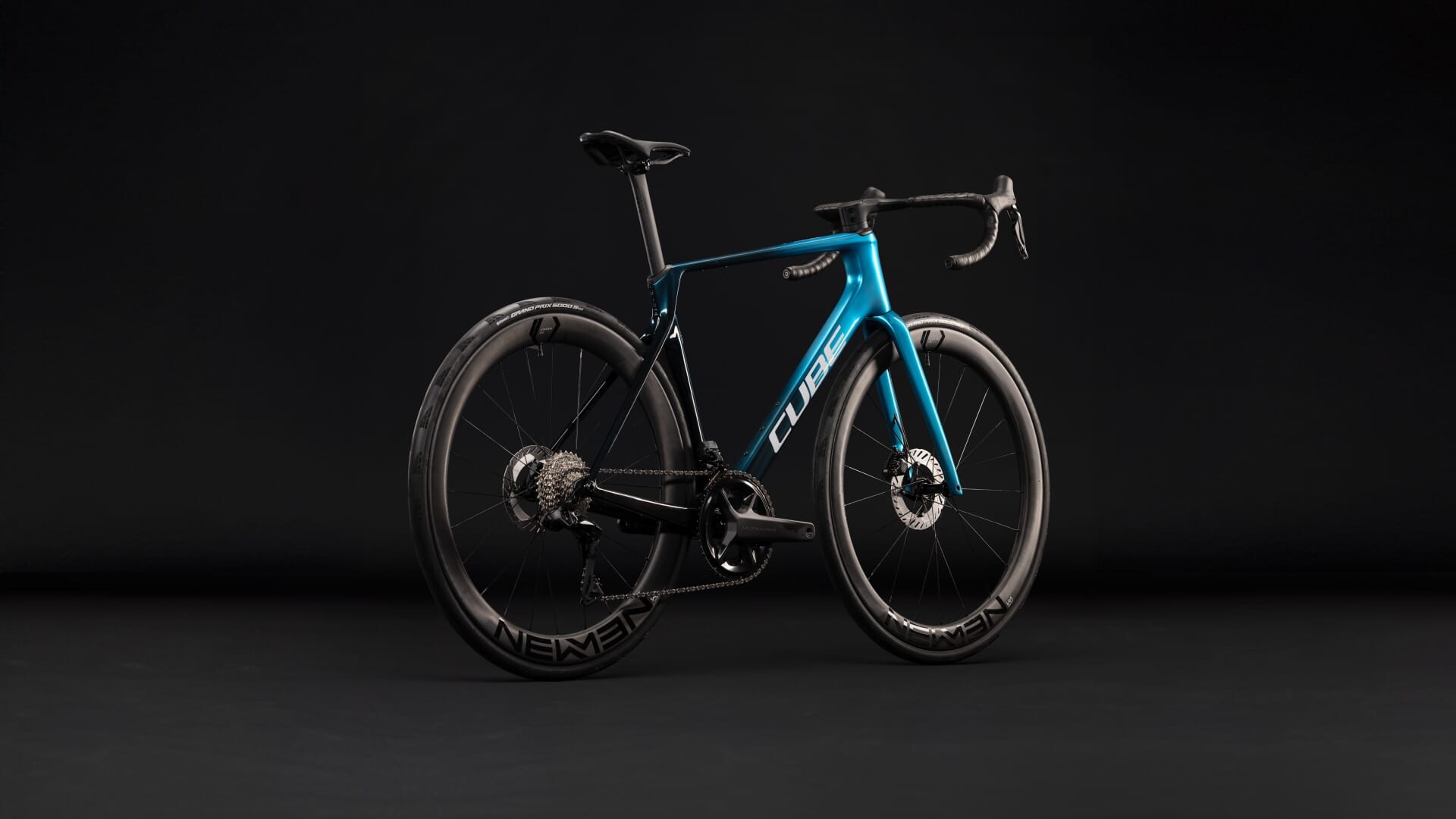

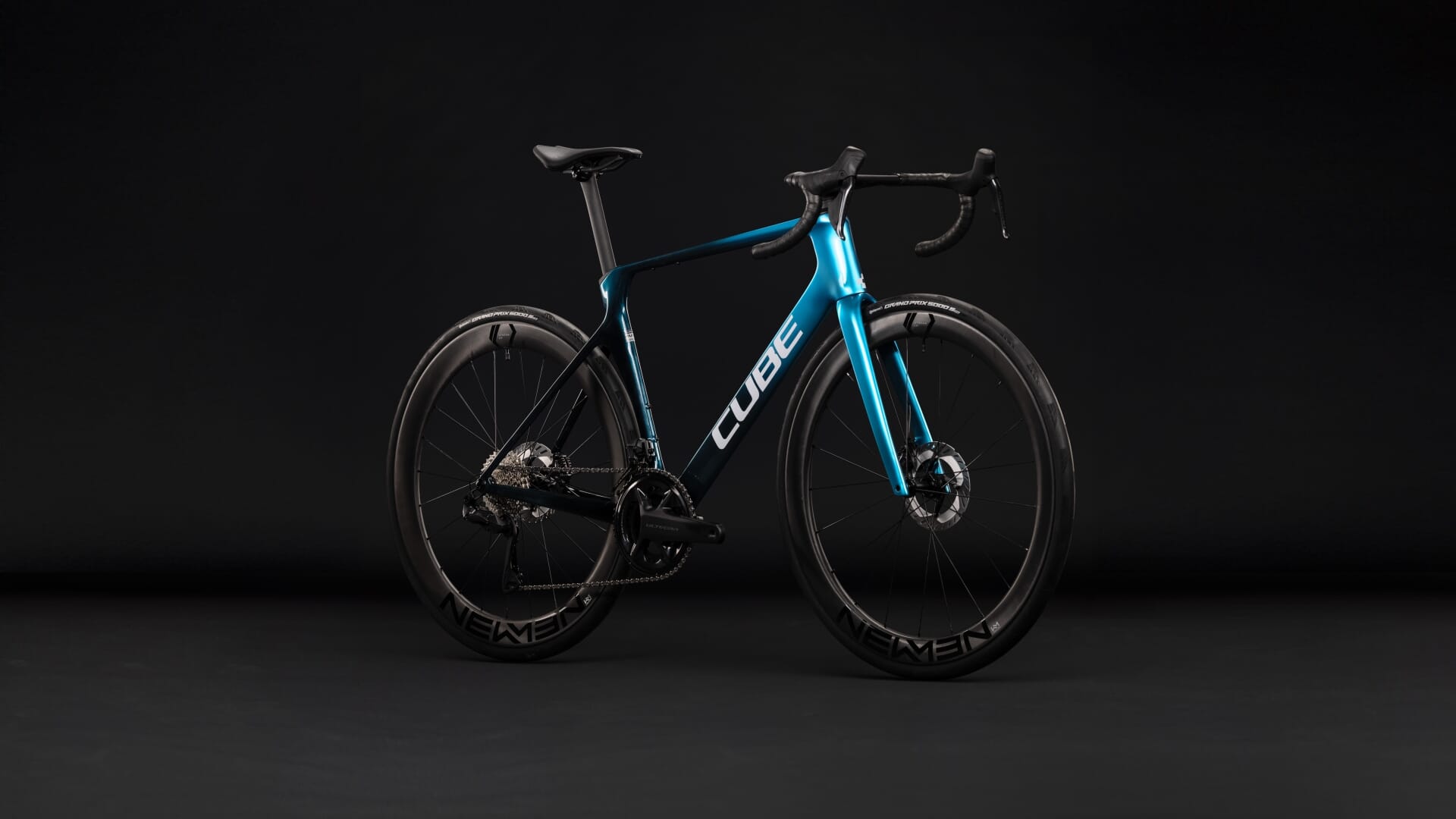

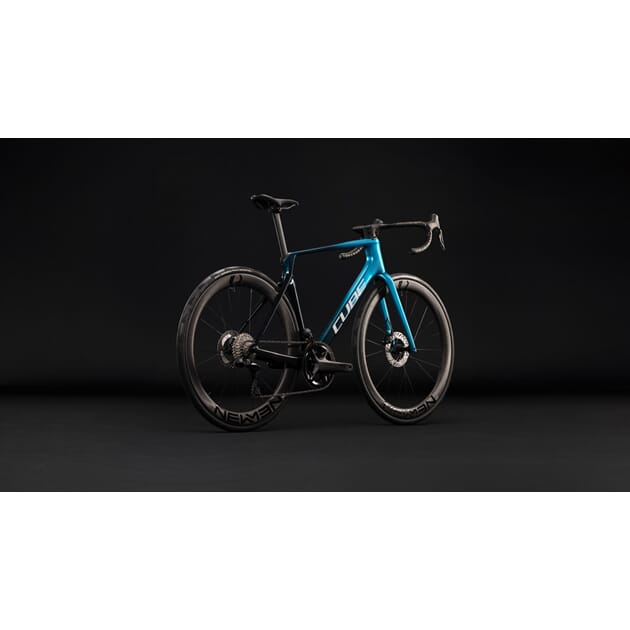

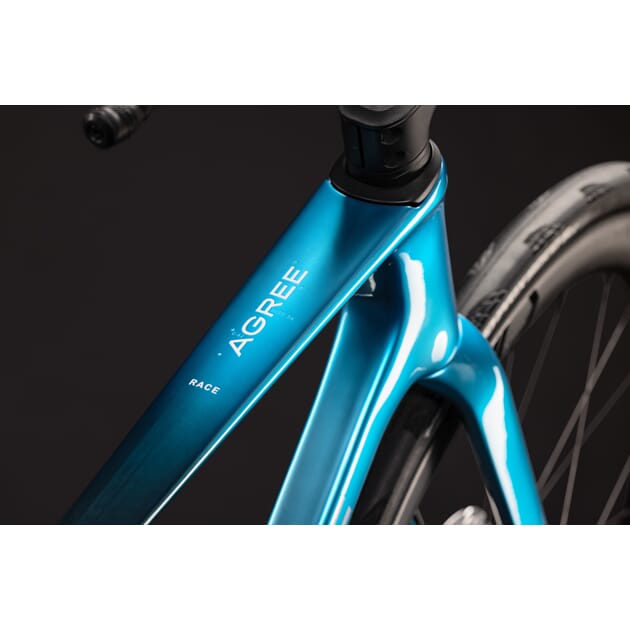

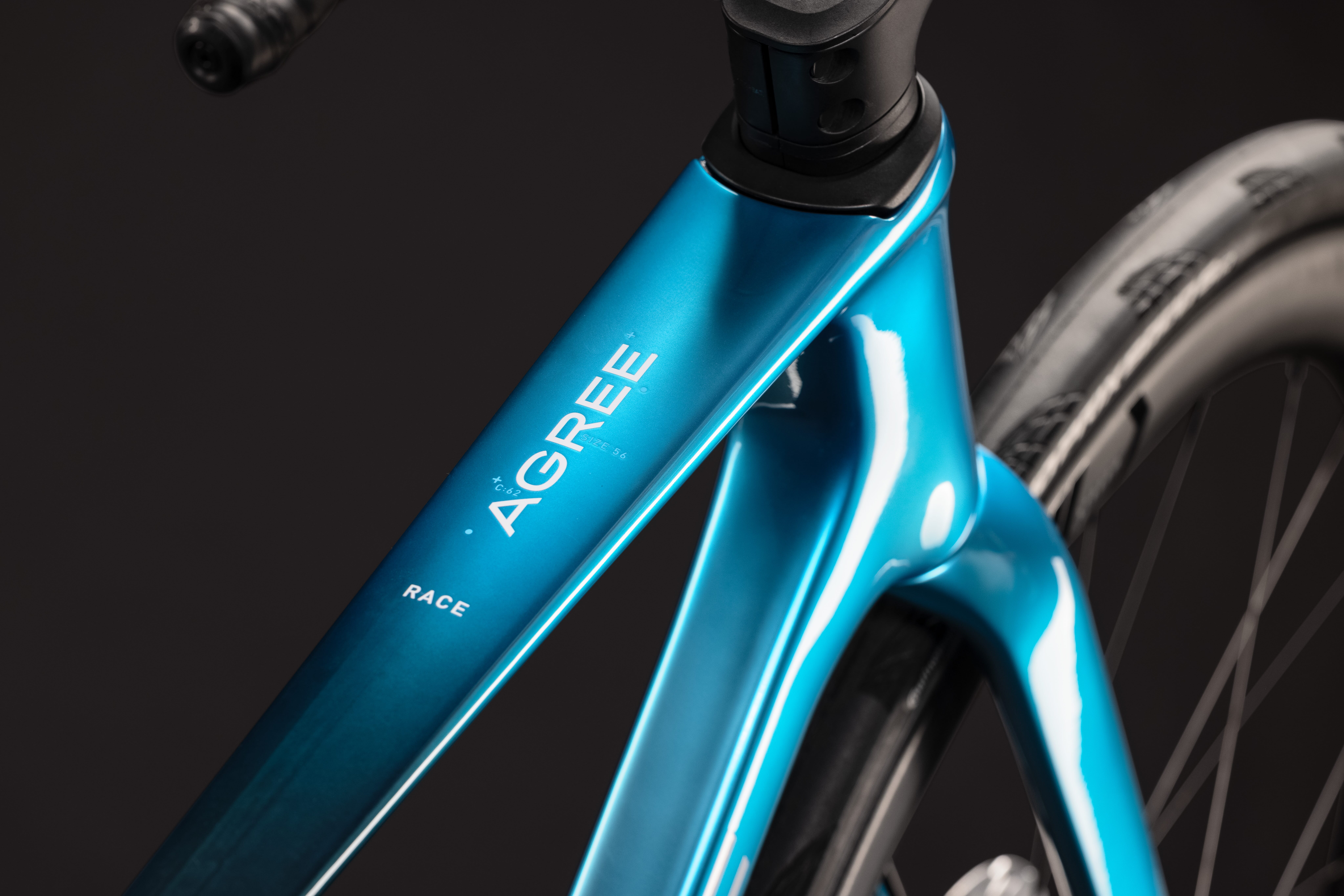

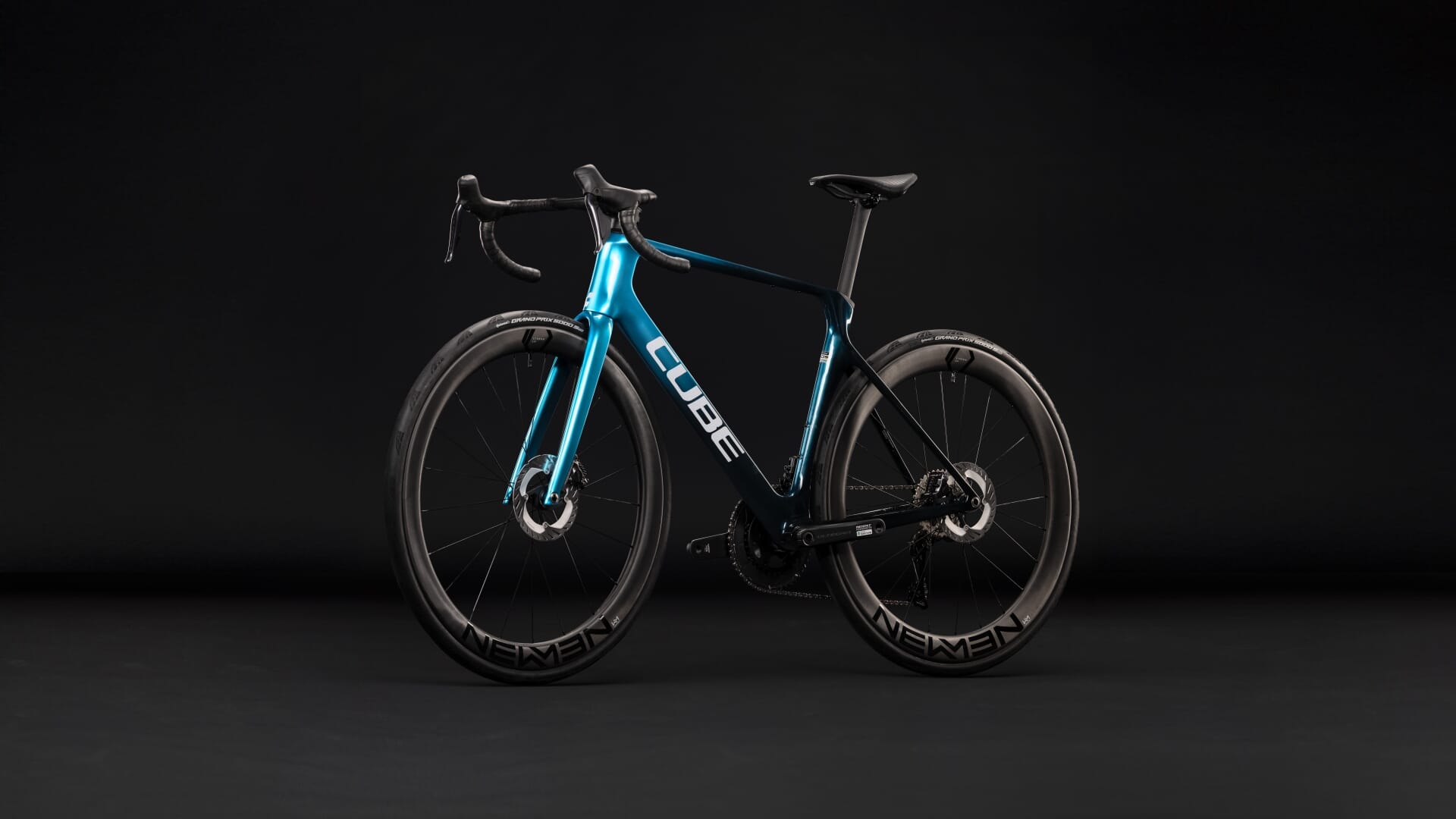

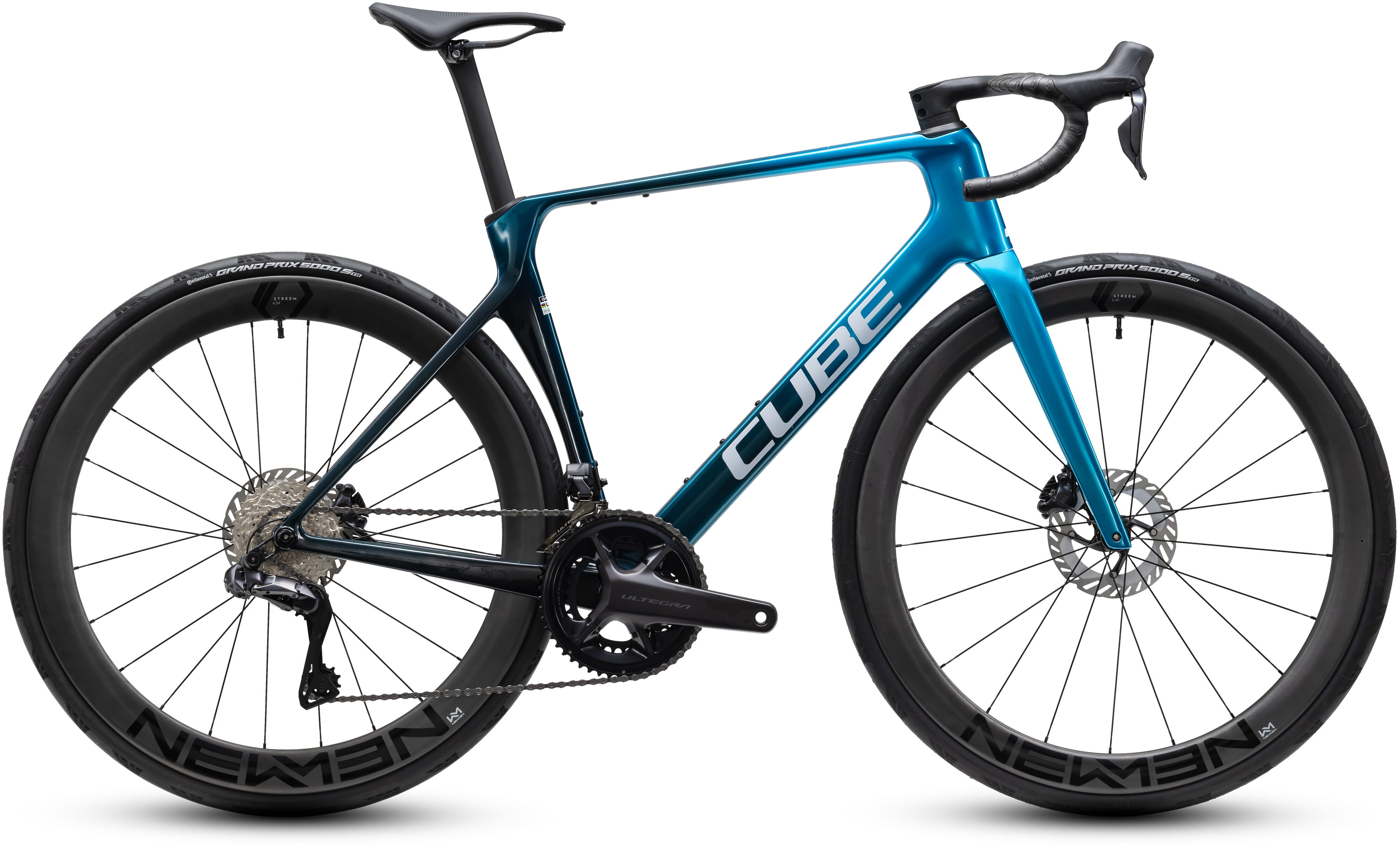

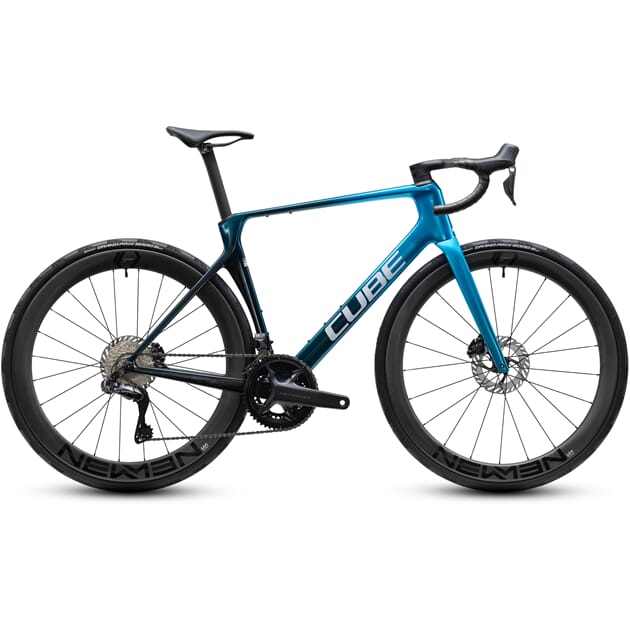

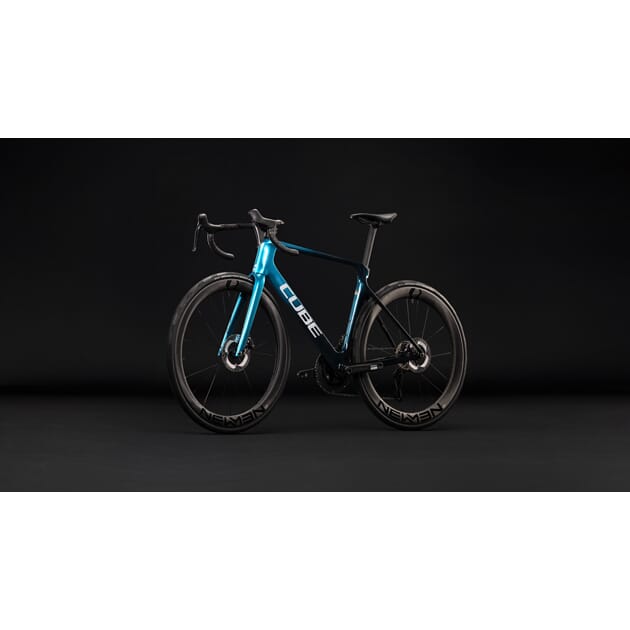

This is what happens when human and machine are designed to work together seamlessly. The Agree C:62 Race's aero-enhanced C:62® carbon frame and carefully chosen components deliver on-the-road pace that's positively inspirational. Light, comfortable and fast... it's got your name on it.
The Agree C:62 Race is designed to do what it says, with a side order of rider comfort and a bonus helping of watt-saving, aero-enhanced frame and fork design. To that end, we equipped it with wind-cheating Newmen Streem Allroad 49/54 wheels, matched to Shimano's powerful Ultegra hydraulic disc brakes and 30mm Continental Grand Prix 5000 tyres for the ultimate in grip, control and acceleration. There's an included frame bag, for mid-ride essentials. And we finished off with the peerless accuracy of Shimano's Ultegra Di2 2x12 gears paired with a 4iiii power meter. It's ready. The rest is up to you.
Frame
frame
C:62® Advanced Twin Mold Technology, Full Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Storage Box Option, AXH, 12x142mm, UDH™
Long, fast rides sometimes mean taking a few extras with you: tools, gels or a rainproof layer. Our frame bag is designed to fit unobtrusively between the seat and down tubes, and has space for all these essentials.
Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

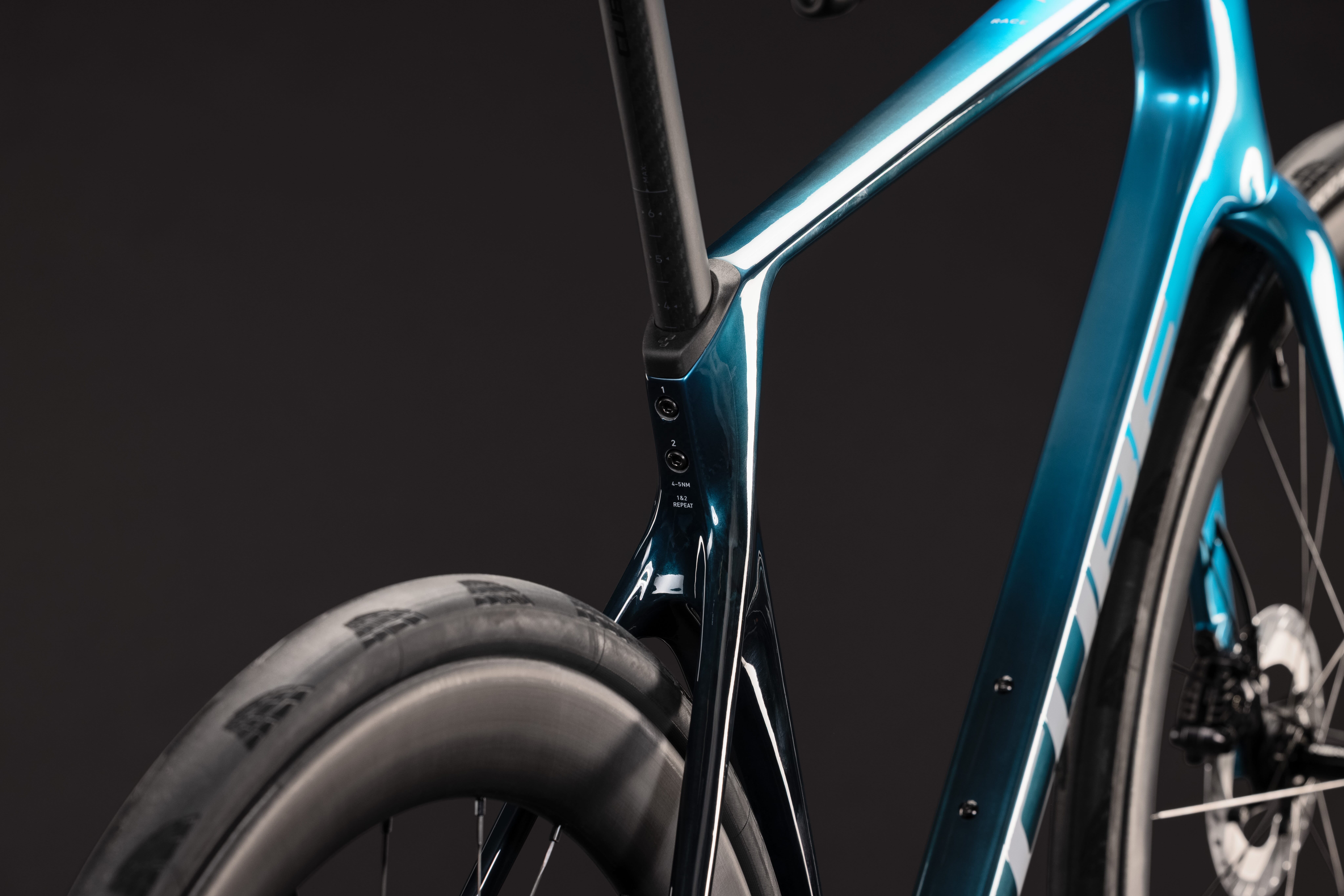

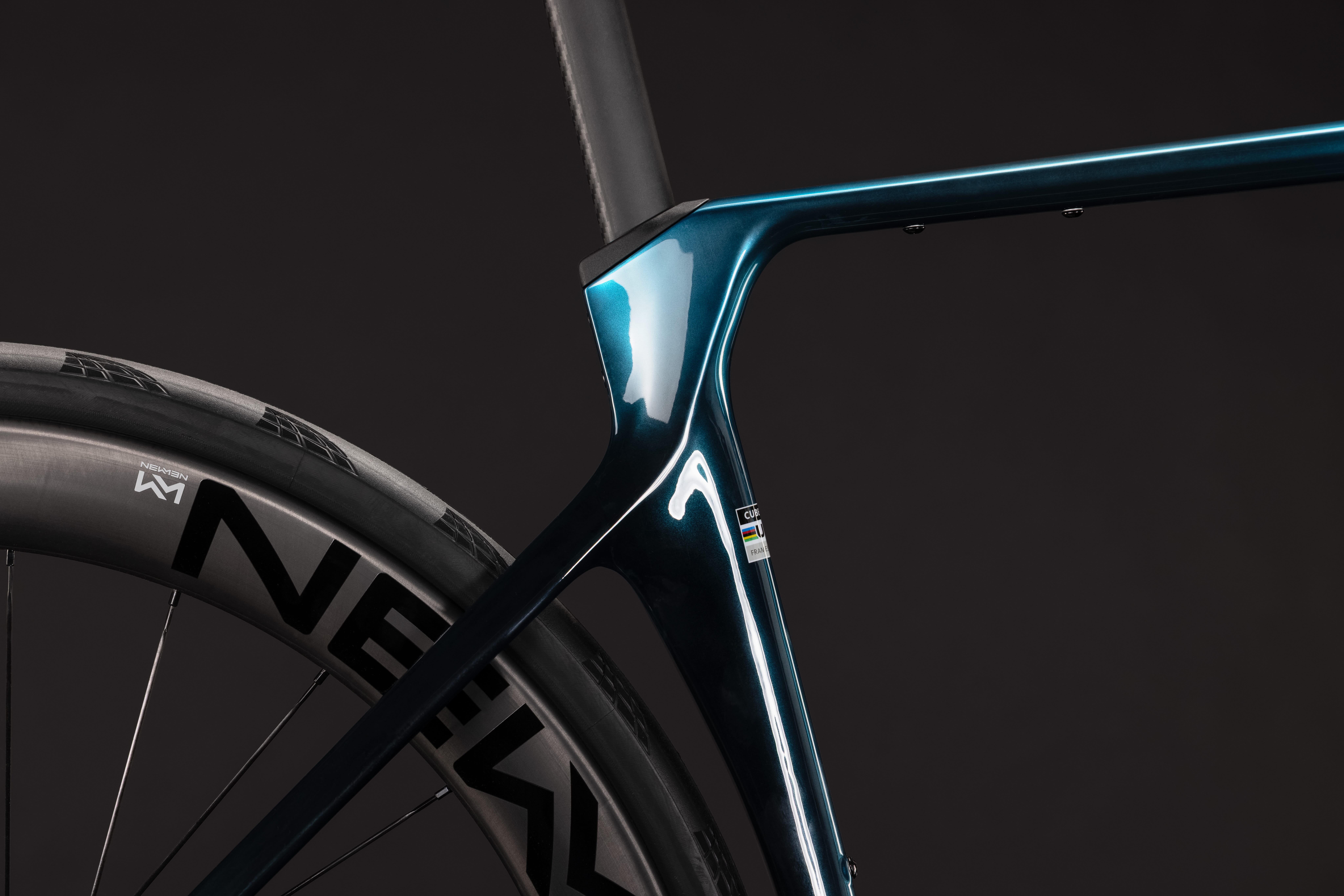

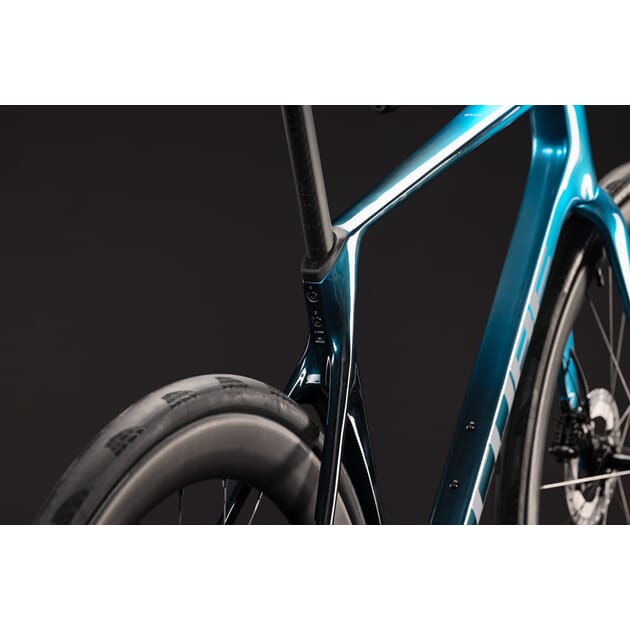

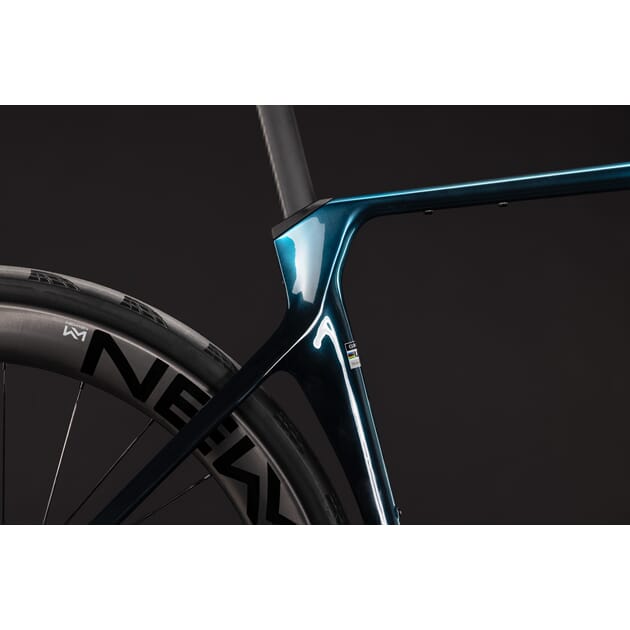

Our Integrated Seatpost Clamp is all part of our quest to sweat the details, so that you can reap the rewards. Its minimalist design suits the frame's pared-back aesthetic. And, of course, that's important – because why wouldn't you want your bike to look great? But it also saves a few grammes too. And that matters just as much...

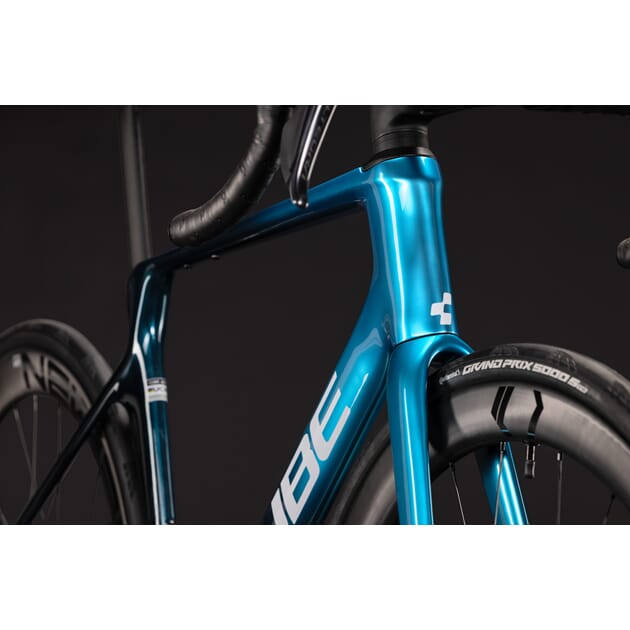

Full Internal Cable Routing takes the clutter of external cables and consigns it to the past. We started from scratch, designing frame and handlebars to accept gear and brake cables internally so that nothing interrupts the bike's clean lines. It's neater, it's more aero, it protects cables from damage and it reduces maintenance. All the wins.
If you want to race, there are rules. We know that, which is why all our road race bikes that could be used for racing are fully compliant with UCI regulations on bicycle design and construction. We've created a full range of high performance machines that follow the rules, so you can just concentrate on your performance...
We know that you want to keep track of your performance stats. It's important, which is why we designed a neat, unobtrusive mount for your bike computer. Now you can record and access data wherever you ride, safe in the knowledge that your device is securely mounted and out of harm's way.
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
size
47cm, 50cm, 53cm, 56cm, 58cm, 60cm, 62cm
Rigid fork

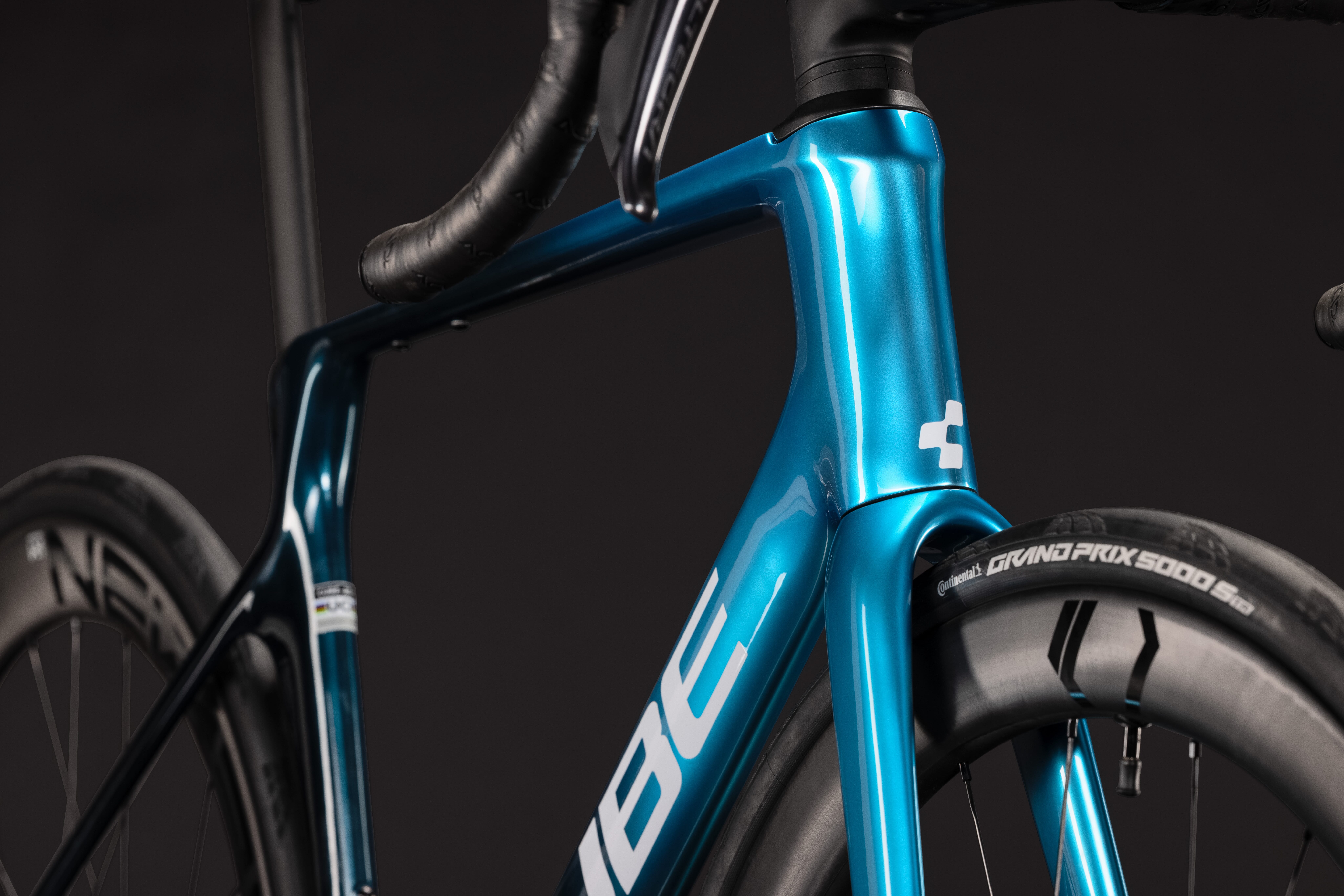

CUBE CSL Evo Aero C:62®, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm
Drivetrain & brakes
shift/ brake levers
Shimano Ultegra Di2 ST-R8170
brake system
Shimano Ultegra BR-R8170, Hydr. Disc Brake, Flat Mount (160/160)
rear derailleur
Shimano Ultegra Di2 RD-R8150-GS. 12-Speed
front derailleur
Shimano Ultegra Di2 FD-R8150-F
bottom bracket
Shimano SM-BB71-41B, 86mm Pressfit
crankset

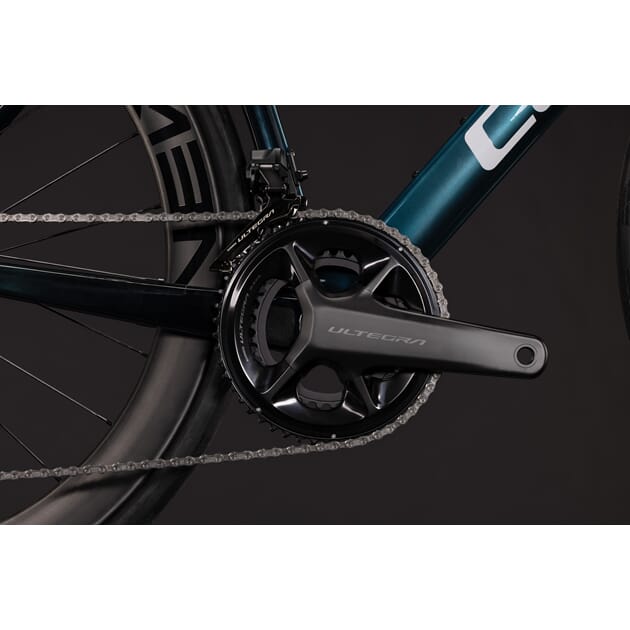

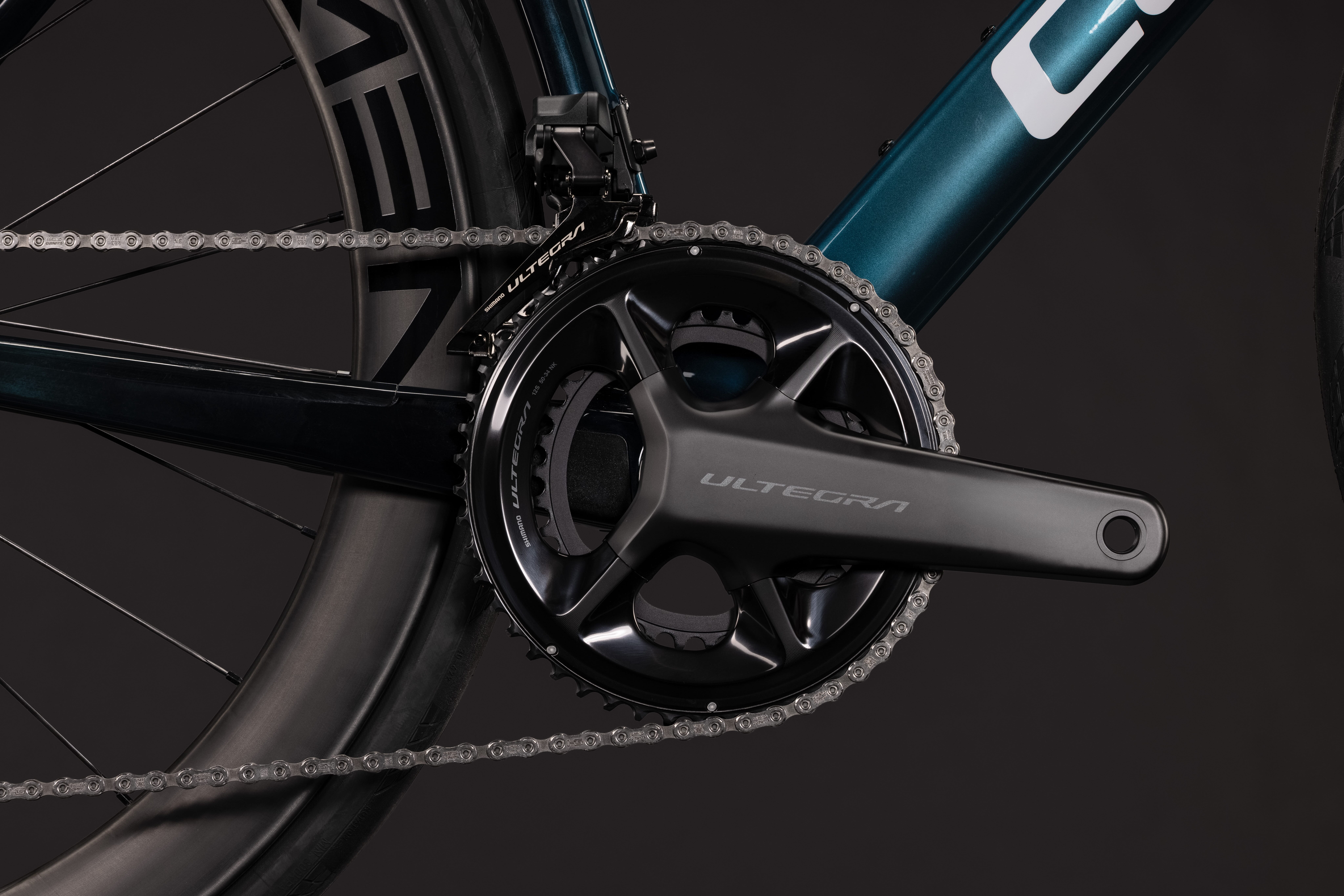

Shimano Ultegra FC-R8100, Hollowtech II, 50x34T, 4iiii Precision 3+ Powermeter one side
cassette
Shimano Ultegra CS-R8101, 11-34T
Cockpit
headset
ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"
integrated bar/ stem

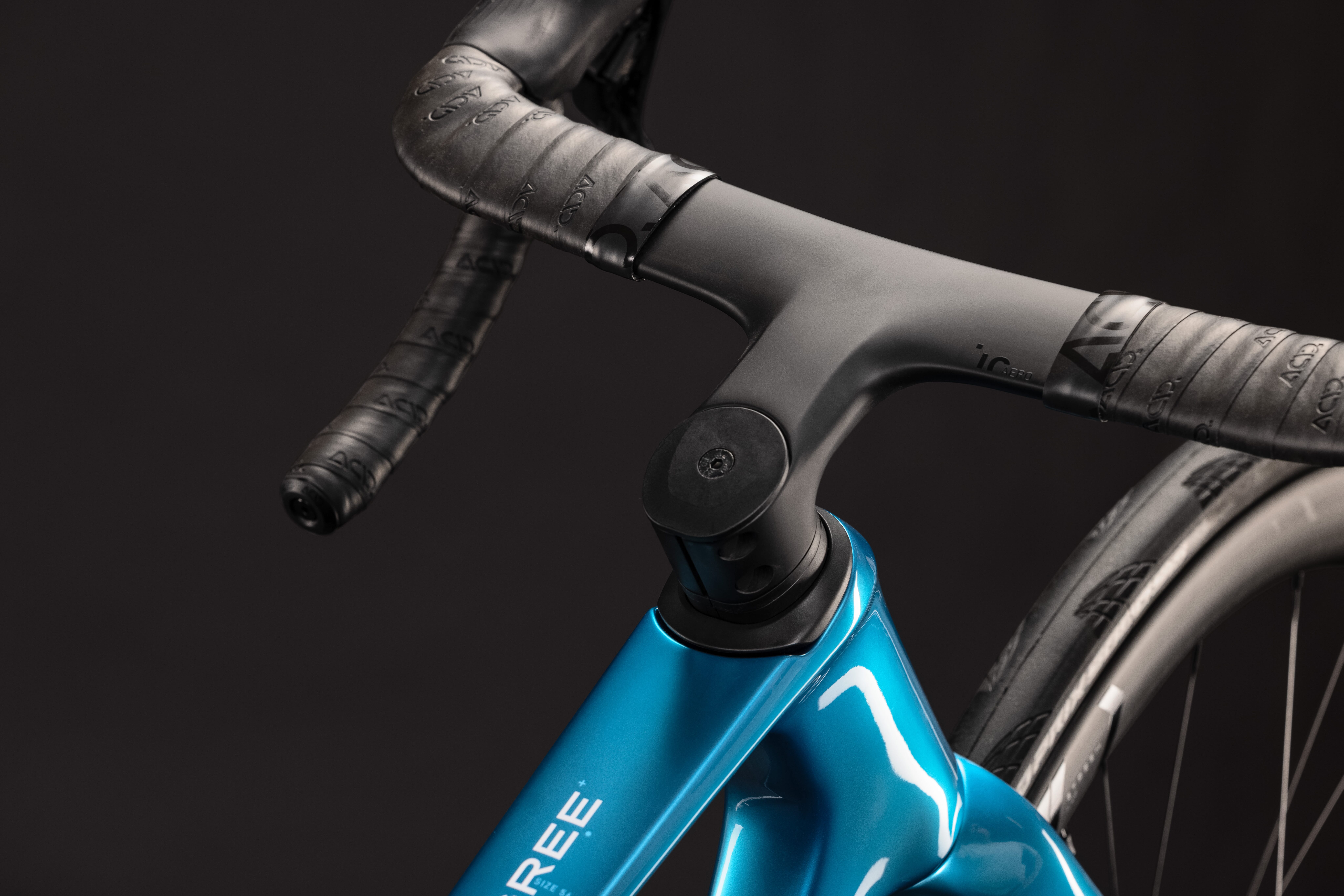

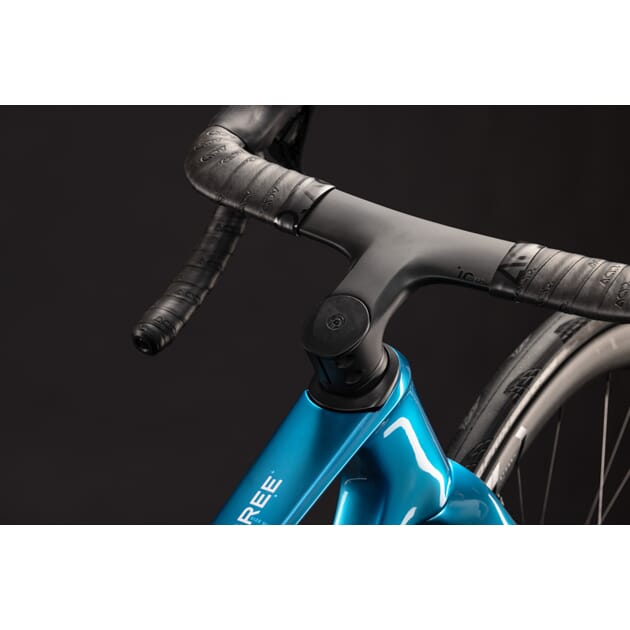

IC Aero Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface
handlebar tape
ACID Bartape RC 2.5
Wheels
wheelset
Newmen Streem A.49/54 Carbon, 21/24 Spokes, Centerlock, 12x100mm/12x142mm, Tubeless Ready
tyres
Continental Grand Prix 5000 S-TR, Kevlar, 30-622, Tubeless Ready
Finishing kit
saddle
ACID Nuance SLT Carbon
seat post
Agree C:62 Aero, Comfort Flex
extras
ACID Frame Bag PRO 0,6
Product information
colour
chromeblue´n´liquidblue
Art. No
1132300
Geometry
| |
47 cm |
50 cm |
53 cm |
56 cm |
58 cm |
60 cm |
62 cm |
| Seat tube |
410 |
440 |
470 |
500 |
520 |
540 |
560 |
| Top Tube Horizontal |
517 |
522 |
539 |
560 |
575 |
590 |
600 |
| Seat angle |
74.6° |
74.6° |
74° |
73.5° |
73° |
72.5° |
72.5° |
| Head tube angle |
71° |
71.5° |
72° |
72.5° |
72.5° |
72.5° |
72.5° |
| Chainstays |
412 |
412 |
412 |
412 |
412 |
412 |
412 |
| Head tube |
112 |
120 |
140 |
170 |
190 |
208 |
231 |
| Wheelbase |
986 |
987 |
994 |
1007 |
1017 |
1027 |
1037 |
| BB-Height to Hub |
73 |
73 |
73 |
71 |
71 |
69 |
69 |
| Protrusion height - 80mm |
717 |
734 |
764 |
794 |
813 |
833 |
852 |
| Reach |
376 |
378 |
383 |
391 |
394 |
399 |
402 |
| Stack |
513 |
523 |
544 |
572 |
591 |
606 |
628 |

Ergonomics
| |
47 cm |
50 cm |
53 cm |
56 cm |
58 cm |
60 cm |
62 cm |
| Stem length |
90 |
90 |
100 |
100 |
110 |
120 |
120 |
| Angle stem |
-10° |
-10° |
-10° |
-10° |
-10° |
-10° |
-10° |
| Handlebar width |
380 |
380 |
380 |
400 |
400 |
420 |
420 |
| Crank length |
165 |
165 |
165 |
170 |
170 |
172.5 |
172.5 |
| Length seat post |
380 |
380 |
380 |
380 |
380 |
430 |
430 |
| Diameter tire maximum |
698 |
698 |
698 |
698 |
698 |
698 |
698 |
| Width tire maximum |
36 |
36 |
36 |
36 |
36 |
36 |
36 |
All values are given in millimetres or degrees.
