RECLAIM
THE CITY
STREETS

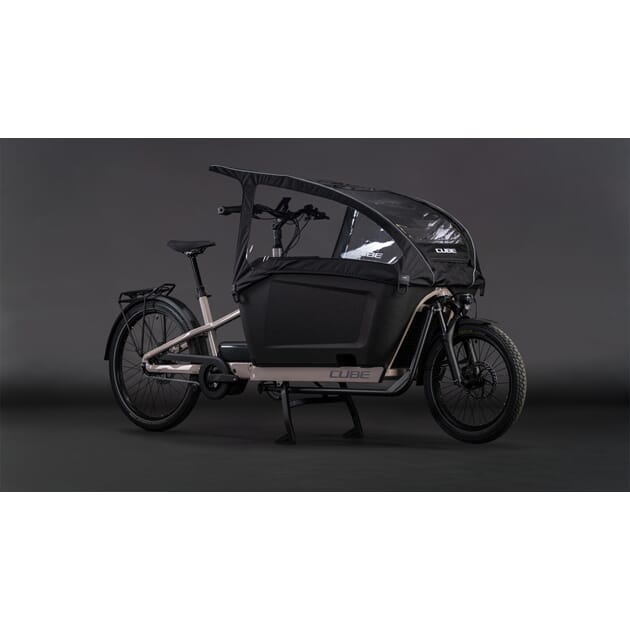

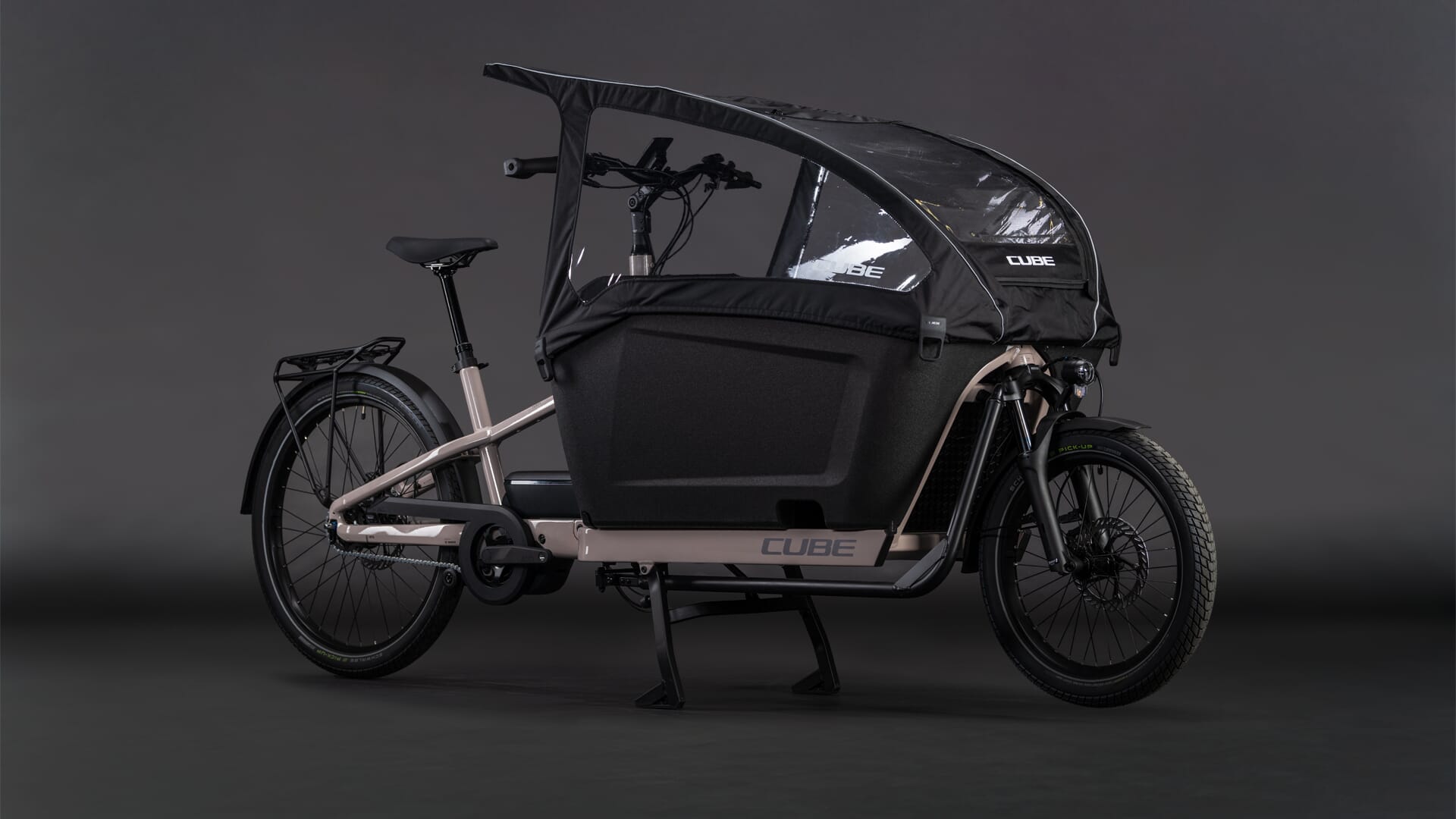

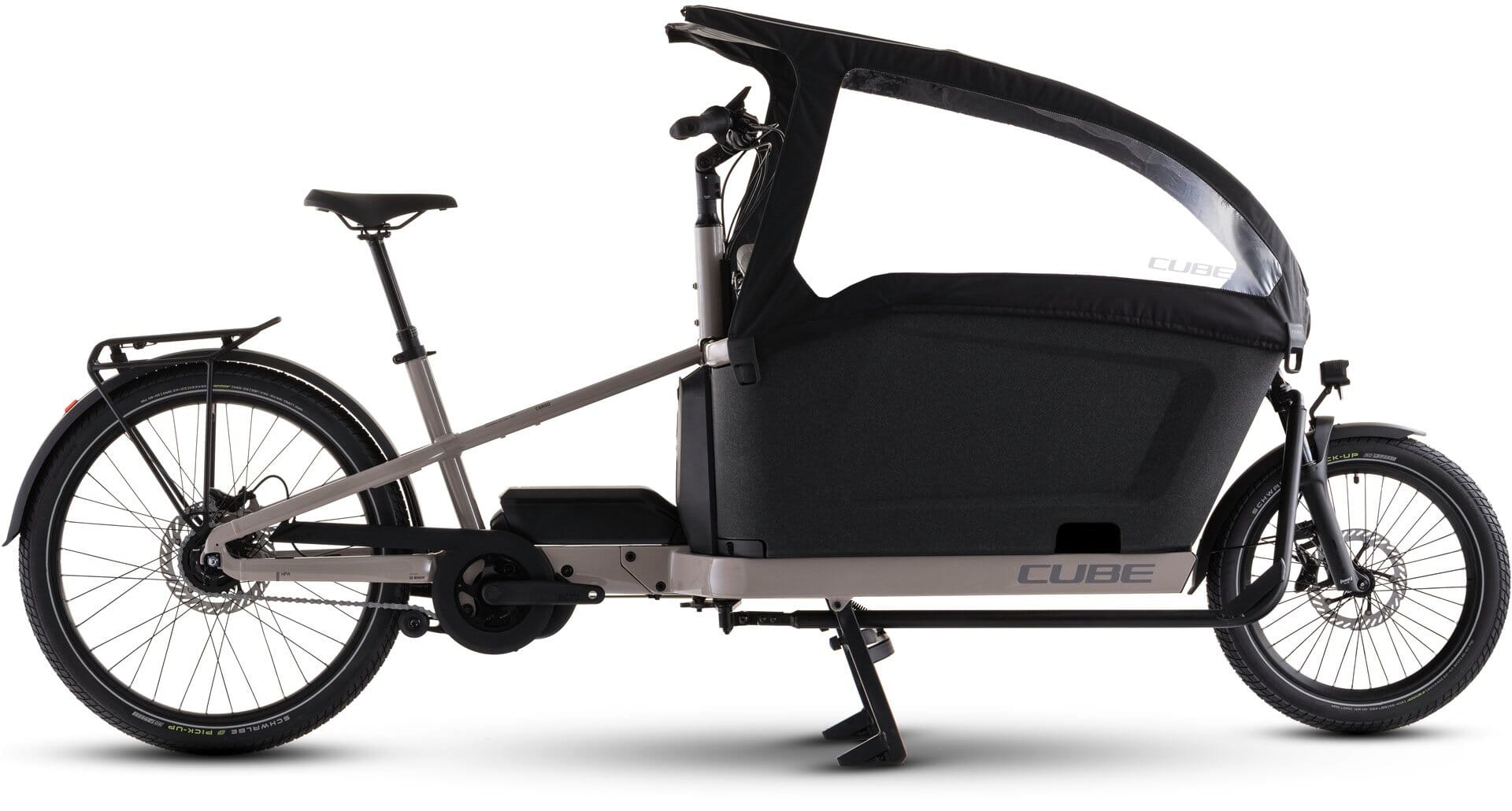

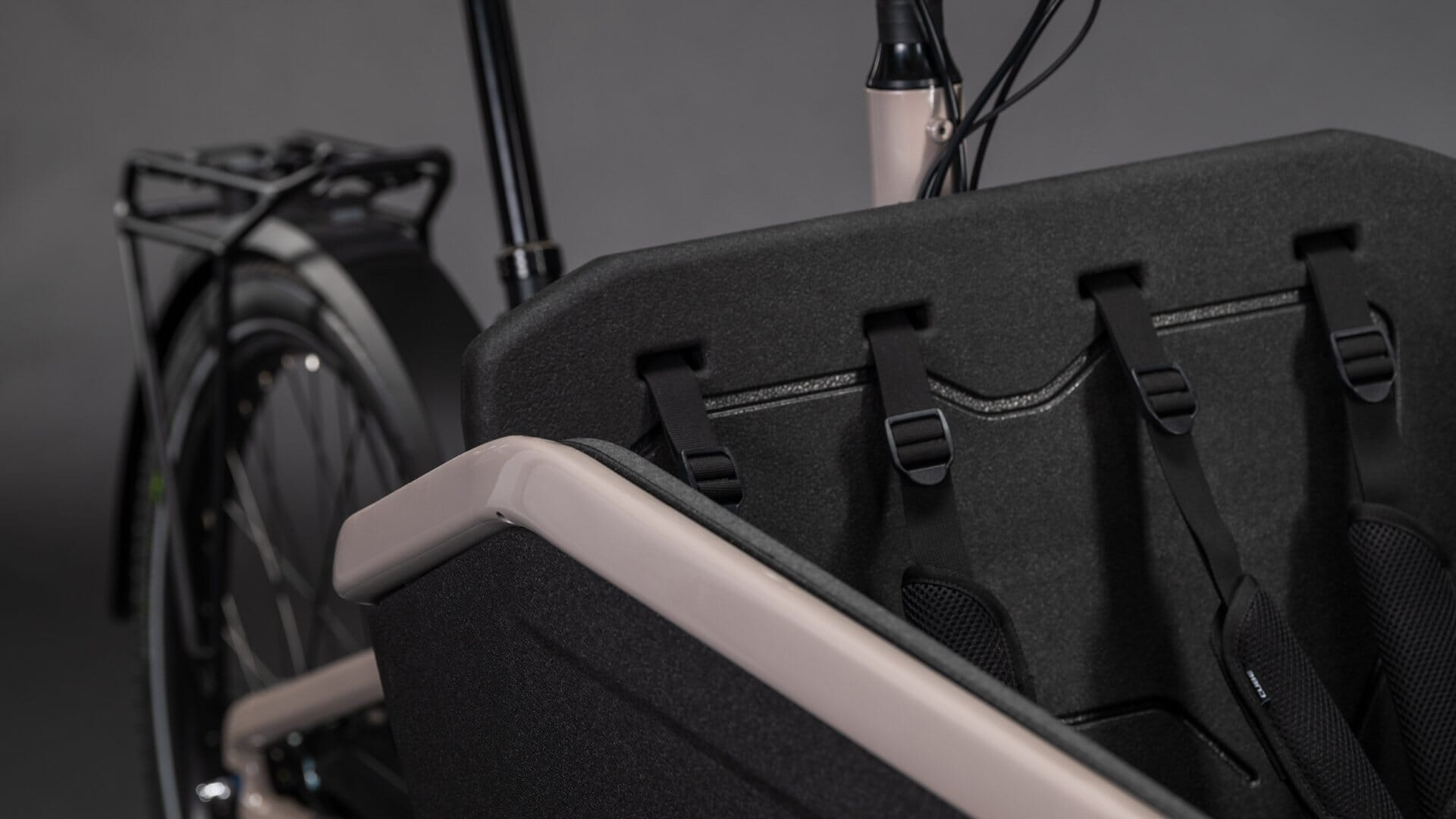

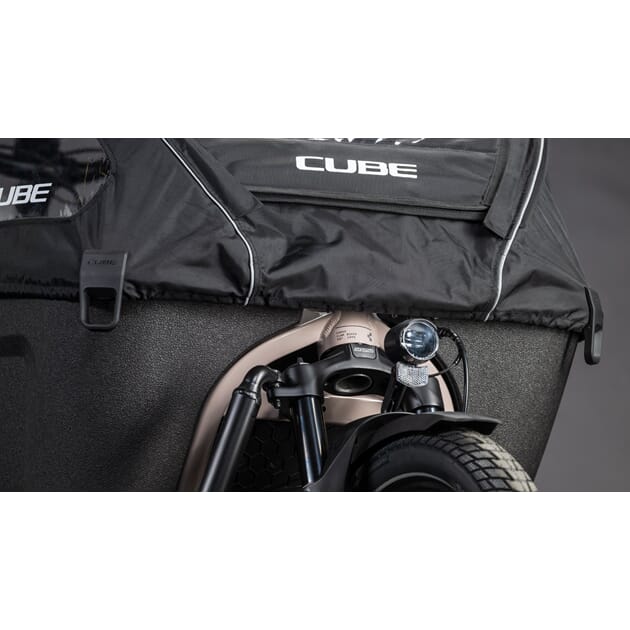

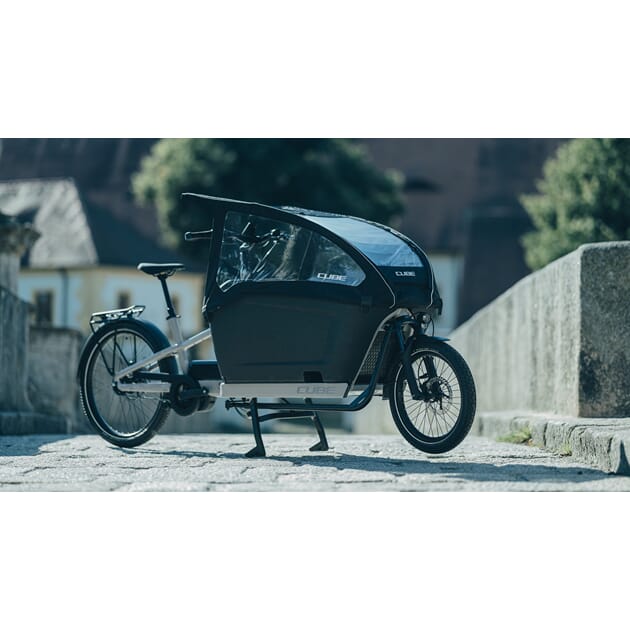

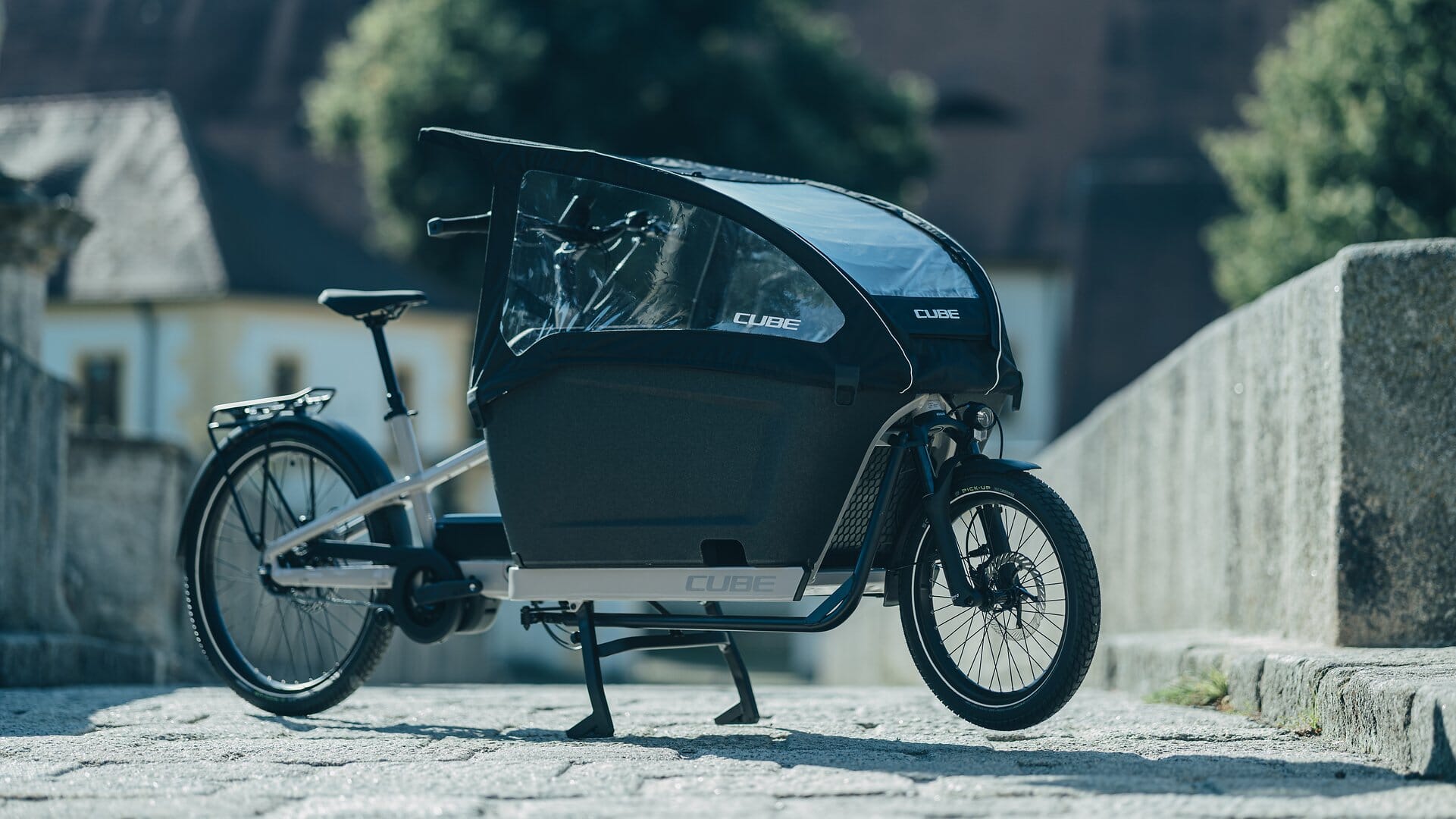

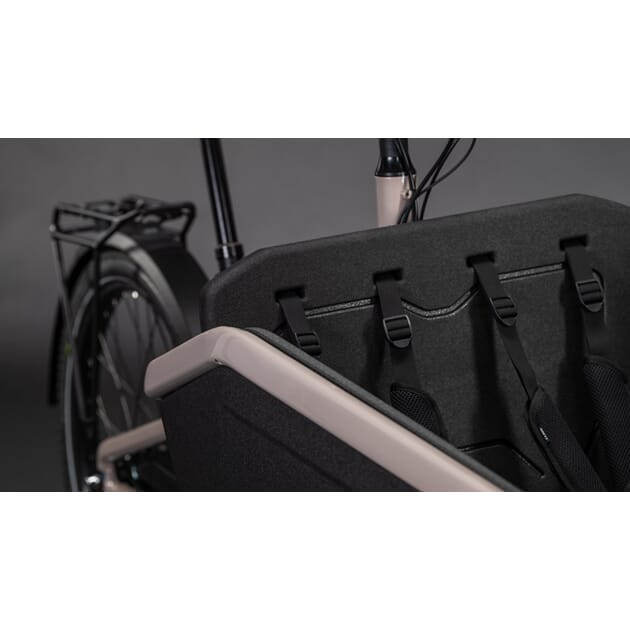

The Cargo Hybrid Family is designed to be a safe, versatile and fun way to bring your kids along for the ride – wherever you're headed. Featuring twin child seats with seatbelts inside the tough EPP foam cargo box – and an included rain cover – they'll enjoy the view and you'll be happy you can see them at all times. The seats are easy to remove, so it can double up as a convenient load-carrier for shopping or other tasks – and, with a maximum system weight of up to 200kg, it has plenty of capacity to help you from day to day. The durable aluminium frame features an integrated motor mount to house the Bosch Cargo Line drive which, in tandem with the included 800Wh battery, offers up to 100Nm of torque – and there's the option to add a 250 Wh PowerMore range extender, for even more miles between charges. There's an additional small storage compartment for all your day-to-day essentials, and an integrated locking system – which works with an optional chain lock – allows you to lock both the bike and this compartment. A kickstand with elongated feet makes it easy to park, whilst the integrated chain guard helps keep your clothes clean. And, with an improved steering system featuring a reduced turning radius, it's easy and intuitive to ride.
Frame Material

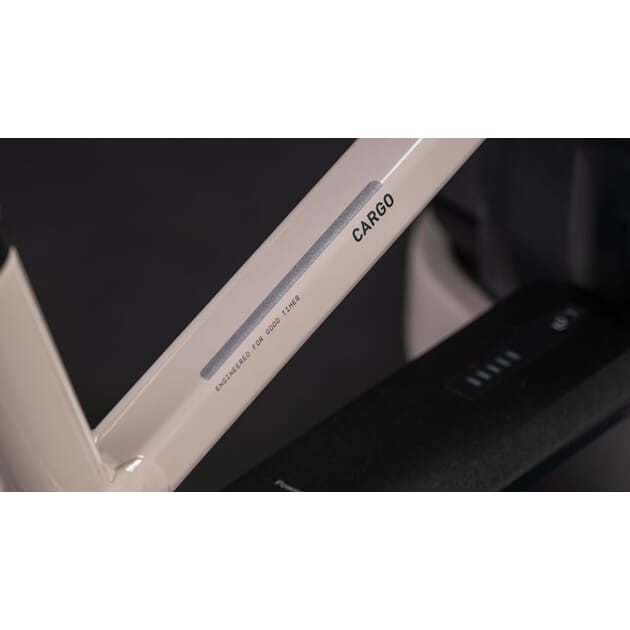

Aluminium Superlite
Battery
800Wh
Wheels
20" / 26"
Highlights

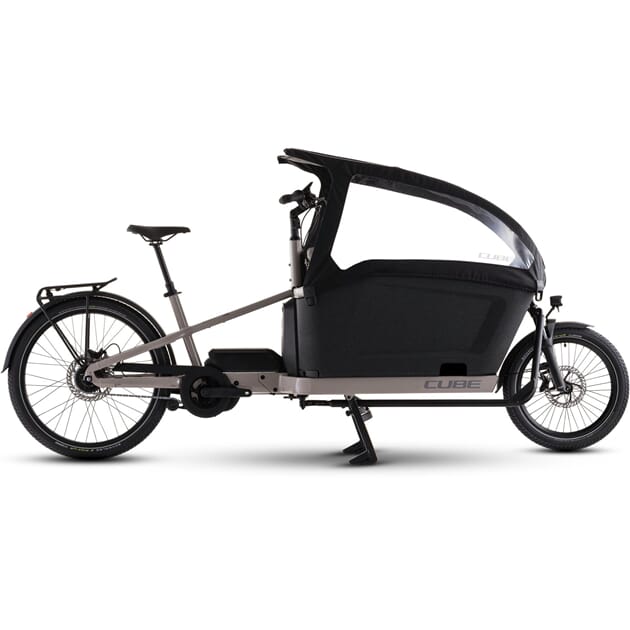

Ushering in a new era of simple, clean and adaptable family transport, the Cargo Hybrid Comfort Pro Family 800 combines Bosch power with CUBE design ingenuity. It's a safe, eco-friendly and adaptable way to bring your kids along for the ride – or do the week's grocery shopping. Two wheels for the win!
The Cargo Hybrid Comfort Pro Family 800 rewrites the bicycle rule book – and will make you look at two-wheeled transport in a different way. Its twin, removeable child seats – with included rain cover – give your children a safe and comfortable place to enjoy the view whilst you whisk them to your destination with the help of powerful Bosch pedal assistance. With an 800Wh battery and up to 100Nm of torque on tap, you'll be there before you know it. Easy-to-use Shimano 5-speed hub gears and powerful Shimano hydraulic disc brakes are there to make your life easier, while grippy Schwalbe tyres and a suspension fork soak up the sometimes bumpy reality of urban roads. And we included a super-stable kickstand, mudguards and LED lights front and rear, so you have everything you need to take on the school run, or a trip to the shops, or a weekend adventure, or...
frame

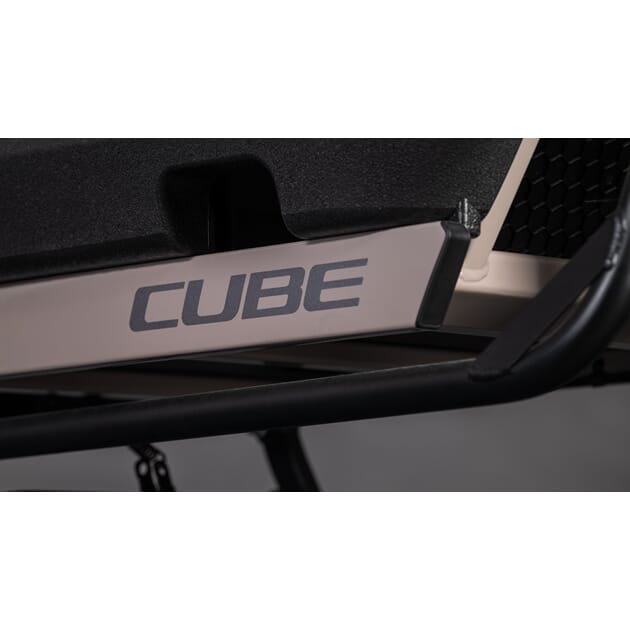

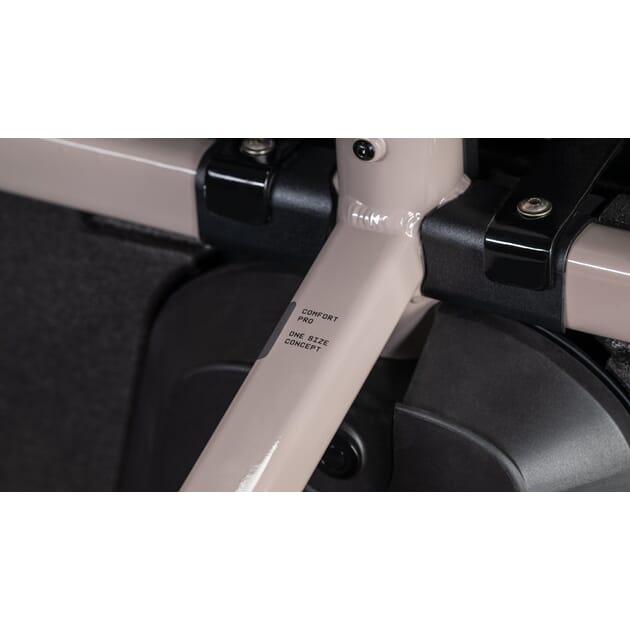

Aluminium Casting, Comfort Ride Geometry, Premium Durability and Safety, Integrated Chainlock Interface
size

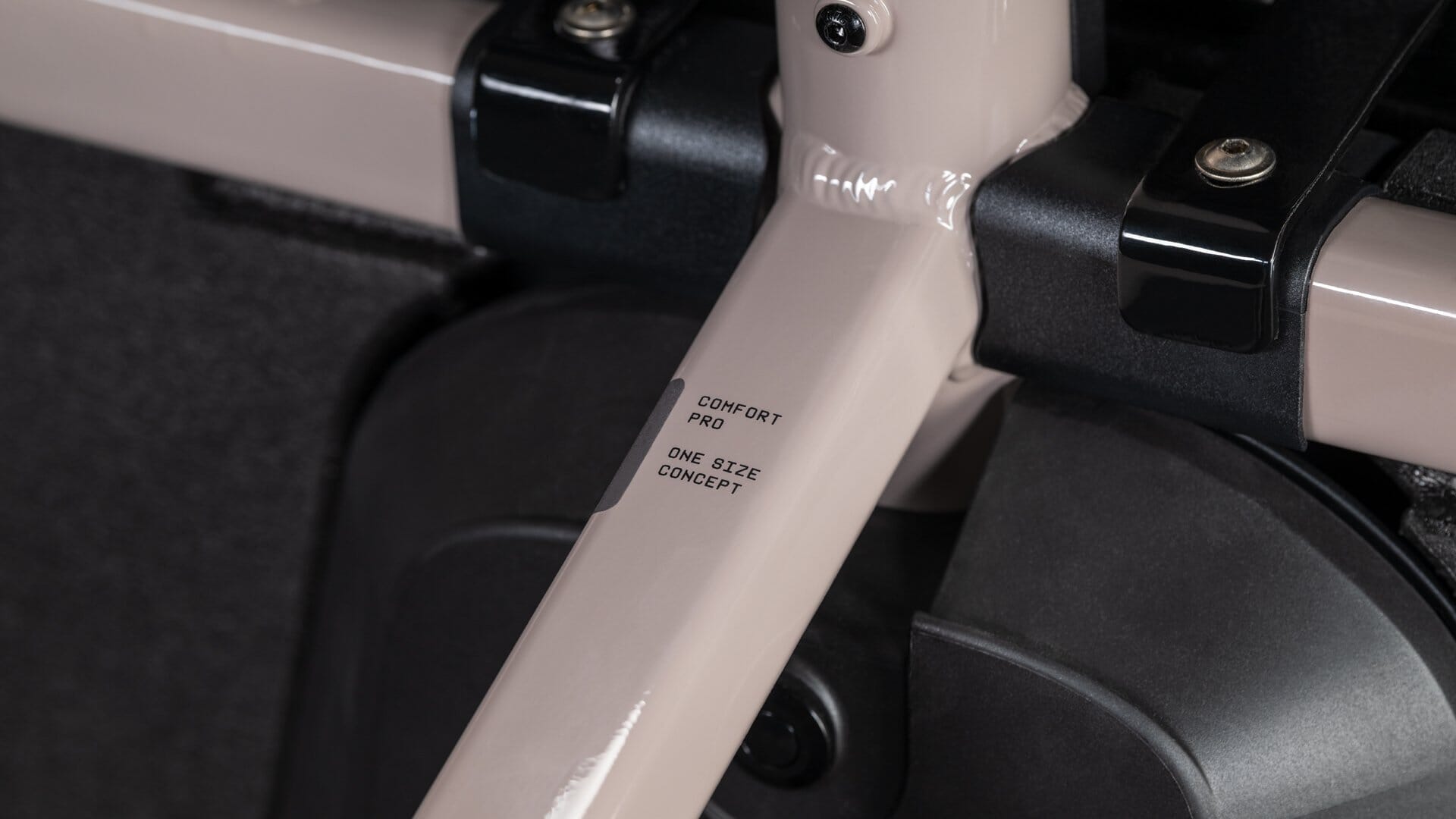

One Size
Suspension
Suspension fork
SR Suntour Mobie34 Cargo, Tapered, 15x110mm
E-bike system
drive unit

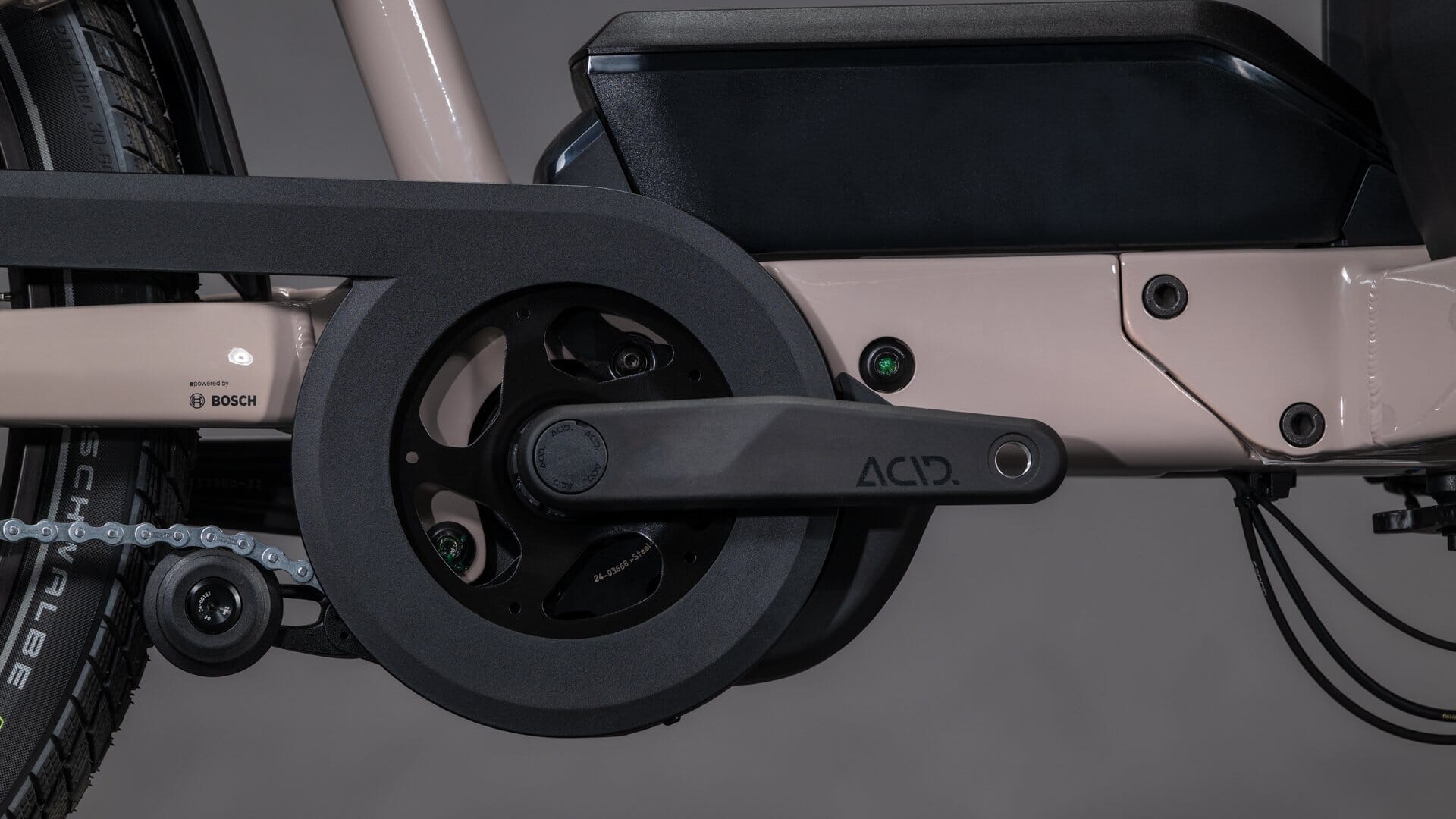

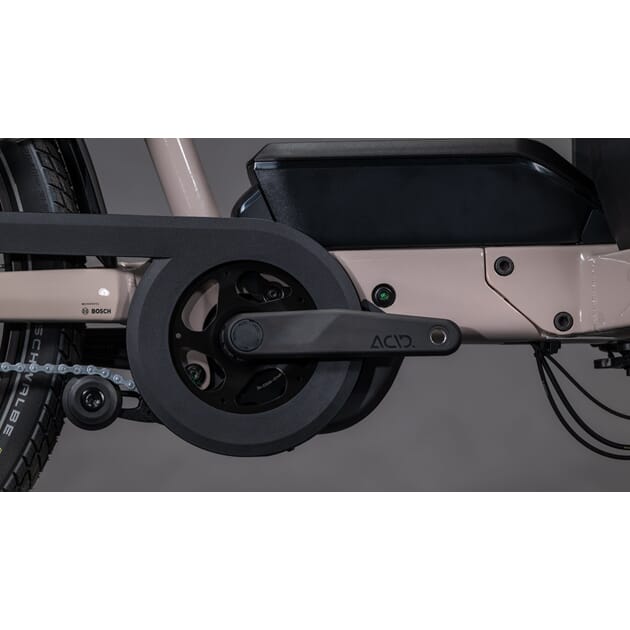

Bosch Drive Unit Cargo Line max. 100Nm (BDU38)
Remote
Bosch LED Remote
battery
Bosch PowerPack 800
display
Bosch Kiox 500
charger
Bosch 4A
Drivetrain & brakes
brake system
Shimano BR-MT520, Hydr. Disc Brake (180/203)
shifters
Shimano Nexus SL-C7000-5, Revoshift
crankset
ACID Trekking Hybrid, 40T
chain
KMC Z610
sprocket
Shimano Nexus, 30T
Cockpit
headset
VP sealed bearings and Cane Creek Viscoset
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
handlebar
CUBE Comfort Trail Bar, 680mm
grips
ACID Travel Comfort Gripshift
Wheels
rims
ACID EX35, 36H, Disc, Tubeless Ready
front hub
ACID SLX, 15mm, Boost, Centerlock
rear hub
Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
front tyre
Schwalbe Pick-Up, Performance, Super Defense, 65-406
rear tyre
Schwalbe Pick-Up, Performance, Super Defense, 65-559
Finishing kit
saddle
ACID Shen Pro
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 34.9mm
pedals
ACID PP Trekking
front light

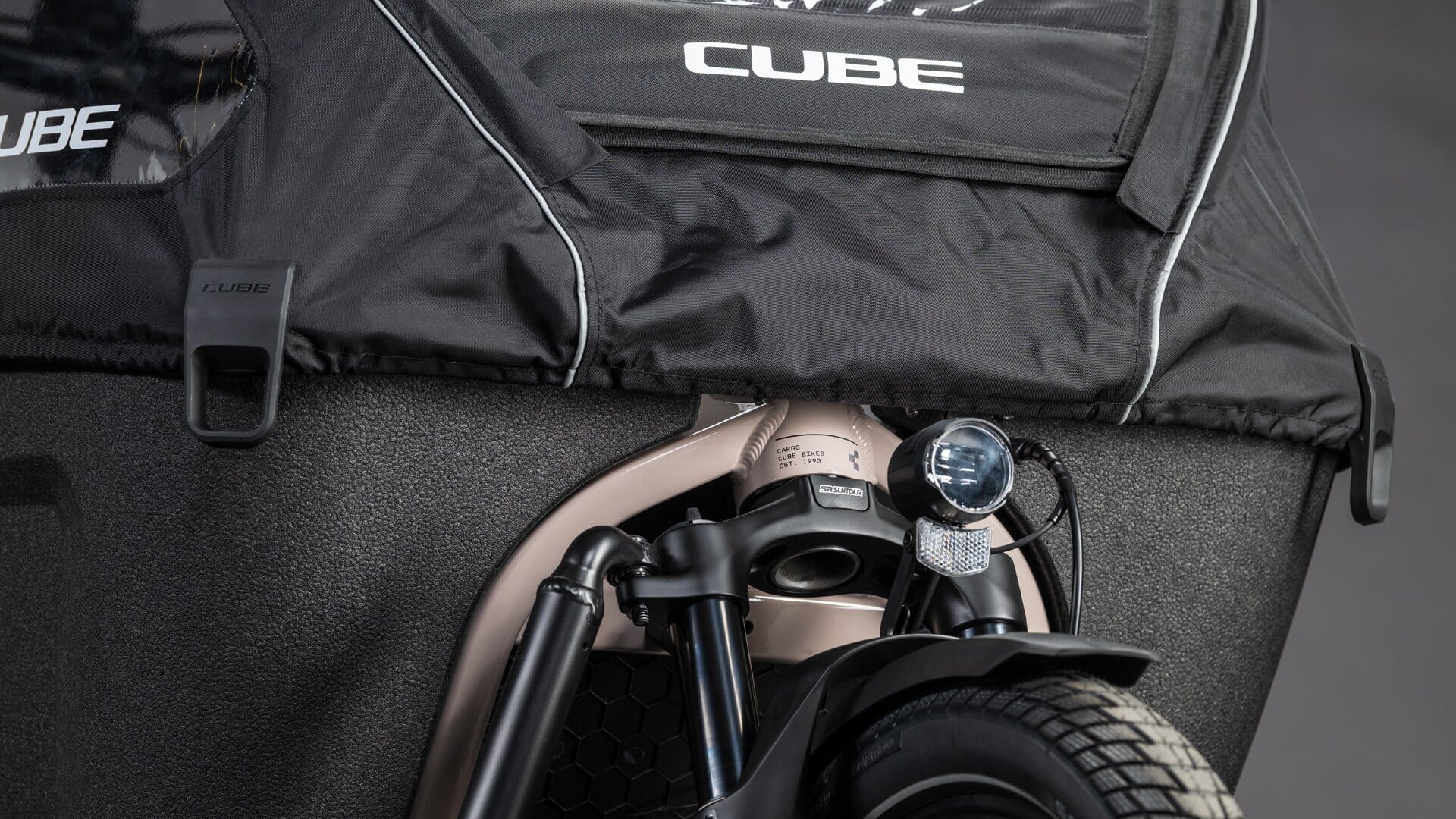

ACID Front Light PRO-E 60 X-Connect, 12V, DC
rear light
ACID Mudguard Rear Light PRO-E, 12V, DC
bell
Reich Cycle Bells Ringsound
carrier

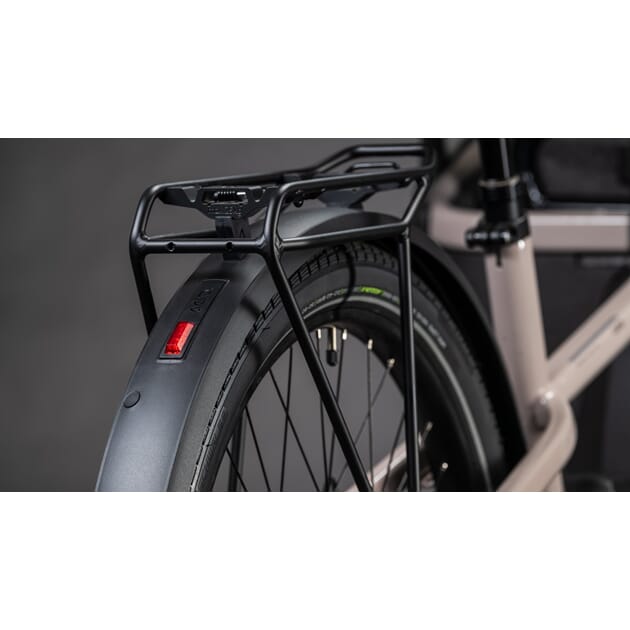

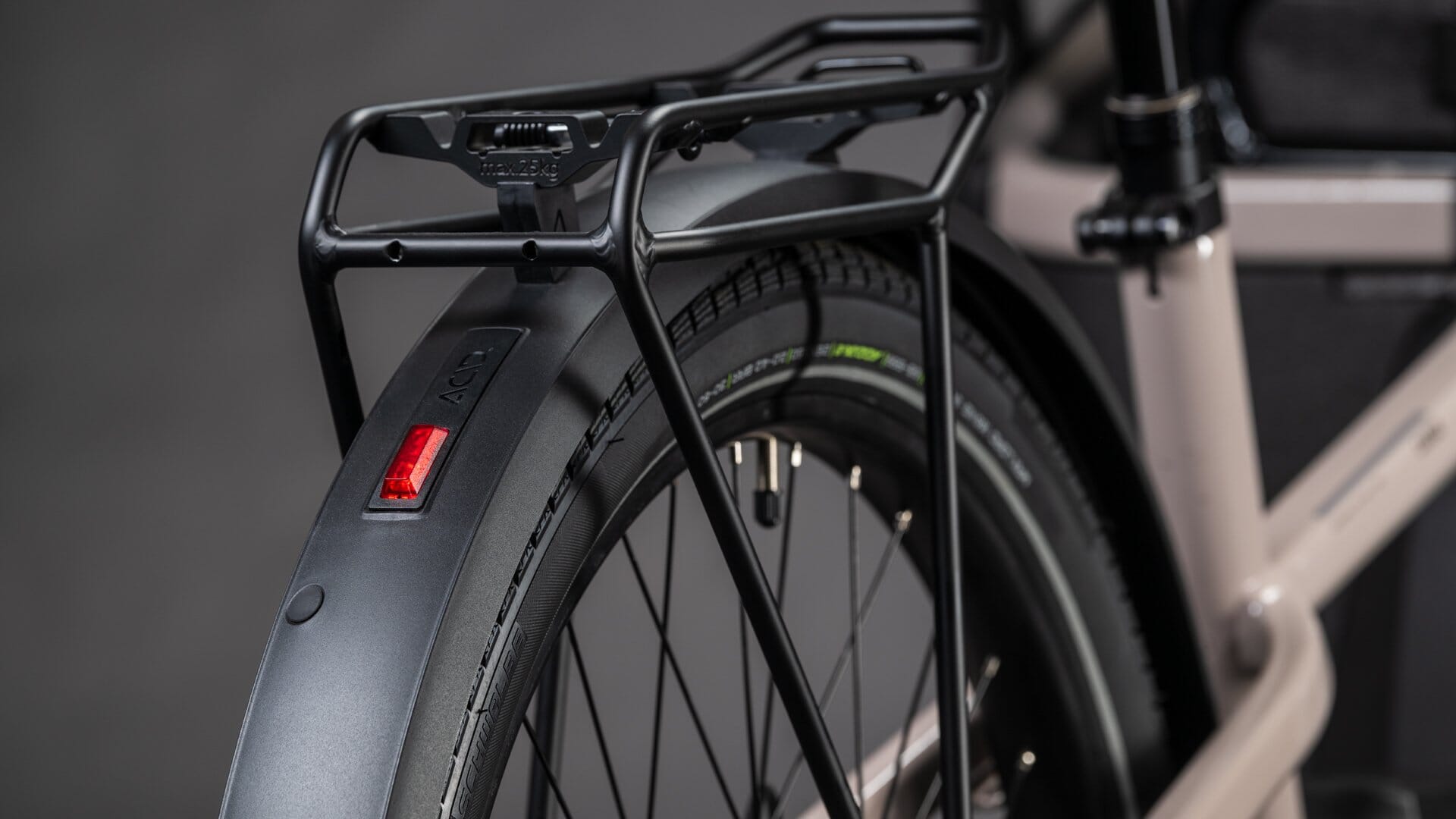

ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
Product information
colour
oatgrey´n´reflex
weight
49,0 kg
Art. No
124200
SRP*
61290 NOK
