THE
TRAILHUNTER

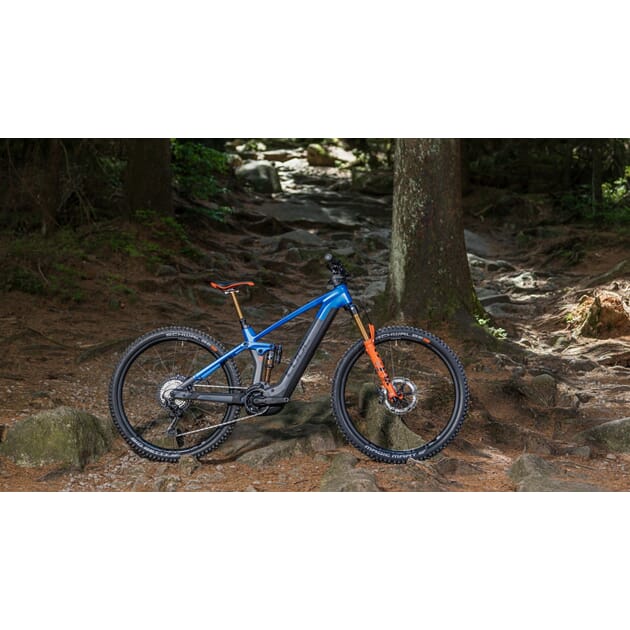

What good is a go-anywhere, ride-all-day, Bosch-powered bike without power? Not much, which is why every frame size of the Stereo Hybrid 140 HPC, right down to the smallest, accepts a 750Wh battery. Combined with up to 85Nm from the Bosch CX drive unit, it's your ticket to extended off-road adventures. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Internal Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

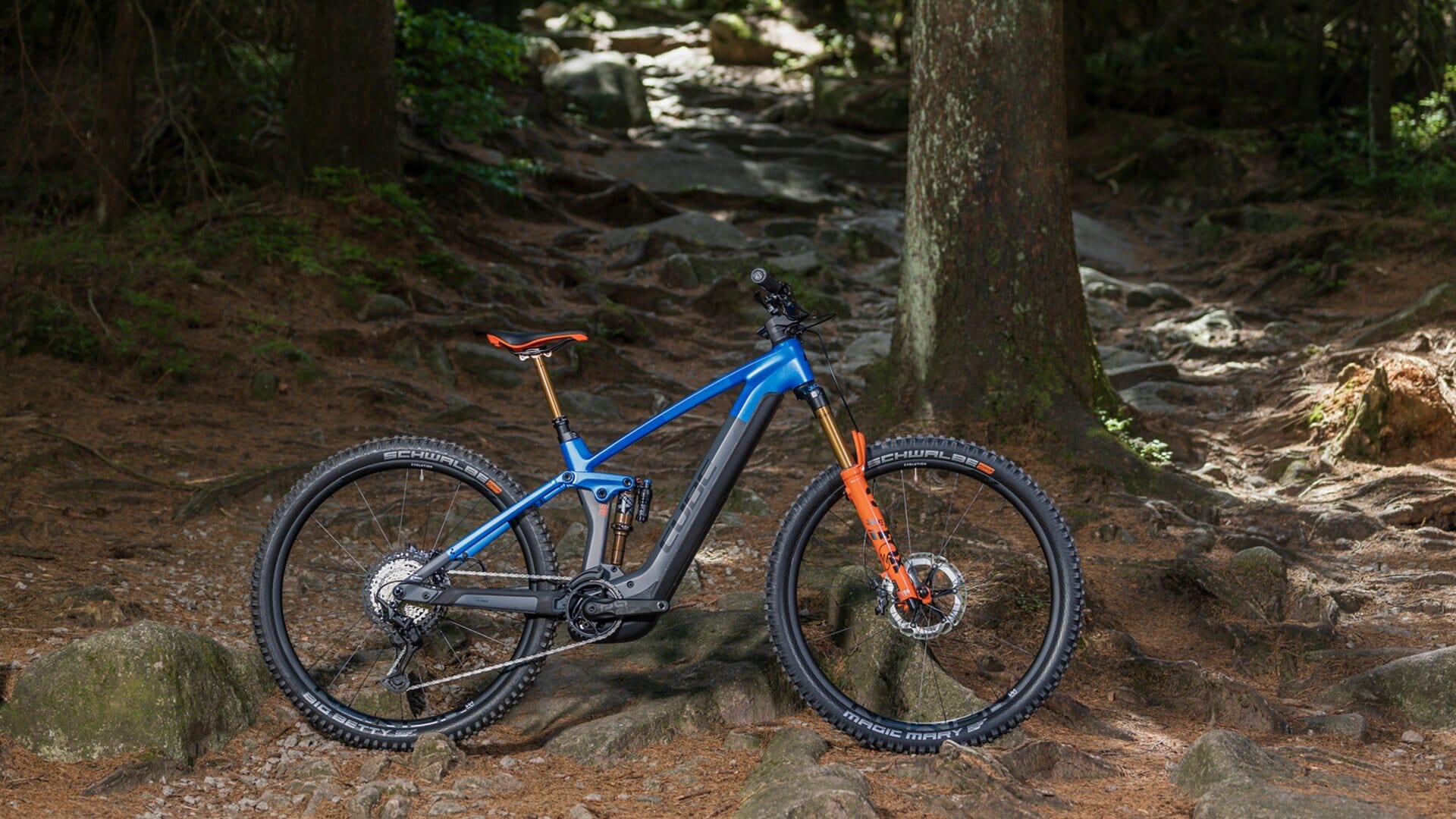

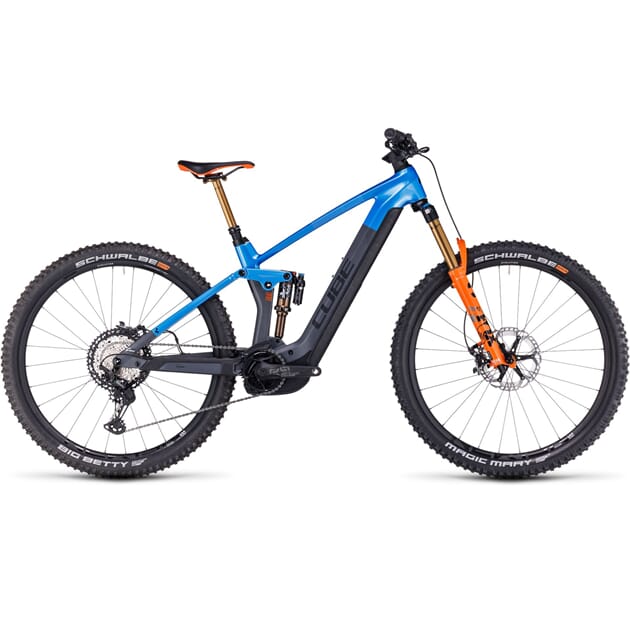

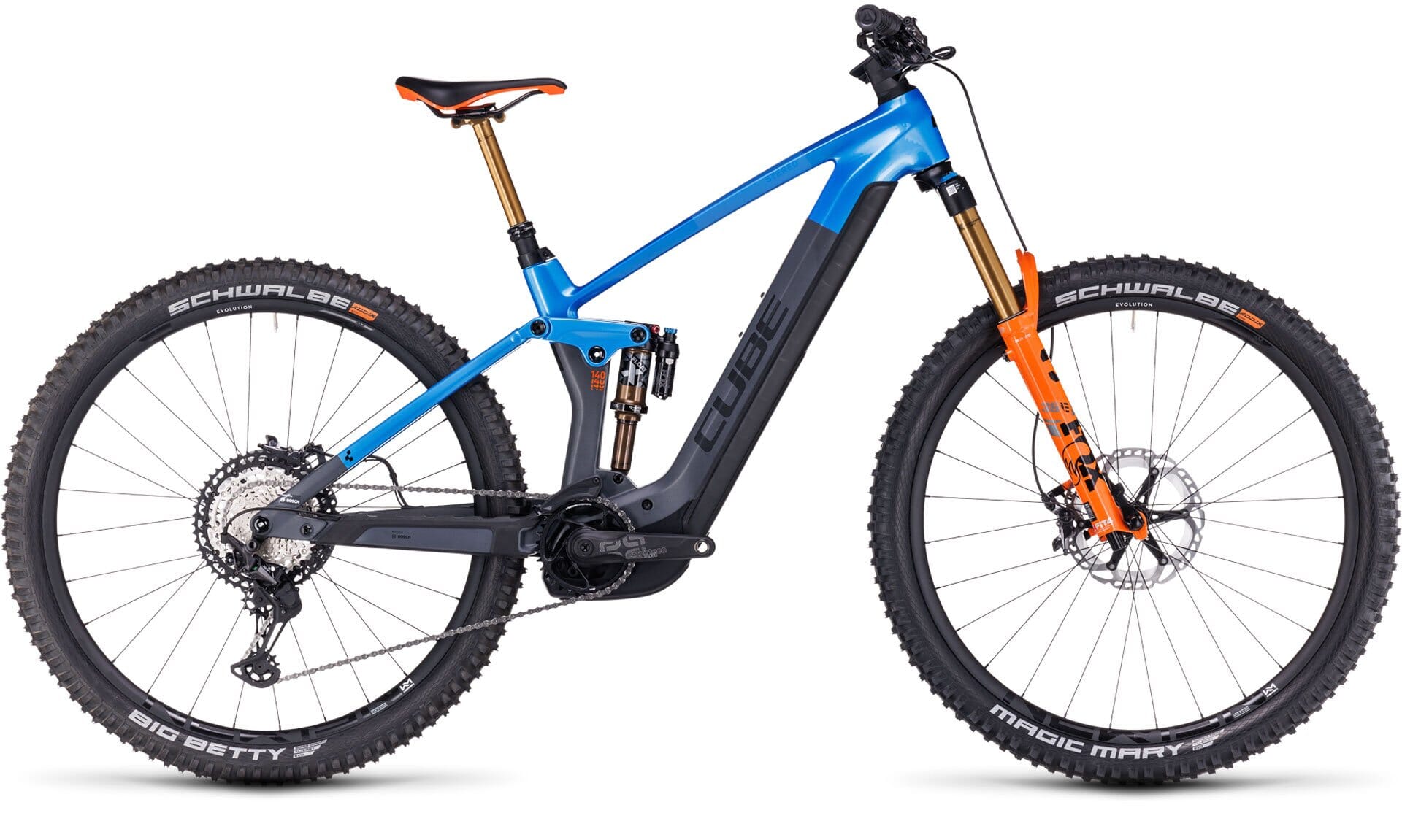

YOU CAN TELL FROM ITS ACTIONTEAM PAINT JOB THAT THIS IS A BIKE THAT MEANS BUSINESS. THE STEREO HYBRID 140 HPC ACTIONTEAM 750'S CARBON MAIN FRAME IS PURPOSE-BUILT FOR ALL-MOUNTAIN RIDING, AND ITS BOSCH CX DRIVE SYSTEM AND CAREFULLY SELECTED COMPONENTS ARE ALL CHOSEN FOR MAXIMUM PERFORMANCE... SO YOU CAN JUST GET OUT AND RIDE.
The Stereo Hybrid 140 HPC Actionteam 750 is all about sweating the details. Four-piston Shimano XT hydraulic brake calipers harness the incredible grip of Schwalbe's Magic Mary and Big Betty 2.4in tyres to deliver assured speed control, no matter the conditions. Shimano's XT 1x12 gears transfer the combined power of your pedalling and the fourth-generation Bosch CX drive unit to the Newmen Evolution wheelset, backed up by a 750Wh battery for the best possible range and a Kiox 300 controller so you're always on top of things. And with a Fox 36 Factory fork, Float X Factory rear shock and remote dropper post, the only component missing is you.
FRAME

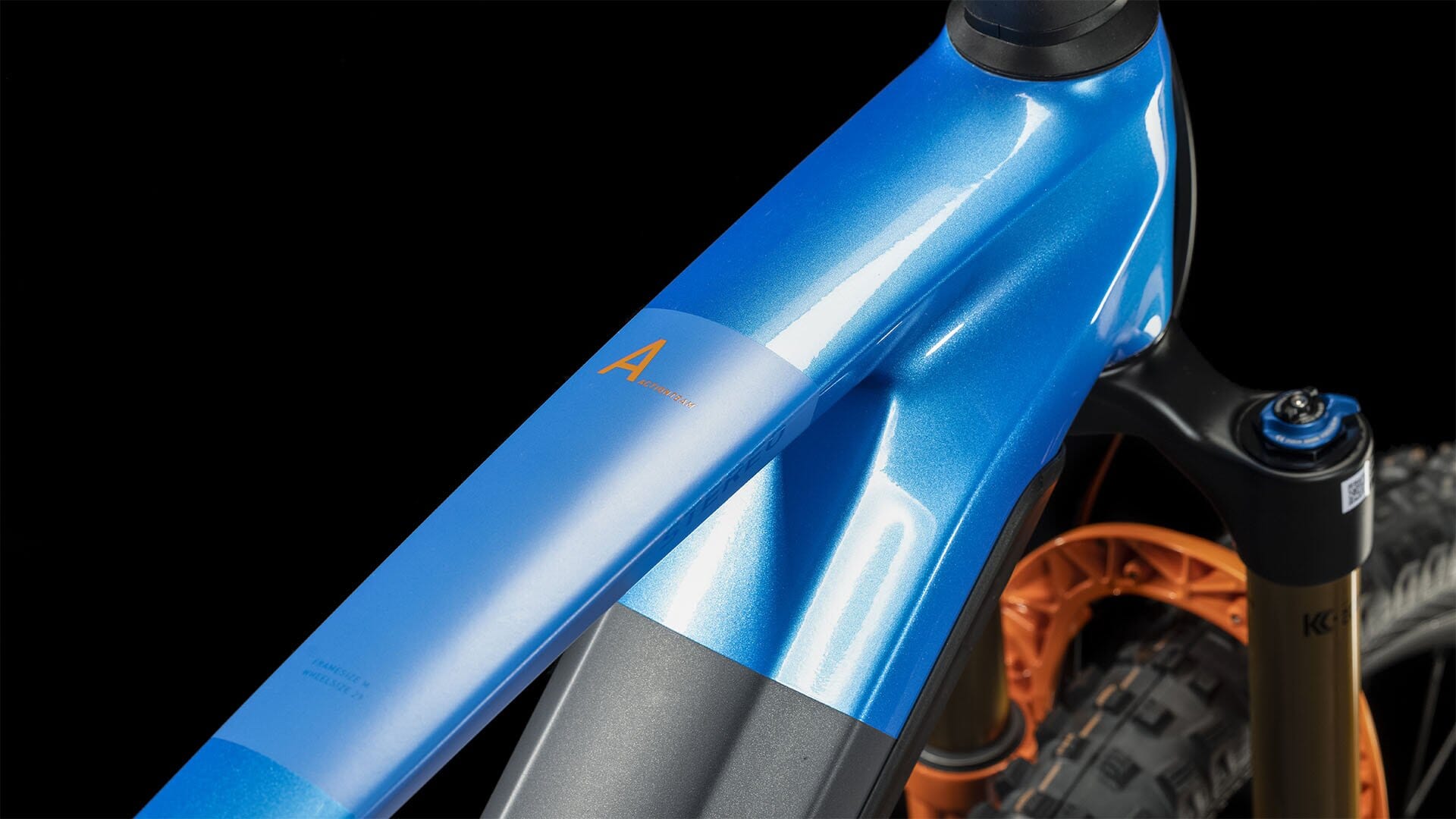

· FRAME

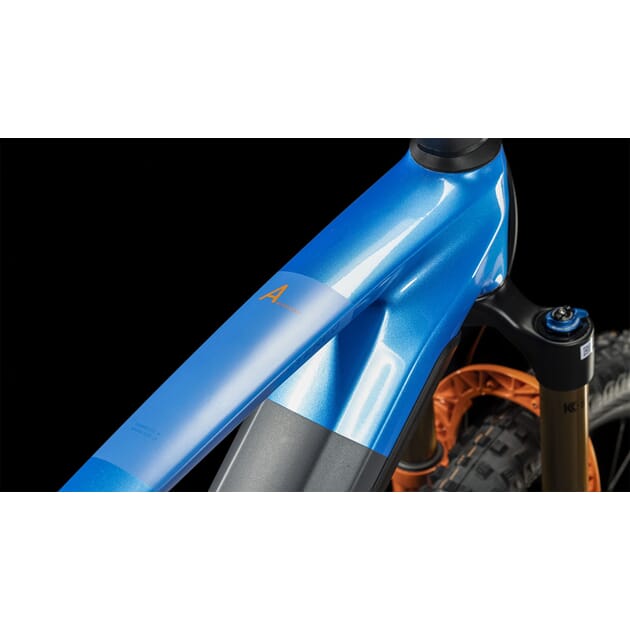

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
· SIZE
Size Split: 27.5: S // 29: M L XL
SUSPENSION
· SUSPENSION FORK

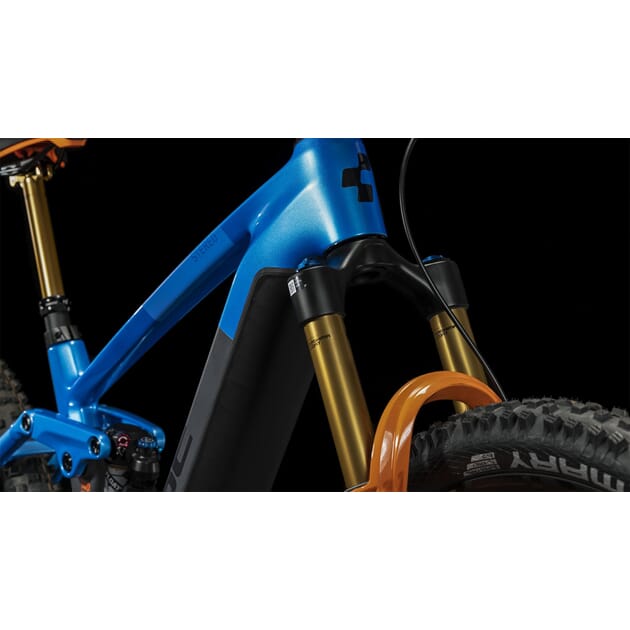

Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated

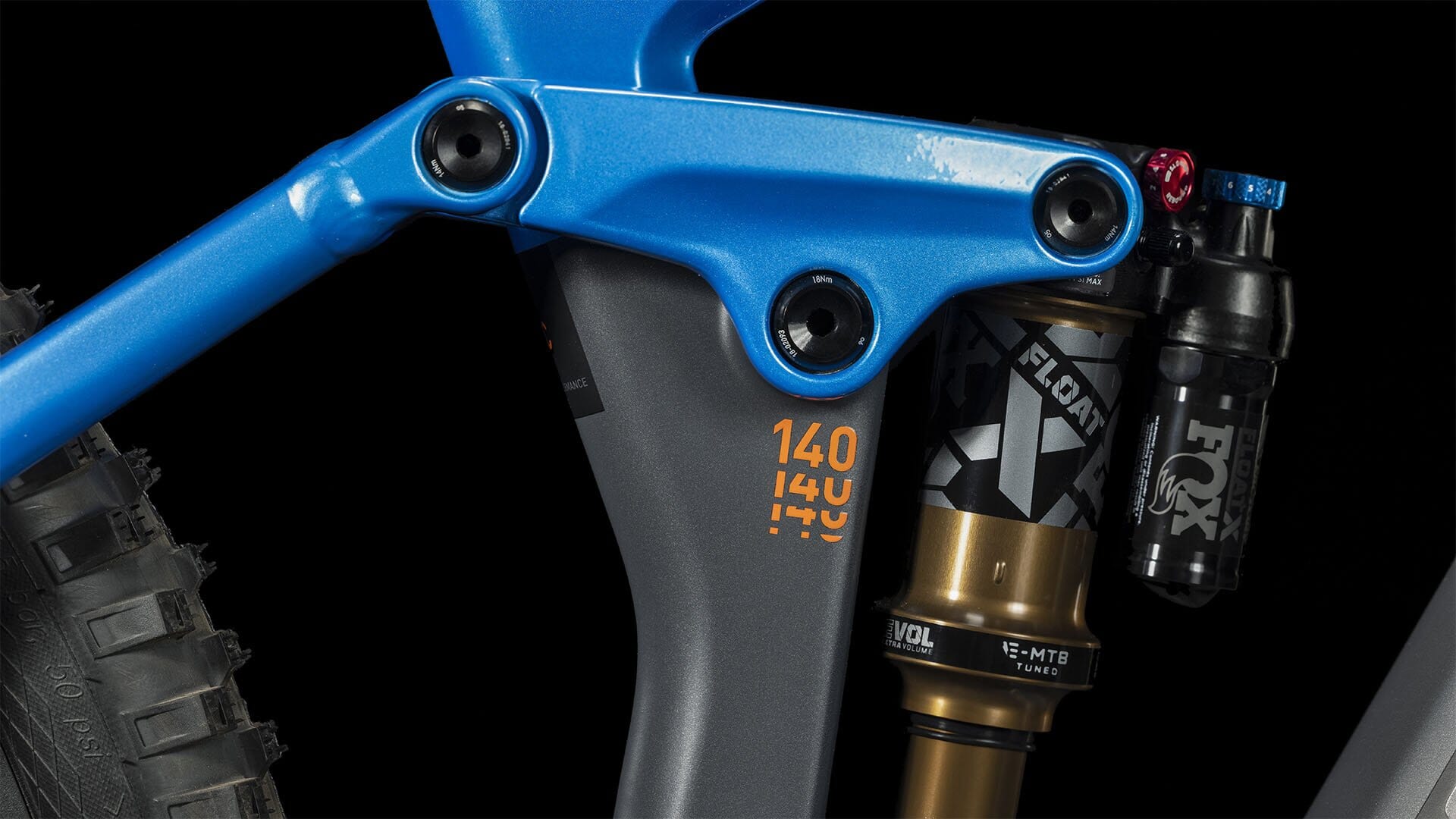

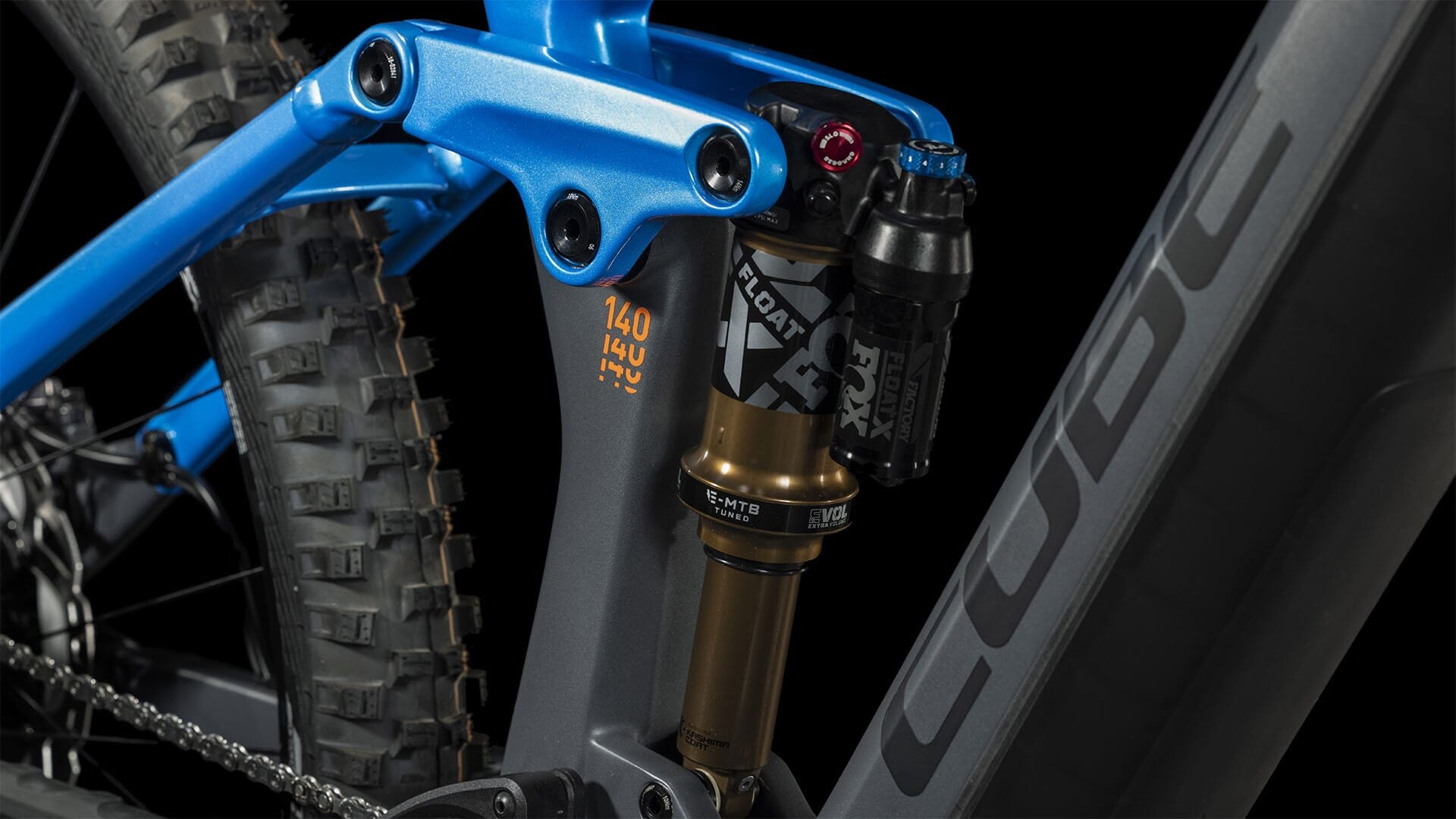

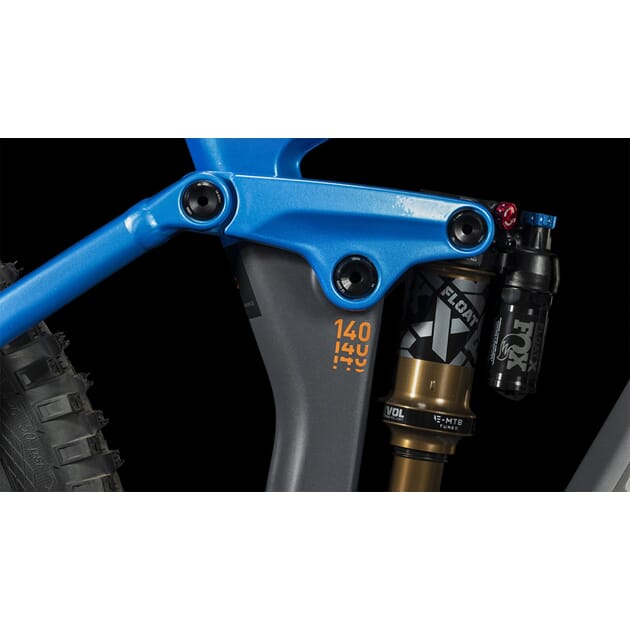

· SHOCK

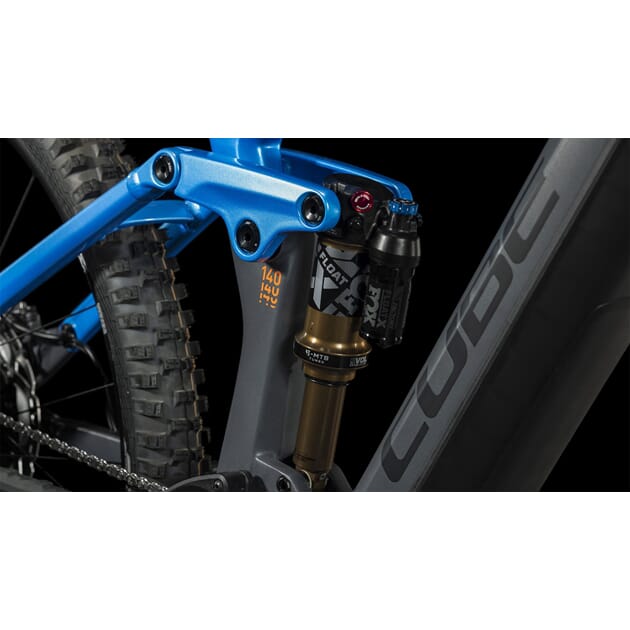

Fox Float X Factory, 205x60mm (27.5: 185x55mm), Adjustable LSC w/ 2-Pos. Lever, Trunnion Mount, Kashima Coated
· SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
E-BIKE SYSTEM
· DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
· REMOTE
Bosch LED Remote
· BATTERY
Bosch PowerTube 750

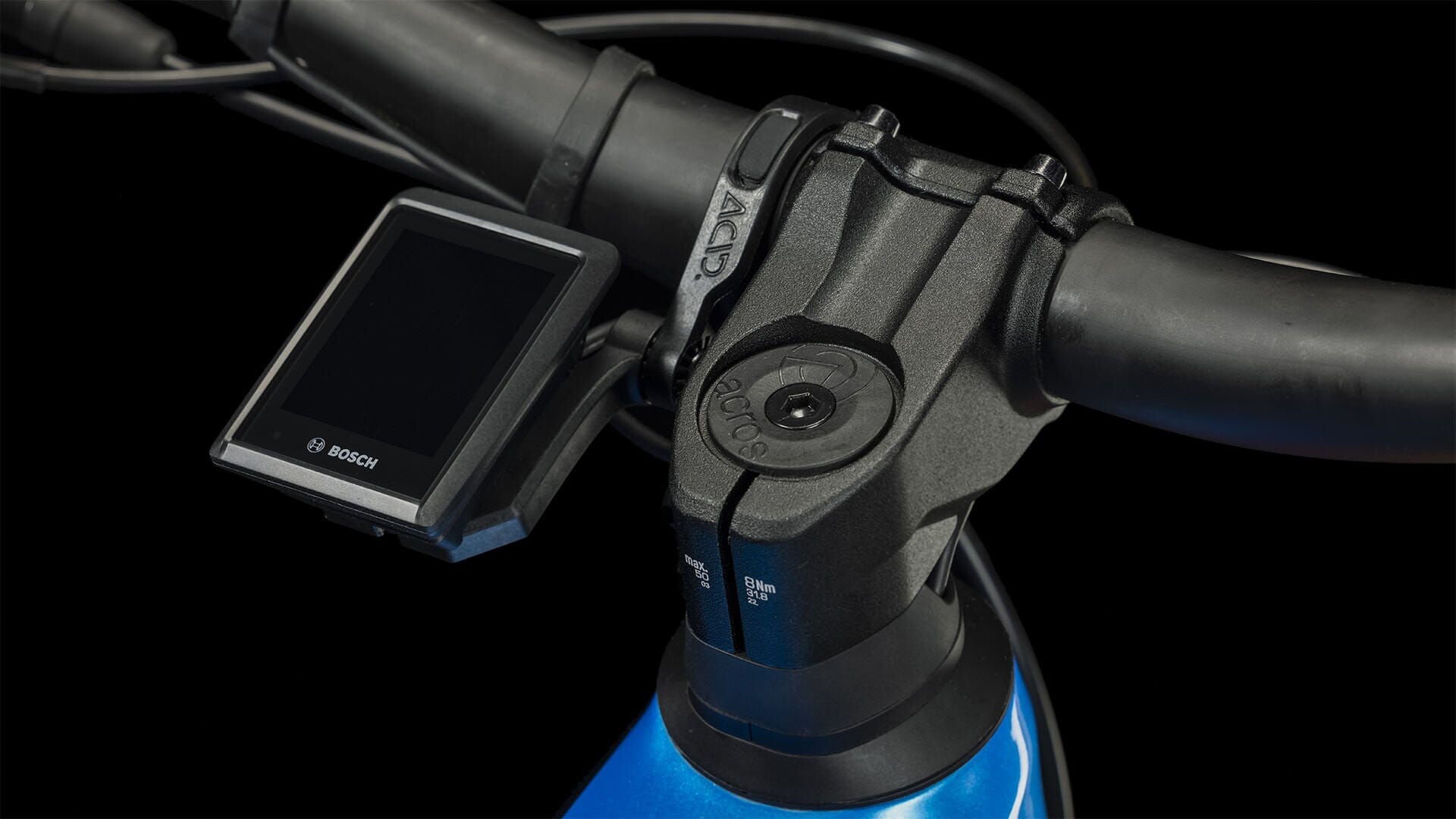

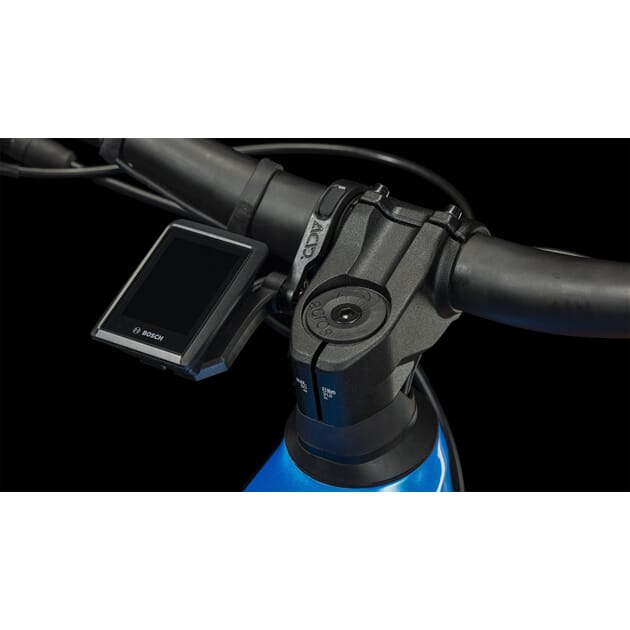

· DISPLAY
Bosch Kiox 300
· CHARGER
Bosch 4A
DRIVETRAIN & BRAKES
· BRAKE SYSTEM
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
· REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
· SHIFTERS
Shimano XT SL-M8100-IR, Direct Attach
· CRANKSET
e*thirteen Plus Crank, 165mm (27.5: 36T // 29: 34T)
· CASSETTE
Shimano XT CS-M8100, 10-51T
· CHAIN
Shimano XT CN-M8100
· CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
COCKPIT
· HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
· STEM
CUBE Performance Stem E-MTB, 31.8mm
· HANDLEBAR
Newmen Advanced 318.25, Carbon, 780mm
· GRIPS
ACID Disrupt, Soft Compound
WHEELS
· WHEELSET
Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
· FRONT TYRE
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
· REAR TYRE
Schwalbe Big Betty, Super Gravity, Addix Soft, Kevlar, 2.4
FINISHING KIT
· SADDLE
Natural Fit Venec

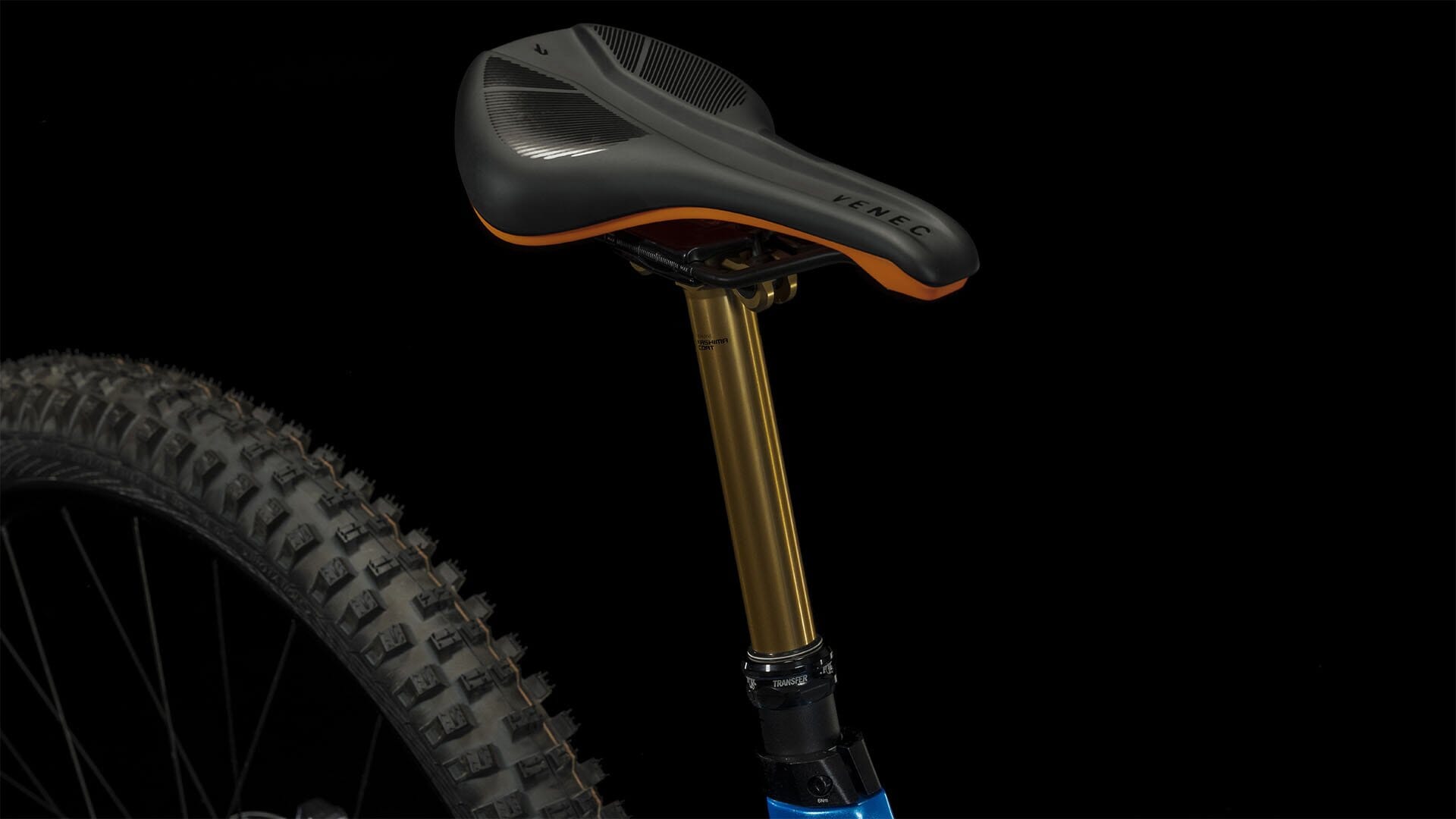

· SEAT POST
Fox Transfer Factory 31.6mm, Kashima Coated
· EXTRAS
Schwalbe Aerothan™ Inner Tubes
PRODUCT INFORMATION
· COLOUR
actionteam
· WEIGHT
24,2 kg
