ADVENTURE
ON!

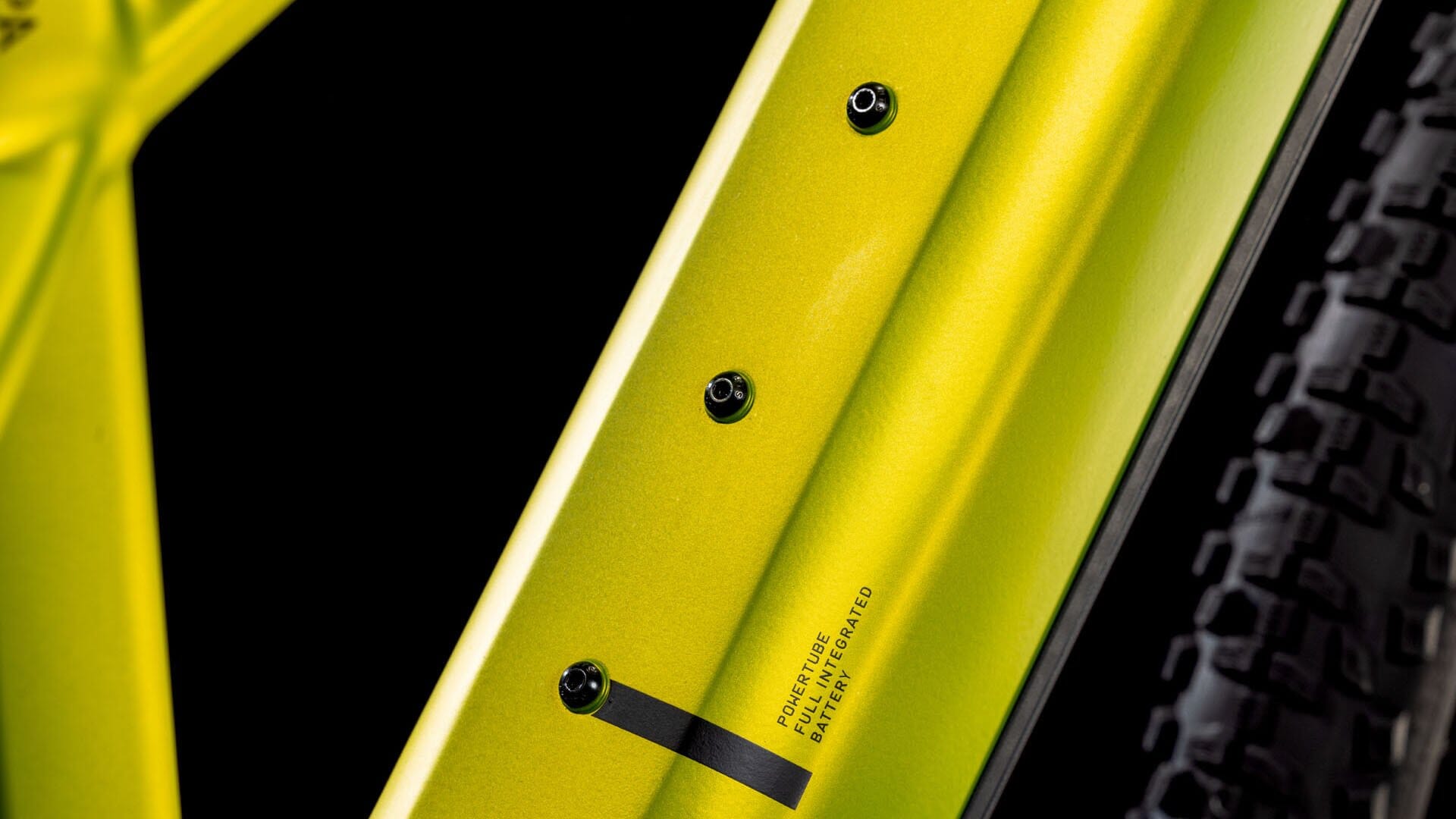

We specialise in really neat frame design, and the Reaction Hybrid is no exception. With the 800 Wh PowerTube battery neatly concealed and the Bosch CX drive housed securely, its svelte lines disguise lots of clever features. It's PowerMore-ready, making it easy to add up to 250 Wh of extra battery capacity. The integrated seat clamp and cable routing complement the clean aesthetic, whilst a UDH gear hanger makes it as future-proof as possible. There's a built-in chainguide mount too, and it's also ready to accept ACID mudguards. And, with Size Split, it's easy to find the perfect fit for every rider. We've thought of everything, so you can just ride.
Frame Material
Aluminium Superlite
Battery
800 Wh

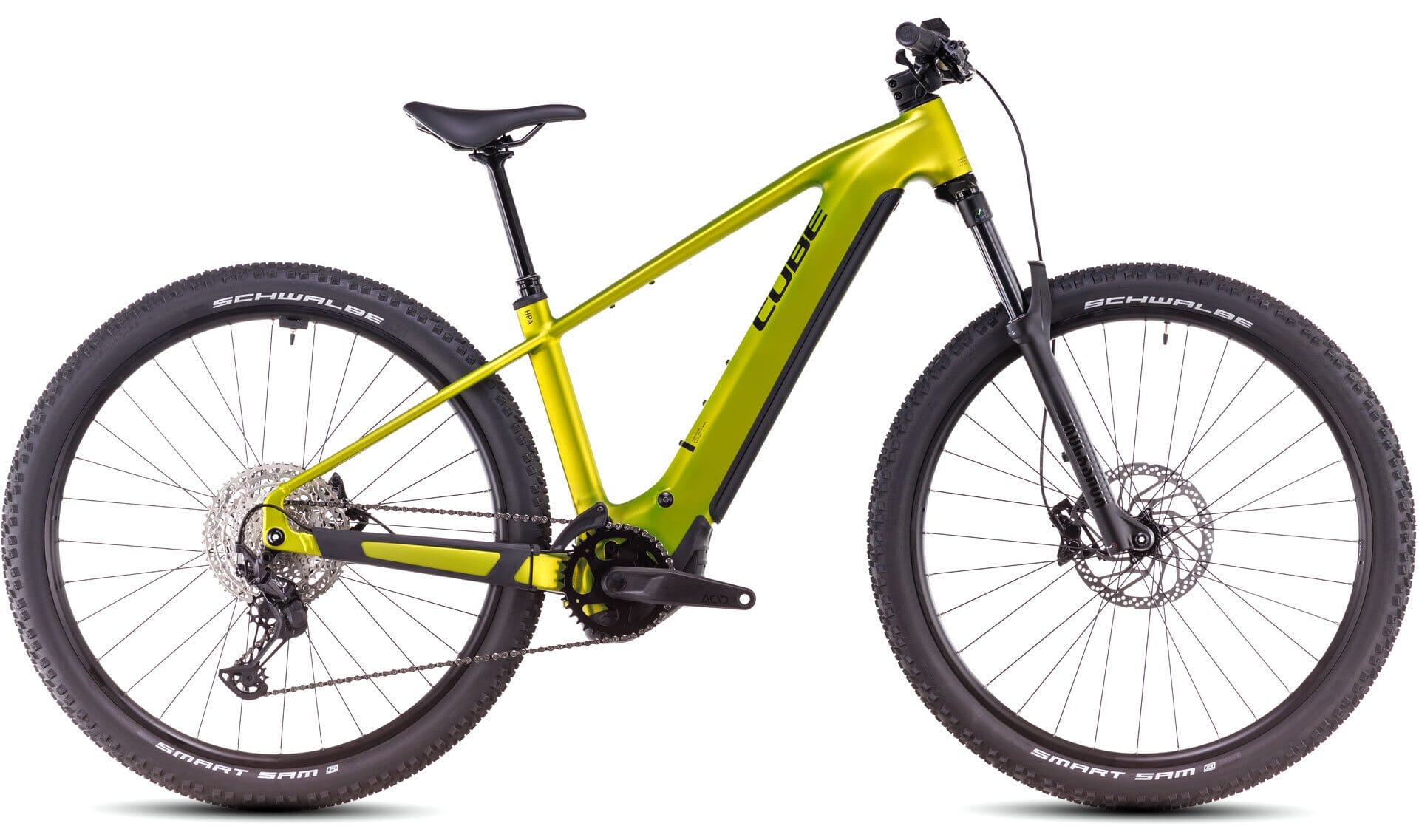

Built for explorers and the adventurous at heart, the Reaction Hybrid Race 800's high-capacity 800 Wh battery gives you the range you need to get you there. And back, of course. The quiet, smooth Bosch CX drive and rugged, easy-to-use components are all you need for extended play, on-road or off.
frame
Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
size
Classic: Size Split: 27.5: S // 29: M L XL XXL
Suspension
Suspension fork

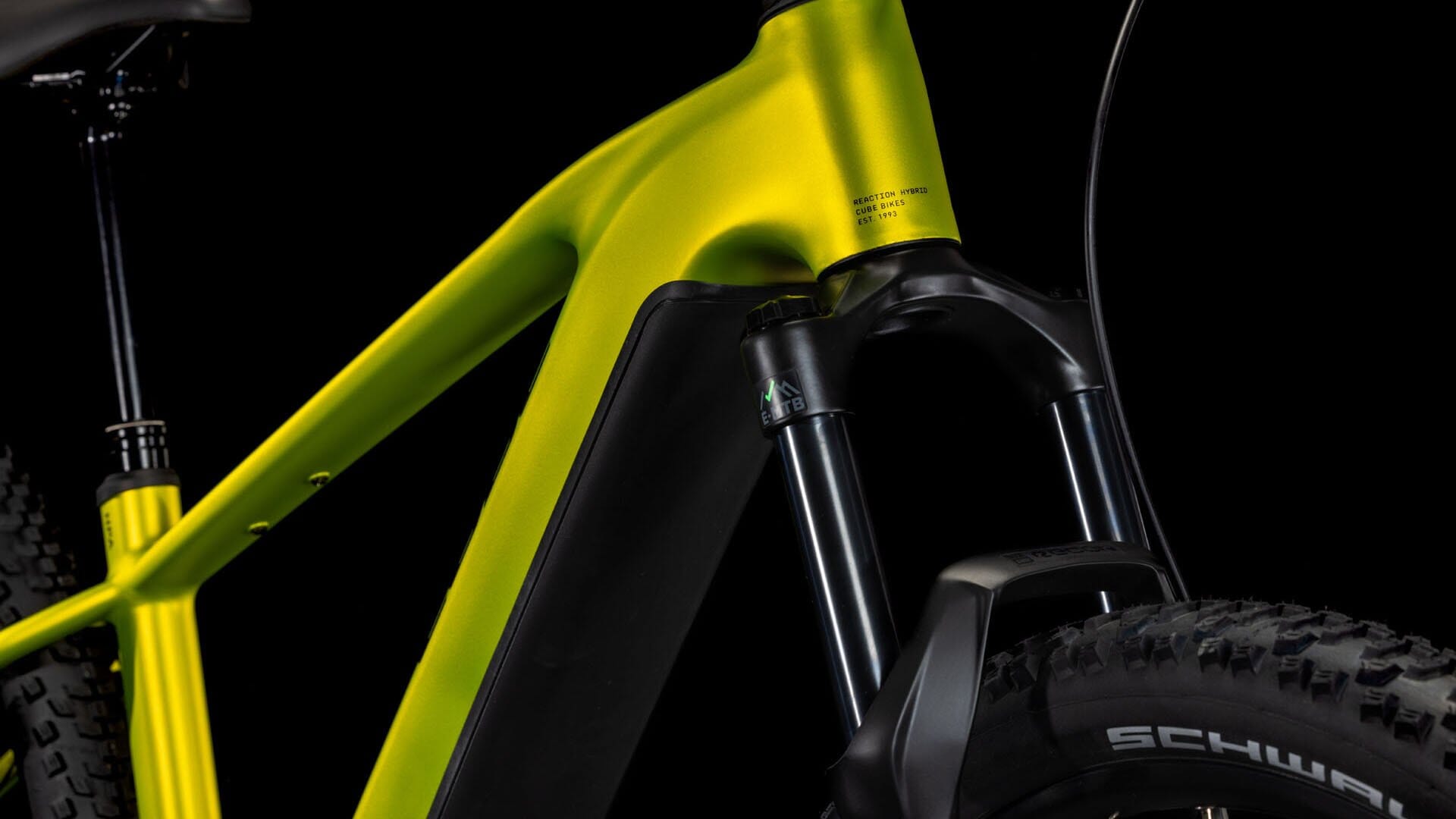

RockShox Recon Silver RL Air, Tapered, 15x110mm, 120mm (27,5: 100mm)
E-bike system
drive unit
Bosch Performance Line CX 85Nm (BDU38) ab Juli 2025 bis zu 100 Nm/ from July 2025 up to 100Nm
Remote
Bosch Purion 200 w/ Integrated Display
battery
Bosch PowerTube 800
charger
Bosch 2A
Drivetrain & brakes
brake system
Shimano BR-MT420, Hydr. Disc Brake (203)
rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters
Shimano Deore SL-M6100-IR, Direct Attach
crankset
ACID MTB Hybrid Pro, 38T
cassette
Shimano Deore CS-M6100, 10-51T
chain guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
headset
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
handlebar
CUBE Rise Trail Bar 35
grips
ACID React Pro
Wheels
rims
CUBE EX30, 32H, Disc, Tubeless Ready
front hub
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
rear hub
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
tyres
Schwalbe Smart Sam, Active, 2.6
Finishing kit
saddle
ACID Sequence Pro 160
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedals
ACID PP MTB
Product information
colour
lizard´n´black
weight
24,3 kg
Art. No
808410
SRP*
44290 NOK
