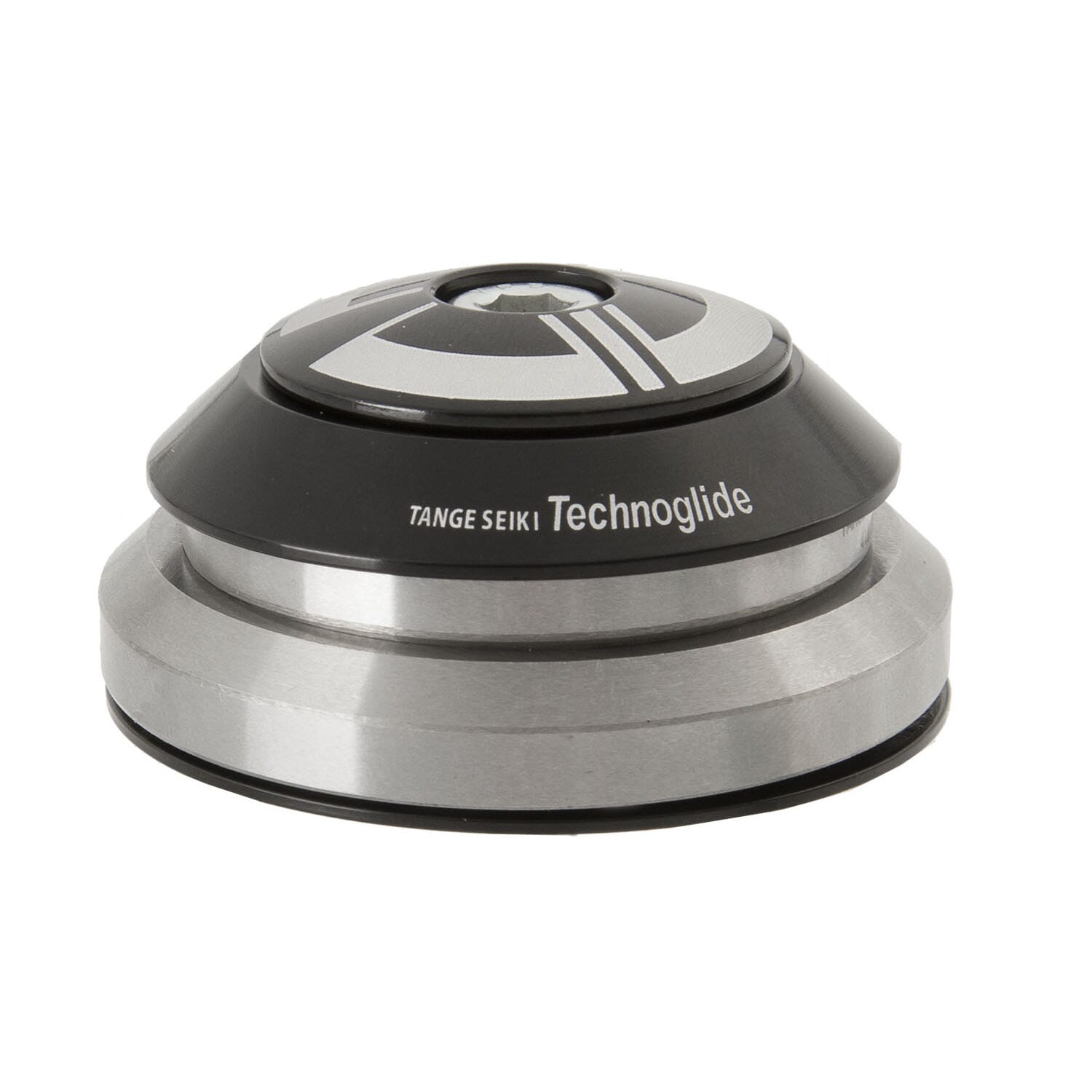

Product details
affix 1 1/8" - 1,5"
colour
black
weight 78 g
Material general
Aluminium
head set size
tapered = 1 1/8" top 1.5" bottom
position of ball bearing
integrated ball bearing cups
convertability of bearing
cartridge ball bearing

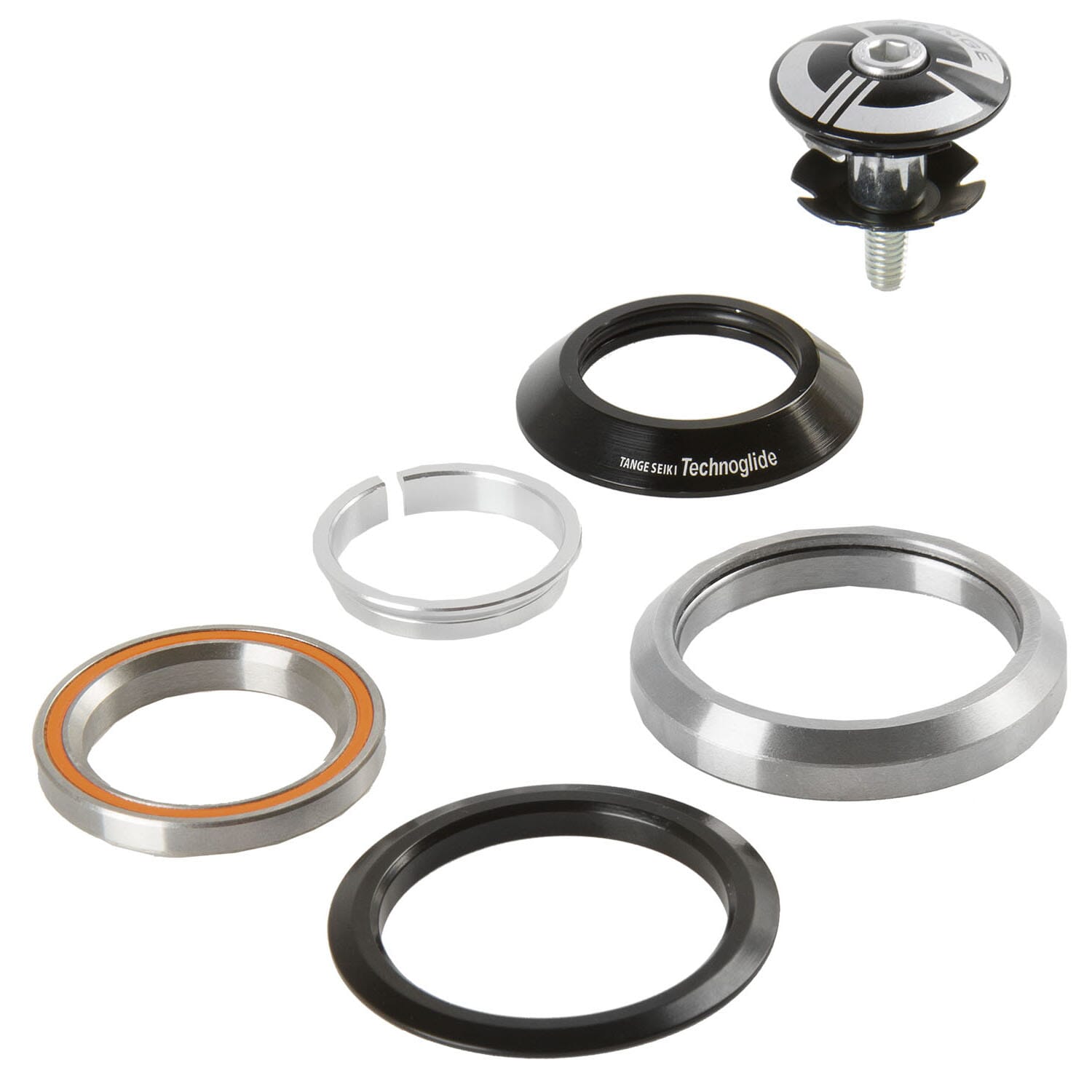

head set upper part SHIS
IS 42/28,6
head set lower part
IS 52/40
inner diameter 28,5 mm

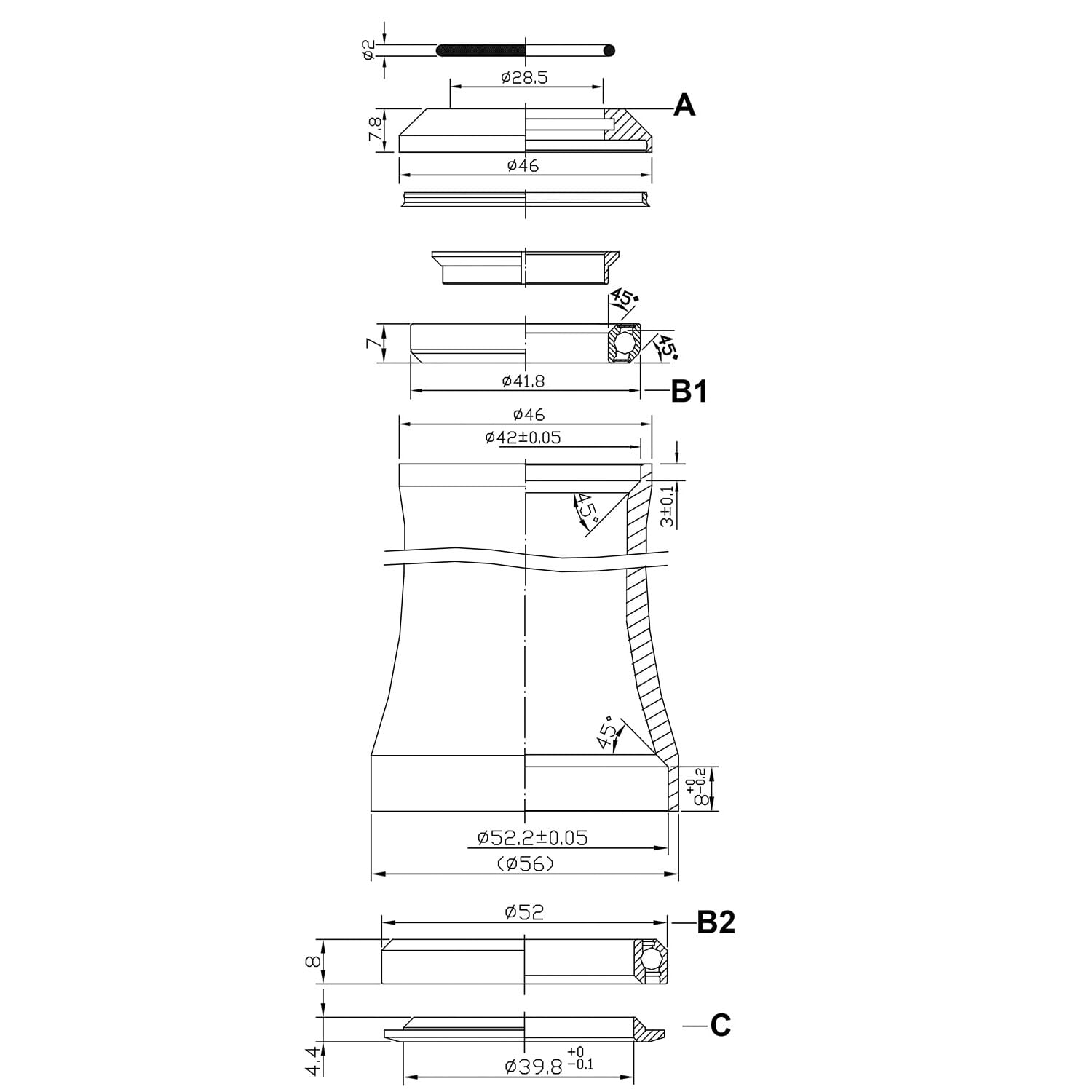

outer diameter of the (upper) bearing shell (B1) 41,8 mm
outer diameter of the lower bearing shell (B2) 52 mm
cone seat on the fork 39,8 mm
