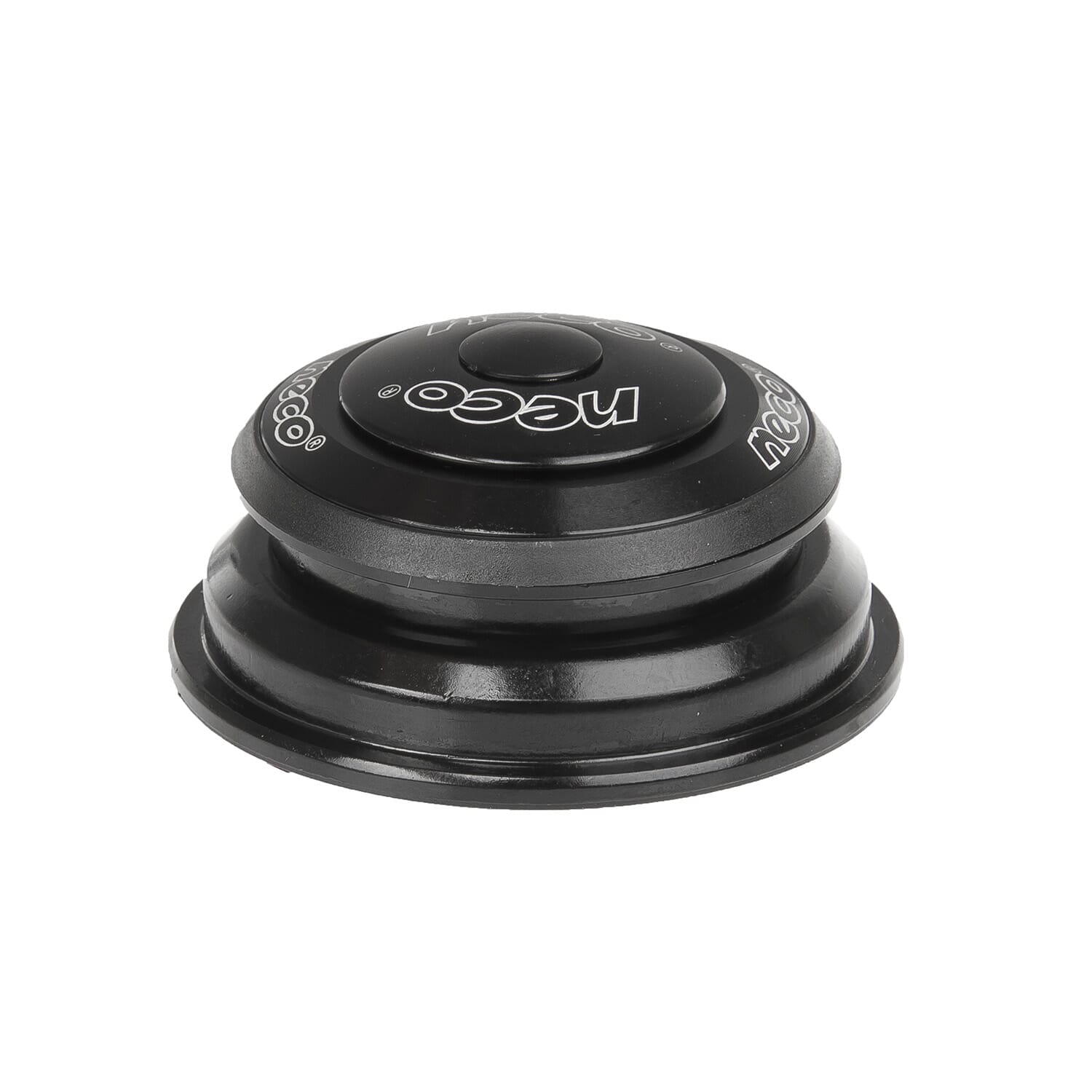

Product details
affix 1 1/8" - 1,5" a
colour
black
Material general
Steel
head set size
tapered = 1 1/8" top 1.5" bottom
bearing
ball bearing
position of ball bearing
semi integrated ball bearing cups
height 11,8 mm
convertability of bearing
semi-cartridge ball bearing
head set upper part SHIS
ZS 44/28,6
head set lower part
ZS 55/40
inner diameter 28,5 mm
outer diameter of the (upper) bearing shell (B1) 44 mm
outer diameter of the lower bearing shell (B2) 55 mm
cone seat on the fork 39,8 mm
