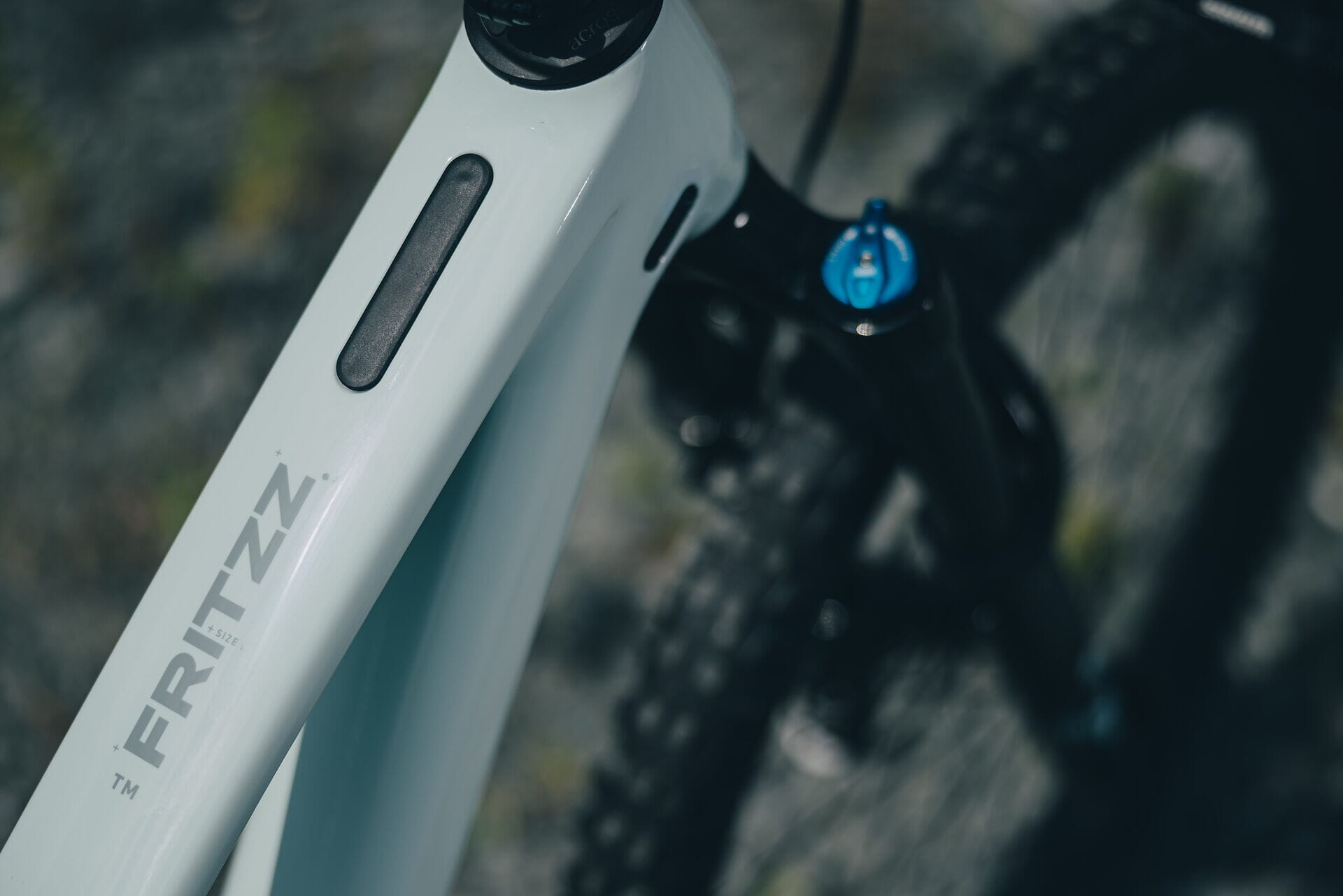

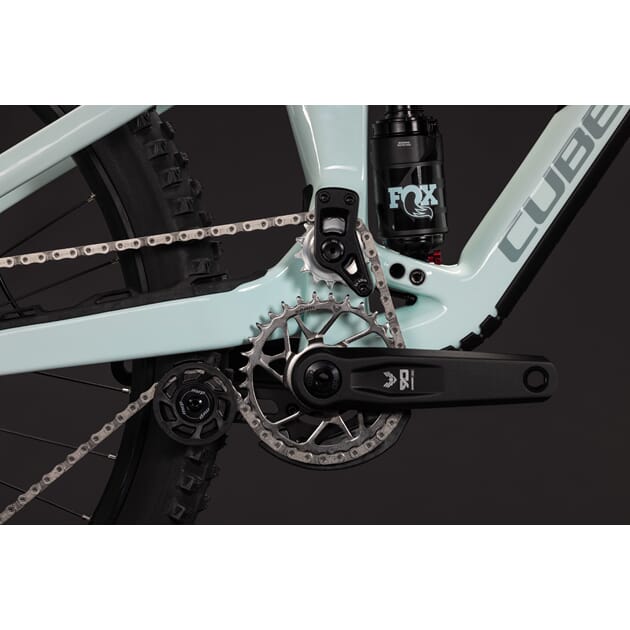

Stable. Agile. Adaptable. These are the characteristics we wanted for the Fritzz C:62, so we began by crafting an elegantly rugged frame from our C:62® carbon, and gave it 170mm of rear-wheel travel. But that was just the start. A high pivot with chain idler combines with the stock air shock to give supple suspension for better grip and handling. Progression adjustment on the frame's shock mount means you can switch to a coil shock, and there's a changeable dropout in case you want to swap out the stock 27.5in rear wheel for a 29er to match the front. The headset features angle adjustment and Internal Cable Routing, but we also included ports on the head tube in case you prefer semi-internal cables. The threaded bottom bracket has a two-bolt ISCG05 guide mount, we added attachment points on the underside of the top tube so you can easily carry a compatible tool or spare tube, and there's a new and improved storage compartment in the down tube. Plus, with a modular computer mount on the top tube, you can take full control of your ride.
Frame Material C:62® Carbon
Wheels 29" x 27.5" opt. 29"
Headset Angle Adjustment 0.6°

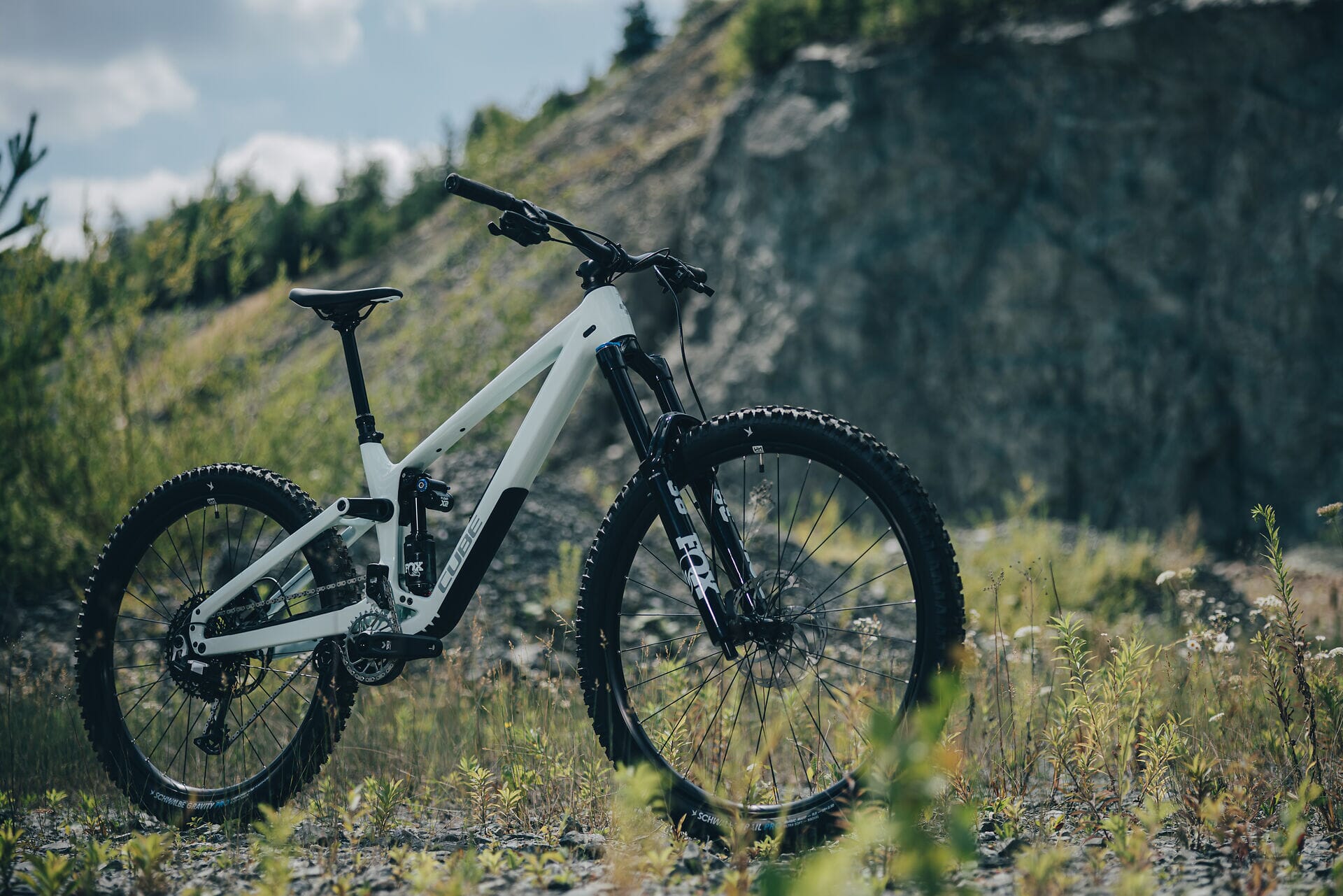

Supersize your fun with the Fritzz C:62 TM's 170mm of Fox-fuelled, high-pivot suspension. A light-but-tough C:62® carbon frame, loads of user adjustability and components chosen for tough days on tough trails all add up to one thing: more stoke, more of the time.

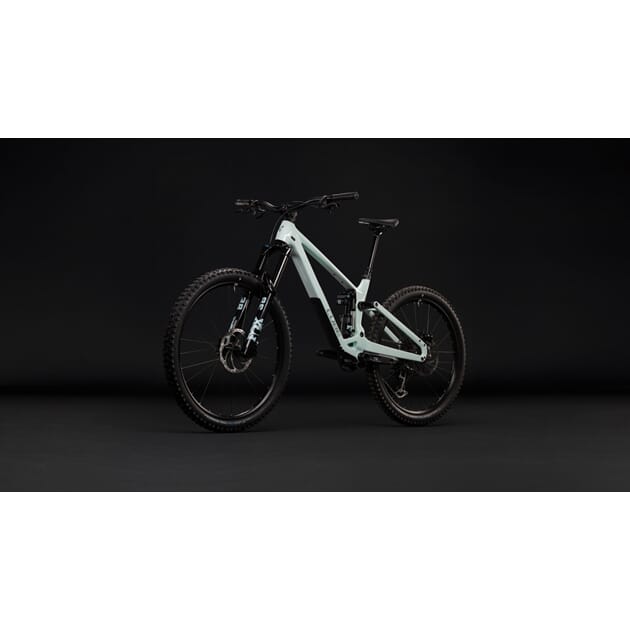

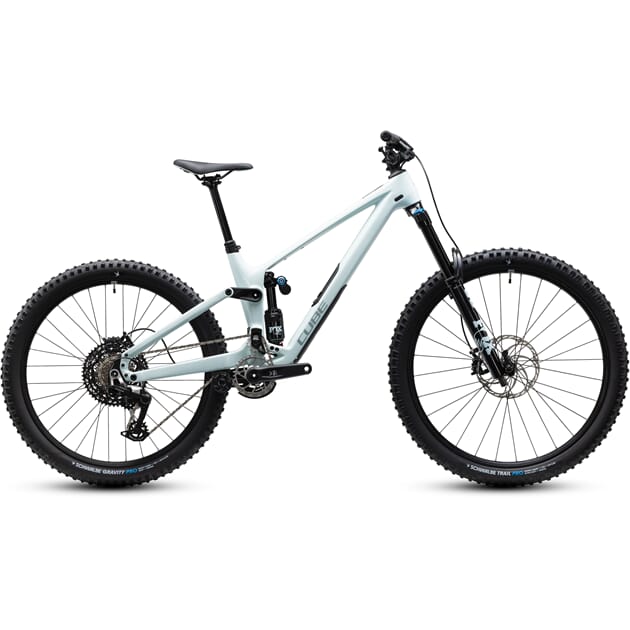

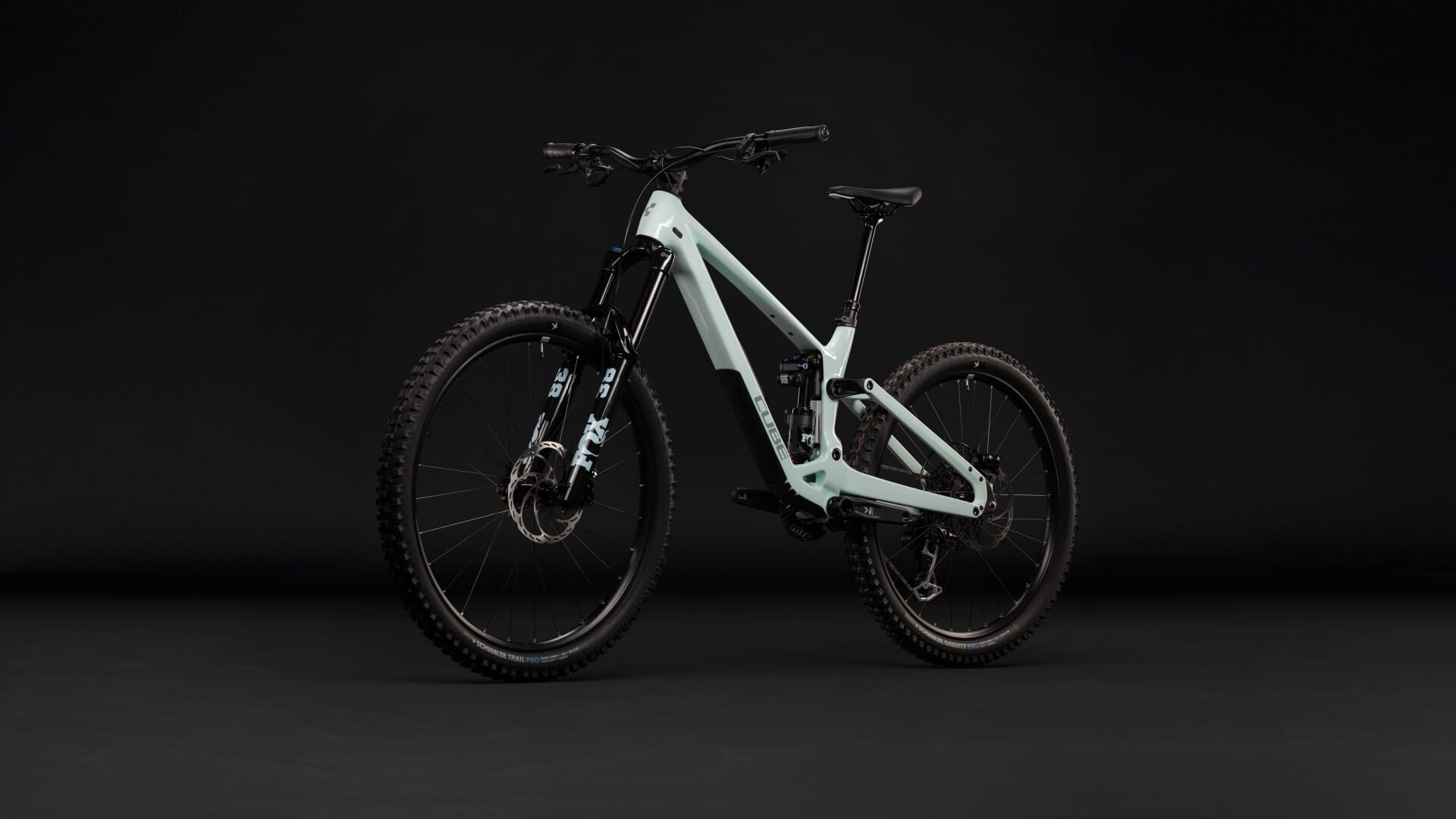

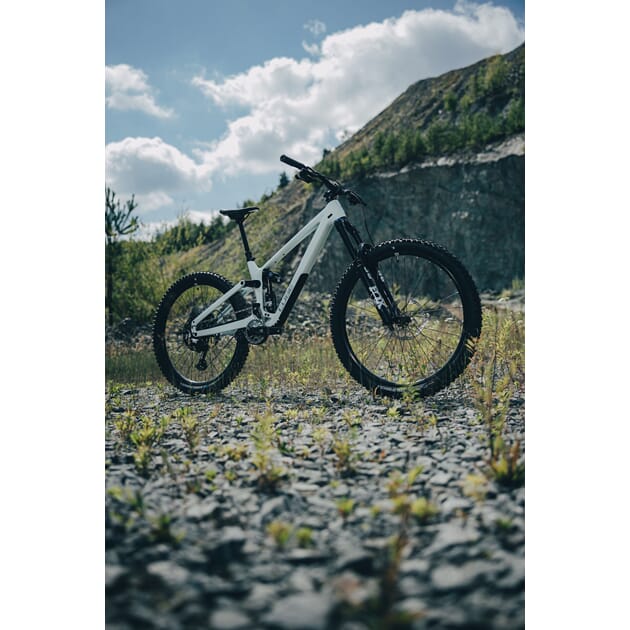

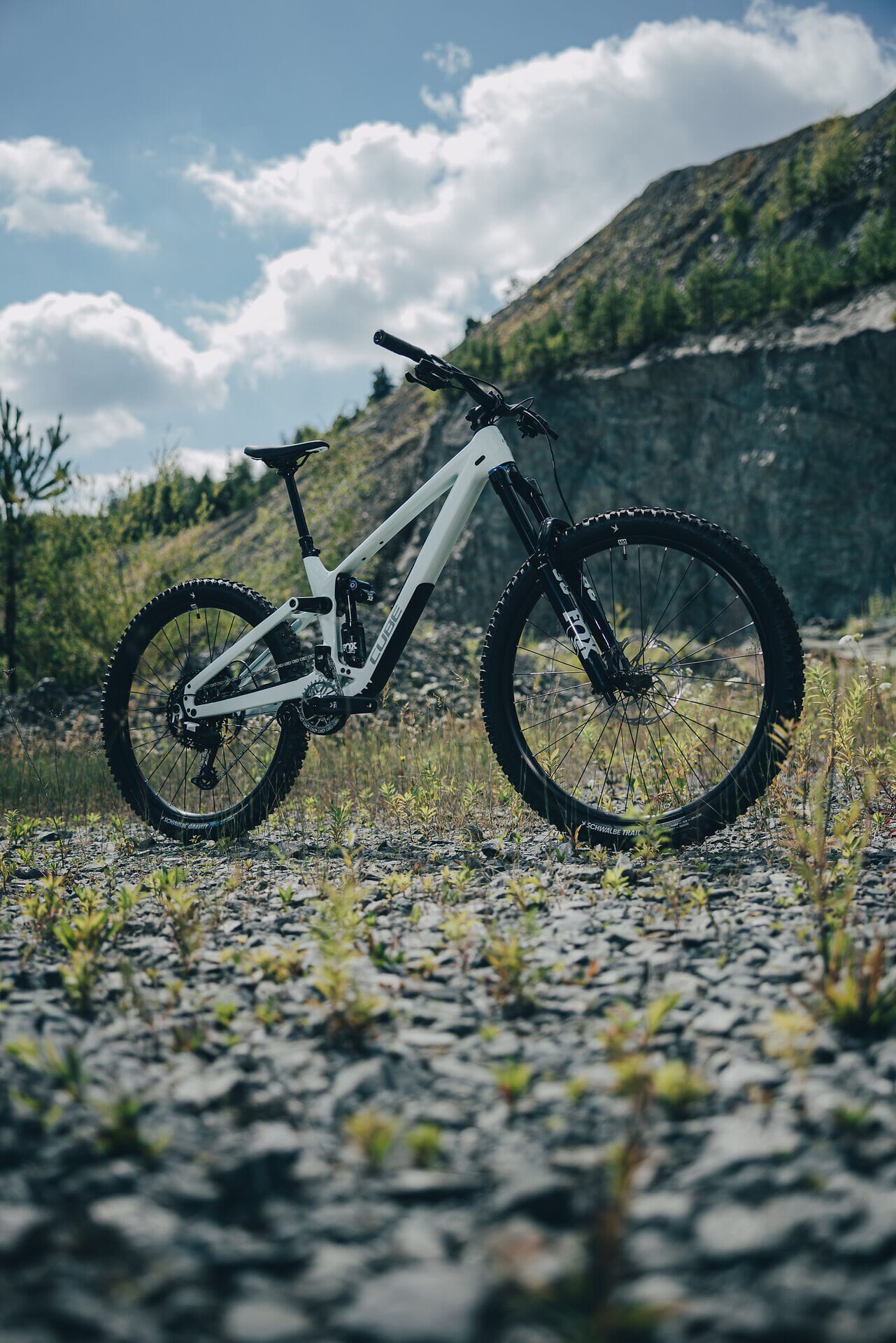

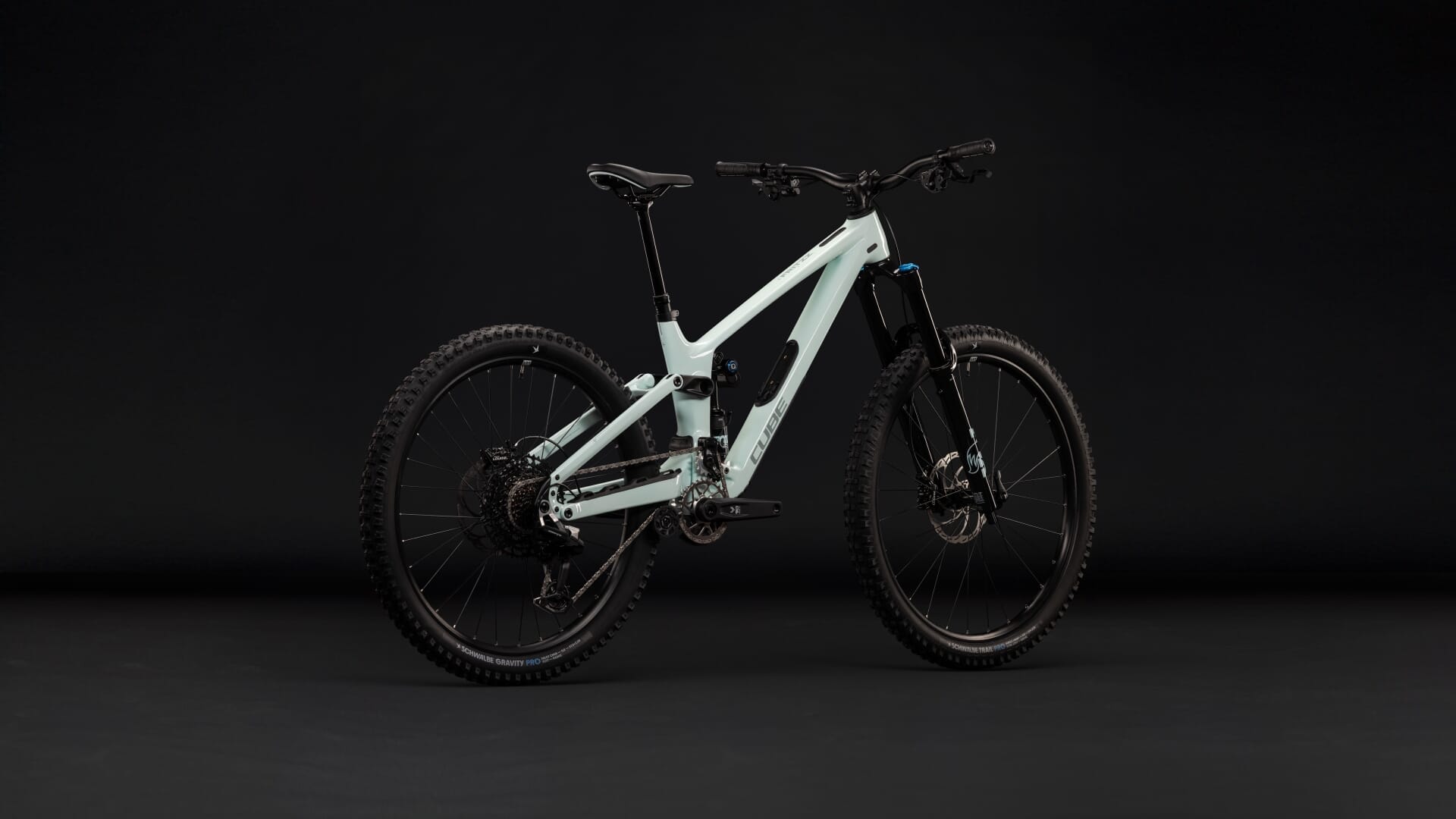

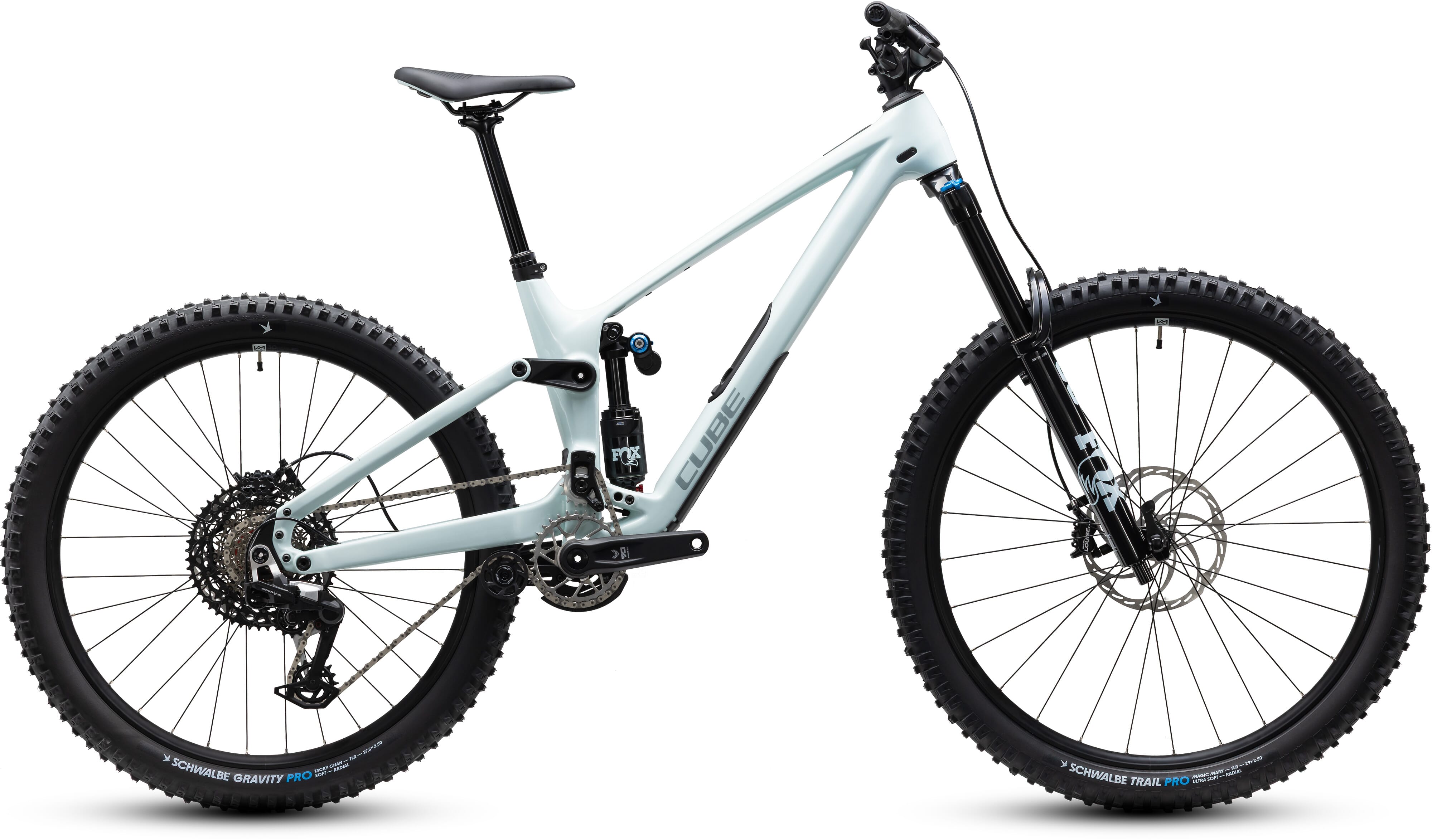

FRITZZ C:62

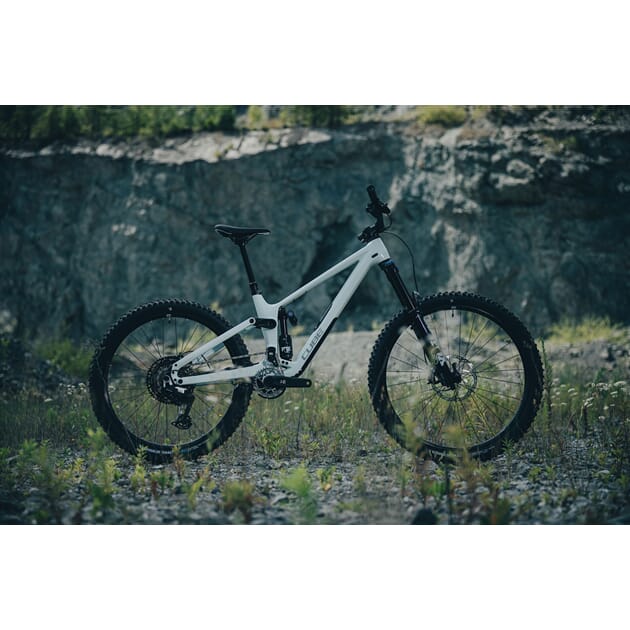

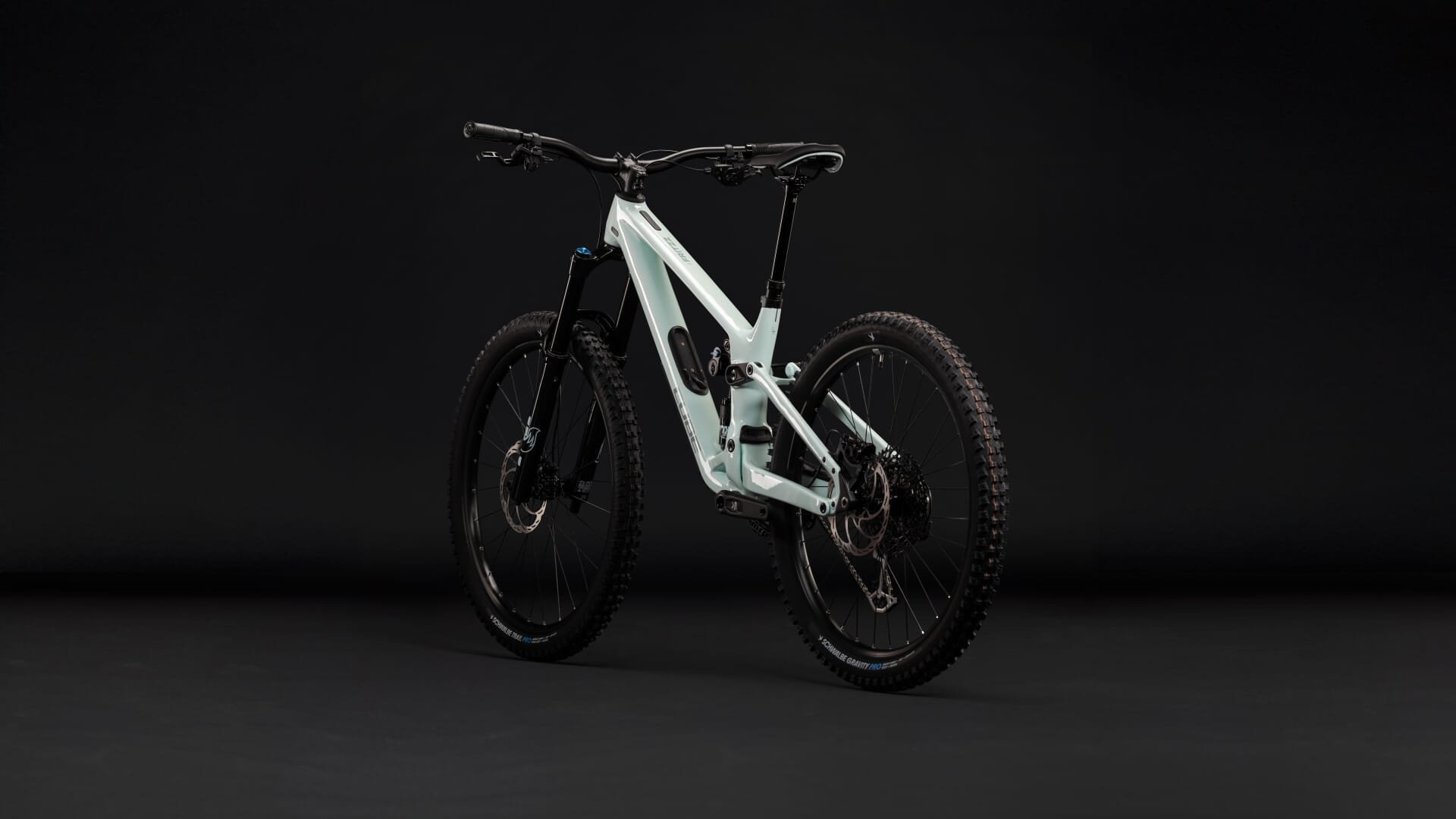

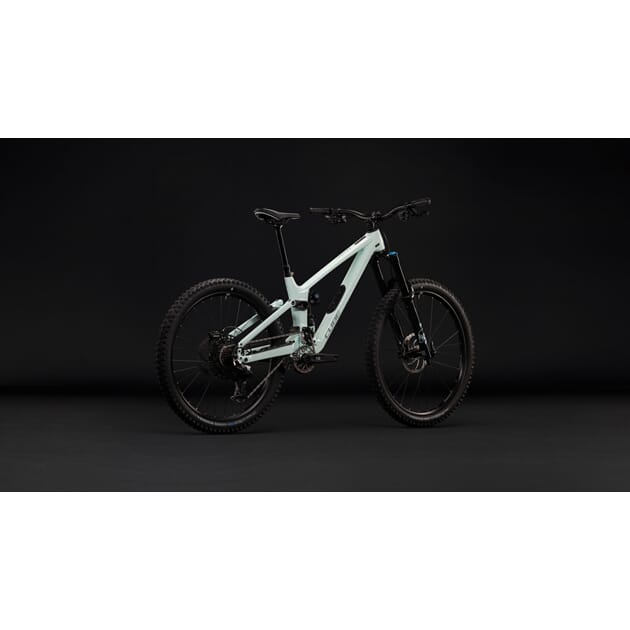

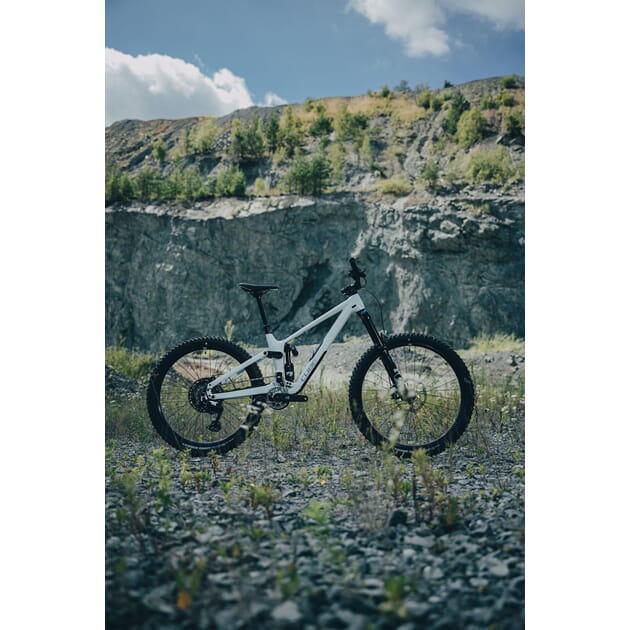

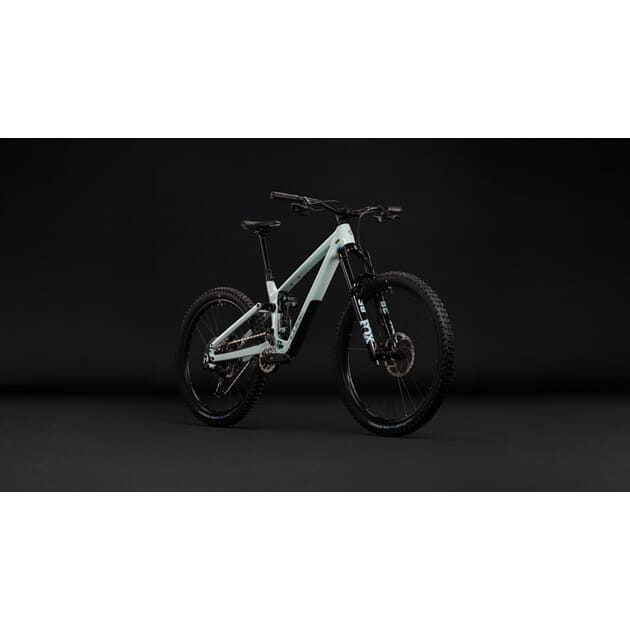

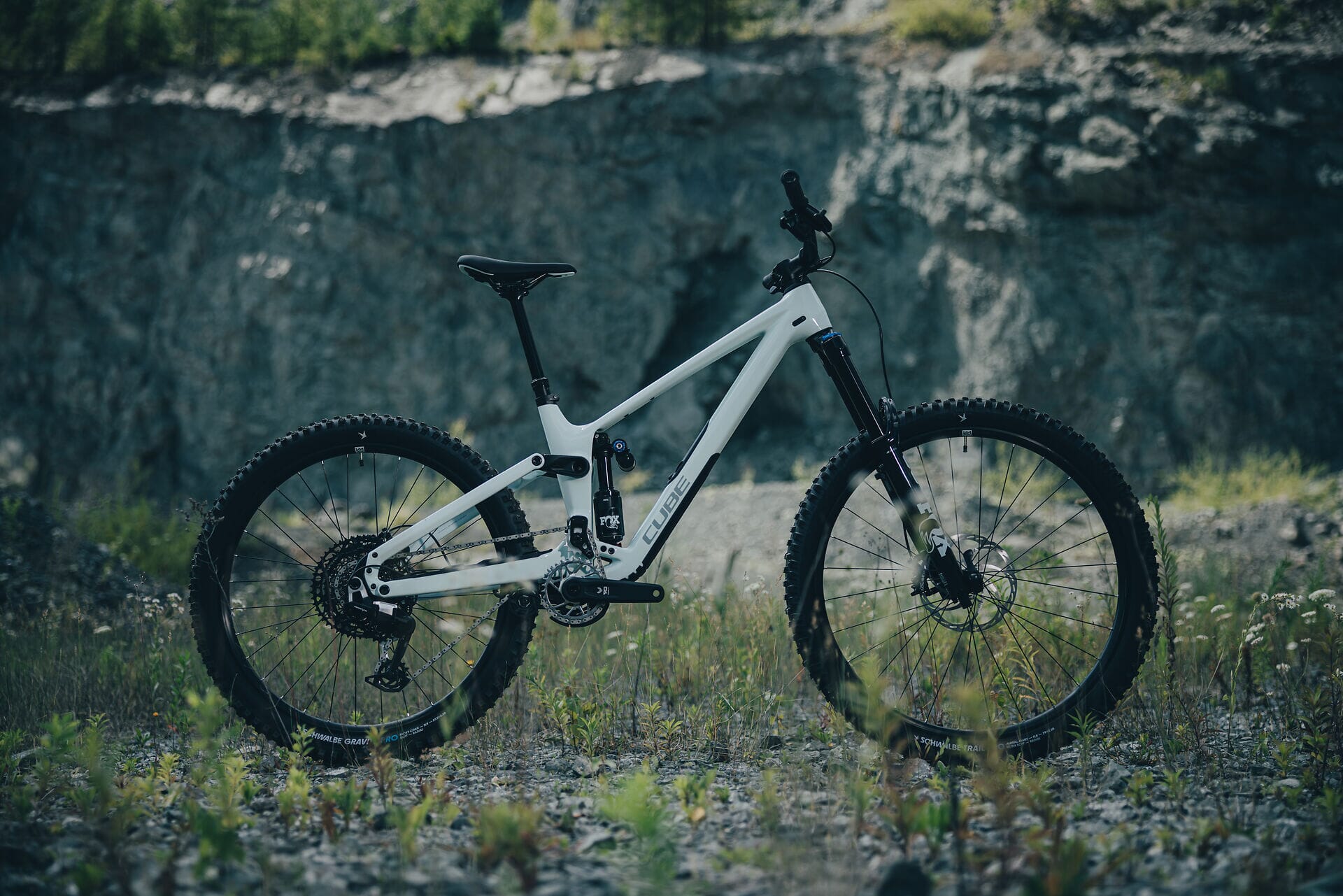

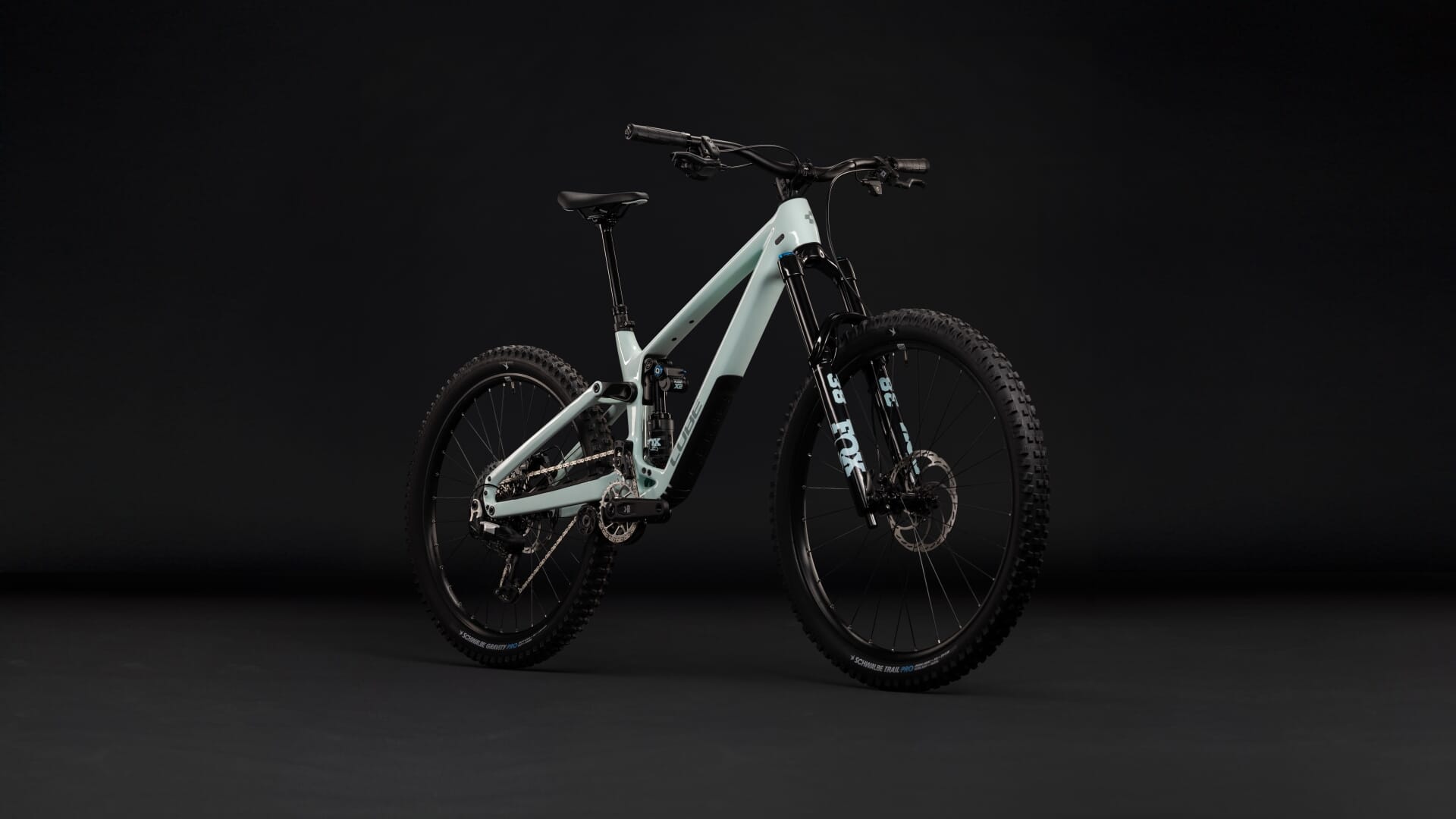

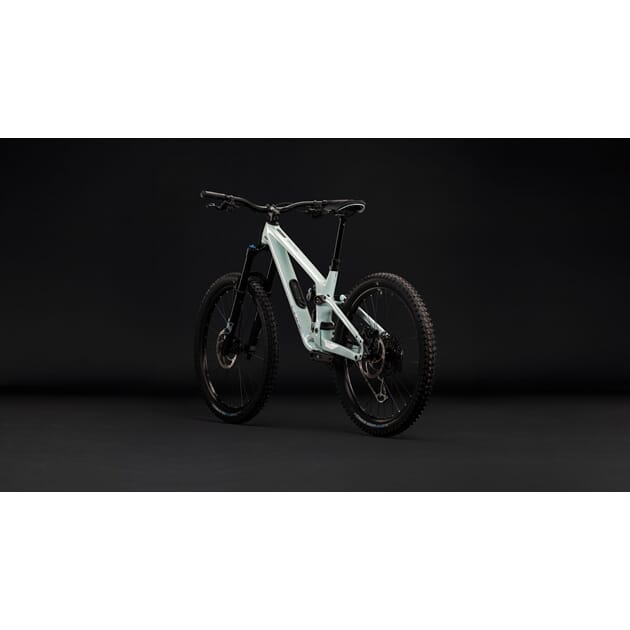

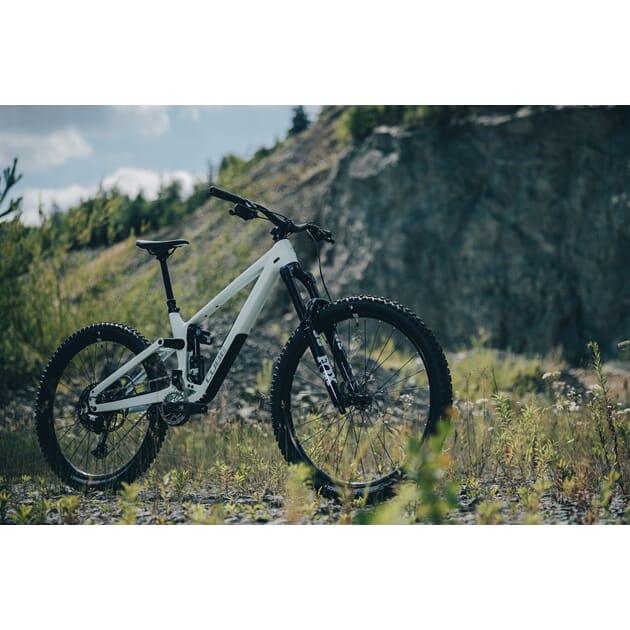

Big day out in the mountains? The Fritzz C:62 TM has got it covered. A mullet set-up running 2.5in Schwalbe Magic Mary and Tacky Chan tyres on Newmen Performance 30 wheels is held in check by powerful Magura Louise hydraulic disc brakes, whilst your power is delivered to the trail via Sram's Transmission 90 1x12 gears. Keeping the rubber side down and rolling is a Fox 38 Float Performance fork, paired with a Float X2 Performance shock. With a high pivot, lots of user adjustability and a frame built around the needs of gravity-fuelled riding, it's your ticket to miles of bike park smiles.
Frame
frame

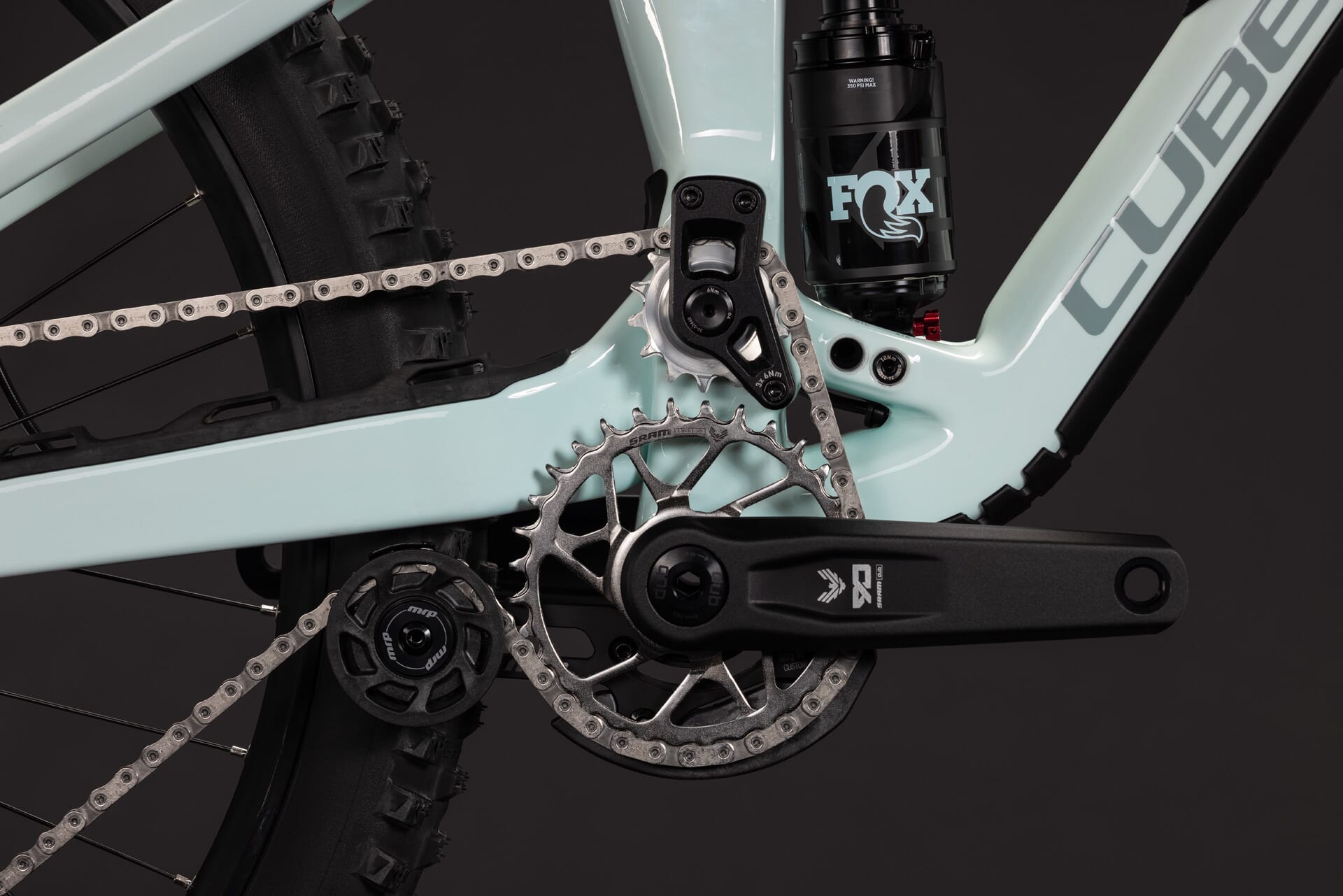

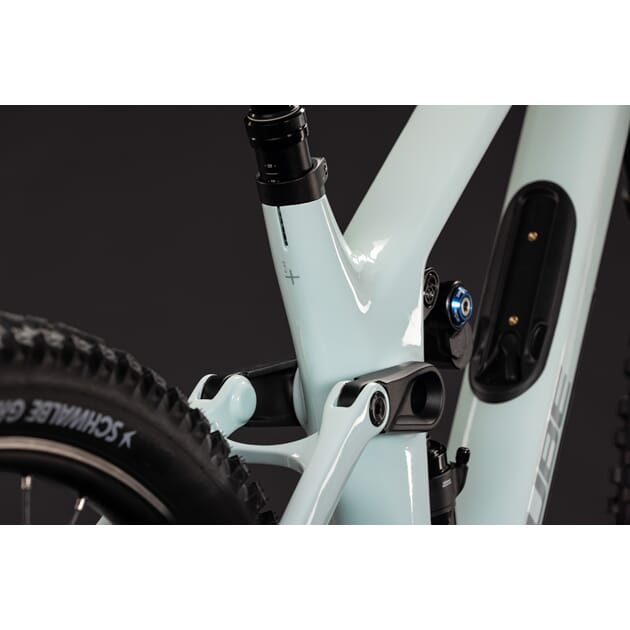

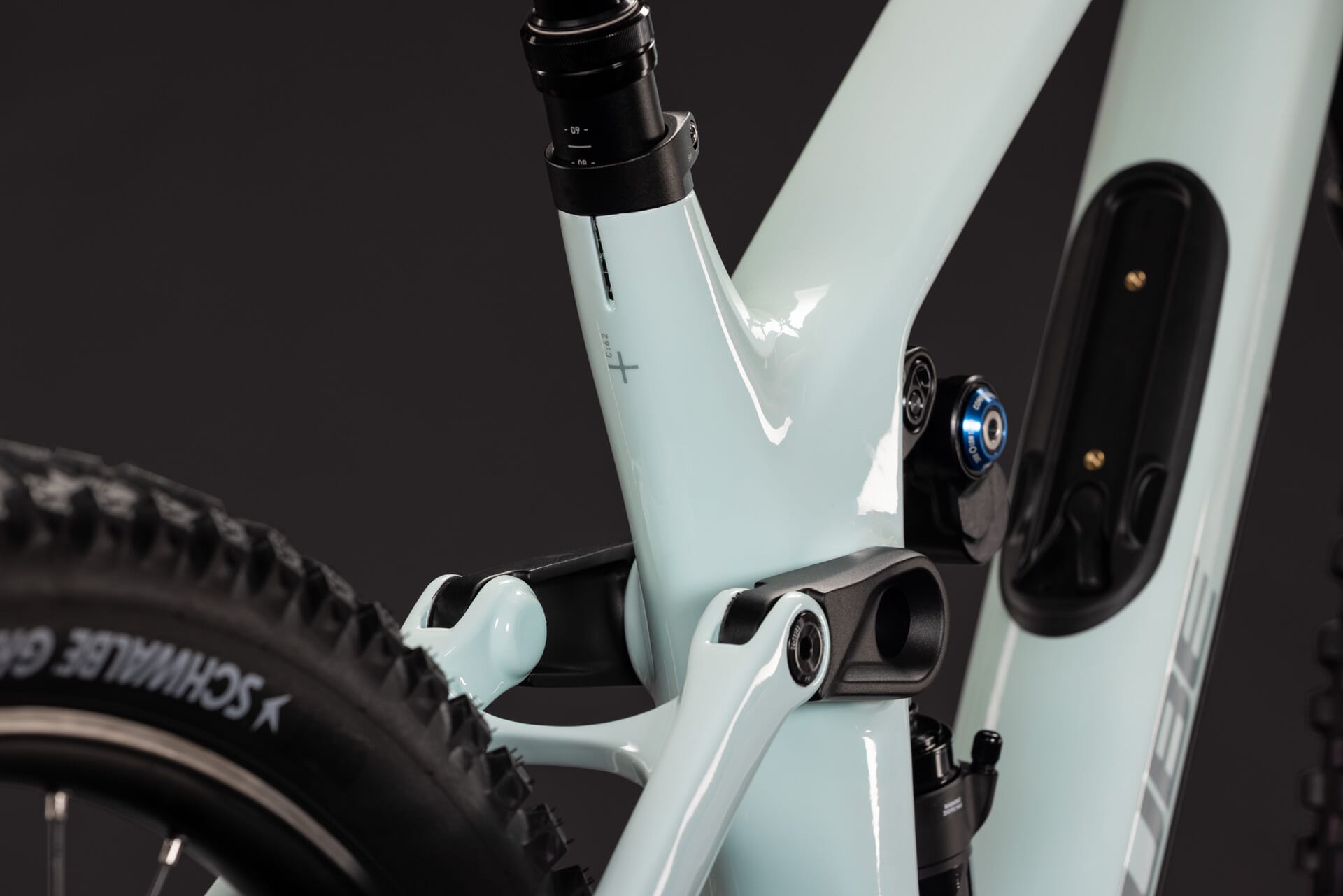

C:62® Monocoque Advanced Twin Mold Technology, ISCG 05, UDH™, Air/Coil Shock Mount Flip-Chip, High Main Pivot with Idler Pulley

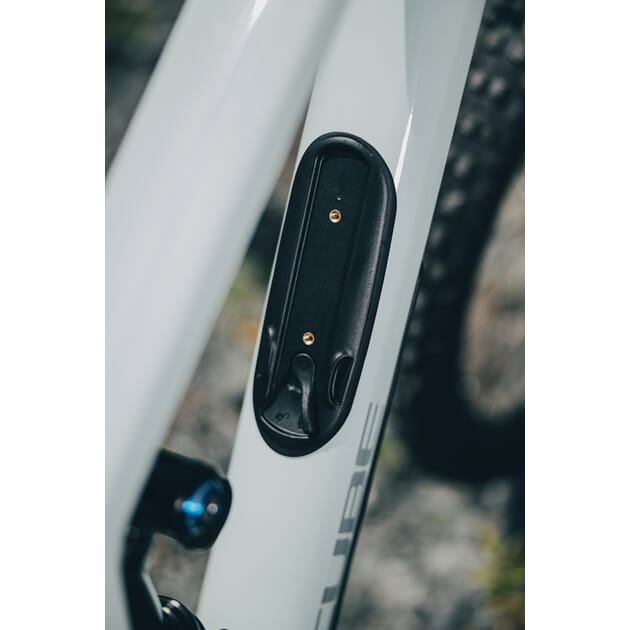

You don't need electrical tape to carry a spare tube any more. Top tube mounting points make it easy to attach a trail tool, so you're all set for trailside fixes.
Not all carbon is created equal. With our C:62® carbon we increased the high modulus fibre content, then we reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.

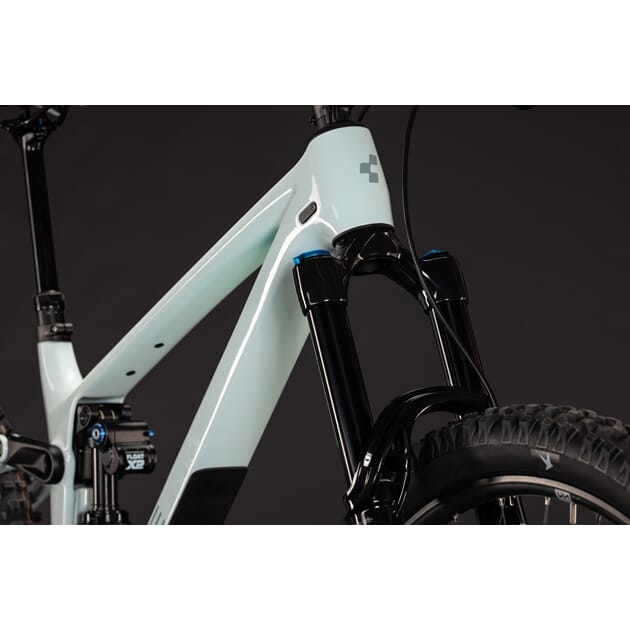

When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.

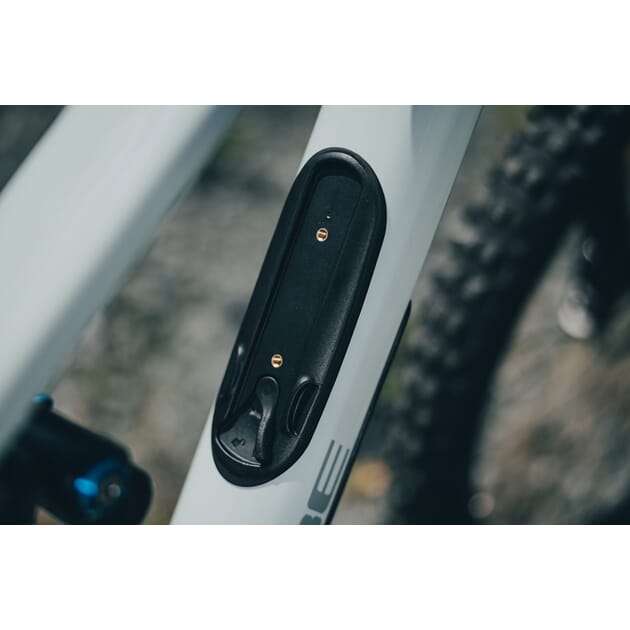

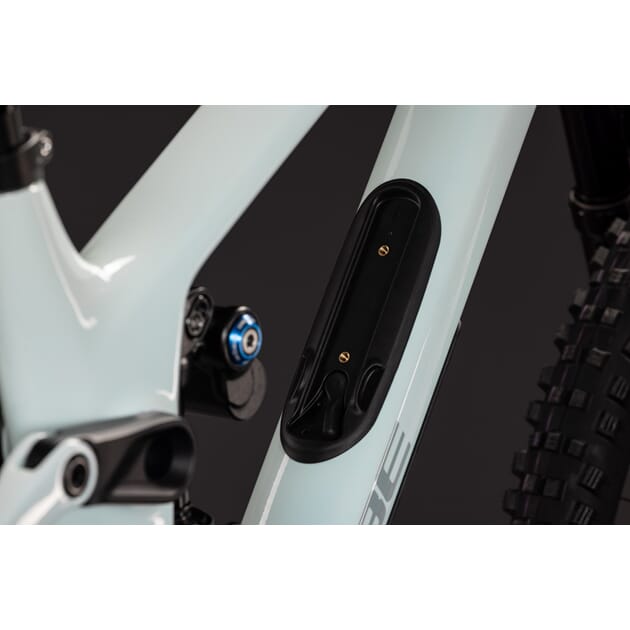

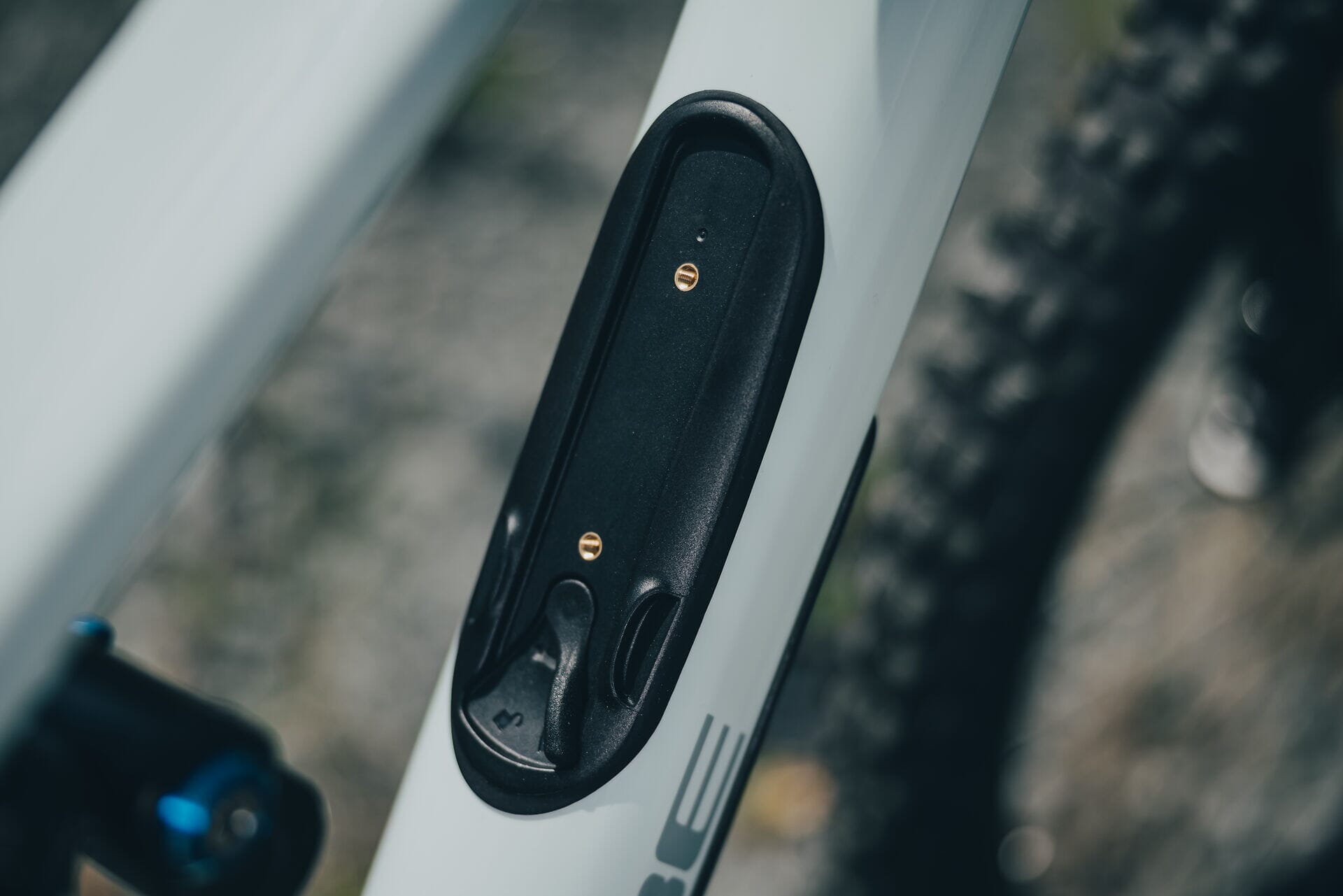

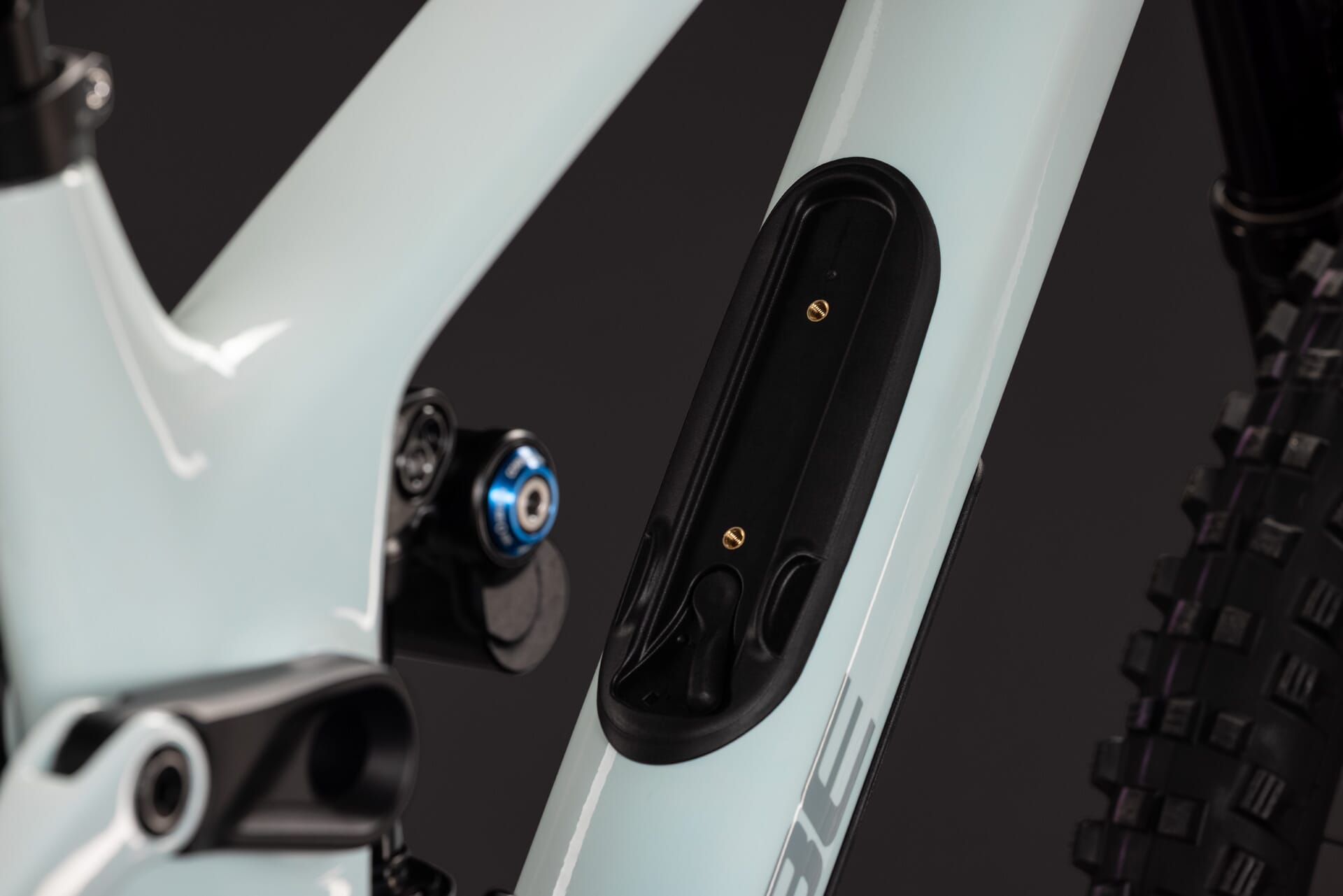

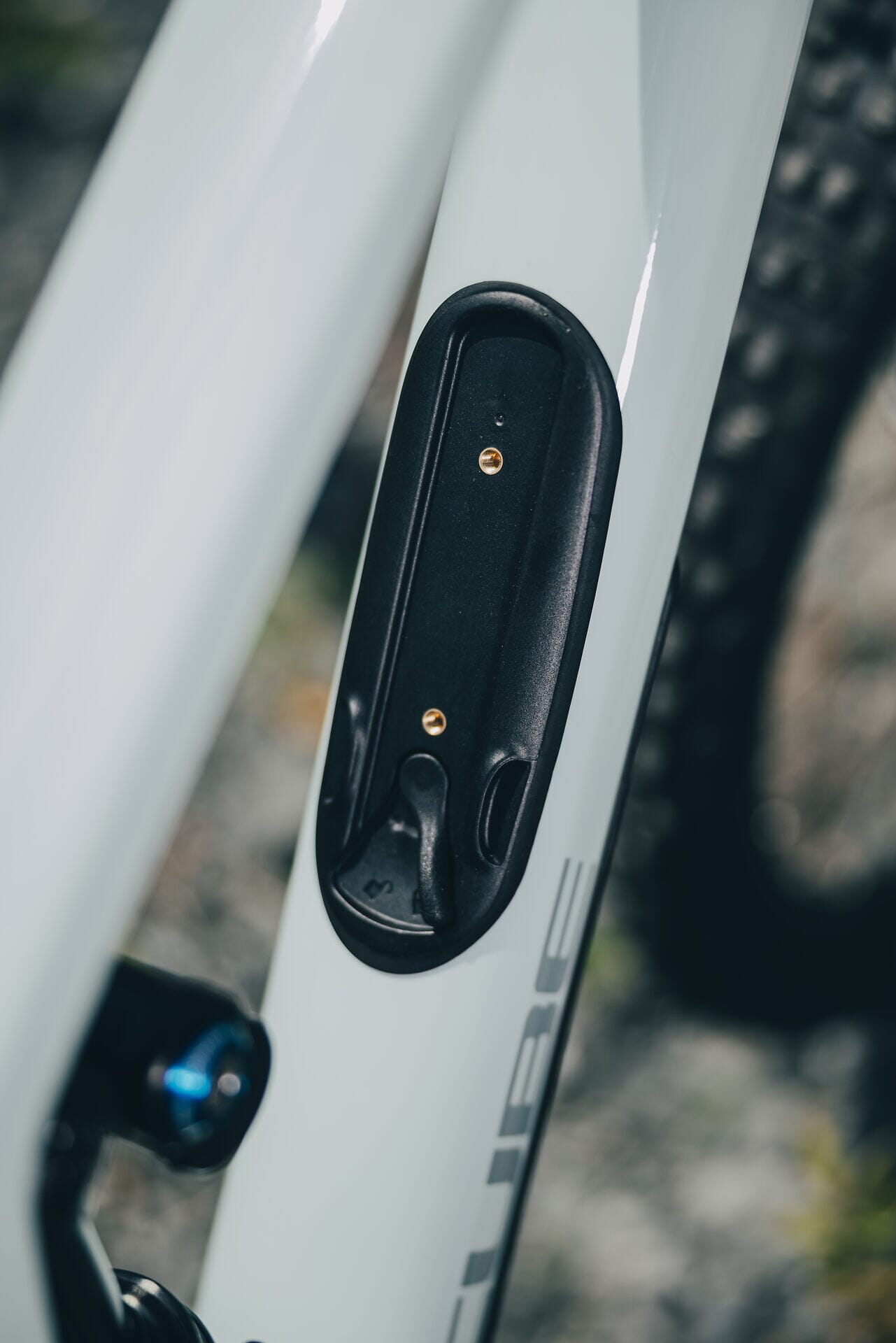

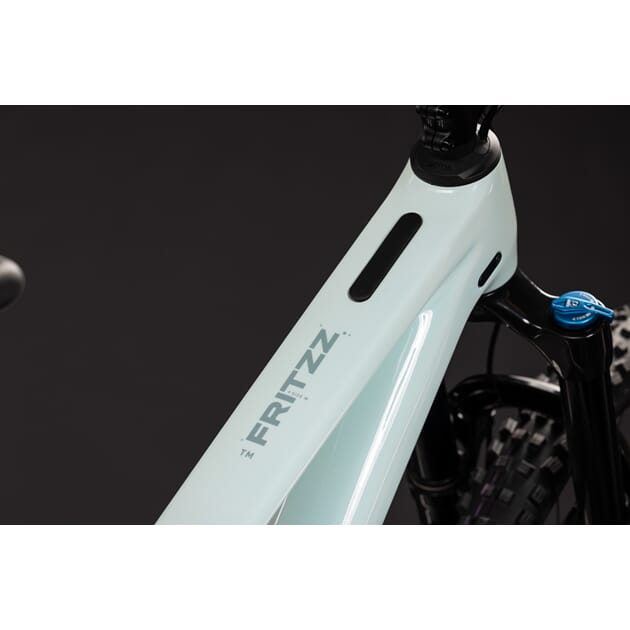

Our Downtube Storage provides an ingenious way of carrying your posessions in a lockable, integrated and secure compartment. With a rain-proof cover and easy access, it's the ideal way to carry anything from a waterproof jacket to some snacks, a pair of gloves... whatever you need.
With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
Tuneability is the best way to get the ultimate performance from your suspension setup. CUBE's Flip Chip takes customisation to a new level, by allowing you to quickly dial the performance of both air and coil shocks to best suit your riding style, personal preference and trail conditions. Flip it, set it, and ride. It's that simple.
Suspension
Suspension fork

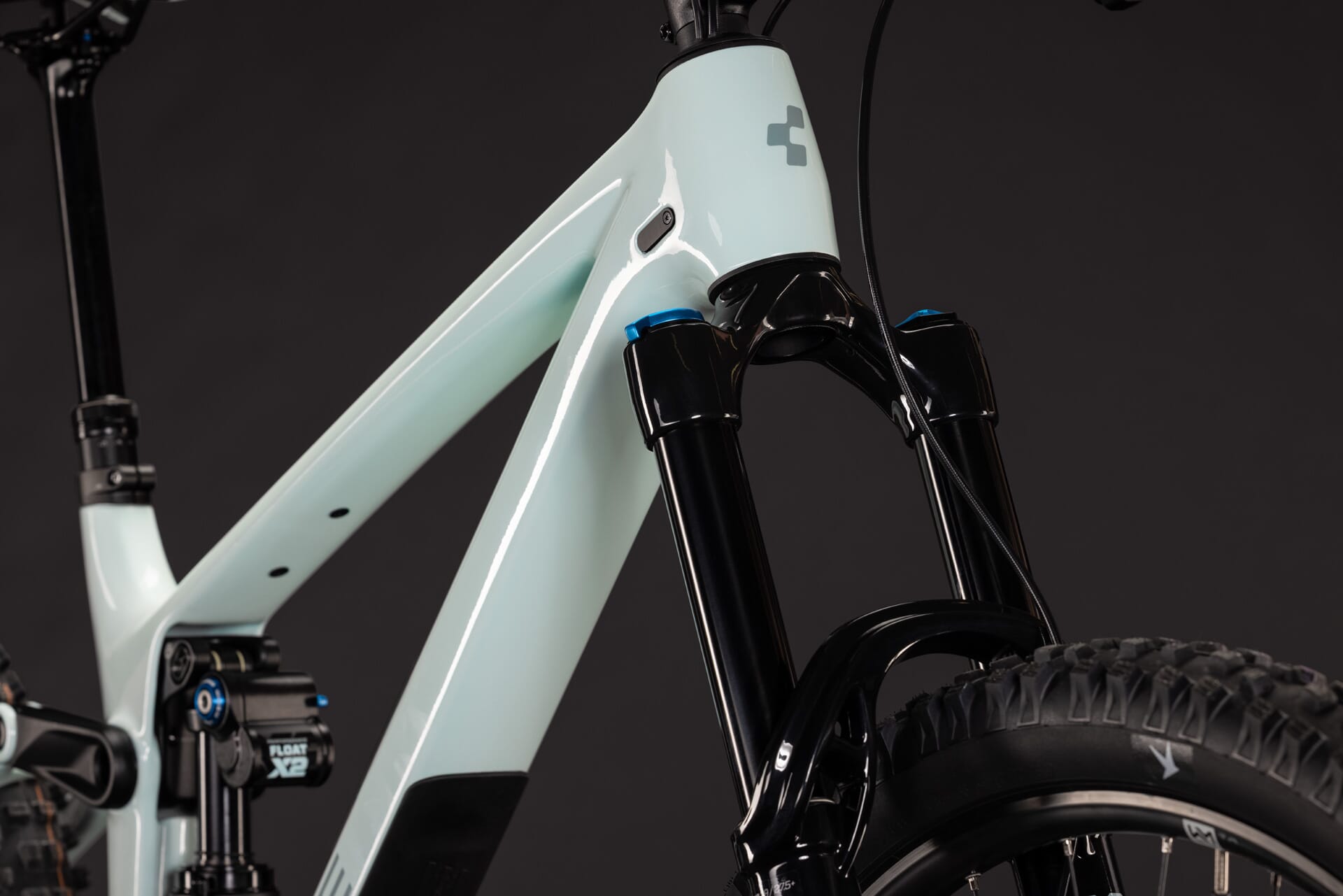

Fox 38 Float Performance GRIP, Tapered, 15x110mm, 170mm
shock

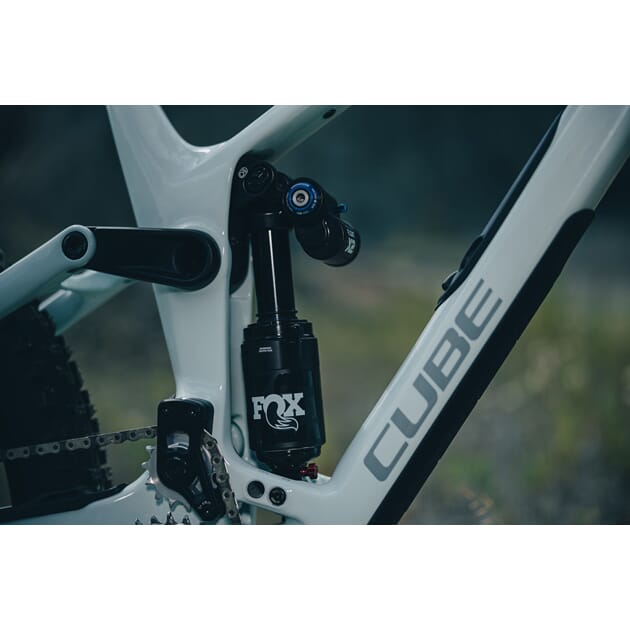

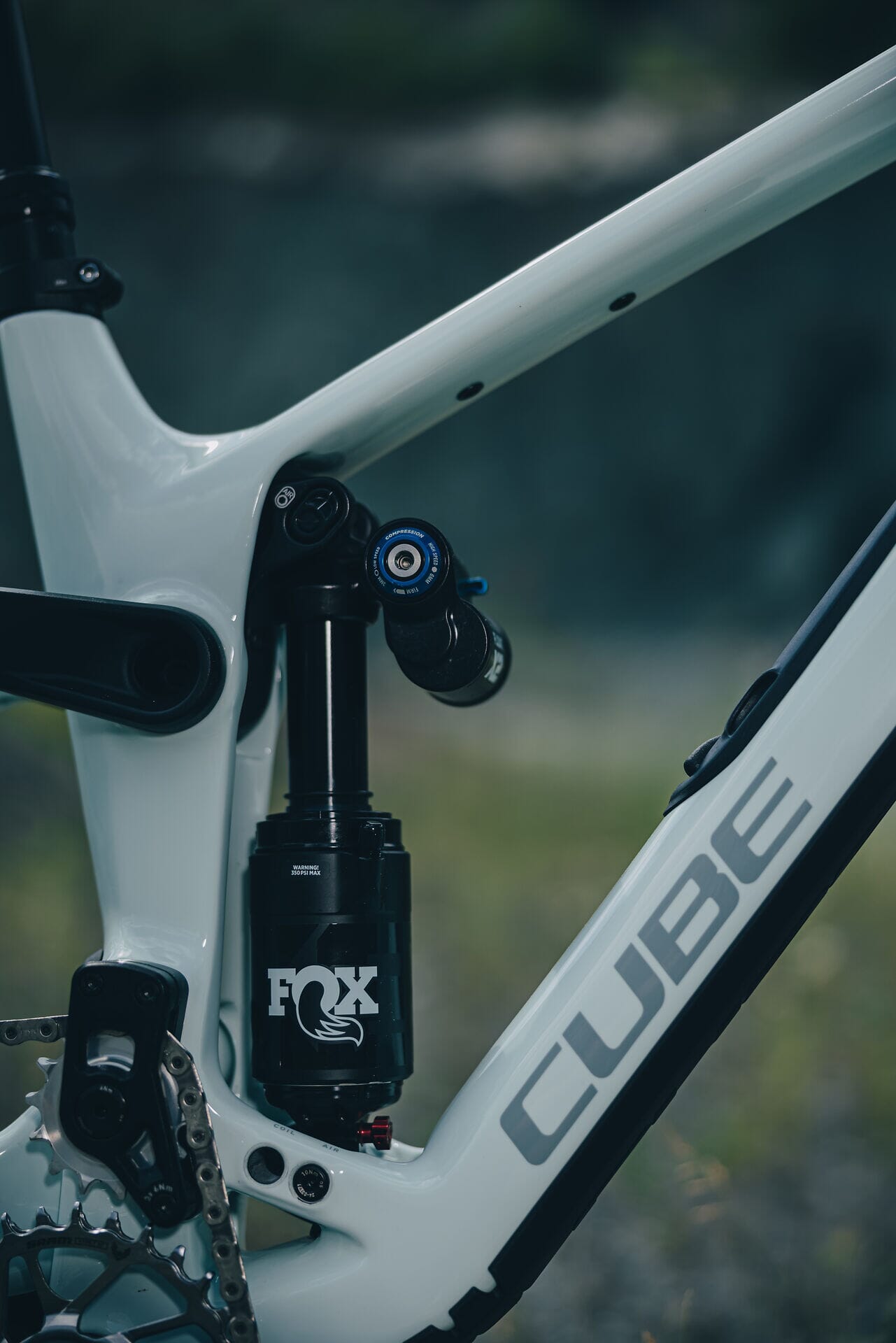

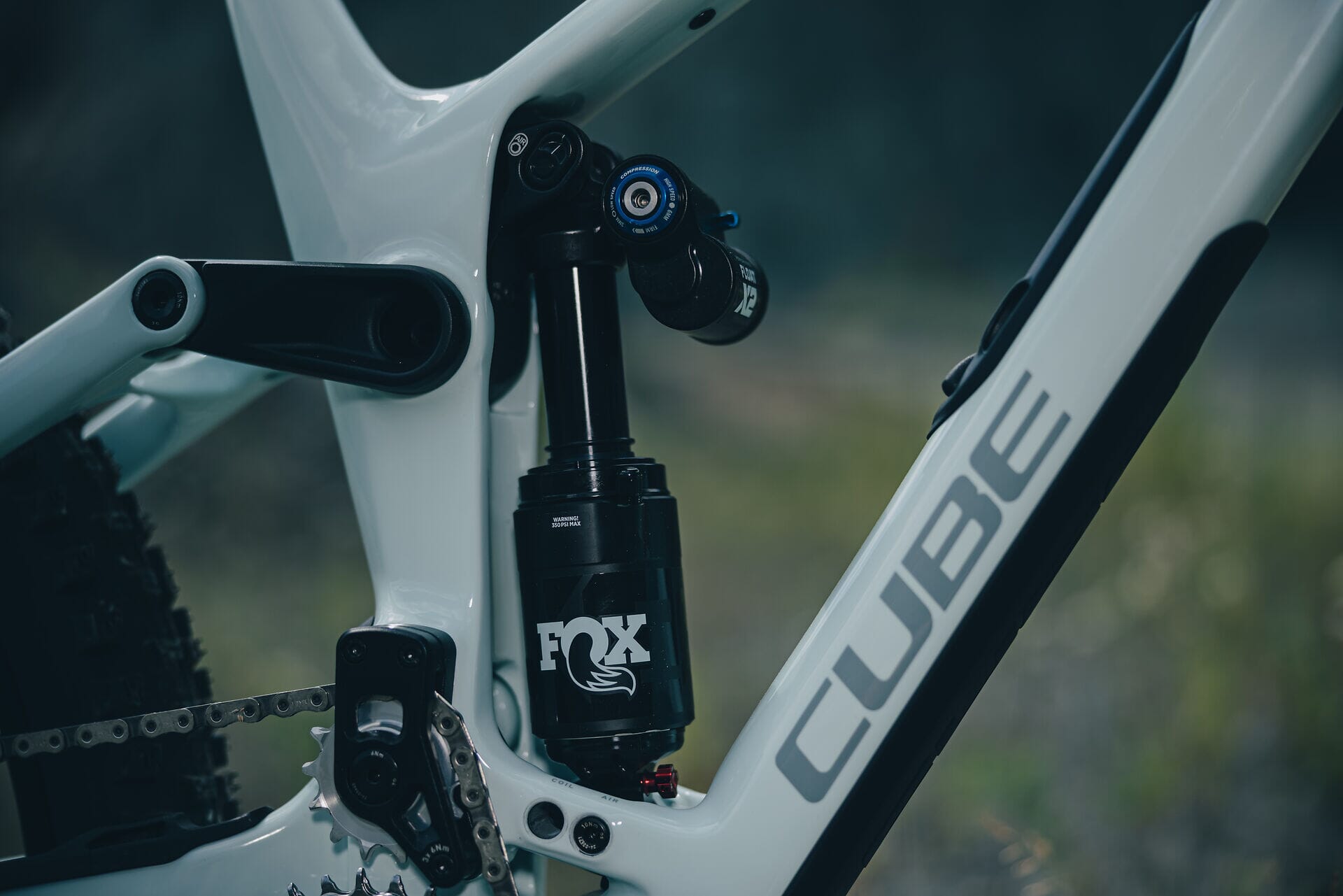

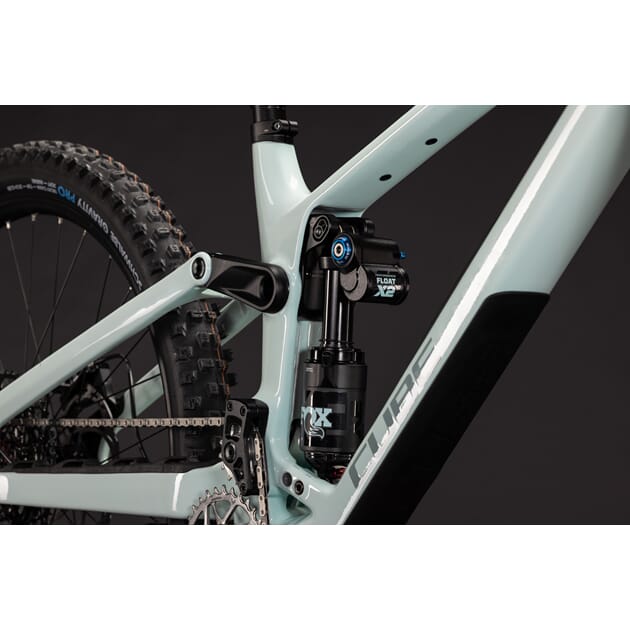

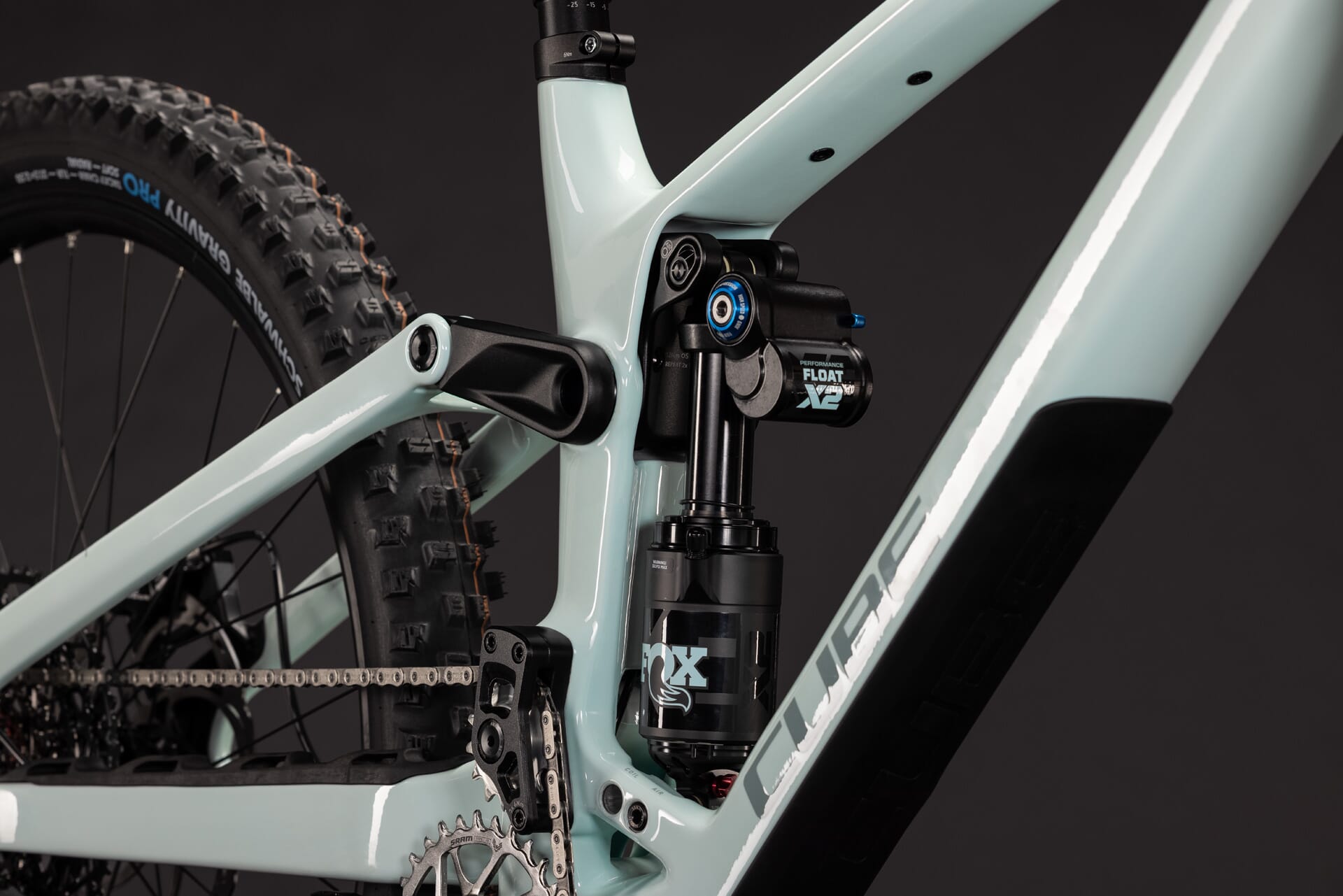

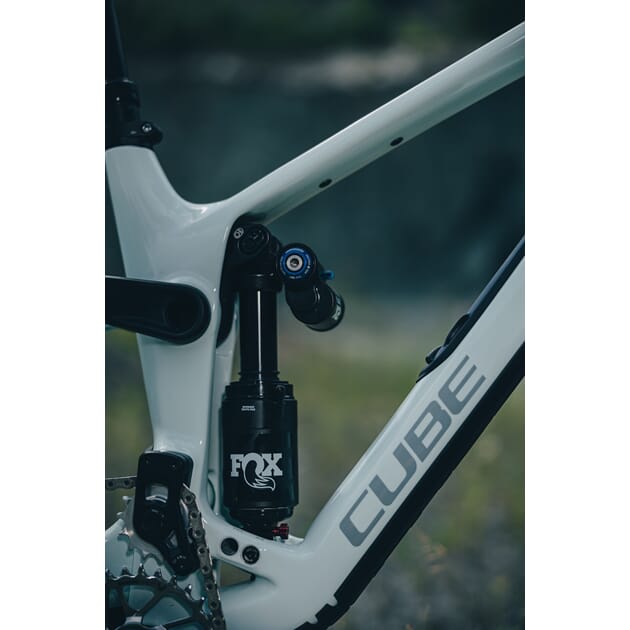

Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever
shock hardware
Top/Bottom: 30x8mm
Drivetrain & brakes
brake system

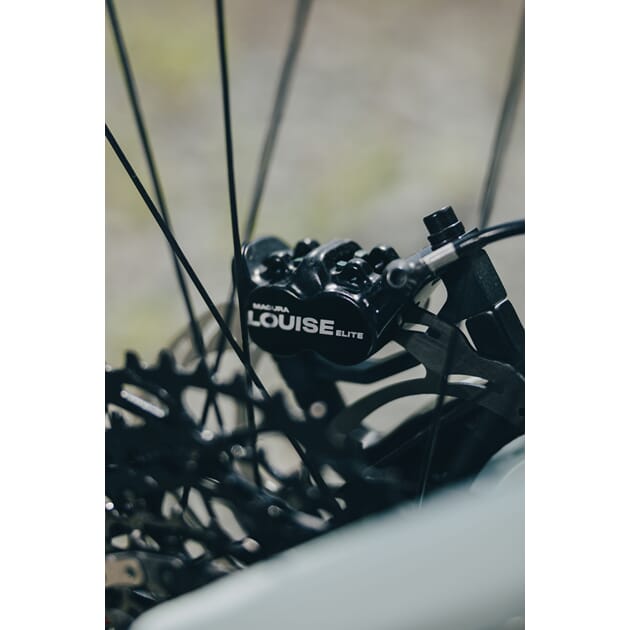

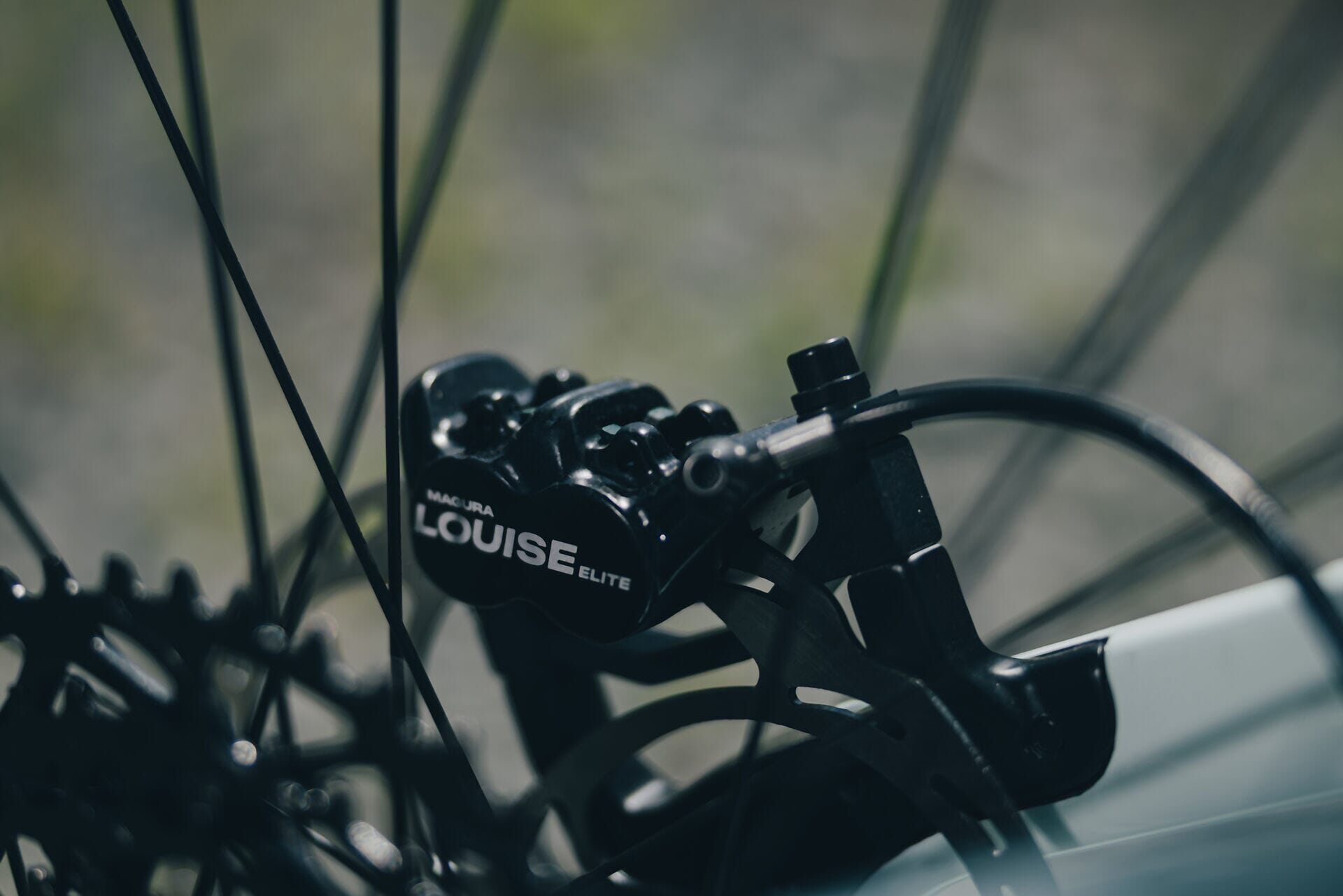

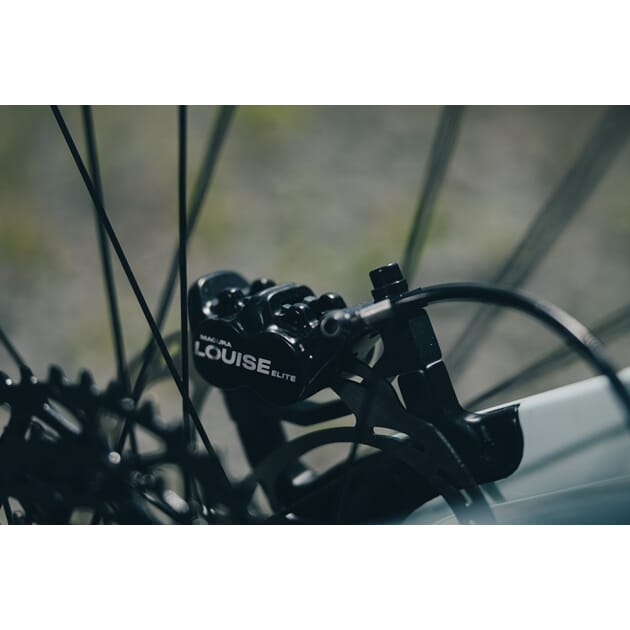

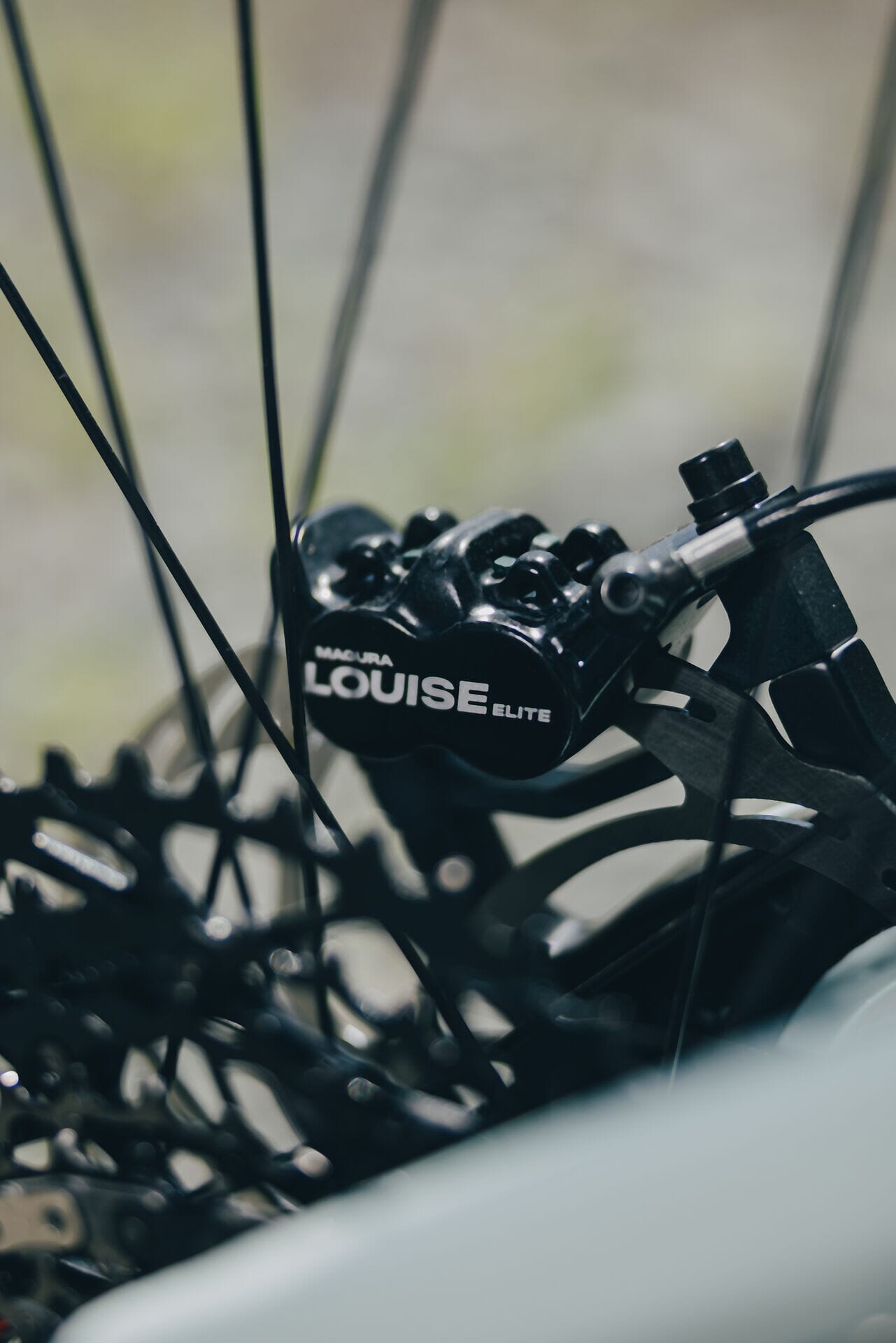

Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)

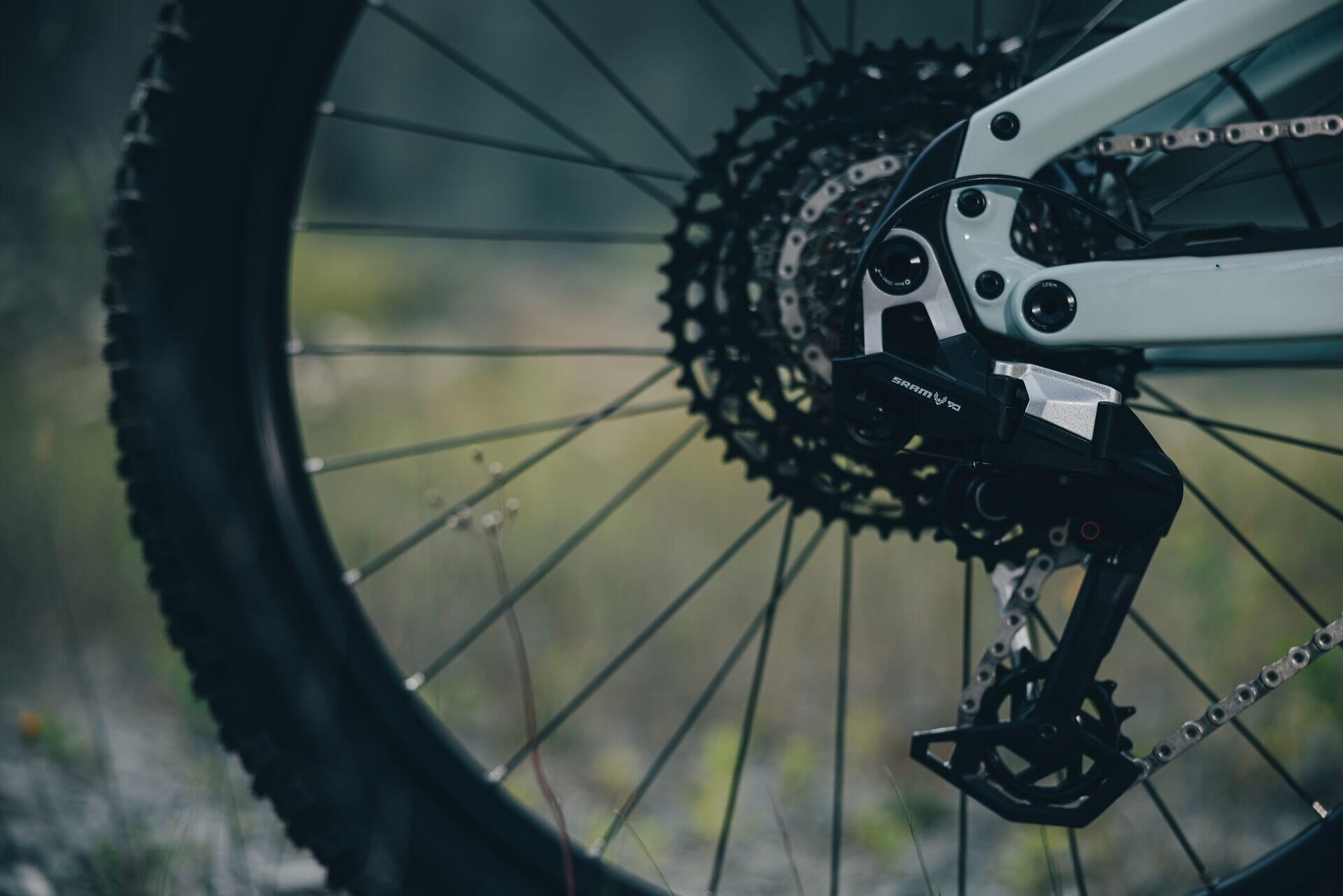

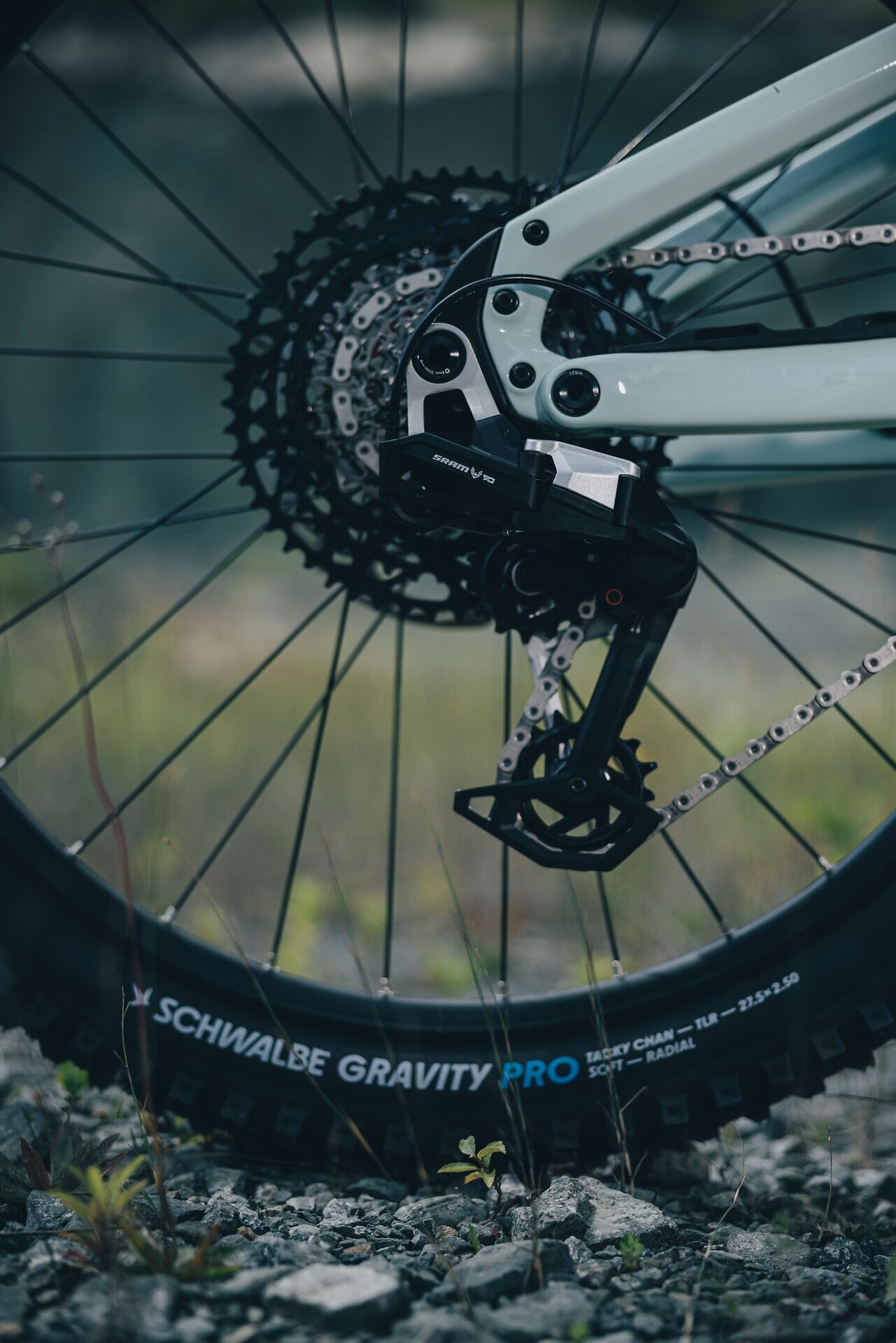

rear derailleur

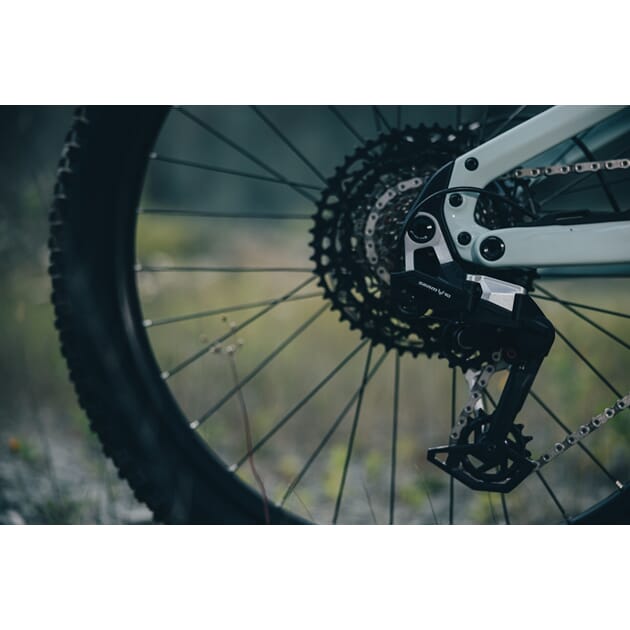

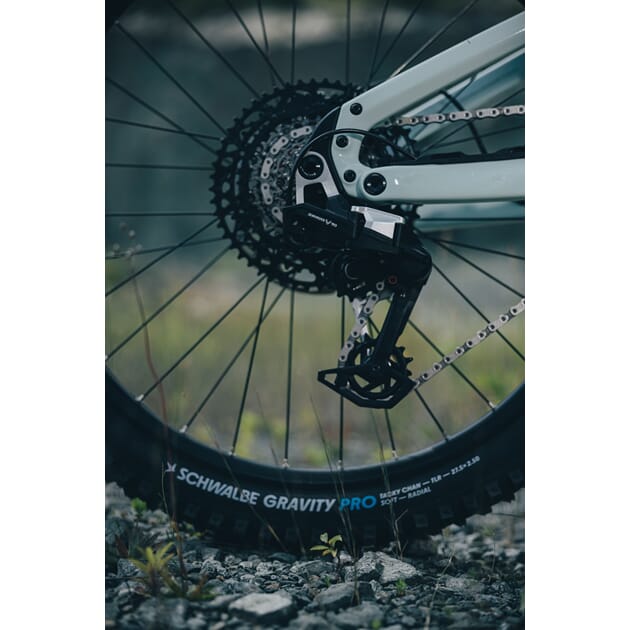

Sram Eagle™ 90 Transmission, 12-Speed
shifters
Sram Eagle™ 90 Transmission
bottom bracket
Sram DUB MTB Wide, 73mm BSA
crankset
Sram Eagle™ 90 Transmission DUB, 32T
cassette
Sram XS-1270, 10-52T
chain
Sram GX Eagle™ Transmission
chain guide
MRP MXg SL Custom
Cockpit
headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem
Newmen Evolution 318.4, 31.8mm
handlebar
Newmen Beskar 318.40, 800mm
Wheels
wheelset
Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
front tyre

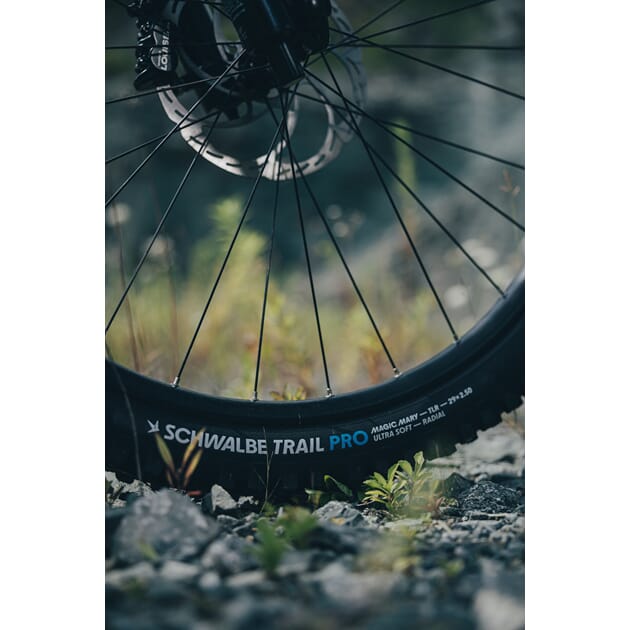

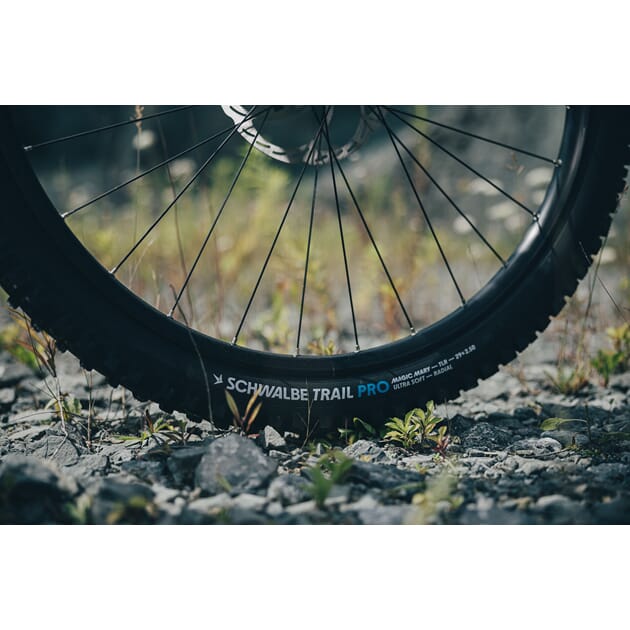

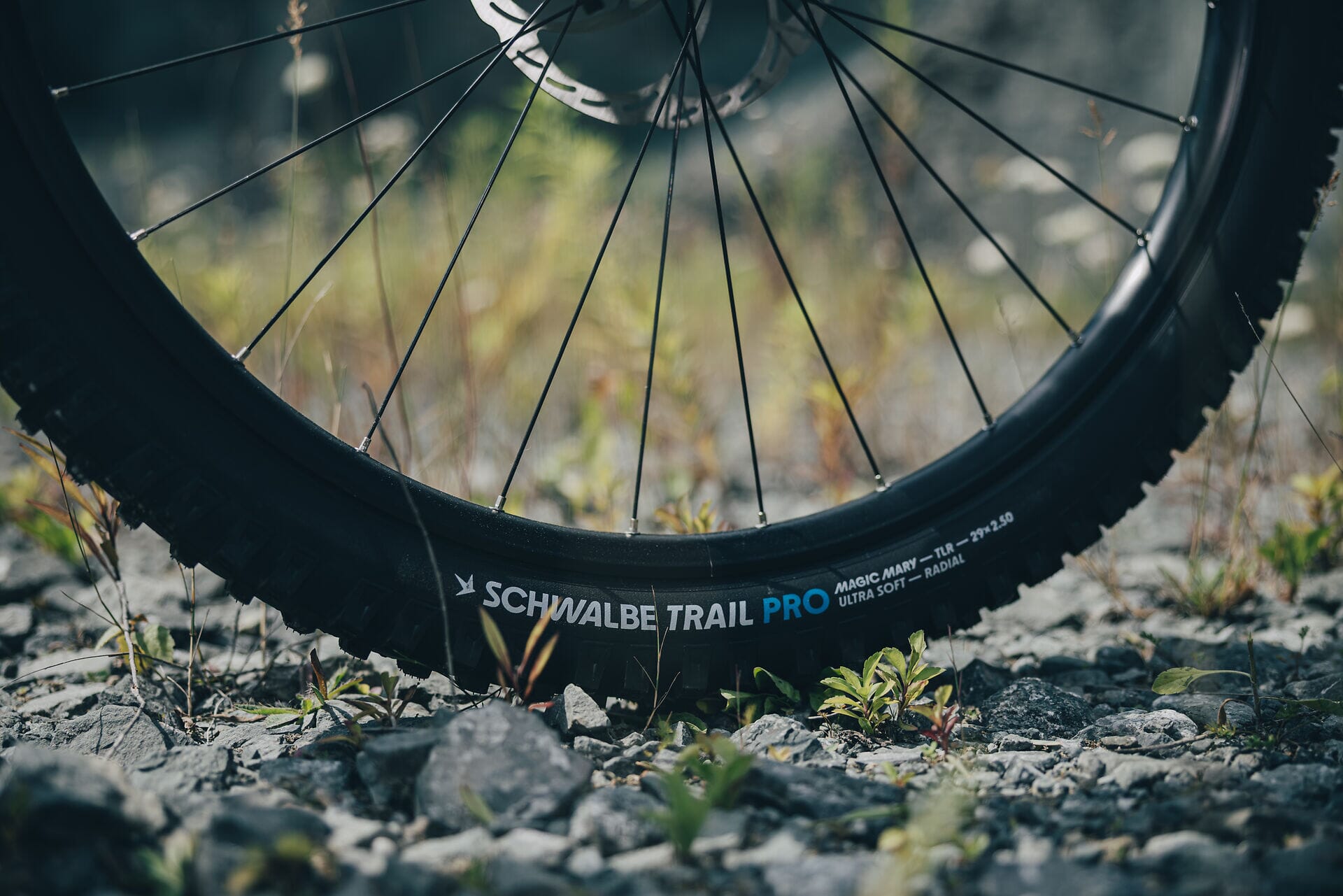

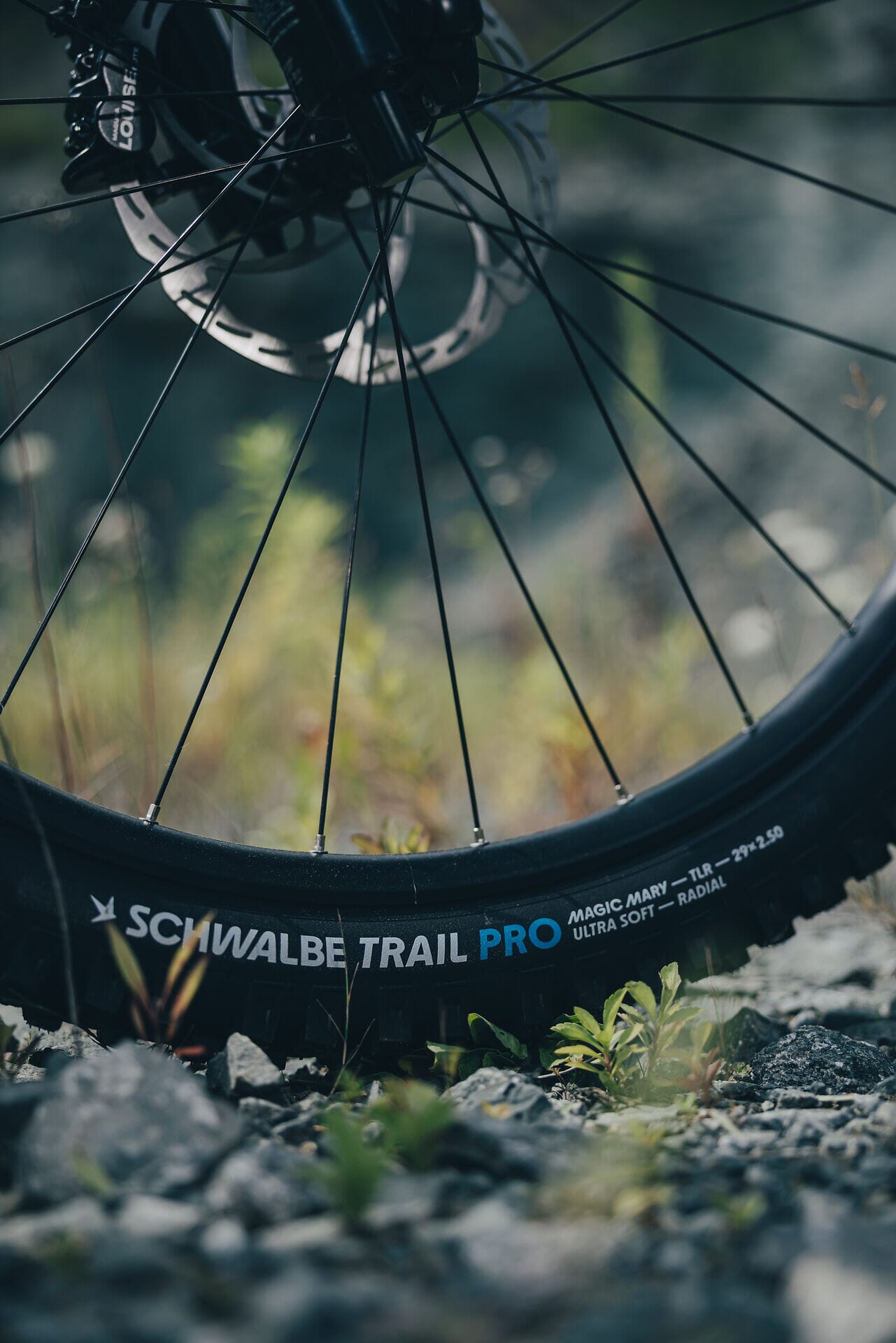

Schwalbe Magic Mary Trail Pro, Ultrasoft, Kevlar, 2.5
rear tyre
Schwalbe Tacky Chan Gravity Pro, Addix Soft, Kevlar, 2.5
Finishing kit
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, Travel Adjust, 31.6mm
