CREATING
MEMORIES
The Kathmandu Hybrid Pro is all about the freedom of two-wheeled exploration... with a handy Bosch power boost. Comfortable, versatile and adaptable, its fourth-generation Bosch CX drive system with new Kiox display and high-capacity battery is just the beginning. We chose an X-Fusion air suspension fork with lockout for its ease of adjustment, then added a suspension seatpost and an adjustable stem – so you'll be more comfortable, even on longer rides and rougher roads. Shimano's Deore 1x11 gears with durable KMC X11 chain provide a huge range and easy, fingertip shifting. And the full complement of included accessories and Integrated Carrier 3.0 mean you're set up to take any journey in your stride.

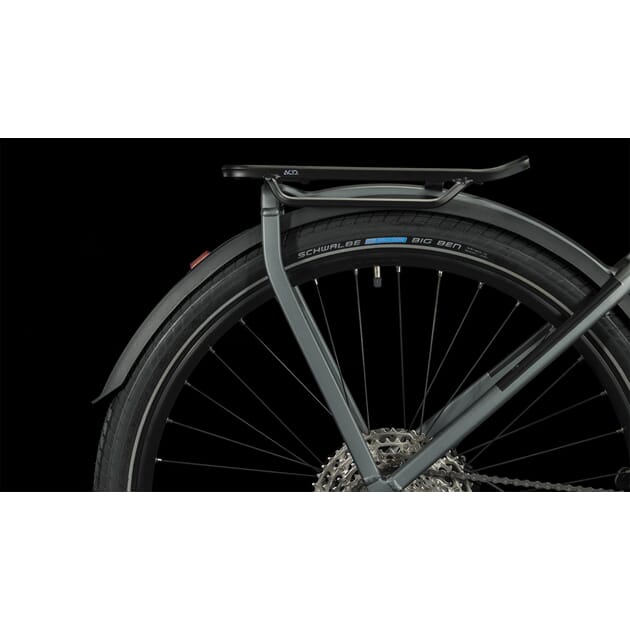

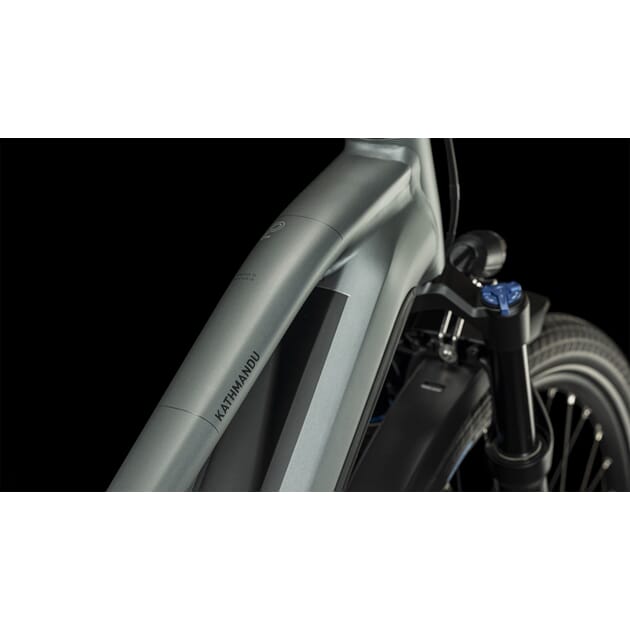

It's got the looks and comfort of a traditional Trapeze frame, but the Kathmandu Hybrid's understated appearance disguises a very cleverly thought out frame. For starters it incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you.
· FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
· SIZE
Trapeze: 50cm
· SUSPENSION FORK
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
· BRAKE SYSTEM
Shimano BR-MT200, Hydr. Disc Brake (180/180)
· REAR DERAILLEUR
Shimano Deore RD-M5100-SGS, 11-Speed
· SHIFTERS
Shimano Deore SL-M5100, Rapidfire-Plus
· CRANKSET
ACID E-Crank, 40T, 175mm (EE: 170mm)
· CASSETTE
Shimano Deore CS-M5100, 11-51T
· CHAIN
KMC X11
· FRONT HUB
Shimano HB-MT400-B, 15mm, Boost, Centerlock
· REAR HUB
Shimano FH-MT400-B, 12mm, Boost, Centerlock
· RIMS
CUBE EX23, 36H, Disc, Tubeless Ready
· TYRES
Schwalbe Big Ben, Performance, K-Guard, 55-622
· STEM
CUBE Comfort Stem Pro, 31.8mm, Adjustable
· HANDLEBAR
CUBE Comfort Trail Bar, 700mm
· GRIPS
ACID Travel Comfort
· SEAT POST
CUBE Suspension Seatpost HD, 30.9mm
· SADDLE
Natural Fit Sequence Comfort
· HEADSET
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
· PEDALS
ACID PP Trekking
· FRONT LIGHT
CUBE Shiny 50 Lux, 12V, DC
· REAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DC
· KICKSTAND
ACID FM Pure Kickstand
· MUDGUARDS
ACID 65 Integrated Carrier 3.0
· BELL
Ring Bell
· CARRIER
ACID Integrated Carrier 3.0, CUBE Adapter Compatible
· WEIGHT
26,9 kg
· COLOUR
flashgrey´n´metal
· DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
· BATTERY
Bosch PowerTube 750

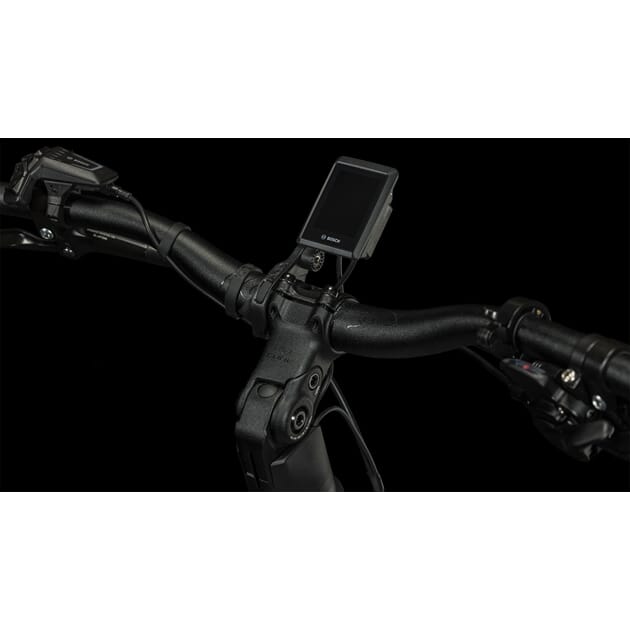

· DISPLAY
Bosch Kiox 300
· REMOTE
Bosch LED Remote
· CHARGER
Bosch 2A
