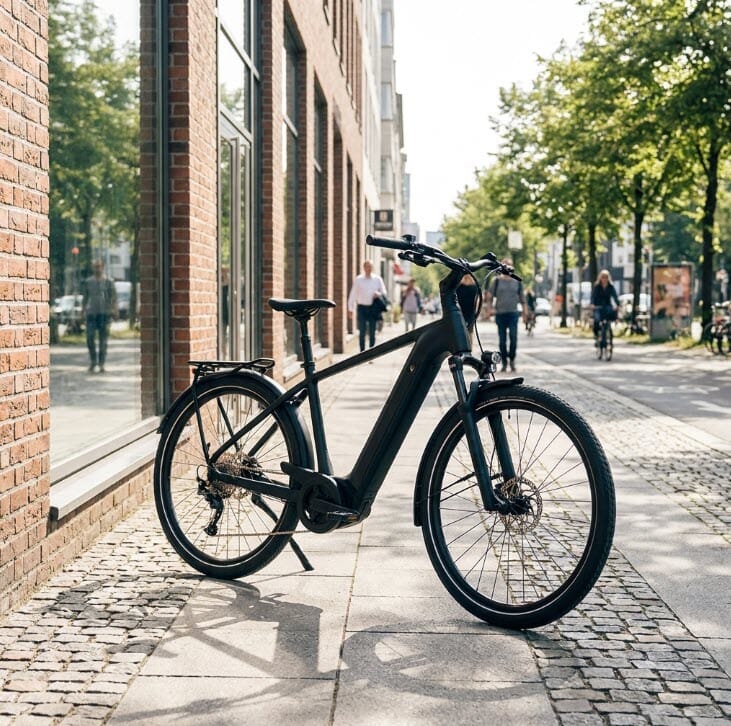

CUBE Kathmandu Hybrid har et klassisk elegant design – velkjent ved første øyekast – men er fullpakket med innovasjon og smarte løsninger. Den pent integrerte Bosch CX-motoren og det kraftige 800Wh PowerTube-batteriet er bare begynnelsen. Efficient Comfort Geometry er utviklet rundt en dempegaffel med 100 mm vandring, for bedre kontroll selv når underlaget blir røft. Integrerte kabler understreker rammens rene linjer, mens UDH-bakgirfestet er robust, allsidig og fremtidssikkert. Og selvfølgelig finner du både integrert feste for kjedebeskytter og vår solide, slitesterke og usedvanlig elegante Integrated Carrier 3.0 – slik at du kan ta med deg alt du trenger på eventyrene dine.
Rammemateriale
Aluminium Superlite
Batteri
800Wh
Høydepunkter
Sykl dit du vil og ta med deg det du trenger, med CUBE Kathmandu Hybrid ONE. Elegant design, den allsidige og robuste Integrated Carrier 3.0 og Bosch-kraft gjør dette til en sykkel for alle formål. Uansett hvor stor verden din er, er dette sykkelen som lar deg utforske den.
Eventyr er det du selv gjør det til – og Kathmandu Hybrid ONE fra CUBE gjør ethvert tråkkedrevet eventyr bedre. Med 800Wh PowerTube-batteri og Bosch CX-motor har du opptil 85 Nm tråkkassistanse tilgjengelig. Kombinert med de lettbetjente og girspennrike Shimano Cues 1x10-girene, er dette mer enn nok til å takle enhver rute med letthet. Suntour luftdempegaffel, dempet setepinne og justerbart stem sørger for komfort selv på lange dager i salen. Kraftige og pålitelige Shimano hydrauliske skivebremser gir trygg bremsekraft i all slags vær. Og med et komplett utstyrsnivå – inkludert lys og skjermer som matcher Integrated Carrier 3.0 – er du klar for det meste.
Spesifikasjoner
Ramme
Ramme:
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fullintegrert batteri, IC 3.0, Avansert intern kabelføring, Integrert seteklemme
Fully Integrated Battery
The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
Advanced Internal Cable Routing
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Modular Battery System
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
Integrated Carrier 3.0
The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
Efficient Comfort Geometry
With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
Aluminium Superlite
CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.
X-Connect
X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.
Størrelser:
Classic: 50 cm, 54 cm, 58 cm, 62 cm
Demper
Dempegaffel:
SR Suntour NX1-32 LO Air, konisk, 15x110 mm, 100 mm
Elsykkelsystem
Motor:
Bosch Drive Unit Performance Line CX maks. 100 Nm (BDU38)
Remote:
Bosch Purion 200 med integrert display
Batteri:
Bosch PowerTube 800
Lader:
Bosch 2A
Drivverk & bremser
Bremsesystem:
Shimano BR-MT200, hydrauliske skivebremser (180/180)
Bakgir:
Shimano Cues RD-U6000-GS, 10-delt
Girhendler:
Shimano Cues SL-U6000, Rapidfire-Plus
Kranksett:
ACID MTB Hybrid Pro, 40T
Kassett:
Shimano Cues CS-LG300, 11–48T
Kjede:
KMC eGlide
Cockpit
Styrelager:
ACROS AZF-1035, ICR (integrert kabelføring), topp Zero-Stack 1 1/2" (ZS 56 mm), bunn Zero-Stack 1 1/2" (ZS 56 mm), HIC
Stem:
CUBE Comfort Stem Pro, 31,8 mm, justerbart
Styre:
CUBE Comfort Trail Bar, 700 mm
Holker:
ACID Travel Comfort
Hjul
Hjulsett:
ACID Pro 25, 32/32 eiker, 15x110 mm / 12x148 mm, Tubeless Ready
Dekk:
Schwalbe Motion Big Apple, PerfL, 55-622
Komponenter
Sete:
ACID Sequence 180
Setepinne:
CUBE Suspension Seatpost HD, 31,6 mm
Pedaler:
ACID PP Trekking
Frontlys:
ACID Front Light PRO-E 60 X-Connect, 12V, DC
Baklys:
ACID Mudguard Rear Light PRO-E, 12V, DC
Støtte:
ACID FM Pure Kickstand
Skjermer:
ACID 65 Integrated Carrier 3.0
Ringeklokke:
Easy Bell
Bagasjebrett:
ACID Integrated Carrier 3.0, CUBE Adapter-kompatibel
Produktinformasjon
Farge:
metallicgrey´n´grey
Vekt:
27,5 kg
Art. nr.:
112110
