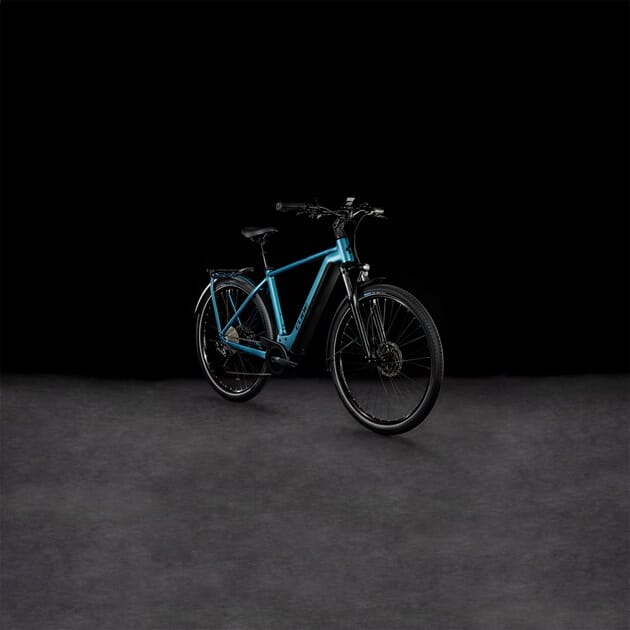

The Kathmandu Hybrid ONE is the bike to take you wherever your imagination leads you. With Bosch's smooth, powerful fourth-generation CX drive unit, Intuvia 100 display, a high-capacity battery and Shimano's easy-to-use Cues 1x9 gears with extra-durable Shimano Linkglide chain, you'll be able to make light work of any journey. Across town or across countries, the Suntour suspension fork, suspension seatpost and adjustable stem will keep you comfortable. Powerful Shimano hydraulic disc brakes give you the stopping power you need in all weathers. And a full complement of accessories, from lights and mudguards to the latest generation of our Integrated Carrier, means you're ready for anything.
Designed for comfort, versatility and durability, the Kathmandu Hybrid's frame incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you.

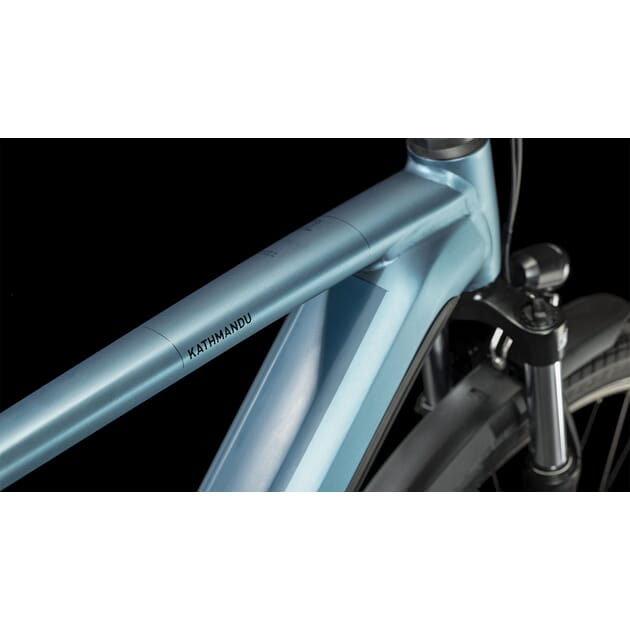

· FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
· SIZE
Classic: 50cm, 54cm, 58cm, 62cm
Trapeze: 50cm, 54cm
Easy Entry: 46cm, 50cm, 54cm, 58cm
· SUSPENSION FORK
SR Suntour NVX30 Coil, 100mm
· BRAKE SYSTEM
Shimano BR-MT200, Hydr. Disc Brake (180/180)
· REAR DERAILLEUR
Shimano Cues RD-U4000-GS, 9-Speed
· SHIFTERS
Shimano Cues SL-U4010- Rapidfire-Plus
· CRANKSET
ACID E-Crank, 40T, 175mm (EE: 170mm)
· CASSETTE
Shimano Cues CS-LG300, 11-46T
· CHAIN
Shimano CN-LG500
· FRONT HUB
Shimano HB-QC300, QR, Centerlock
· REAR HUB
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
· RIMS
CUBE EX23, 36H, Disc
· TYRES
Schwalbe Big Ben, Performance, K-Guard, 55-622
· STEM CUBE
Comfort Stem Pro, 31.8mm, Adjustable
· HANDLEBAR
CUBE Comfort Trail Bar, 700mm
· GRIPS
ACID Travel Comfort
· SEAT POST
CUBE Suspension Seatpost HD, 30.9mm

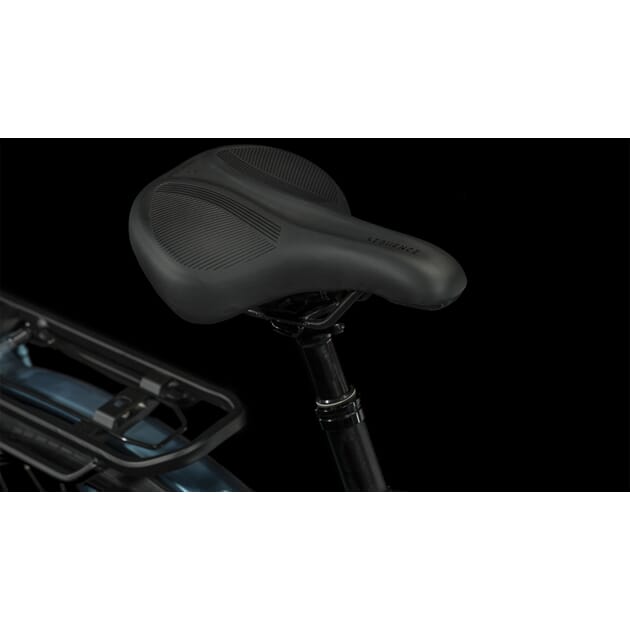

· SADDLE
Natural Fit Sequence Comfort
· HEADSET
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
· PEDALS
ACID PP Trekking

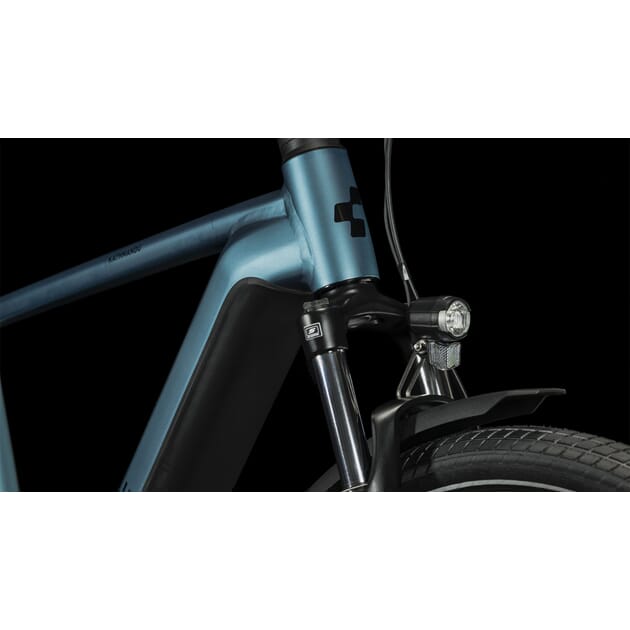

· FRONT LIGHT
CUBE Shiny 50 Lux, 12V, DC
· REAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DC
· KICKSTAND
ACID FM Pure Kickstand
· MUDGUARDS
ACID 65 Integrated Carrier 3.0
· BELL
Easy Bell

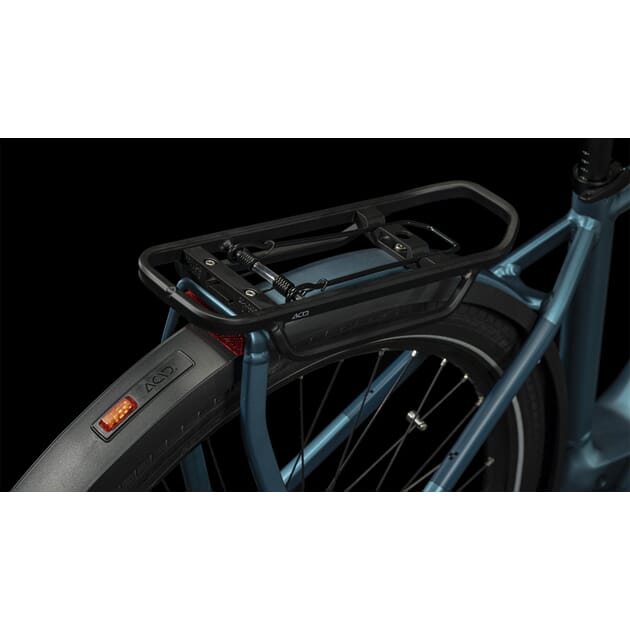

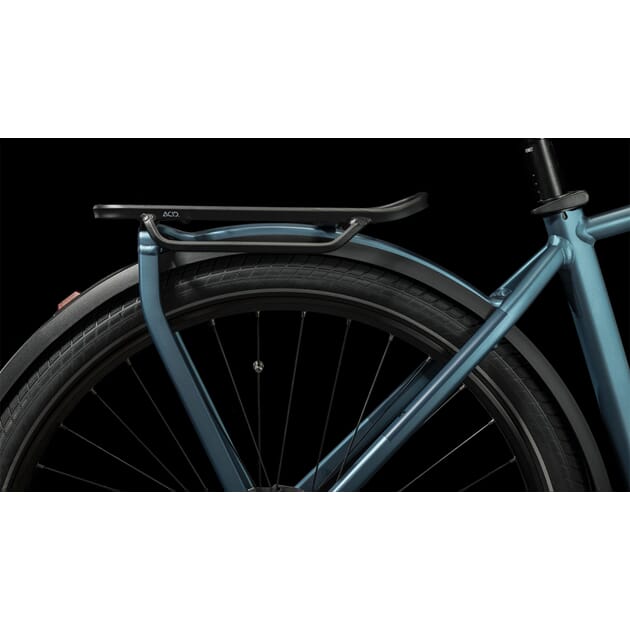

· CARRIER
ACID Integrated Carrier 3.0, CUBE Adapter Compatible
· WEIGHT
27,3 kg
· COLOUR
blue´n´black
· DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
· BATTERY
Bosch PowerTube 750
· DISPLAY
Bosch Purion 200 w/ Integrated Display
· REMOTE
Bosch LED Remote
· CHARGER
Bosch 2A
