CREATING
MEMORIES

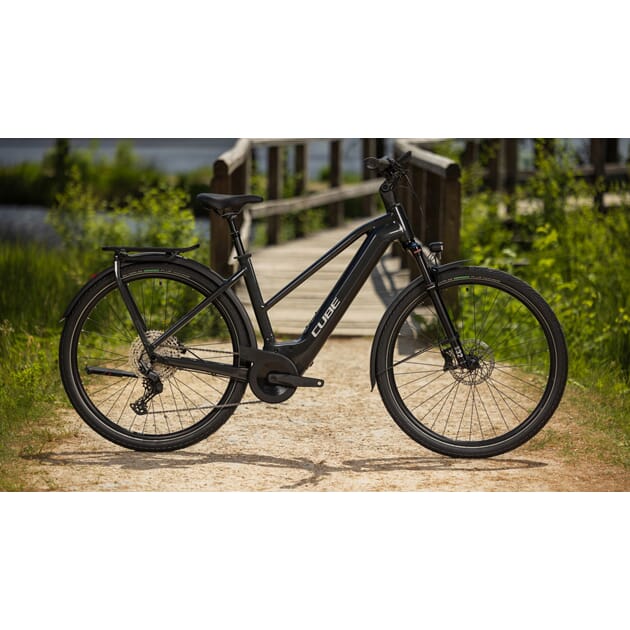

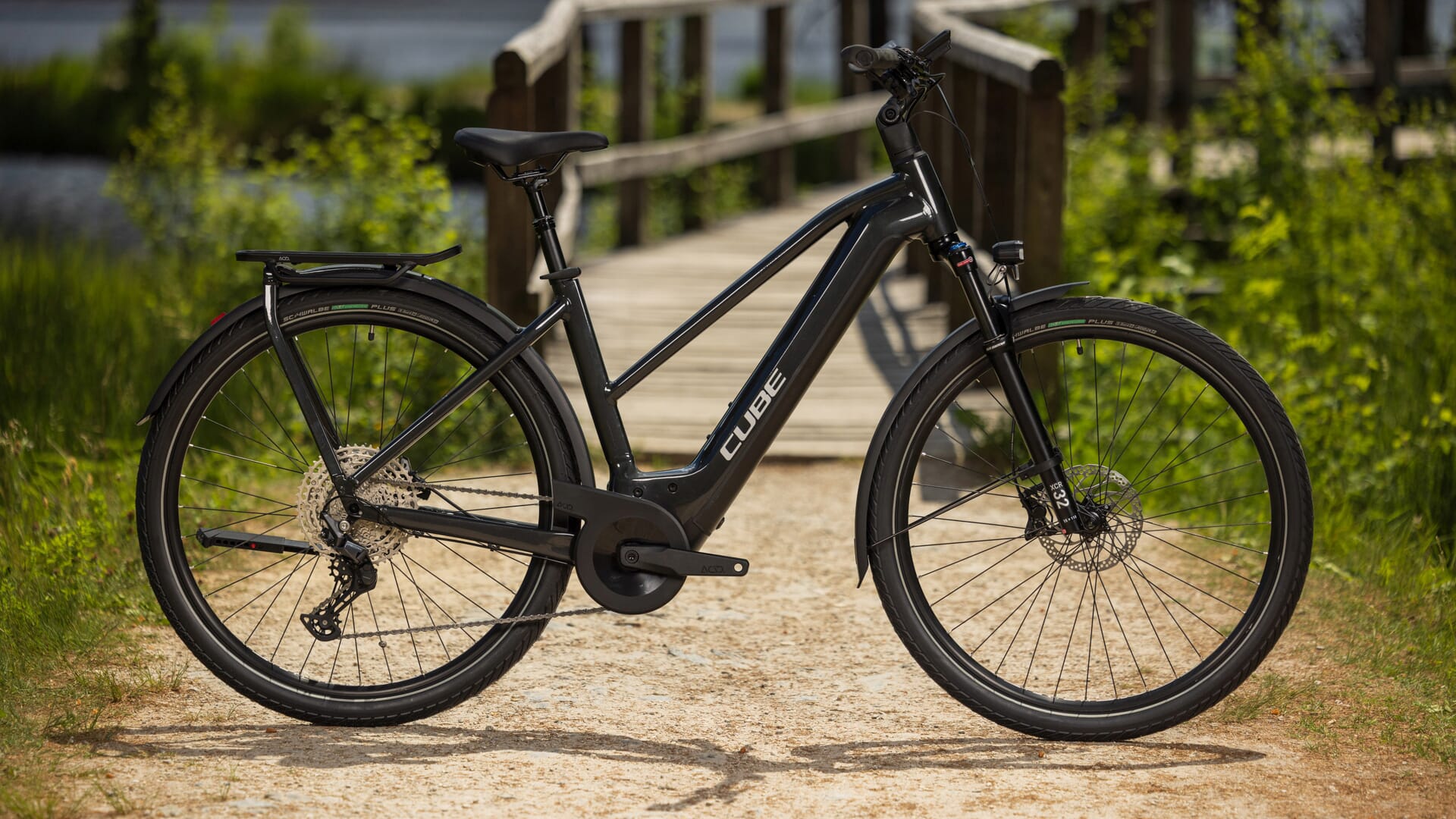

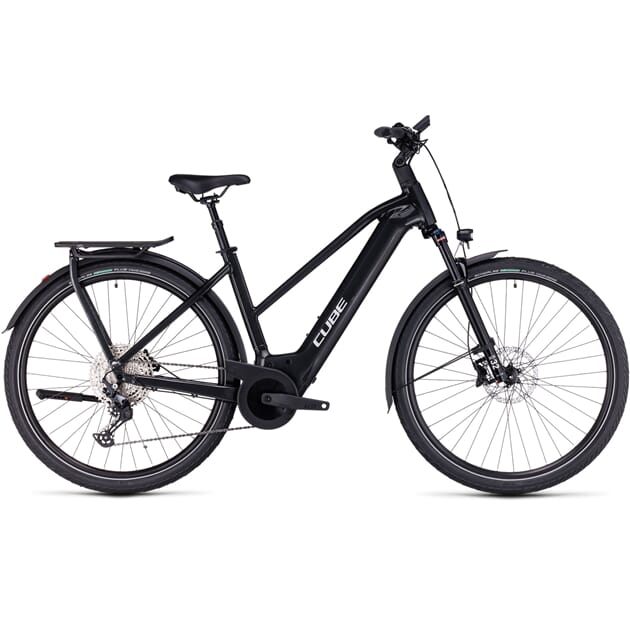

Designed for comfort, versatility and durability, the Kathmandu Hybrid's frame incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you.
WHETHER YOU'RE RIDING ACROSS TOWN OR ACROSS COUNTRIES, YOU WANT A BIKE THAT WON'T LET YOU DOWN. WITH ITS FOURTH-GENERATION BOSCH CX DRIVE SYSTEM, NEW KIOX DISPLAY, HIGH-CAPACITY 750WH BATTERY AND DEPENDABLE SHIMANO 1X12 GEARS, THE KATHMANDU HYBRID EXC 750 HAS GOT YOUR BACK.

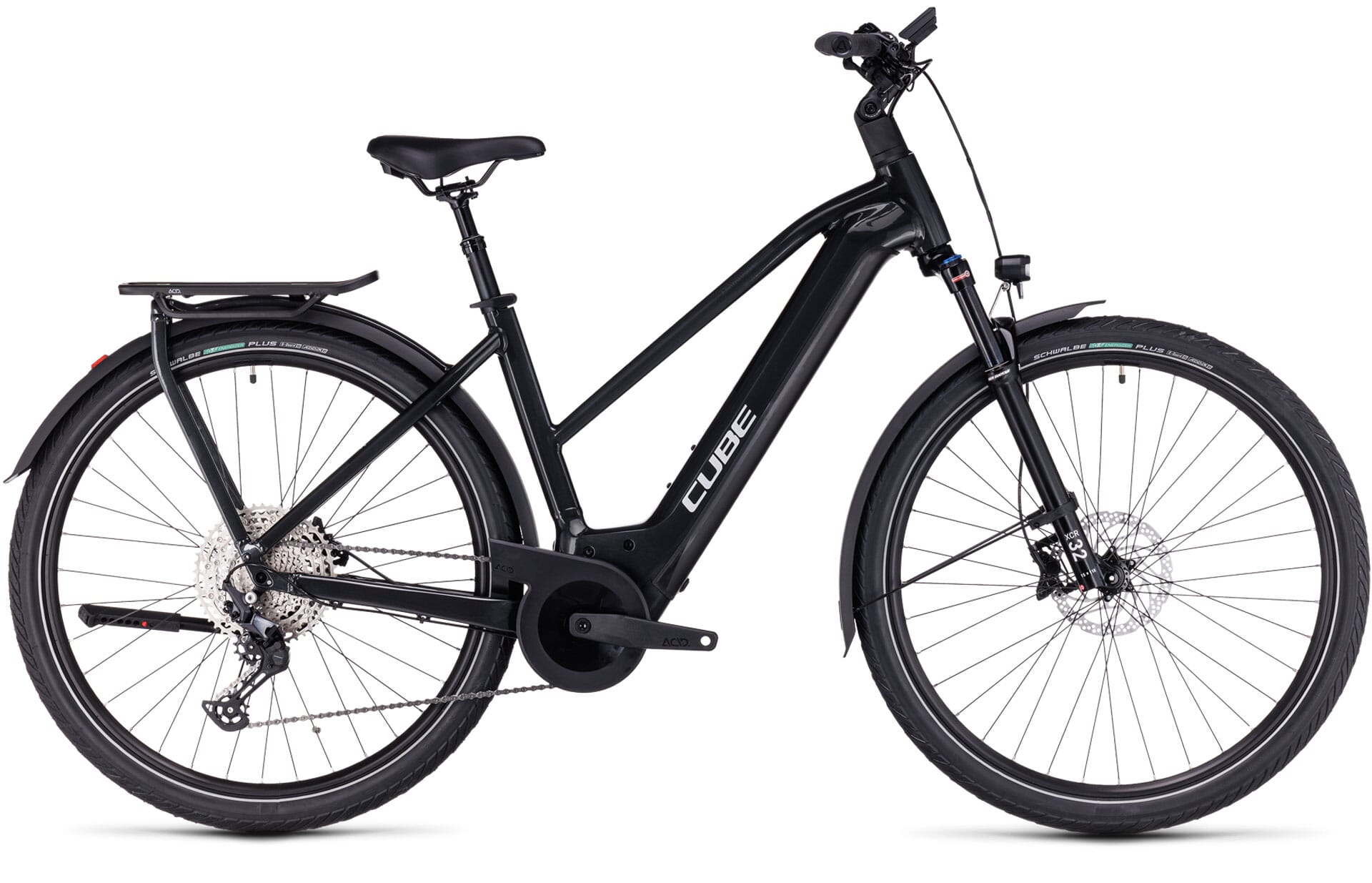

The Kathmandu Hybrid EXC 750 features Bosch's largest-capacity battery and fourth-generation CX drive system with new Kiox display, so you can ride for longer. Paired with the reliable and easy-to-use Shimano Deore 1x12 gears, you've got all you need to tackle any route with ease. Powerful four-piston Shimano hydraulic disc brakes have the stopping power to keep you safe in all weathers. A suspension seatpost, adjustable stem and air-sprung Suntour suspension fork ensure you're comfortable, even for long days out. And the Integrated Carrier 3.0, mudguards, lighting system and kickstand give you the tools you need for any errand or adventure.
FRAME

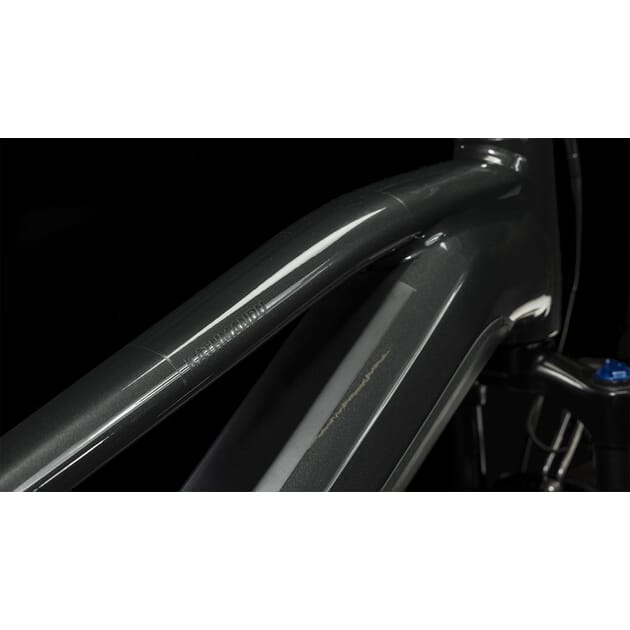

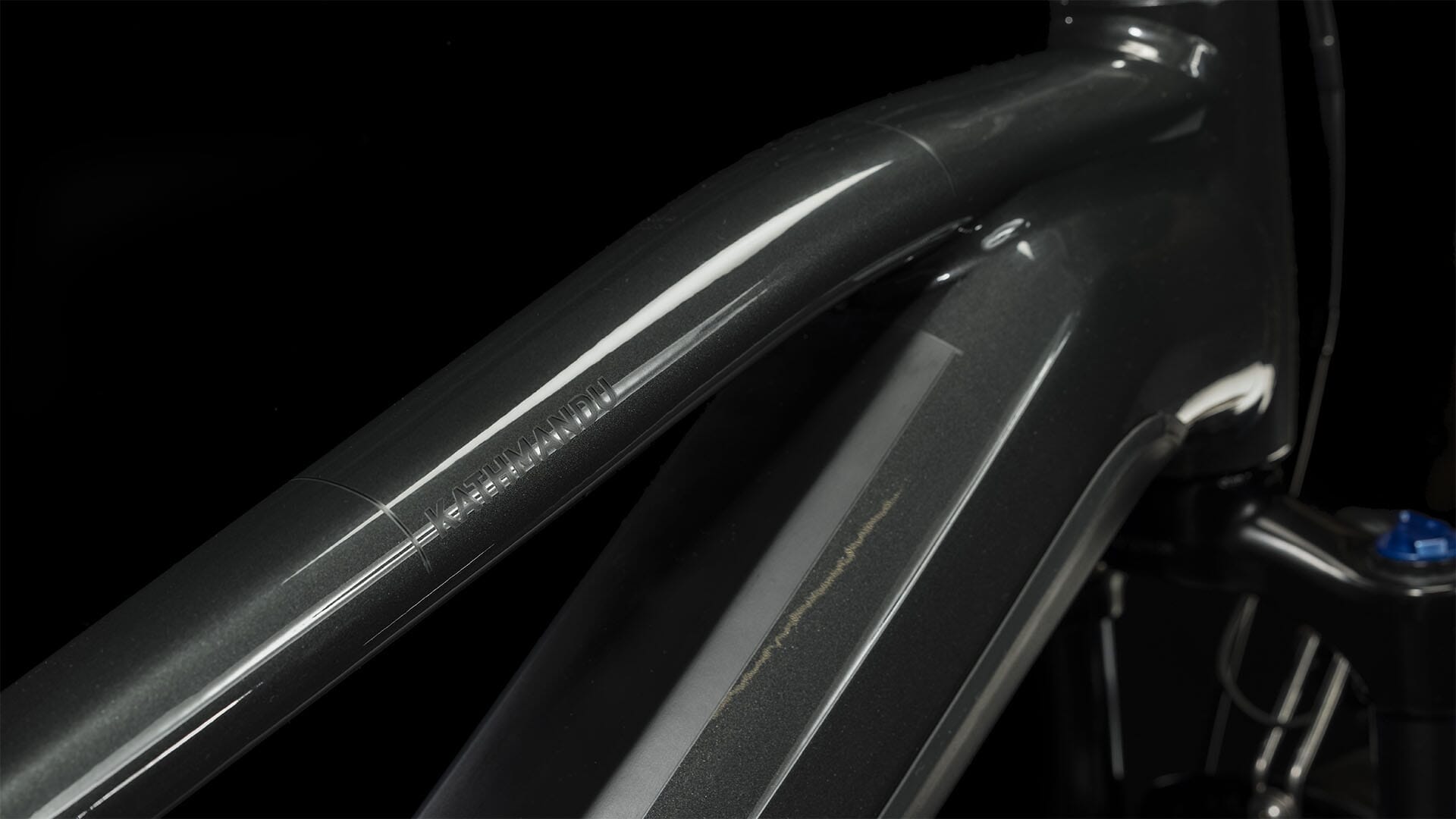

· FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
· SIZE
Classic: 50cm, 54cm, 58cm, 62cm
SUSPENSION
· SUSPENSION FORK

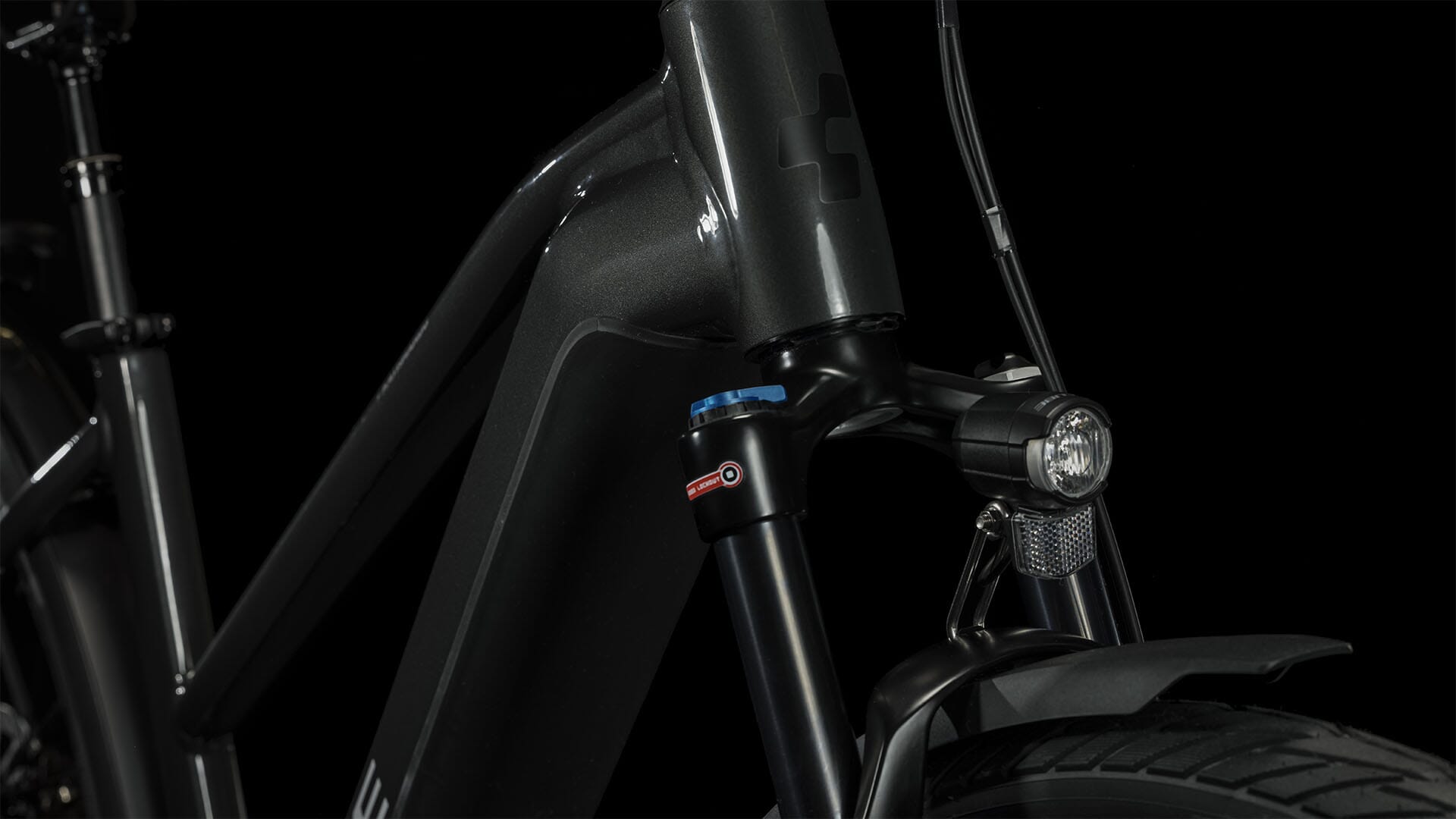

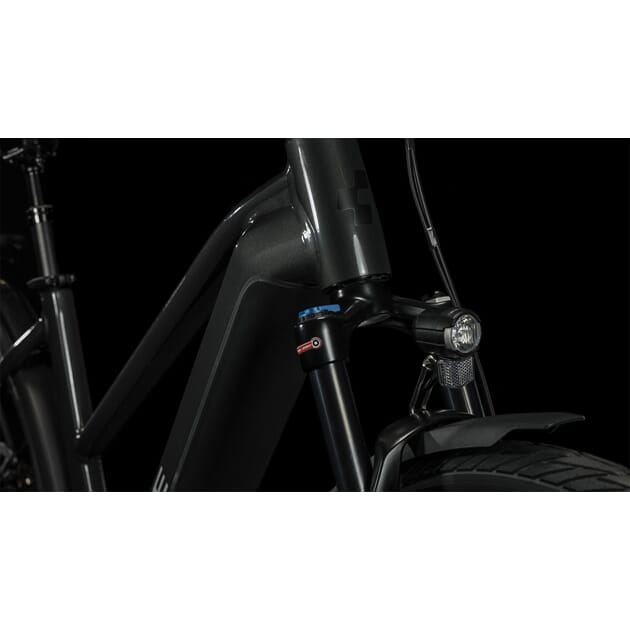

SR Suntour XCR32 LO-R Air, Tapered, 15x110mm, 100mm, Lockout
E-BIKE SYSTEM
· DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
· REMOTE
Bosch LED Remote
· BATTERY
Bosch PowerTube 750

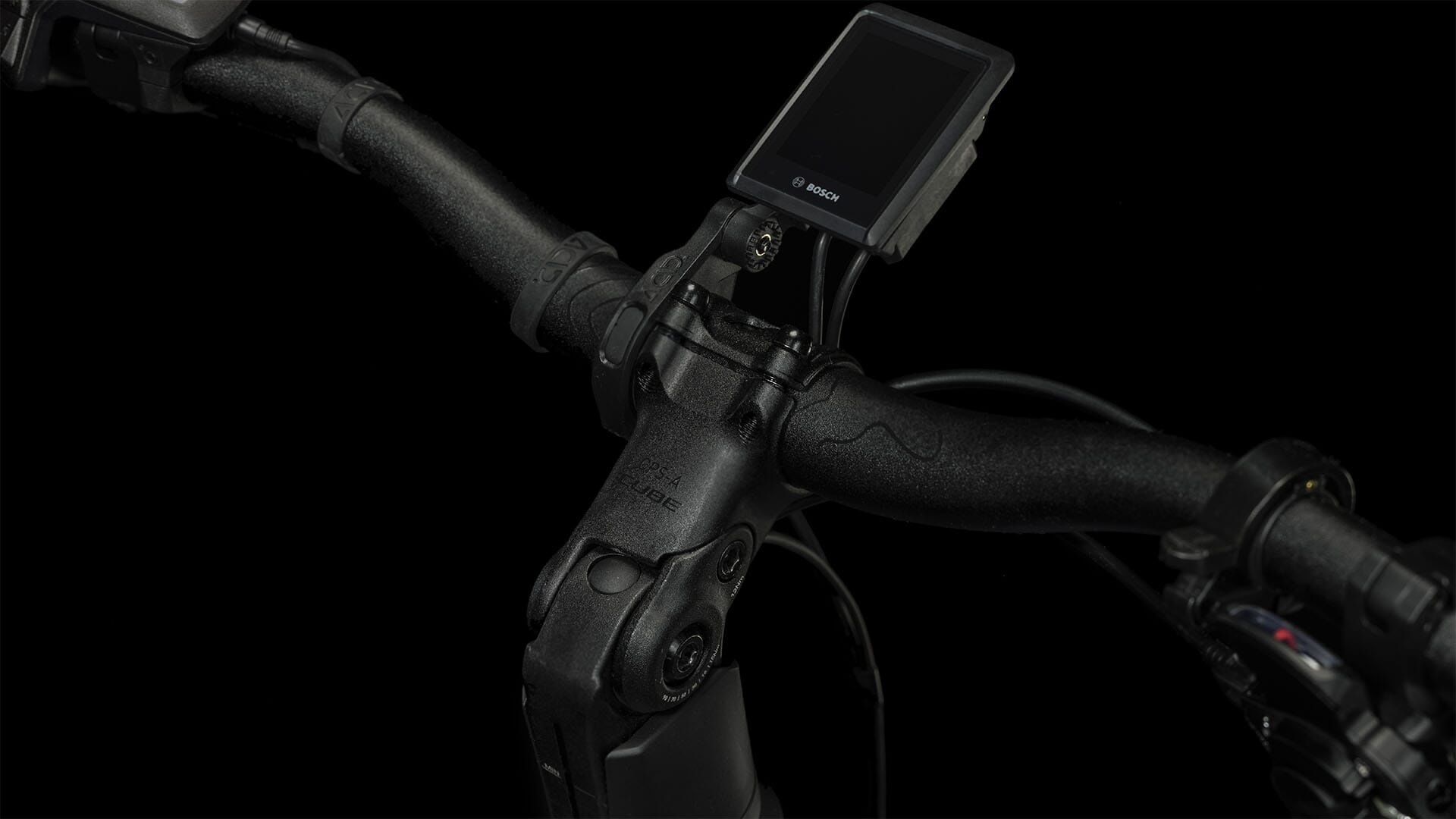

· DISPLAY

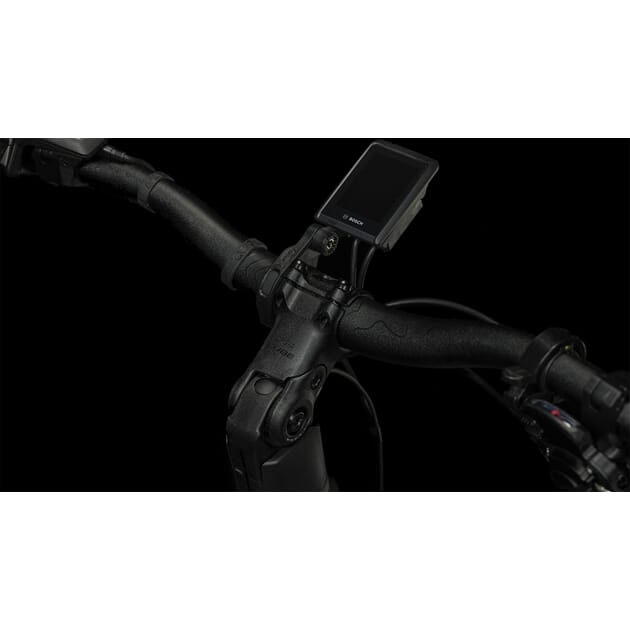

Bosch Kiox 300
· CHARGER
Bosch 4A
DRIVETRAIN & BRAKES
· BRAKE SYSTEM
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
· REAR DERAILLEUR
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
· SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach

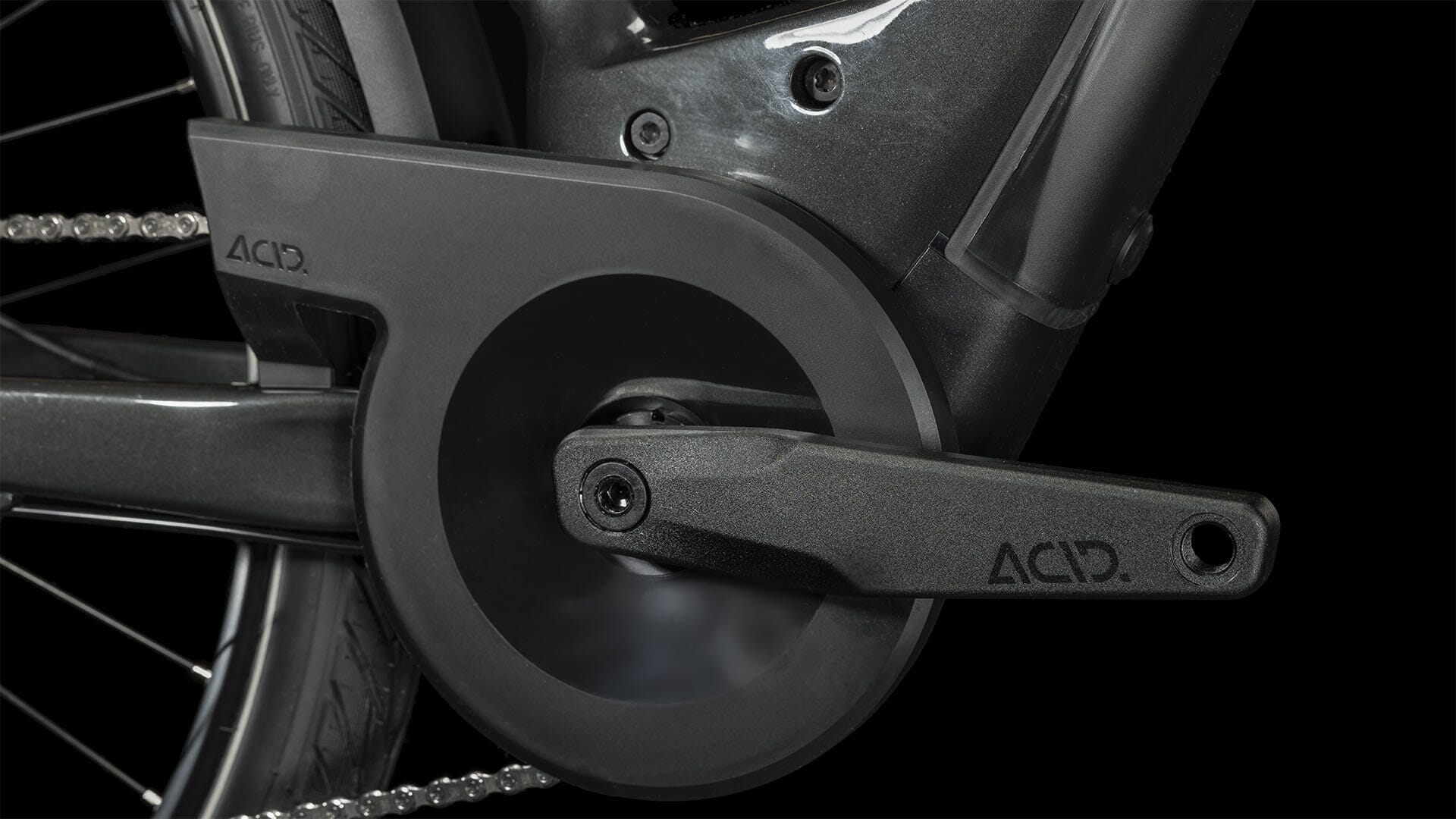

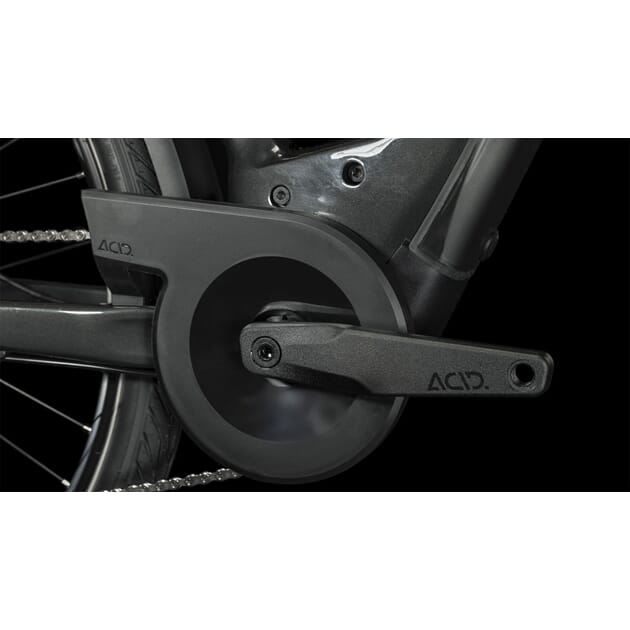

· CRANKSET
ACID E-Crank, 40T, 175mm (EE: 170mm)
· CASSETTE
Shimano Deore CS-M6100, 10-51T
· CHAIN
Shimano CN-M6100
COCKPIT
· HEADSET
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
· STEM
CUBE Comfort Stem Pro, 31.8mm, Adjustable
· HANDLEBAR
CUBE Comfort Trail Bar, 700mm
· GRIPS
ACID Travel Comfort
WHEELS
· RIMS
CUBE EX23, 36H, Disc, Tubeless Ready
· FRONT HUB
Shimano HB-MT400-B, 15mm, Boost, Centerlock
· REAR HUB
Shimano FH-MT410-B, 12mm, Boost, Centerlock
· TYRES
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
FINISHING KIT
· SADDLE
Natural Fit Sequence Comfort
· SEAT POST
CUBE Suspension Seatpost HD, 30.9mm
· PEDALS
ACID PP Trekking
· FRONT LIGHT
CUBE Shiny 50 Lux, 12V, DC
· REAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DC
· KICKSTAND
ACID FM Pure Kickstand
· MUDGUARDS
ACID 65 Integrated Carrier 3.0
· BELL
Ring Bell

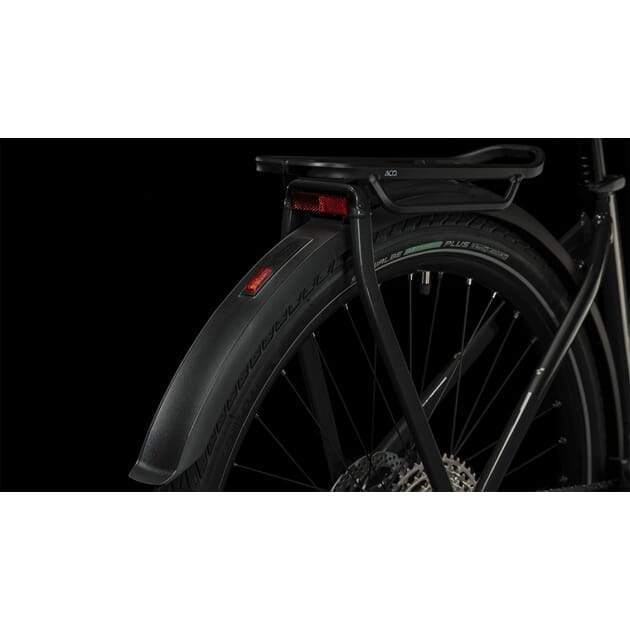

· CARRIER

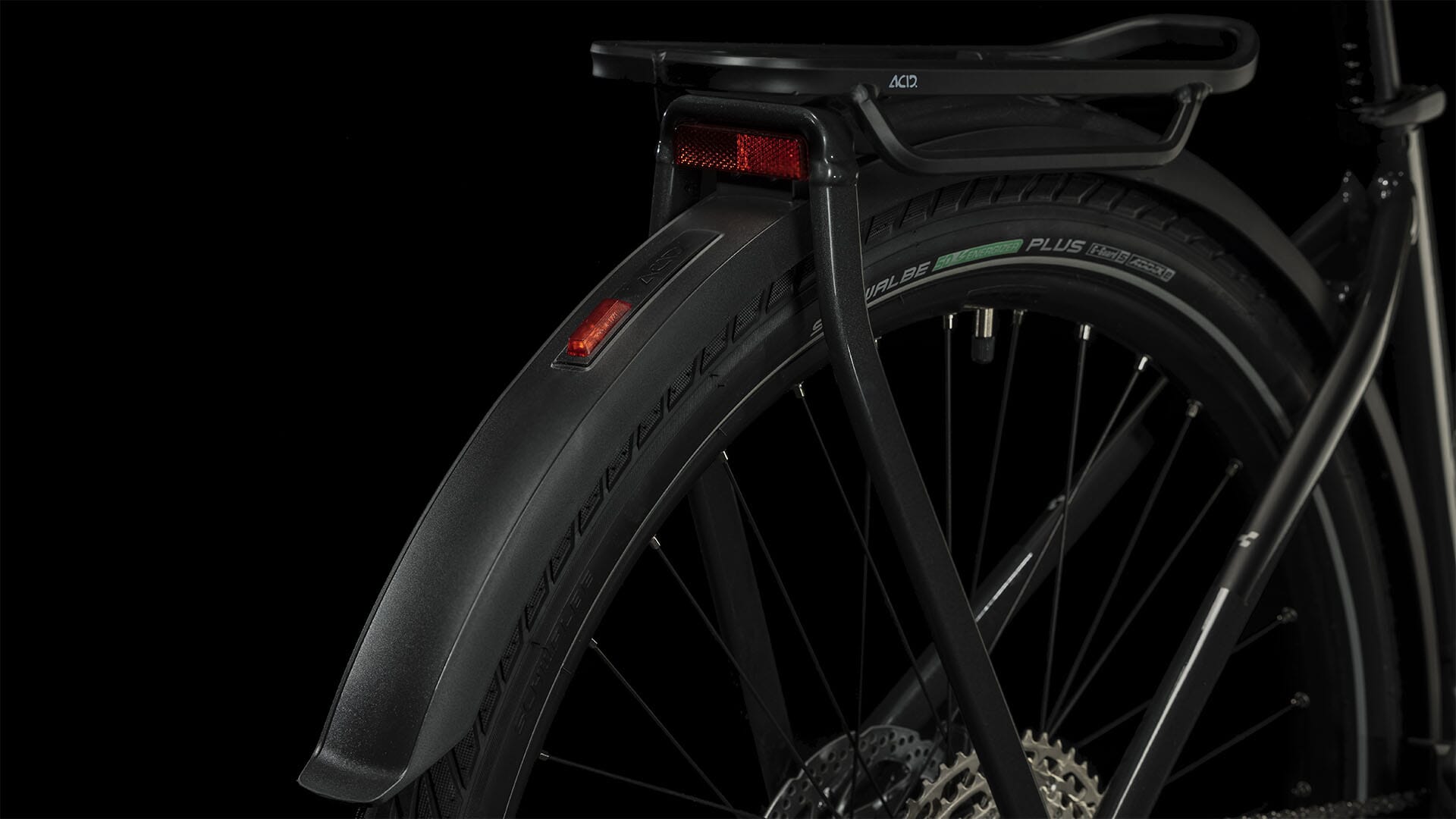

ACID Integrated Carrier 3.0, CUBE Adapter Compatible
PRODUCT INFORMATION
· COLOUR
grey´n´silver
· WEIGHT
27,7 kg
