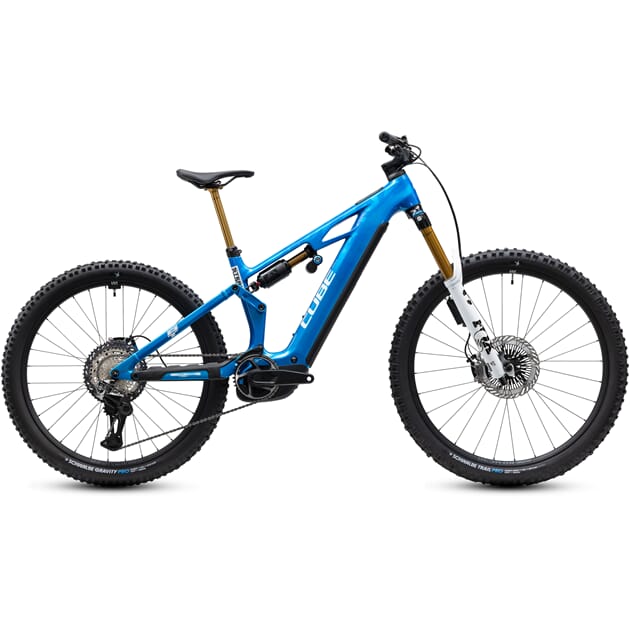

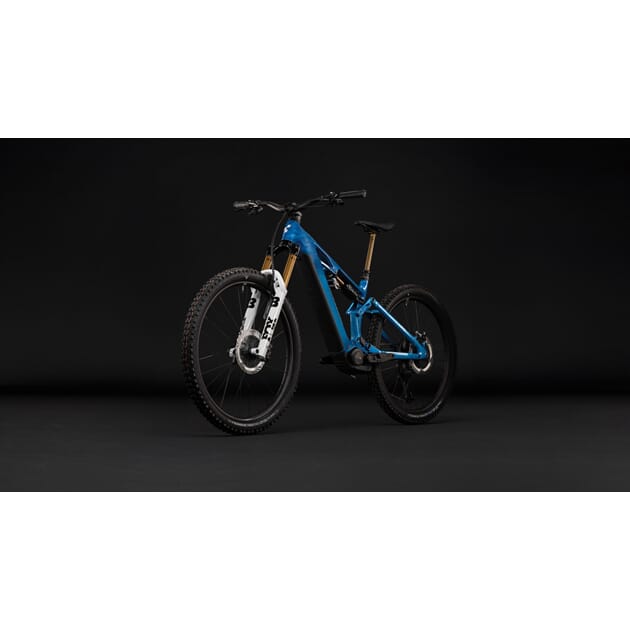

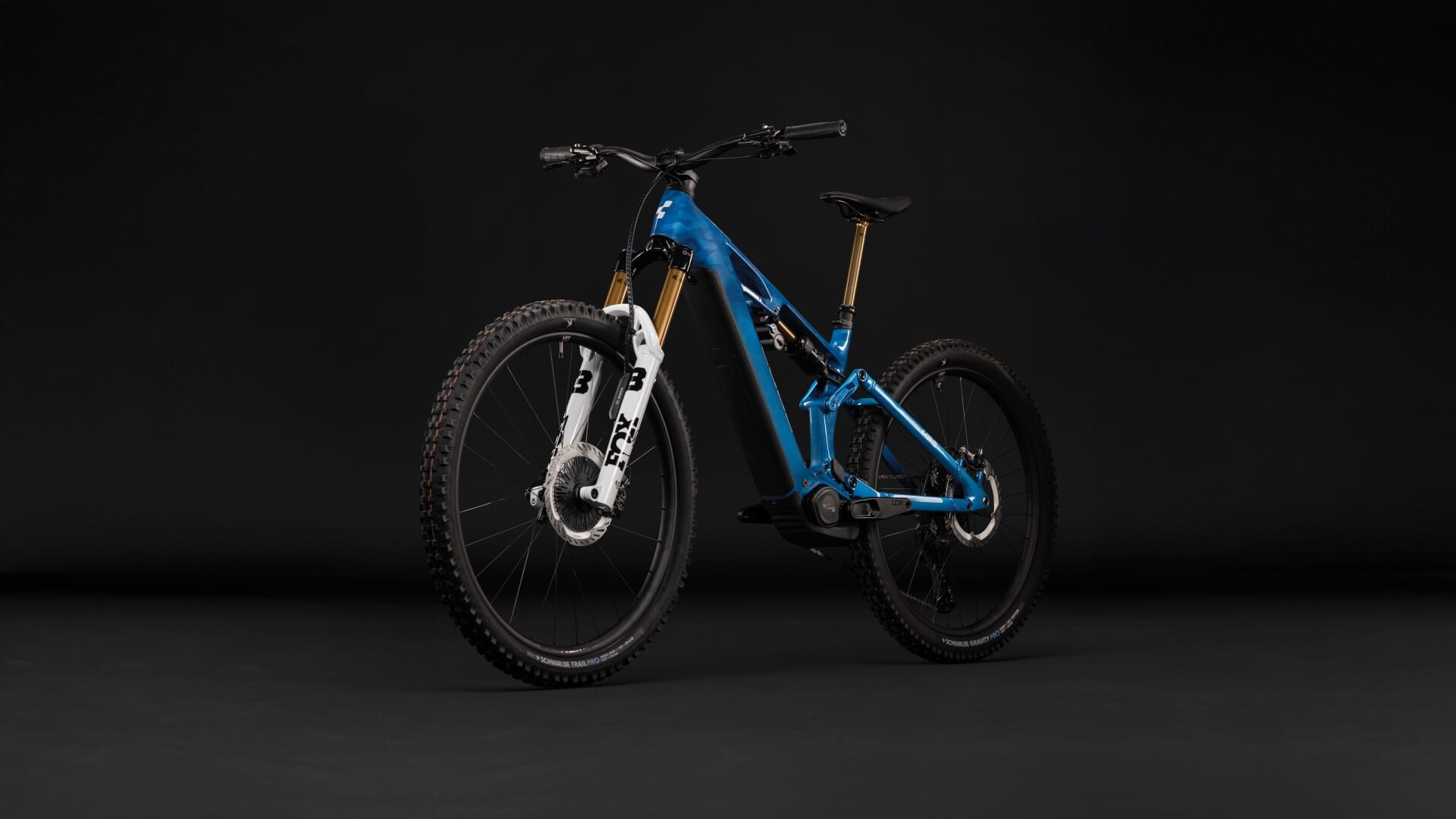

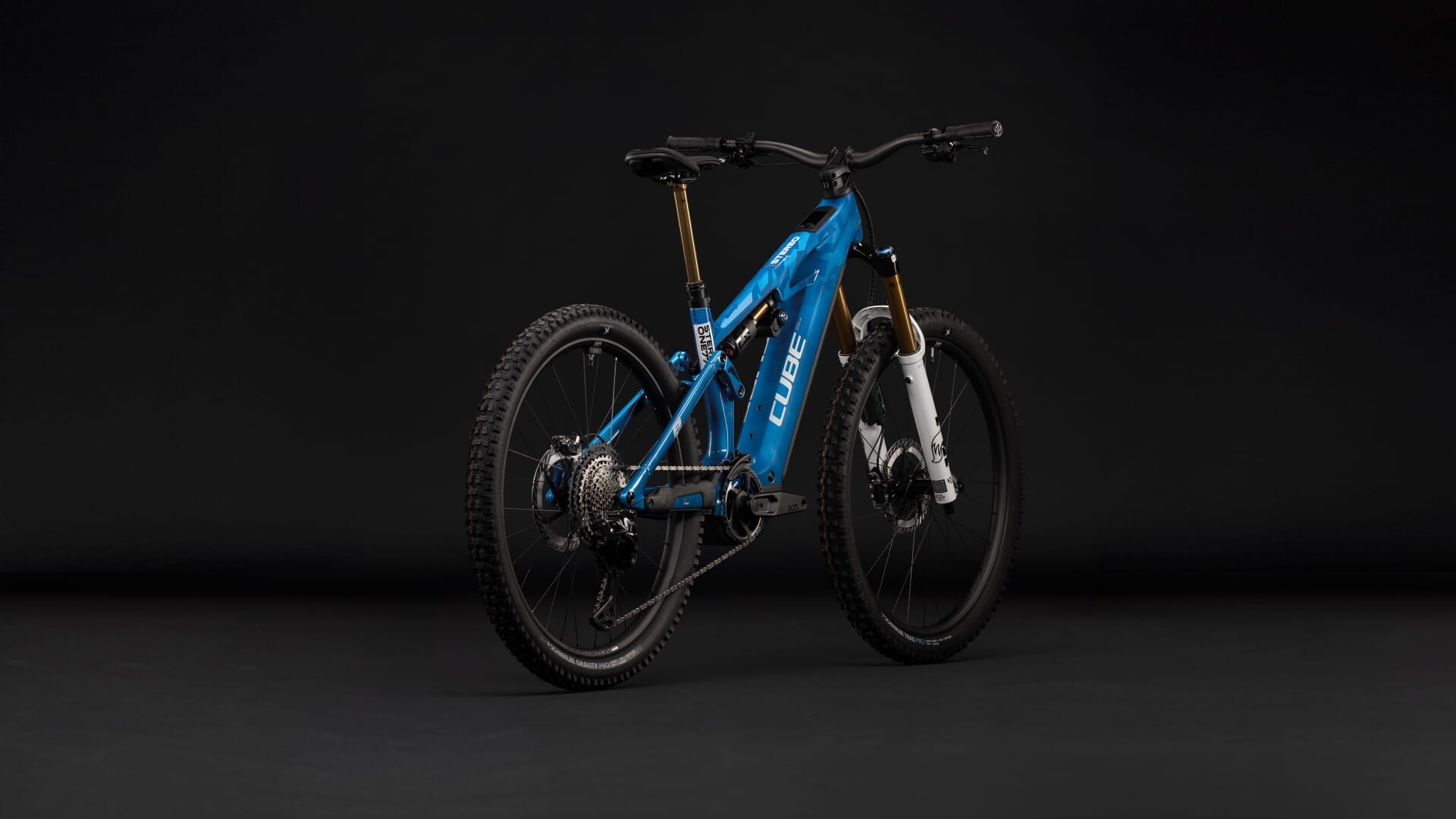

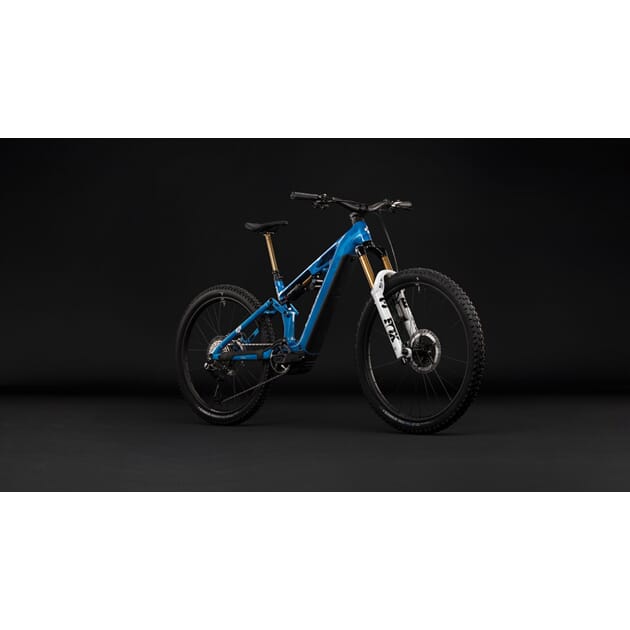

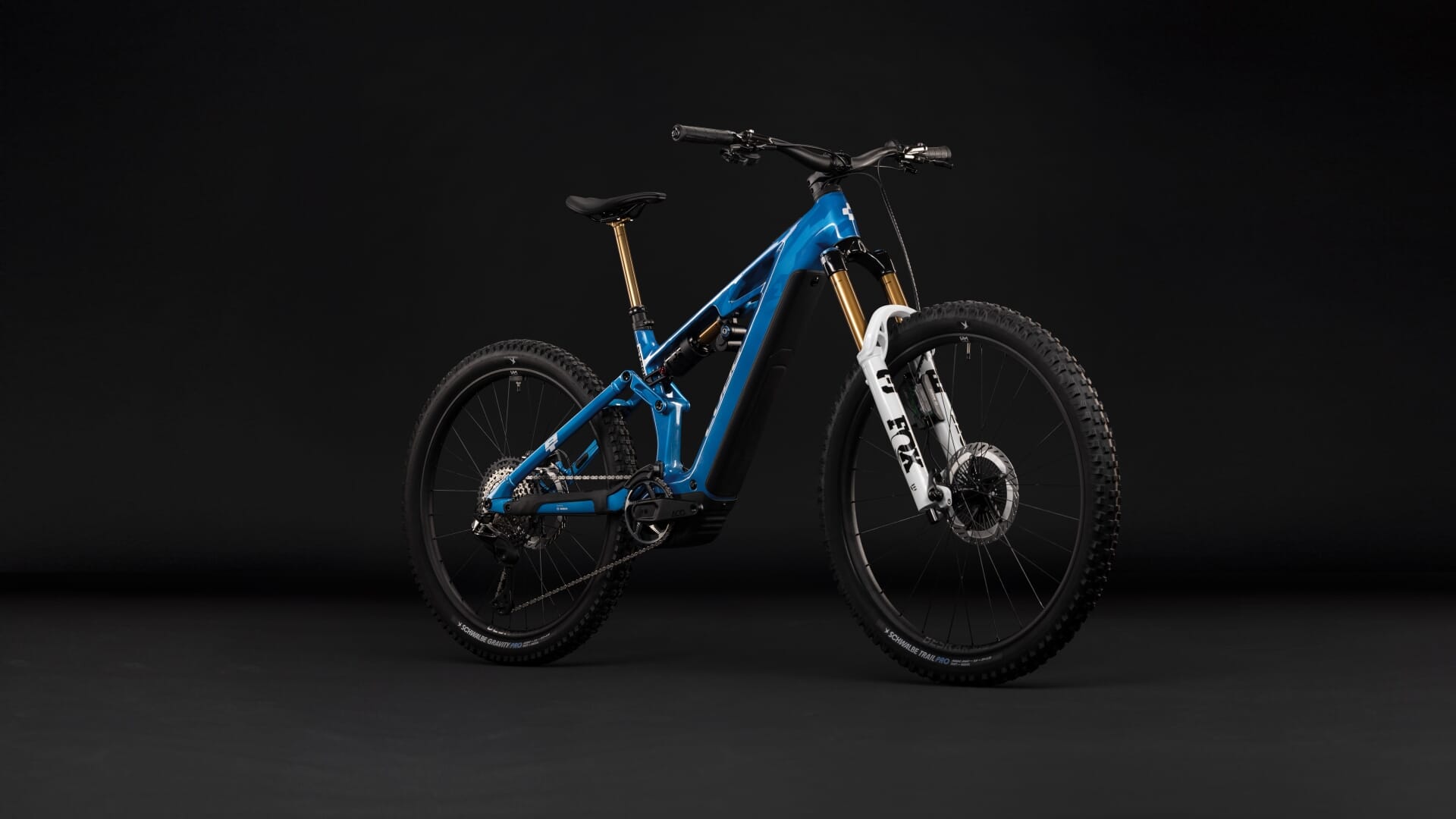

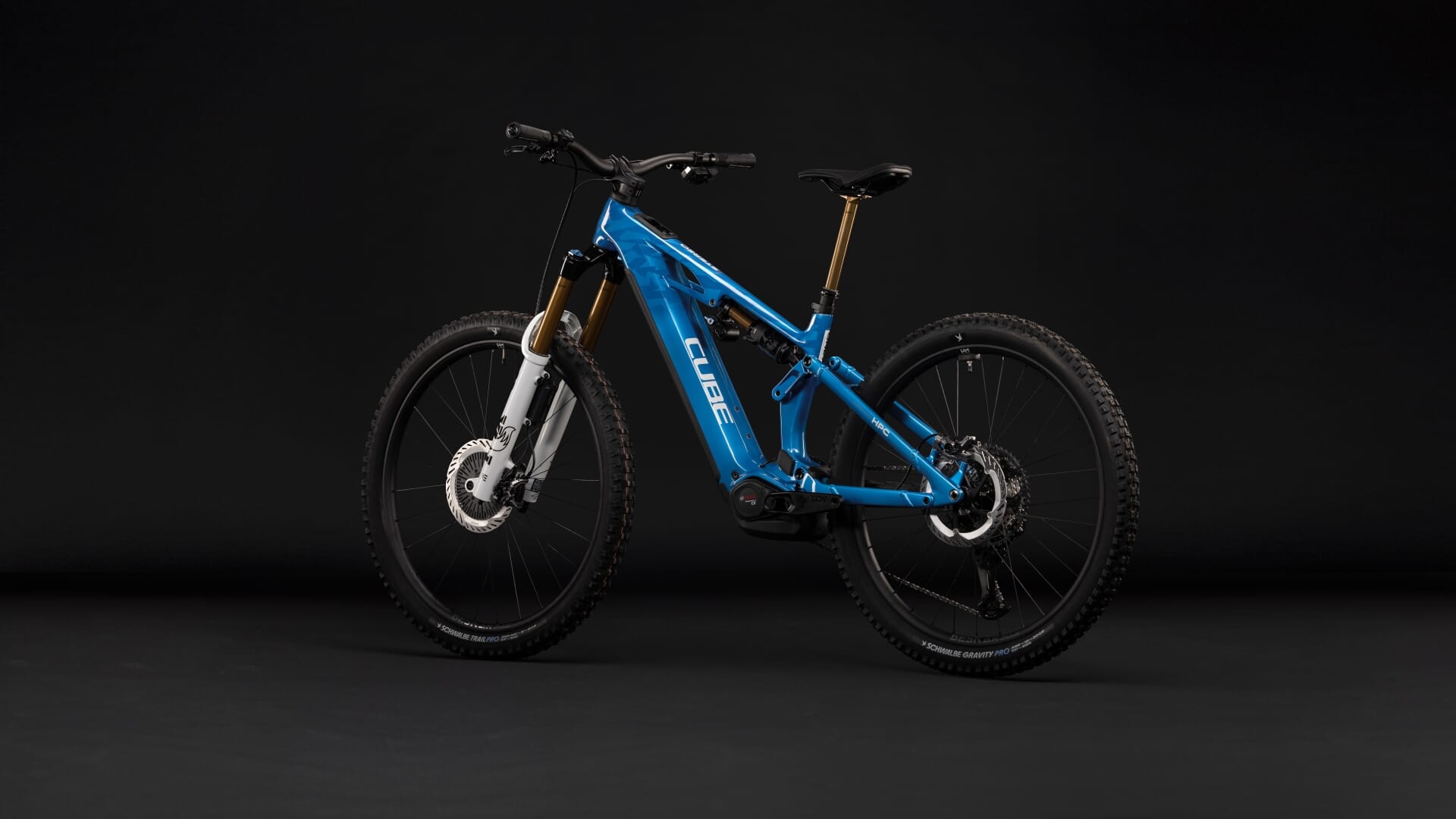

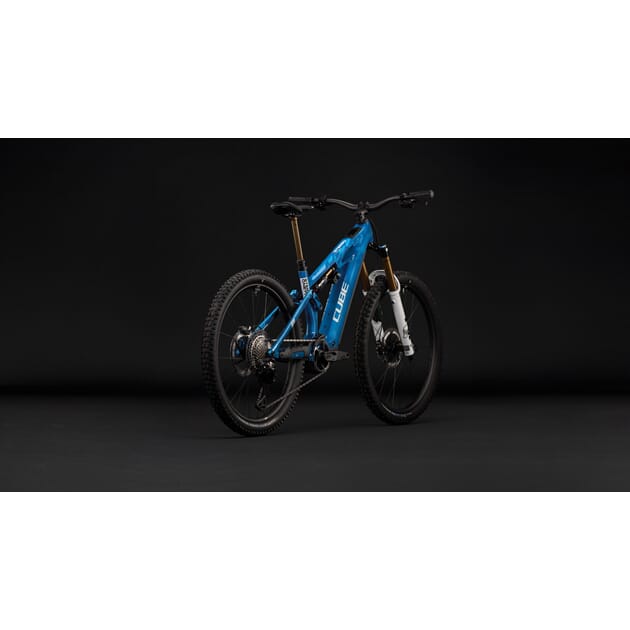

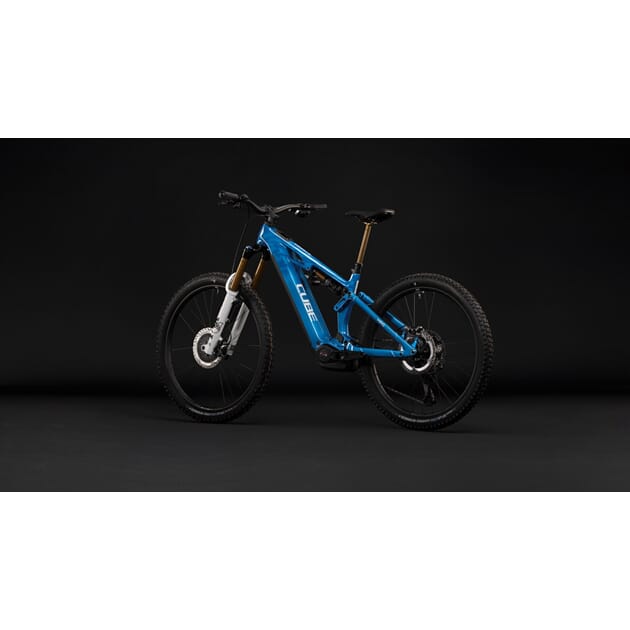

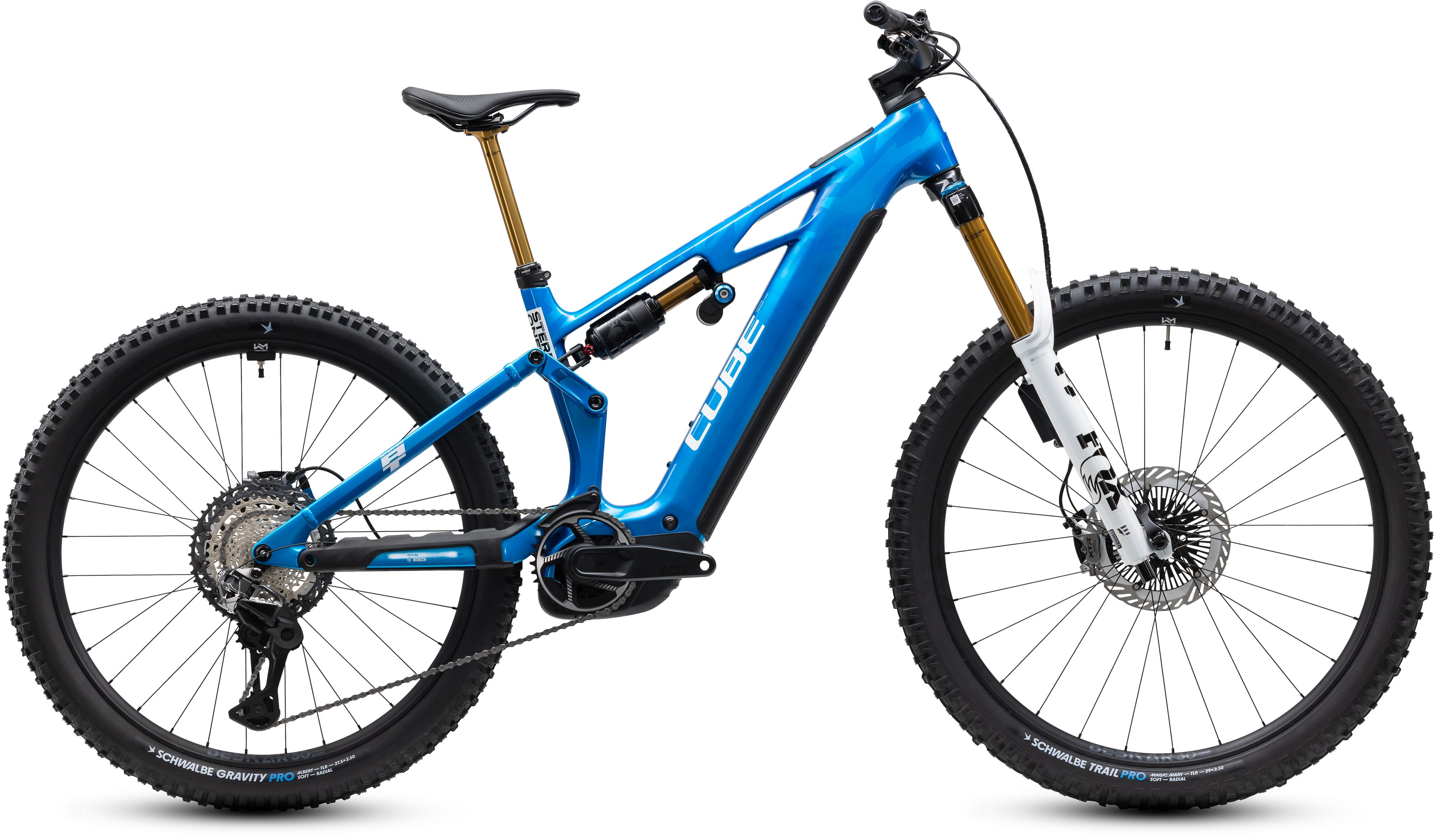

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel set-up with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. We added Internal Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also included a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Frame Material Carbon Front Triangle
Battery 800Wh
Wheels 29" x 27.5"
Headset Angle Adjustment 0.6°
Configuration ABS
Details

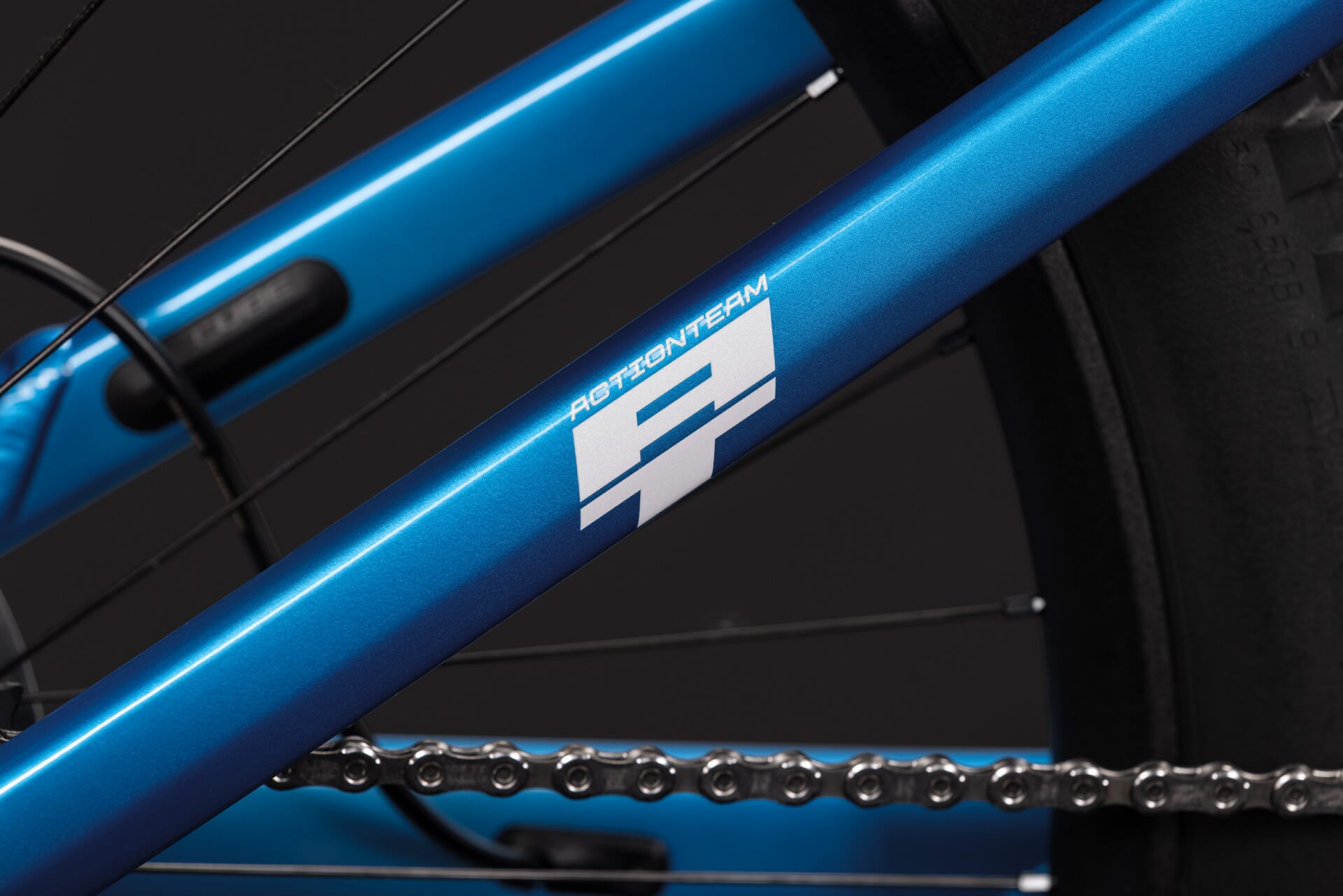

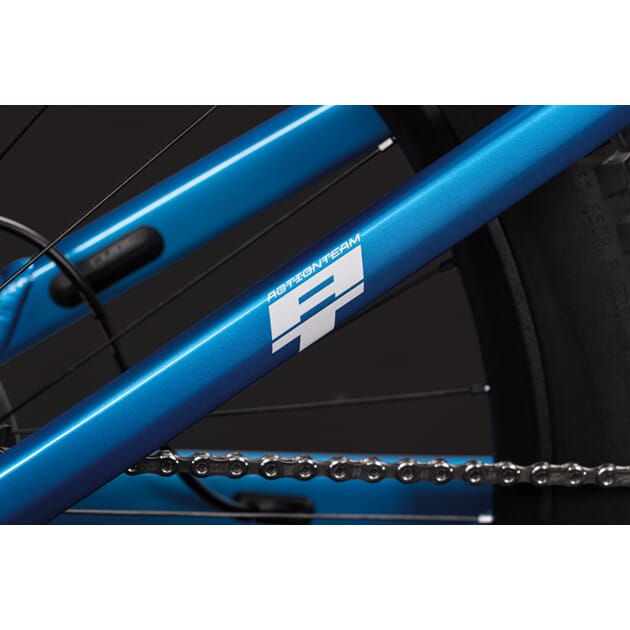

The Stereo Hybrid ONE77 HPC AT's distinctive Actionteam livery has evolved to include a dynamic, geometric pattern that adds extra depth to the finish. It also gives a hint of this bike's serious intent. With CUBE kinematics, Bosch CX drive with 800Wh battery and Shimano XTR ABS Pro hydraulic disc brakes, it's all set for big days out in big mountains.
Frame
frame

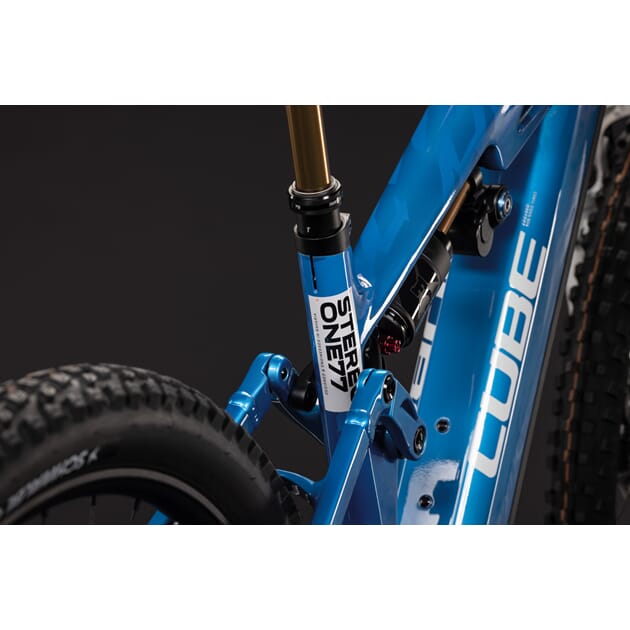

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension
Suspension fork

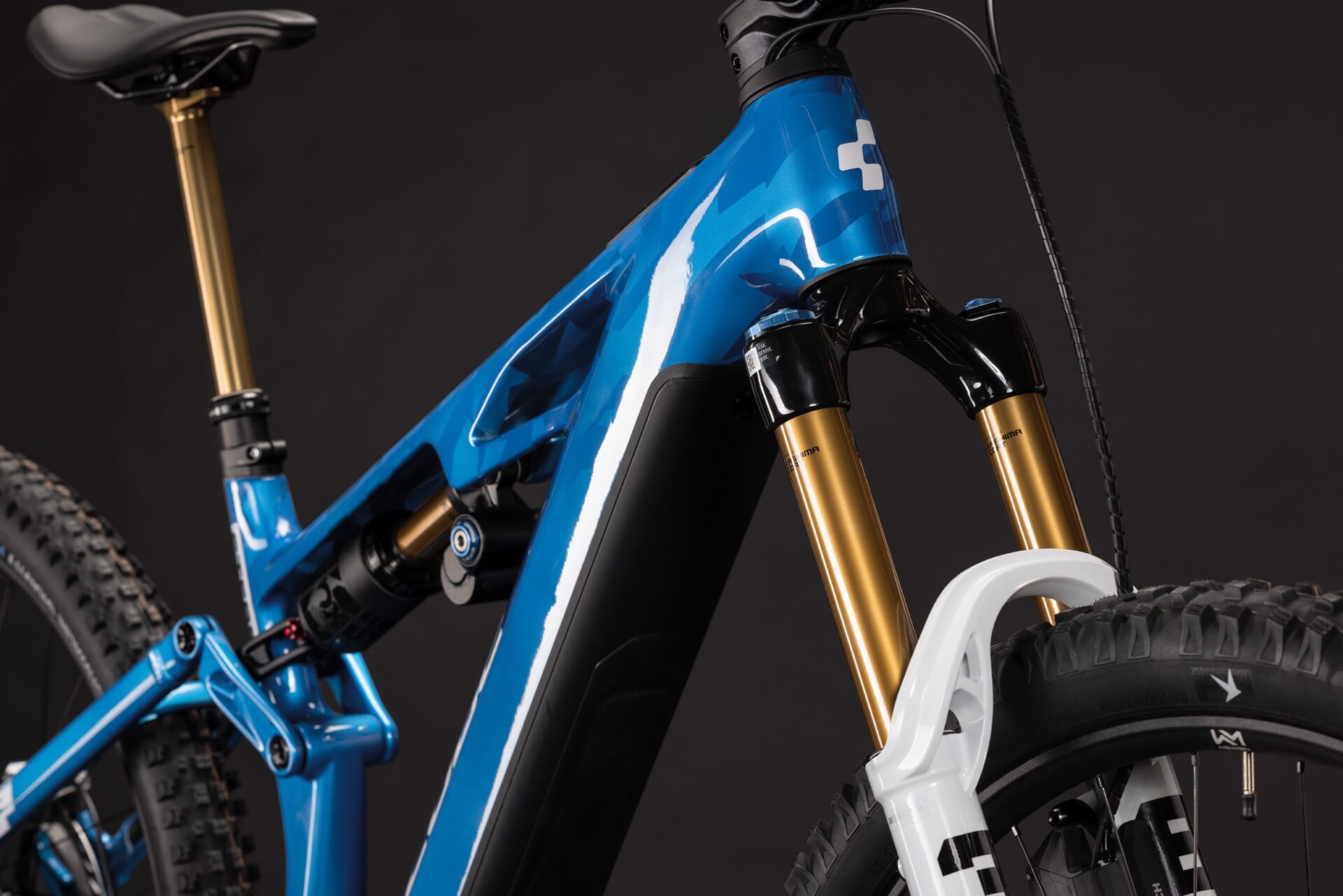

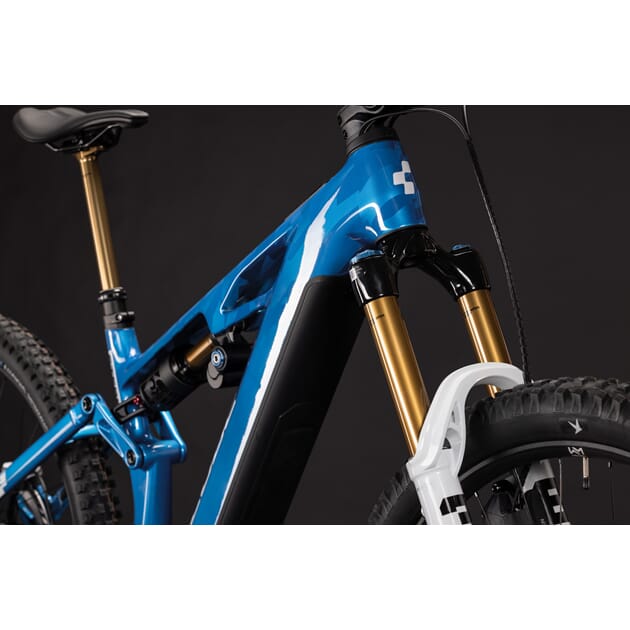

Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
shock

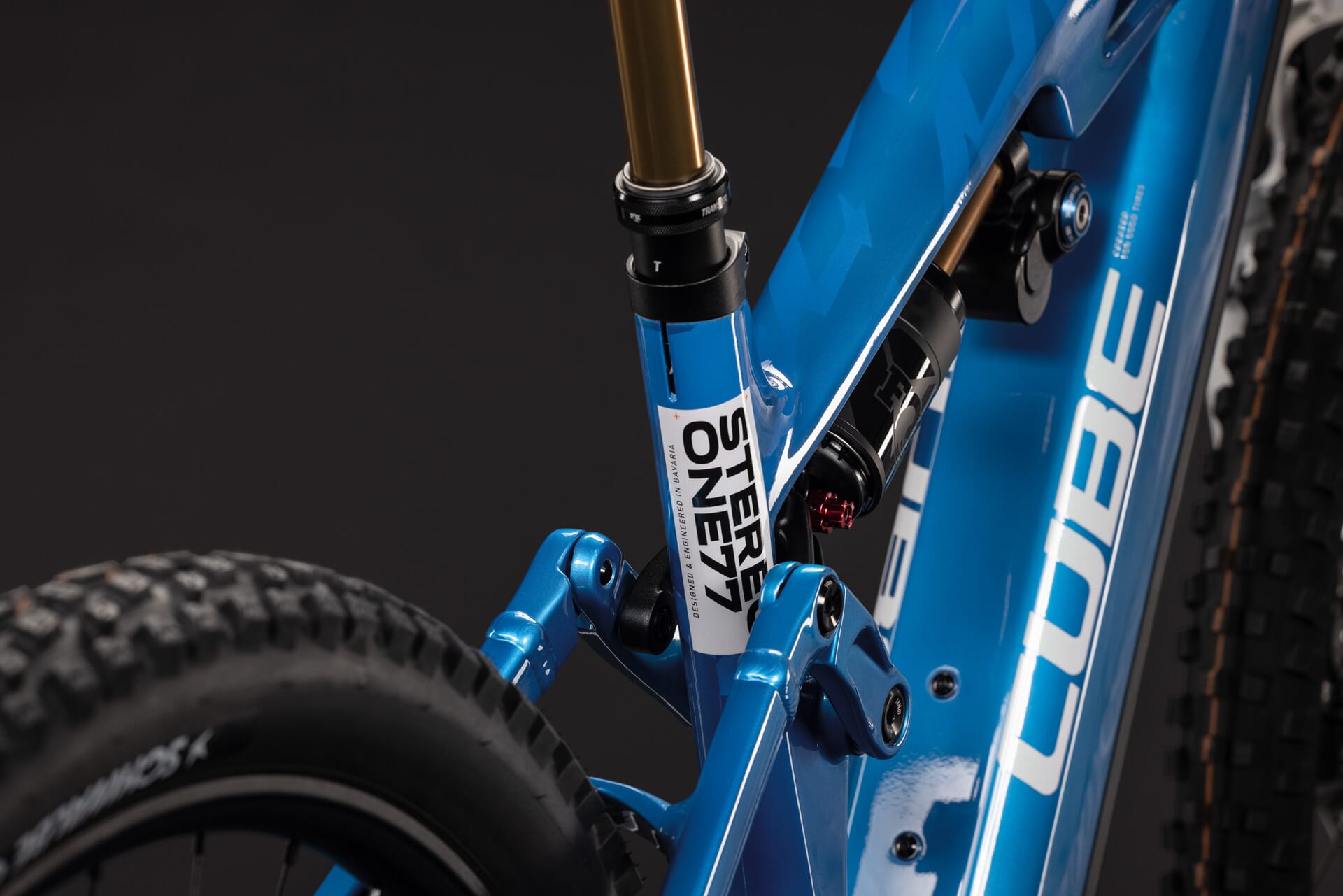

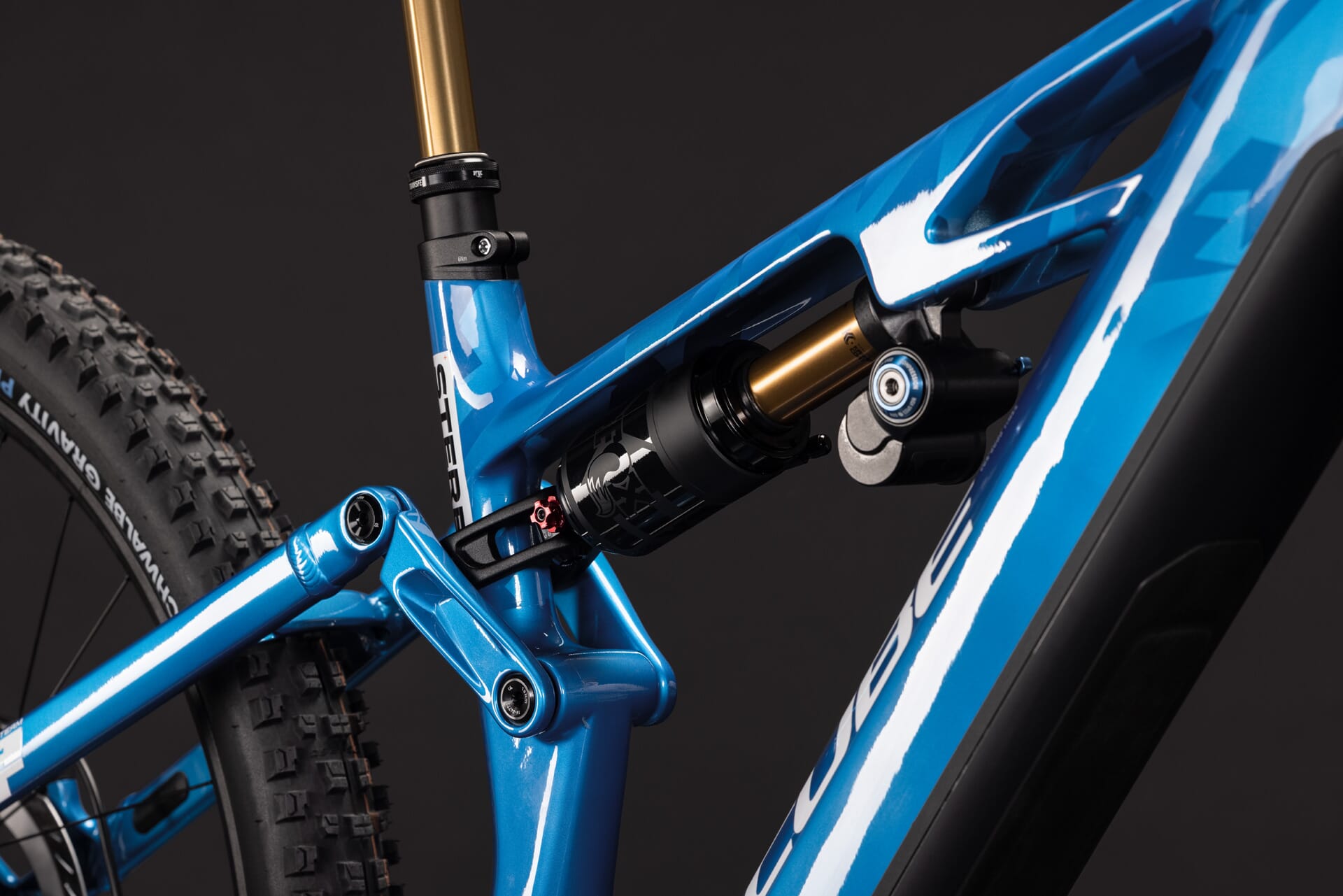

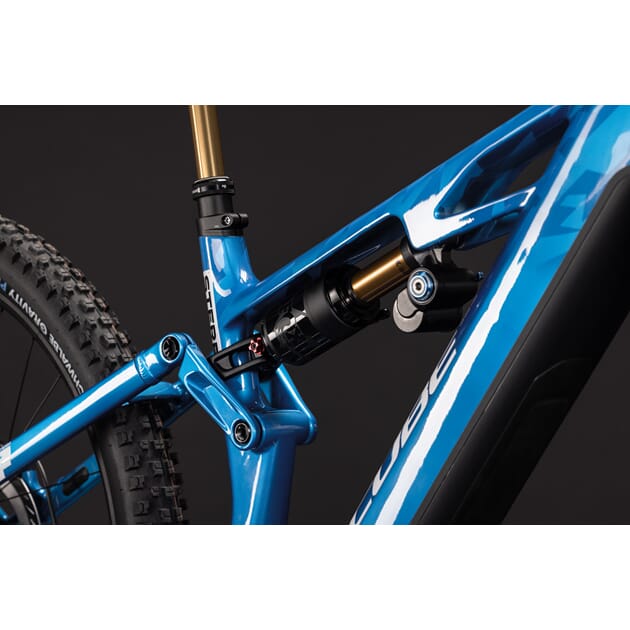

Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
shock hardware
Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-bike system
drive unit
Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
battery
Bosch PowerTube 800
ABS technology
Bosch ABS Pro
Drivetrain & brakes
brake system
Shimano XTR BR-M9220, Hydr. Disc Brake w/ Front ABS (203/203)
rear derailleur
Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System
shifters
Shimano XTR Di2 SW-M9250-I, Direct Attach
cassette
Shimano XT CS-M8200, 10-51T

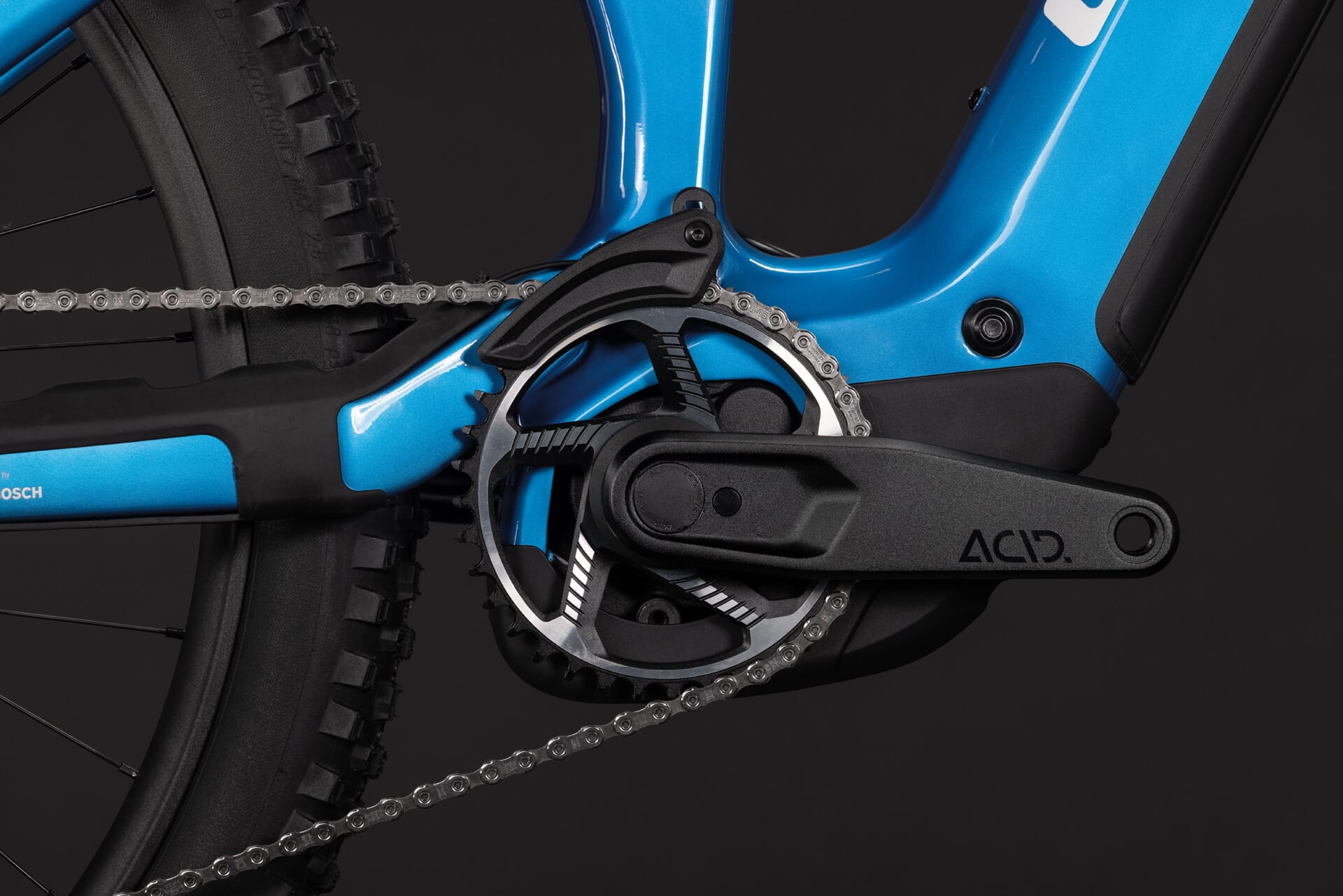

chain guide

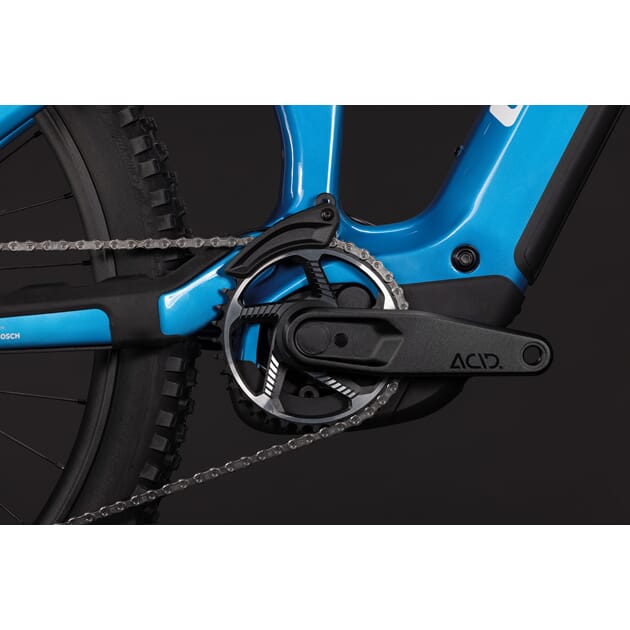

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem

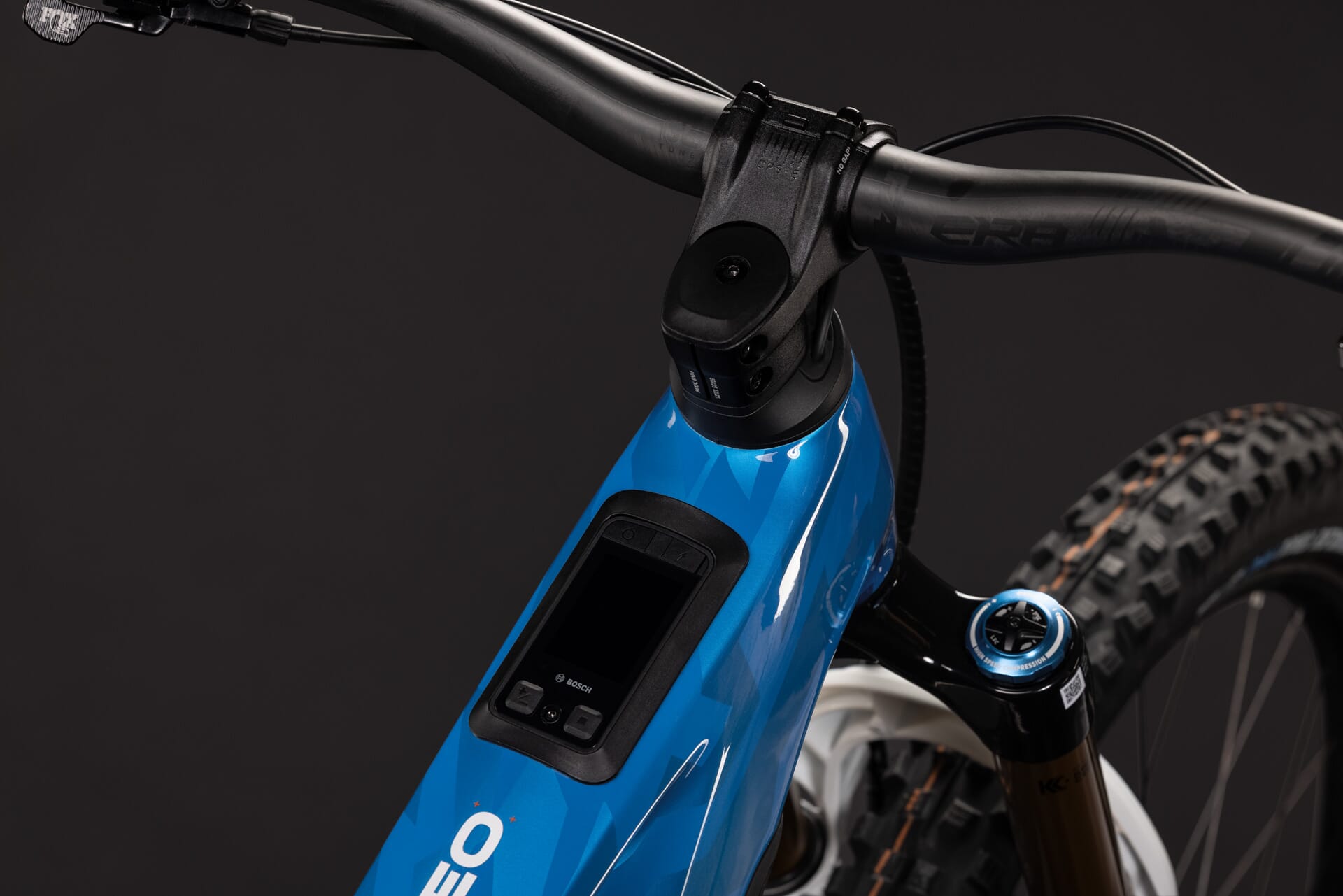

CUBE Performance Stem E-MTB 35, FPI-Link
Wheels
wheelset
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
front tyre
Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5
rear tyre
Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Finishing kit
saddle
ACID Venec EMTB Trail 140
seat post
Fox Transfer Factory 31.6mm, Kashima Coated
