THE POWER
OF FUN

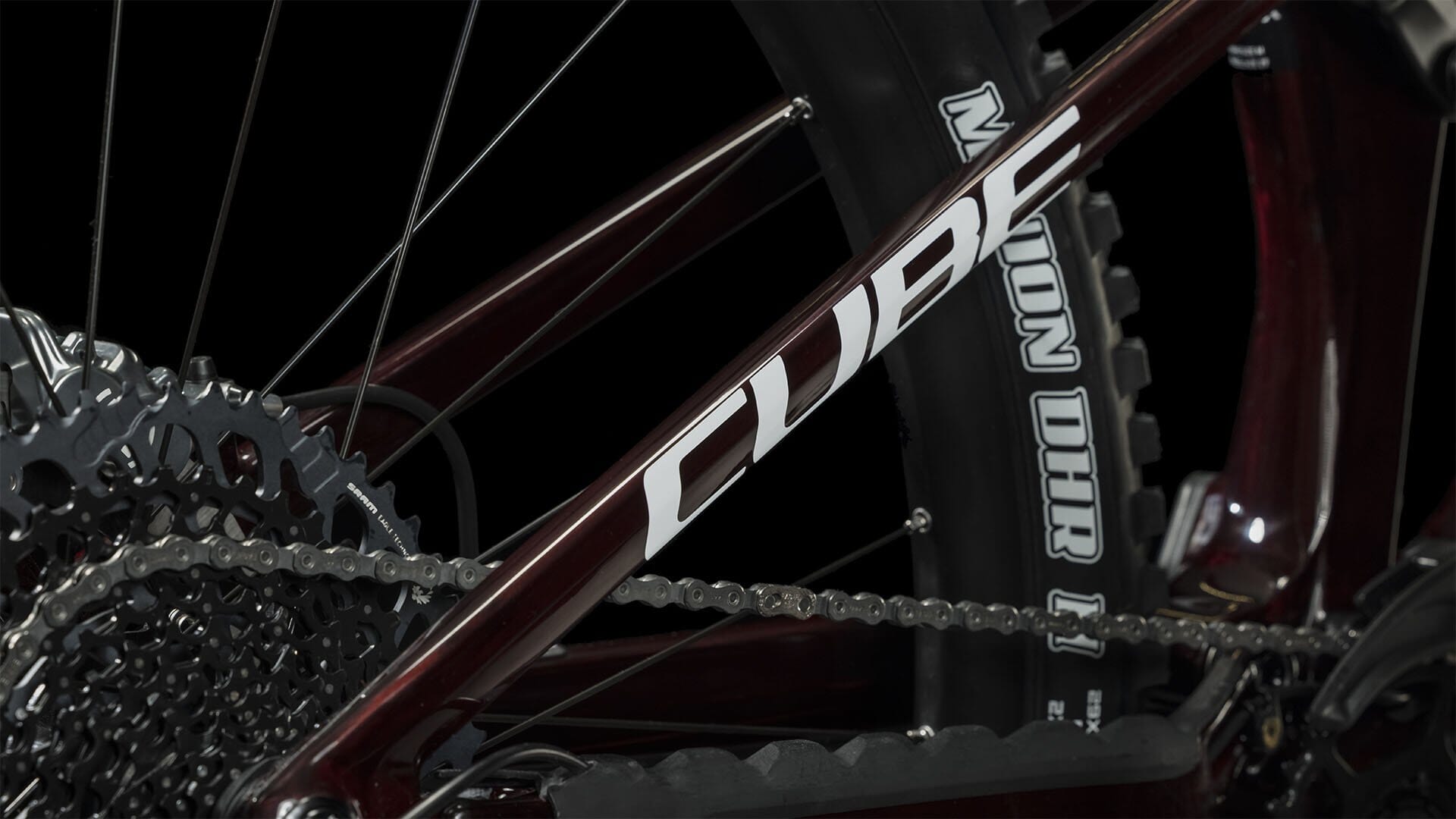

Speed. Integration. Lower weight. These are the defining qualities of the Stereo Hybrid ONE55 C:68X, which makes use of up to six different fibre types to meet the specific demands of each part of the frame. The result is a chassis that's up to 20% lighter compared to our Stereo Hybrid 140 frame, but stiffer too – and strong enough to take on the toughest trails. An adjustable head angle and longer reach contribute to handling that more confident riders will love, serving up a cut-and-paste feel that enables tricky line choices even at speed thanks to 150mm of progressive rear wheel travel. Full internal cable routing reduces clutter and maintenance, and the Bosch System controller is neatly housed inside the top tube and can be controlled via Bluetooth from the Mini Remote. It's the complete package.

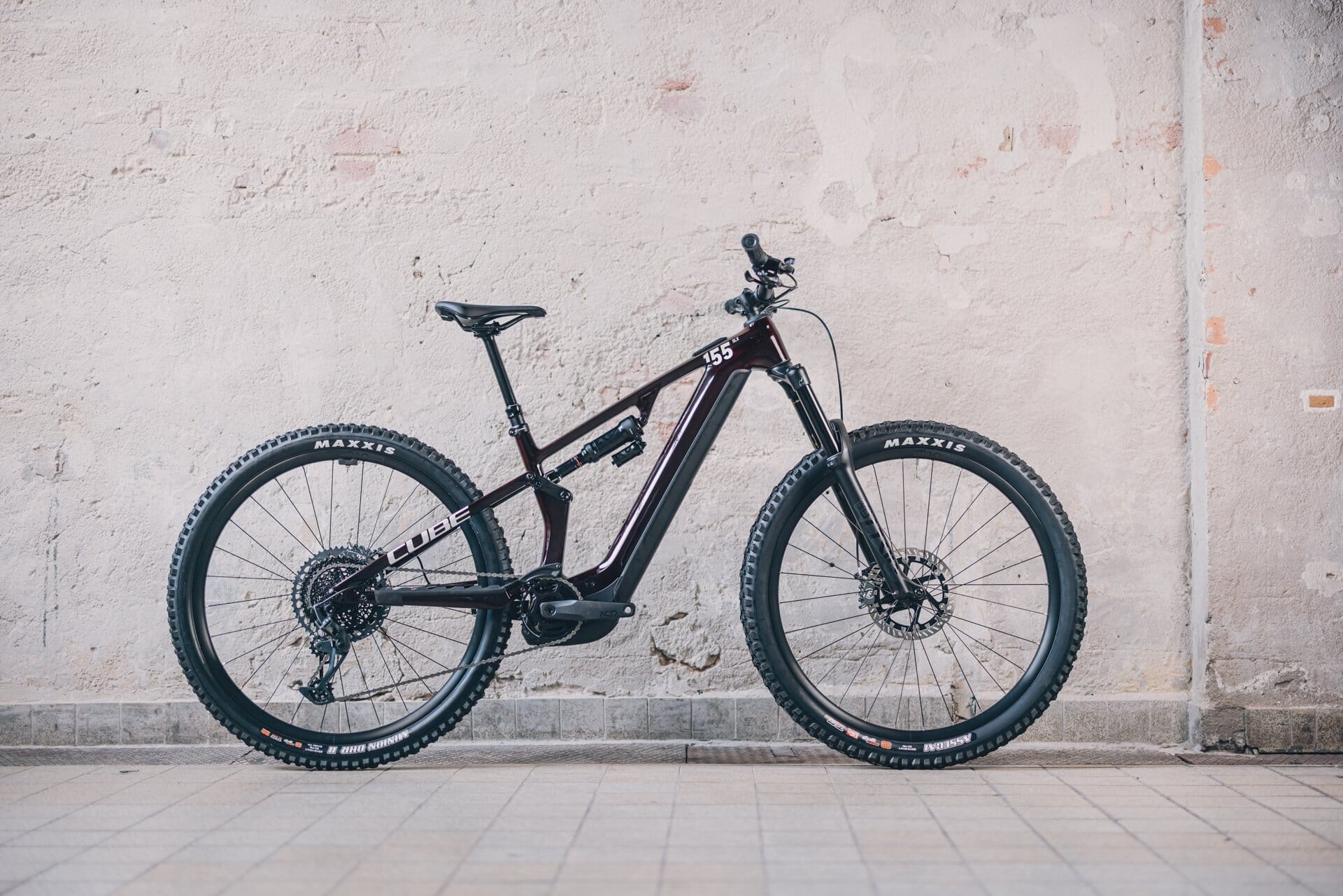

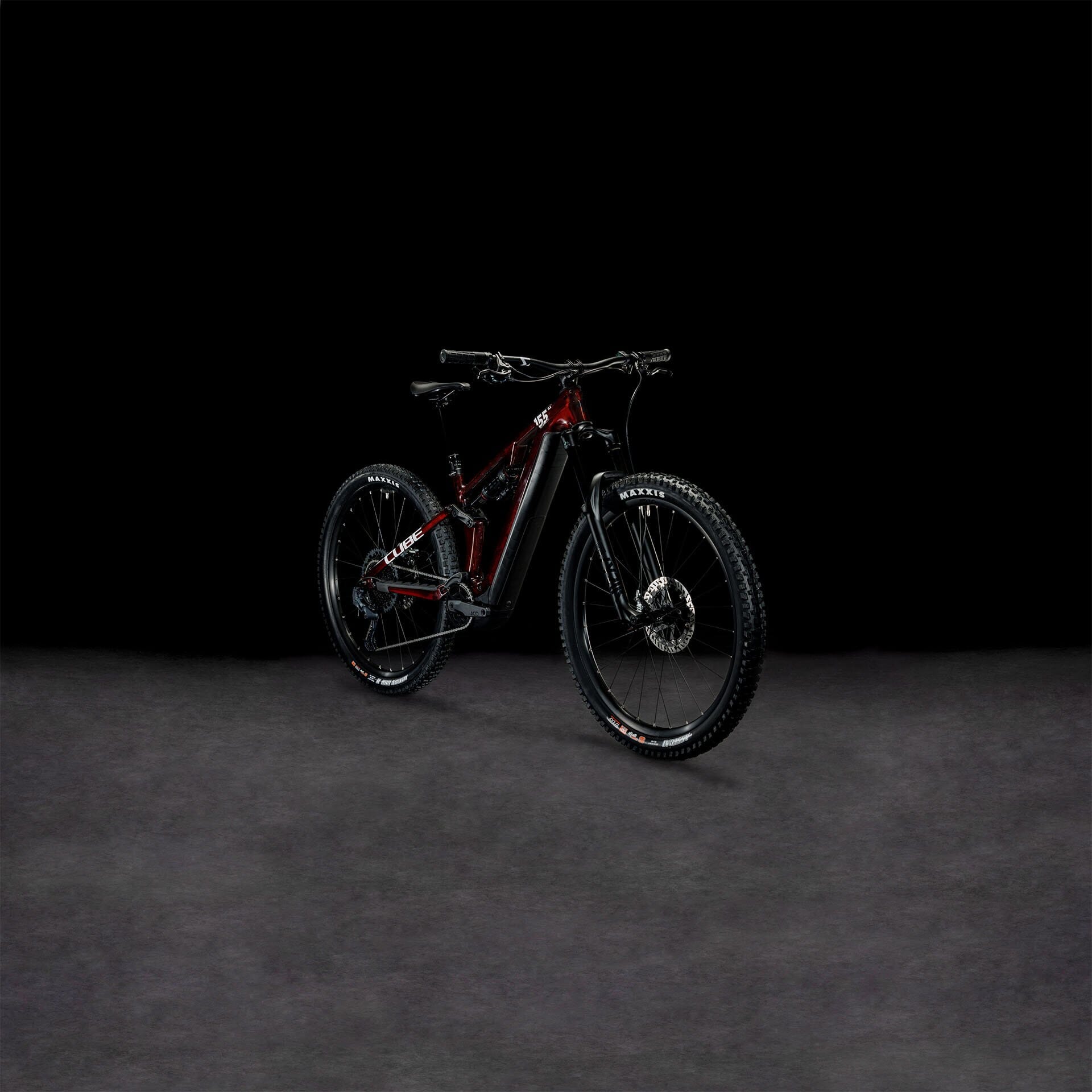

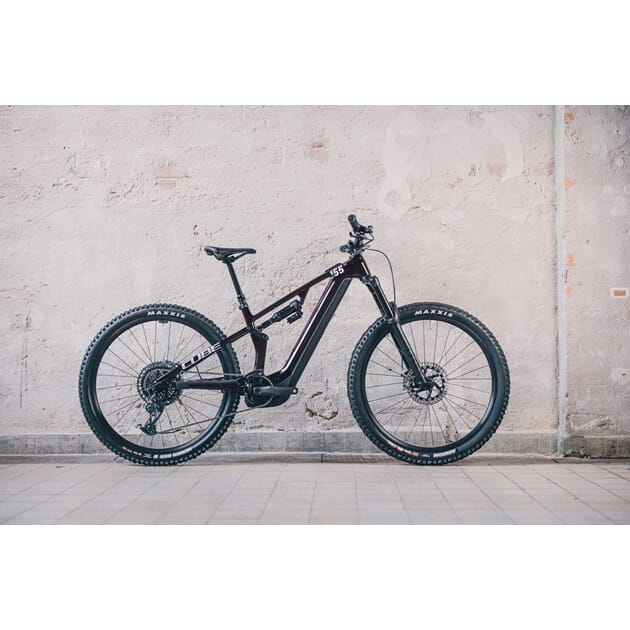

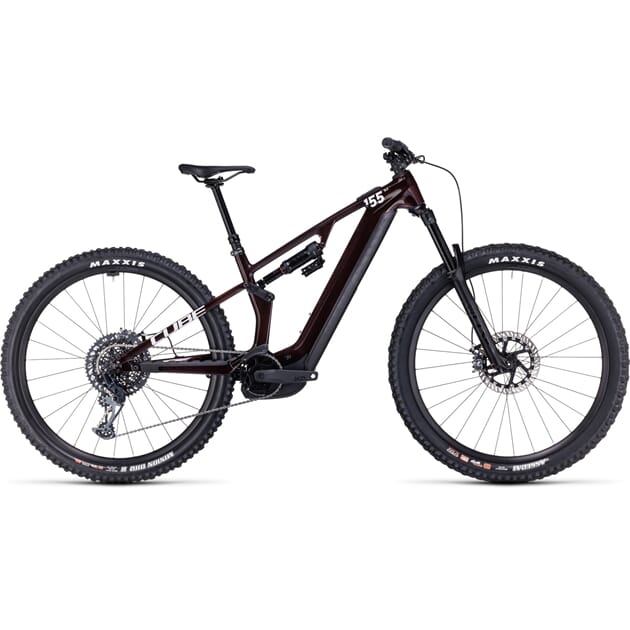

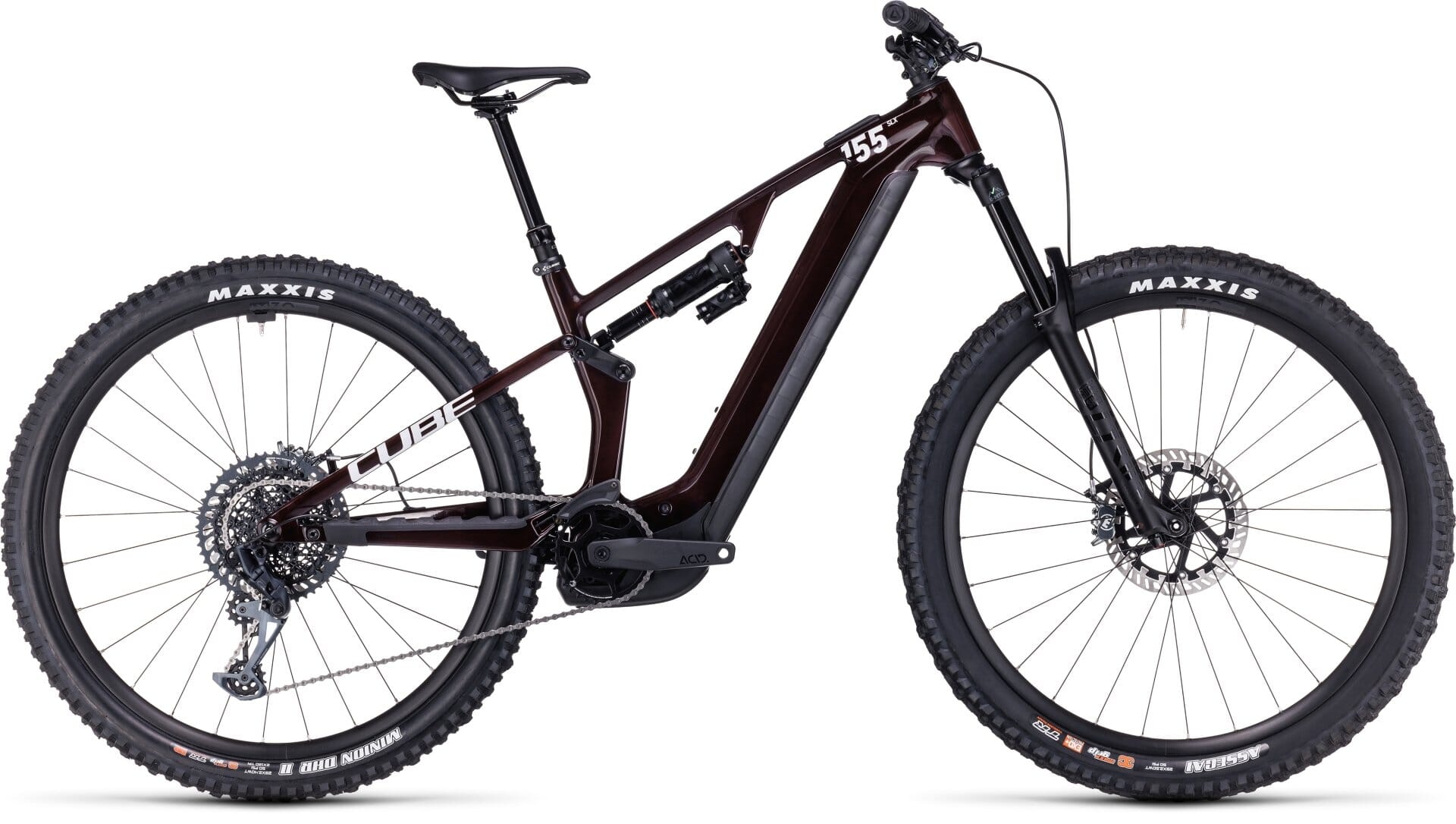

THE STEREO HYBRID ONE55 C:68X SLX 750 29 WILL GRAB YOUR ATTENTION WITH ITS LIQUIDRED 'N' CARBON PAINT JOB, BUT IT'S THE PERFORMANCE THAT'LL REALLY WIN YOU OVER. USING OUR MOST ADVANCED C:68X® CARBON AND BORROWING FROM OUR EXPERIENCE BUILDING ULTRA-CAPABLE ENDURO RACE BIKES, IT'S GOT THE POWER TO MOVE (OVER) MOUNTAINS.
The Stereo Hybrid ONE55 C:68X SLX 750 29 blends the mountain-taming capability of an enduro-capable bike with the power and flexibility of Bosch pedal assist – and advanced carbon construction – to create a versatile all-rounder. With up to 85Nm of torque from the proven fourth-generation Bosch CX drive, a 750Wh battery and intuitive control from the built-in controller and Mini Remote, it's one of our lightest-ever full-power e-mtbs. Up front there's a 160mm RockShox Lyrik Select+ fork, and we fitted a Super Deluxe Select+ shock at the rear for 150mm of progressive travel. Fast-rolling Newmen Performance wheels are shod with Maxxis Assegai 2.5in and Minion DHR II 2.4in tyres and brought to a halt with Magura's powerful four-piston hydraulic disc brakes and oversize rotors at both ends. And Sram GX Eagle 1x12 gears get your power to the trail, for miles of effortless shifting. It's ready. Are you?
FRAME
C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
SIZE
29: M L XL
SUSPENSION

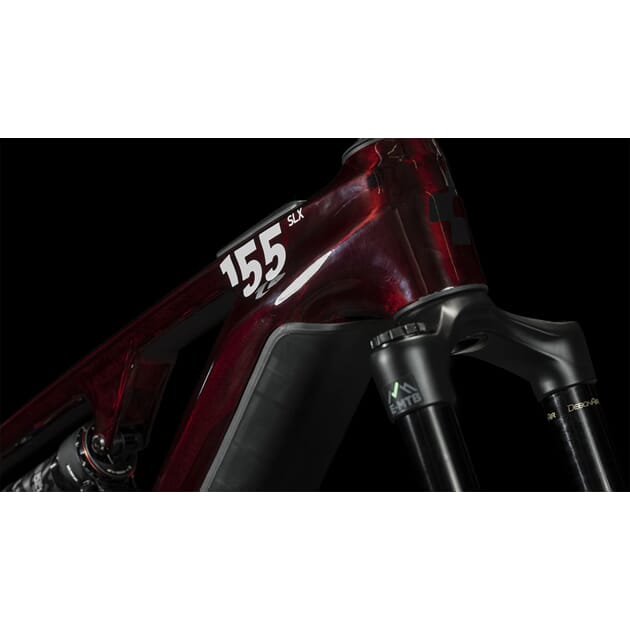

SUSPENSION FORK

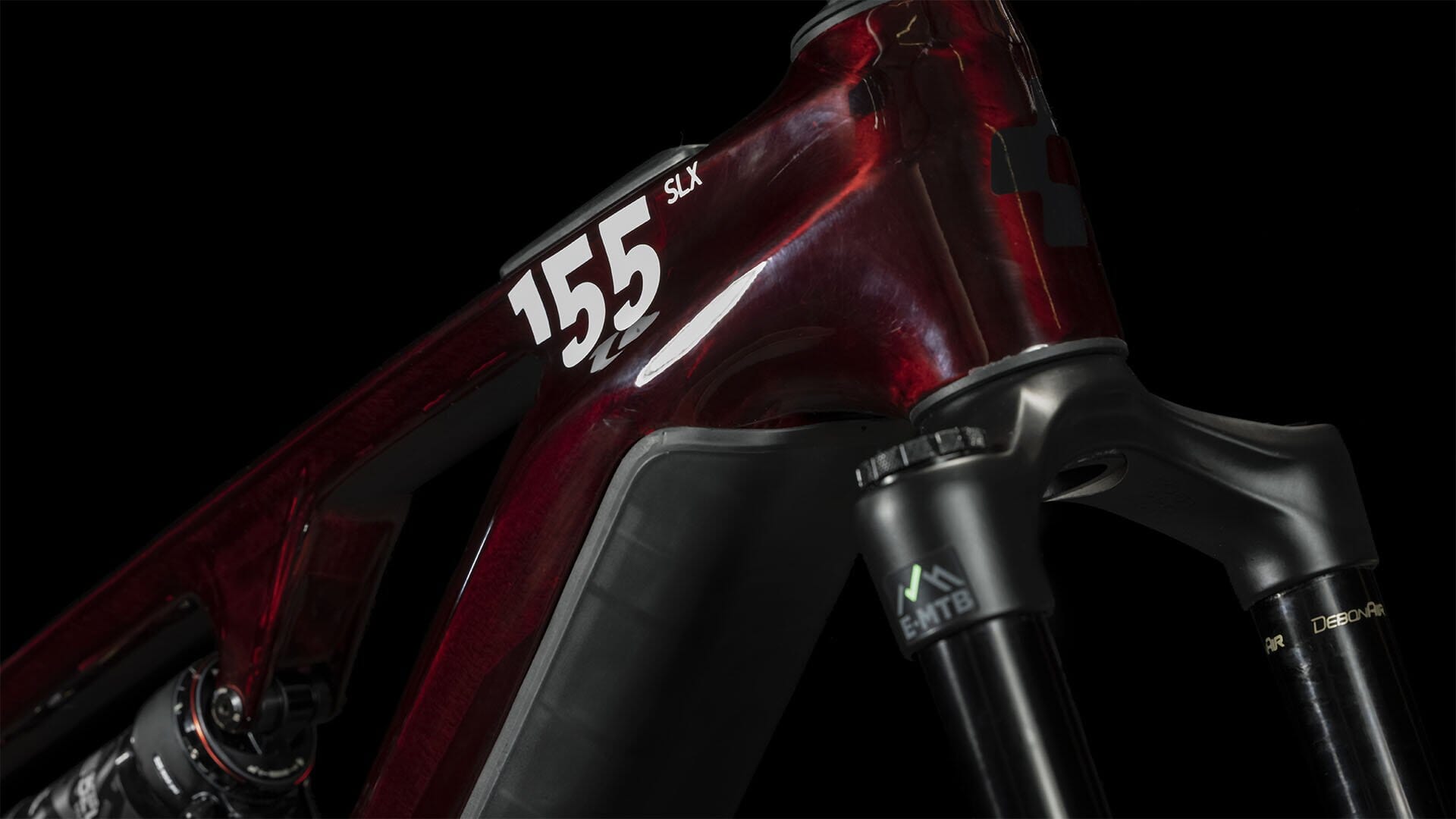

RockShox Lyrik Select+ Charger 2 RC DebonAir, Tapered, 15x110mm, eMTB Approved, 160mm

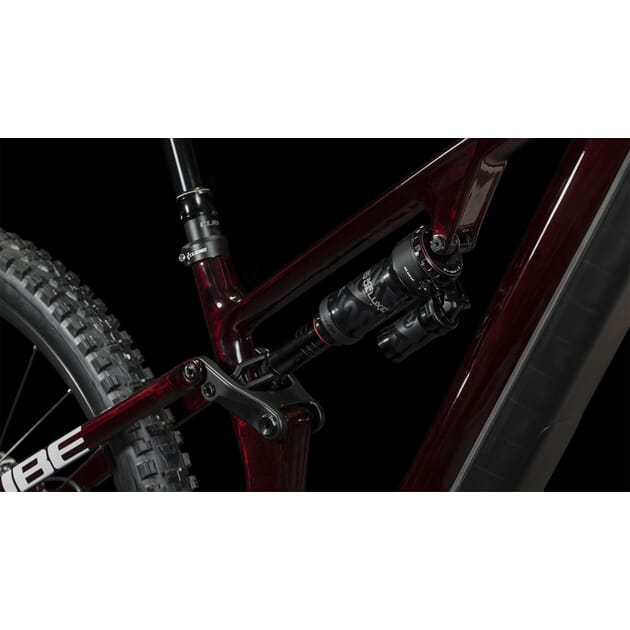

SHOCK

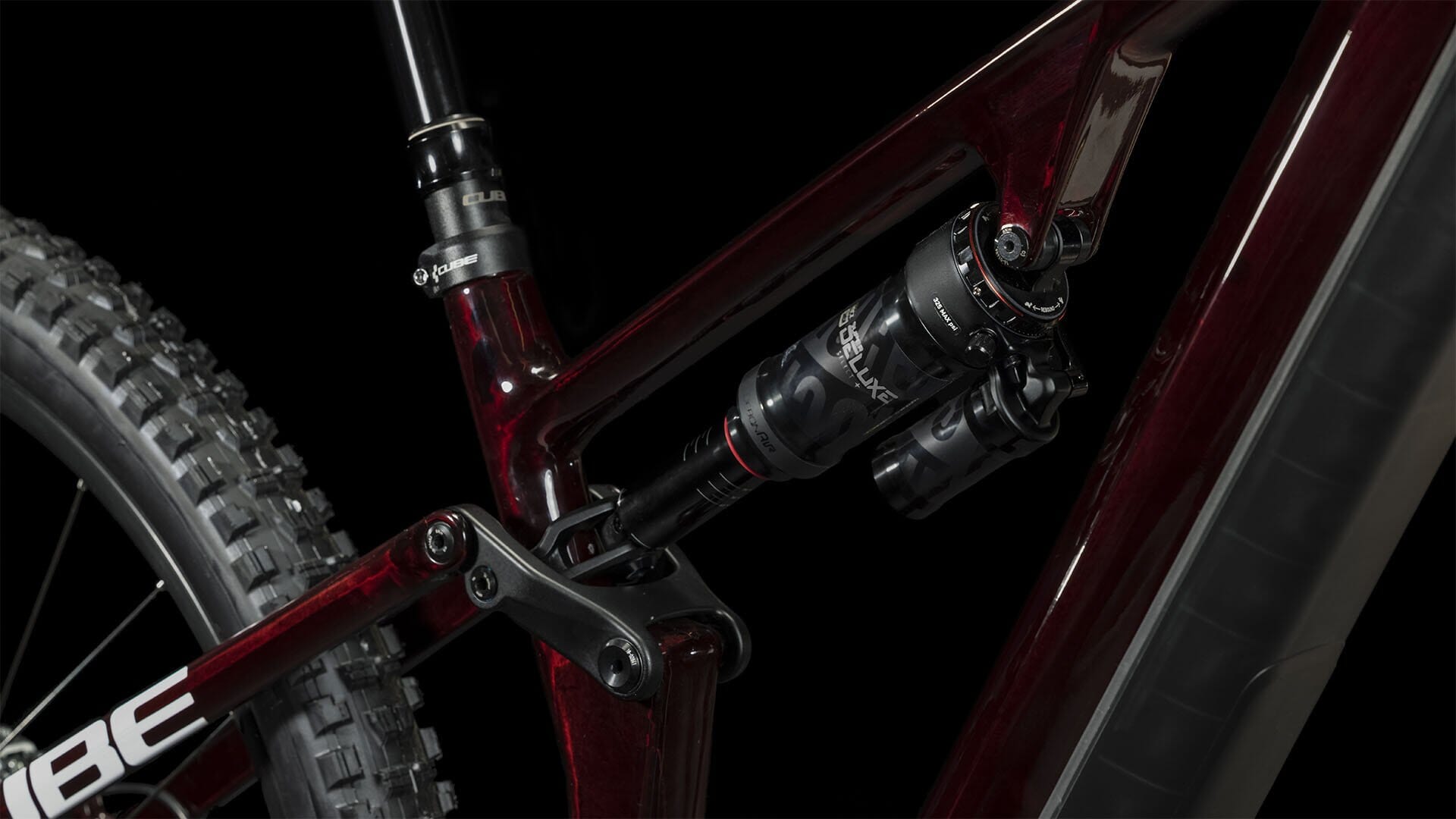

RockShox Super Deluxe Select+ DebonAir, 230x60mm
SHOCK HARDWARE
Front: 30x8mm, Rear: DU-Bushing 12,7mm
E-BIKE SYSTEM
DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
REMOTE

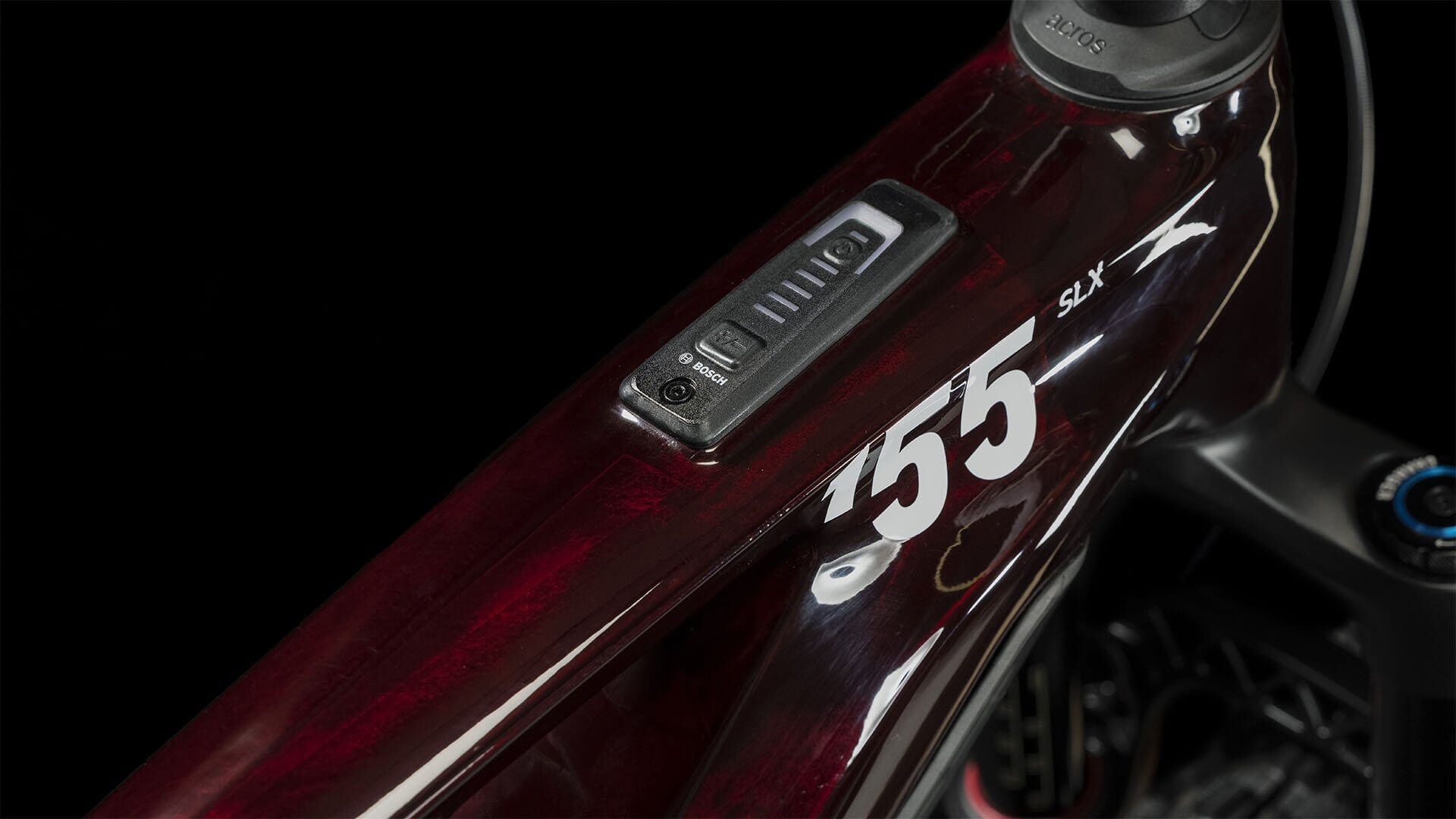

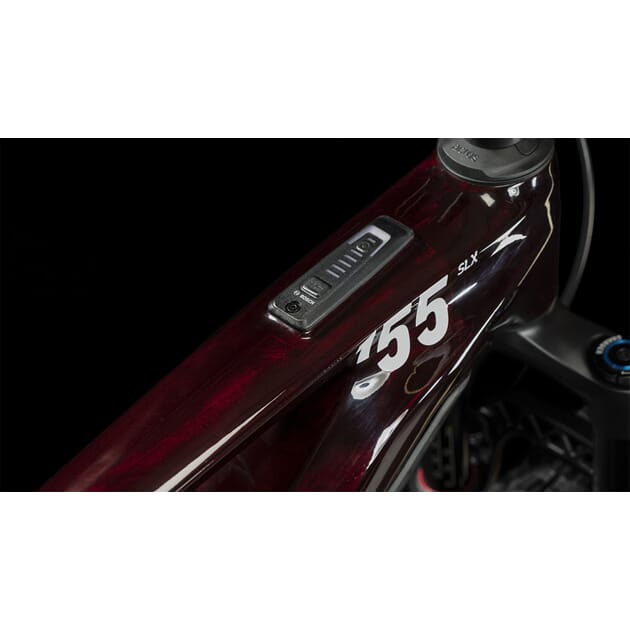

Bosch System Control, incl. Mini Remote
BATTERY
Bosch PowerTube 750
CHARGER
Bosch 4A
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Magura MT7, Hydr. Disc Brake (203/203)

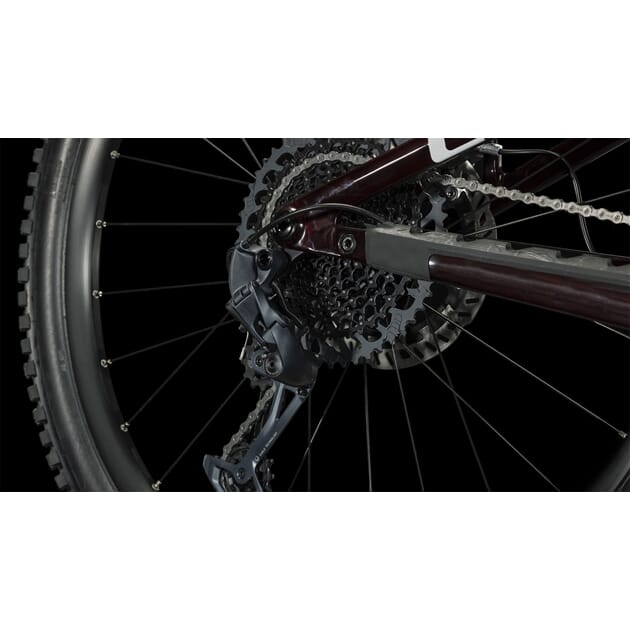

REAR DERAILLEUR

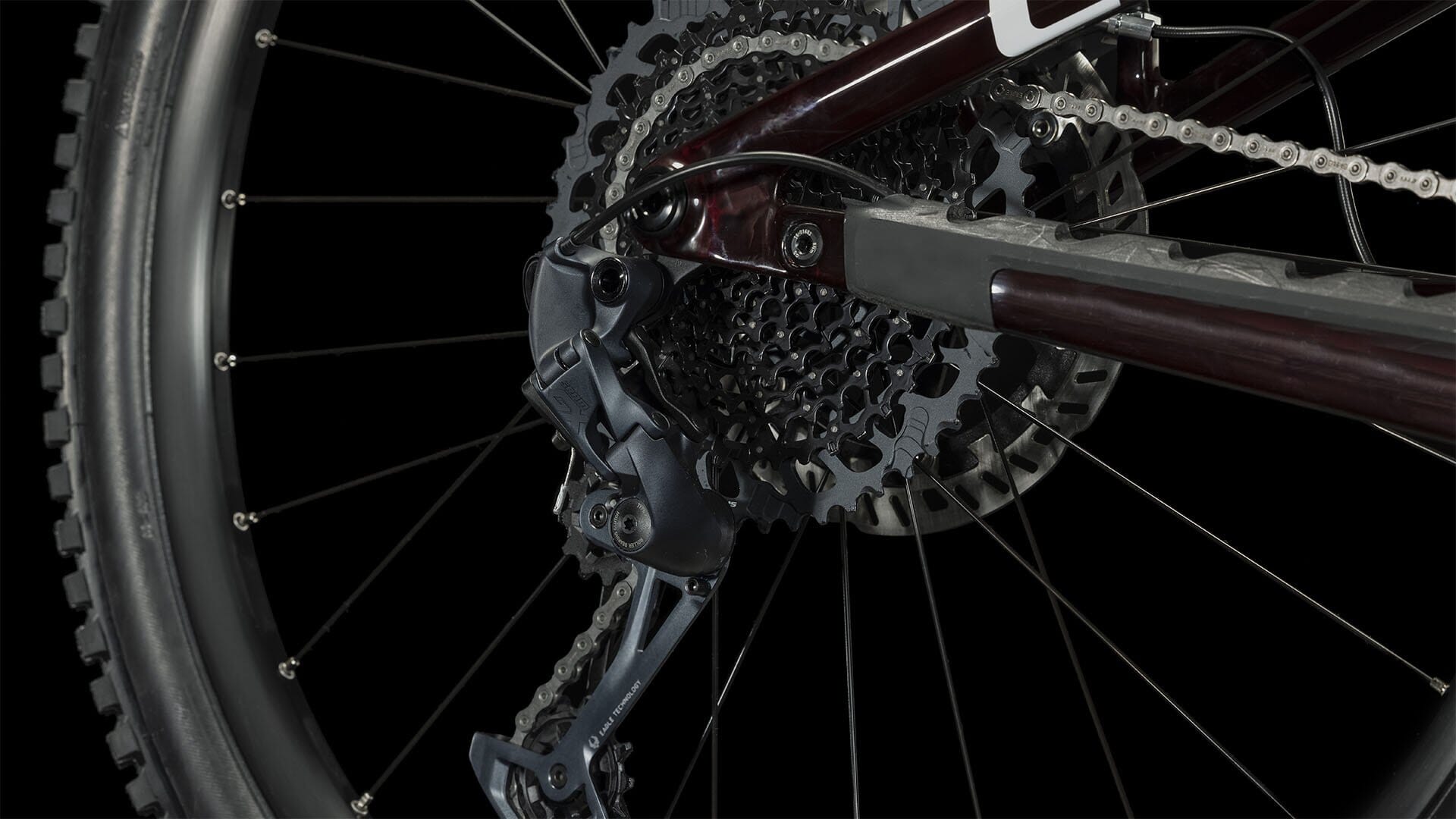

Sram GX Eagle™, 12-Speed
SHIFTERS
Sram GX Eagle™ Trigger, Single Click
CRANKSET
ACID E-Crank, 34T, 165mm
CASSETTE
Sram XG-1275 Eagle™, 10-52T

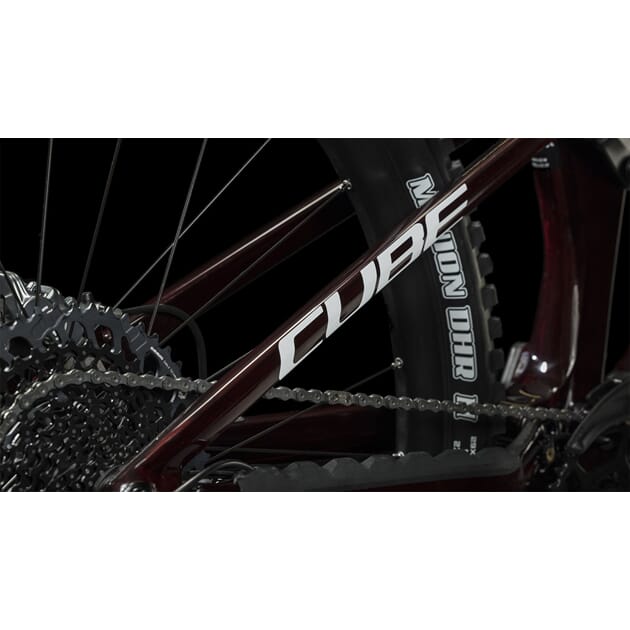

CHAIN
Sram NX Eagle™
CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
COCKPIT
HEADSET
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
STEM
Newmen Evolution SL 318.4, 31.8mm
HANDLEBAR
Newmen Evolution SL 318.25, 780mm
GRIPS
ACID Disrupt, Soft Compound
WHEELS
WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TYRE
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
REAR TYRE
Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
FINISHING KIT
SADDLE
Natural Fit Venec
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
PRODUCT INFORMATION
COLOUR
liquidred´n´carbon
WEIGHT
22,6 kg
