Frame Material Carbon Front Triangle
Battery 800Wh
Headset Angle Adjustment 0.6°
TRAILS,
YOUR WAY

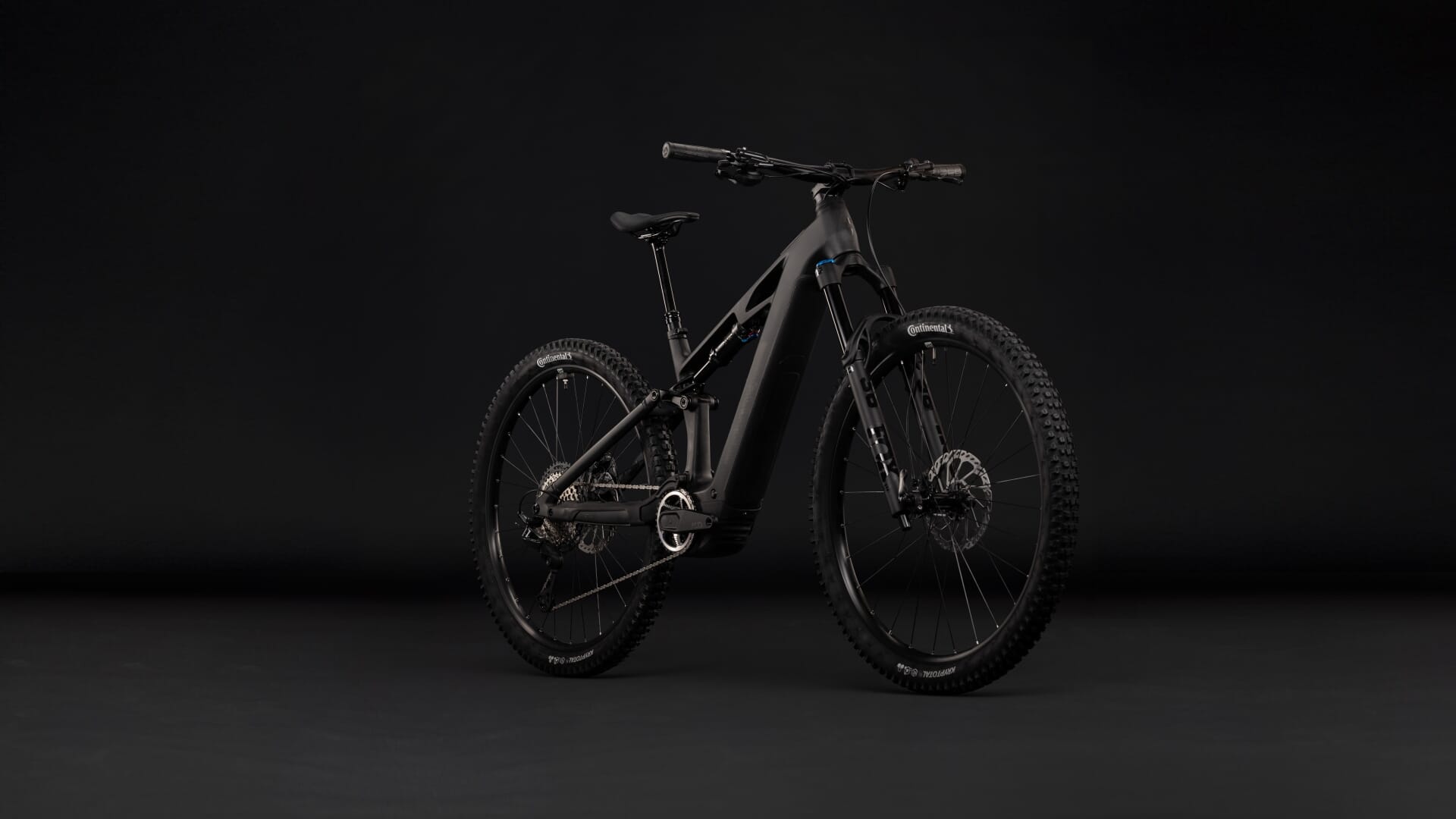

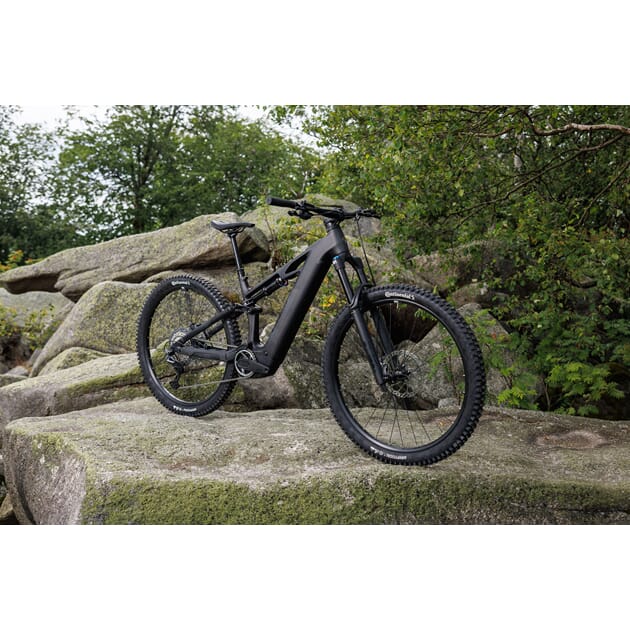

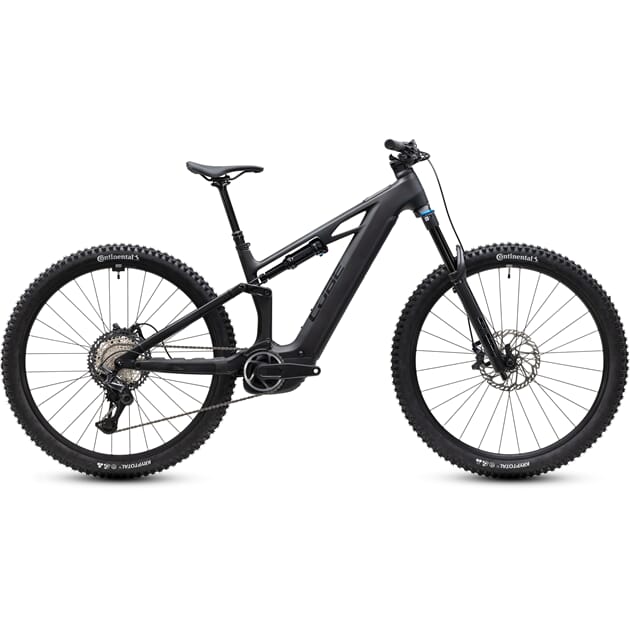

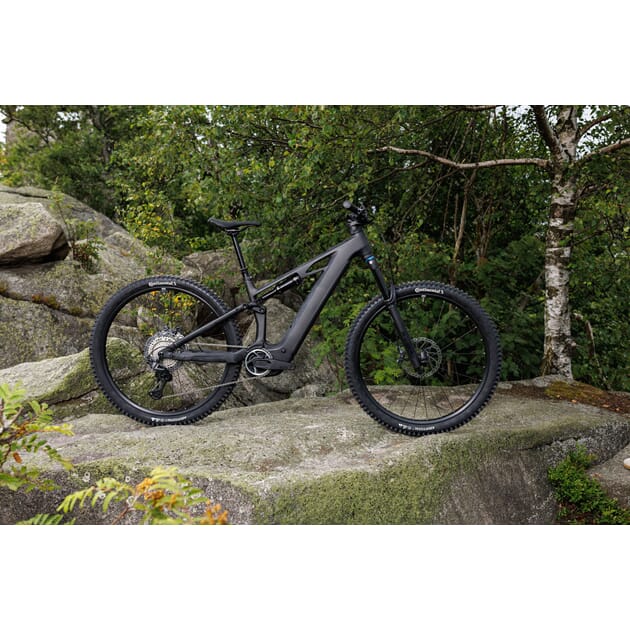

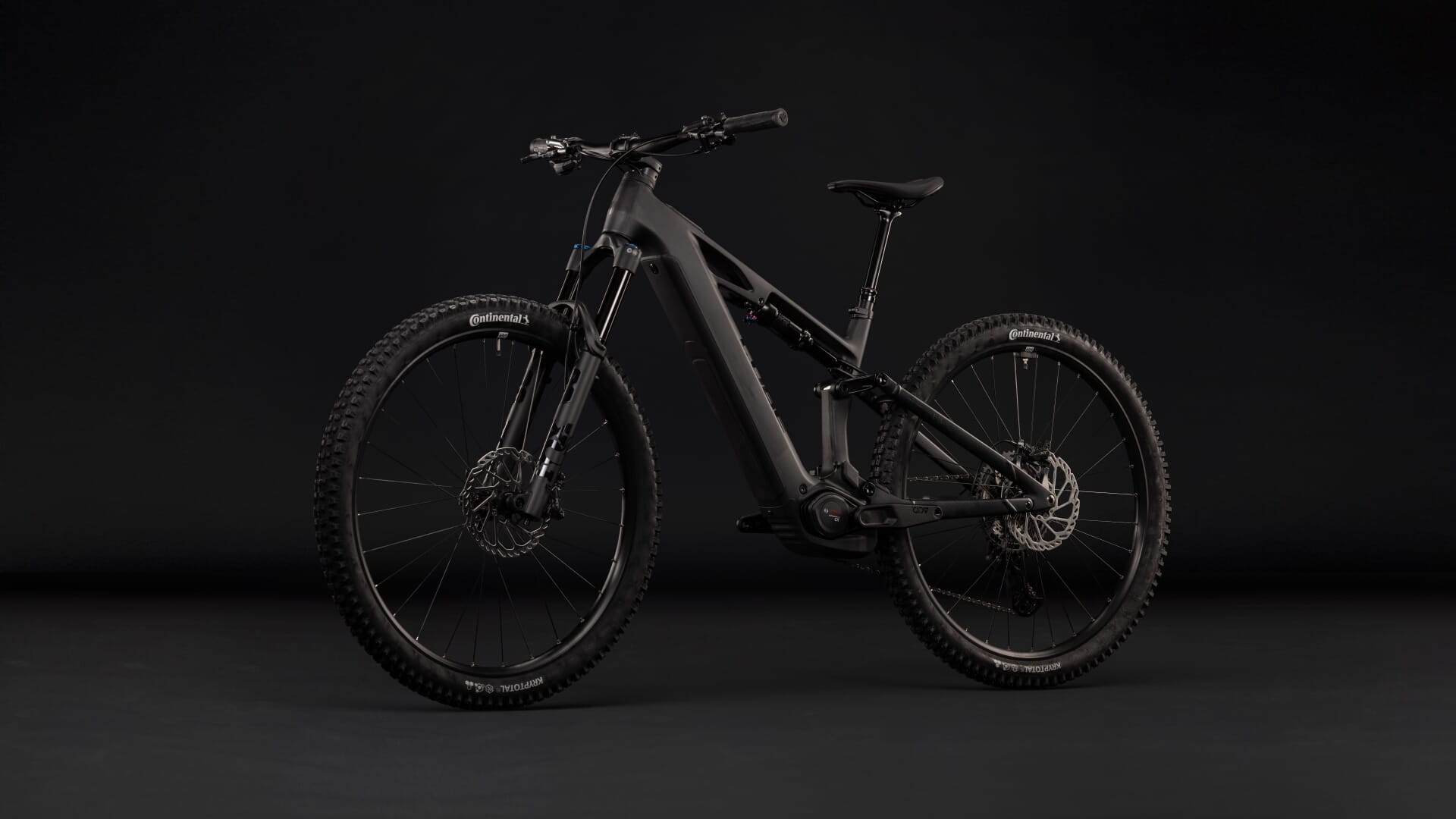

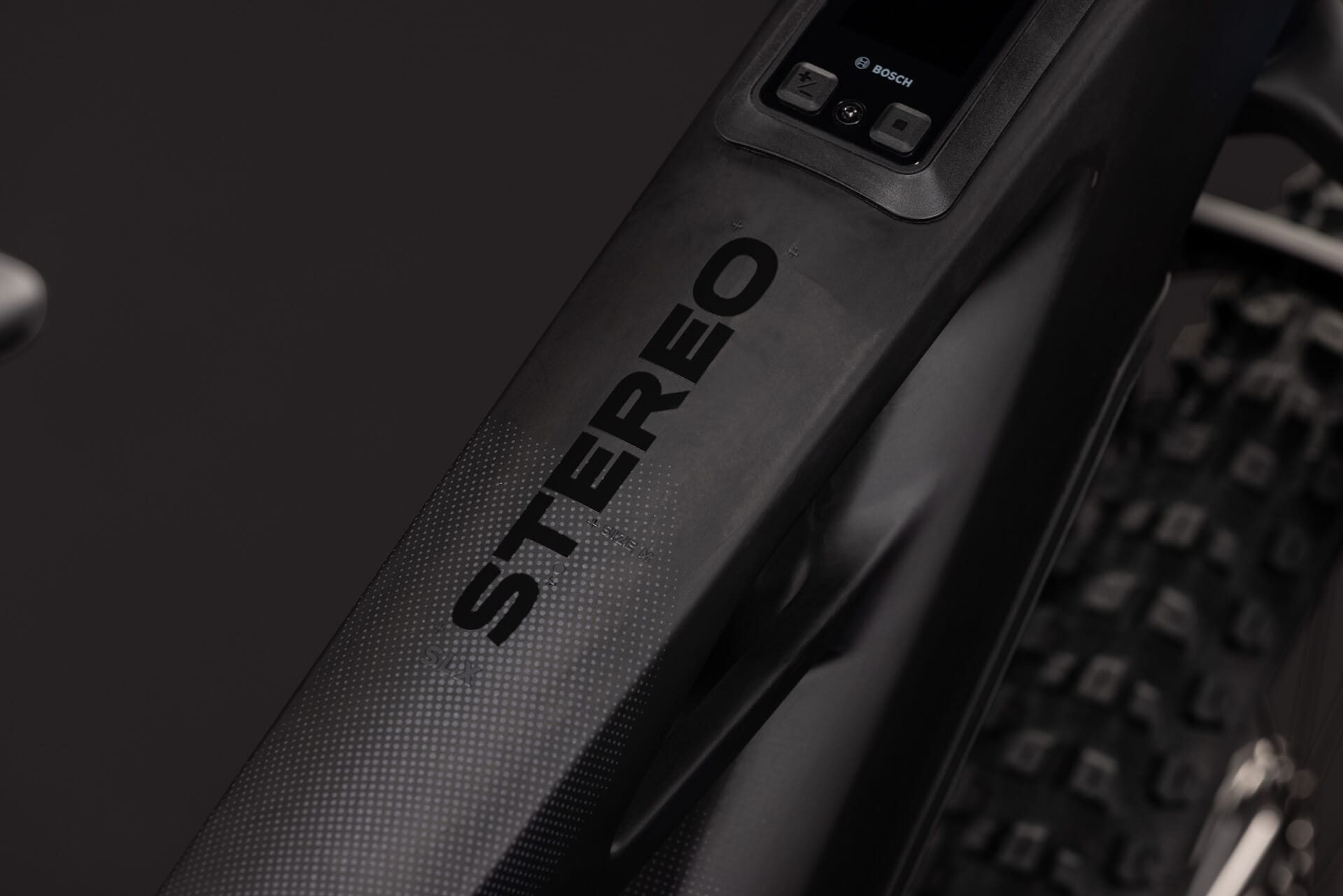

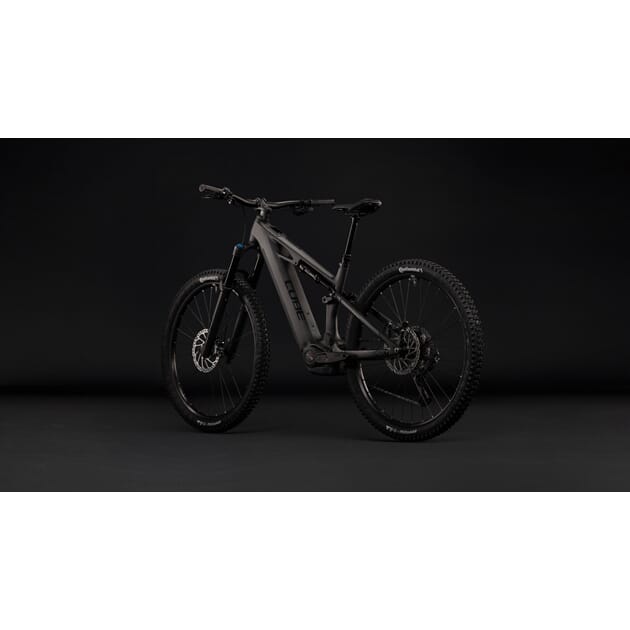

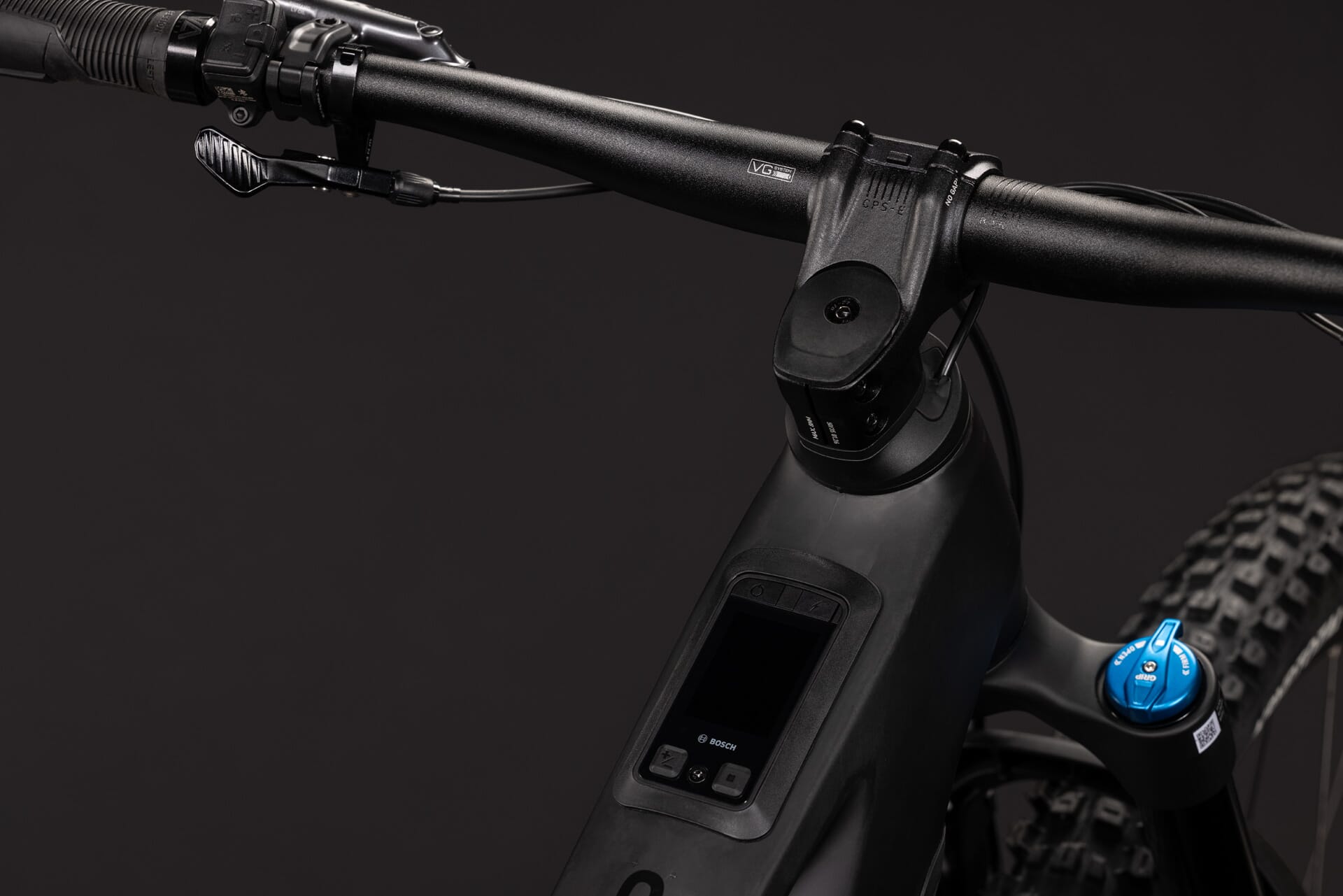

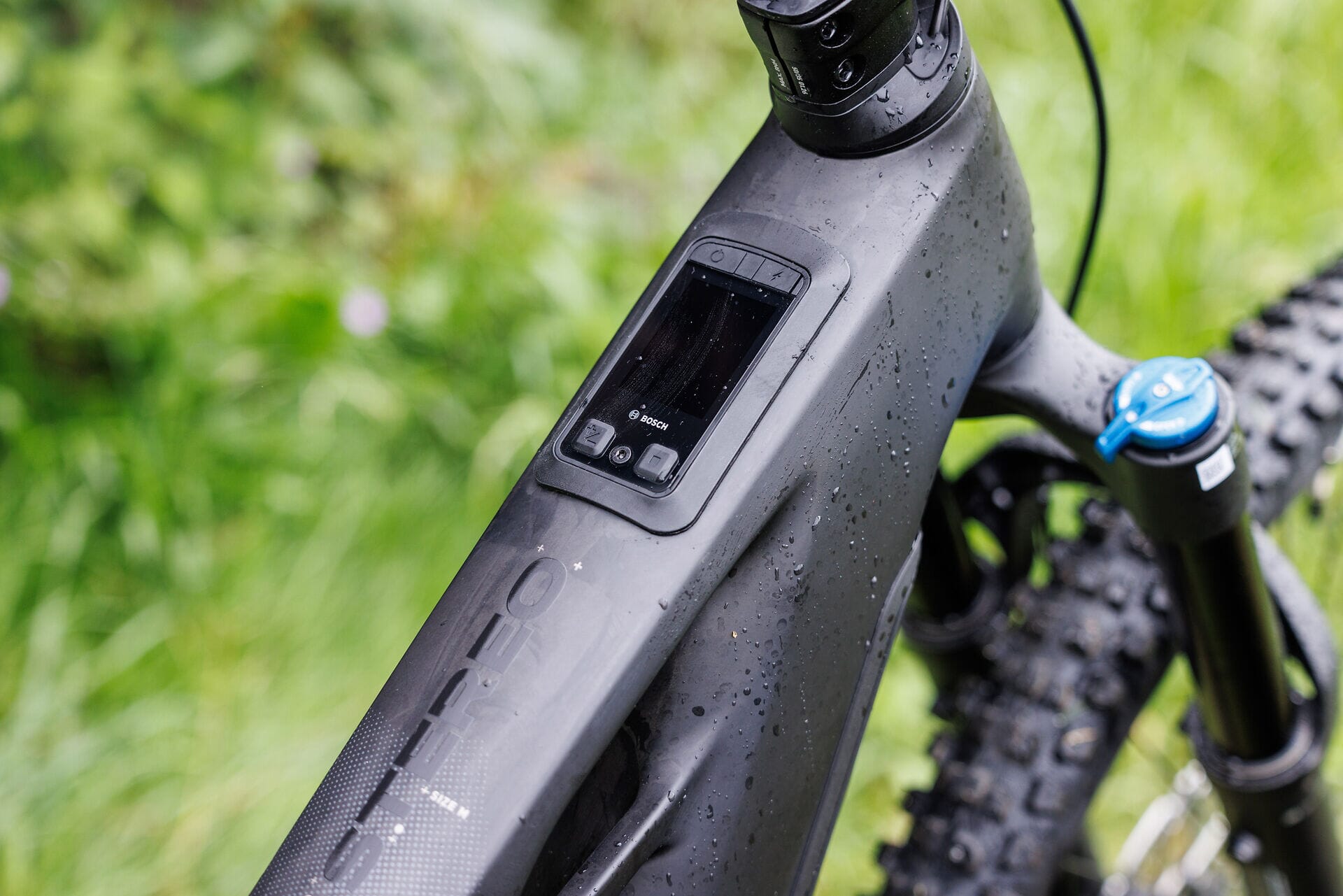

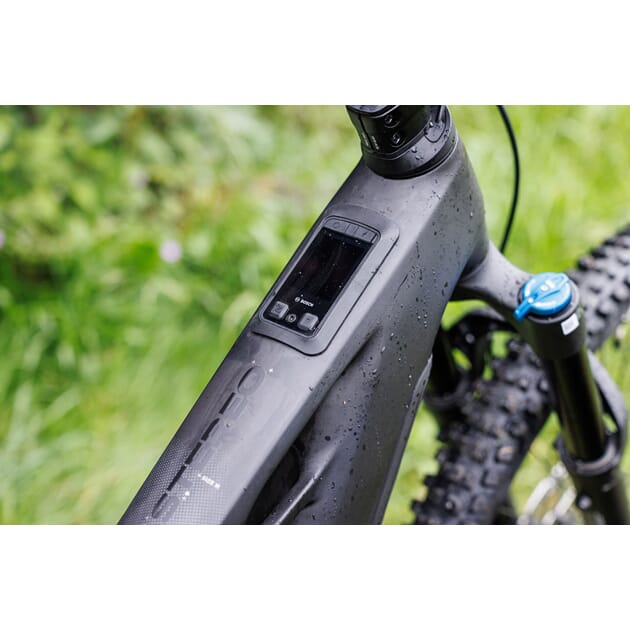

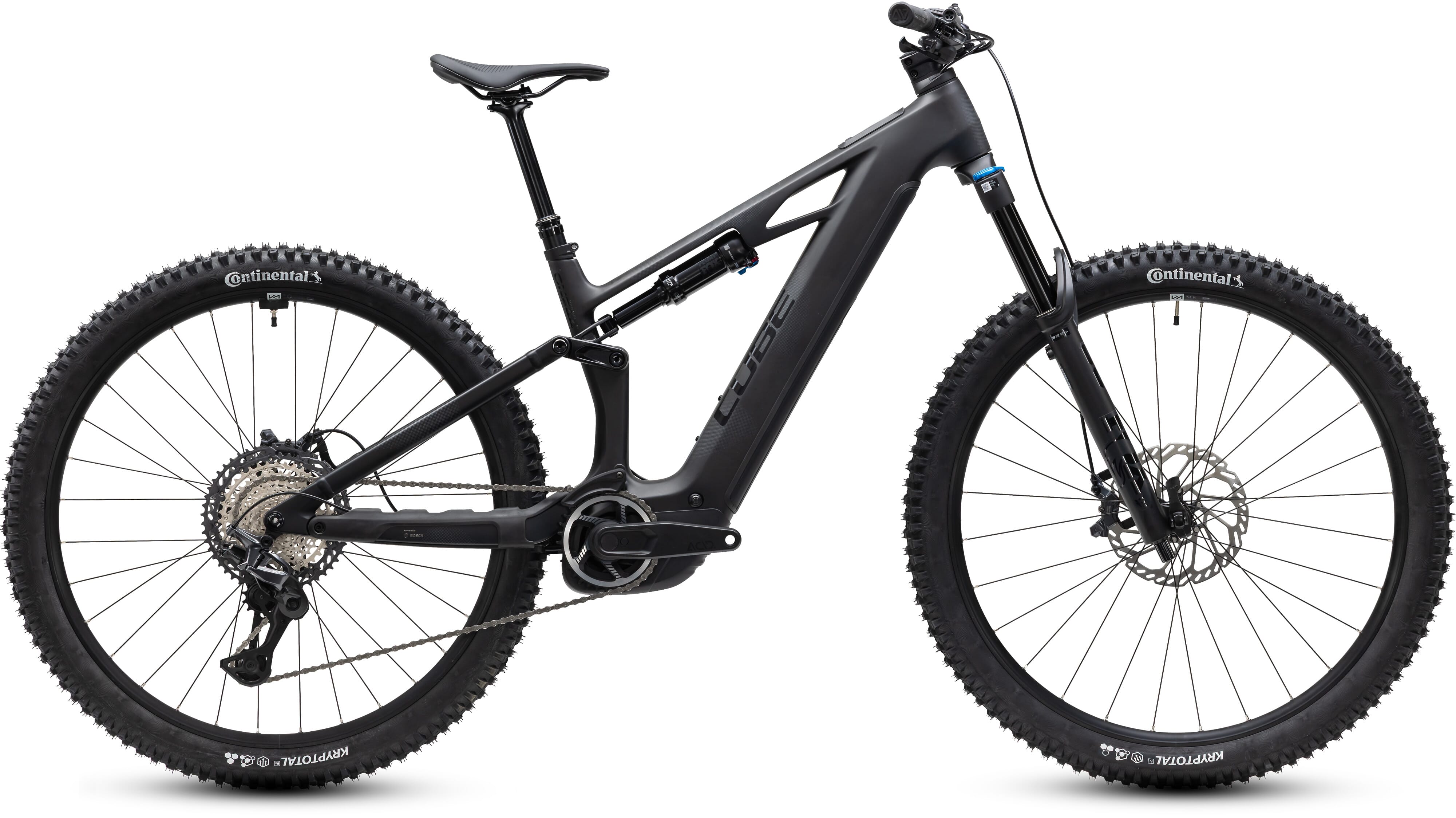

At CUBE we're all about the detail. So, for example, we fitted the Stereo Hybrid ONE44 HPC with an angle-adjustable headset – so you can tweak the Agile Trail Geometry just the way you like it. Advanced Internal Cable Routing complements the frame's clean lines, while the integrated Kiox 400C top tube controller shows you exactly what's going on with the Bosch CX drive and 800Wh PowerTube battery. There's a Direct Mount chain guide to keep your gears running smoothly and a future-proof UDH dropout – plus the frame is X-Connect ready, so you can just plug in a compatible ACID front light. With a 150mm fork, 140mm of rear-wheel travel and Size Split for a wide range of sizes, it's the trail-ready e-mtb for anyone

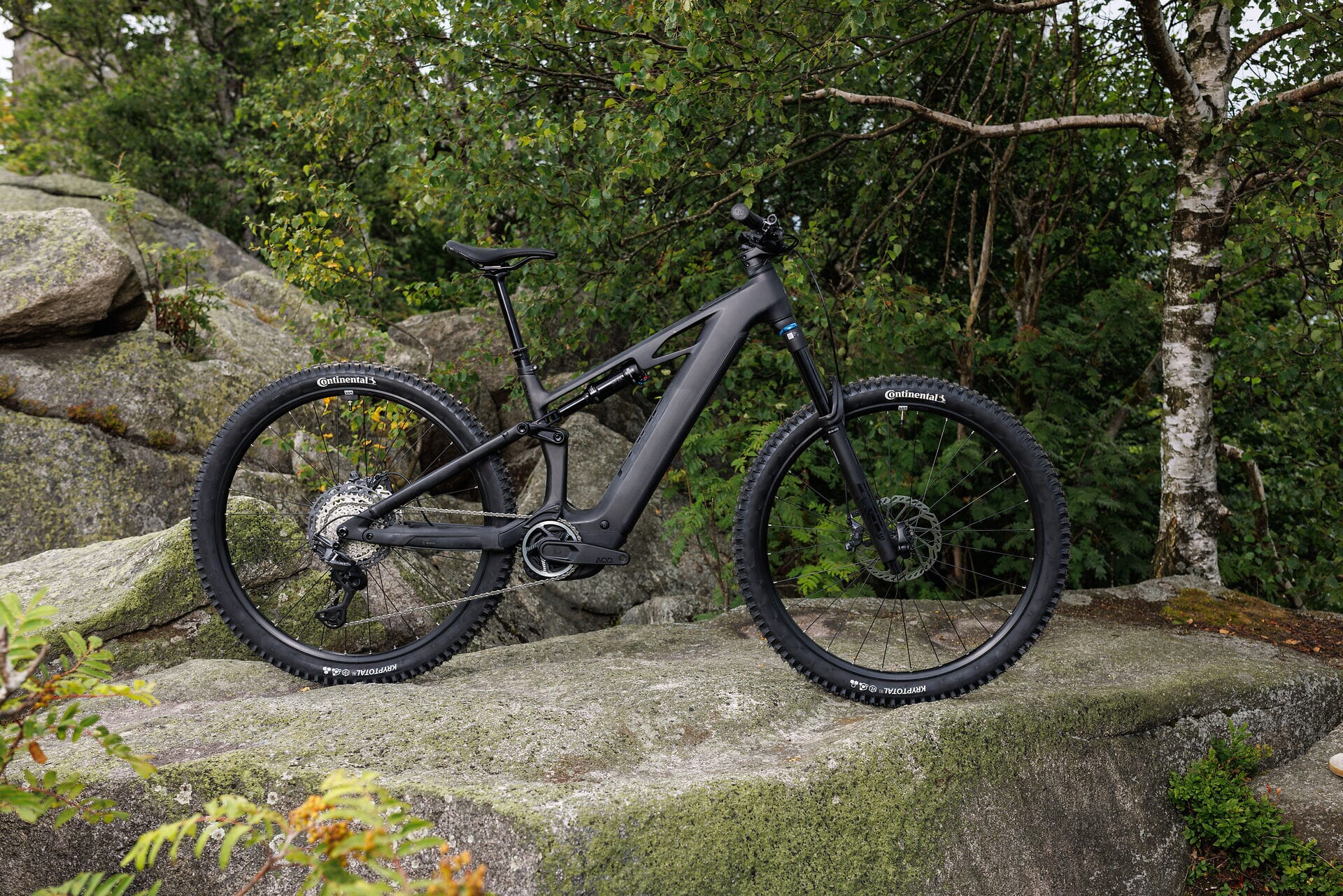

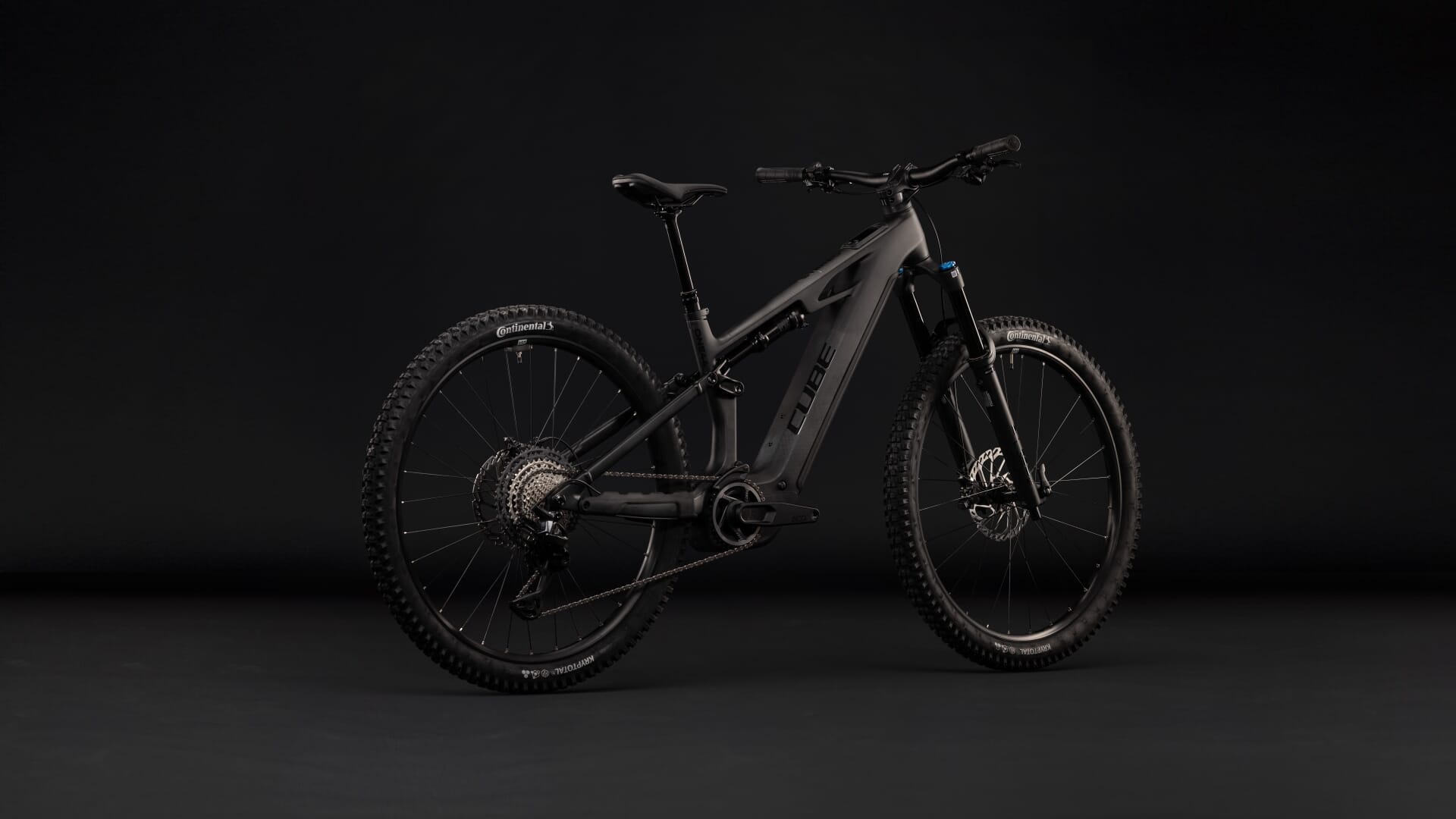

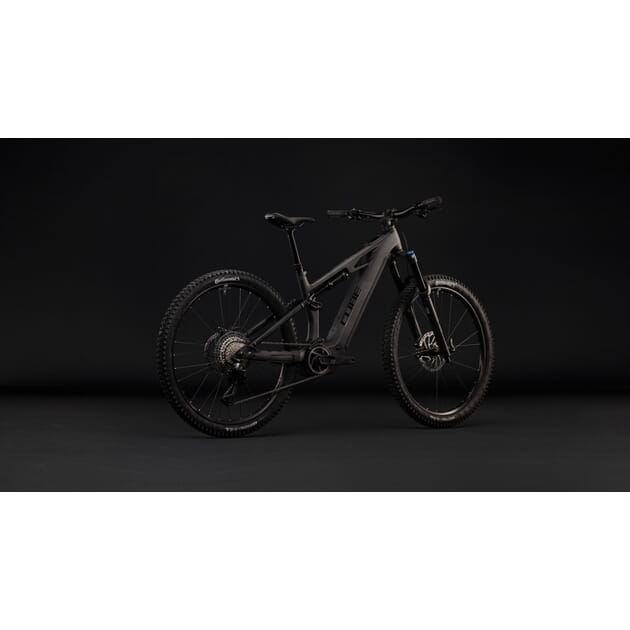

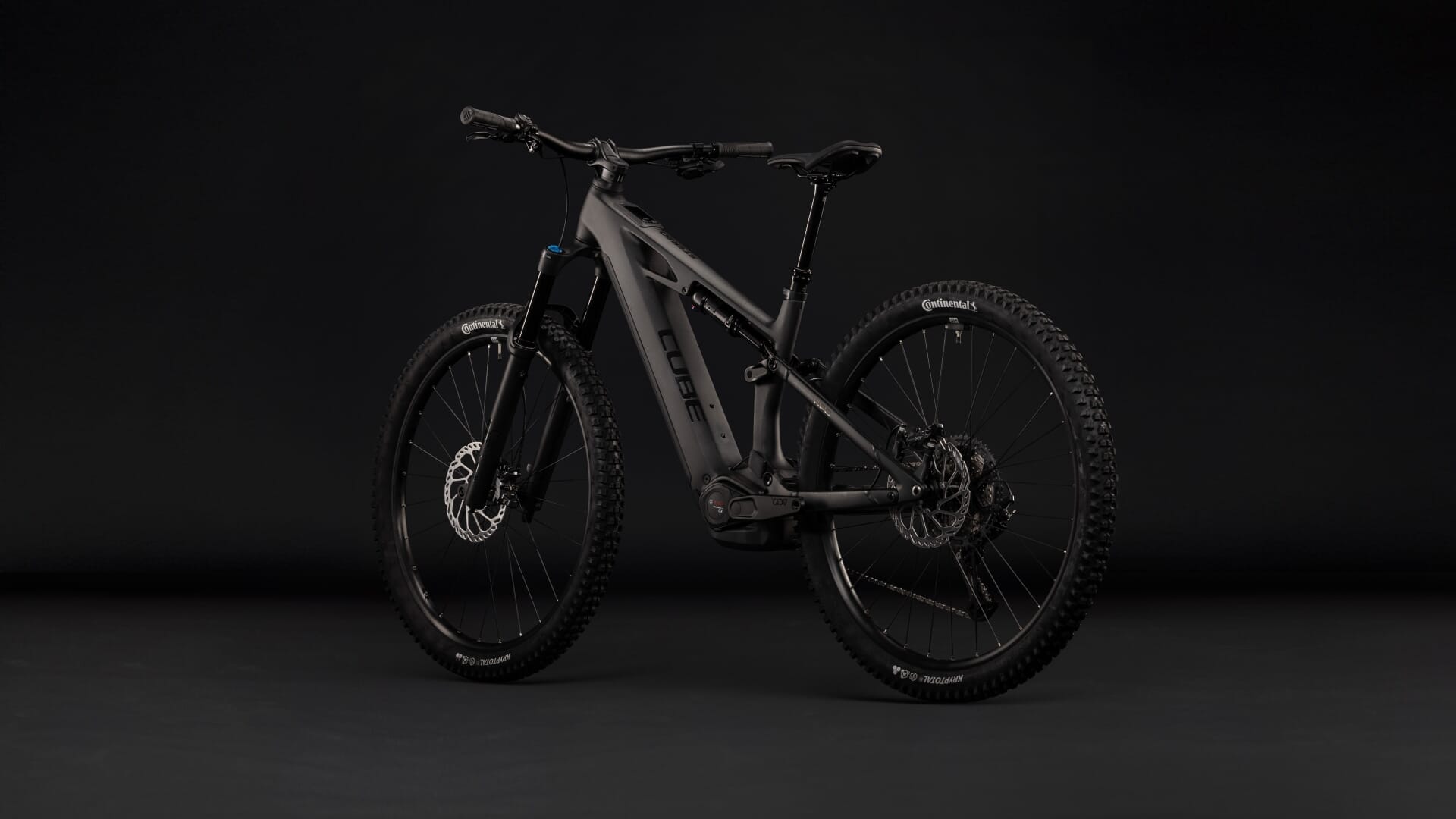

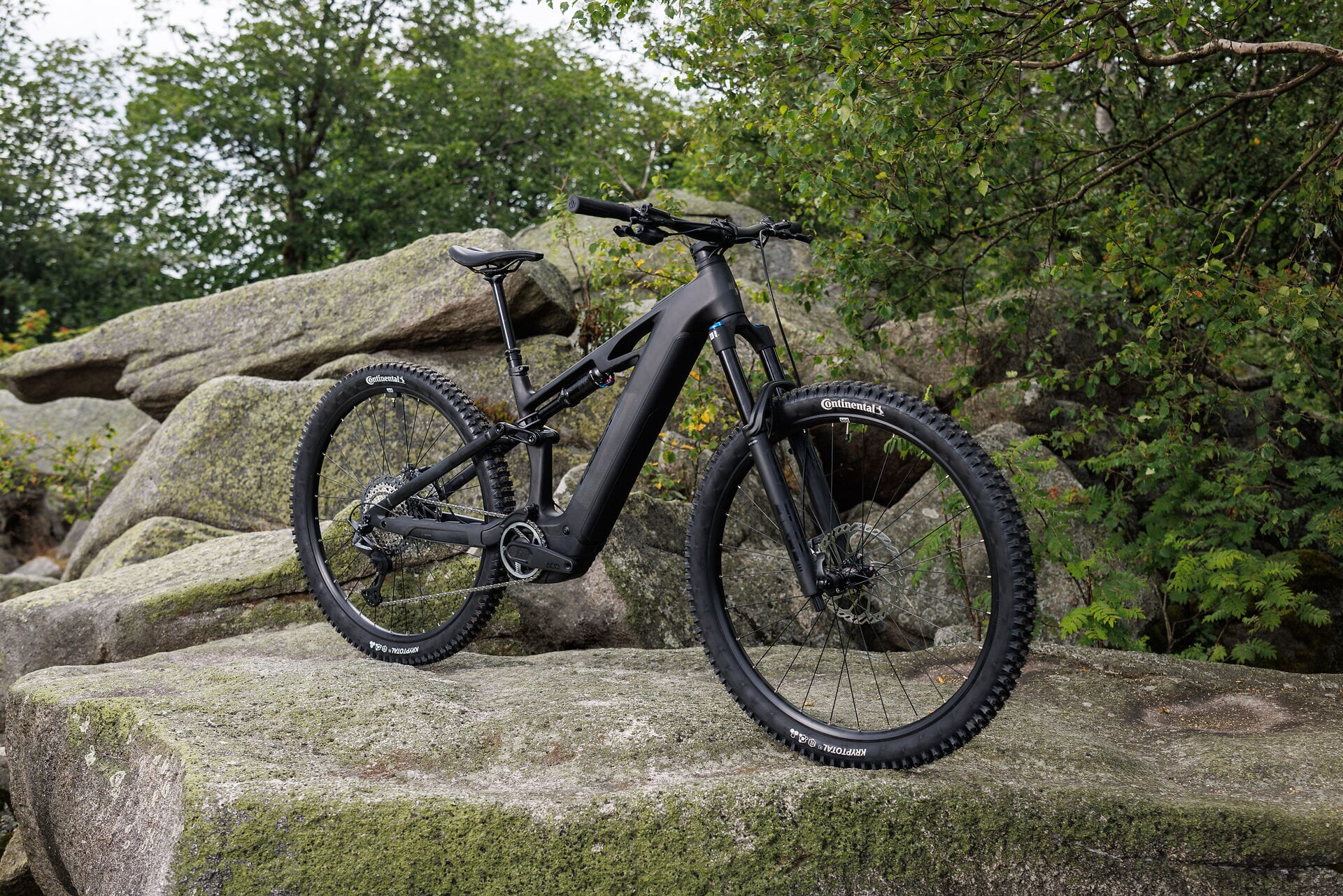

This is what trail riding is all about. CUBE's suspension kinematics and carbon frame tech deliver a magic carpet ride, while Bosch power and reliable components give you the tools you need to make light work of any trail. The Stereo Hybrid ONE44 HPC SLX: it's got your name on it.

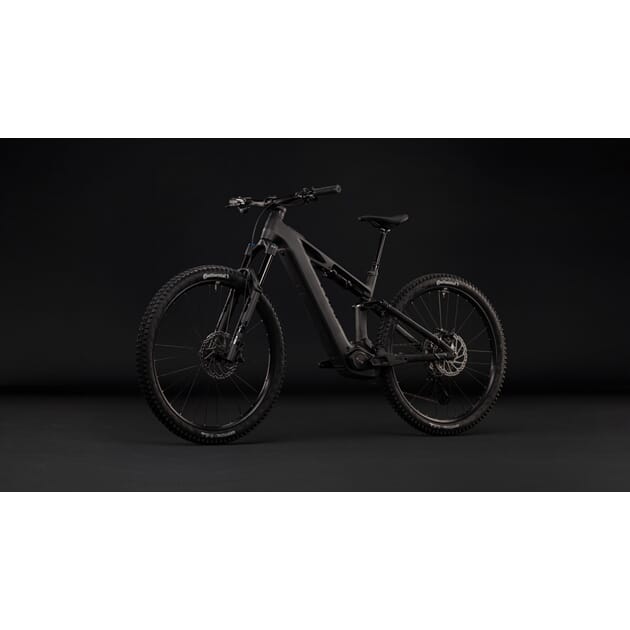

You know you're on a great trail bike when it just gets out of the way and lets you enjoy the ride. It's the reason that, for the Stereo Hybrid ONE44 HPC SLX, we began with a 150mm Fox 36 Performance fork and matching Float Performance shock. Combined with a Newmen Performance 30 wheelset and Continental Kryptotal 2.4in tyres, it's your guarantee of keeping the rubber side down and glued to the trail. Bosch's CX motor and an 800Wh battery deliver your power to the ground via Shimano's slick-shifting, legendarily reliable XT 1x12 gears, while the Kiox 400C display shows you what's going on. And strong, progressive Shimano XT 4-piston hydraulic disc brakes with 200mm rotors bring you safely to a stop, on demand. With a remote dropper post included in the mix, you simply need to add your spirit of adventure... and ride.
Frame
frame

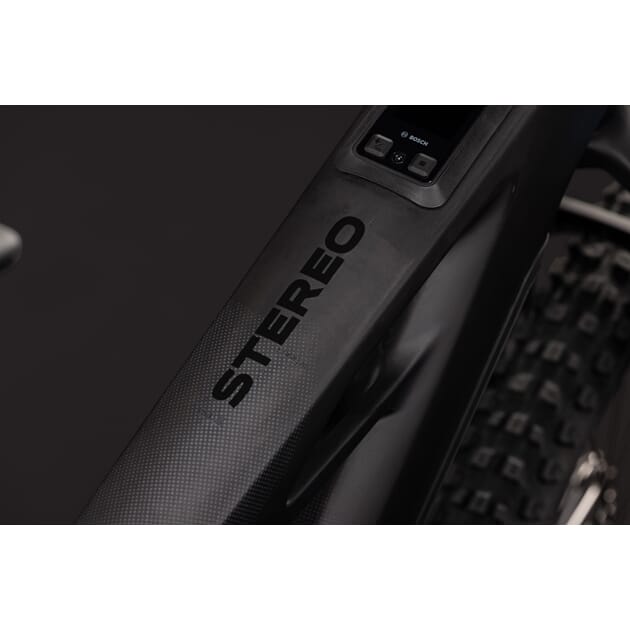

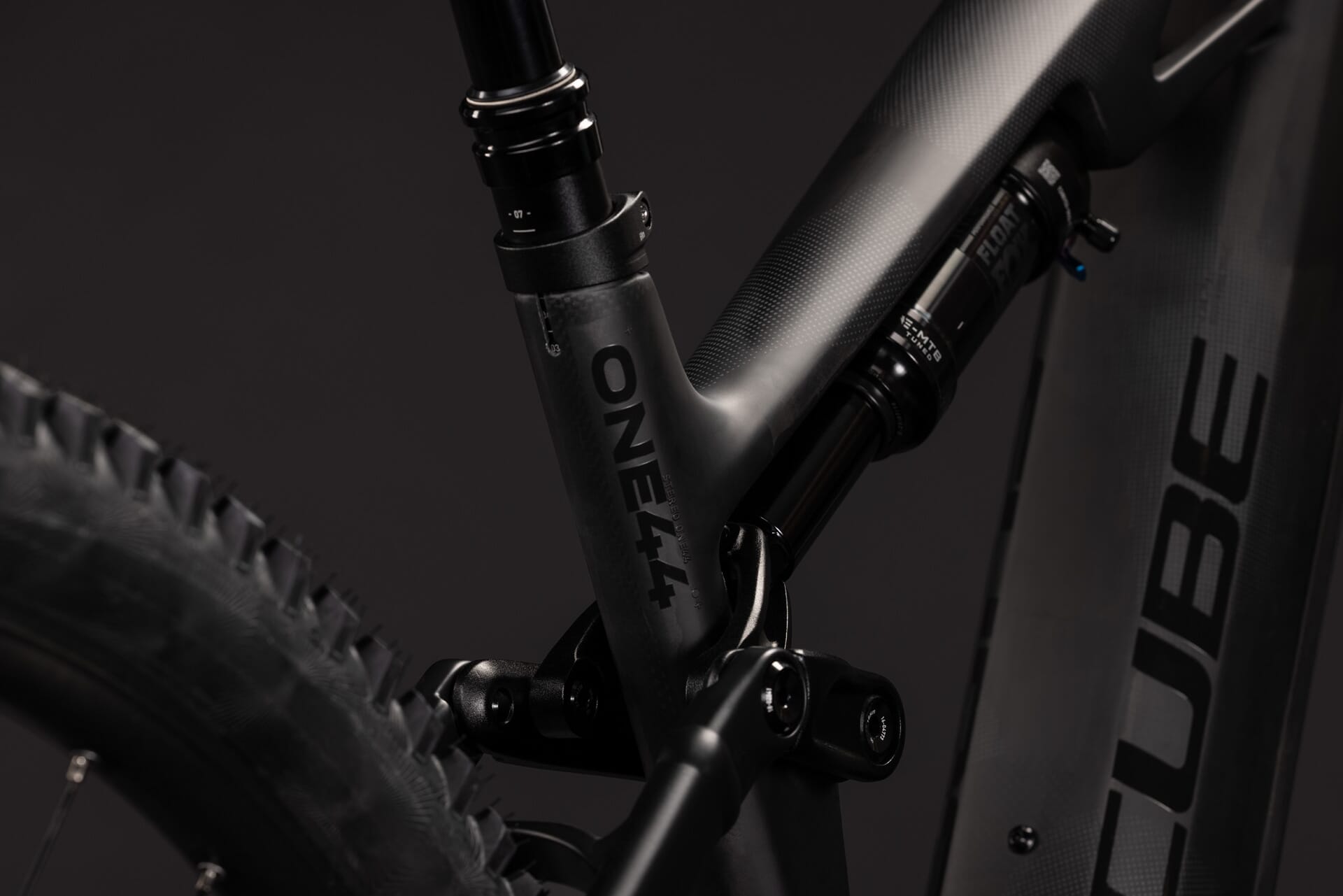

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
size
Size Split: 27.5: S // 29: M, L, XL
Suspension
Suspension fork

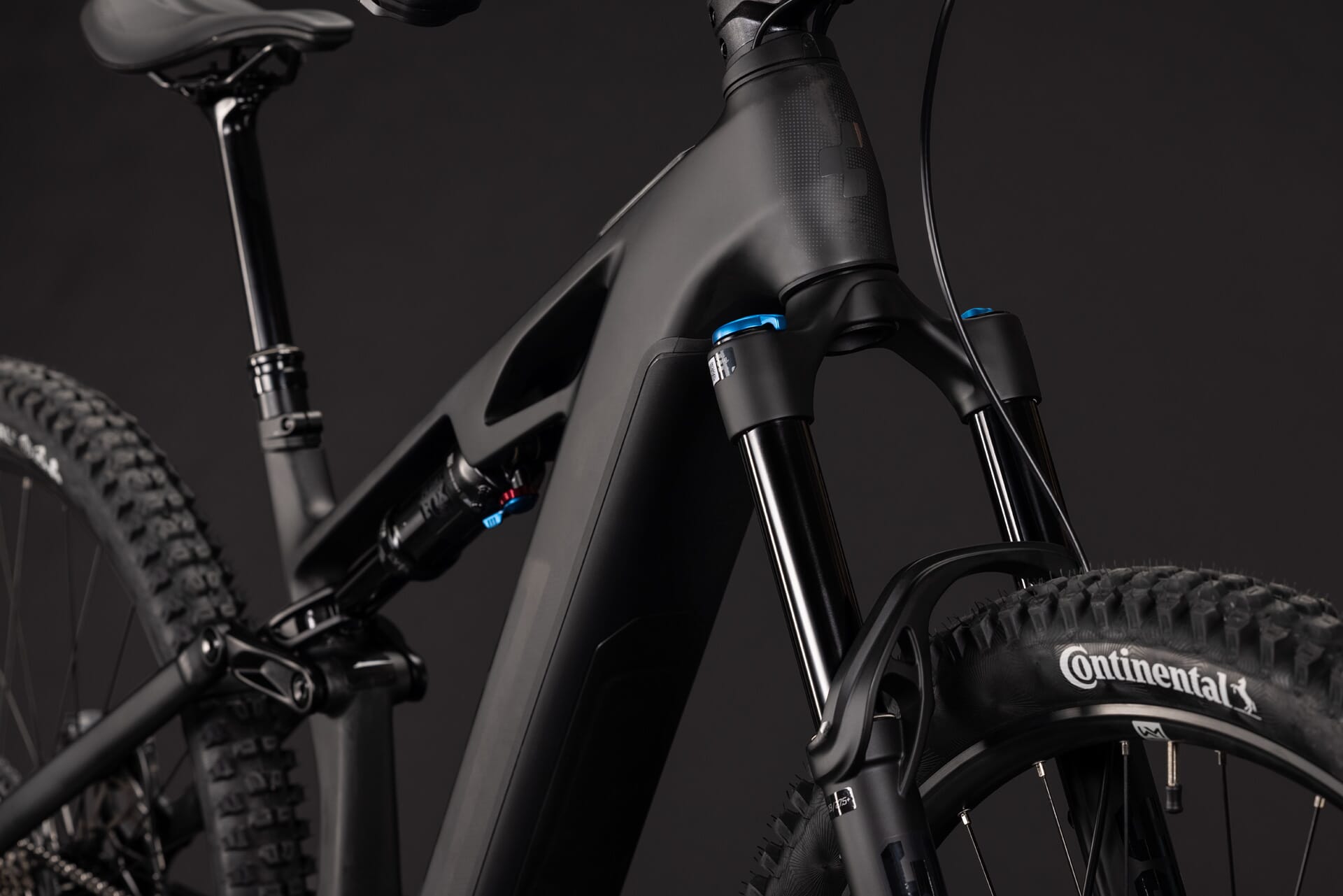

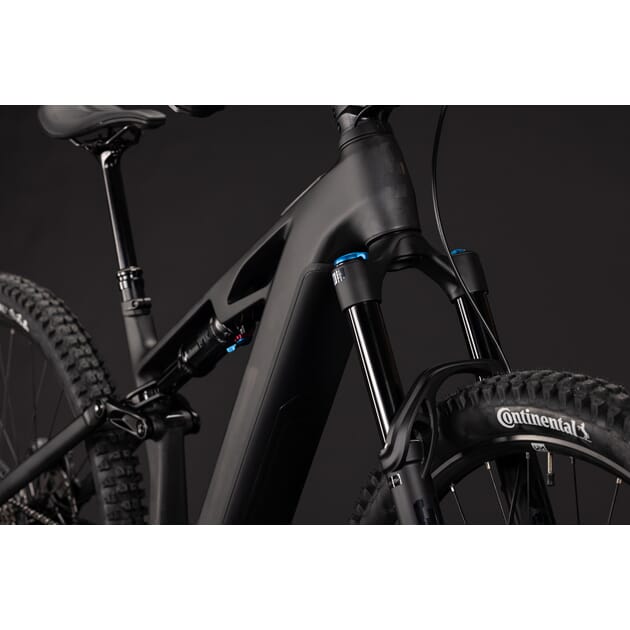

Fox 36 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm
shock

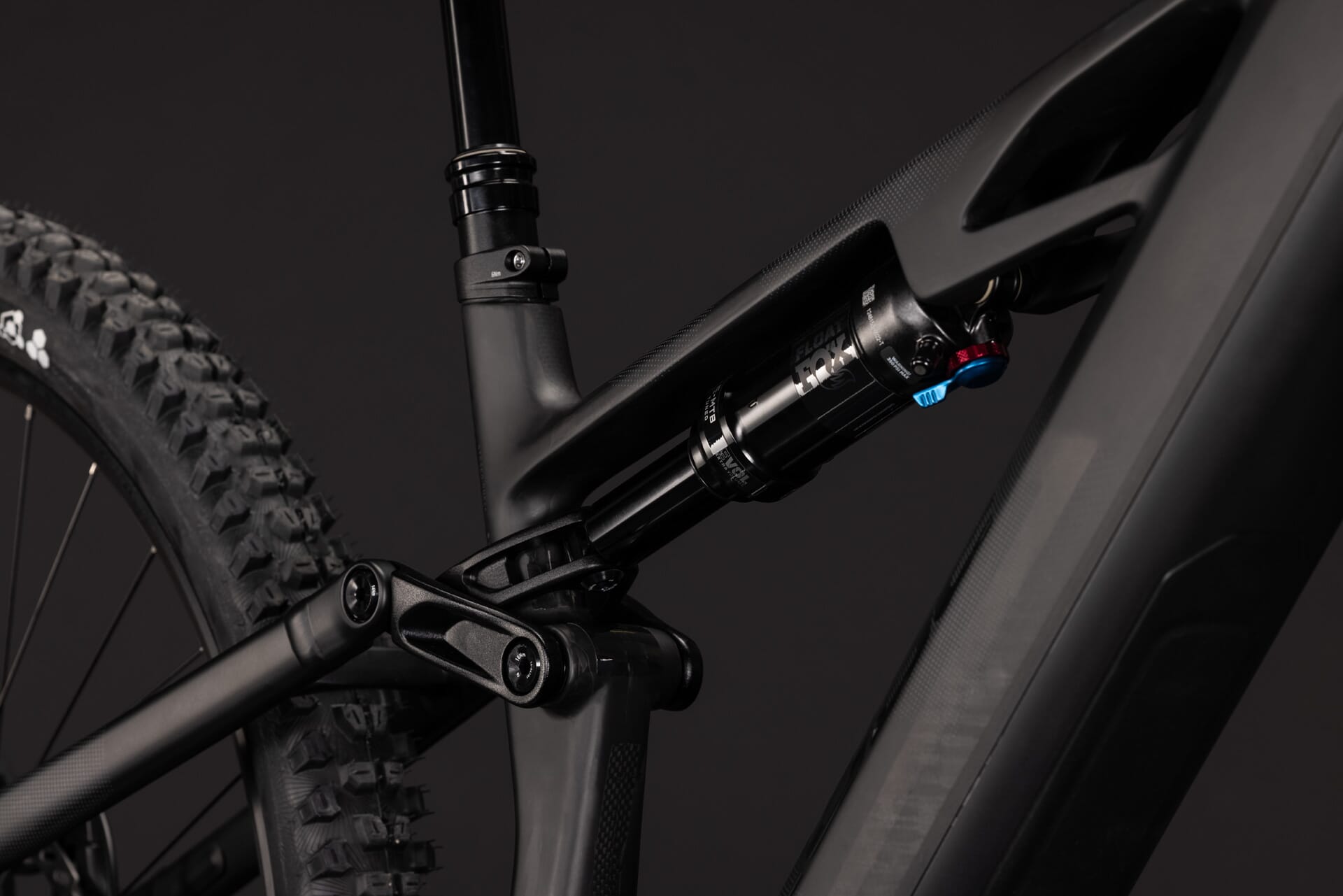

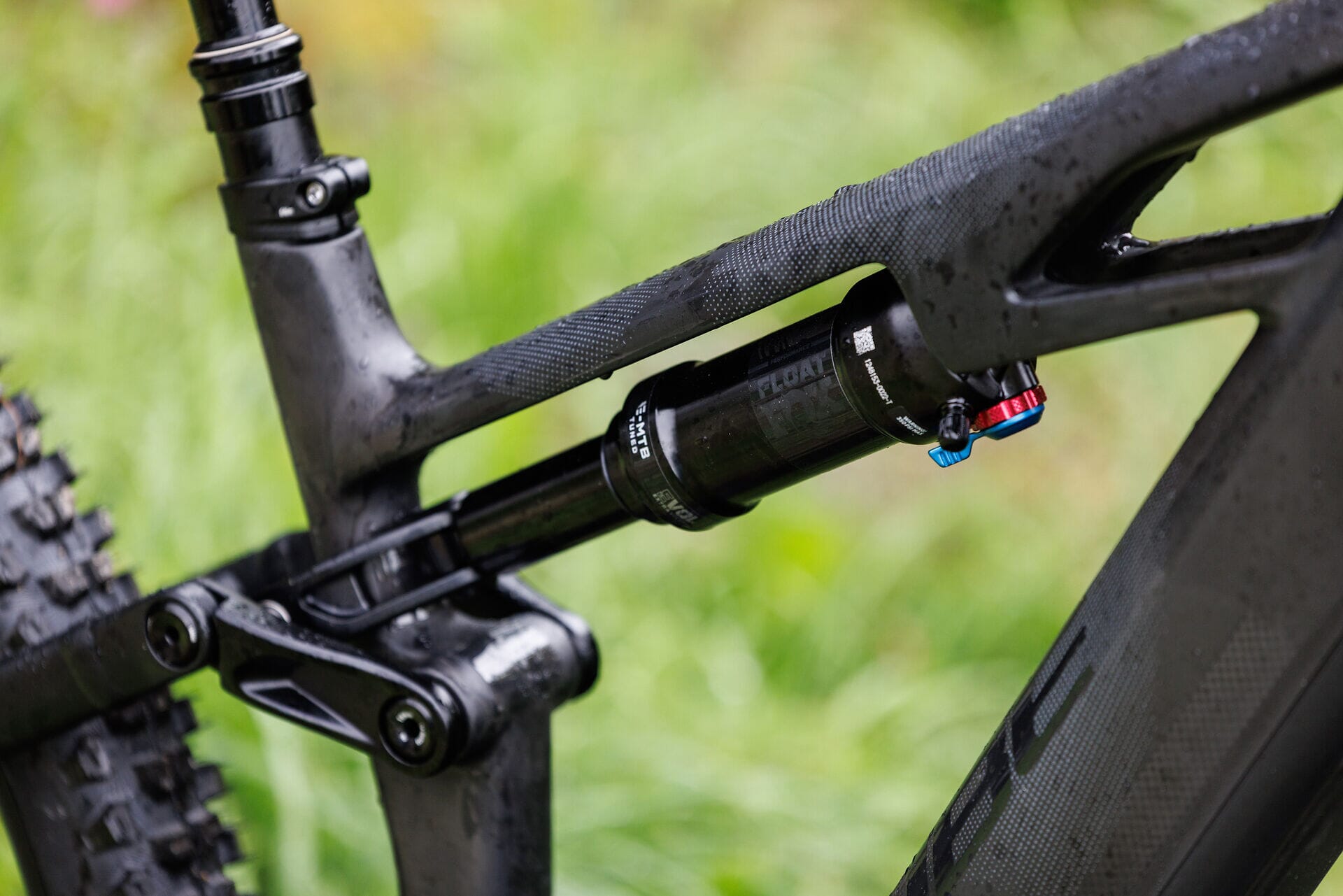

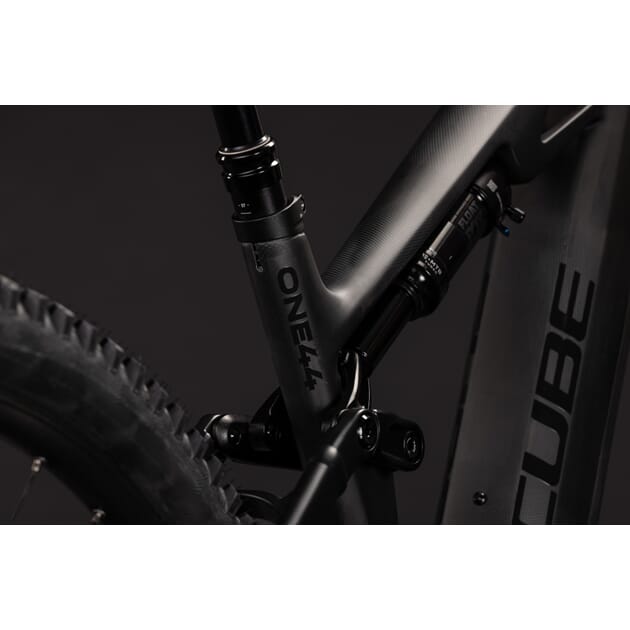

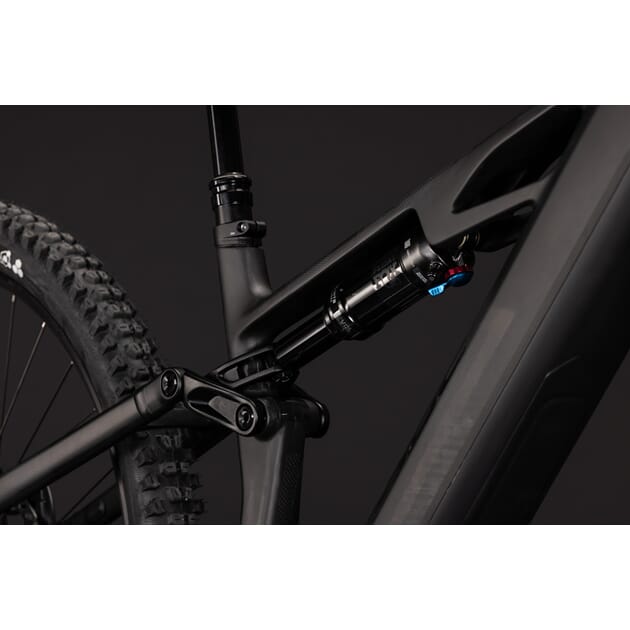

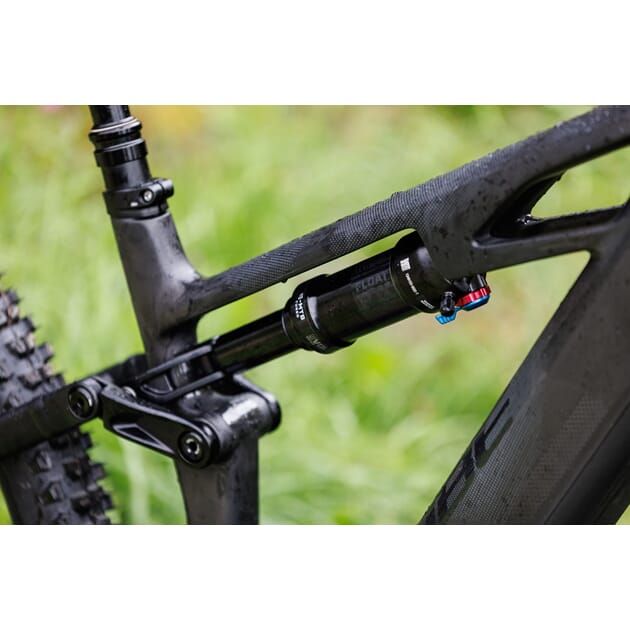

Fox Float Performance, 230x60mm (27.5: 210x55mm), Adjustable LSR w/ 2-Pos. Lever
shock hardware
Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-bike system
drive unit
Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
battery
Bosch PowerTube 800
Drivetrain & brakes
brake system

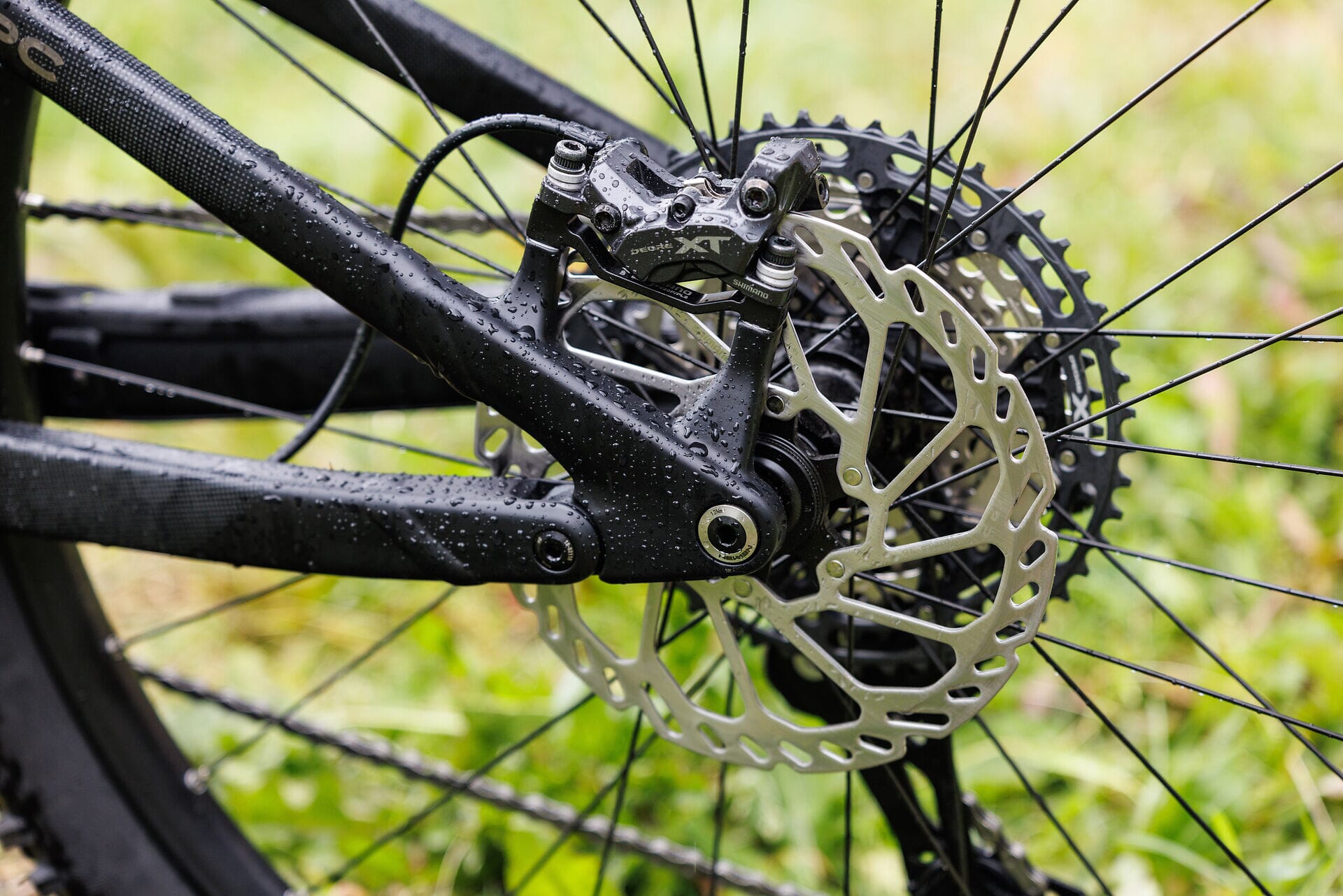

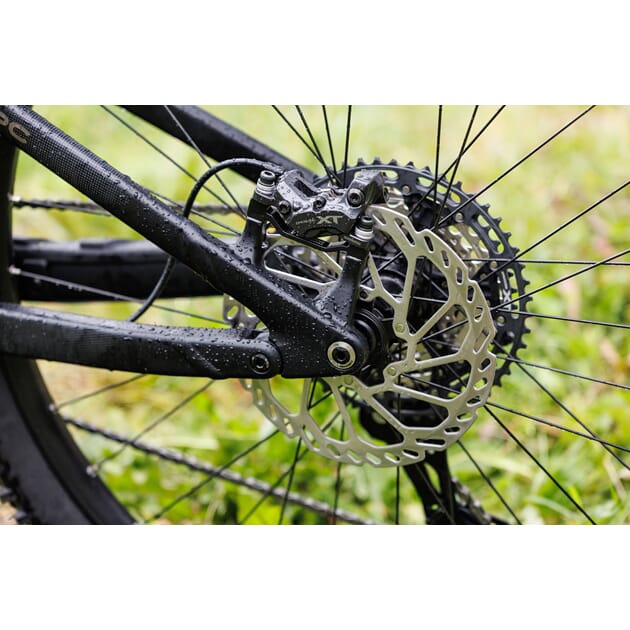

Shimano XT BR-M8220, Hydr. Disc Brake (200/200)
rear derailleur
Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
shifters
Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click
crankset

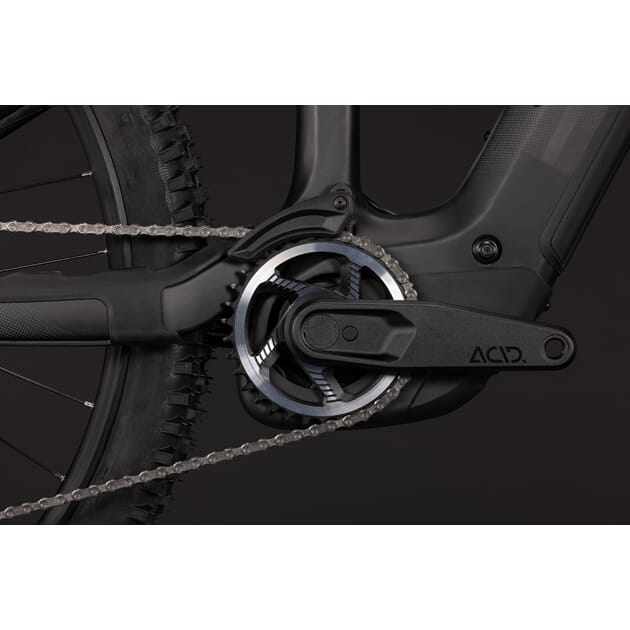

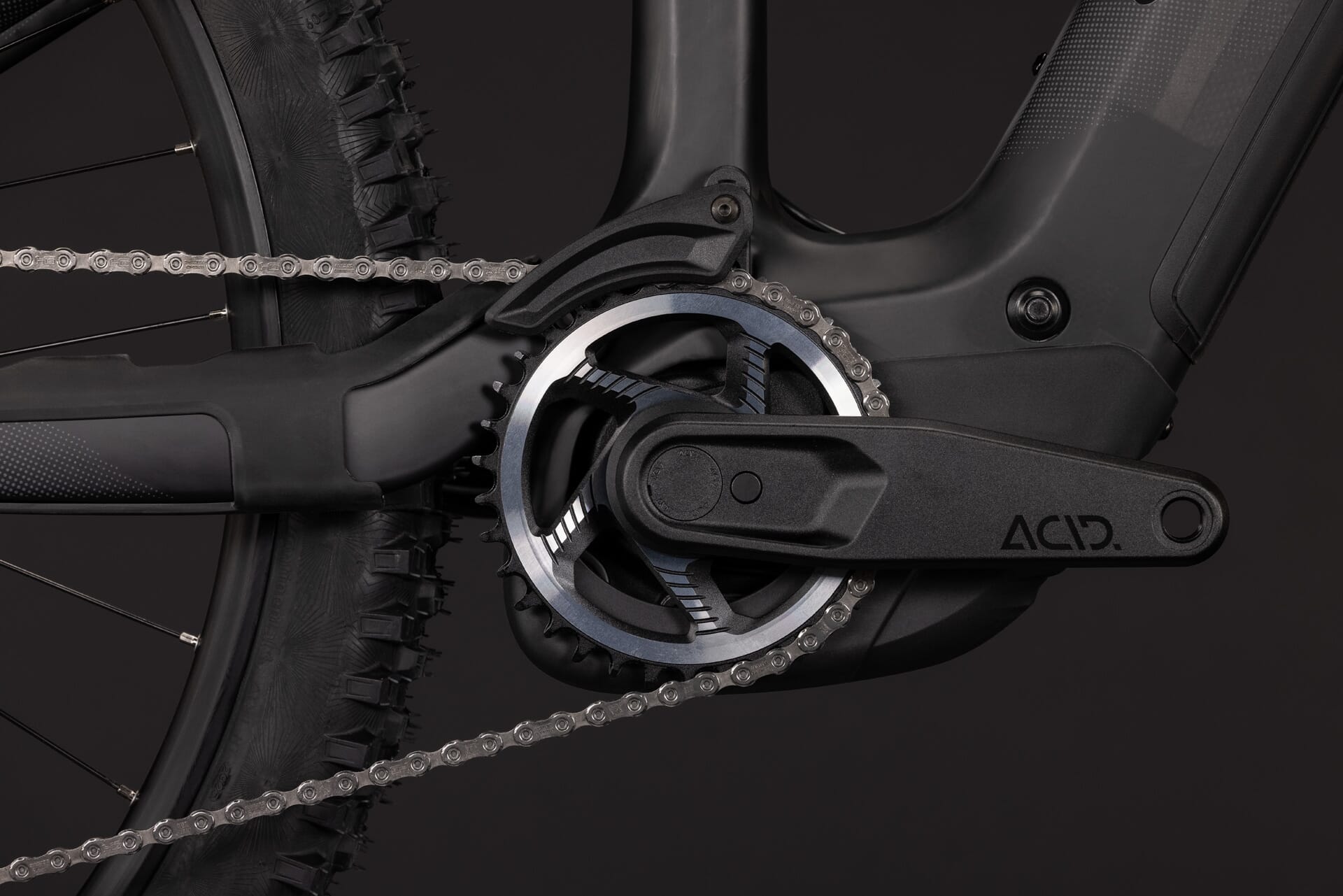

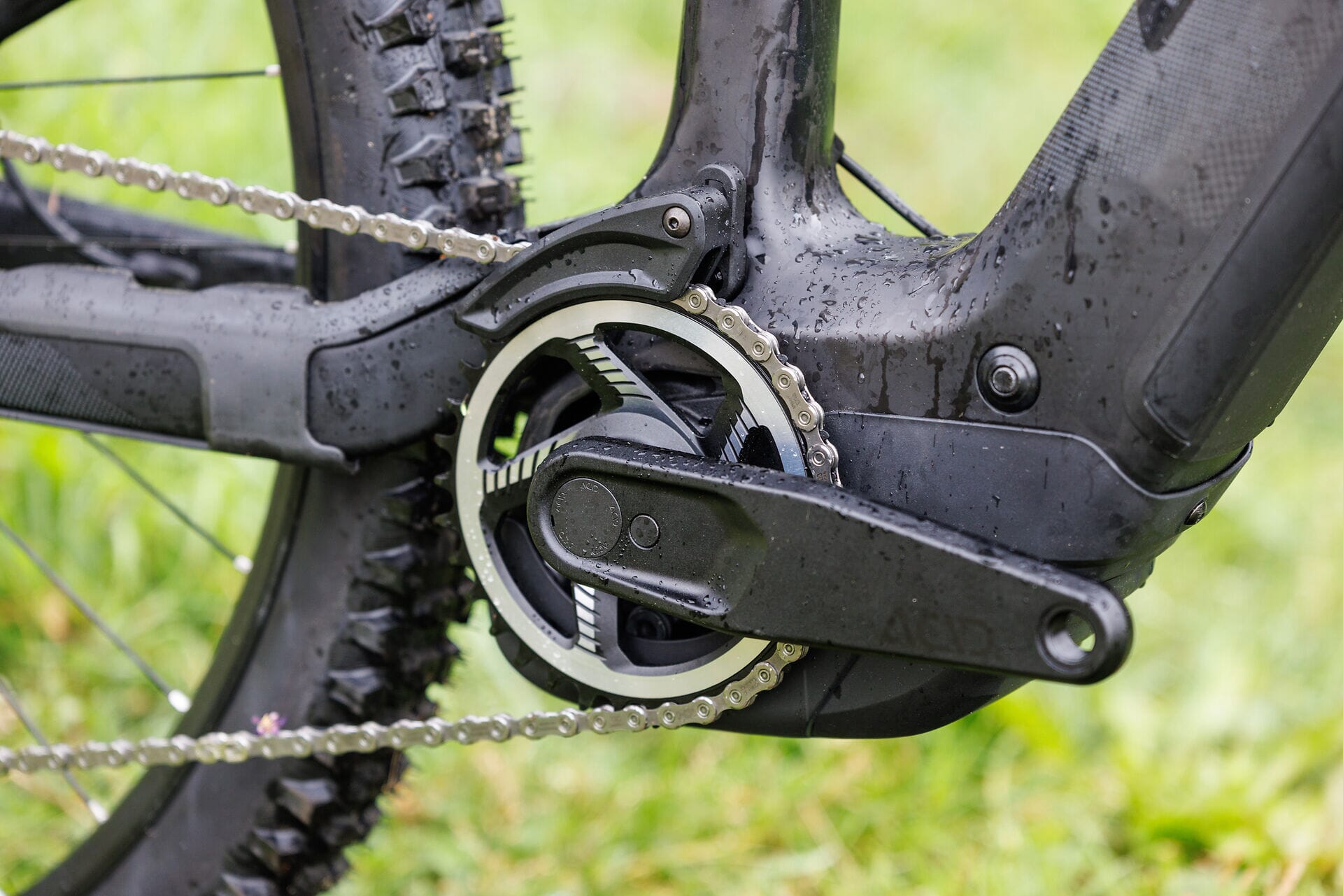

ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
cassette
Shimano XT CS-M8200, 10-51T
chain guide

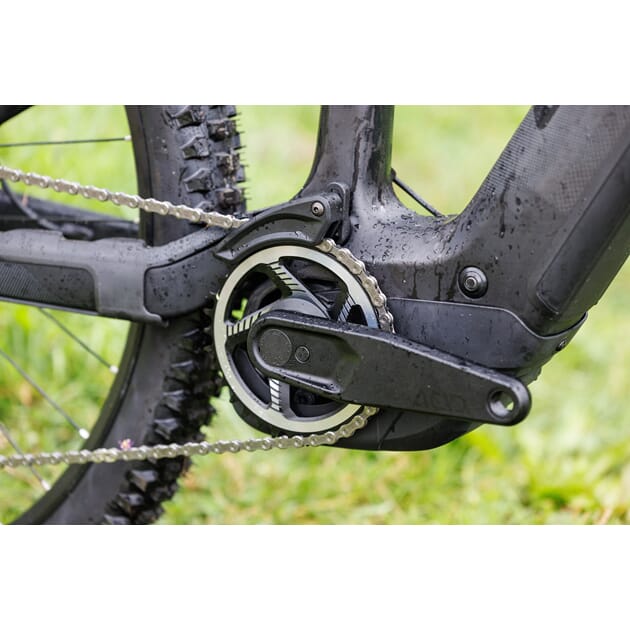

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem

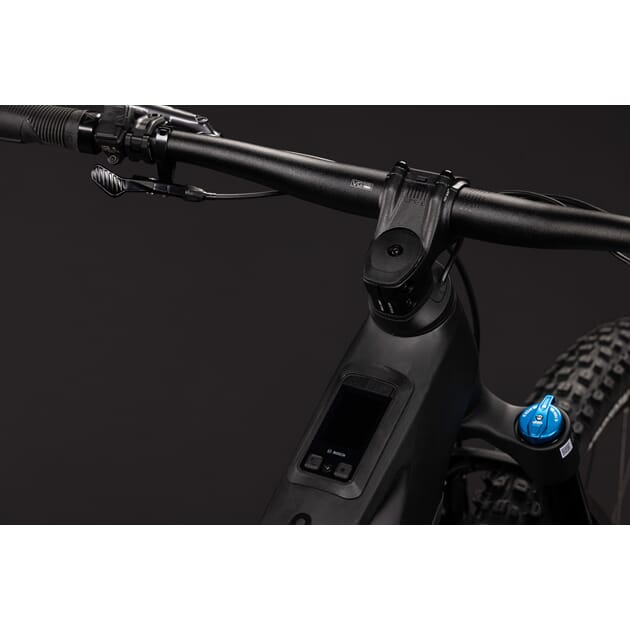

CUBE Performance Stem E-MTB 35, FPI-Link
handlebar
CUBE Rise Trail Bar 35 VariGrip System
grips
ACID Endure VariGrip System
Wheels
wheelset
Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
front tyre
Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4
rear tyre
Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Finishing kit
saddle
ACID Venec EMTB Trail 140
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
