*** REGELVERK ***
Bruk av en slik modifisert elektrisk sykkel på offentlig vei kan være i strid med gjeldende lovgivning i enkelte land.
Dette gjelder i Norge, hvor det kun er fritatt for krav til registrering, førerkort og forsikring for elsykler med motorhjelp opp til 25 km/t.
Det er ikke tillatt å bruke elektriske sykler utstyrt med SpeedBox-produkter på veier, sykkelstier og i offentlige rom eller private områder.
Produktet garanteres kun å oppheve hastighetssperren på den angitte drivlinjen i dagens utførelse, og med dagens firmware versjon.
Bruk av SpeedBox kan medføre at elsykkelens garanti går tapt. Produsenten og selger påtar seg ikke erstatningsansvar for bruk av SpeedBox-produkter i strid med gjeldende regler.
EGENSKAPER:
Maksimal hastighet: Ubegrenset (maks 35 km/t anbefales)
Innstilling av fartsgrense: JA
Displayet viser:
Reell hastighet: NEI
Riktig tilbakelagt avstand: Etter nedtellingsprosessen er
ferdig)
Aktivering/deaktivering (ikke utfør mens du sykler):
GÅ-funksjon / - + - +
Indikasjon på aktivering/deaktivering av tuning: JA (3,5/2,5 km/t)

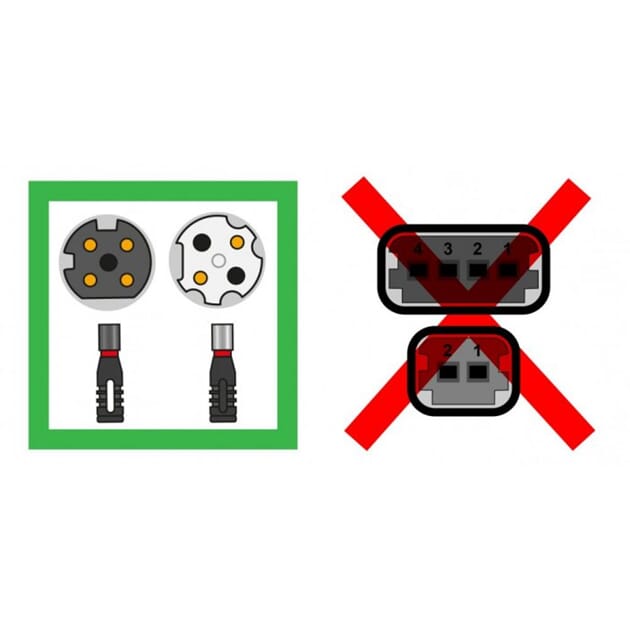

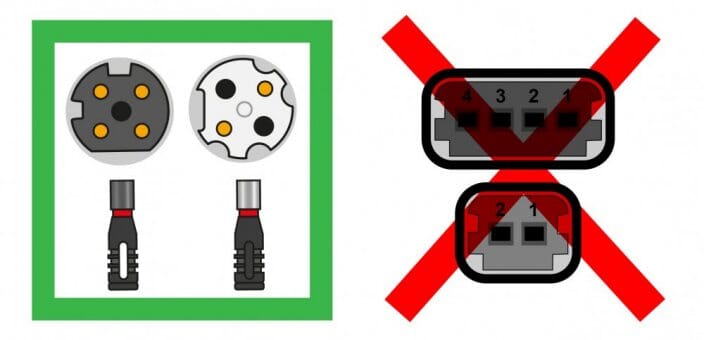

Kompatibel med:
Alt Smart System vises
Alle Smart System-motorene
Ikke kompatibel med:
Bosch felgmagnet
ABS system
SpeedBox-appen
PROPERTIES:
Maximum speed: Unlimited (max 35 km/h recommended)
Speed limit setting: YES
Display shows:
Real speed: NO
Correct travelled distance: After the countdown process is
finished)
Activation/deactivation (do not perform while riding):
WALK function / - + - +
Indication of tuning activation/deactivation: YES (3.5/2.5 km/h)
Compatible with:
All the Smart System displays
All the Smart System motors
Not compatible with:
Bosch Rim Magnet
ABS system
SpeedBox App
More
Product code: SB11_B_1pcs_BOX
Description
Parameters2
Reviews1
The tuning for e-bikes with the newest Bosch Gen4 motor and Smart System

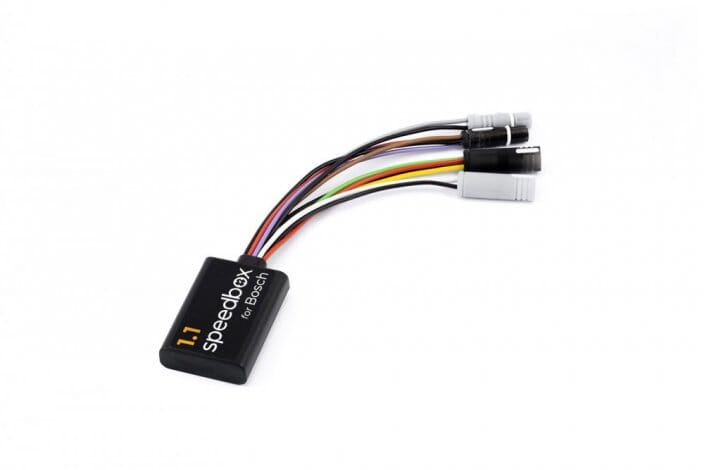

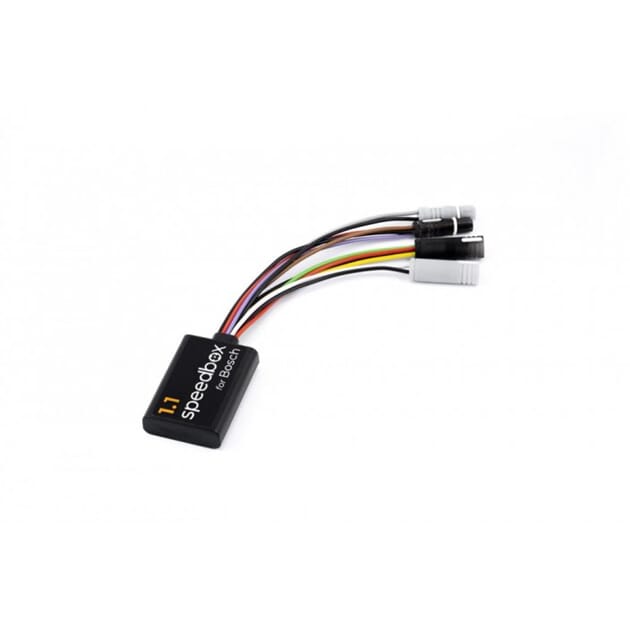

SpeedBox 1.1 for Bosch enables you to suppress the speed limiter on your e-bike.
If you want to see correct speed and all riding data during your ride, we recommend choosing SpeedBox 1.1 B.Tuning for Bosch - you can see the real values in our SpeedBox App – right on the display of your phone.
How does SpeedBox 1.1 for Bosch work?
To activate all the functions of the SpeedBox correctly, it is necessary to enter the menu after the first switching on of the e-bike after the tuning installation and switch to the circumference of the wheel of your e-bike.
Activate/deactivate the tuning before the ride (when the e-bike is standing still), not during riding!
You will activate the SpeedBox 1.1 tuning directly on your e-bike’s control unit by activating the WALK assist function shortly (holding down the “-” button). Your e-bike display will show a value of 3.5 km/h (2.2 mph) and from now on you will be able to ride up to 35 km/h. You may change the default speed limit to any limit you want (up to 99 kph), however, to minimize the risk of error codes, we recommend not to exceed 35 km/h.
To deactivate the tuning, activate the WALK assist function shortly again (by holding down the “-” button). Your e-bike display will show a value of 2.5 km/h (1.6 mph) and the speed limit will be reset to 25 km/h. Your e-bike will then work the same as before the tuning installation.
SpeedBox was also designed for e-bikes that do not have the WALK assist function enabled, or activated. In this case, you can activate/deactivate tuning by switching between two assistance modes twice, i.e. by pressing the - + - + buttons.
You can set the maximum speed limit by switching the modes from TURBO mode three levels down and then three levels up: eMTB - TOUR+ - ECO - TOUR+ - eMTB - TURBO. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by activating/deactivating WALK assist function shortly or by turning the rear wheel 360°. The value of 2.5 km/h on the display corresponds with the limit of 25 km/h, 3.0 corresponds with 30 km/h, 3.5 corresponds with 35 km/h etc. The last displayed limit will be saved after 15 seconds of inactivity.
After finishing the ride, leave the e-bike on for a while until SpeedBox finishes the "countdown" process (the ride time will continue on the display until it stops and shows the correct distance traveled) to prevent tuning detection on your e-bike. Do not remove the display to lock the e-bike until SpeedBox finishes the "countdown" process.

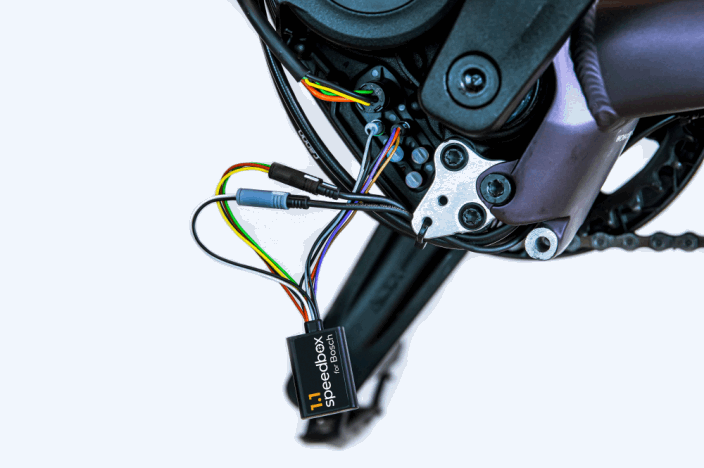

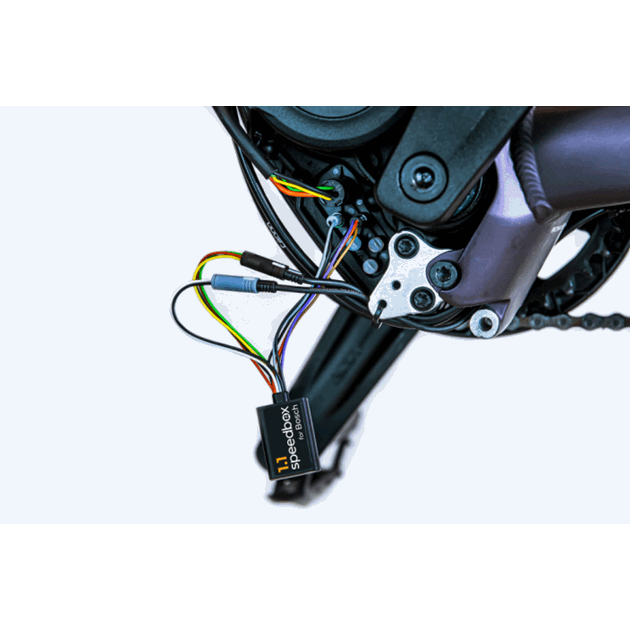

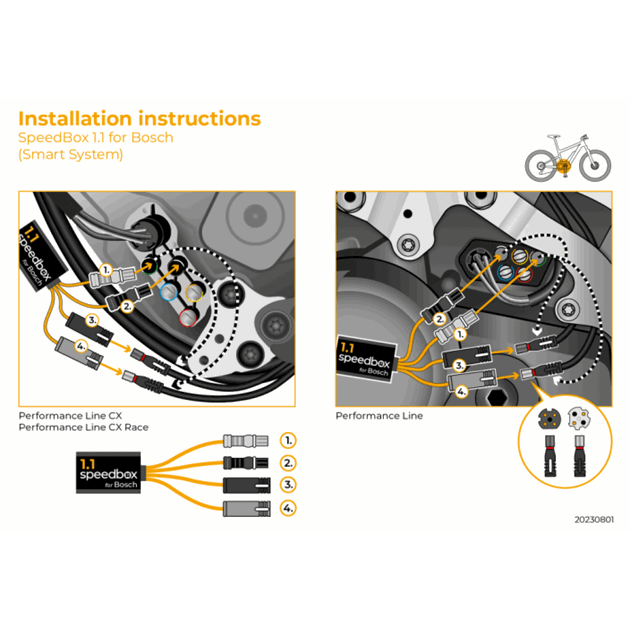

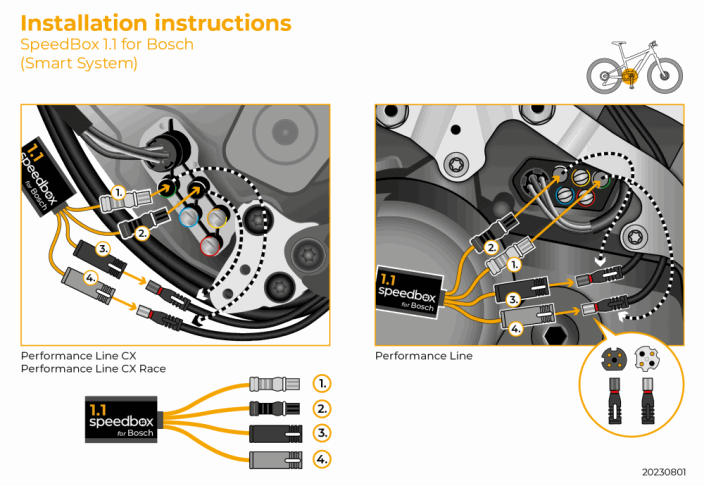

Assembly
We use original connectors for the production of SpeedBox products ensuring that the installation process is very simple and the SpeedBox is connected properly. We have also prepared detailed instructions and videos to make installation easy for you. Disassembly of the SpeedBox is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 10 km before the tuning is activated.
