ENJOY
THE RIDE
You'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that functions brilliantly should also have an elegant form. To that end, we routed cables internally – including provision for a dropper seatpost. Mounting points include compatibility with our Semi-Integrated Carrier 2.1 and a flat mount kickstand, while a tapered head tube ensures confidence-inspiring handling and the replaceable gear hanger means it's easy to get up and running again in the event of a knock to the derailleur. We sweat the detail, so you can just pedal...
Frame Material Size Split
Sizes Aluminium Lite
Details

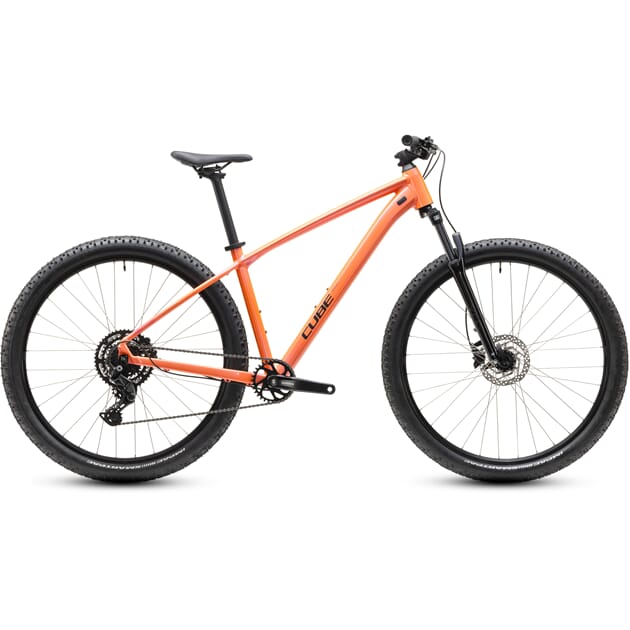

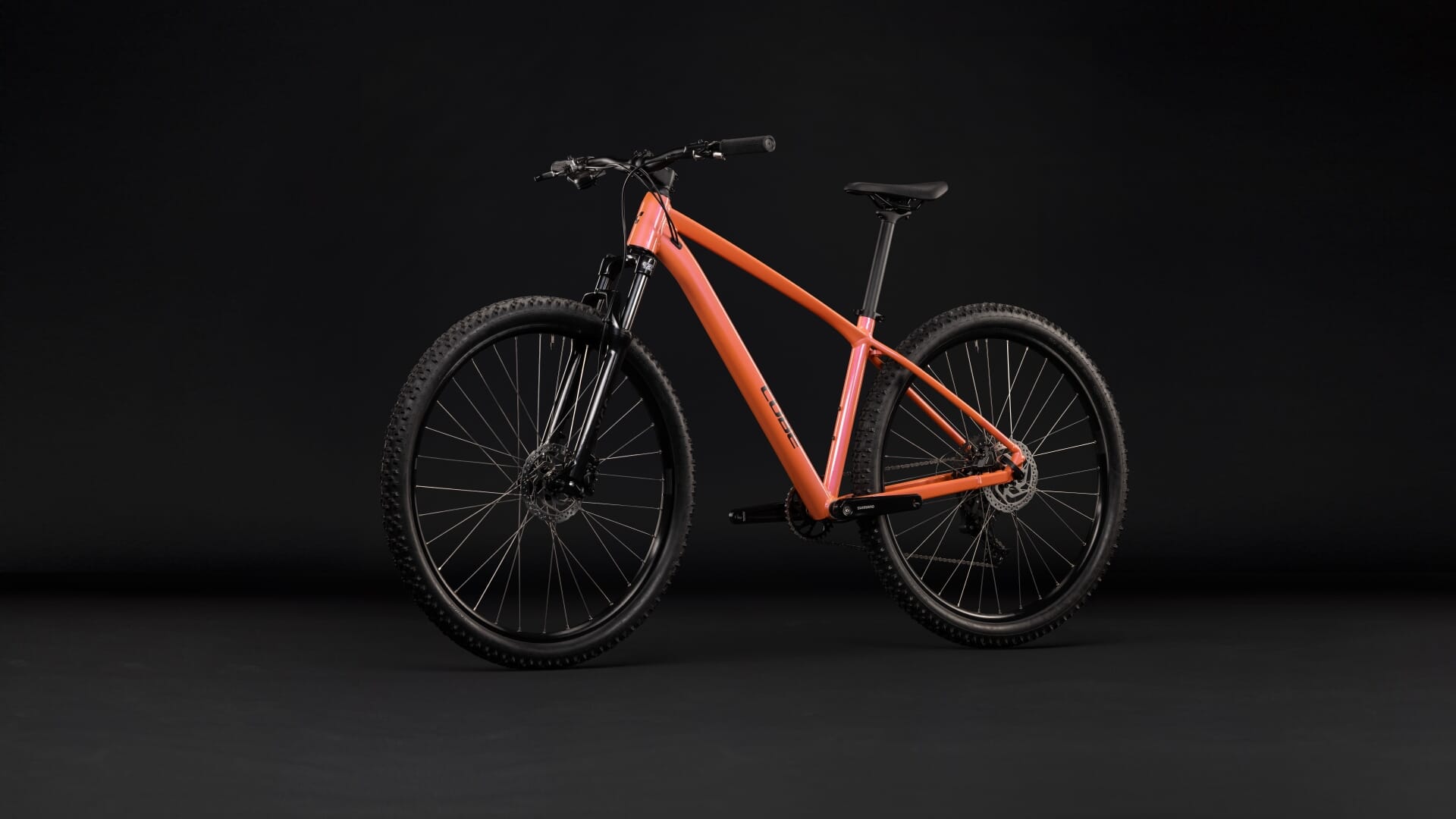

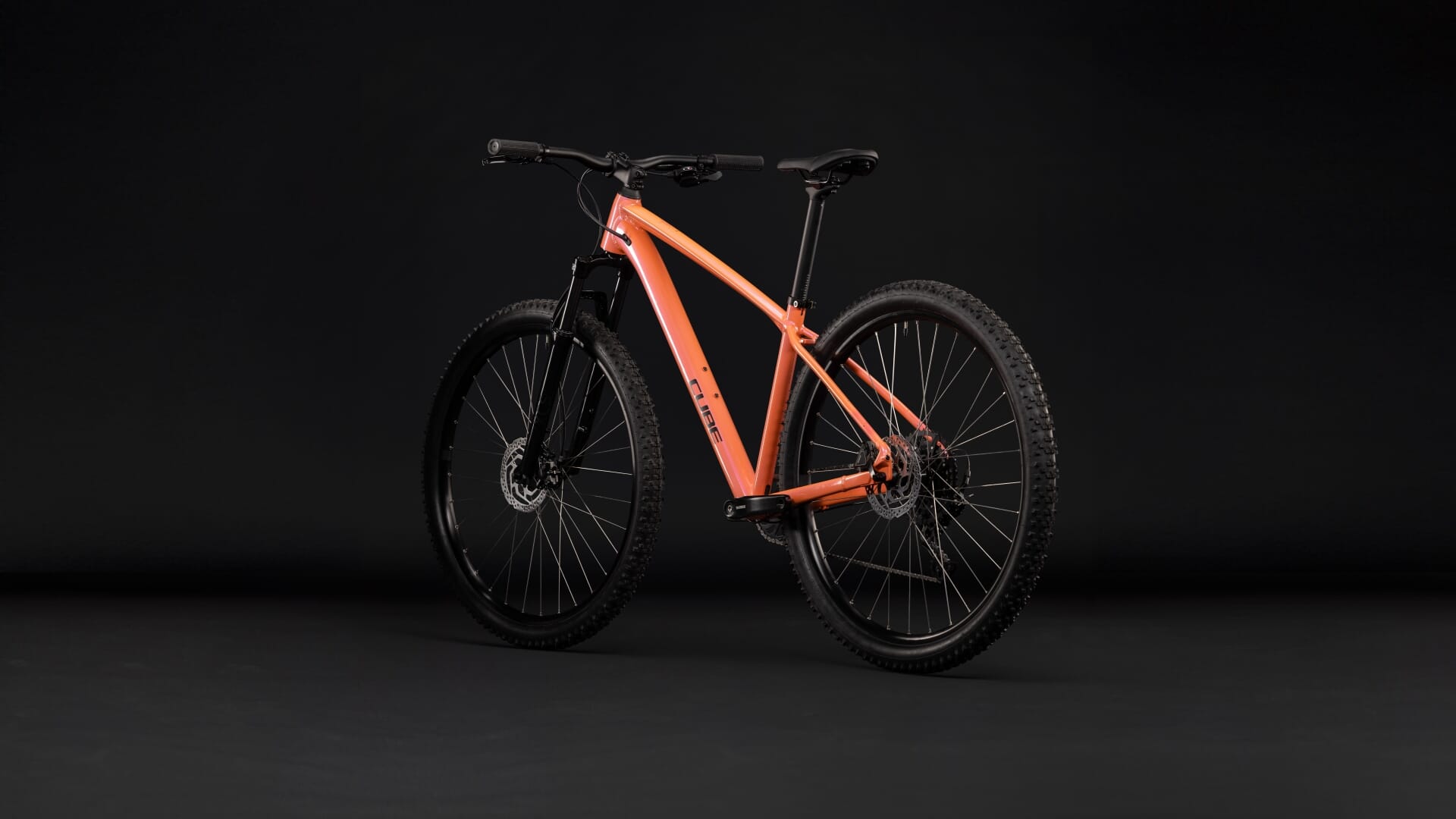

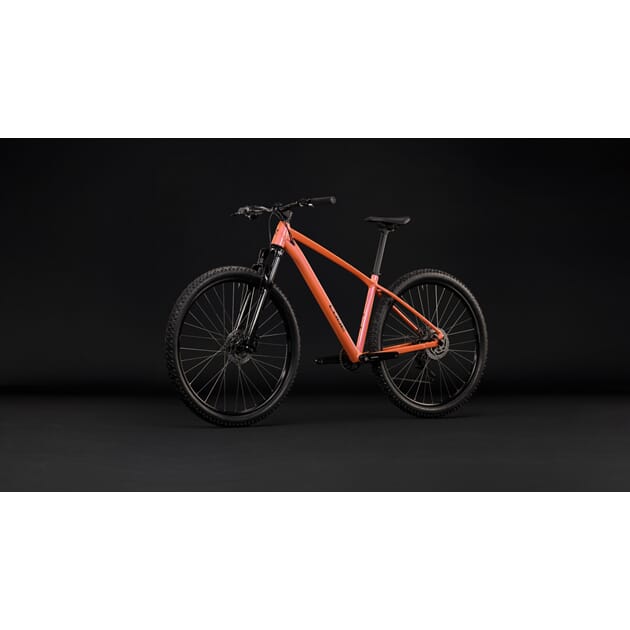

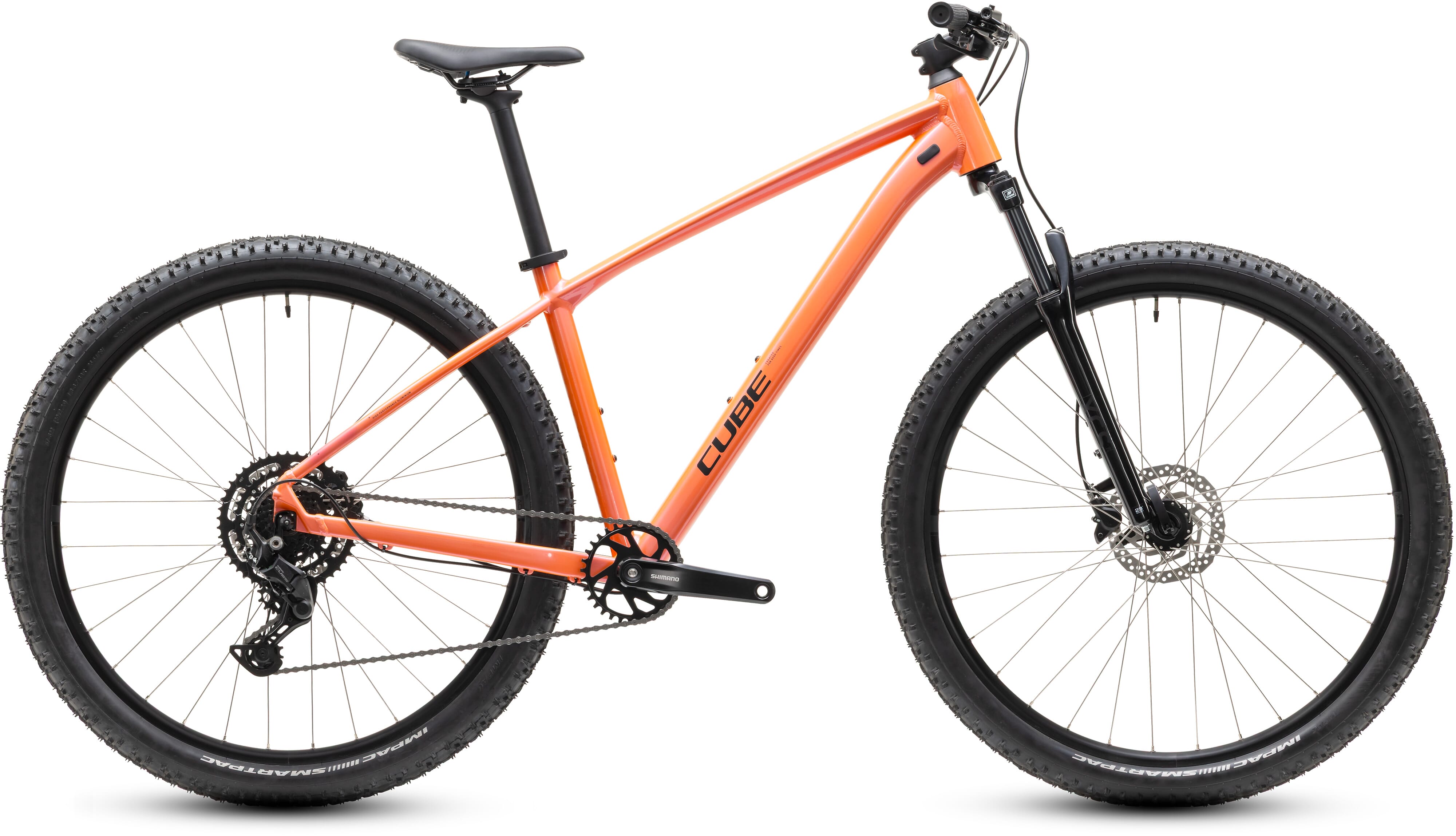

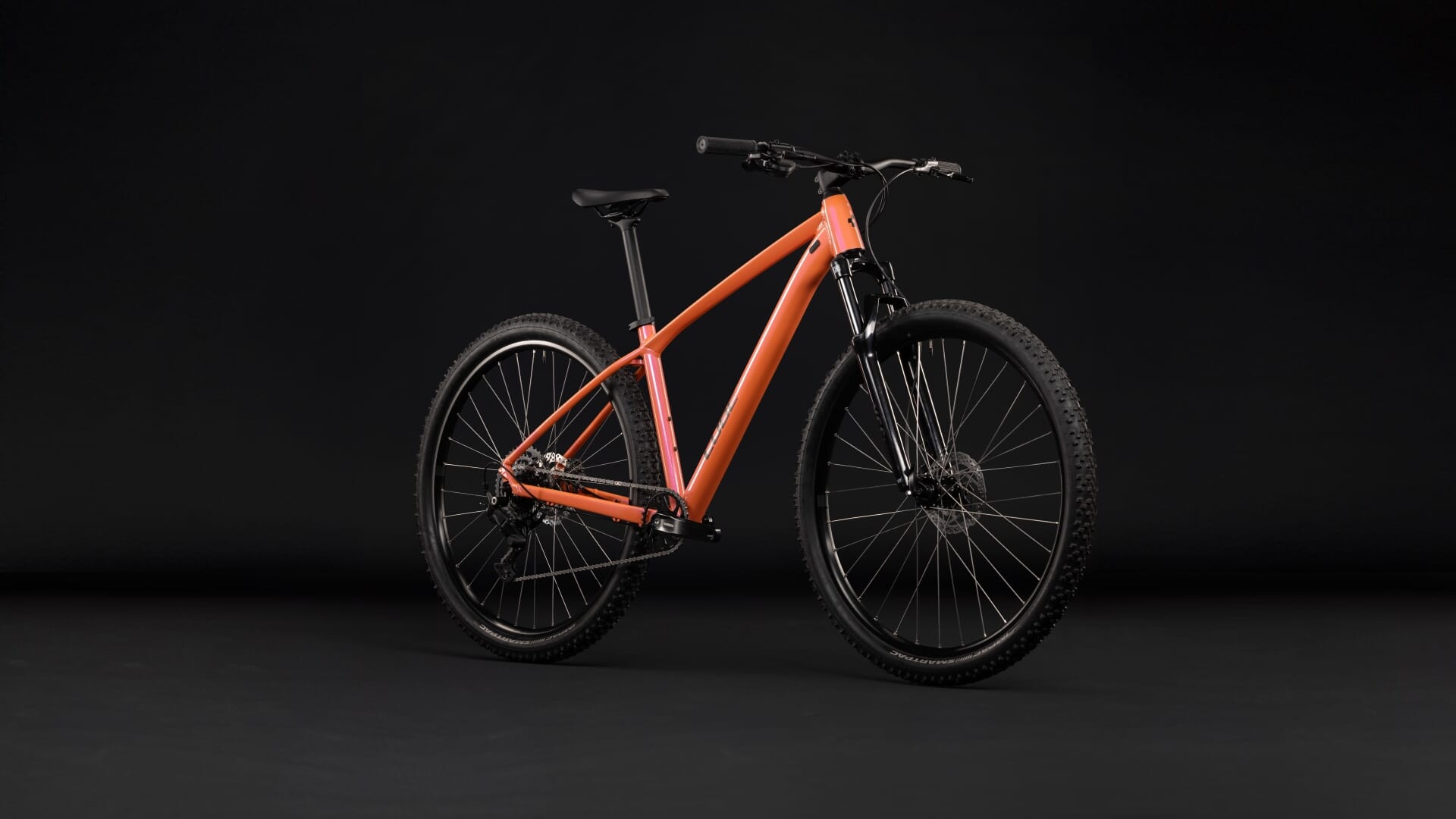

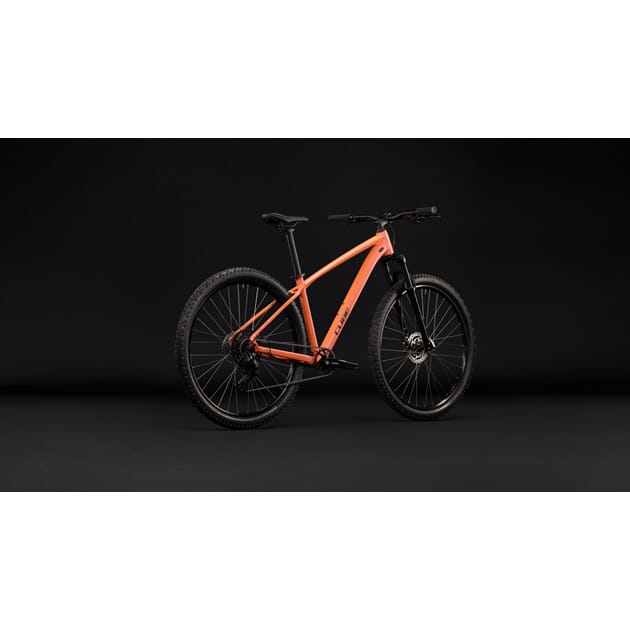

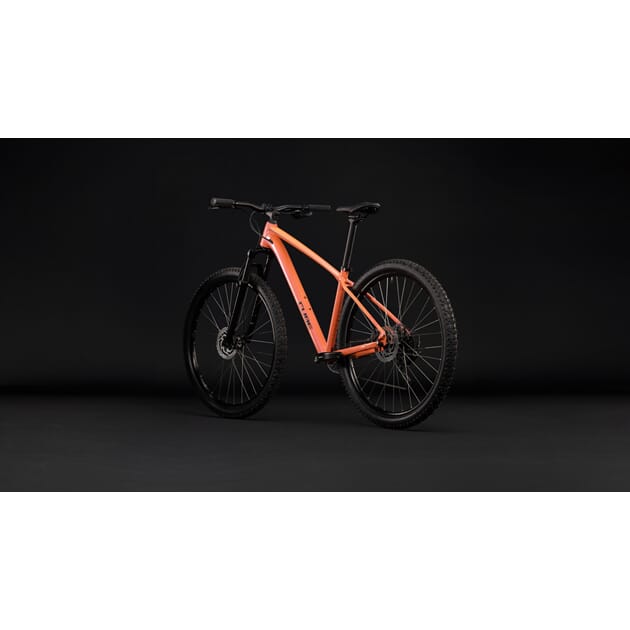

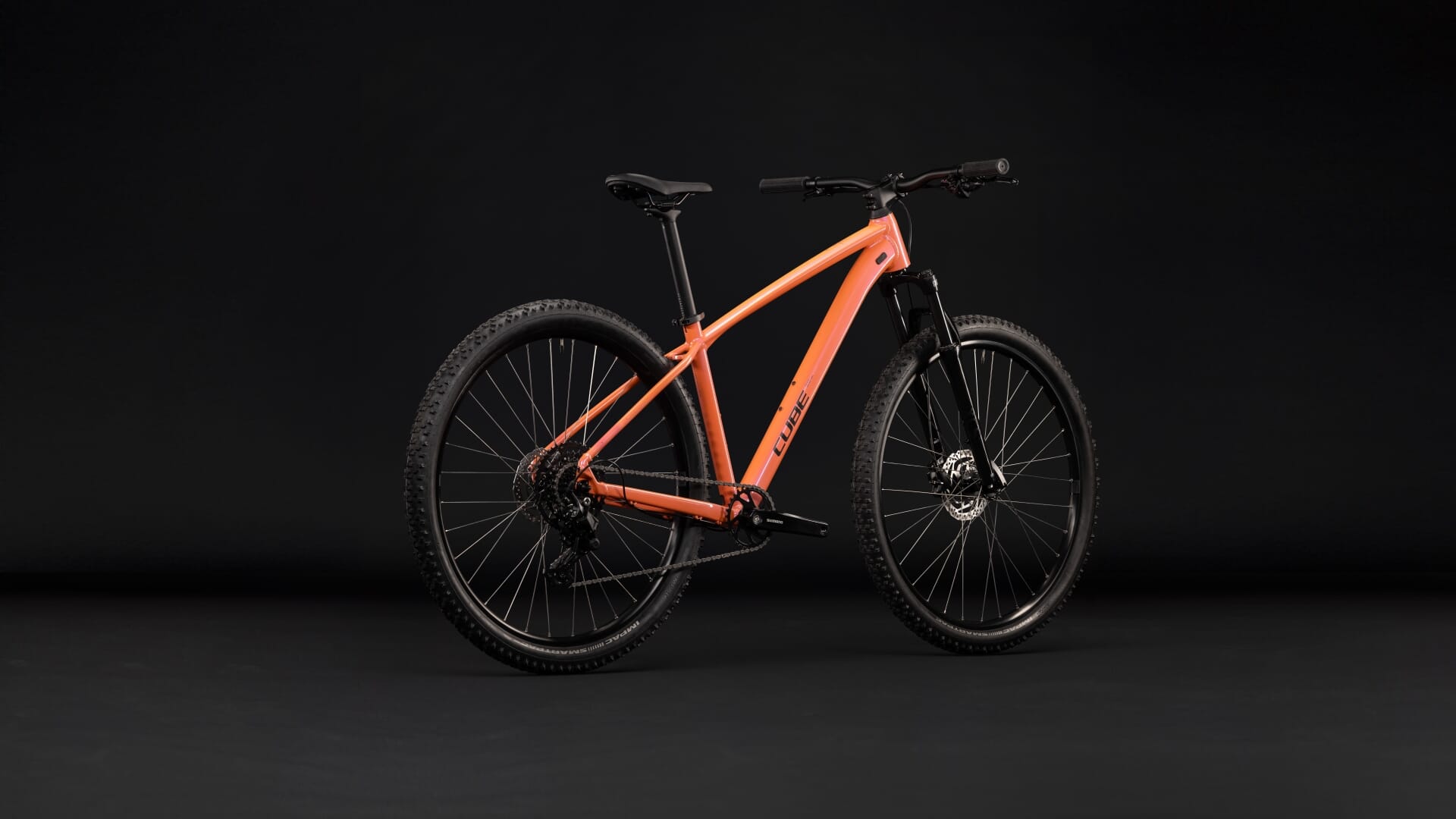

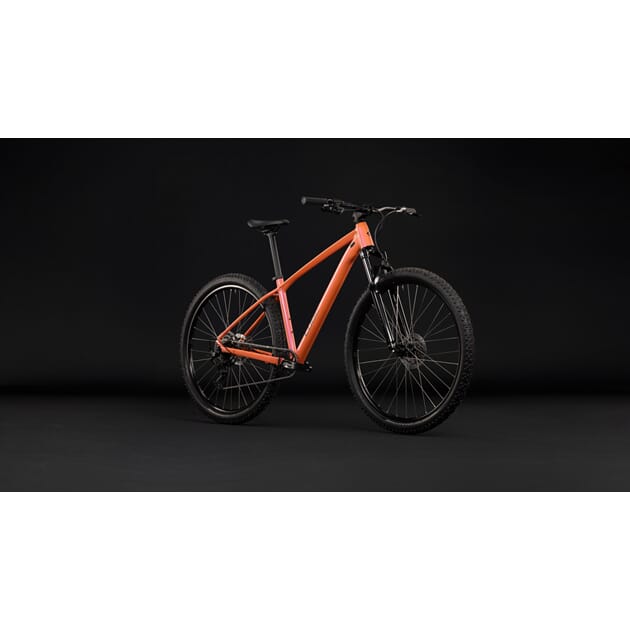

A great bicycle opens your horizons, because if you can ride anywhere the world is your oyster. The Aim ONE's suspension fork, grippy tyres and dependable disc brakes give you the comfort and control to explore wherever you like. For work, for play, for anyone.
AIM
Rugged. Simple. Dependable. Because we wanted the Aim ONE to just get out of your way and let you enjoy the ride, we gave it Shimano's reliable and easy-to-use Cues 1x9 gears with a wide-ranging 11-46T cassette. We backed that up with a set of Shimano hydraulic disc brakes, which have the stopping power you need in any conditions, wet or dry. Wide and comfortable 2.25in tyres hook you up to trail or tarmac, and a Suntour suspension fork with 100mm of rock-, root- and pothole-swallowing travel helps smooth the way. Plus, with Size Split, every rider can find their perfect Aim.
Frame
frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
There's aluminium, and then there's CUBE Aluminium Lite. This heat-treated 6061 aluminium is stiff, fatigue-resistant and, because of its natural corrosion resistance, a great material from which to make lightweight tube sets – and bicycle frames. And it does all this without adding unnecessary weight, so you can get the best enjoyment out of your CUBE.
The right bike should fit you perfectly. That's why we created Size Split. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.
A kickstand can be useful, no two ways about it. But if it's going to do its job properly, it needs a secure mount. That's why we put as much effort into designing the Kickstand Mount for our frames as we do for any other feature. Neat, unobtrusive but exceptionally strong and stable, it's the best way to help keep your CUBE bike upright when you're not riding it.
Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.

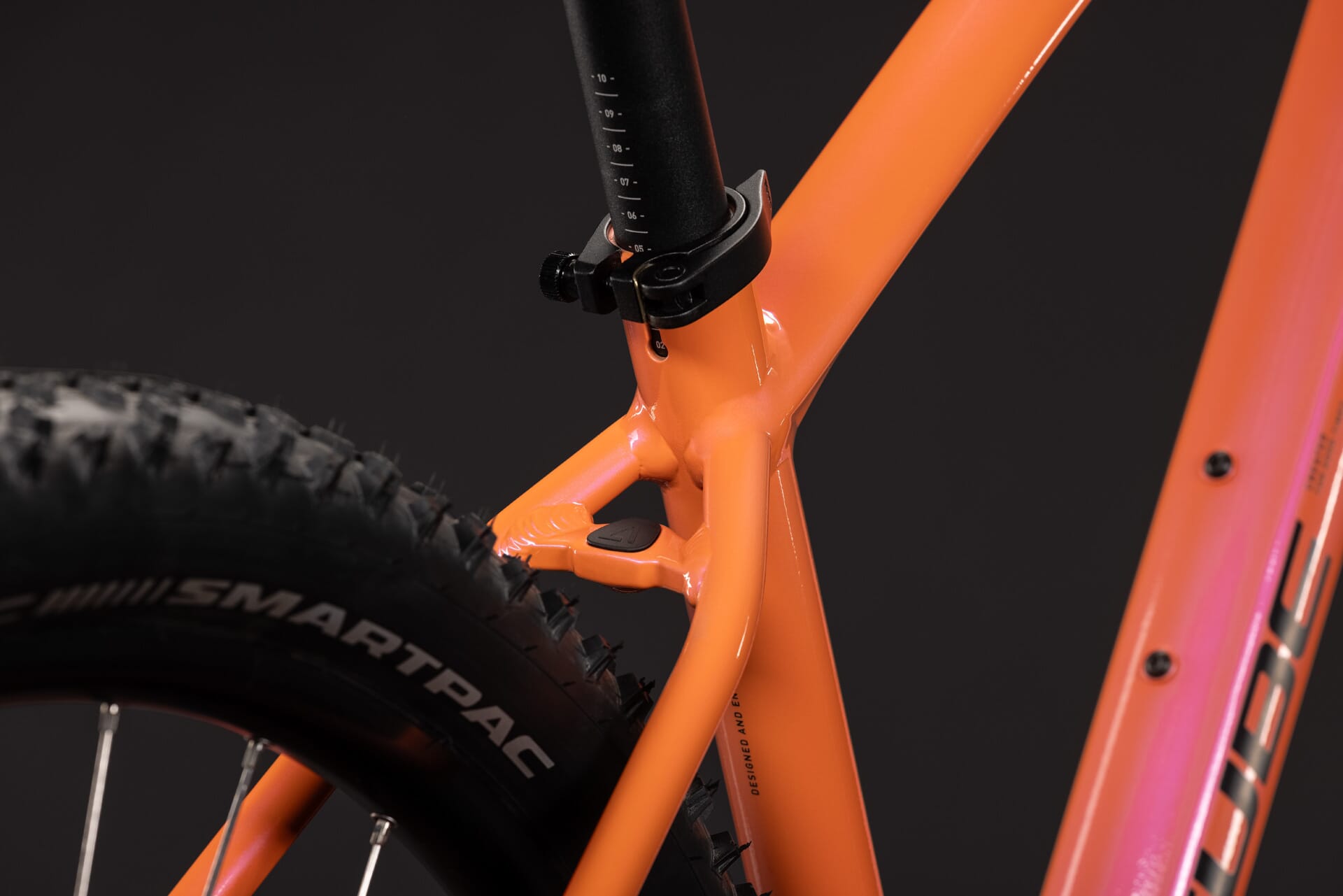

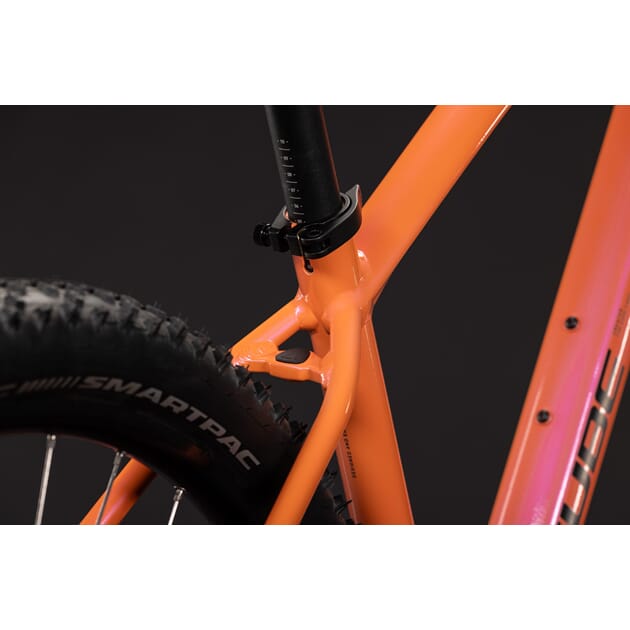

Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.
Easy to fit and even easier to live with, the optional Semi-Integrated Carrier 2.0 is the perfect way to extend the versatility of your CUBE bike. Strong and versatile, it's the ideal way to convert your bike to a tourer, take on the daily commute, or even go shopping with your bike. Have it your way.
size
Size Split: 27.5: XS, S // 29: M, L, XL
Suspension

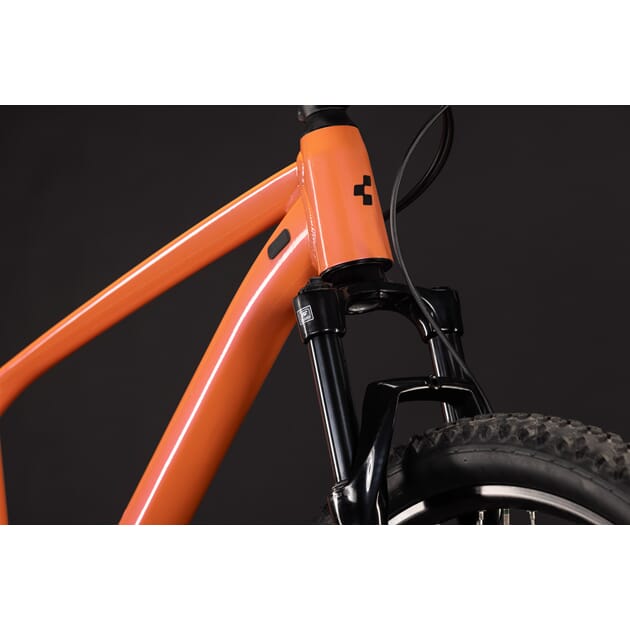

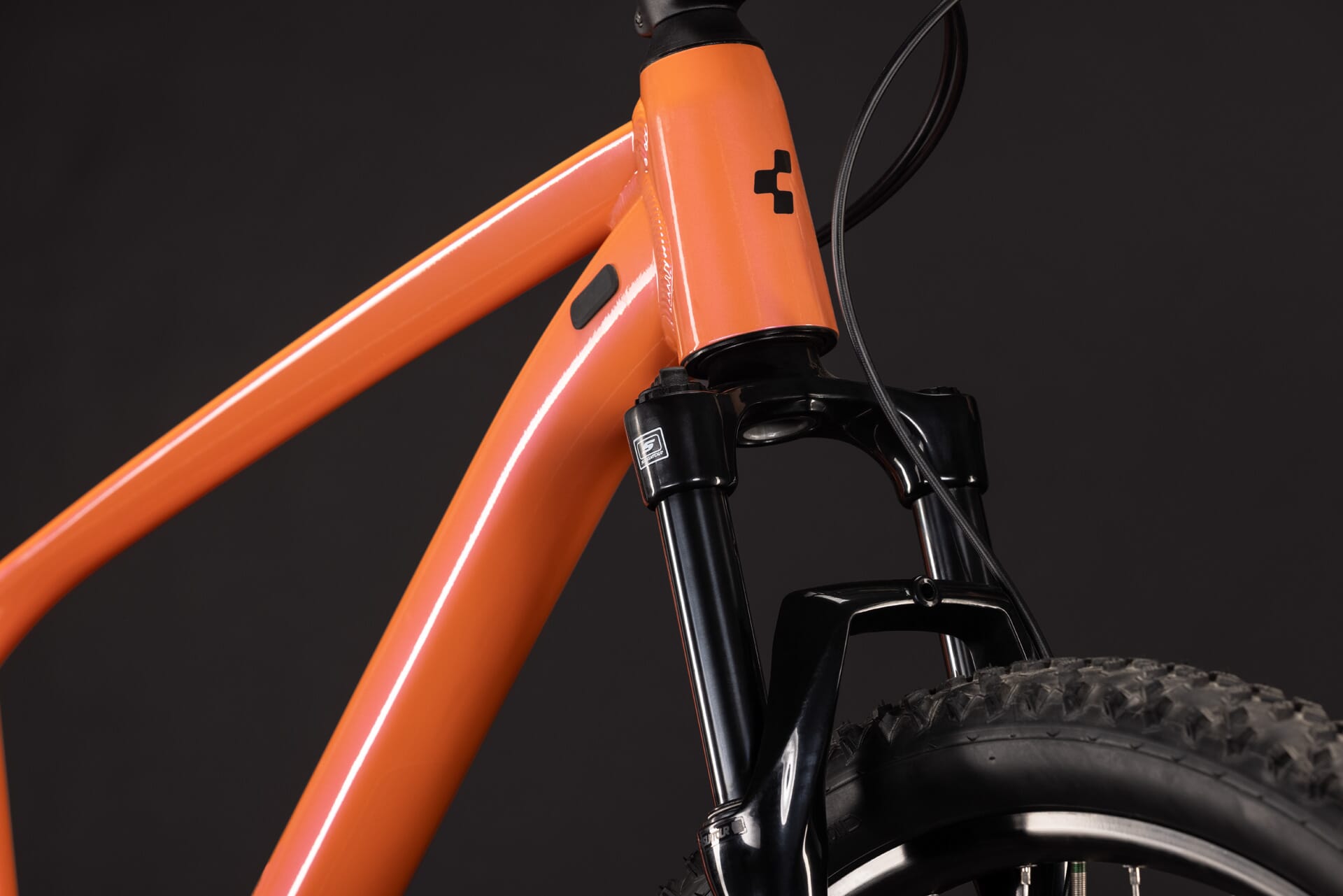

Suspension fork
SR Suntour XCS, 100mm
Drivetrain & brakes
brake system
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
rear derailleur
Shimano Cues RD-U4000-GS, 9-Speed
shifters
Shimano Cues, SL-U4010, Rapidfire Plus
bottom bracket
Thun Paso-ML, 73mm BSA

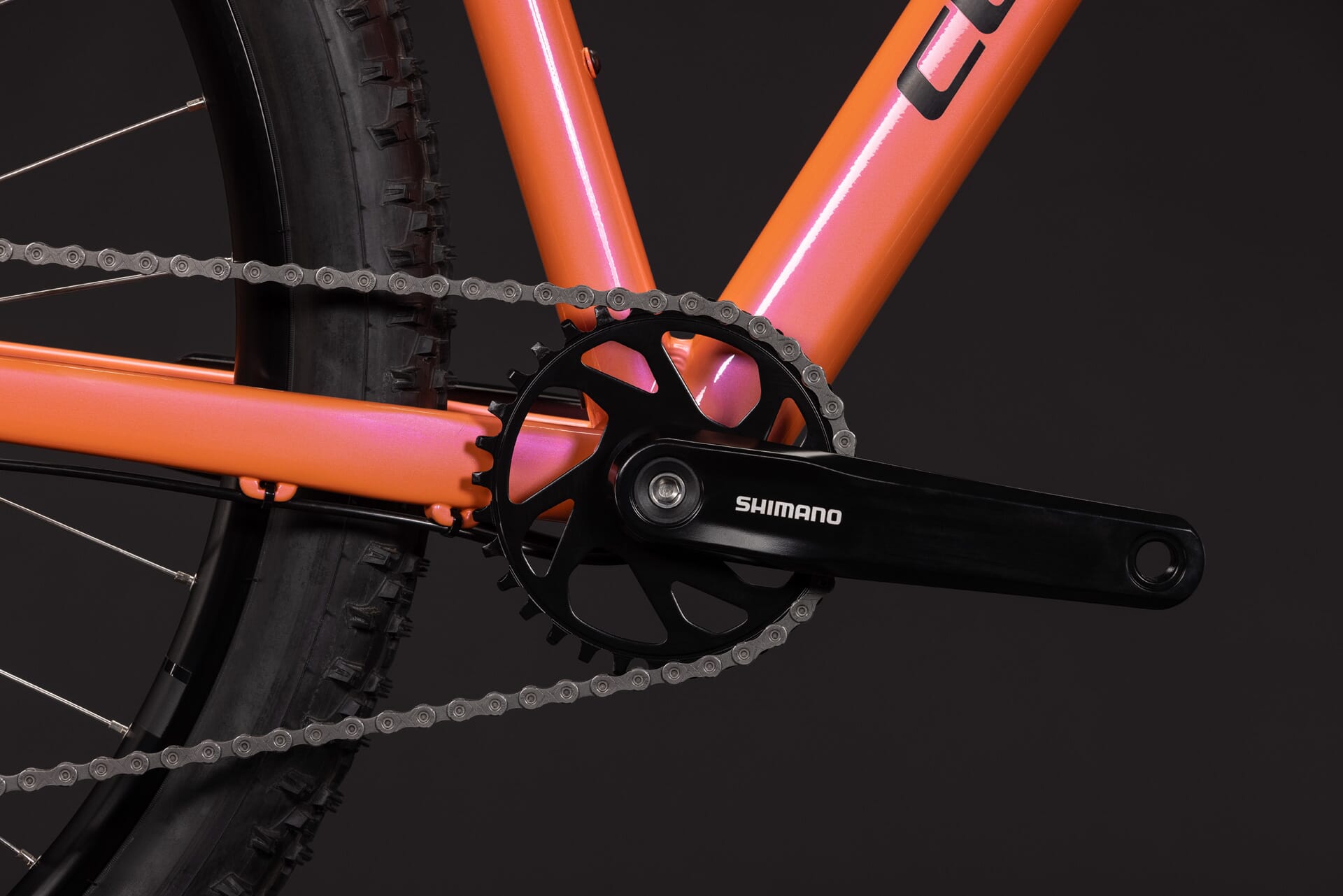

crankset

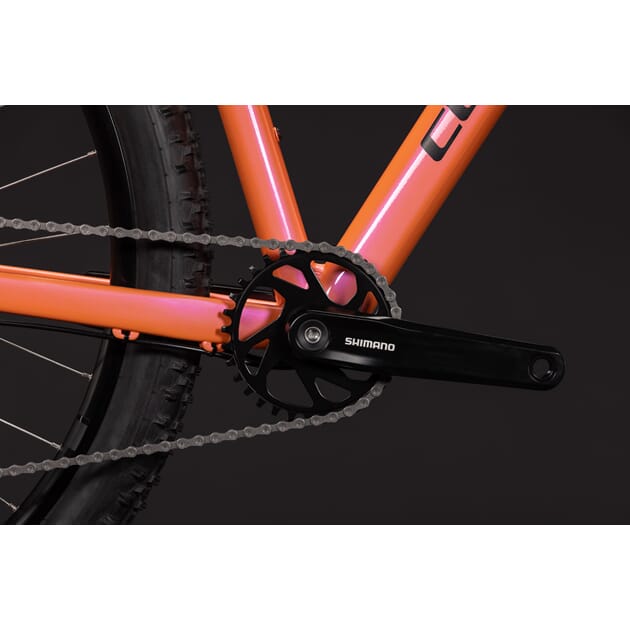

Shimano Cues FC-UT400, 32T
cassette
Shimano Cues CS-LG300, 11-46T
Cockpit
headset

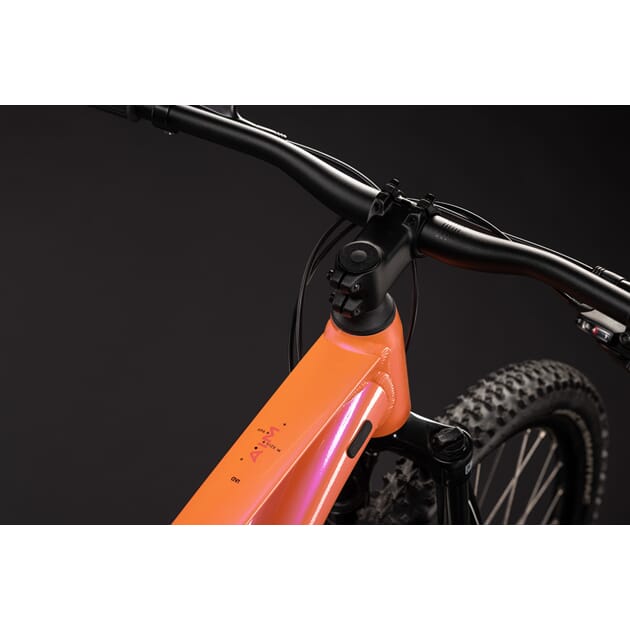

CUBE FPH868p, Tapered, Semi-Integrated

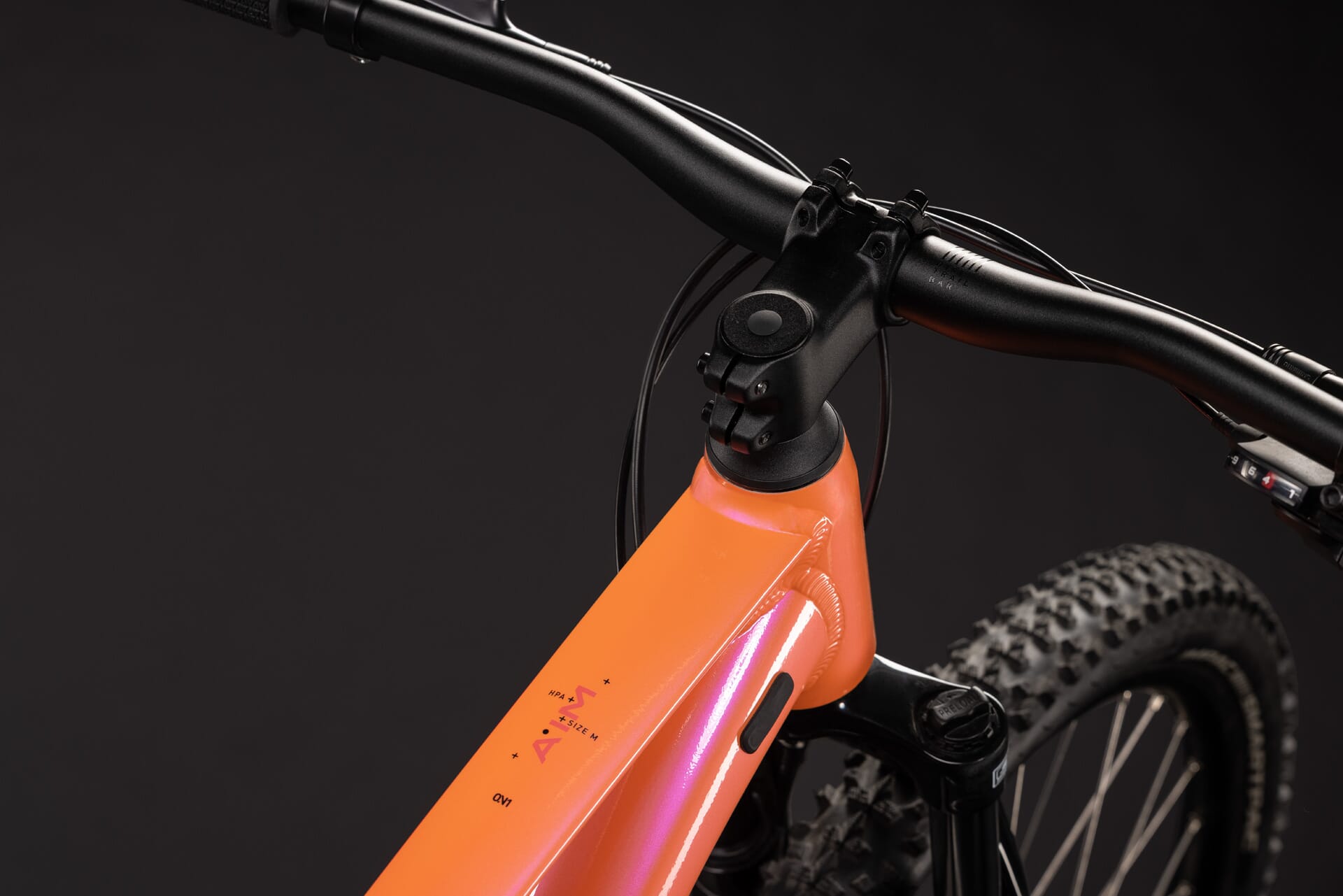

Stem
CUBE Performance Stem, 31.8mm
handlebar
CUBE Rise Trail Bar, 680mm
Wheels
wheelset
ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
tyres
CUBE MTB, Draht, 2.25
Finishing kit
seat post
CUBE Performance Post, 30.9mm
