RAMME
STØRRELSE
47cm, 50cm, 53cm, 56cm, 58cm, 60cm, 62cm
RAMME

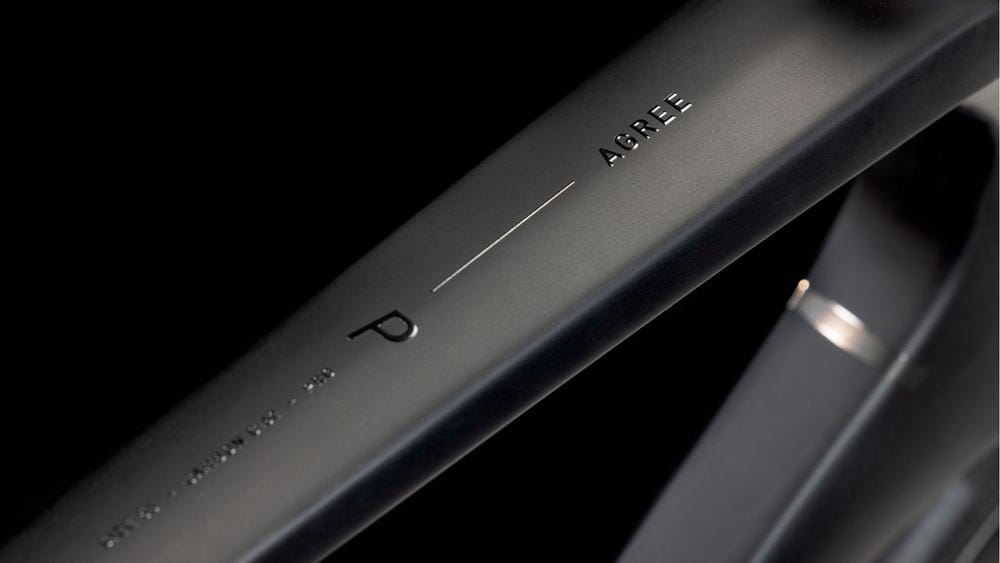

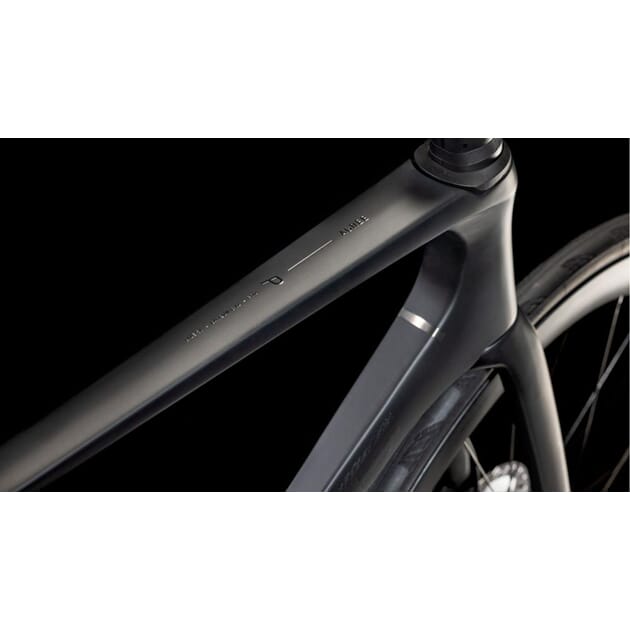

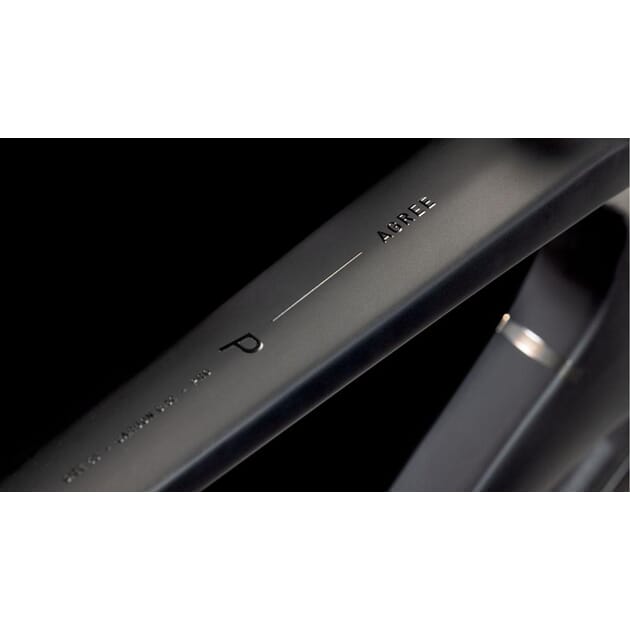

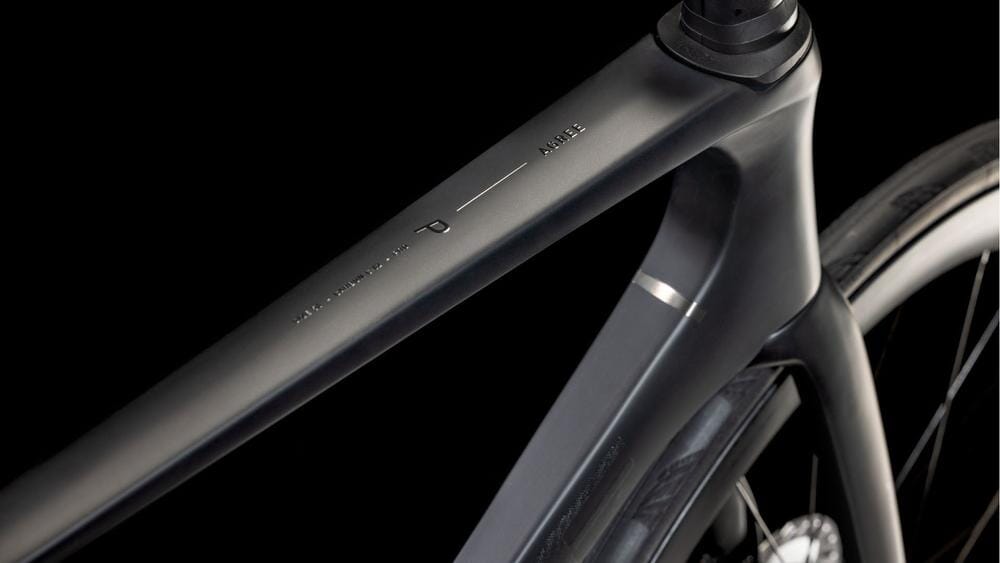

C:62® Advanced Twin Mold Technology, Full Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Storage Box Option, AXH, 12x142mm
DRIVVERK & BREMSER
BAKGIR
Shimano Ultegra Di2 RD-R8150-DGS, 12-delt, elektronisk girsystem
FRAMGIR
Shimano Ultegra Di2 FD-R8150-F
GIR-/BREMSEHENDLER
Shimano Ultegra Di2 ST-R8170
BREMSER
Shimano Ultegra BR-R8170, hydrauliske skivebremser, Flat Mount (160/160)
KRANK
Shimano Ultegra FC-R8100, Hollowtech II, 50x34T
KASSETT
Shimano Ultegra CS-R8101, 11-34T
KJEDE
Shimano CN-M8100
KRANKLAGER
Shimano SM-BB71-41B, 86mm Pressfit

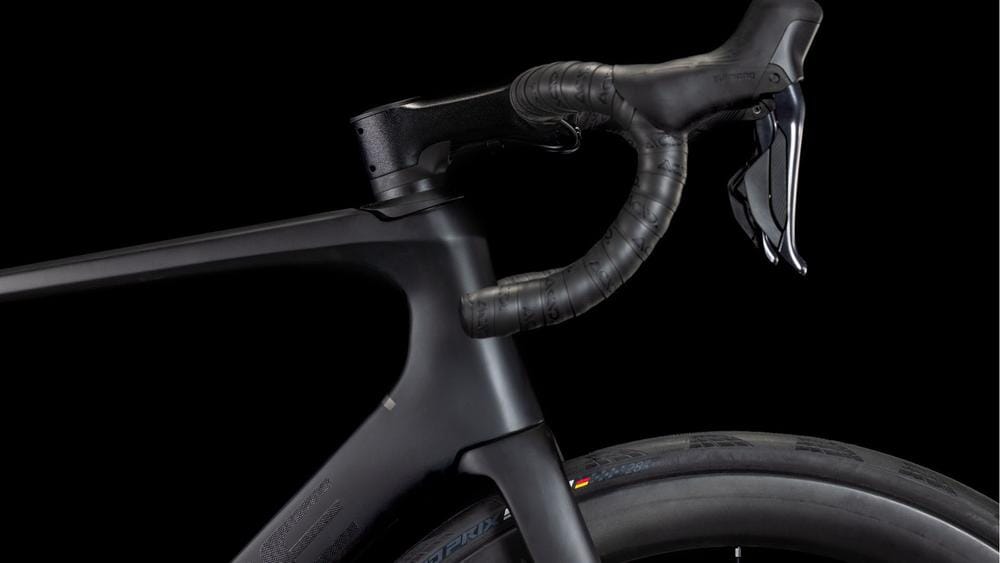

COCKPIT
STYRELAGER
ACROS, Top Integrated 1 1/2" med Integrated Cable Routing, Bottom Integrated 1 1/4"
STYRE

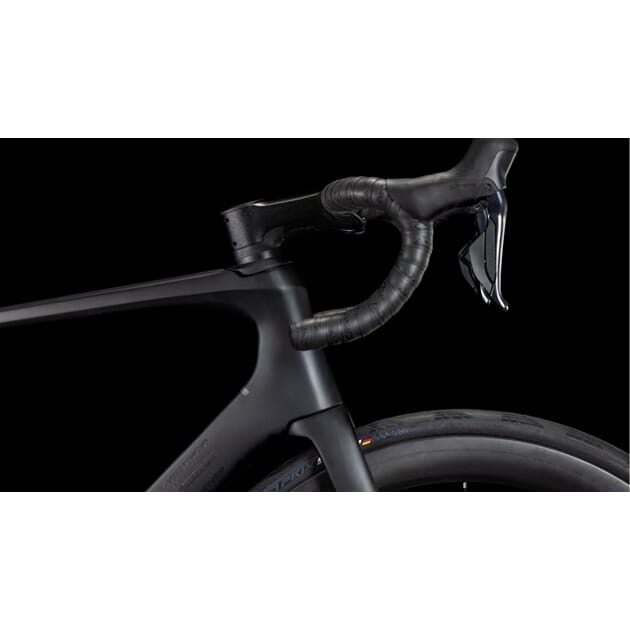

Newmen Advanced Wing Bar, karbon
STYRETAPE
ACID Bartape RD
STEM
CUBE Aero Stem med Cable Routing
HJUL
HJULSETT

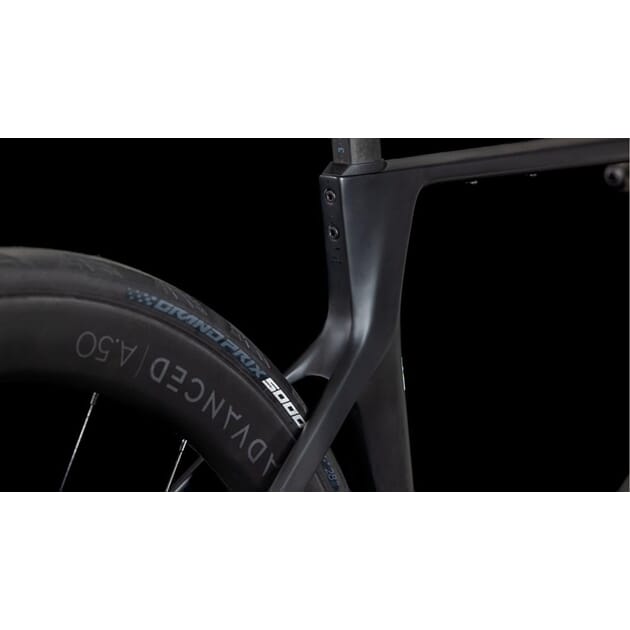

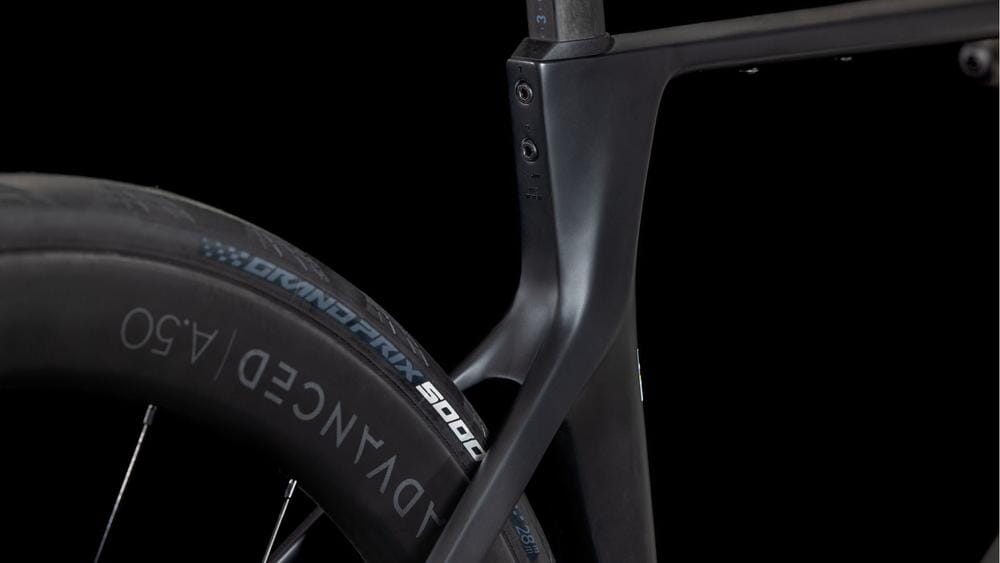

Newmen Advanced A.50 Carbon, 21/21 eiker, 12x100mm/12x142mm, Tubeless Ready
DEKK
Conti Grand Prix 5000 Kevlar, 28-622
UTSTYR
SETE
ACID Nuance Pro
SETEPINNE
Agree C:62 Aero, Comfort Flex

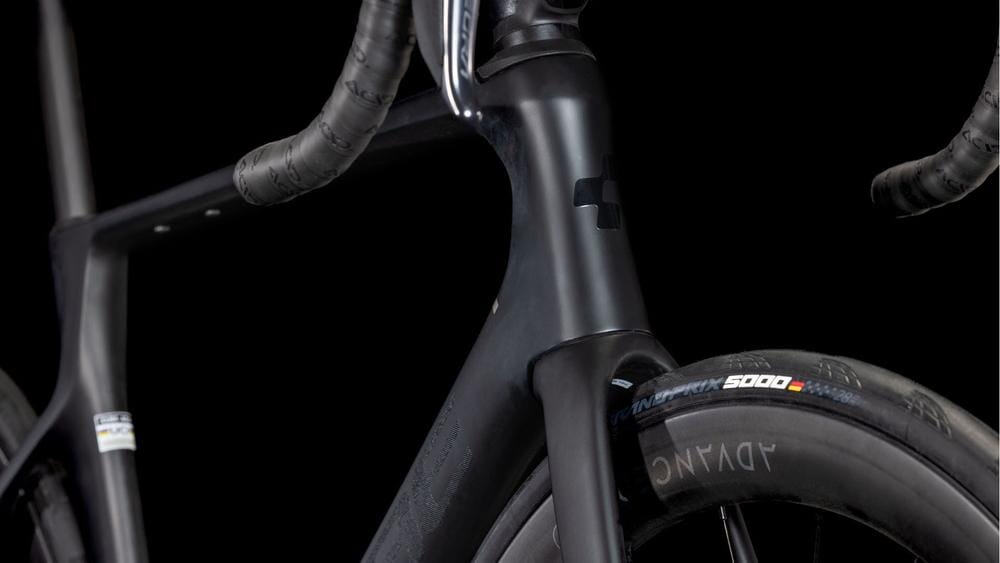

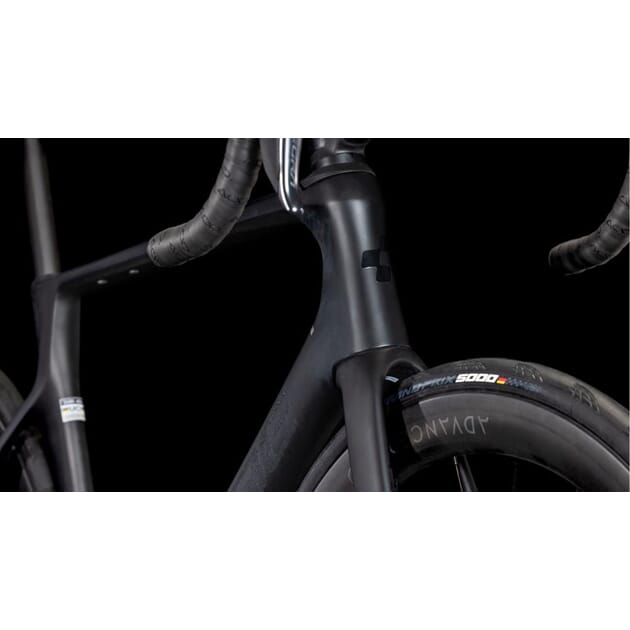

GAFFEL
STIV GAFFEL
CUBE CSL Evo Aero C:62® Technology, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm
PRODUKTINFORMASJON
FARGE
blackline
VEKT
7,9 kg
Geometries
| |
47 cm |
50 cm |
53 cm |
56 cm |
58 cm |
60 cm |
62 cm |
| Seat tube |
410 |
440 |
470 |
500 |
520 |
540 |
560 |
| Top Tube Horizontal |
517 |
522 |
539 |
560 |
575 |
590 |
600 |
| Seat angle |
74.6 |
74.6 |
74 |
73.5 |
73 |
72.5 |
72.5 |
| Head tube angle |
71 |
71.5 |
72 |
72.5 |
72.5 |
72.5 |
72.5 |
| Chainstays |
412 |
412 |
412 |
412 |
412 |
412 |
412 |
| Head tube |
99 |
107 |
127 |
157 |
177 |
195 |
218 |
| Wheelbase |
986 |
987 |
994 |
1007 |
1017 |
1027 |
1037 |
| BB-Height to Hub |
73 |
73 |
73 |
71 |
71 |
69 |
69 |
| Protrusion height - 80mm |
713 |
734 |
760 |
791 |
810 |
829 |
849 |
| Reach |
376 |
378 |
383 |
391 |
394 |
399 |
402 |
| Stack |
513 |
523 |
543 |
572 |
591 |
606 |
628 |
| Length seat post |
350 |
350 |
350 |
350 |
350 |
400 |
400 |
| Angle stem |
-6 |
-6 |
-6 |
-6 |
-6 |
-6 |
-6 |
| Crank length |
165 |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
| Diameter tire maximum |
693 |
693 |
693 |
693 |
693 |
693 |
693 |
| Width tire maximum |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Stem length |
80 |
90 |
90 |
100 |
100 |
110 |
120 |
| Handlebar width |
380 |
400 |
420 |
420 |
440 |
440 |
440 |
