Get ready for more power
From July 2025, you can supercharge the drive torque on selected Bosch motors to up to 100 Nm using the Flow app. Feel the added power – and get up to 400% support from the motor. The eBike Flow app lets you customise your riding modes and choose the performance to match your ride.
CREATING
MEMORIES

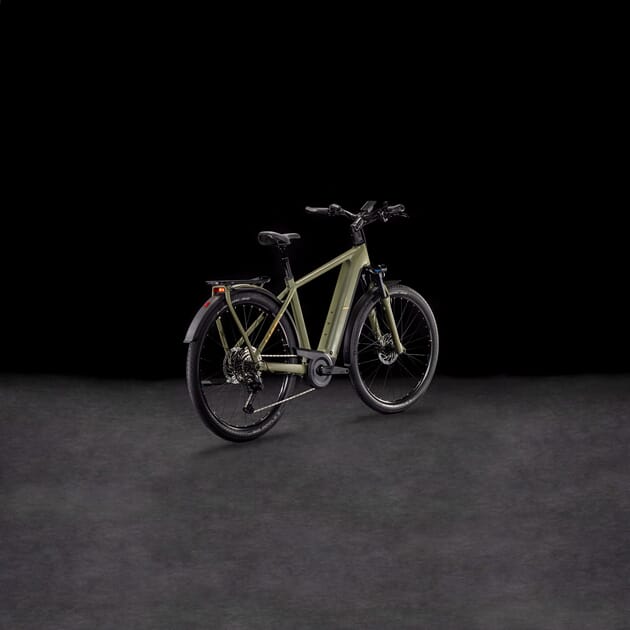

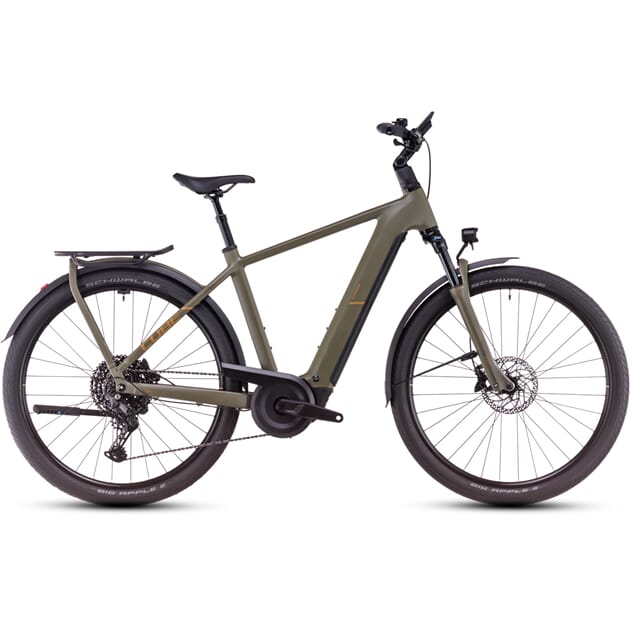

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
A CUBE hybrid is your passport to freedom. With its powerful Bosch CX drive and stunning CUBE design, the Kathmandu Hybrid Pro has everything you need to explore further. Comfortable and endlessly versatile, it's all you need to expand your horizons.
The Kathmandu Hybrid Pro by CUBE is all about the freedom of two-wheeled exploration, with a handy Bosch power boost. You can't miss the elegant lines of the Integrated Carrier 3.0, which provides a sturdy base for carrying whatever you need. The Bosch CX drive and PowerTube battery, meanwhile, are so neatly incorporated into the frame's design, you'll barely notice them until you start turning the pedals. At which point, the wide range and precise shifting of Shimano's Cues 1x11 gears are bound to come in handy, as is the smooth strength of the 4-piston Shimano hydraulic disc brakes when you need to slow down. With a full complement of included accessories, the only remaining question is where you'll be headed next...

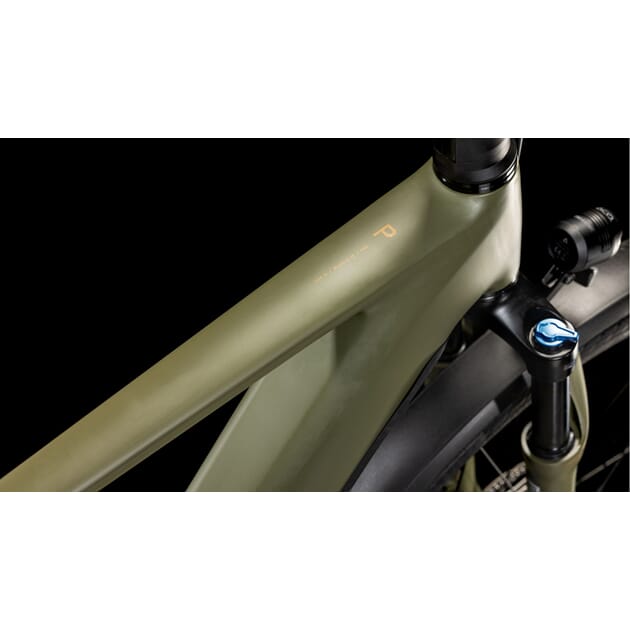

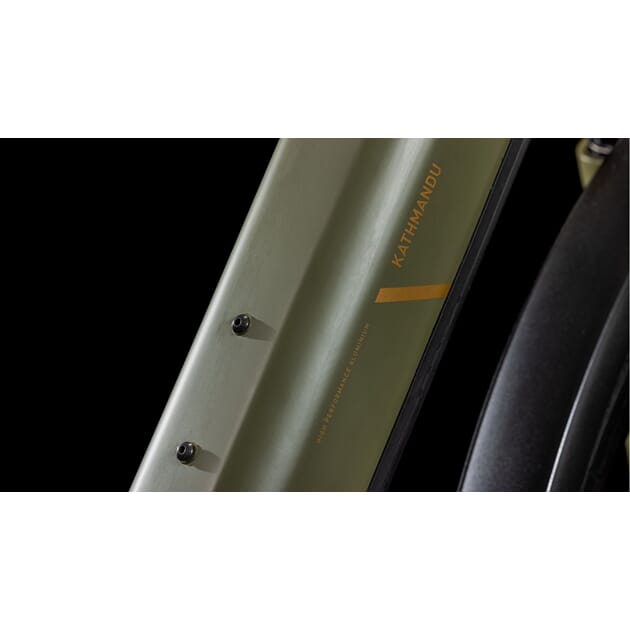

FRAME
· FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
· SIZE
Classic: 50cm, 54cm, 58cn, 62cm
Easy Entry: 46cm, 50cm, 54cm, 58cm, 62cm
Trapeze: 46cm, 50cm, 54cm, 58cm
SUSPENSION
· SUSPENSION FORK
SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
E-BIKE SYSTEM
· DRIVE UNIT
Bosch Drive Unit Performance Line CX, Smart System
· REMOTE
Bosch LED Remote
· BATTERY
Bosch PowerTube 800wh
· DISPLAY
Bosch Kiox 500
· CHARGER
Bosch 2A
DRIVETRAIN & BRAKES
· BRAKE SYSTEM
Shimano BR-MT420, Hydr. Disc Brake (180/180)
· REAR DERAILLEUR
Shimano Cues RD-U6000-GS, 11-Speed
· SHIFTERS
Shimano Cues SL-U6000, Rapidfire-Plus
· CRANKSET
ACID MTB Hybrid Pro
· CASSETTE
Shimano Cues CS-LG400, 11-50T
· CHAIN
KMC eGlide

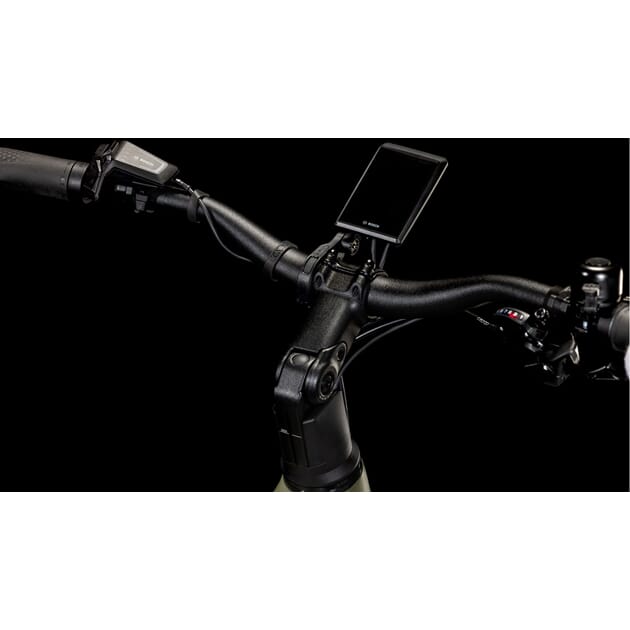

COCKPIT
· HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
· STEM
CUBE Comfort Stem Pro, 31.8mm, Adjustable
· HANDLEBAR
CUBE Comfort Trail Bar, 700mm
· GRIPS
ACID Travel Comfort
WHEELS
· RIMS
CUBE EX25, 32H, Disc, Tubeless Ready
· FRONT HUB
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
· REAR HUB
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
· TYRES
Schwalbe Big Apple, Active, 55-622
FINISHING KIT
· SADDLE
ACID Sequence Pro Plus
· SEAT POST
CUBE Suspension Seatpost HD, 31.6mm
· PEDALS
ACID PP MTB

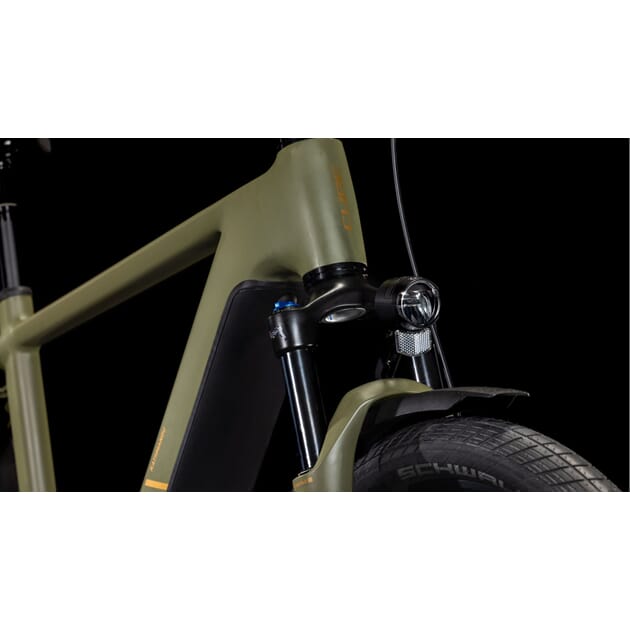

· FRONT LIGHT
ACID Front Light PRO-E 60 X-Connect, 12V, DC
· REAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DC
· KICKSTAND
ACID FM Pure Kickstand
· MUDGUARDS
ACID 65 Integrated Carrier 3.0
· BELL
Easy Bell

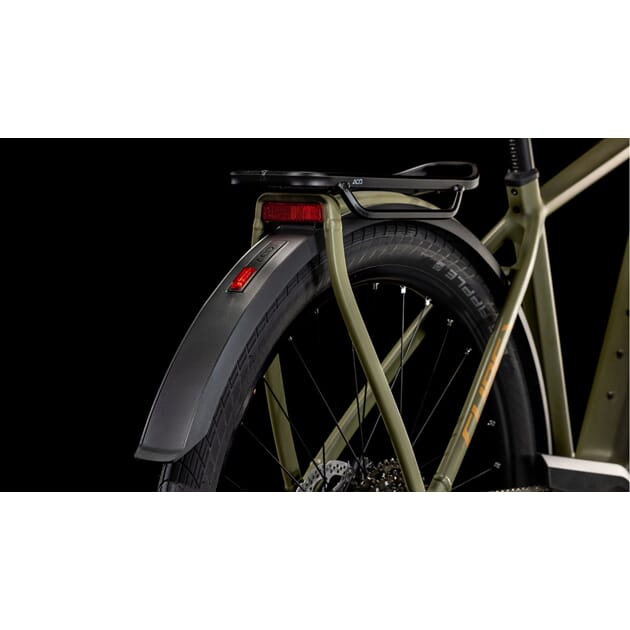

· CARRIER
ACID Integrated Carrier 3.0, CUBE Adapter Compatible
PRODUCT INFORMATION
· COLOUR
dustyolive´n´gold
· WEIGHT
27,6 kg
