YOUR NEW
WAY TO RIDE

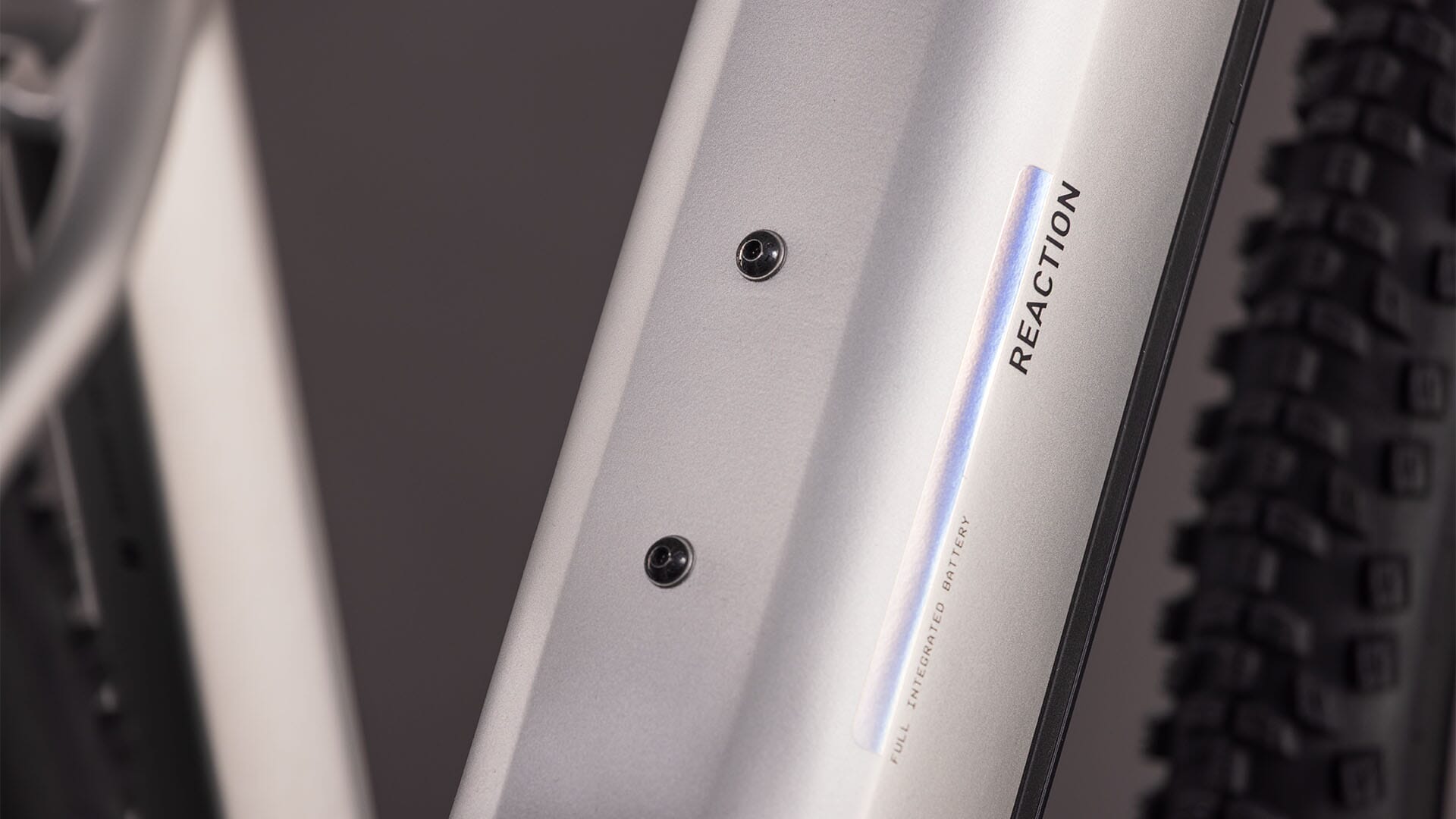

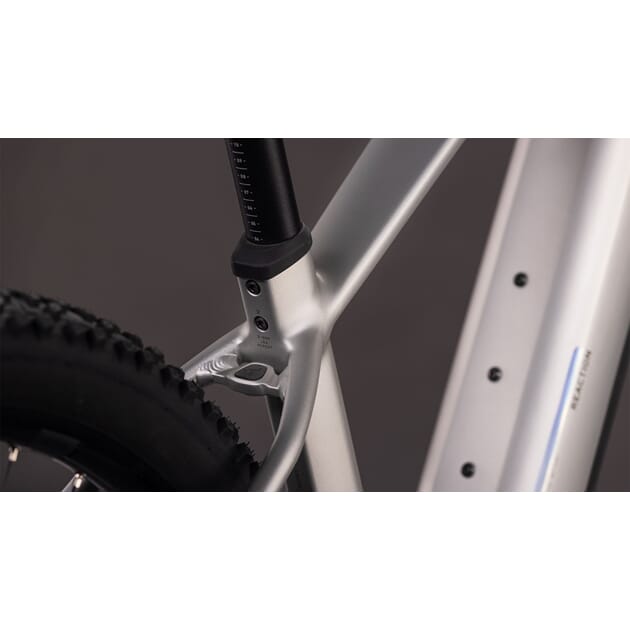

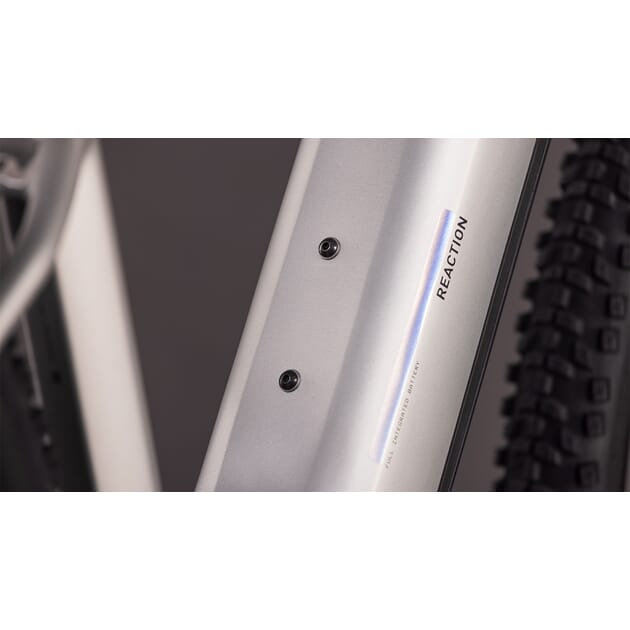

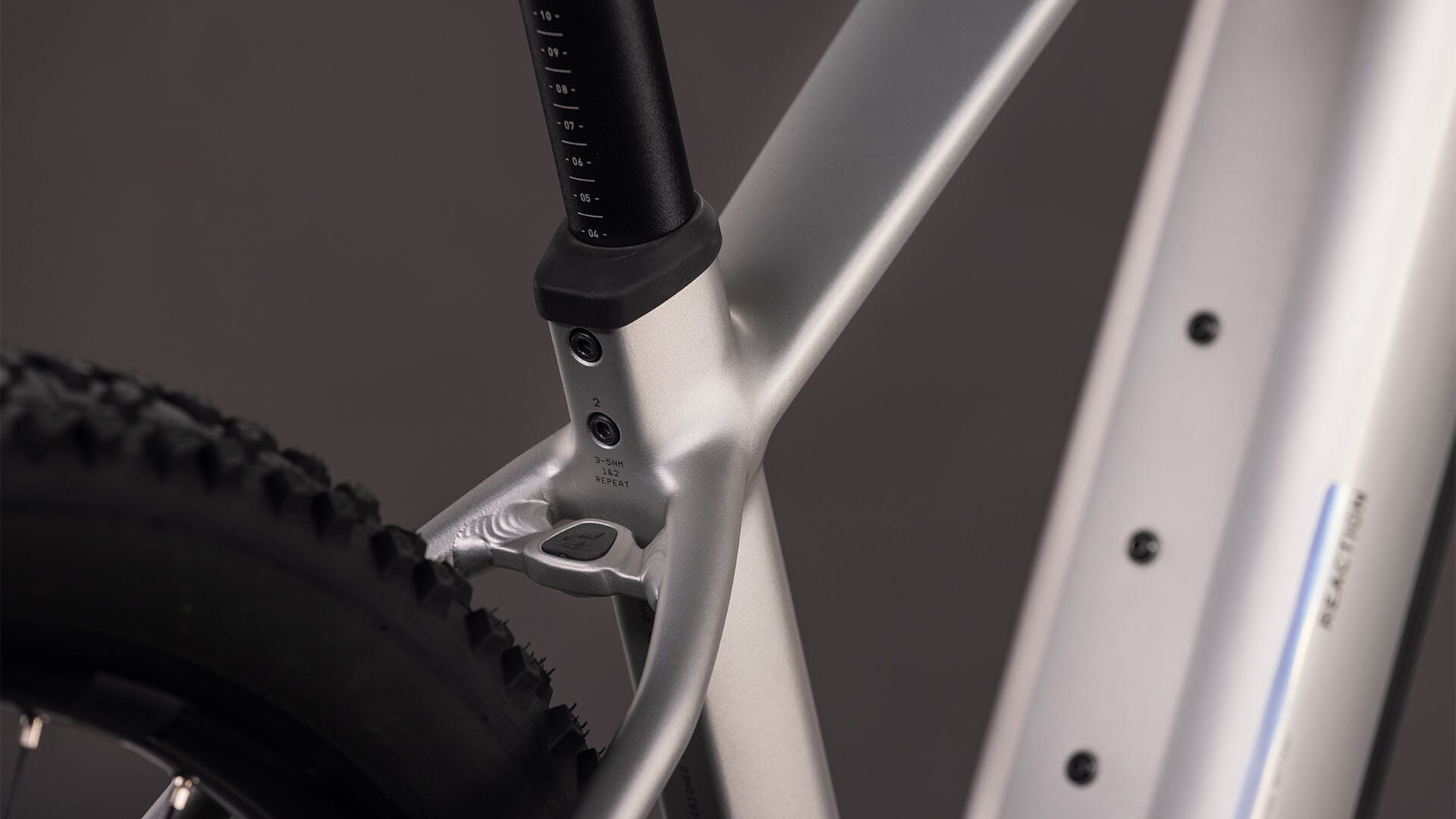

The Reaction Hybrid's neat and tidy design is no accident. With the 600Wh PowerTube battery neatly concealed and the Bosch CX drive housed securely, its svelte lines disguise lots of clever features. It's PowerMore-ready, making it easy to add up to 250Wh of extra battery capacity. The integrated seat clamp and cable routing complement the clean aesthetic. There's a pre-installed chain guide, and it's ready to accept ACID mudguards and a luggage carrier... plus, with X-Connect, adding a compatible ACID front light is as simple as plugging it into the headset. And, with Size Split, it's easy to find the perfect fit for every rider. We've thought of everything, so you can just ride.
Frame Material
Aluminium Superlite
Battery
600Wh
Sizes
Size Split
Highlights

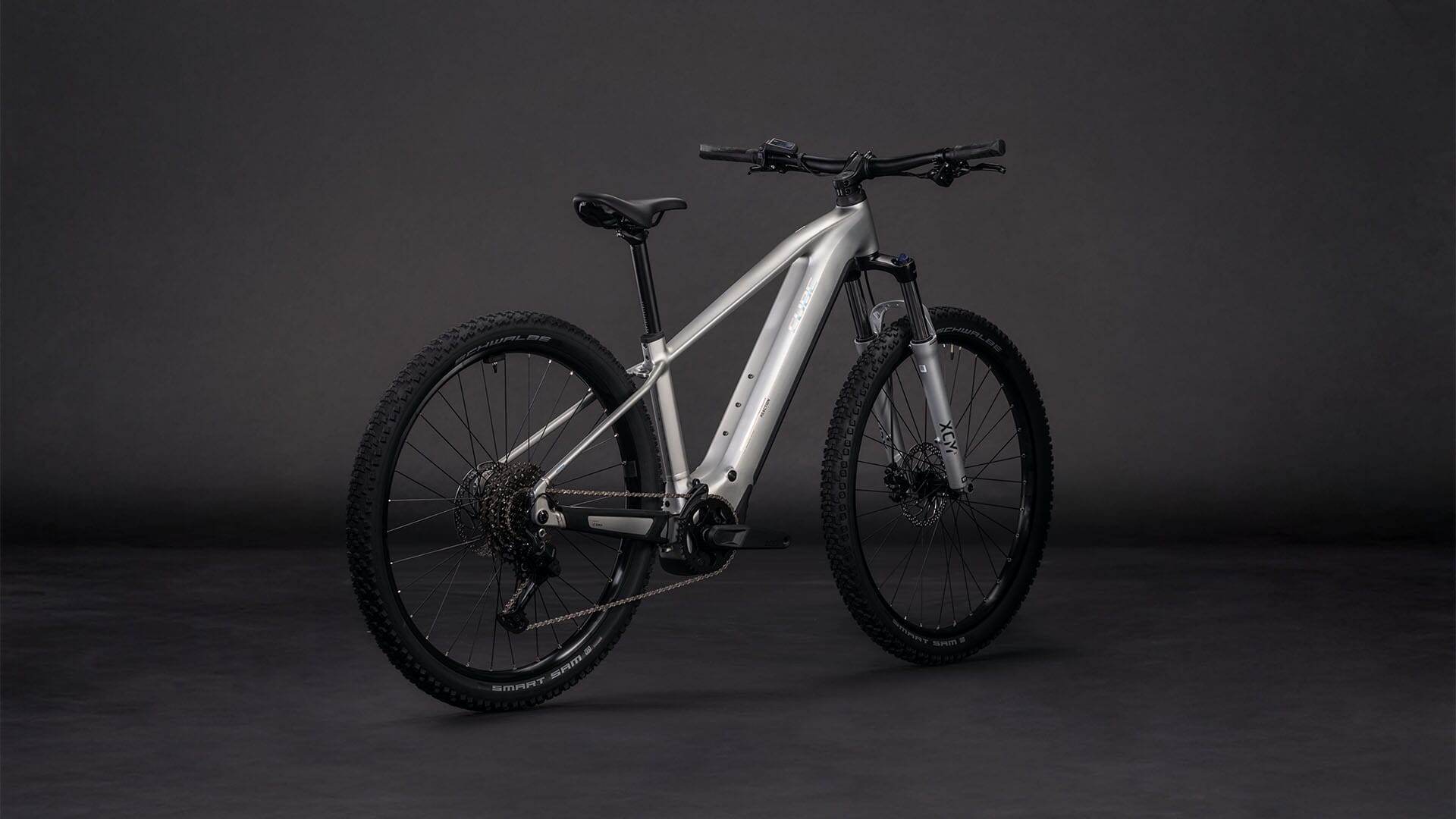

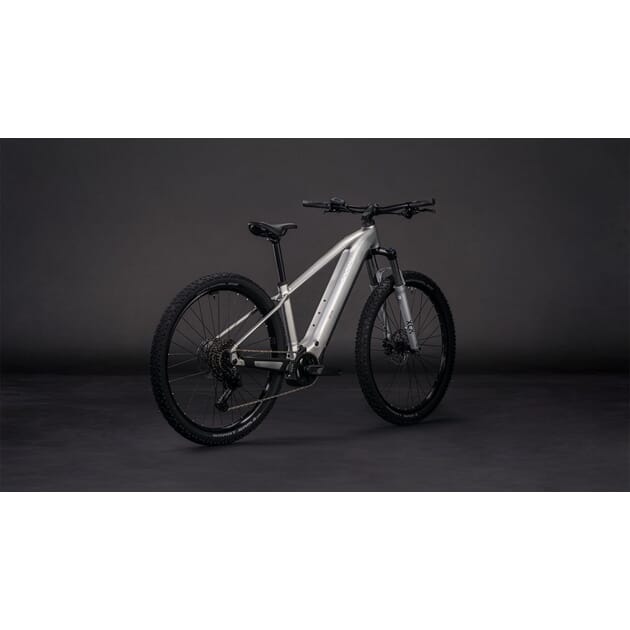

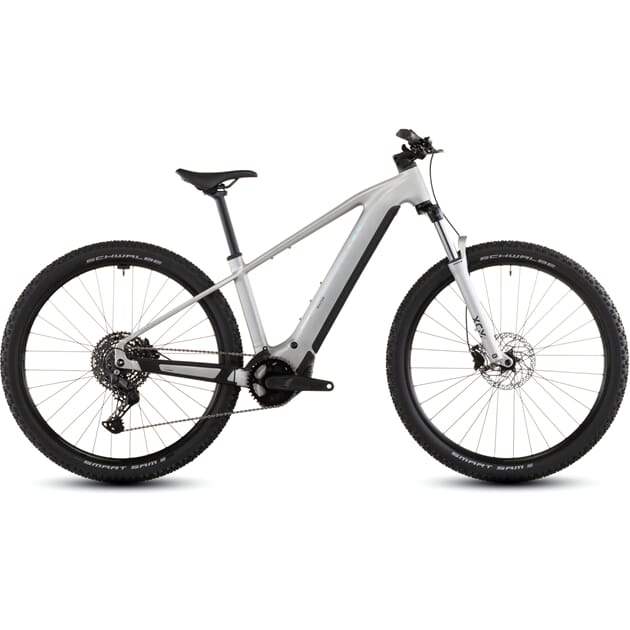

Power up your sense of adventure with the Bosch-powered Reaction Hybrid ONE. With a wide range of frame sizes and styles, a 600Wh battery and smooth pedalling assistance, it's the versatile explorer companion with the power to take your riding further. On-road or off, it's ready for miles of riding smiles.
One of the best ways to expand your riding horizons is with a Bosch-equipped CUBE hybrid hardtail. The Reaction Hybrid ONE combines our clever frame design and a 600Wh PowerTube battery with Bosch's renowned, Smart System-equipped CX motor and Shimano's reliable, easy-to-use Cues 1x10 gears for smooth, almost effortless pedal assistance. There's a suspension fork for improved comfort and control on-road or off, with 120mm of travel (100mm for small frame sizes and for all Easy Entry models). And strong all-weather Shimano hydraulic disc brakes, combined with wide and comfortable Schwalbe Smart Sam 2.6in tyres, ensure you can always slow and stop safely. Fun and adventure, in one neat package.
Product details
weight 24,8 kg
headset ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
handlebar CUBE Rise Trail Bar 35
chain KMC eGlide
wheelset ACID Pro 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Structural Weight 150 kg
Maximum rider weight 120 kg
frame Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points
size Classic: Size Split: 27.5: S // 29: M, L, XL, XXL
drive unit Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Remote Bosch Purion 200 with Integrated Display
battery Bosch PowerTube 600
charger Bosch 2A

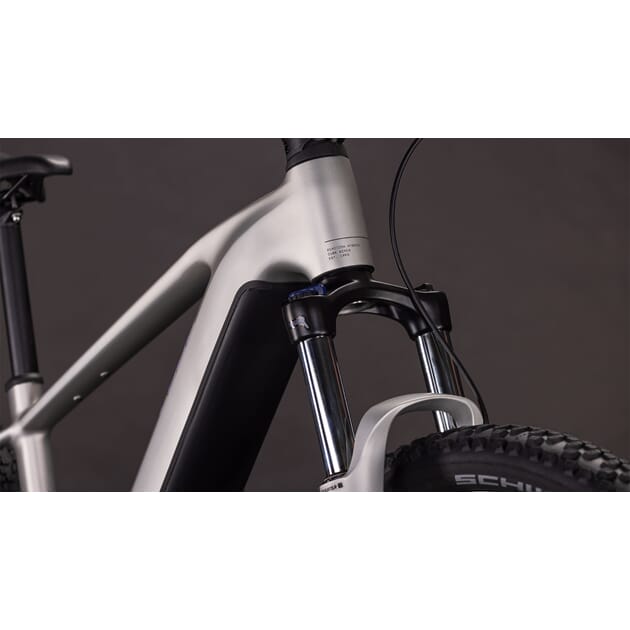

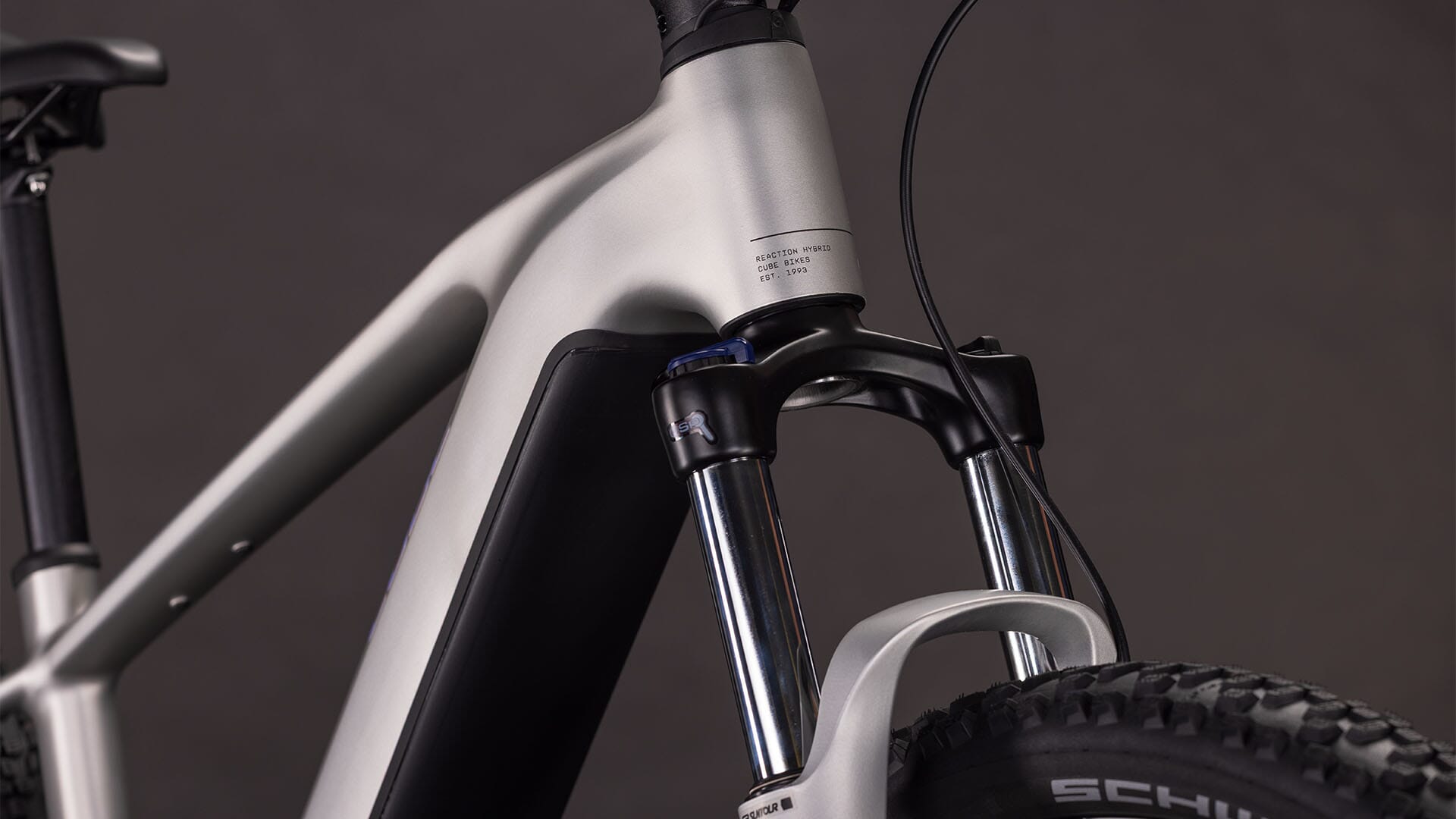

Suspension fork SR Suntour XCM34 NLO Coil, Tapered, 15x110mm, 120mm (27.5: 100mm)
brake system Shimano BR-MT200, Hydr. Disc Brake (180/180)
rear derailleur Shimano Cues RD-U6000-GS
shifters Shimano Cues SL-U6000, Rapidfire-Plus

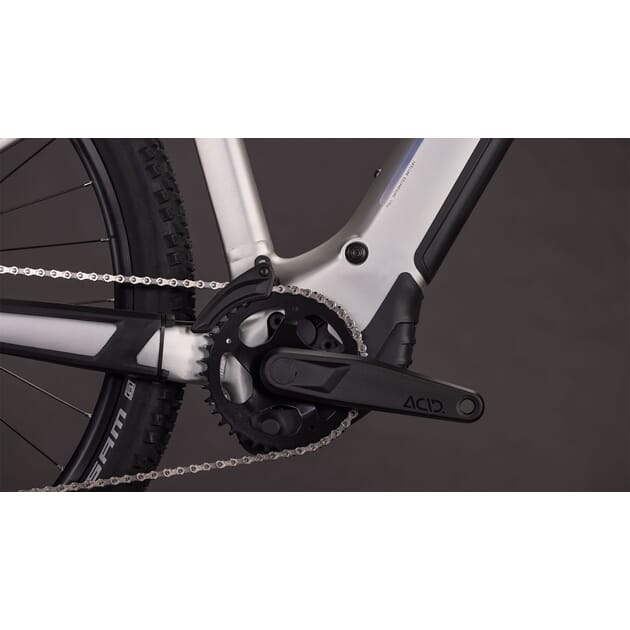

crankset ACID MTB Hybrid Pro, 38T
cassette Shimano Cues CS-LG400, 11-48T

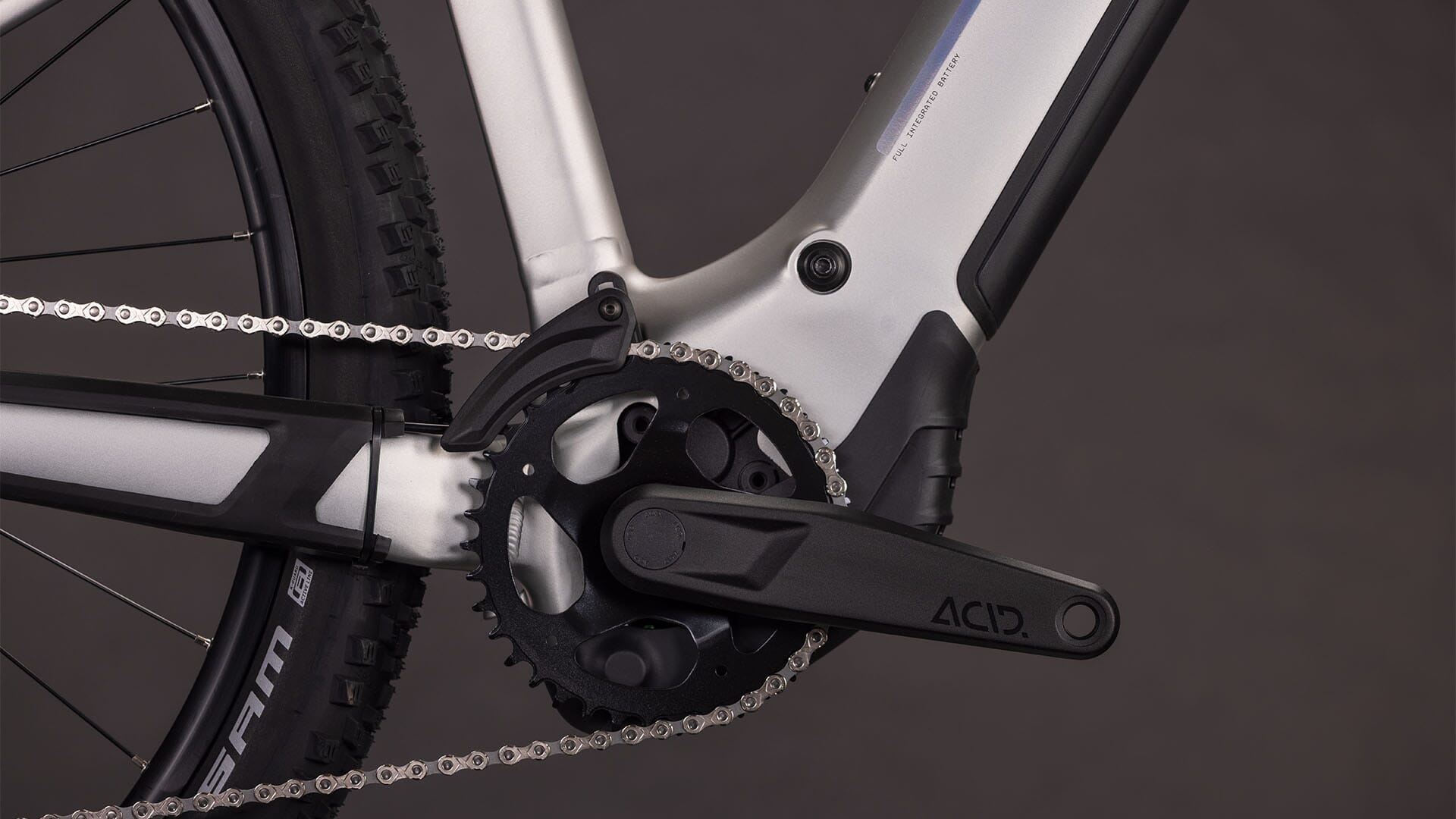

chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Stem CUBE Performance Stem E-MTB 35, FPI-Link
grips ACID Hybrid Perform
tyres Schwalbe Smart Sam, Active, 2.6
saddle ACID Sequence 160
seat post CUBE Performance Post, 31.6mm
pedals ACID PP MTB
lock Abus Art.Nr. 38465
colour sleekgrey´n´prism
