*** REGELVERK***
Bruk av en slik modifisert elektrisk sykkel på offentlig vei kan være i strid med gjeldende lovgivning i enkelte land.
Dette gjelder i Norge, hvor det kun er fritatt for krav til registrering, førerkort og forsikring for elsykler med motorhjelp opp til 25 km/t. Det er ikke tillatt å bruke elektriske sykler utstyrt med SpeedBox-produkter på veier, sykkelstier og i offentlige rom eller private områder. Produktet garanteres kun å oppheve hastighetssperren på den angitte drivlinjen i dagens utførelse, og med dagens firmware versjon. Bruk av SpeedBox kan medføre at elsykkelens garanti går tapt. Produsenten og selger påtar seg ikke erstatningsansvar for bruk av SpeedBox-produkter i strid med gjeldende regler.
Compatible with motors:
E6000
Not compatible with:
SpeedBox App
Di2 (electronic gear shifting system)
PROPERTIES:
Speed limiter: up to 99 km/h
Display shows: real values up to 22 km/h
Compatible with motors: E6000
Activation: SpeedBox is constantly activated
Deactivation: by pressing the LIGHT button
Compatible with SpeedBox App: NO
Only for e-bikes without Di2 (electronic gear shifting system)!
Basic tuning kit for e-bikes with Shimano motors
SpeedBox 1.0 enables to double the speed limit of an e-bike from the original 25 km/h to 50 km/h. When in use, the actual speed will appear on your display up to 22 km/h. Then the speed indicator gets stabilized and keeps on showing the same value even at higher speeds.
The motor’s electric assistance switches off when reaching 50 km/h.
How does SpeedBox 1.0 work?
If you don’t have lights on your bike, SpeedBox 1.0 will be constantly activated. If the lights are assembled on your bike, you will be able to turn on the tuning chip when you want. The SpeedBox 1.0 tuning kit will be activated on your bike’s control panel. If the lights are turned off, you can reach the speed of 50 km/h. The chip can be easily deactivated by turning on the lights.
Assembly

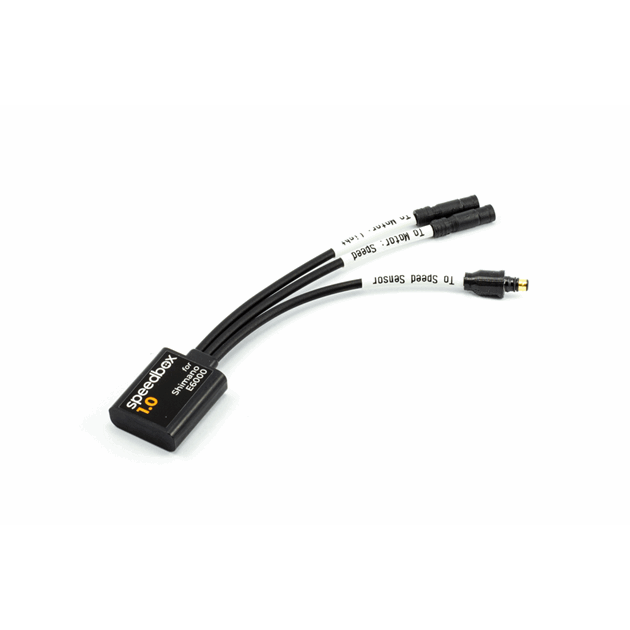

When connecting the SpeedBox chip to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the chip is activated.
Download manual
Warning
Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk. The use of SpeedBox may void the warranty of your ebike.
We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.
