*** REGELVERK ***
Bruk av en slik modifisert elektrisk sykkel på offentlig vei kan være i strid med gjeldende lovgivning i enkelte land.
Dette gjelder i Norge, hvor det kun er fritatt for krav til registrering, førerkort og forsikring for elsykler med motorhjelp opp til 25 km/t.
Det er ikke tillatt å bruke elektriske sykler utstyrt med SpeedBox-produkter på veier, sykkelstier og i offentlige rom eller private områder.
Produktet garanteres kun å oppheve hastighetssperren på den angitte drivlinjen i dagens utførelse, og med dagens firmware versjon.
Bruk av SpeedBox kan medføre at elsykkelens garanti går tapt. Produsenten og selger påtar seg ikke erstatningsansvar for bruk av SpeedBox-produkter i strid med gjeldende regler.
PROPERTIES:
Activation: LIGHT button / ????
Maximum speed: unlimited
Speed limit setting: yes
Display shows: actual values

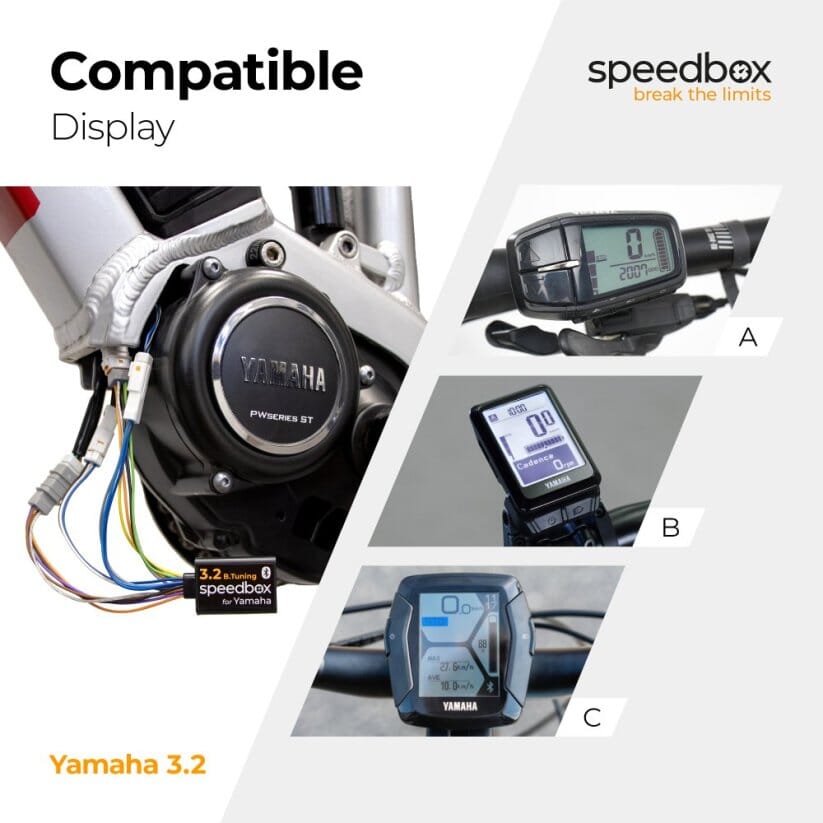

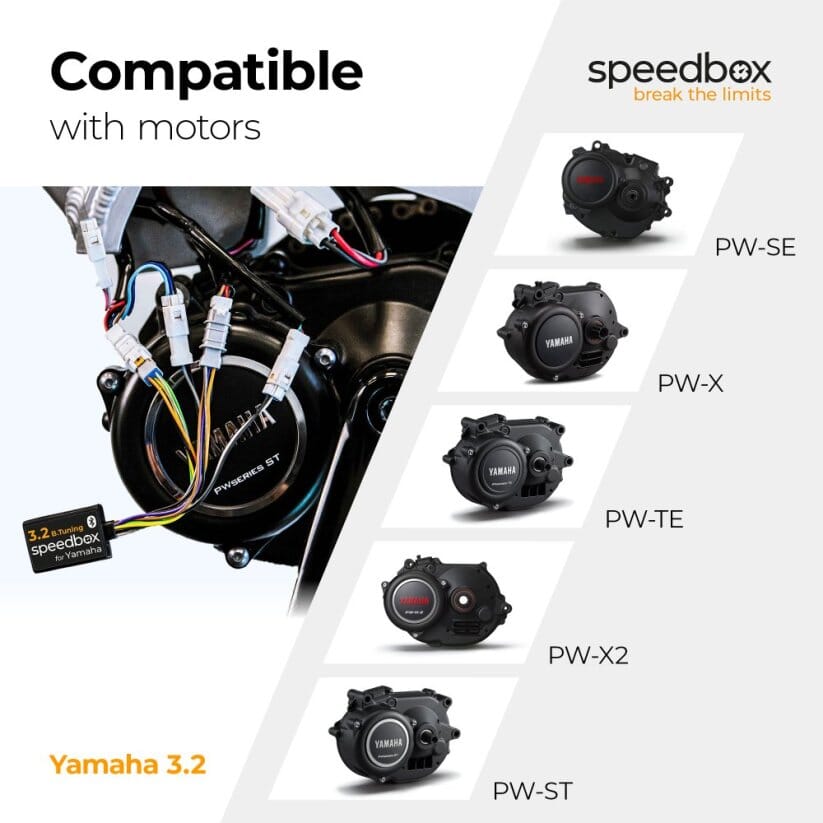

Compatible with motors:
PW-SE
PW-X
PW-TE
PW-X2
PW-ST
Not compatible with e-bikes:
Yamaha UrbanRush
CrossCore
CrossConnect
Wabash
YDX-Torc
YDX-Moro
YDX-Moro Pro
YPJ
Not compatible with:
SpeedBox App
We do not recommend updating the software of the e-bike

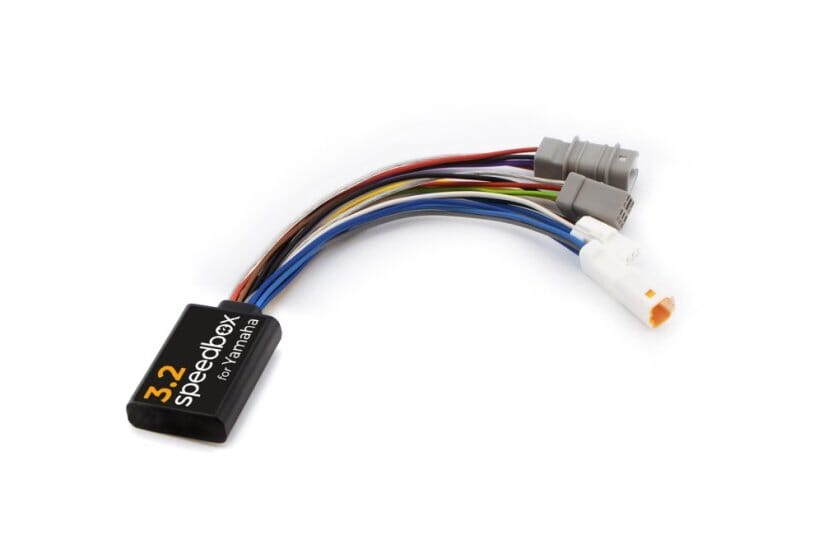

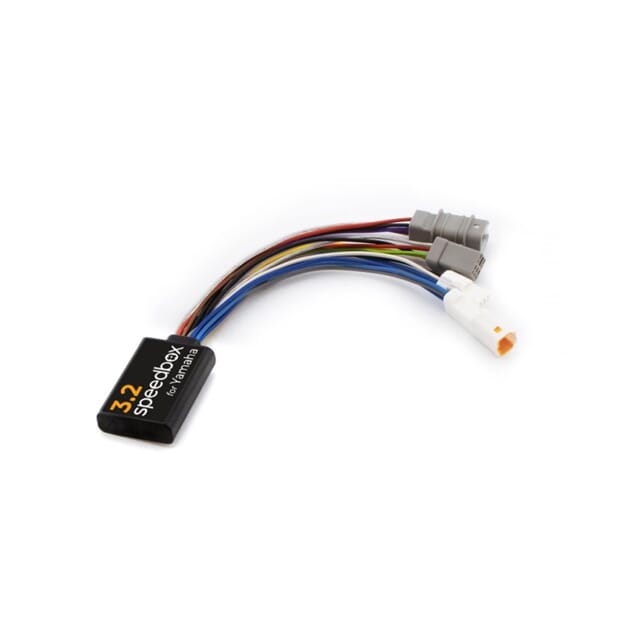

A smart chip of the third generation with an option to set a speed limit of an e-bike
SpeedBox 3.2 tuning chip enables to select speed limit of your own choice. After the chip is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range.
How does SpeedBox 3.2 work?

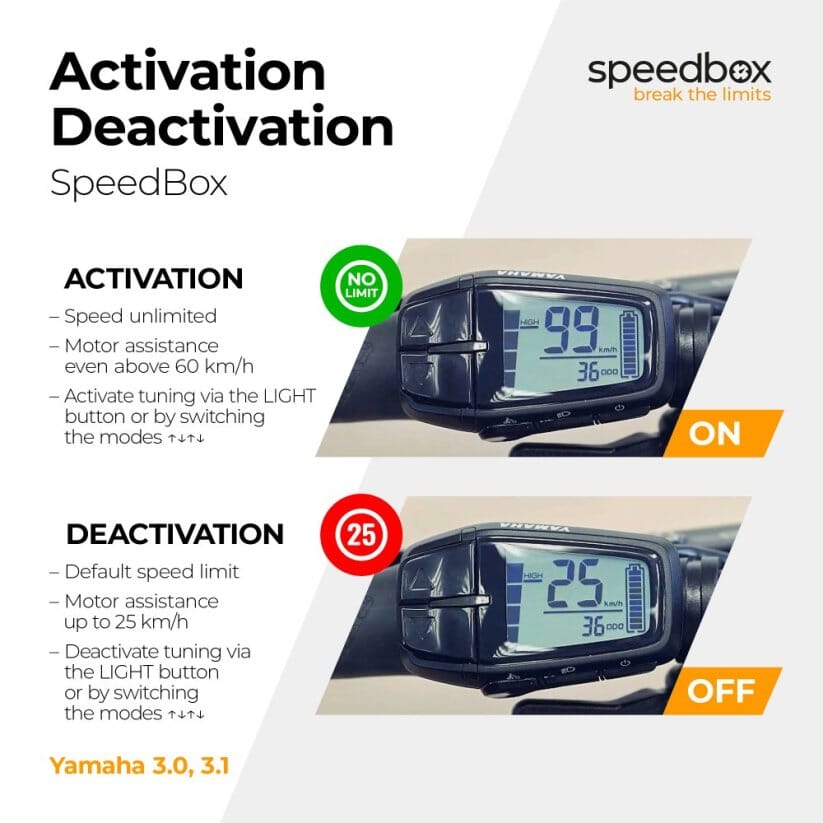

The tuning kit can be activated directly on your bike’s display. After pressing the LIGHT button or ????, a value of 9.9 km/h (6.2 mph) is displayed and from now on you will be able to ride at an unlimited speed. For displays that do not show decimal numbers, the value of 9 km/h will be displayed.
To deactivate the tuning kit, press the LIGHT button or ???? again. The value of 2.5 km/h (1.6 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip. For displays that do not show decimal numbers, the value of 2 km/h will be displayed.
If you want to control your SpeedBox and lights separately, use the combination of ???? buttons. By pressing the arrows in that order you can activate and deactivate SpeedBox anytime independently of the lights control.
You can set the maximum speed of an electric assistance by switching modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.
Assembly

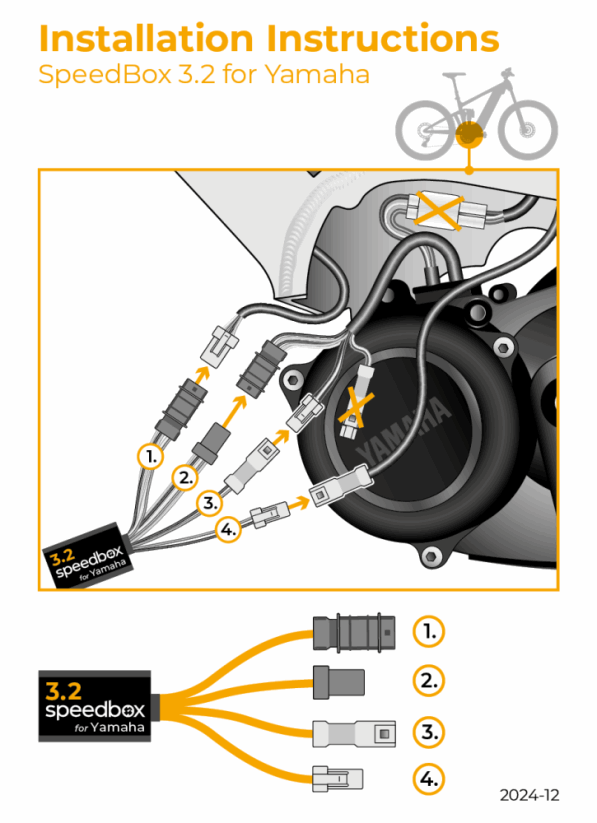

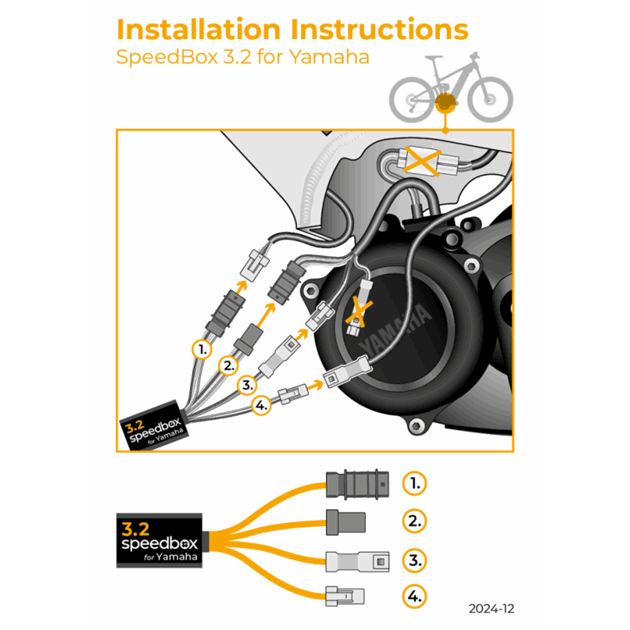

When connecting the SpeedBox chip to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 10 km before the chip is activated.
