*** REGELVERK ***
Bruk av en slik modifisert elektrisk sykkel på offentlig vei kan være i strid med gjeldende lovgivning i enkelte land.
Dette gjelder i Norge, hvor det kun er fritatt for krav til registrering, førerkort og forsikring for elsykler med motorhjelp opp til 25 km/t.
Det er ikke tillatt å bruke elektriske sykler utstyrt med SpeedBox-produkter på veier, sykkelstier og i offentlige rom eller private områder.
Produktet garanteres kun å oppheve hastighetssperren på den angitte drivlinjen i dagens utførelse, og med dagens firmware versjon.
Bruk av SpeedBox kan medføre at elsykkelens garanti går tapt. Produsenten og selger påtar seg ikke erstatningsansvar for bruk av SpeedBox-produkter i strid med gjeldende regler.
Compatible with motors:
PW-X3
PW-S2
Not compatible with e-bikes and motors:
Yamaha UrbanRush
CrossCore
CrossConnect
Wabash
YDX-Torc
YDX-Moro
YDX-Moro Pro
PROPERTIES:
Activation: SpeedBox App/ LIGHT button / ????
Maximum speed: unlimited
Speed limit setting: yes
Display shows: actual values
Compatible with: SpeedBox App
In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software and reinstall SpeedBox.

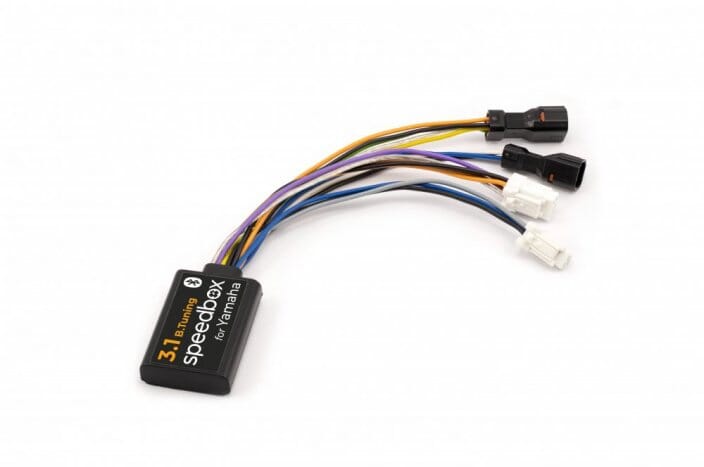

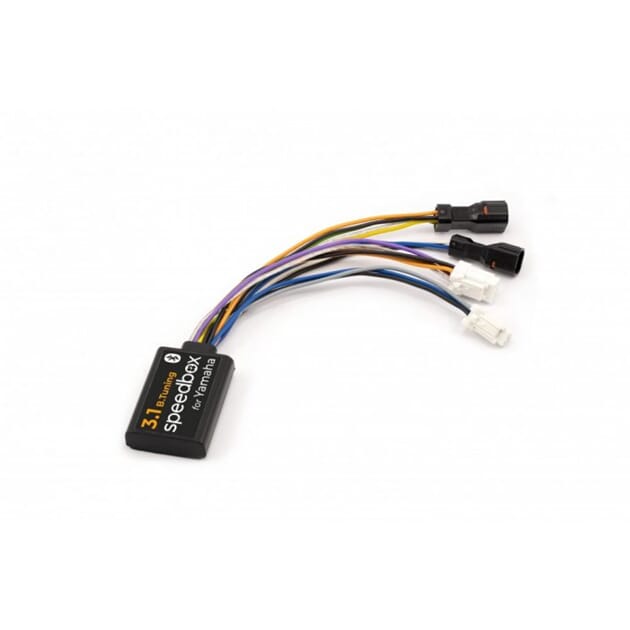

A smart chip of the third generation with an option to set a speed limit of an e-bike.
SpeedBox 3.1 tuning chip enables to select speed limit of your own choice. After the chip is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range.
How does SpeedBox 3.1 work?
The tuning kit can be activated directly on your bike’s display. After pressing the LIGHT button or ????, a value of 99 km/h (62 mph) is displayed and from now on you will be able to ride at an unlimited speed.
To deactivate the tuning kit, press the LIGHT button or ???? again. The value of 25 km/h (16 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip.
SpeedBox was also designed for e-bikes that do not have a classic control unit. In this case you can just use the combination of + - + - buttons and SpeedBox will be activated. You can easily deactivate SpeedBox in the same way.
You can set the maximum speed of an electric assistance by changing modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.

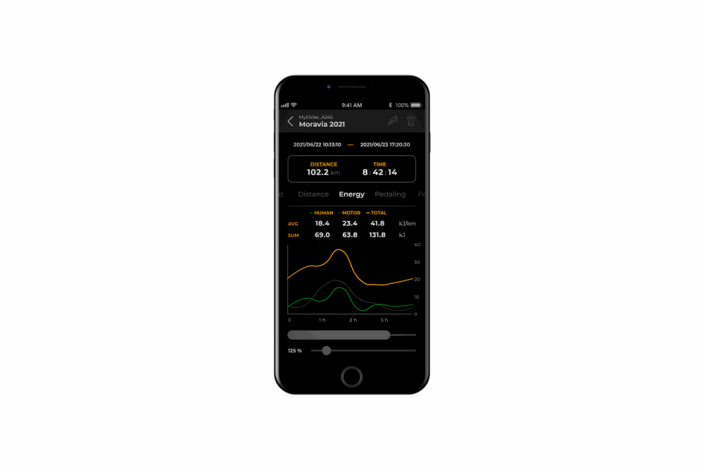

SpeedBox App for SpeedBox 3.1 B.Tuning

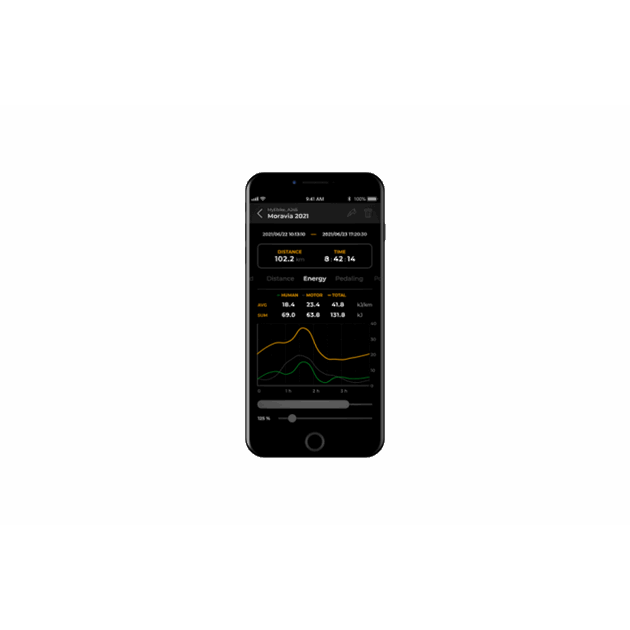

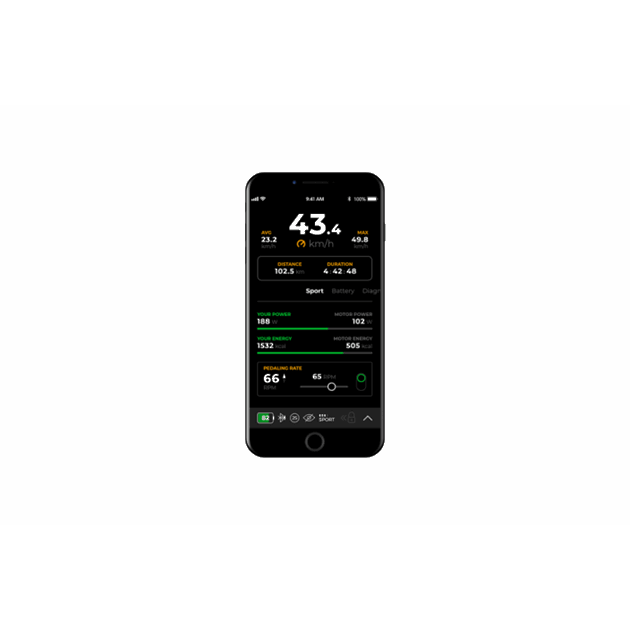

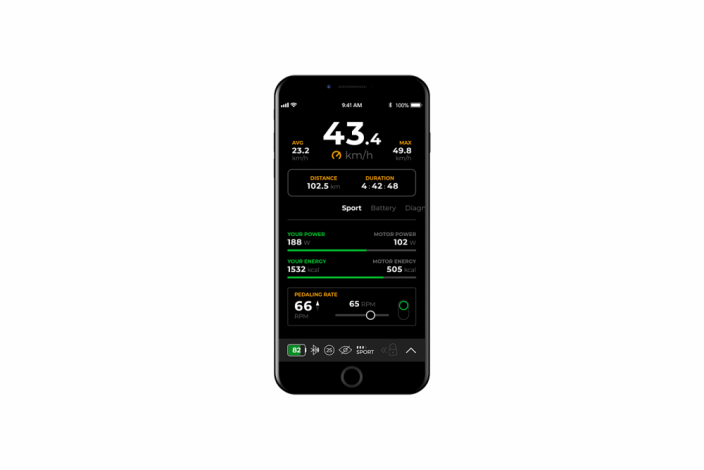

SpeedBox App is an application specially designed for SpeedBox 3.1 B.Tuning, which uses Bluetooth technology to connect your e-bike to your mobile application. After downloading the application and connecting your mobile phone to your e-bike you will see current data and trip parameters displayed on your phone. Individual trips can be stored so that the results can be compared with friends and together they can monitor their performance. So just enjoy the ride and leave checking the parameters for later!
SpeedBox App features:
Tuning control
Speed limit settings
Saving and viewing your trips
Invisible tuning
Motor lock (except Interface-X display of the PW-X3 models)
Motor diagnostics
SpeedBox 3.1 B.Tuning is not limited to working with SpeedBox App. However, it is a great tool that will provide you with a complete overview of your performances.

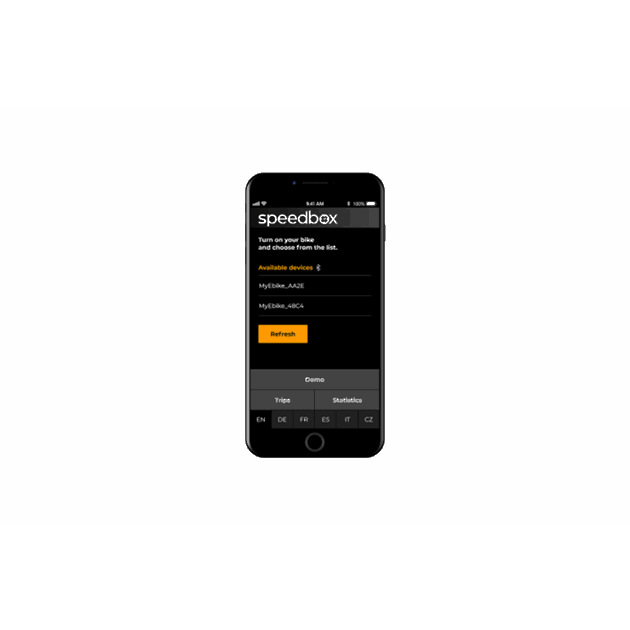

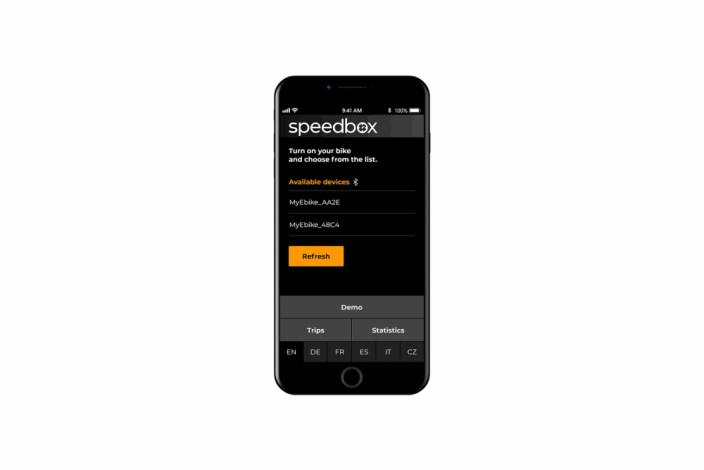

Download SpeedBox App to your phone just before ordering the SpeedBox 3.1 B.Tuning chip. You can try out our demo version and get to know all the awesome features and, at the same time, make sure that the application is fully functional on your phone. To connect to the SpeedBox B.Tuning chip, your phone needs to be equipped with Bluetooth 4.0 or higher.
Get it on Google Play
Get it on App Store

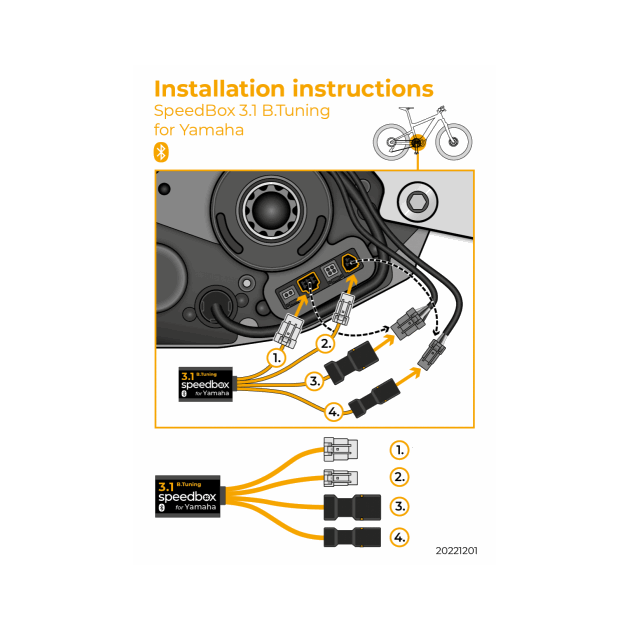

Assembly

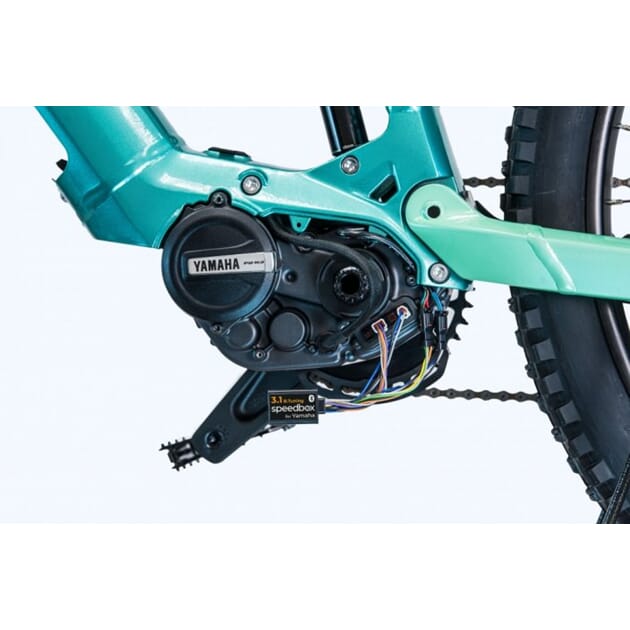

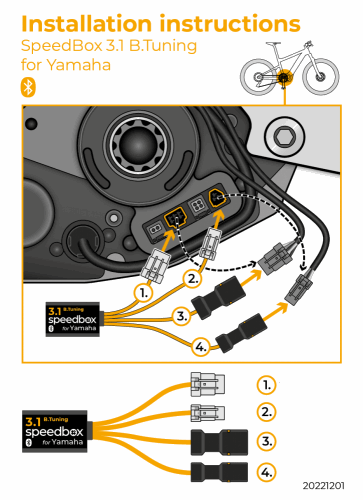

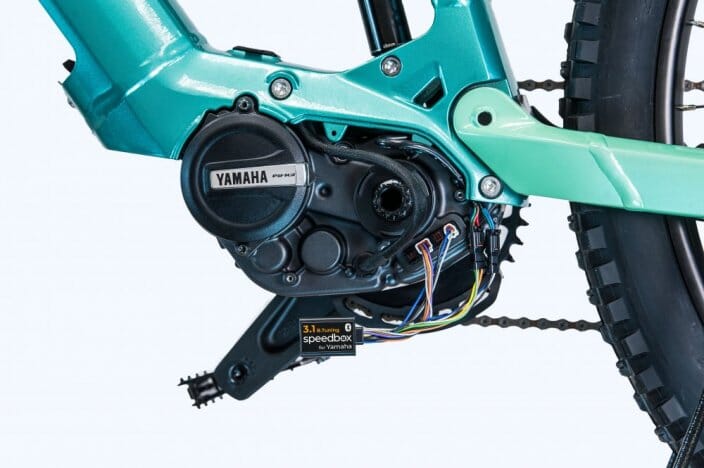

When connecting the SpeedBox chip to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the chip is activated.
