PROPERTIES:
FORENKLET INSTALLASJON
Ingen behov for å finne en passende plassering for magnetsimulatoren
UTVIKLET FOR MOTORER:
Performance Line CX - 5. generasjon
(motor montert med 2 bolter)
EGNSKAPER:
Maksimal hastighet: Ubegrenset (maks. 35 km/t anbefalt)
Displayet viser:
Reell hastighet: NEI
Korrekt tilbakelagt distanse: Etter at nedtellingen er fullført
Aktivering/deaktivering (ikke utfør mens du sykler):
GÅ-funksjon
Knapper - + - +
Indikasjon på aktivering/deaktivering av tuning: JA (3,5/2,5 km/t)

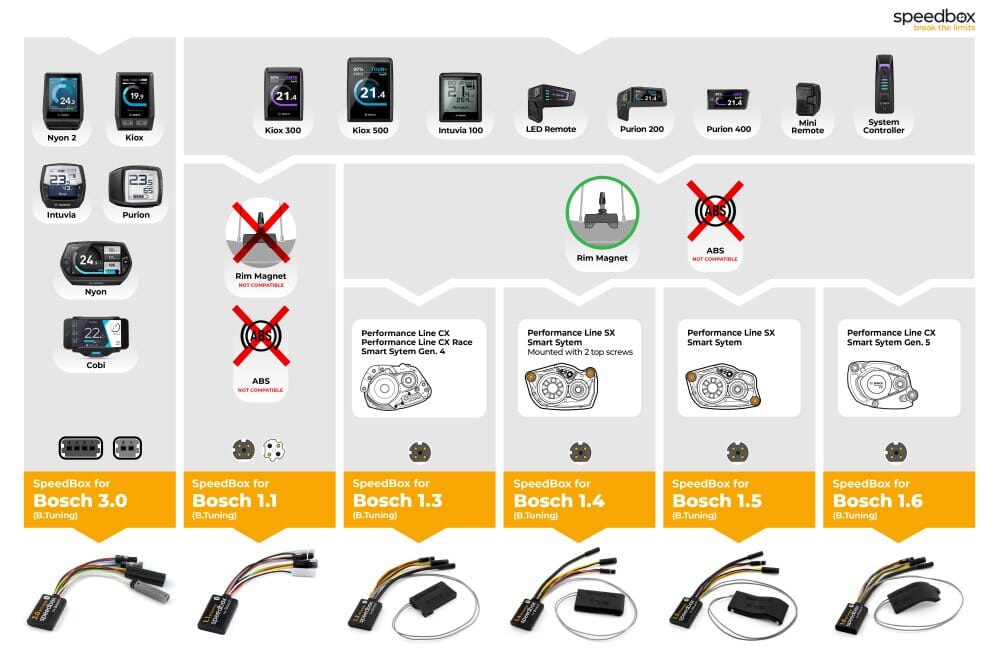

Kompatibel med:
Performance Line CX - 5. generasjon

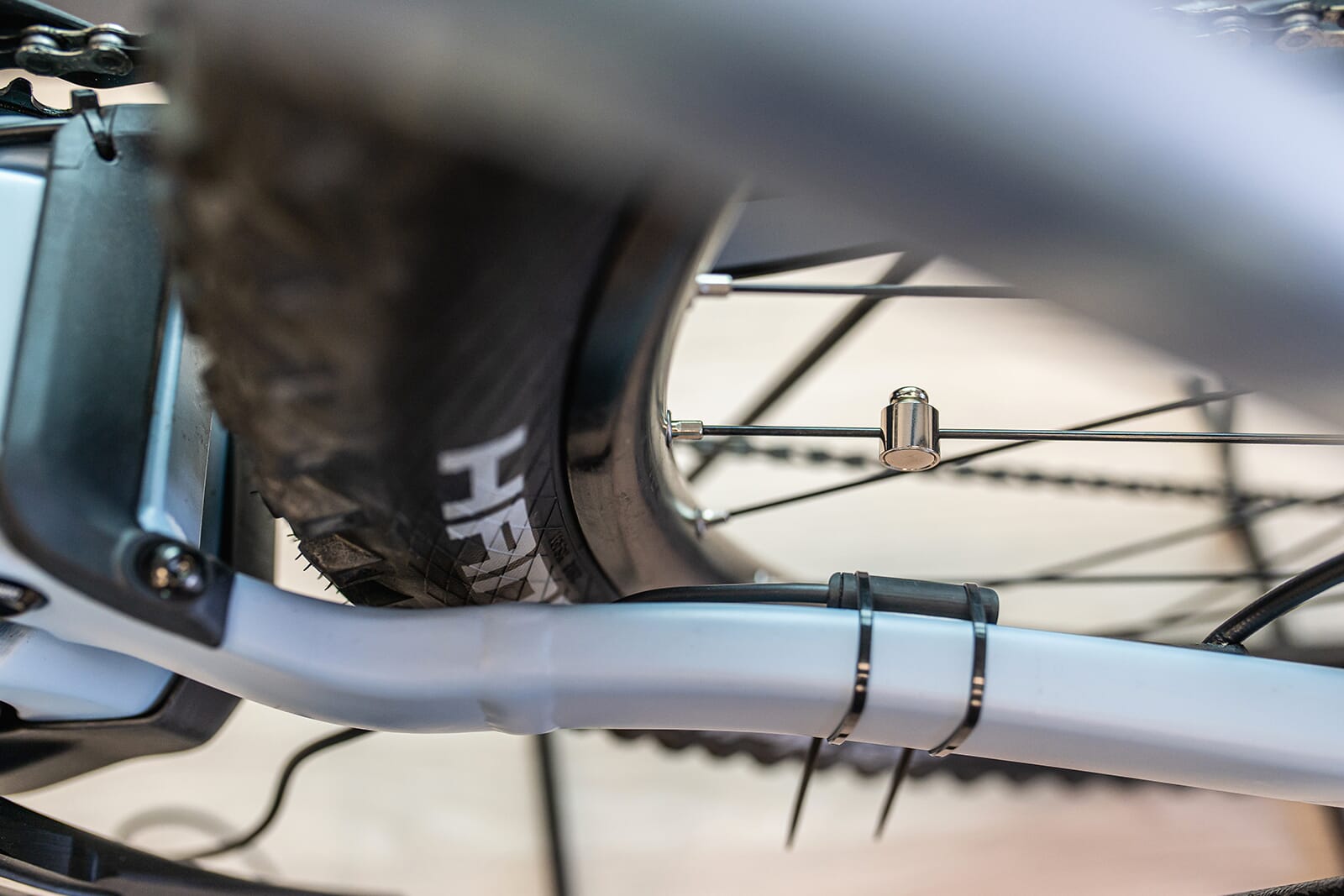

Elsykler som har en magnet festet til en ventil (Bosch felgmagnet)
Gjeldende Bosch-programvareversjon
Se listen over støttede programvareversjoner
Ikke kompatibel med:
Standard magnet
ABS-system
SpeedBox-appen
Motorer av 4. generasjon
Sjekk elsykkeltypen og motorplassen din før du kjøper produktet
Se listen over støttet programvare versjoner
Ikke kompatibel med:
Bosch felgmagnet
ABS-system
SpeedBox-app
Maximum speed: Unlimited (max 35 km/h recommended)
Display shows:
Real speed: NO
Correct travelled distance: After the countdown process is finished
Activation/deactivation (do not perform while riding):
WALK function
Buttons - + - +
Indication of tuning activation/deactivation: YES (3.5/2.5 km/h)

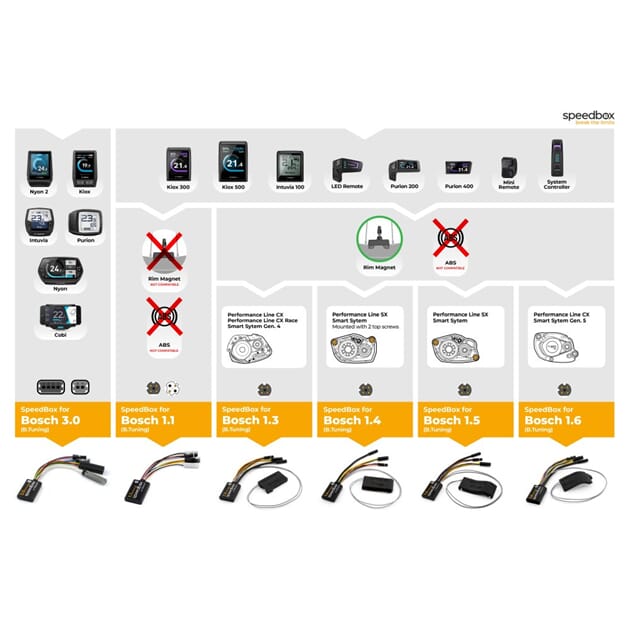

Compatible with:
Performance Line CX - 5th Generation

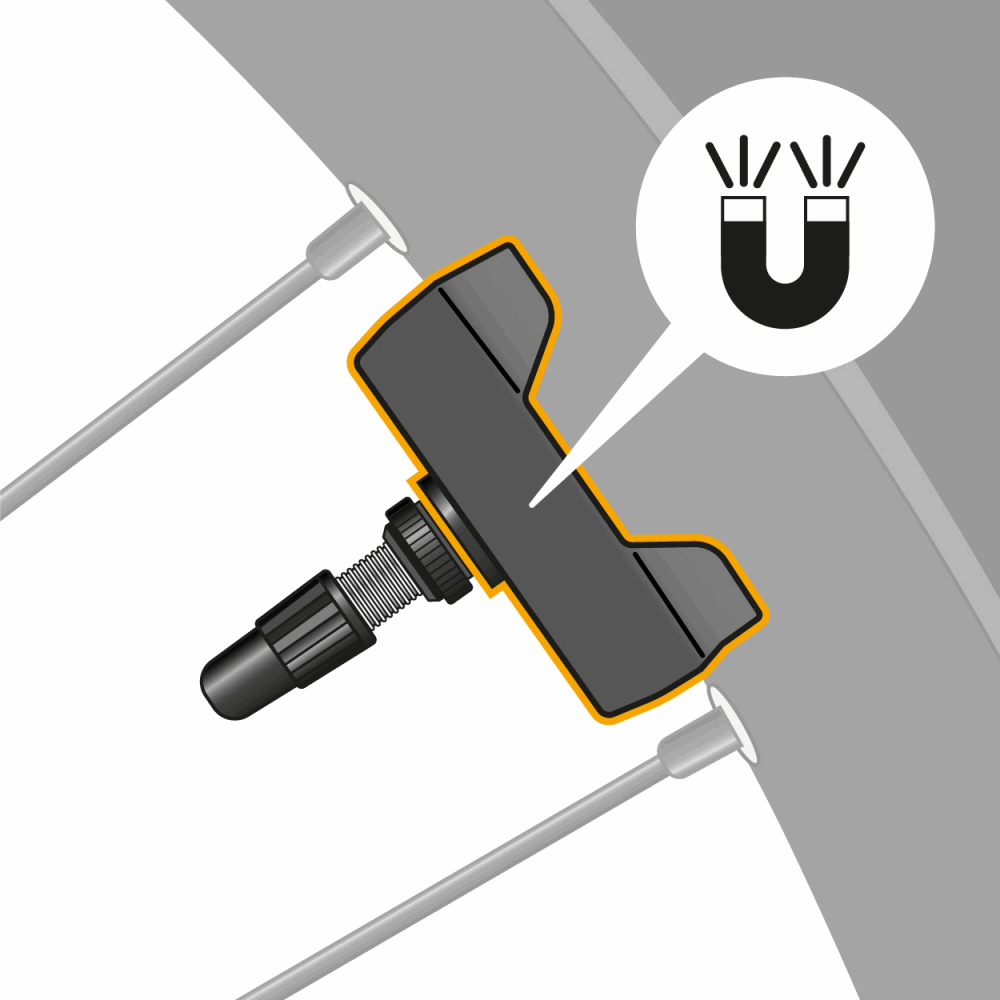

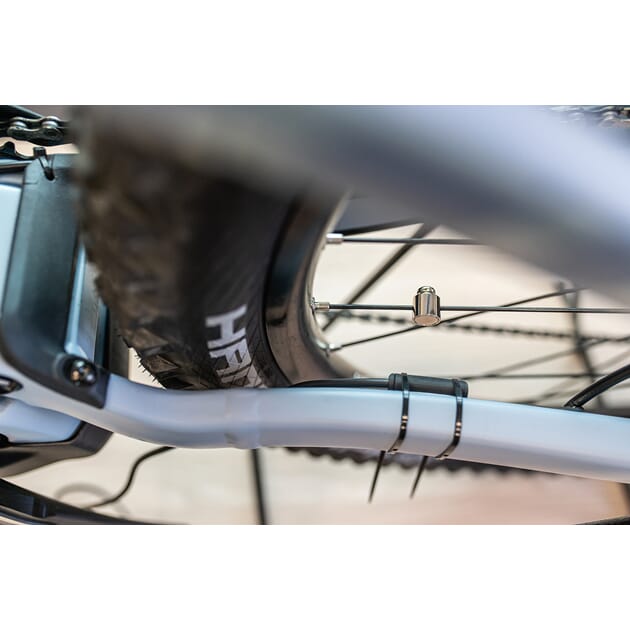

E-bikes that have a magnet attached to a valve (Bosch Rim Magnet)
The current Bosch software version
View the list of supported software versions
Not compatible with:
Standard magnet
ABS system
SpeedBox App
Motors of 4th generation
Please check your e-bike type and motor space before purchasing the product
View the list of supported software versions
Not compatible with:
Bosch Rim Magnet
ABS system
SpeedBox App

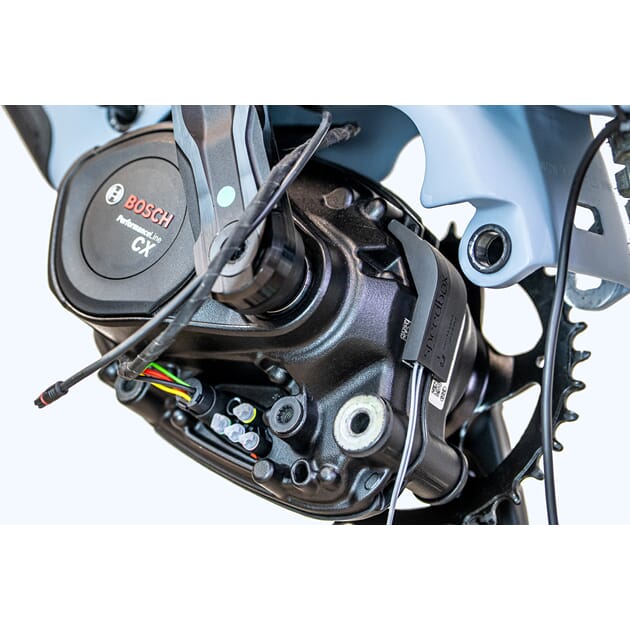

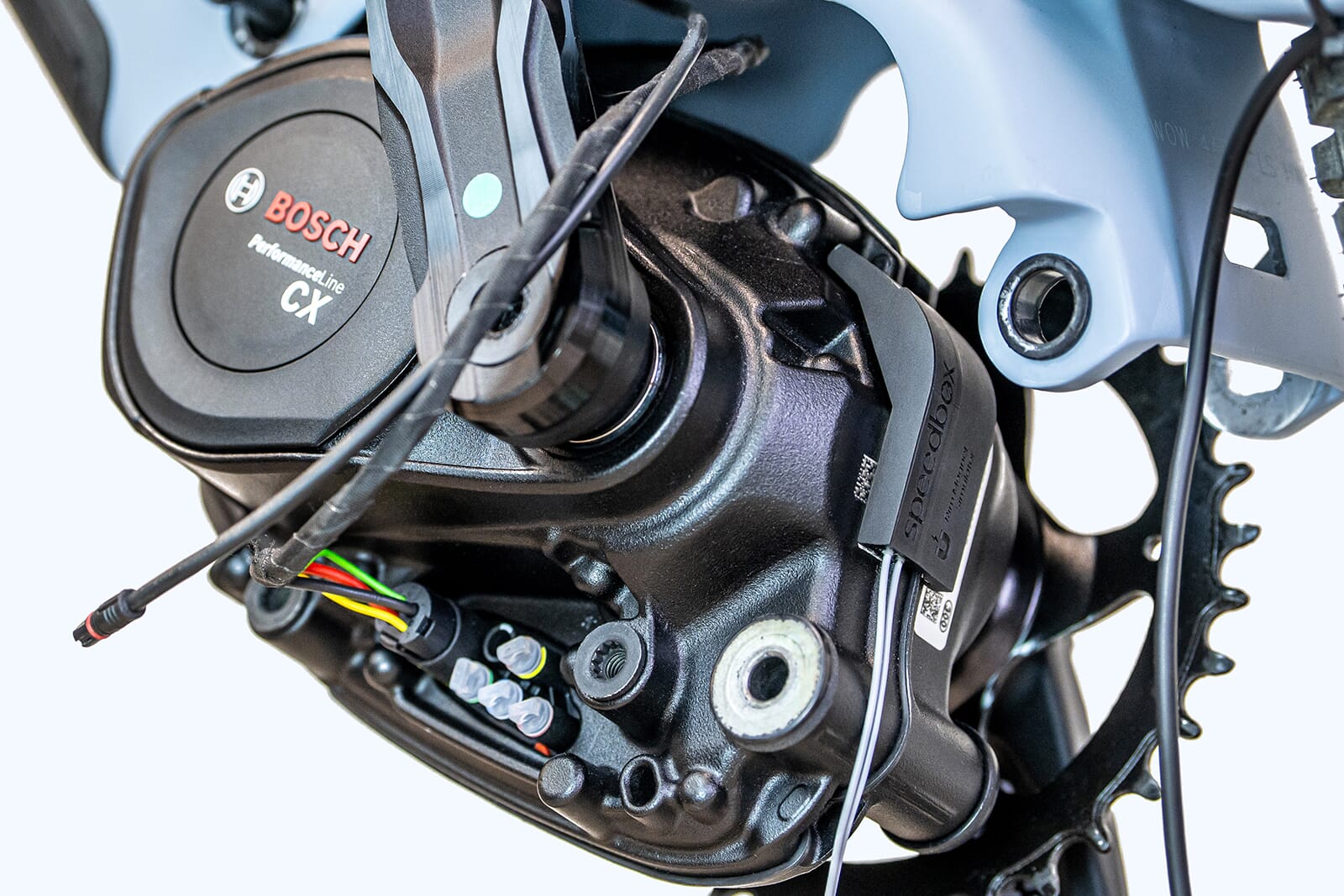

The tuning for e-bikes with the newest Bosch Gen. 5 motor and Smart System + Rim Magnet. Get the most of your e-bike!

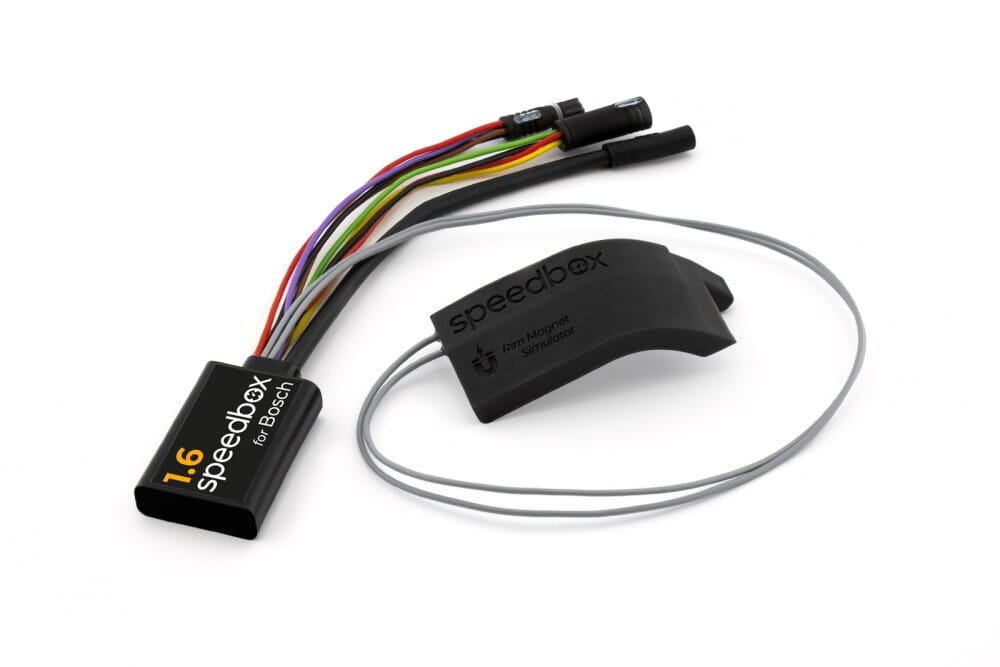

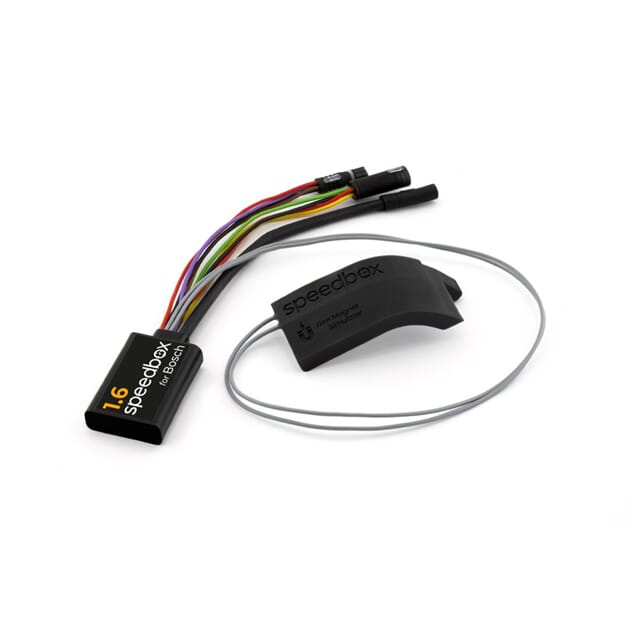

SpeedBox 1.6 for Bosch enables you to suppress the speed limiter on your e-bike.
If you want to see correct speed and all riding data during your ride, we recommend choosing SpeedBox 1.6 B.Tuning for Bosch - you can see the real values in our SpeedBox App – right on the display of your phone.
How does SpeedBox 1.6 for Bosch work?

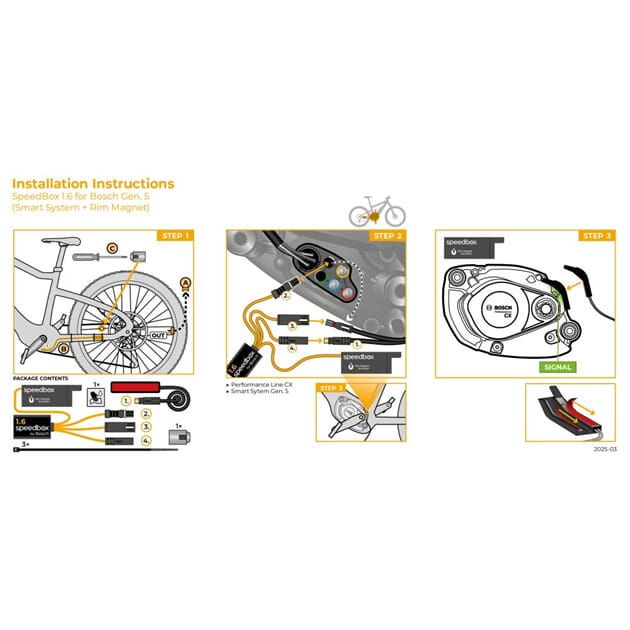

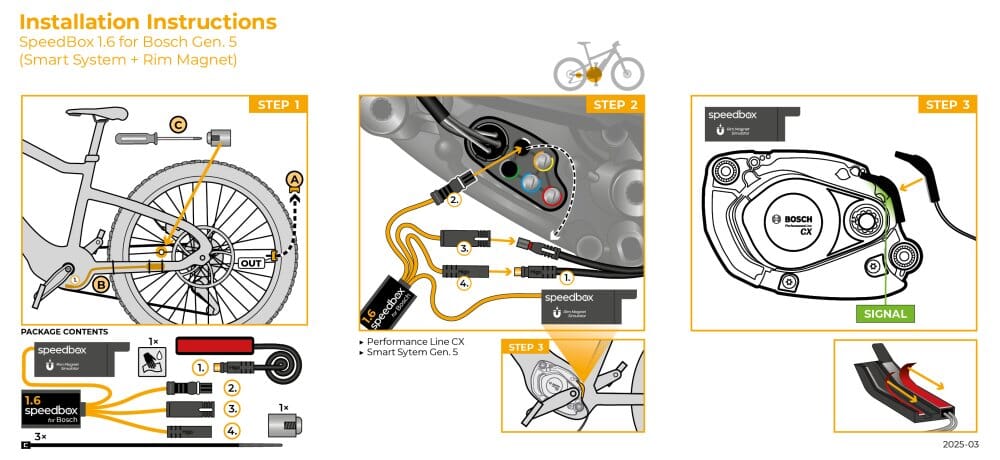

To activate all the functions of the SpeedBox correctly, it is necessary to enter the menu after the first switching on of the e-bike after the tuning installation and switch to the circumference of the wheel of your e-bike, if you have older firmware on your e-bike.
Activate/deactivate the tuning before the ride (when the e-bike is standing still), not during riding!
You will activate the SpeedBox 1.6 tuning directly on your e-bike’s control unit by activating the WALK assist function shortly (holding down the “-” button). Your e-bike display will show a value of 3.5 km/h (2.2 mph) and from now on you will be able to ride up to 35 km/h. You may change the default speed limit to any limit you want (up to 99 kph), however, to minimize the risk of error codes, we recommend not to exceed 35 km/h.
To deactivate the tuning, activate the WALK assist function shortly again (by holding down the “-” button). Your e-bike display will show a value of 2.5 km/h (1.6 mph) and the speed limit will be reset to 25 km/h. Your e-bike will then work the same as before the tuning installation.
SpeedBox was also designed for e-bikes that do not have the WALK assist function enabled, or activated. In this case, you can activate/deactivate tuning by switching between two assistance modes twice, i.e. by pressing the - + - + buttons.
You can set the maximum speed limit by switching the modes from TURBO mode three levels down and then three levels up: eMTB - TOUR+ - ECO - TOUR+ - eMTB - TURBO. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by activating WALK assist function shortly or by turning the rear wheel 360°. The value of 2.5 km/h on the display corresponds with the limit of 25 km/h, 3.0 corresponds with 30 km/h, 3.5 corresponds with 35 km/h etc. The last displayed limit will be saved after 15 seconds of inactivity.
After finishing the ride, leave the bike on until a value of 0.0 km/h is displayed. During this process the remaining time will be displayed. Then it is safe to turn off your bike and you can start looking forward to your next trip. Do not remove the display to lock the e-bike until SpeedBox finishes the "countdown" process.
