SpeedBox 1.3 for Shimano (EP8)

*** REGELVERK ***

Bruk av en slik modifisert elektrisk sykkel på offentlig vei kan være i strid med gjeldende lovgivning i enkelte land.

PROPERTIES:
Speed limiter: deactivated
Display shows: real values up to 23 km/h
Compatible with:
   motors EP8
   motors EP8 RS
   Giant Revolt (up to 35 km/h)
Not compatible with:
   Shimano EP801
   SpeedBox AppNot compatible with Giant Revolt E+ (2022)

Not compatible with Satellite System ON/OFF Switch (EW-SW100, EW-SW300)
Only for e-bikes without Di2 (electronic gear shifting system)!
Deactivation: by turning on the lights
Compatible with SpeedBox App: NO

Dette gjelder i Norge, hvor det kun er fritatt for krav til registrering, førerkort og forsikring for elsykler med motorhjelp opp til 25 km/t.

Det er ikke tillatt å bruke elektriske sykler utstyrt med SpeedBox-produkter på veier, sykkelstier og i offentlige rom eller private områder.

Produktet garanteres kun å oppheve hastighetssperren på den angitte drivlinjen i dagens utførelse, og med dagens firmware versjon.

Bruk av SpeedBox kan medføre at elsykkelens garanti går tapt. Produsenten og selger påtar seg ikke erstatningsansvar for bruk av SpeedBox-produkter i strid med gjeldende regler.

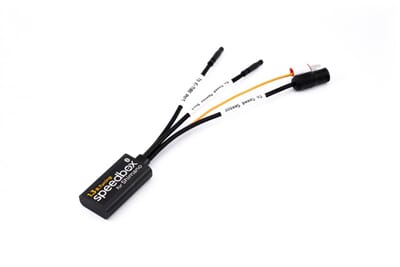

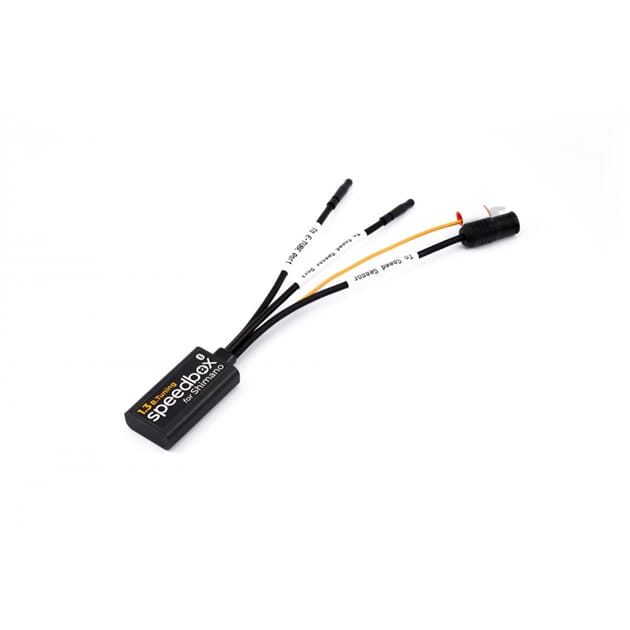

From the ground up redesigned tuning chip for your e-bike with a Shimano motor – with a new design and completely new hardware and firmware.

The tuning chip SpeedBox 1.3 enables you to suppress the speed limiter on your electric bike. When in use, the actual speed will appear on your display up to 23 km/h.

Compared to previous versions, this new product also plugs into the engine's E-Tube port. It is therefore necessary that the e-bike motor in which you are going to install the new version of SpeedBox for Shimano has one free E-Tube port. It is not possible to install SpeedBox products for Shimano without a free E-Tube port in the engine.

E-bikes, which do not have a free E-Tube port, are usually those with a Di2 electronic gear shifting system or with a wheel frame integrated Satellite System ON/OFF Switch (EW-SW100, EW-SW300).

How does SpeedBox 1.3 work?
If the lights are turned off, SpeedBox is activated. The chip can be deactivated by turning on the lights. If you want to use tuning independently of the lights, do not connect the red wire during installation, like that the tuning will be always activated. If you do not have lights on your e-bike, SpeedBox 1.3 will also be activated at all times.

Assembly
We use original connectors for the production of SpeedBox chips ensuring that the installation process is very simple and the chip is connected properly. We have also prepared detailed instructions and videos to make installation easy for you. Disassembly of the tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.

If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the chip is activated.
