TRAIL
TAMER
Look, we'll be the first to admit we're pleased with the Stereo HPC's looks. It's pretty sleek, right? The High Performance Carbon front triangle and aluminium rear end are certainly neat. But dig a little deeper, and it's also about practicality and function. So the straight seat tube, for example, allows for a longer dropper post with deeper insertion. The threaded bottom bracket features a secure, three-bolt ISCG05 chain guide mount. The UDH dropout is tough and future-proof. There's a new and improved down tube storage system. An angle-adjust headset with Internal Cable Routing, but also head tube ports for optional semi-internal cables. And a modular top tube mount for your Garmin/Wahoo/X-Mount device. Trail-ready, all of it.
Frame Material Carbon Front Triangle
Headset Angle Adjustment 0.6°

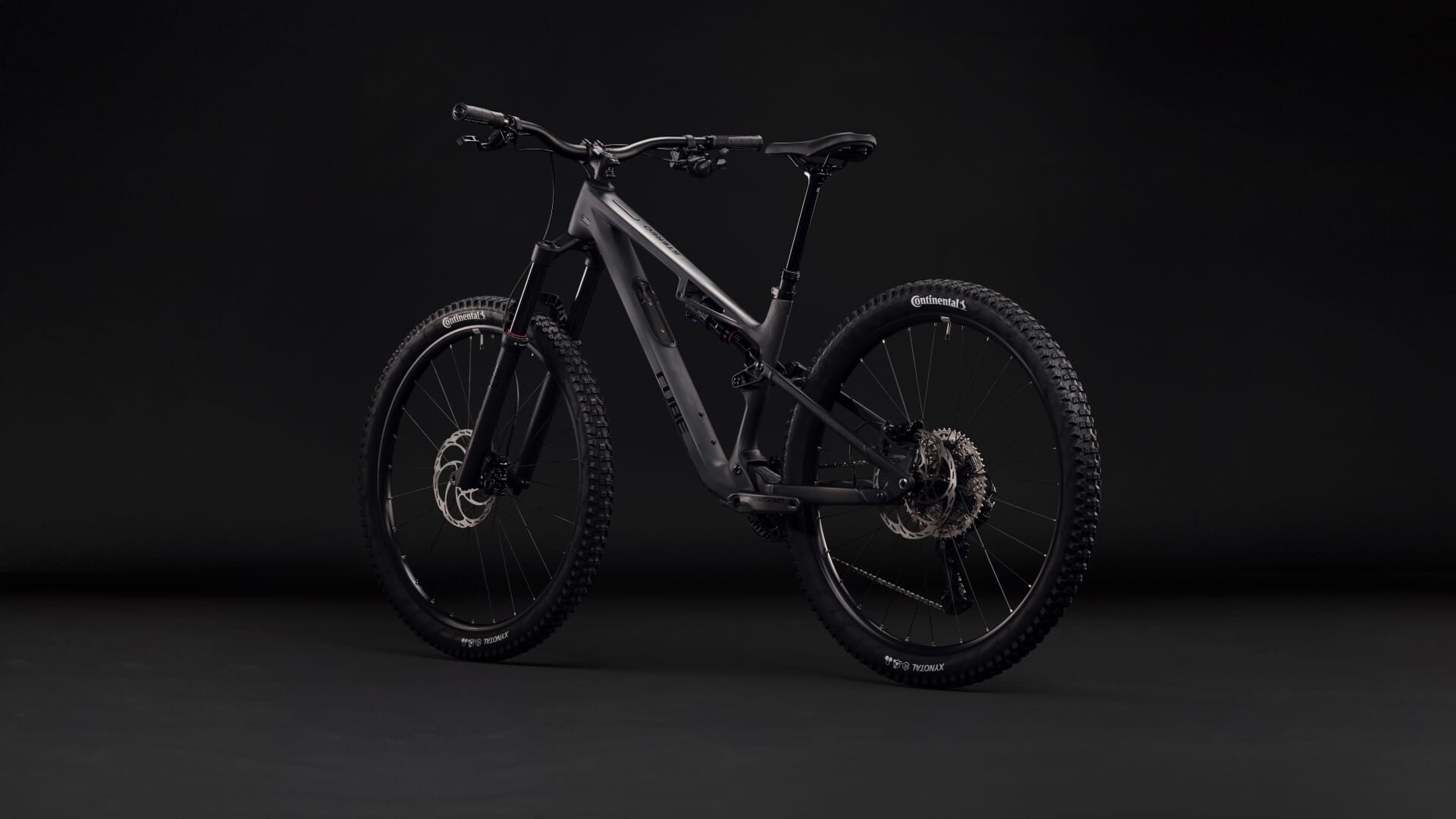

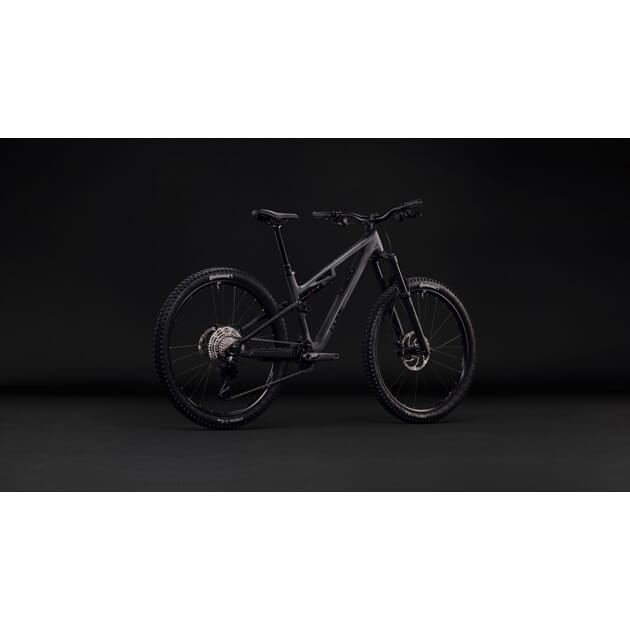

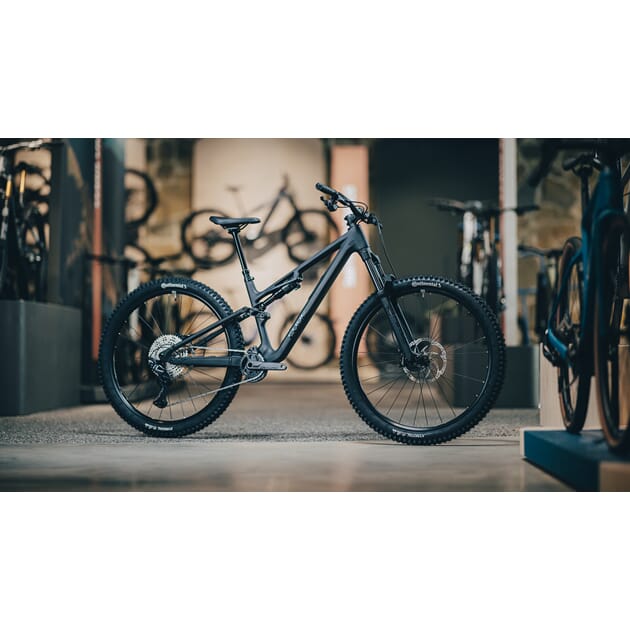

Rocks, roots, drops and steep gradients aren't a barrier to fun. They ARE the fun. And that's where the Stereo HPC Race comes in – translating trail obstacles into a fast, flowing ride with CUBE carbon frame tech and trusted components. The stealth carbon'n'black paint finish is the low-key icing on the cake...

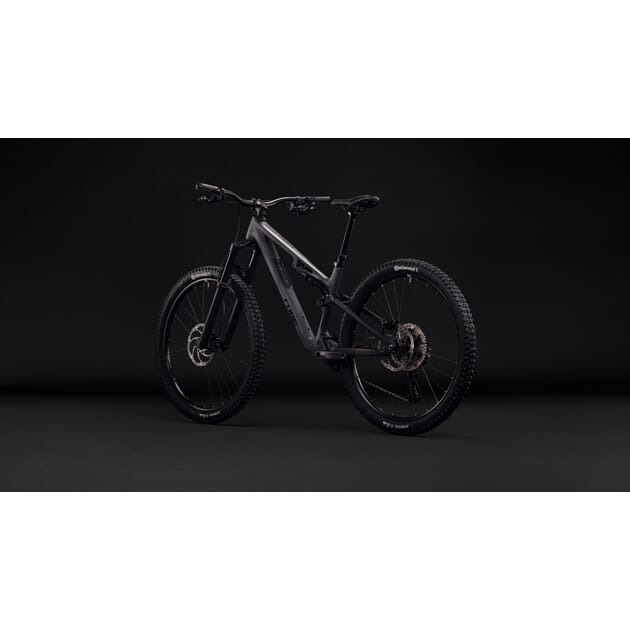

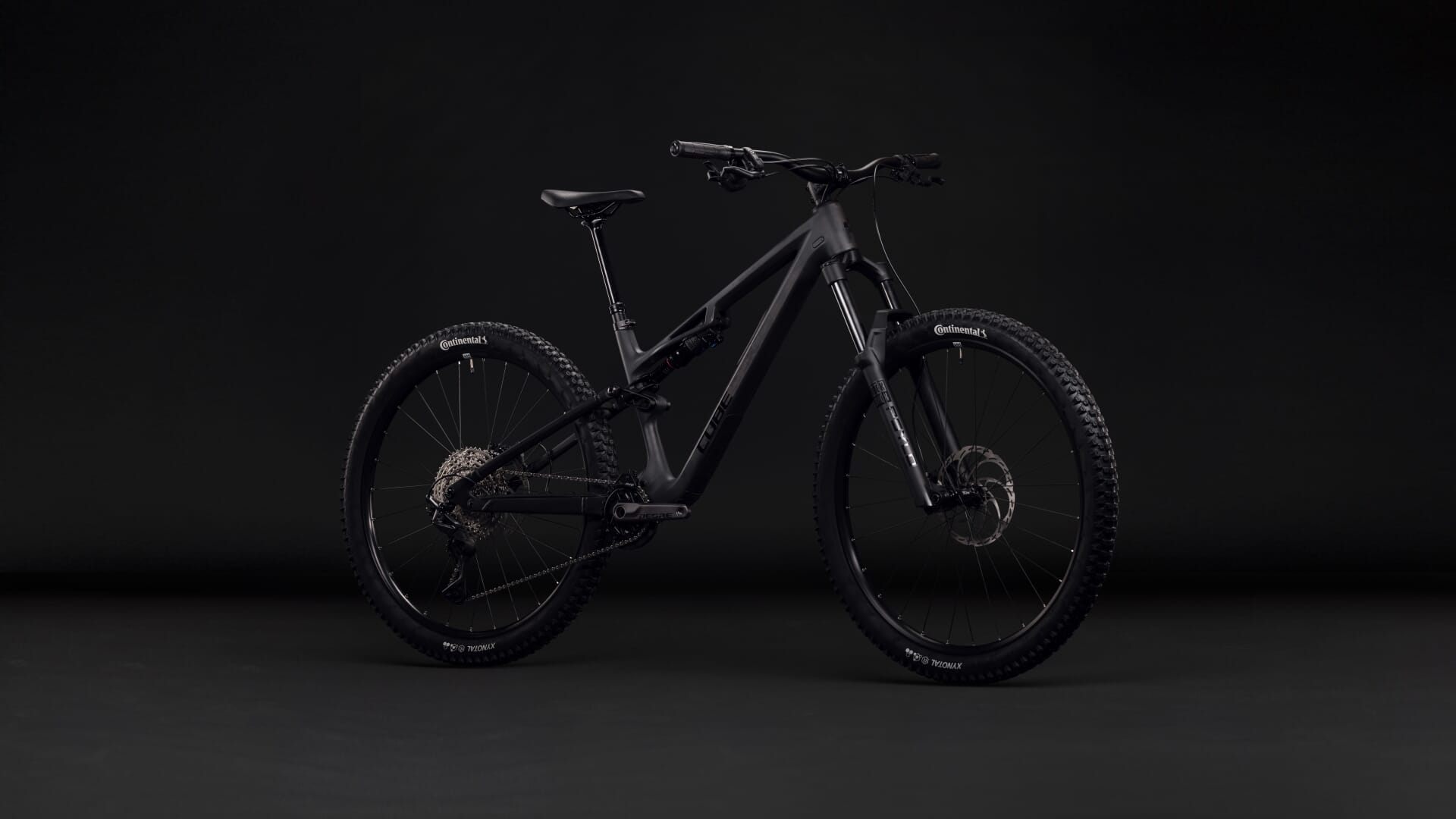

STEREO HPC

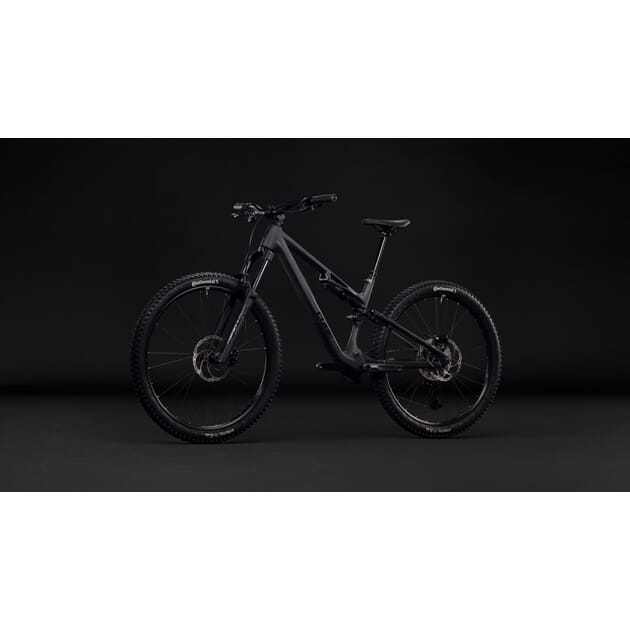

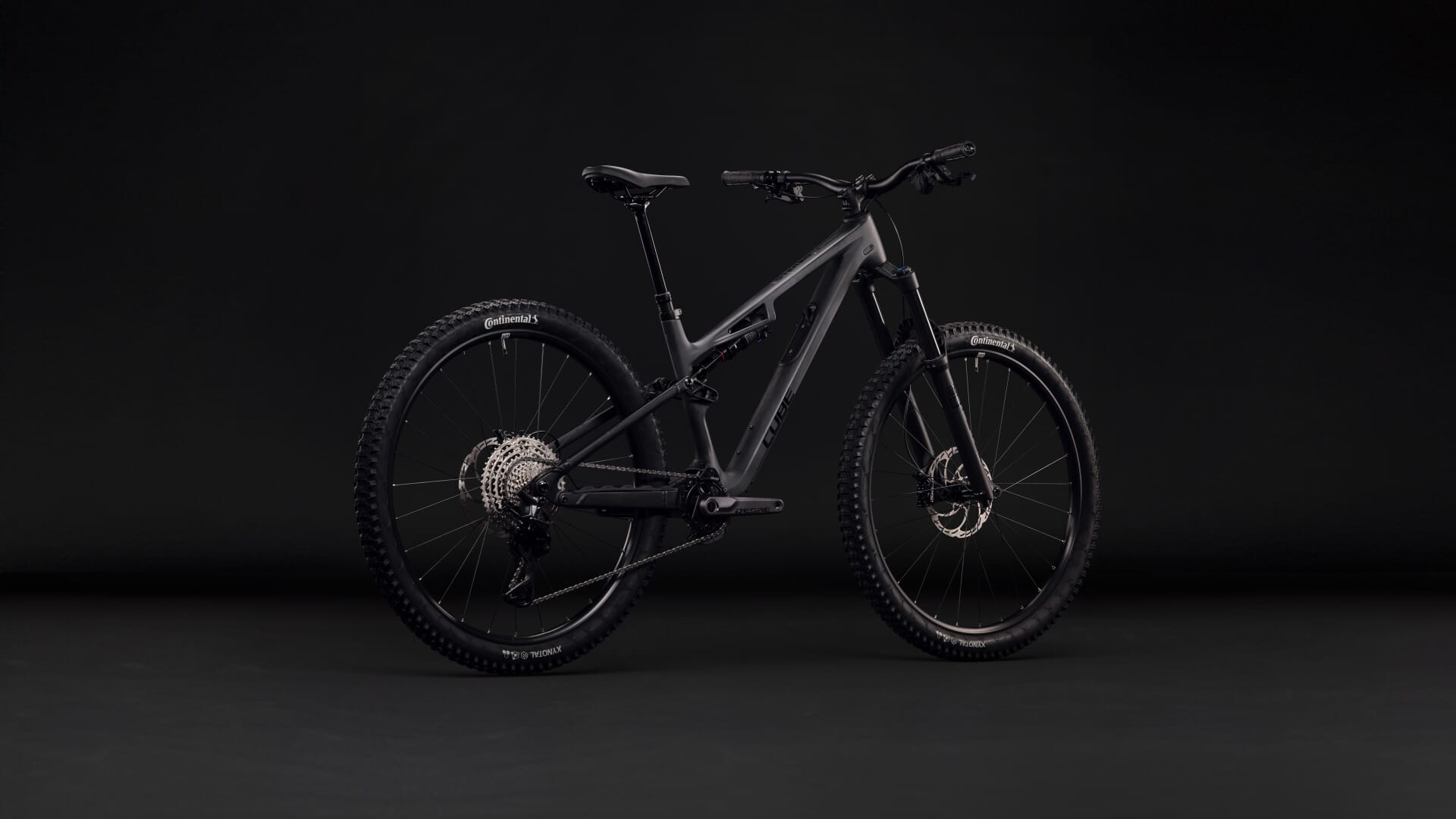

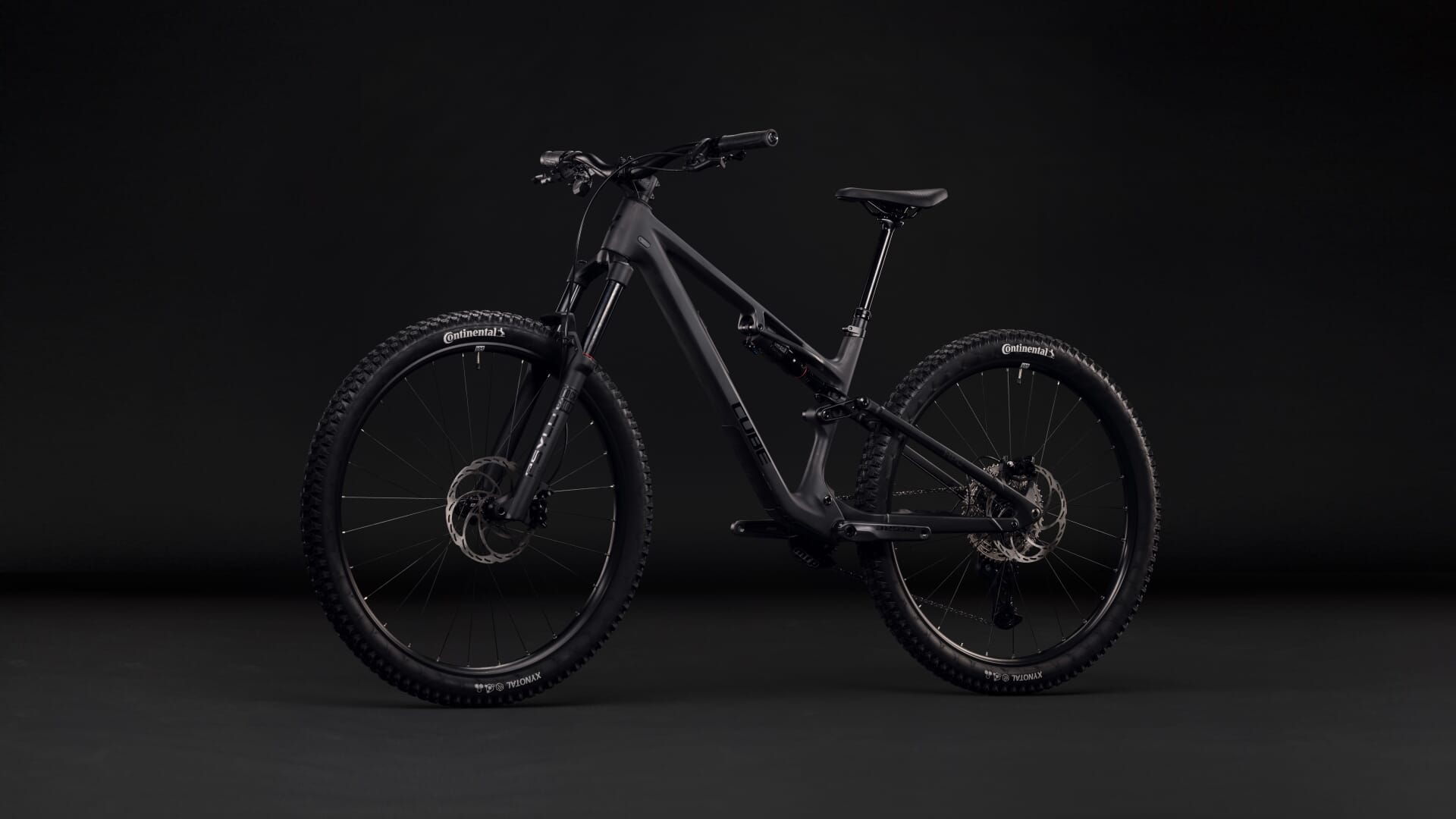

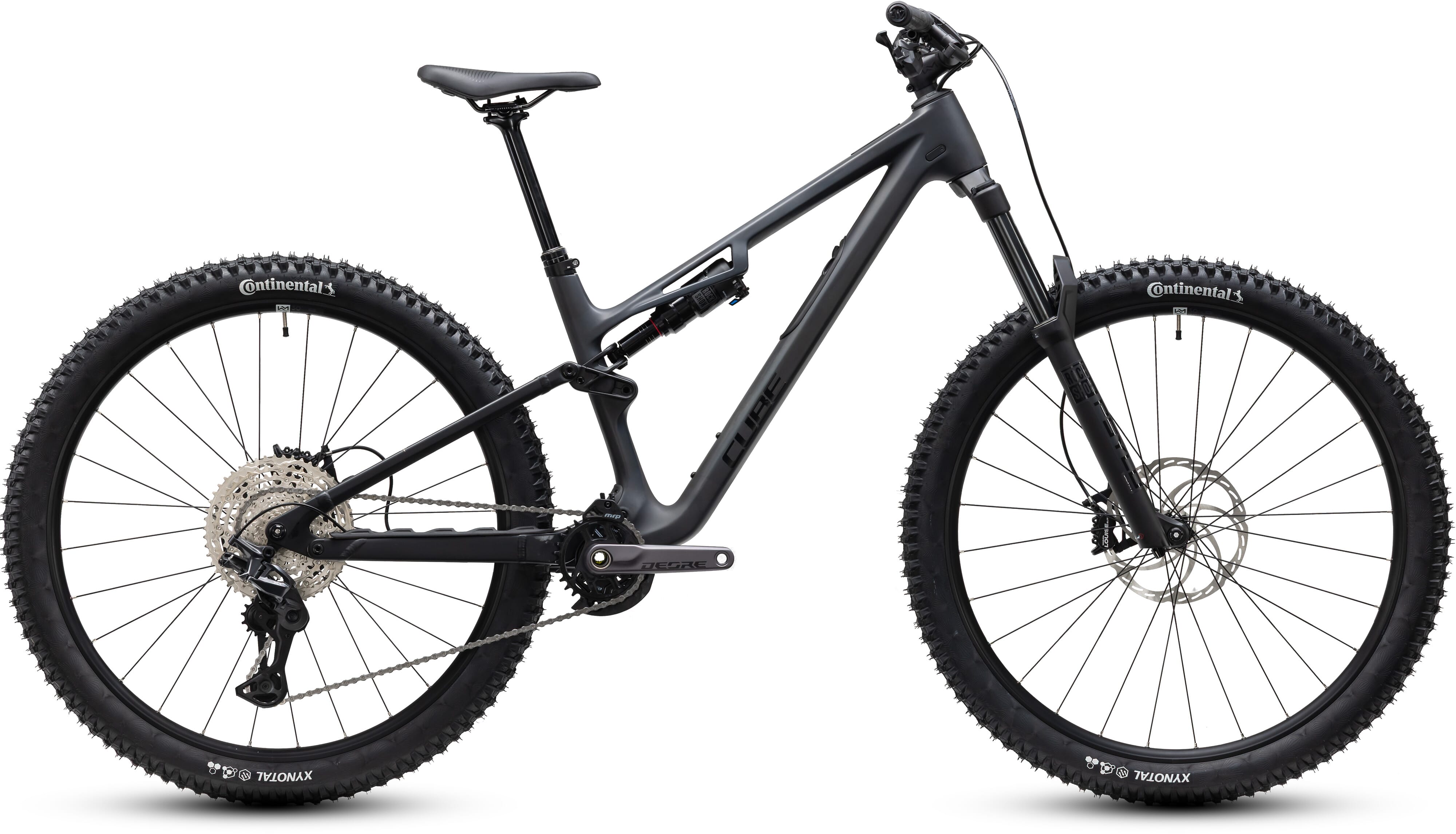

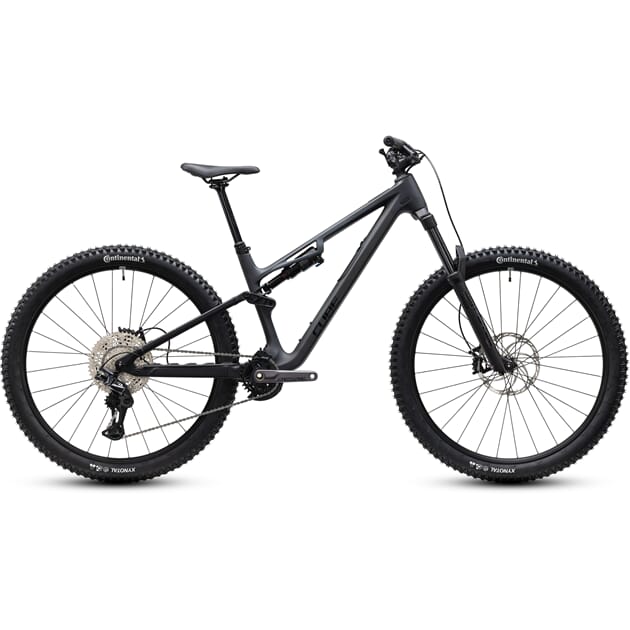

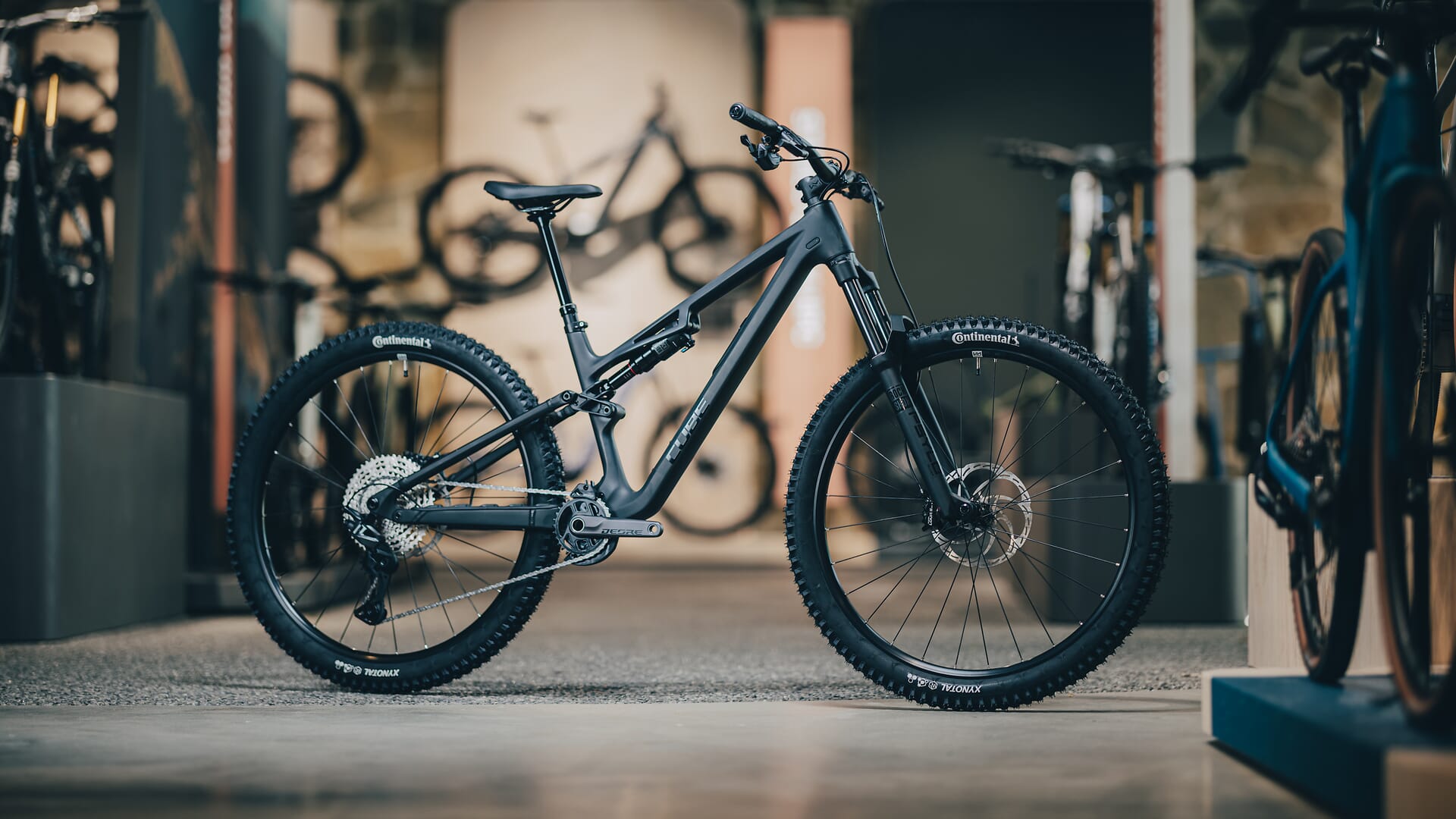

Ready to take on the trails? Because the Stereo HPC Race certainly is. Start with a RockShox Psylo Silver RC fork, and add a matching Deluxe Select+ RT shock for 145mm of rock- and root-swallowing travel at the rear, and 150mm up front. Add a Newmen Performance 30 wheelset shod with Continental's tenaciously grippy Xynotal 2.4in tyres, and hold it all in check with Magura's powerful Louise hydraulic disc brakes. Add Shimano's legendarily reliable XT 1x12 gears. And finish it all off with a dropper seatpost, because you never know what the trail will throw at you. Yeah... it's definitely ready.
Frame
frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, ISCG 05, UDH™

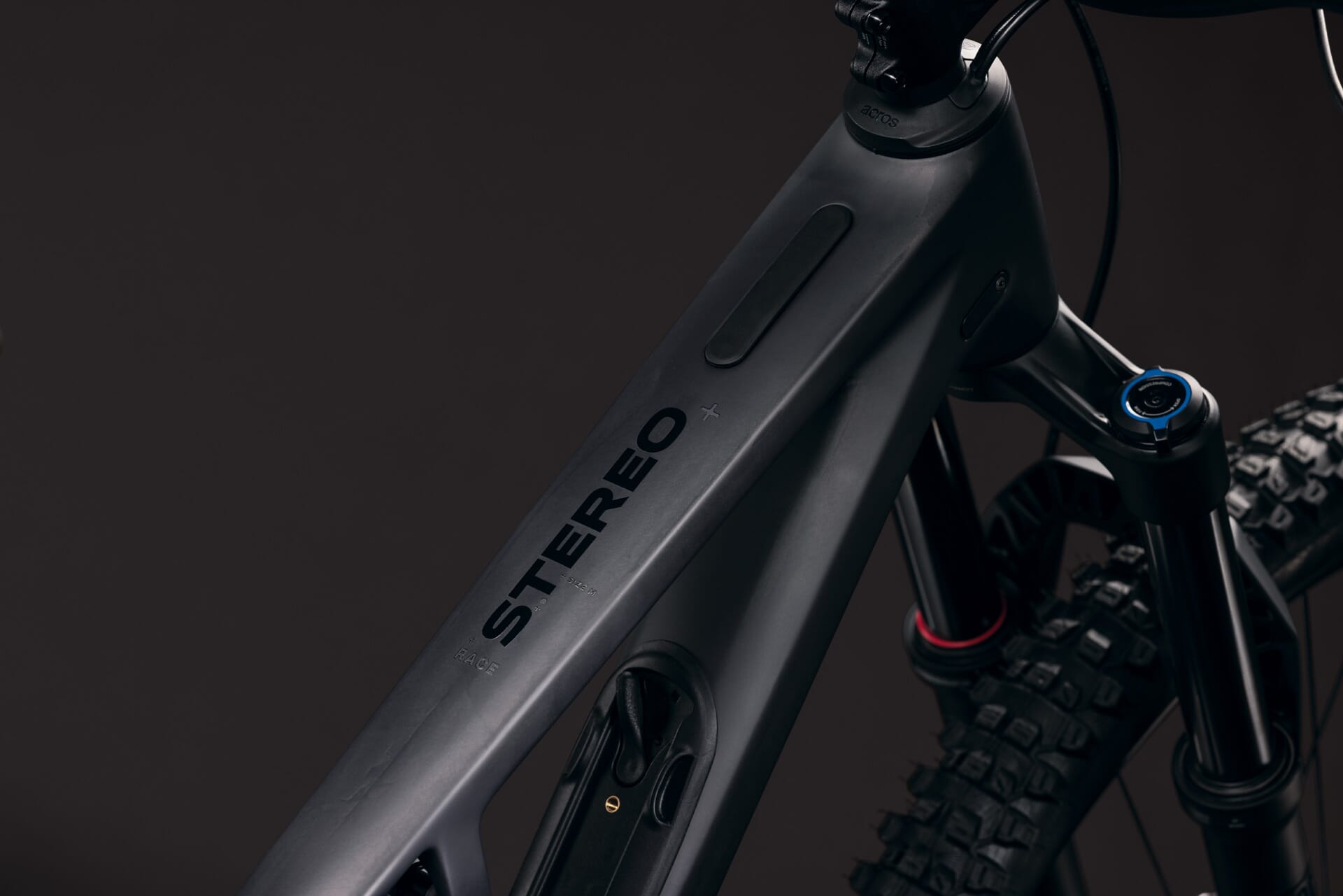

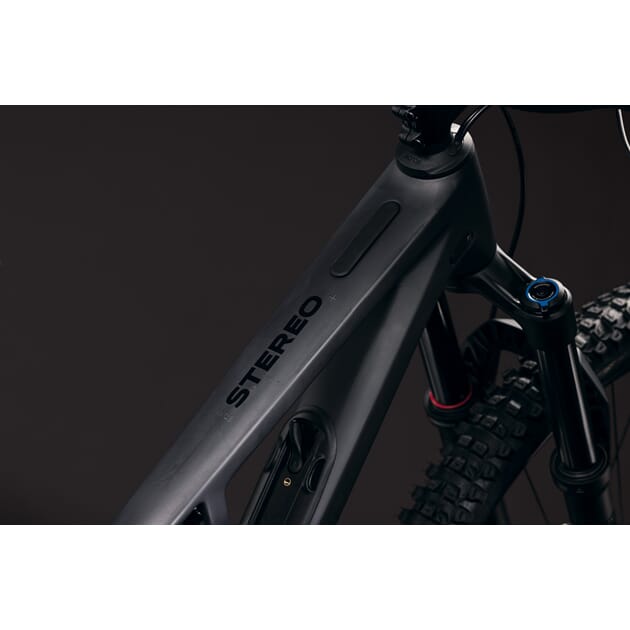

How do you like your cables? Every CUBE Stereo is supplied with Internal Cable Routing because it's neat and unobtrusive, but you can choose to run the cables through the ports on the side of the frame instead for a Semi-Internal setup, if that's more your thing.

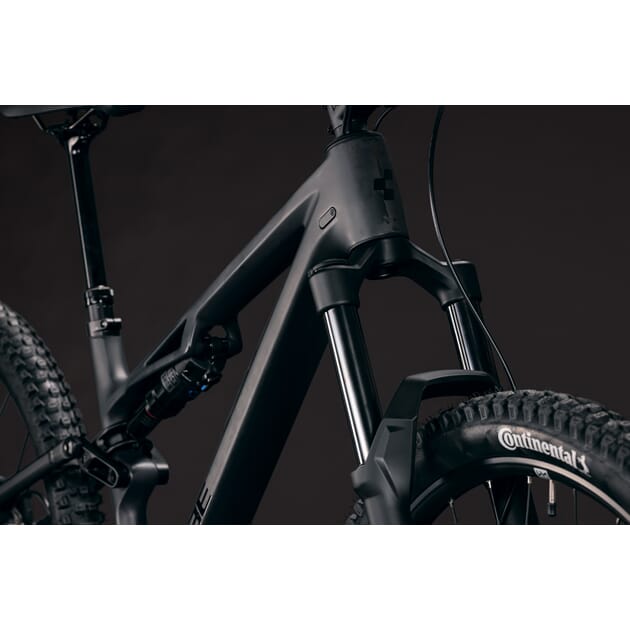

When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
HPC – high performance carbon – enables us to build lighter, stronger and stiffer frames out of this incredibly versatile material. Using a combination of careful frame design and variable lay-up thickness, we're able to fine-tune the performance of each frame to precisely meet our requirements for weight, stiffness, strength and durability.
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.

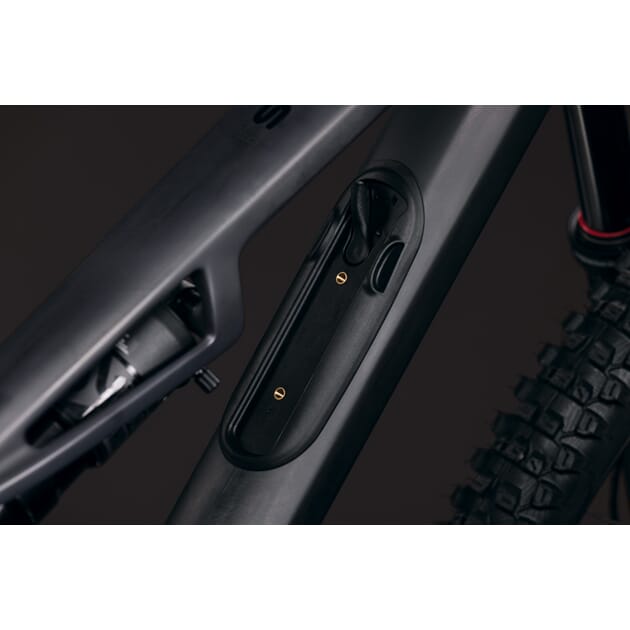

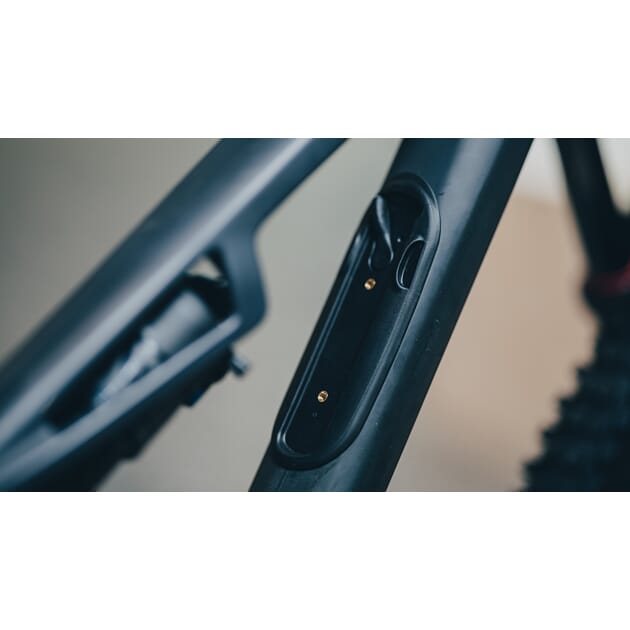

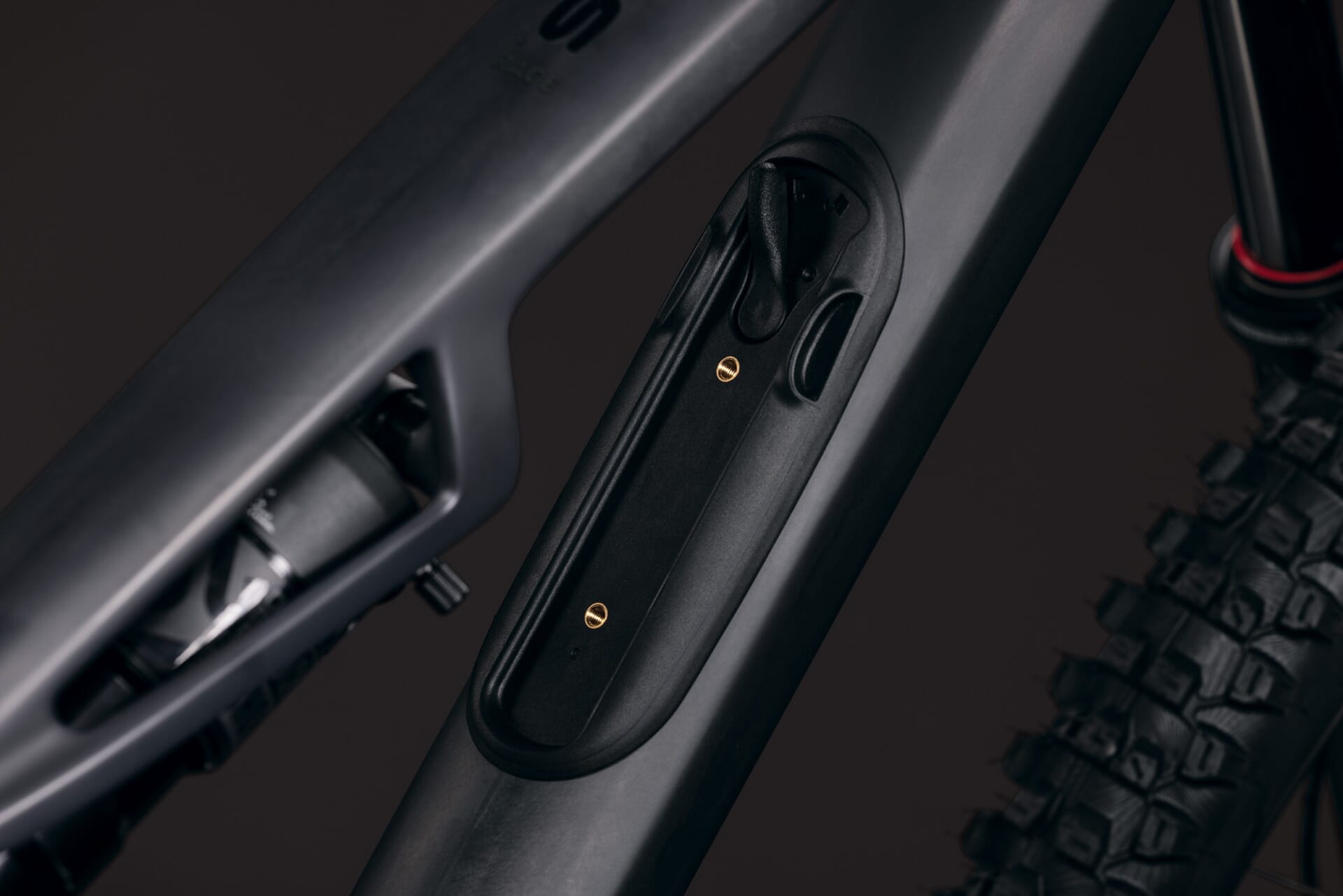

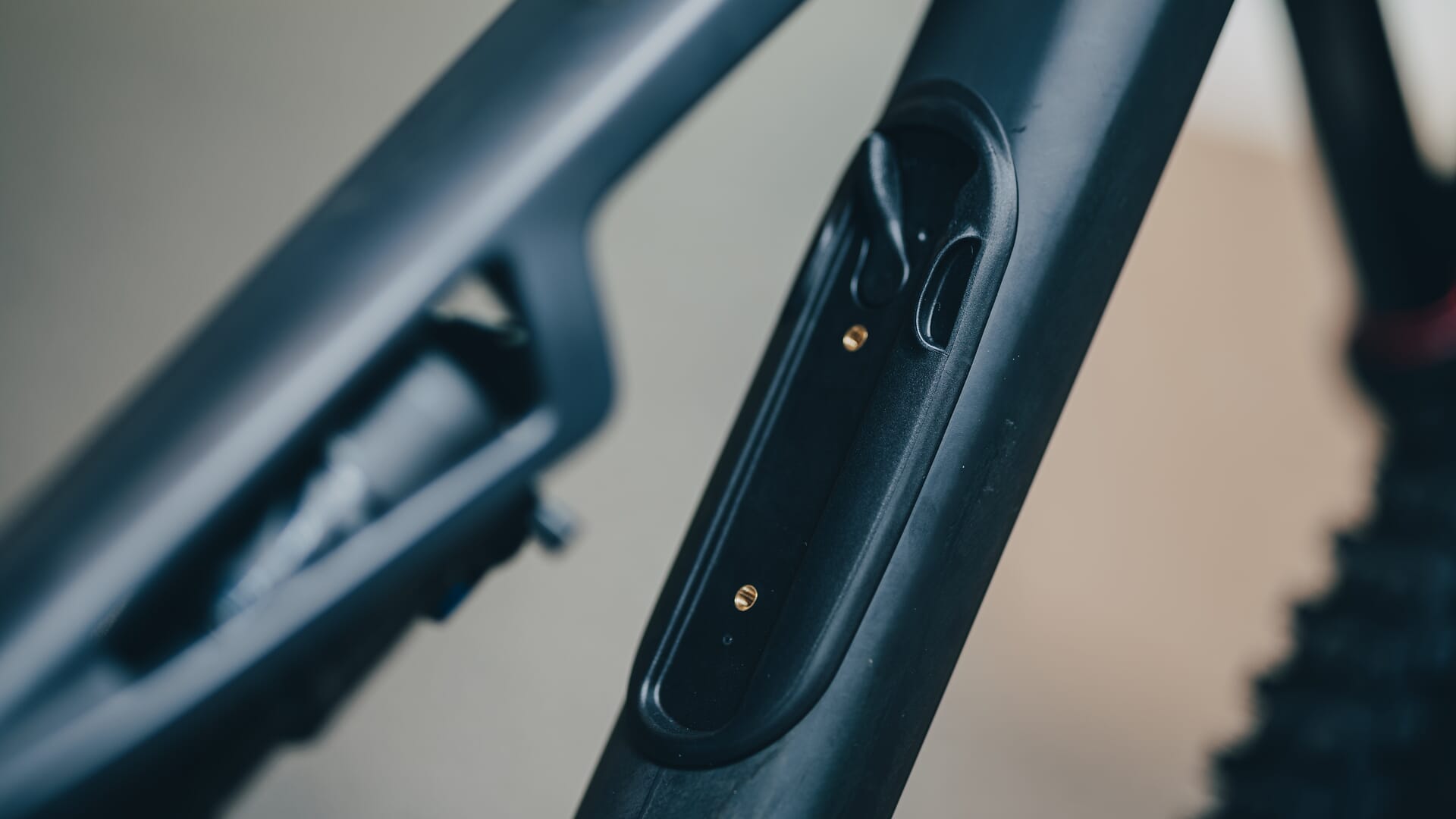

Our Downtube Storage provides an ingenious way of carrying your posessions in a lockable, integrated and secure compartment. With a rain-proof cover and easy access, it's the ideal way to carry anything from a waterproof jacket to some snacks, a pair of gloves... whatever you need.
Suspension

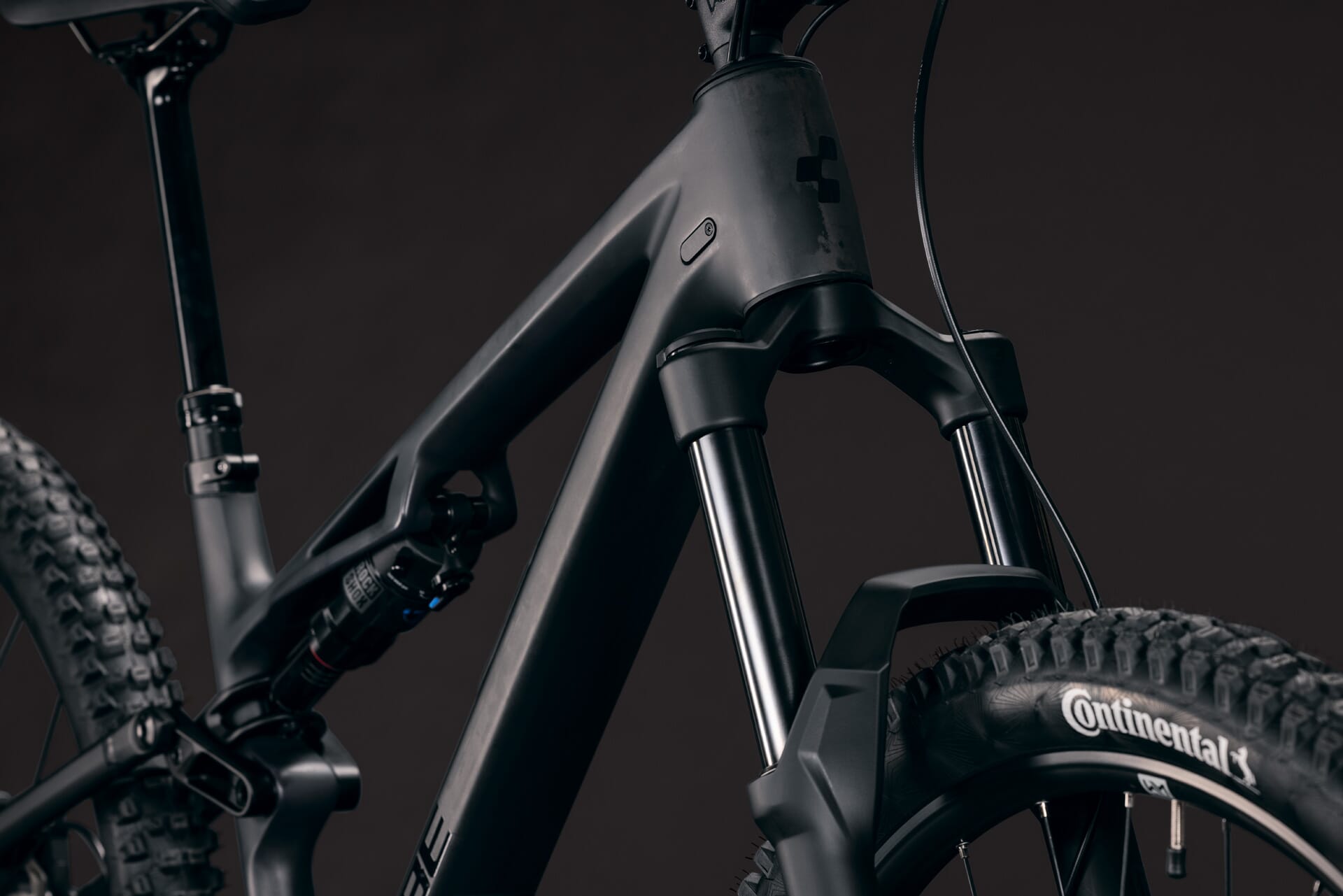

Suspension fork
RockShox Psylo Silver RC Air, Tapered, 15x110mm, 150mm

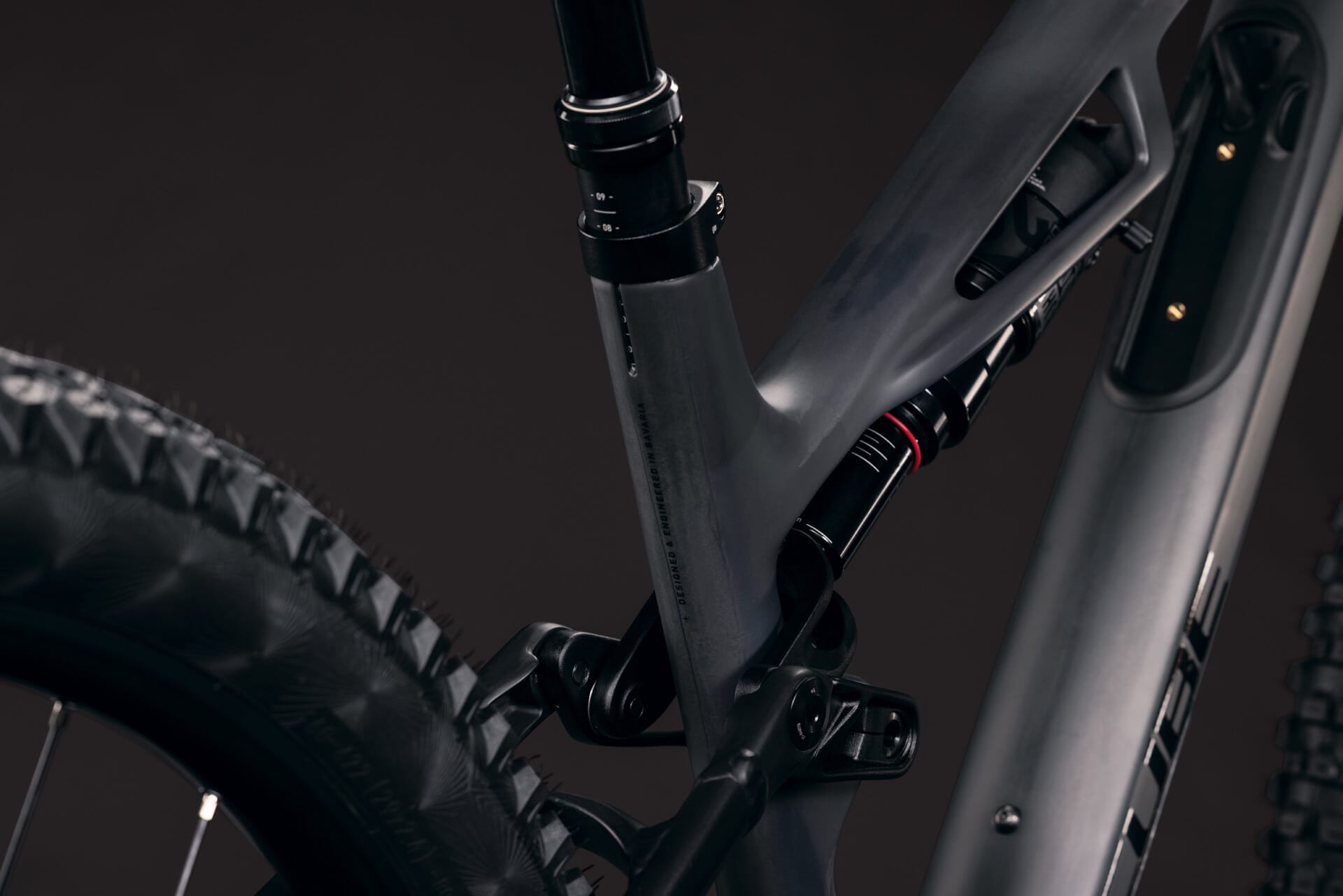

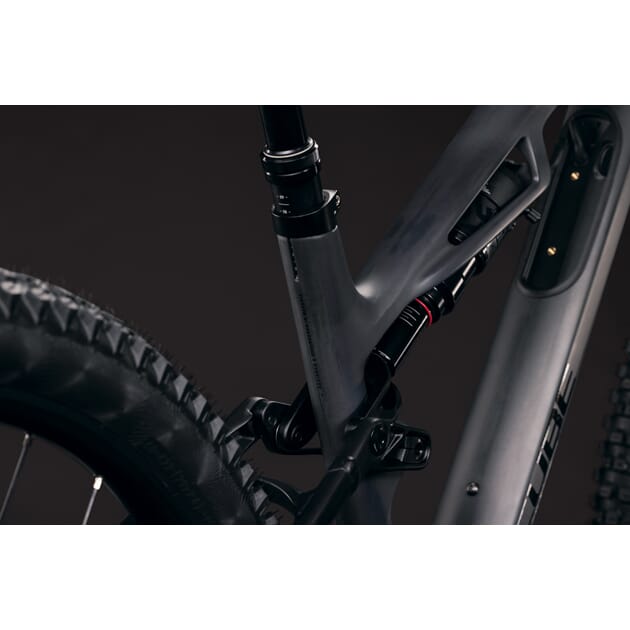

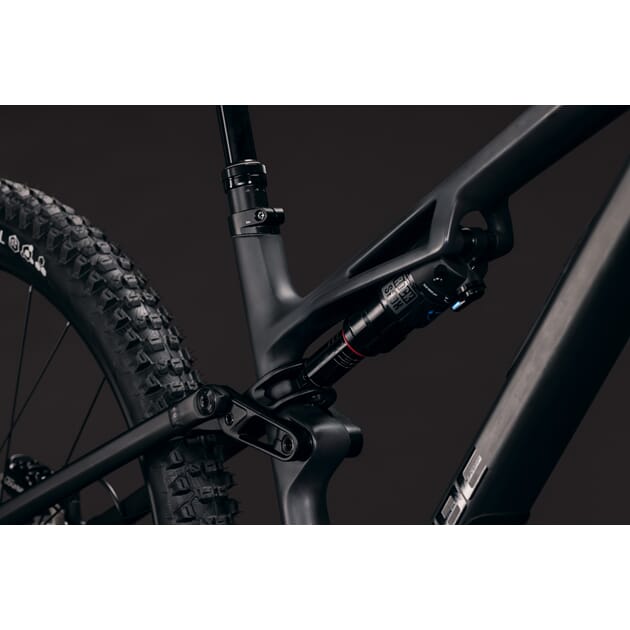

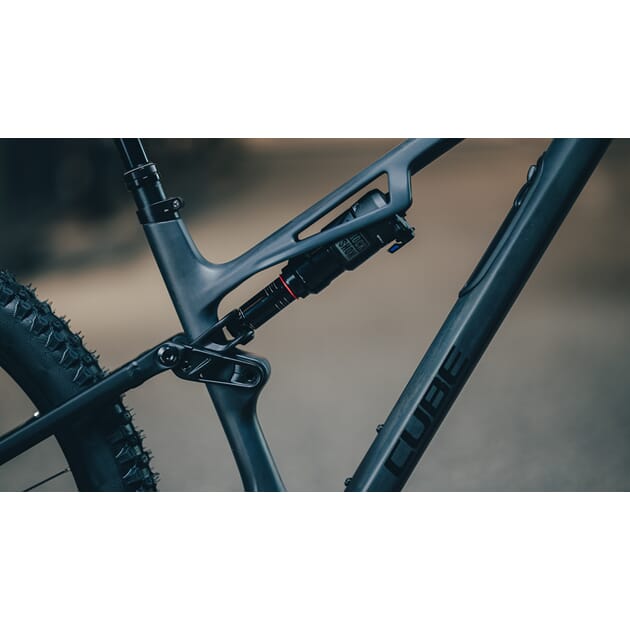

shock

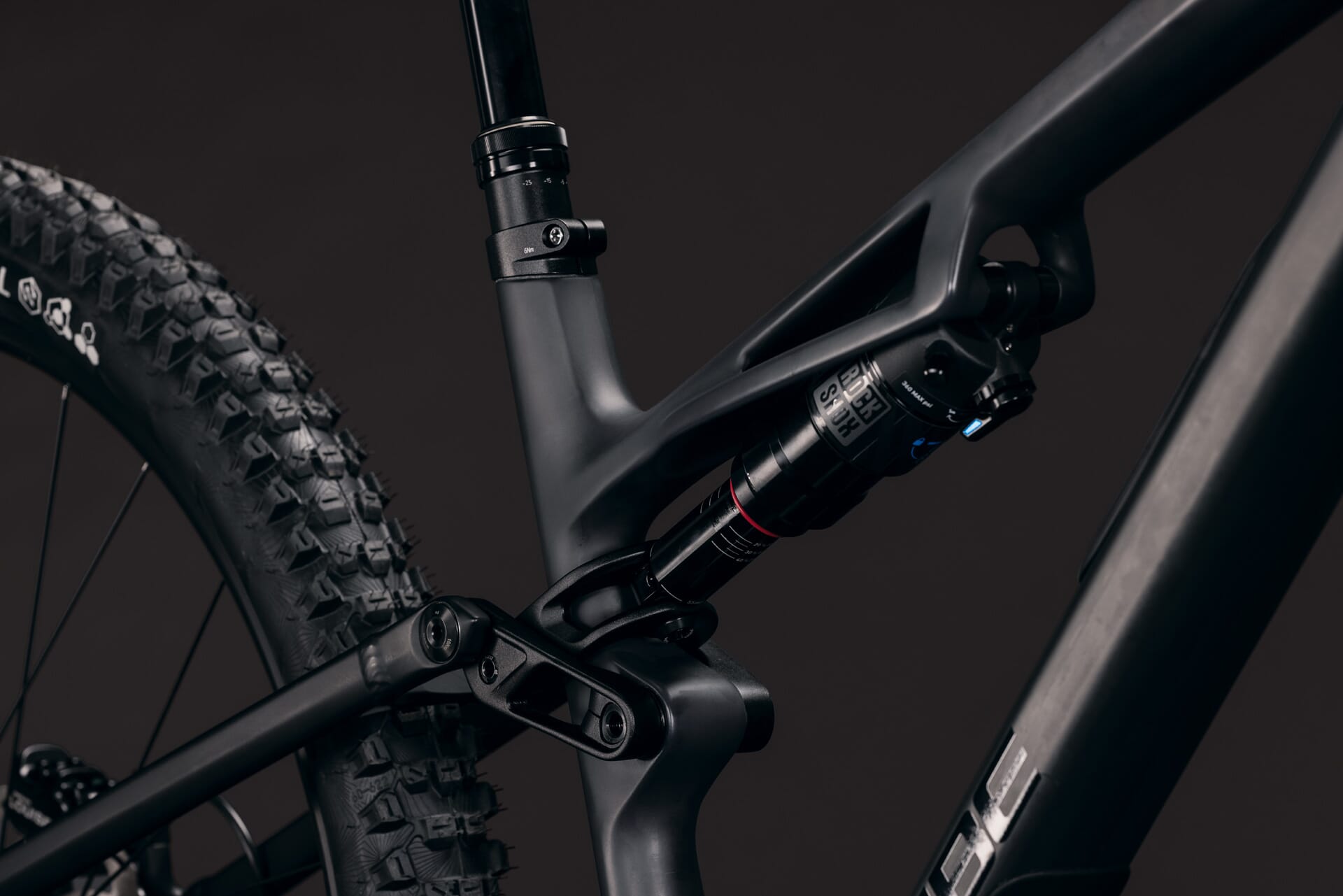

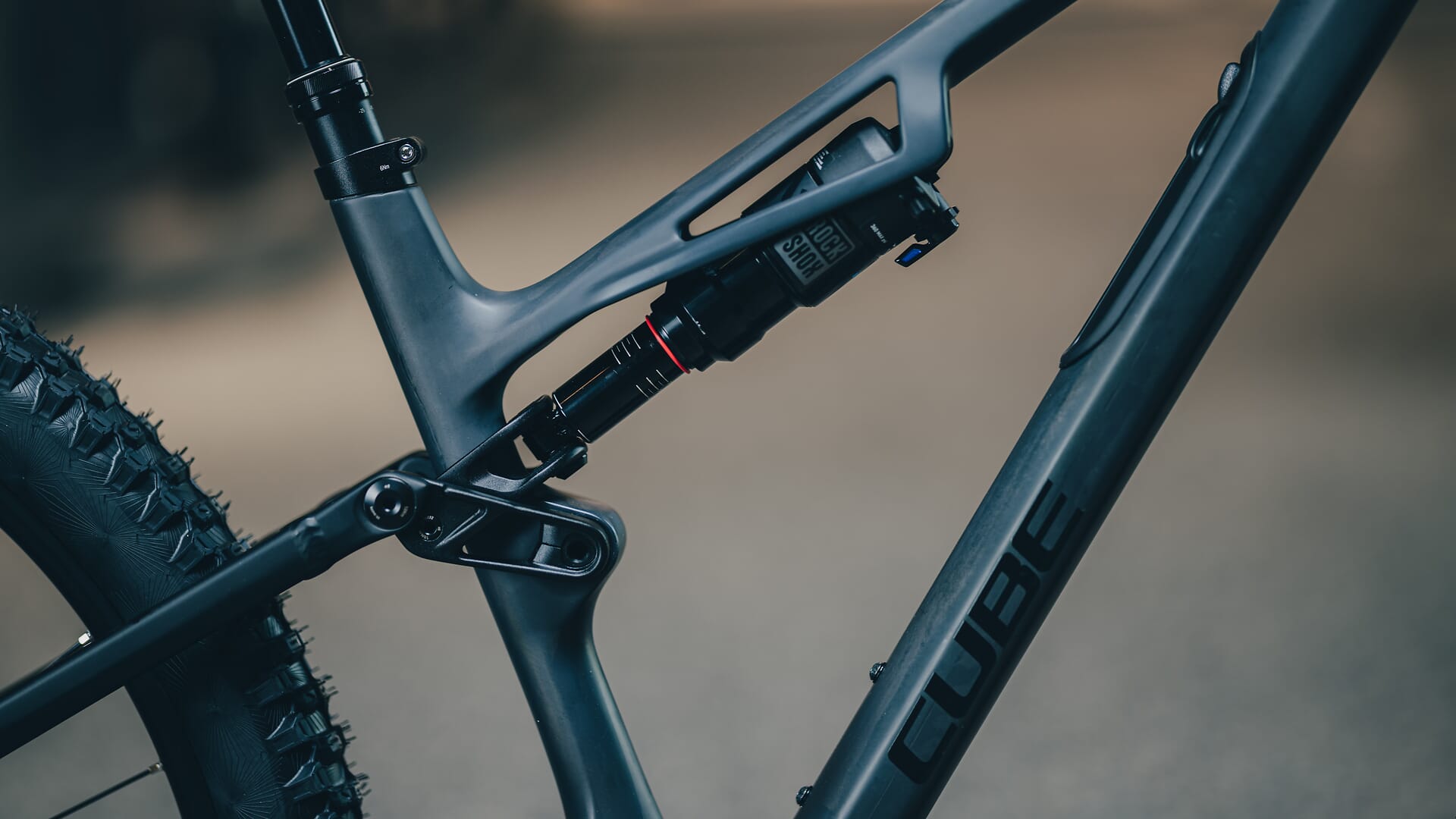

RockShox Deluxe Select+, 210x55mm, Rebound/Compression Adjust, 2-Position Lever
shock hardware
Front: 35x8mm, Rear: w/o DU-Bushing 15 mm
Drivetrain & brakes
brake system

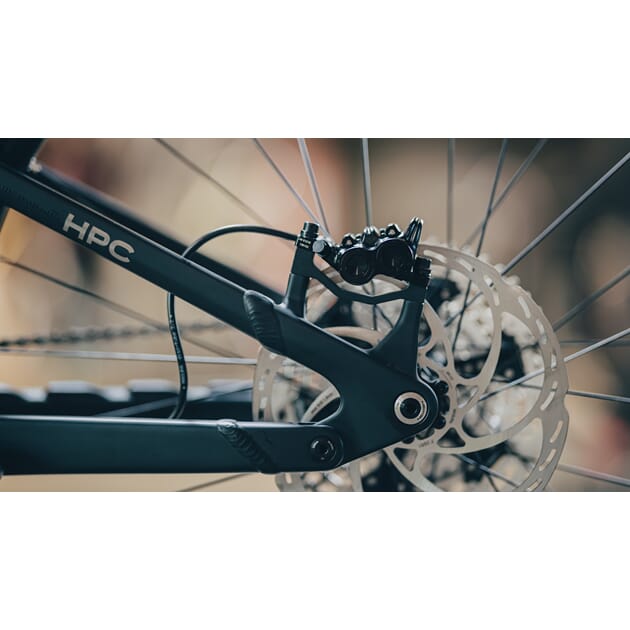

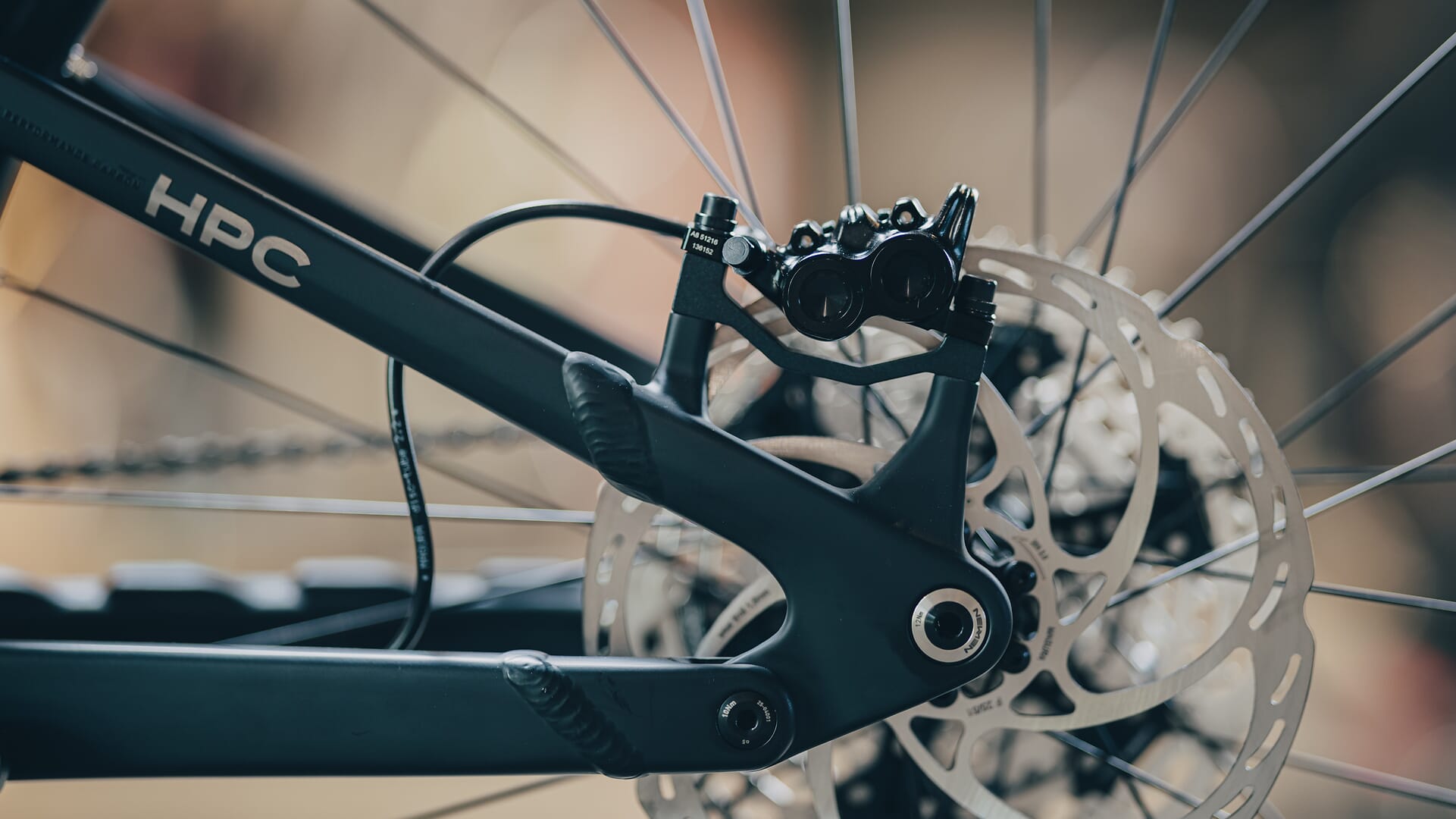

Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
rear derailleur

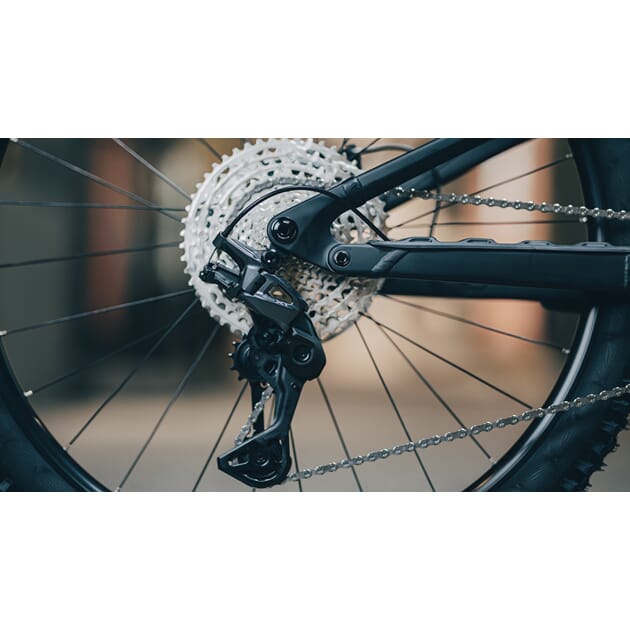

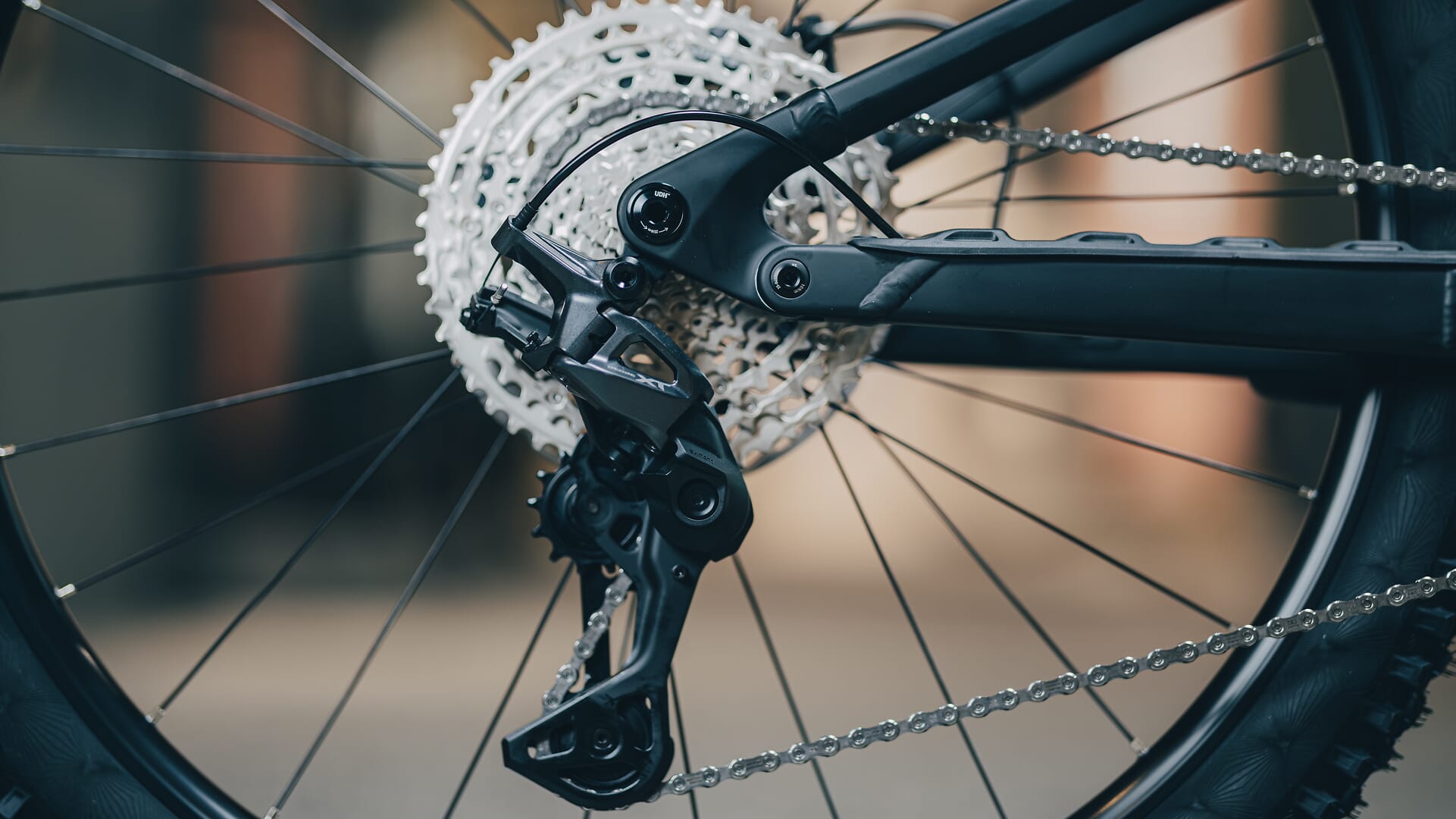

Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
shifters
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
bottom bracket
Shimano BB-MT501, 73mm BSA
crankset

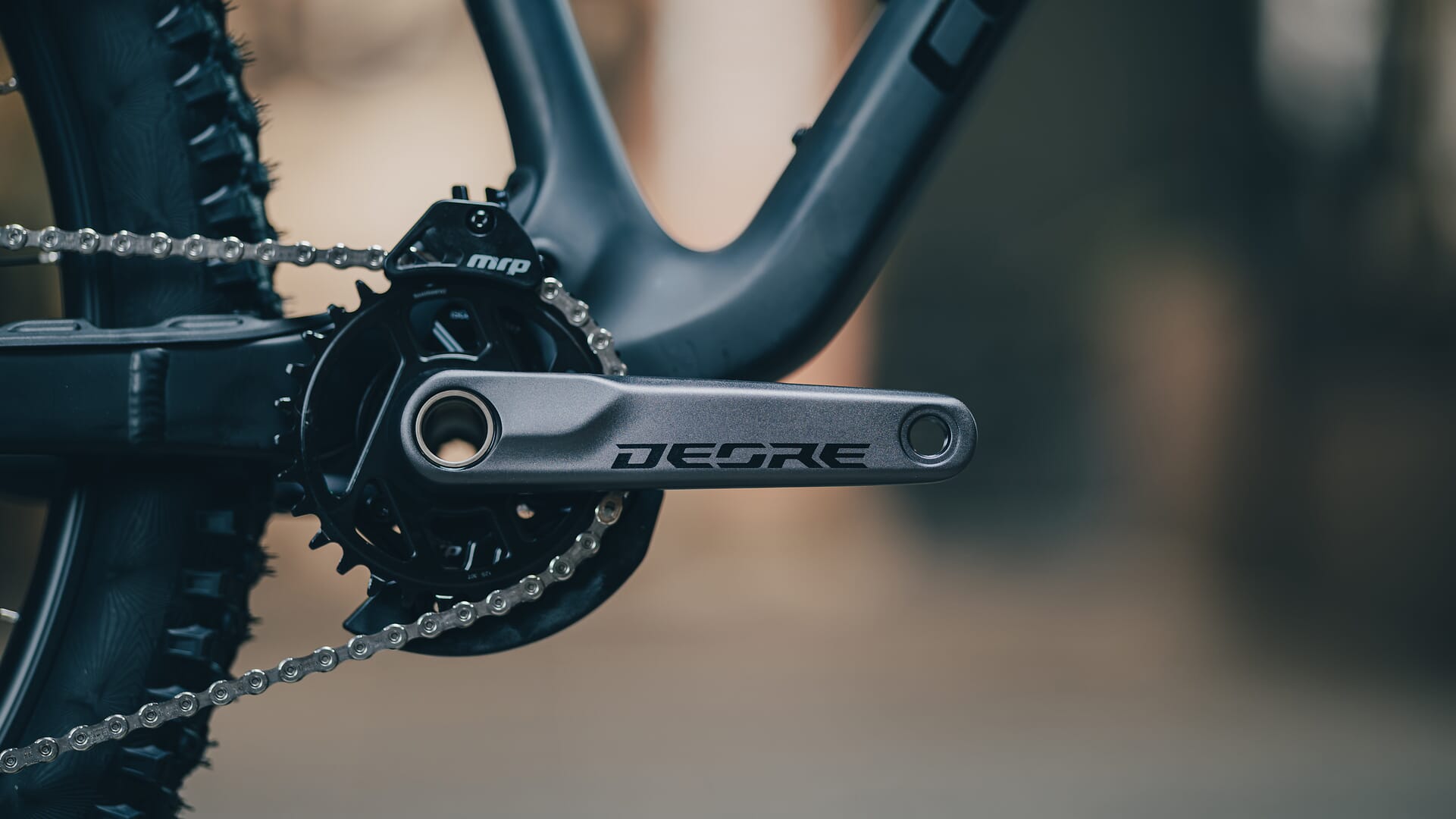

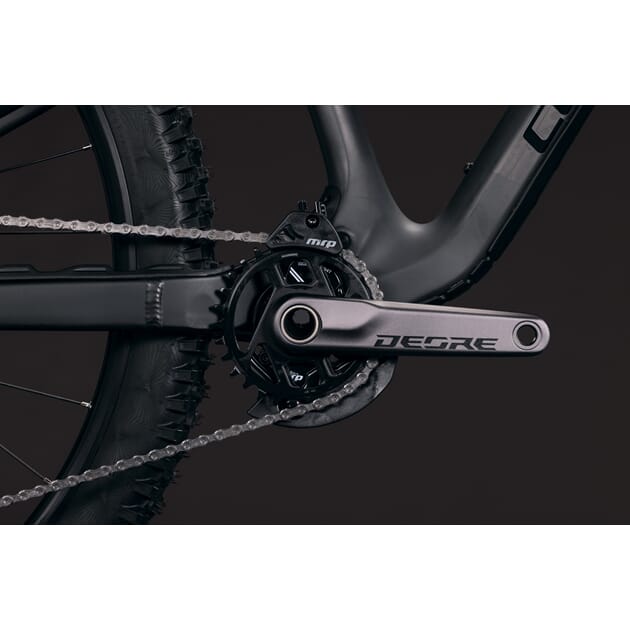

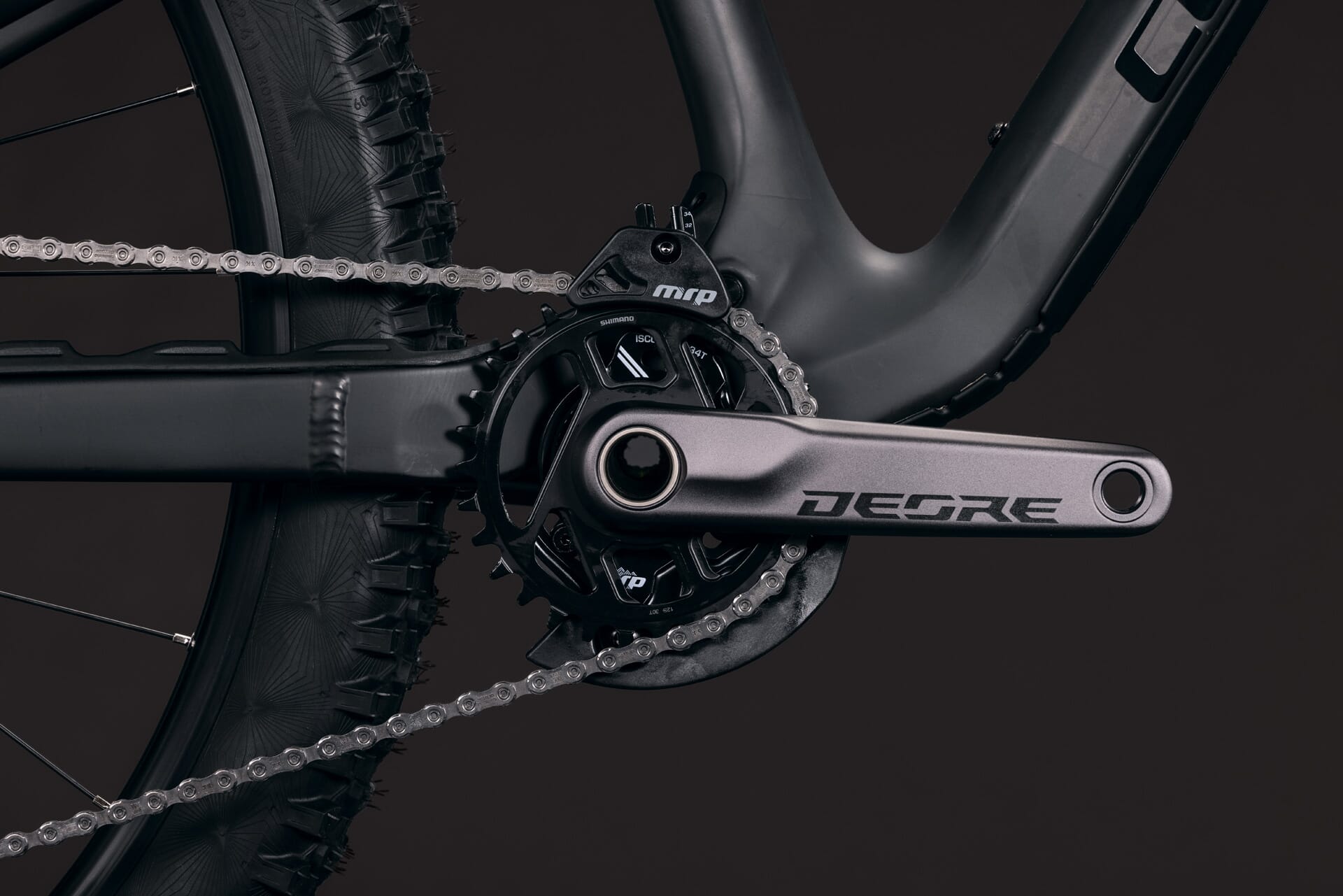

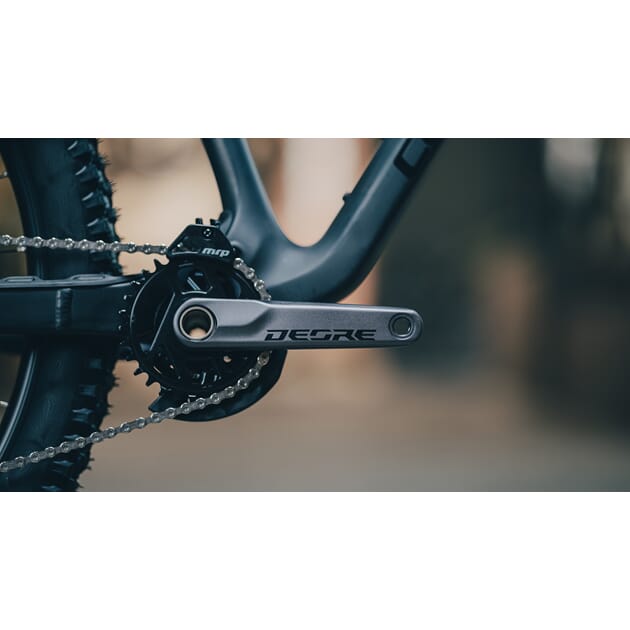

Shimano Deore FC-M6200, Hollowtech II, 30T
cassette
Shimano Deore CS-M6200, 10-51T
Cockpit
headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem
Newmen Evolution 318.4, 31.8mm
handlebar
Newmen Beskar 318.40, 800mm
Wheels
wheelset
Newmen Performance 30 base/base, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
tyres
Conti Xynotal, Enduro Soft, Tubeless Ready, 2.4
Finishing kit
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, Travel Adjust, 31.6mm
