ADVENTURE WAITS AT THE NEXT CORNER

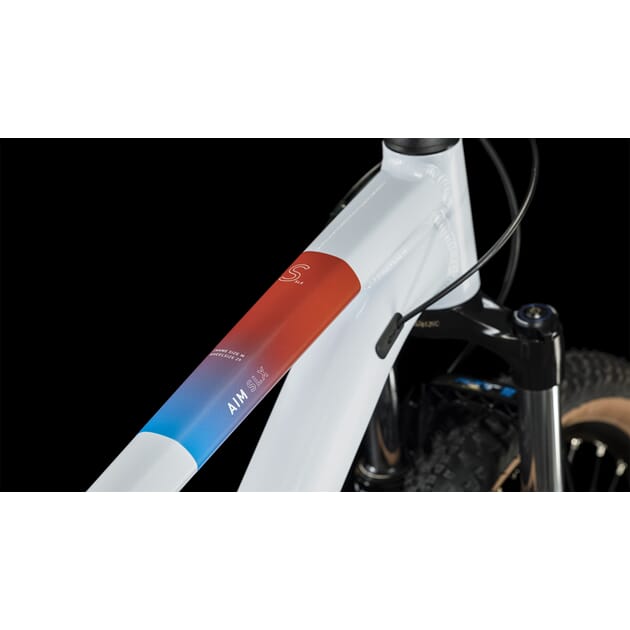

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
A LITTLE EXTRA ATTENTION TO DETAIL CAN GO A LONG WAY. WITH THE EXTRA CONTROL AND COMFORT OF A ROCKSHOX SUSPENSION FORK UP FRONT, THE AIM SLX GIVES YOU THE CONFIDENCE, COMFORT AND CONTROL YOU NEED TO EXPLORE JUST THAT LITTLE BIT FURTHER. GO ON... INDULGE YOUR ADVENTUROUS SIDE...

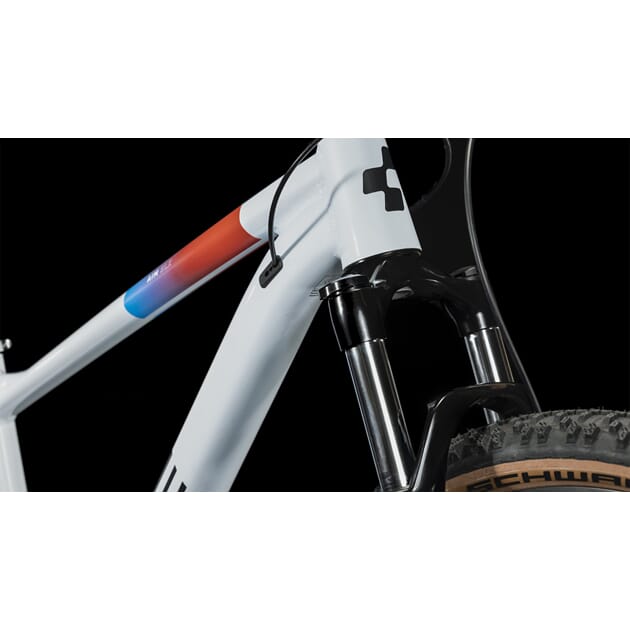

You know that saying, 'power is nothing without control?' Well, that's why we gave the Aim SLX 100mm of smooth, RockShox-flavoured bump-swallowing travel – with lockout. Combined with strong hydraulic disc brakes, tapered head tube and tenaciously grippy 2.25in tyres, it's the best way of ensuring you're always in full control, wherever your curiosity takes you. Wide-range 2x9 gears put the ideal ratio for any route at your fingertips, and the frame's even ready for a future dropper post upgrade. What's holding you back?
FRAME
· FRAME
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
· SIZE
Size L (20"), XL (22"), XXL (24")
SUSPENSION
· SUSPENSION FORK
RockShox Judy Silver TK Coil, 100mm, Lockout
DRIVETRAIN & BRAKES
· BRAKE SYSTEM
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
· REAR DERAILLEUR
Shimano RD-M3100-SGS, 9-Speed
· FRONT DERAILLEUR
Shimano FD-M2020, Top Swing, 31.8mm Clamp
· SHIFTERS
Shimano SL-M2010-9R, Rapidfire-Plus
· BOTTOM BRACKET
Thun Paso-ML, 73mm BSA
· CRANKSET
Shimano FC-MT101, 36x22T
· CASSETTE
Shimano CS-HG201, 11-36T
· CHAIN
KMC X9
COCKPIT
· HANDLEBAR
CUBE Rise Trail Bar, 680mm
· STEM
CUBE Performance Stem Race, 31.8mm
· GRIPS
ACID React
· HEADSET
CUBE FPH868, Semi-Integrated
WHEELS
· FRONT HUB
Shimano HB-TX505, QR, Centerlock
· REAR HUB
Shimano FH-TX505, QR, Centerlock
· RIMS
CUBE ZX20, 32H, Disc
· TYRES
Schwalbe Smart Sam, Active, 2.25
FINISHING KIT
· SEAT POST
CUBE Performance Post, 27.2mm
· SADDLE
Natural Fit Venec Lite
· PEDALS
ACID PP MTB
PRODUCT INFORMATION
· WEIGHT
13,8 kg
· COLOUR
white´n´blue´n´red
