ENJOY
THE RIDE

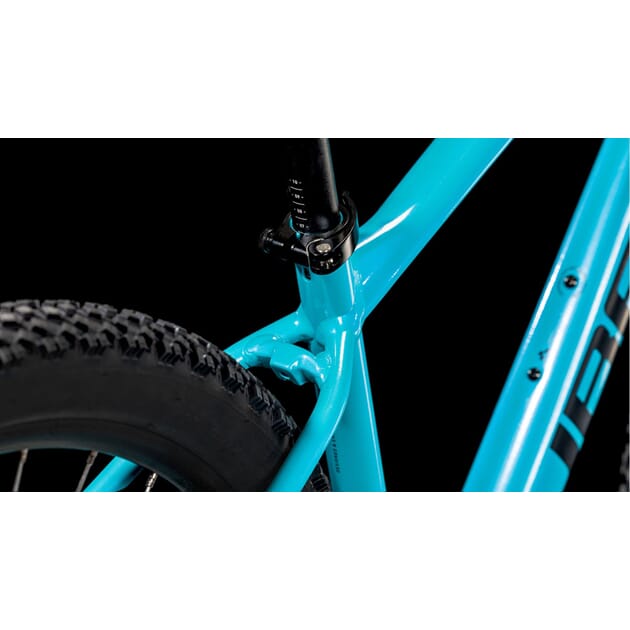

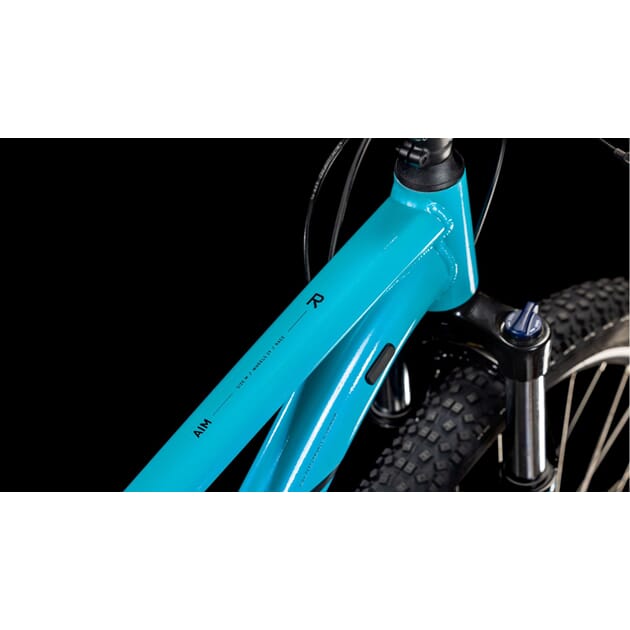

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Carefully thought out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
The Aim Race is the adaptable bike you never knew you needed, but will wonder how you managed without. From the lockout-equipped suspension fork to powerful disc brakes, it's got your back on any ride from the weekday commute to weekend forays into the great outdoors.

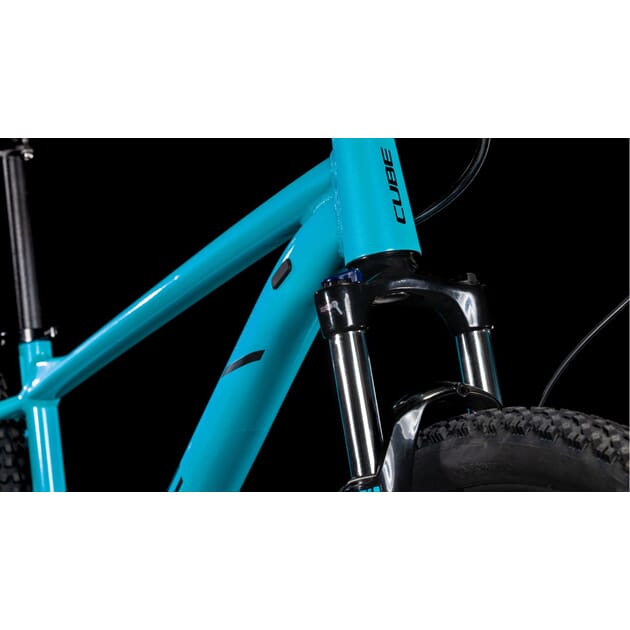

The devil is in the details. At CUBE we know that only too well, which is why the Aim Race's 100mm suspension fork features a lockout – so you can reduce bob and bounce when you're riding hard. With grippy tyres, powerful Shimano hydraulic disc brakes and the wide range of Shimano's Cues 10-speed gears, you've all you need to build your own adventure. And, with Size Split, there's an Aim Race that'll fit you perfectly.
FRAME
· FRAME
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
· SIZE
Size Split: 27.5: XS, S // 29: M, L, XL, XXL
SUSPENSION
· SUSPENSION FORK
SR Suntour XCT Disc, 100mm, Lockout
DRIVETRAIN & BRAKES
· BRAKE SYSTEM
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
· REAR DERAILLEUR
Shimano Cues RD-U6000-GS, 10-Speed
· SHIFTERS
Shimano Cues SL-U6000, Rapidfire-Plus
· BOTTOM BRACKET
Thun Paso-ML, 73mm BSA

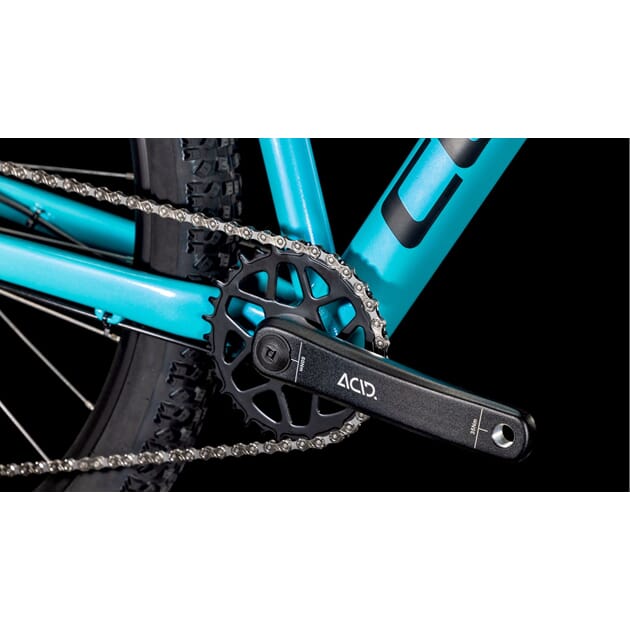

· CRANKSET
ACID, 32T, 170mm
· CASSETTE
Shimano Cues CS-LG400, 11-48T
· CHAIN
KMC eGlide
COCKPIT
· HEADSET
CUBE FPH868p, Tapered, Semi-Integrated
· STEM
CUBE Performance Stem, 31.8mm
· HANDLEBAR
CUBE Rise Trail Bar, 680mm
· GRIPS
ACID React
WHEELS
· RIMS
CUBE EX25, 32H, Disc, Tubeless Ready
· FRONT HUB
Shimano HB-QC300, QR, Centerlock
· REAR HUB
Shimano FH-QC300-HM, QR, Centerlock
· TYRES
CUBE MTB, 2.25
FINISHING KIT
· SADDLE
ACID Venec Lite
· SEAT POST
CUBE Performance Post, 27.2mm
· PEDALS
CUBE PP MTB
PRODUCT INFORMATION
· COLOUR
swimmingpool´n´black
· WEIGHT
14,5 kg
