THE TRAILHUNTER
The hills are calling, and that means you need a bike that's up to the job. The Stereo Hybrid 140 HPC Pro 750's fourth-generation Bosch CX motor and 750Wh battery won't let you down. Paired with the reliable shifting and wide range of Shimano's Deore 1x11 gears, it'll make light work of any climb. And for the way back down you've 150mm of travel from the RockShox Recon Silver air fork up front, paired with 140mm from the RockShox Deluxe Select shock at the rear. Grippy Schwalbe 2.6in tyres hook you up to the trail, while powerful Magura MT Thirty hydraulic disc brakes with four-piston calipers and 203mm rotors ensure you're always in full control. It's up for it. Are you?
OUR TRAIL-TAMING STEREO HYBRID 140 HPC PRO 750 PACKS A HUGE PUNCH INTO EVERY FRAME SIZE – INCLUDING THE SMALLEST. WITH ITS LARGE-CAPACITY BATTERY AND SOPHISTICATED, POWERFUL, FOURTH-GENERATION BOSCH CX DRIVE UNIT, THE ADDITION OF CUBE KINEMATICS AND 140MM REAR AND 150MM FRONT WHEEL TRAVEL OPENS UP ALMOST LIMITLESS POSSIBILITIES.

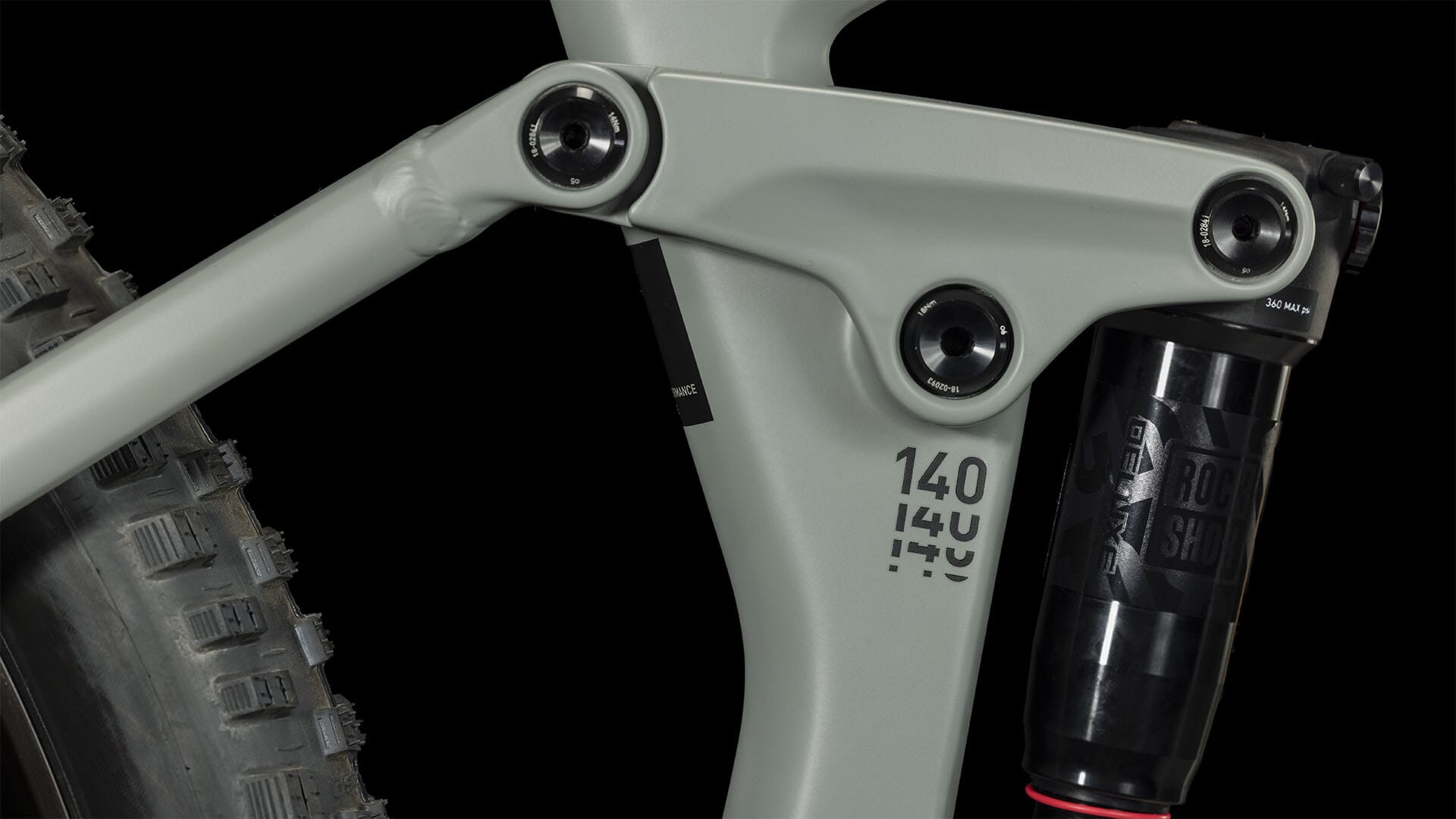

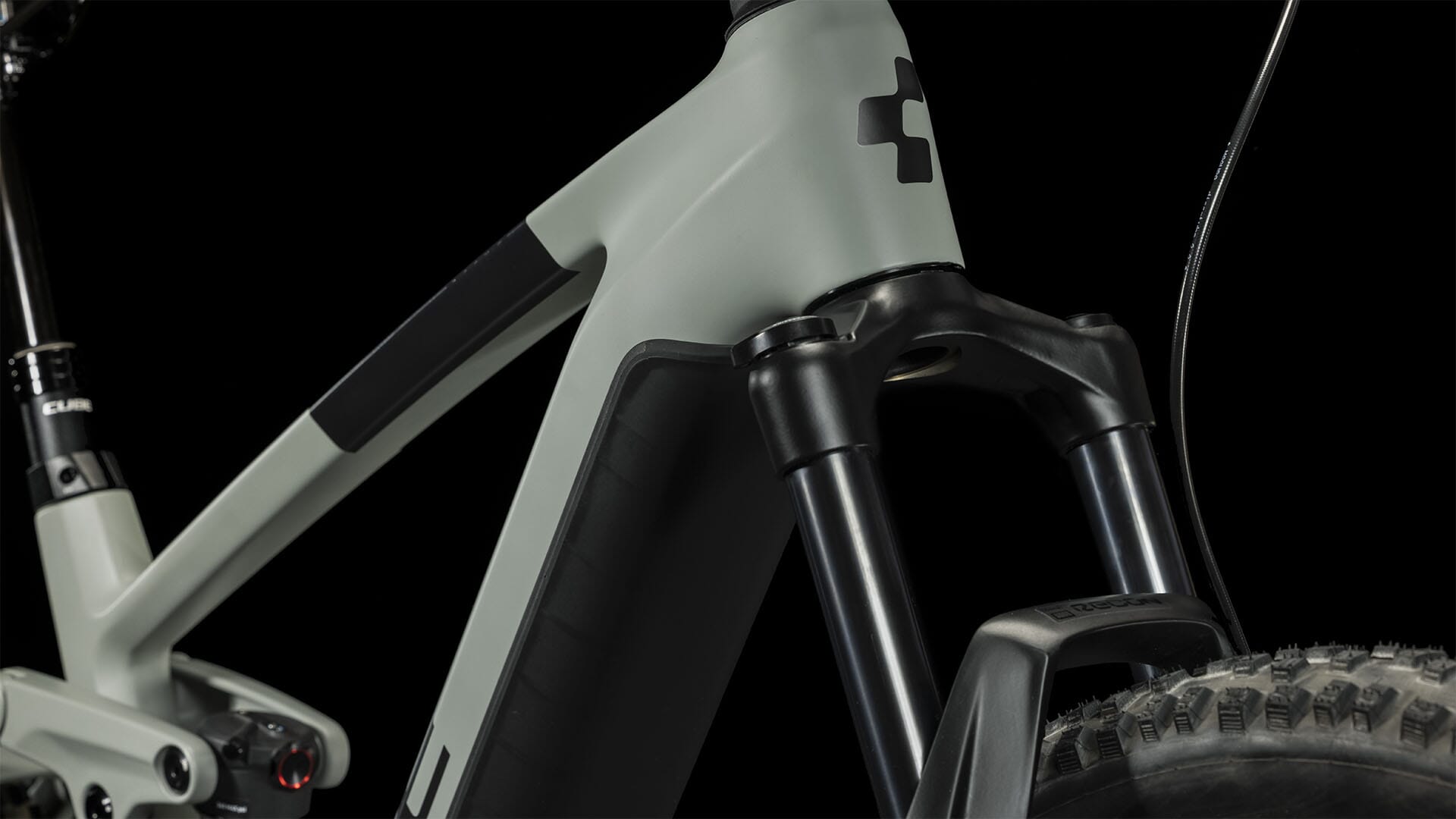

Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
FRAME
· FRAME
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
· SIZE
Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
SUSPENSION
· SUSPENSION FORK
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout
· SHOCK
RockShox Deluxe Select, 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount
· SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
E-BIKE SYSTEM
· DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
· BATTERY
Bosch PowerTube 750
· REMOTE
Bosch LED Remote
· CHARGER
Bosch 4A
DRIVETRAIN & BRAKES
· BRAKE SYSTEM
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
· REAR DERAILLEUR
Shimano Deore RD-M5100-SGS, 11-Speed
· SHIFTERS
Shimano Deore SL-M5100, Rapidfire-Plus
· CRANKSET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
· CHAIN GUIDE
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
· CASSETTE
Shimano Deore CS-M5100, 11-51T
· CHAIN
KMC X11
COCKPIT
· HANDLEBAR
Newmen Evolution SL 318.25, 760mm
· STEM
CUBE Performance Stem E-MTB, 31.8mm
· GRIPS
ACID React Pro
· HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
· FRONT HUB
Shimano HB-MT400-B, 15mm, Boost, Centerlock
· REAR HUB
Shimano FH-MT400-B, 12mm, Boost, Centerlock
· RIMS
Rodi Tryp 30, 32H, Disc, Tubeless Ready
· TYRES
Schwalbe Nobby Nic, PerfL, 2.6
FINISHING KIT
· SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
· SADDLE
Natural Fit Venec
PRODUCT INFORMATION
· WEIGHT
24,5 kg
· COLOUR
swampgrey´n´black
